98

Driving

–  The level of charge in the battery must be

sufficient.

–  The temperature of the engine must be within

its nominal operating range.

–  The outside temperature must be between

0°C and 35°C.

Putting the engine into standby

(STOP mode)

The engine automatically enters standby mode

as soon as the driver indicates their intention to

stop:

–

With a manual gearbox

: with the gear lever

in neutral and the clutch pedal released.

–

With an automatic gearbox

: with the gear

selector in mode

D

 or

M

, the brake pedal

depressed until the vehicle stops or the gear

selector in mode

N

, with the vehicle stationary.

Time counter

A time counter adds up the time spent in standby

during the journey. It is reset to zero every time

the ignition is switched on.

Special cases:

The engine will not go into standby if the

conditions for operation are not met and in the

following cases:

–  Steep slope (ascending or descending).

–  Vehicle has not exceeded 6 mph (10 km/h)

since the last engine start (with the key or the

START/STOP

 button).

–  Needed to maintain a comfortable temperature

in the passenger compartment.

–  Demisting active.

In these cases, this indicator lamp flashes

for a few seconds, then goes off.

After the engine has restarted, STOP

mode is not available until the vehicle

has reached a speed of 5 mph (8 km/h).

During parking manoeuvres, STOP mode

is not available for a few seconds after

coming out of reverse gear or turning the

steering wheel.

Restarting the engine (START mode)

The engine automatically restarts as soon as the

driver indicates the intention of moving off again:

With a manual gearbox

: with the clutch pedal

fully depressed.

With an automatic gearbox:

–  With the selector in mode

D

 or

M

: with the

brake pedal released.

–  With the selector in mode

N

 and the brake

pedal released: with the selector at

D

 or

M

.

–  With the selector in mode

P

 and the brake

pedal depressed: with the selector at

R

,

N

,

D



or

M

.

–  With reverse gear engaged.

Special cases

The engine will restart automatically if the

conditions for operation are met again and in the

following cases:

–  With a manual gearbox: vehicle speed

exceeds 2.5 mph (4 km/h).

–  With an automatic gearbox, in mode

N

, vehicle

speed exceeds 0.6 mph (1 km/h).

In these cases, this indicator lamp flashes

for a few seconds, then goes off.

Malfunctions

In the event of a fault with the system, this

warning lamp flashes for a few moments

on the instrument panel, then remains on,

accompanied by the display of a message.

Have it checked by a CITROËN dealer or a

qualified workshop.

The vehicle stalls in STOP mode

All of the instrument panel warning lamps come

on if there is a fault.

►  Switch off the ignition then start the engine

again with the key or the "

START/STOP

" button.

12 V battery

The Stop & Start system requires a

12 V battery of specific technology and

specification.

All work must be carried out only by a

CITROËN dealer or a qualified workshop

99

Driving

6

Tyre under-inflation

detection

This system alerts the driver if one or more tyres

suffer a drop in pressure.

The alert is raised when the vehicle is moving,

not when stationary.

It compares the information given by the wheel

speed sensors with

reference values, which

must be reinitialised every time the tyre

pressures are adjusted or a wheel changed

.

It takes into account the last values stored

during the reinitialisation request. It is therefore

essential that the tyre pressure is correct during

the operation. This operation is the driver’s

responsibility.

The tyre under-inflation detection cannot,

in any circumstances, replace the need

for vigilance on the part of the driver.

This system does not avoid the need to

regularly check the tyre pressures (including

the spare wheel), especially before a long

journey.

Driving with under-inflated tyres, particularly

in adverse conditions (heavy load, high

speed, long journey):

–  worsens road-holding.

–  lengthens braking distances.

–  causes premature wear of the tyres.

–  increases energy consumption.

The inflation pressures defined for the

vehicle can be found on the tyre pressure

label.

For more information on the

Identification

markings

, refer to the corresponding section.

Checking tyre pressures

This check should be done monthly

when the tyres are "cold" (vehicle stopped for

1 hour or after a journey of less than 6 miles

(10 km) at moderate speeds).

Otherwise, add 0.3 bar to the pressures

shown on the label.

Snow chains

The system does not have to be

reinitialised after fitting or removing snow

chains.

Under-inflation alert

This is signalled by the fixed illumination

of this warning lamp, accompanied by an

audible signal and, depending on equipment, the

display of a message.

►  Reduce speed immediately, avoid excessive

steering movements and avoid sudden braking.

►  Stop the vehicle as soon as it is safe to do

so.

The loss of pressure detected may not

always cause visible deformation of the

tyre.

Do not rely on just a visual check.

►  Using a compressor, such as the one in

the temporary puncture repair kit, check the

pressures of all four tyres when cold.

►  If it is not possible to carry out this check

immediately, drive carefully at reduced speed.

►  In the event of a puncture, use the

temporary puncture repair kit or the spare wheel

(depending on equipment).

Driving too slowly may not ensure

optimum monitoring.

The alert is not immediately triggered in the

event of a sudden loss of pressure or tyre

blow-out. This is because analysis of the

values read by the wheel's speed sensors

can take several minutes.

The alert may be delayed at speeds below

25 mph (40 km/h), or when adopting a sporty

driving mode.

The alert is kept active until the system is

reinitialised.

Reinitialisation

►  The system must be reinitialised after any

adjustment to the pressure of one or more tyres,

and after changing one or more wheels.

100

Driving

Before reinitialising the system, make

sure that the pressures of the four tyres

are correct for the conditions of use of the

vehicle and conform to the values written on

the tyre pressure label.

Check the pressures of the four tyres before

performing the reinitialisation.

The system does not advise if a pressure is

incorrect at the time of reinitialisation.

With the vehicle stationary, the system is

reinitialised via the

Driving/Vehicle

 touch

screen menu.

Malfunction

In the event of a malfunction,

these warning lamps light up on

the instrument panel.

A message appears, accompanied by an audible

signal.

In this case, the tyre under-inflation monitoring

function is no longer performed.

Have it checked by a CITROËN dealer or a

qualified workshop.

Non-standard or 'space-saver' spare

wheel

The use of this type of spare wheel may

suspend tyre pressure monitoring.

In this case, the malfunction warning lamp

comes on and disappears once the wheel

has been replaced by one of uniform size (the

same as the others), the pressure readjusted

and the reinitialisation carried out.

ConnectedCAM Citroën

(Depending on country of sale)





This camera, installed at the top of the

windscreen and connected wirelessly, allows

you to:

–  Take photos and videos on demand and share

them.

–  Send the vehicle's GPS coordinates to a

smartphone.

–  Record videos automatically in the event of a

vehicle impact.

As the use of the ConnectedCAM

Citroën

®

 is under your control and your

responsibility, you must comply with the

regulations for the protection of personal data

(e.g. images of other people, vehicle number

plates, protected buildings, etc.). Check first

that your insurance company accepts the

footage collected from the ConnectedCAM

Citroën

®

 as evidence.

Without exception, any action which the

driver takes concerning the camera must

be

with the vehicle stationary

.

Operation

To use all camera functions, you must perform

the following operations:

►  Download the

ConnectedCAM

Citroën

 application onto a smartphone.

►  Pair the smartphone with the camera

following the instructions given by the

application.

Pairing is necessary at the first connection. After

this it will be automatic.

The default pairing code is: "ConnectedCAM".

On/Off

►  Press and hold this button to switch

the camera on/off (confirmed by the

indicator lamp coming on/going off).

When the camera is switched on, video

recording is automatic and permanent.

The status of the function is stored when the

ignition is switched off.

Managing photos and videos

►  Press this button briefly to take a

photo.

An audible signal confirms that the request has

been acknowledged.

►  Press and hold this button to record a video.

101

Driving

6

A micro USB socket also allows the data from

the camera to be saved onto other media such

as computers, tablets, etc.

Thanks to the

ConnectedCAM Citroën



application, you can then automatically and

immediately share your photos and videos on

social networks or by email.

An audible signal confirms that the request has

been acknowledged.

Resetting the system

►  Press and hold these 2 buttons

simultaneously to reset the

system.

This action erases all data recorded in the

camera and reinitialises the camera’s default

pairing code.

 For safety reasons, the driver must not

use the ConnectedCAM Citroën

application from a smartphone while driving.

He or she must perform any action requiring

sustained attention when the vehicle is

stationary.

Malfunction

When a system fault occurs, the indicator

lamp in the button flashes.

Have the system checked by a CITROËN dealer

or a qualified workshop.

Driving and manoeuvring

aids - General

recommendations

Driving and manoeuvring aids cannot, in

any circumstances, replace the need for

vigilance on the part of the driver.

The driver must comply with the Highway

Code, must remain in control of the vehicle in

all circumstances and must be able to retake

control of it at all times. The driver must adapt

the speed to climatic conditions, traffic and

the state of the road.

It is the driver's responsibility to constantly

monitor traffic conditions, assess the distance

and relative speed of other vehicles, and

anticipate their manoeuvres before using the

direction indicator and changing lanes.

These systems do not make it possible to

exceed the laws of physics.

Driving aids

You should hold the steering wheel with

both hands, always use the door and interior

mirrors, always leave your feet close to the

pedals and take a break every 2 hours.

Manoeuvring aids

The driver must always check the

surroundings of the vehicle before and during

the whole manoeuvre, in particular using the

mirrors.

Radar(s)

The operation of the radar(s), along with

any associated functions, may be affected

by the accumulation of dirt (e.g. mud, ice),

in poor weather conditions (e.g. heavy rain,

snow), or if the bumpers are damaged.

If the front bumper is to be repainted, contact

a CITROËN dealer or a qualified workshop;

certain types of paint could interfere with the

operation of the radar(s).





Driving aids camera

This camera and its associated functions

may be impaired or not work if the windscreen

area in front of the camera is dirty, misty,

frosty, covered with snow, damaged or

masked by a sticker.

In humid and cold weather, demist the

windscreen regularly.

Poor visibility (inadequate street lighting,

heavy rain, thick fog, snowfall), dazzle

(headlamps of an oncoming vehicle, low sun,

reflections on a damp road, leaving a tunnel,

102

Driving

alternating shade and light) can also impair

detection performance.

In the event of a windscreen replacement,

contact a CITROËN dealer or a qualified

workshop to recalibrate the camera;

otherwise, the operation of the associated

driving aids may be disrupted.

Other cameras

The images from the camera(s)

displayed on the touch screen or on the

instrument panel may be distorted by the

terrain.

In the presence of areas in shade, or in

conditions of bright sunlight or inadequate

lighting, the image may be darkened and with

lower contrast.

Obstacles may appear further away than they

actually are.

Sensors

The operation of the sensors, as well as

any associated functions, may be disrupted

by noise pollution such as that emitted by

noisy vehicles and machinery (e.g. lorries,

pneumatic drills), by the accumulation of

snow or dead leaves on the road or in the

event of damaged bumpers and mirrors.

When reverse gear is engaged, an audible

signal (long beep) indicates that the sensors

may be dirty.

A front or rear impact to the vehicle can

upset the sensors’ settings, which is not

always detected by the system: distance

measurements may be distorted.

The sensors do not systematically detect

obstacles that are too low (pavements, studs)

or too thin (trees, posts, wire fences).

Certain obstacles located in the sensors’ blind

spots may not be detected or may no longer

be detected during the manoeuvre.

Certain materials (fabrics) absorb sound

waves: pedestrians may not be detected.

Maintenance

Clean the bumpers and door mirrors and

the field of vision of the cameras regularly.

When washing your vehicle at high pressure,

direct the spray from at least 30 cm away

from the radar, sensors and cameras.

Mats/Pedal trims

The use of mats or pedal trims not

approved by CITROËN may interfere with

the operation of the speed limiter or cruise

control.

To avoid any risk of jamming the pedals:

–  Ensure that the mat is secured correctly.

–  Never fit one mat on top of another.

Units of speed

Ensure that the units of speed displayed

on the instrument panel (mph or km/h) are

those for the country you are driving in.

If this is not the case, when the vehicle is

stationary, set the display to the required

units of speed so that it complies with what is

authorised locally.

In case of doubt, contact a CITROËN dealer

or a qualified workshop.

Road signs recognition

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.





This system displays the maximum speed

authorised locally on the instrument panel, using:

–  Speed limit signs detected by the camera.

–  Speed limit information from the navigation

system’s mapping.

103

Driving

6

–  Signs indicating a shared traffic zone detected

by the camera.

Sign detected

Suggested speed

(calculated)

Entry into a shared

traffic zone

Example:





Without CITROËN

Connect Nav

10 mph or 20 km/h

(depending on

the units on the

instrument panel)

With CITROËN

Connect Nav

Display of the speed

in force in the country

you are driving in.

–  Some supplementary traffic signs detected by

the camera.

Supplementary

traffic sign detected

Display of

the speed

associated with

the supplementary

traffic sign

Speed limit when

raining

Examples:





If the wiper control

stalk is in the

"intermittent wipe"

or "automatic wipe"

position (in order

to activate the rain

sensor):

68 mph (110 km/h)

(for example)

Speed limit when

towing





If an approved towing

device is fixed to the

vehicle:

56 mph (90 km/h)

(for example)

Speed limit

applicable over a

certain distance

Example:





43 mph (70 km/h)

(for example)

Supplementary

traffic sign detected

Display of

the speed

associated with

the supplementary

traffic sign

Speed limit for

vehicles with a

gross vehicle

weight or gross

train weight less

than 3.5 tonnes





56 mph (90 km/h)

(for example)

Speed limit in case

of snow

Example:





If the outside

temperature is below

3°C:

19 mph (30 km/h)

(for example)

with a "snowflake"

symbol

Speed limit at

certain times of the

day

Example:





19 mph (30 km/h)

(for example)

with a "clock" symbol

Navigation mapping should be regularly

updated in order to receive accurate

speed limit information from the system.

104

Driving

The units for the speed limit (mph or

km/h) depend on the country you are

driving in.

This should be taken into account to ensure

you observe the speed limit.

For the system to work properly when

changing countries, the speed unit of the

instrument panel must match that of the

country you are driving in.

Automatic sign reading is a driving aid

system and does not always display the

correct speed limits.

The speed limit signs present on the road

always take priority over those displayed by

the system.

The system is designed to detect signs that

conform to the Vienna Convention on road

signs.

Specific speed limits, such as those for

heavy goods vehicles, are not displayed.

The display of the speed limit on the

instrument panel is updated when passing

a speed limit sign intended for cars (light

vehicles).

Activation/Deactivation

By default, the system is automatically activated

at every engine start.

The settings are changed via the

Driving

/

Vehicle

 touch screen menu.

Information displayed on

the instrument panel





1.

Detected speed limit indication

or

2.

End of speed limit indication





The system is active but is not detecting speed

limit information.





On detecting speed limit information, the system

displays the value.





For a suggested maximum speed, the first time

that the vehicle exceeds it

by more than 3 mph

(5 km/h)

 (e.g. 59 mph (95 km/h)), the speed is

displayed and flashes for 10 seconds (depending

on version).

Operating limits

The system does not take account of reduced

speed limits, especially those imposed in the

following cases:

–  Atmospheric pollution.

– Towing.

–  Driving with a space-saver type spare wheel

or snow chains fitted.

–  Tyre repaired using the temporary puncture

repair kit.

–  Young drivers.

The system may not display the speed limit if it

does not detect a speed limit sign within a preset

period and in the following situations:

–  Road signs that are obstructed, non-standard,

damaged or bent.

–  Obsolete or incorrect maps.

Speed setting

recommendations

The driver can select the speed displayed by the

Road signs recognition

 system as the speed

setting for the speed limiter, cruise control or

adaptive cruise control using the

OK

 button.

In the event of rain detection, the system offers

the driver a speed setting lower than the speed

read/from the map in order to adapt to weather

conditions (e.g.on motorways, the proposed

speed is 68 mph (110 km/h) instead of 81 mph

(130 km/h).

105

Driving

6

For more information on the

Speed

limiter

,

Cruise control

 or

Adaptive

cruise control

, refer to the corresponding

sections.

Steering-mounted controls









1.

Select speed limiter mode

2.

Select cruise control mode

3.

Memorise the speed setting

Information displayed on the

instrument panel





4.

Current speed setting

5.

Speed memorisation prompt

6.

Current speed limit indication

Memorising the speed setting

►  Switch on the speed limiter

1-LIMIT

 or cruise

control

2

.

Information related to the speed limiter or cruise

control is displayed.

When a new speed setting is detected, the

system displays the value and “

OK?

“ flashes

for a few seconds to suggest saving it as a new

speed setting.

If there is a difference of less than 3 mph

(5 km/h) between the speed setting and

the speed displayed by the Road signs

recognition, the "

OK?

“ symbol is not

displayed.

Depending on the road conditions, several

speeds may be displayed.

►  Press

3-OK

 to confirm the new speed setting.

The display then reverts to its previous state.

Extended Traffic Sign

Recognition

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.





This additional system recognises these road

signs and displays them on the instrument panel

if the appropriate display mode is selected:

–

No entry:

 when entering a lane in the wrong

direction, an alert message, including the symbol

of this sign, is displayed on the instrument panel

(request to check the direction of traffic).

–

Other signs:

 as you approach it, the symbol

of the corresponding sign is displayed on the

instrument panel.

The actual road signs always take priority

over the display from the system.

The signs must comply with the Vienna

Convention on road signs.

Activation / Deactivation

It is set via the

Driving

 /

Vehicle

 touch

screen menu.

Speed limiter

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.

This system prevents the vehicle from

exceeding the speed programmed by the

driver (speed setting).

106

Driving

The speed limiter is switched on manually.

The minimum speed setting is 19 mph (30 km/h).

The speed setting remains in the system

memory when the ignition is switched off.

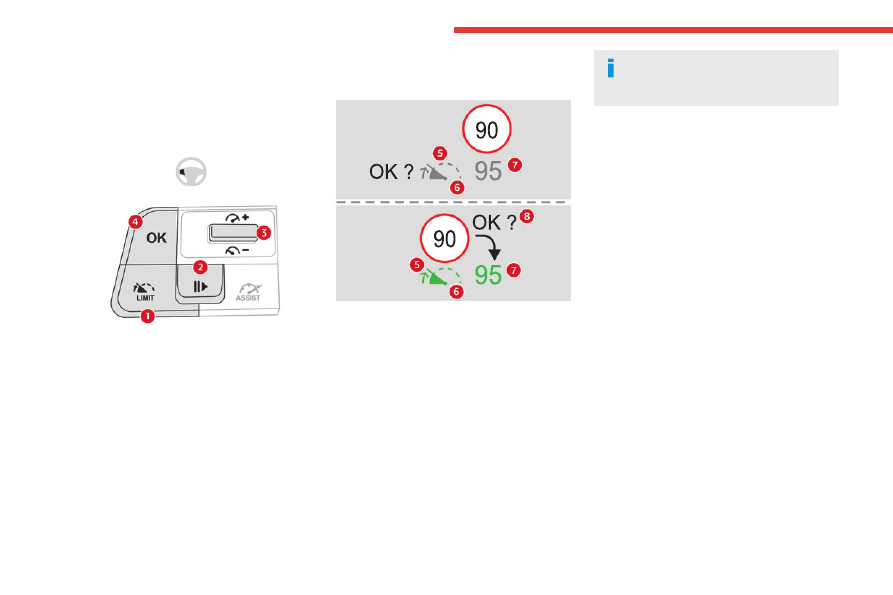

Steering-mounted controls









1.

Speed limiter selection

2.

Switch on/pause the speed limiter at the

previously saved speed setting

3.

Increase/Decrease the speed setting

4.

Activate the speed limiter at the previously

saved speed setting

Use the speed suggested by the Road signs

recognition function

For more information on the

Road signs

recognition

 function, refer to the corresponding

section.

Information displayed on

the instrument panel





5.

Speed limiter mode selection indication

6.

Speed limiter on (green)/pause (grey)

indication

7.

Speed setting value

8.

Speed suggested by the Road signs

recognition function (depending on version)

Switching on/Pausing

►  Press

1-LIMIT

 to select the speed limiter

mode; the function is paused (grey).

►  If the limit speed setting is suitable (most

recent speed setting programmed in the system),

press

2-I I>

 or

4-OK

 to switch the speed limiter

on (green).

►  Pressing

2-I I>

 again temporarily pauses the

function.

When the speed setting remains below

the vehicle's speed for a prolonged

period of time, an audible warning is emitted.

Adjusting the speed setting

You do not have to switch the speed limiter on in

order to set the speed.

To change the speed setting using the vehicle’s

current speed:

►  For steps of +/- 1 mph (1 km/h), make

successive short presses upwards/downwards

on

3

 to increase/decrease.

►  For steps of +/- 5 mph (5 km/h), press and

hold upwards/downwards on

3

 to increase/

decrease.

To modify the cruise speed setting based on the

speed suggested by the Road signs recognition,

as shown on the instrument panel:

–

When passing the sign:

►  Press

4-OK

 to save the suggested speed.

This value is then immediately shown as the new

speed setting on the instrument panel.

–

After passing the sign:

►  Press

4-OK

. The message “

OK?

" is

displayed to confirm the request to save.

►  Press

4-OK

 again to save the suggested

speed. The new speed setting value is displayed

on the instrument panel.

Temporarily exceeding the

speed setting

►  Fully depress the accelerator pedal.

107

Driving

6

The speed limiter is temporarily deactivated and

the displayed speed setting flashes.

►  Release the accelerator pedal to return to

below the speed setting.

When exceeding the speed is not due to the

driver's action (e.g. in case of a steep slope), an

audible signal is triggered immediately.

On a steep descent or in the event of

sharp acceleration, the speed limiter will

not be able to prevent the vehicle from

exceeding the speed setting.

If necessary, apply the brakes to control your

vehicle’s speed.

When the vehicle speed returns to the speed

setting level, the speed limiter operates again:

the speed setting display becomes fixed again.

Off

►  Press

1-LIMIT

: the speed limiter information

display disappears.

Malfunction

In the event of a malfunction, dashes are

displayed flashing and then fixed instead of the

speed setting.

Have it checked by a CITROËN dealer or a

qualified workshop.

Cruise control - Specific

recommendations

The cruise control function does not

guarantee compliance with the maximum

authorised speed and the safety distance

between vehicles, the driver remains

responsible for their driving.

In the interest of public safety, only use cruise

control if the traffic conditions enable vehicles

to drive at a steady speed and maintain an

adequate safety distance.

Remain vigilant while cruise control is

activated.

 If you press and hold one of the

speed setting modification buttons, your

vehicle may change speed very abruptly.

When

descending a steep hill

, the cruise

control system cannot prevent the vehicle

from exceeding the set speed. Brake if

necessary to control the vehicle speed.

On

steep climbs

 or when towing, the set

speed may not be reached or maintained.

Exceeding the programmed speed

setting

You can

temporarily

 exceed the speed

setting by pressing the accelerator pedal (the

programmed speed flashes).

To return to the speed setting, release the

accelerator pedal (when the set speed is

reached again, the displayed speed stops

flashing).

Operating limits

Never use the system in the following

situations:

–  In an urban area with the risk of

pedestrians crossing the road.

–  In heavy traffic (except versions with the

Stop & Go function).

–  On winding or steep roads.

–  On slippery or flooded roads.

–  In poor weather conditions.

–  Driving on a speed circuit.

–  Driving on a rolling road.

–  When using snow chains, non-slip covers

or studded tyres.

Cruise control

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

 and the

Cruise control - particular

recommendations

.

This system automatically maintains the

vehicle’s speed at the value programmed

by the driver (speed setting), without the use of

the accelerator pedal.

Cruise control is switched on manually.

It requires a minimum vehicle speed of 25 mph

(40 km/h).

With a manual gearbox, third gear or higher must

be engaged.

108

Driving

With an automatic gearbox, mode

D

 or second

gear or higher in mode

M

 must be engaged.

With a drive selector, mode

D

 or

B

 must be

engaged.

Cruise control remains active after

changing gear, regardless of the gearbox

type, on engines fitted with the Stop & Start

function.

Switching off the ignition cancels any

speed setting.

Steering-mounted controls









1.

Cruise control selection

2.

Switch on/pause cruise control at the

previously saved speed setting

3.

Increase/Decrease the speed setting (if

cruise control activated)

Activation of cruise control in progress (if

cruise control deactivated)

4.

Activation of cruise control in progress

Use the speed suggested by the Road signs

recognition

For more information on the

Road signs

recognition

 function, refer to the corresponding

section.

Information displayed on

the instrument panel





5.

Cruise control mode selection indication

6.

Cruise control on (green)/pause (grey)

indication

7.

Speed setting value

8.

Speed suggested by the Road signs

recognition function (depending on version)

Switching on/pausing

►  Press button

1

 to select the cruise control

mode; the function is paused (grey).

►  Press

3

 upwards/downwards, or press

4-OK



to activate the cruise control and save a speed

setting as soon as the vehicle speed reaches the

desired level (green).

►  Pressing button

2-I I>

 temporarily pauses the

function.

►  Pressing

2-I I>

 or

4-OK

 again will reactivate

cruise control (green).

Cruise control operation is also

temporarily interrupted (pause):

–  by pressing the brake pedal.

–  automatically, if the electronic stability

control (ESC) system is triggered.

–  by shifting to neutral or engaging reverse

gear.

–  by using the electric parking brake.

Modifying the speed setting

The cruise control must be active.

To change the speed setting using the vehicle’s

current speed:

►  For steps of +/- 1 mph (1 km/h),

make successive short presses upwards/

downwards on

3

 to increase/decrease.

109

Driving

6

►  For steps of +/- 5 mph (5 km/h), press and

hold upwards/downwards on

3

 to increase/

decrease.

Prolonged pressing and holding

upwards/downwards on

3

 causes a very

rapid change in vehicle speed.

As a precaution, we recommend setting

a cruise speed fairly close to the current

speed of your vehicle, to avoid any sudden

acceleration or deceleration of the vehicle.

To change the speed setting using the speed

suggested by the Road signs recognition

displayed on the instrument panel:

–

When passing the sign:

►  Press

4-OK

 to save the suggested speed.

This value is then immediately shown as the new

speed setting on the instrument panel.

–

After passing the sign:

►  Press

4-OK

. The message “

OK?

" is

displayed to confirm the request to save.

►  Press

4-OK

 again to save the suggested

speed. The new speed setting value is displayed

on the instrument panel.

Off

►  Press

1

: the cruise control information display

disappears.

Malfunction

In the event of a malfunction, dashes are

displayed flashing and then fixed instead of the

speed setting.

Have it checked by a CITROËN dealer or a

qualified workshop.

Highway Driver Assist

Only available on versions with the EAT8

automatic gearbox and drive selector.

This system automatically adjusts the speed

and corrects the trajectory of the vehicle, using

Adaptive cruise control with Stop&Go function in

conjunction with Lane Positioning Assist.

These two functions must be activated and in

operation.

For more information on

Adaptive cruise

control

 and

Lane Positioning Assist

, refer to

the corresponding sections.

The system assists the driver by acting

on the steering, acceleration and braking

within the physical limits and capacities of the

vehicle. Certain road infrastructure elements

or vehicles in the surroundings may not be

properly seen or may be poorly interpreted by

the camera and radar, resulting in an

unexpected change in direction, a lack of

steering correction and/or inappropriate

management of acceleration or braking.

Primarily designed for driving on main

roads and motorways, this system only

works with moving vehicles driving in the

same direction as your vehicle.

Adaptive cruise control

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

 and the

Cruise control - particular

recommendations

.

This system automatically maintains the vehicle

speed at a value set by the driver (speed

setting), while respecting a safety distance from

the vehicle in front (target vehicle) previously set

by the driver. The system automatically manages

the acceleration and deceleration of the vehicle.

With the

Stop function

, the system manages

braking until the vehicle comes to a complete

stop.

With the

Stop & Go function

, the system

manages braking until the vehicle comes to a

complete stop and restarts the vehicle.

The brake lamps come on if the vehicle

is slowed down by the system.

It can be dangerous to drive if the brake

lamps are not in perfect working order.



110

Driving



To do this, the system uses a camera fitted at the

top of the windscreen and a radar fitted in the

front bumper.

Primarily designed for driving on main

roads and motorways, this system only

works with moving vehicles driving in the

same direction as your vehicle.

If the driver activates the direction

indicator to overtake a slower vehicle,

cruise control may temporarily reduce the

distance to the target vehicle to facilitate

overtaking, without exceeding the speed

setting.

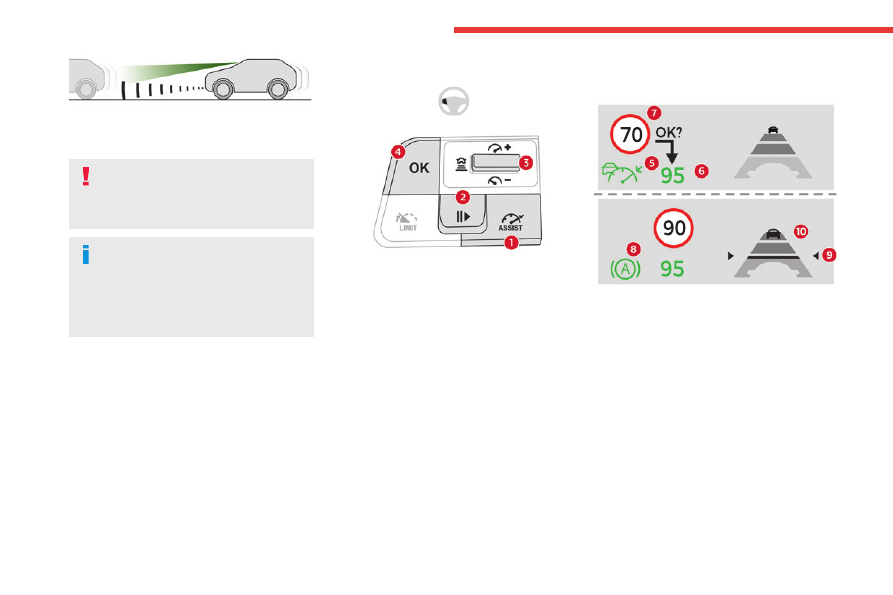

Steering-mounted controls









1.

Selection/deselection of cruise control only or

Highway Driver Assist (depending on version)

2.

Switch on/pause cruise control at the

previously saved speed setting

Confirmation of vehicle restart after automatic

stop (version with Stop & Go function)

3.

Increase/Decrease the speed setting (if

cruise control activated)

Activation of cruise control in progress (if

cruise control deactivated)

Display and configuration of the inter-vehicle

distance setting

4.

Activation of cruise control in progress

Use the speed suggested by the Road signs

recognition function

For more information on the

Road signs

recognition

 function, refer to the corresponding

section.

Information displayed on

the instrument panel





5.

Cruise control activated (green)/paused

(grey)

6.

Speed setting value

7.

Speed suggested by the Road signs

recognition function

8.

Vehicle held stationary (version with

Stop&Go function)

9.

Inter-vehicle distance setting

10.

Position of the vehicle detected by the

system

Use

Selecting the system

►  With the engine running, press

1-ASSIST

 to

select cruise control mode.

111

Driving

6

The symbol for the Adaptive cruise control

system is displayed on the instrument

panel.

Switching on cruise control

With an EAT8 automatic gearbox or a drive

selector, your speed must be between 0 and

112 mph (0 and 180 km/h).

System activation is also subject to the following

conditions:

–  driver's door closed.

–  driver's seat belt fastened.

– mode

D

 selected on the automatic gearbox.

–  parking brake released.

–  if the vehicle is stationary, brake pedal

depressed.

►  Press

3

 or

4-OK

: the current speed becomes

the speed setting (minimum 19 mph (30 km/h))

and cruise control is immediately activated

(green display).

Modifying the speed setting

To change the speed setting using the vehicle’s

current speed:

►  For steps of +/- 1 mph (1 km/h), make

successive short presses upwards/downwards

on

3

 to increase/decrease.

►  For steps of +/- 5 mph (5 km/h), press and

hold upwards/downwards on

3

 to increase/

decrease.

Prolonged pressing and holding

upwards/downwards on

3

 causes a rapid

change in vehicle speed.

To change the speed setting using the

speed suggested by the Road signs

recognition function and displayed on the

instrument panel:

–

When passing the sign:

►  Press

4-OK

 to save the suggested speed.

This value is then immediately shown as the new

speed setting on the instrument panel.

–

After passing the sign:

►  Press

4-OK

. The message "

OK?

" is

displayed to confirm the request to save.

►  Press

4-OK

 again to save the suggested

speed. The new speed setting value is displayed

on the instrument panel.

Pausing/resumption of cruise control

►  Press

2-I I>

 or depress the

brake pedal

. The

symbol turns grey.

Cruise control may also have been paused:

–  automatically, if the electronic stability control

(ESC) system is triggered.

–  by shifting to neutral or engaging reverse gear.

–  by using the electric parking brake.

–  by unfastening the seat belt.

–  by opening the driver's door.

►  Press

2-I I>

 or

4-OK

 to reactivate cruise

control.

With an EAT8 gearbox or a drive selector,

following braking that has brought the vehicle

to a complete stop, if the traffic conditions do

not allow the vehicle to begin moving again

within 3 seconds of stopping, press

2-I I>

 or the

accelerator pedal to move off.

Cruise control remains active following a

gear change.

When cruise control is paused and the

driver tries to reactivate it, the message

"

Activation refused, conditions unsuitable

"

is temporarily displayed if reactivation is

impossible (required conditions not met).

Changing the programmed speed setting

with the Road signs recognition function

►  Press

4-OK

 to accept the speed suggested

by the function on the instrument panel, then

press again to confirm.

If the selected speed is far from the

current vehicle speed, a strong

acceleration or deceleration is felt.

Changing the inter-vehicle distance

►  Press

3

 to display the distance setting

thresholds ("

Distant

", "

Normal

" or "

Close

"),

then make successive short presses upwards/

downwards to select a threshold.

After a few seconds, the option is accepted and

will be memorised when the ignition is switched

off.

The driver must keep a sufficient safety distance

from the vehicle in front.

Temporarily exceeding the speed setting

►  Depress the accelerator pedal. The system

is suspended as long as the acceleration is

112

Driving

maintained. The speed next to the symbol

disappears from the instrument panel.

Deselecting the system

►  Press

1-ASSIST

 until the symbols disappear

from the instrument panel.

Messages and alerts

The actual order of display of the

messages or alerts may be different.

(grey symbol)

Cruise control selected, but

cannot be activated.

All the operating conditions have

not been met.

(grey symbol)

Cruise control selected, awaiting

activation.

All the operating conditions are

met.

(grey symbol)

Cruise control paused, but

cannot be reactivated.

All the operating conditions have

not been met.

(green symbol)

Cruise control active, vehicle

detected.

(green symbol)

Cruise control suspended,

following brief acceleration by

the driver.

(orange)

"

Take back control

"

►  Brake or accelerate, depending on the

context.

(red)

"

Take back control

"

►

Take back control of the vehicle

immediately

: the system cannot manage the

current driving situation.

"

Activation refused, conditions

unsuitable

"

The system refuses to activate cruise control, as

the necessary conditions are not fulfilled.

Stop & Go function

(green symbols)

The system has brought the

vehicle to a complete stop. The

symbol "

I I

" is displayed.

Within 3 seconds of stopping, the vehicle

gradually and automatically begins moving

again.

Beyond 3 seconds of stopping, the driver must

accelerate or press

2-I I>

 to move off.

If the driver takes no action after the

vehicle has been stopped, the electric

parking brake is applied automatically after

about 5 minutes.

While the vehicle is immobilised, the

following recommendations apply:

–  The driver should not leave the vehicle.

–  Do not open the boot.

–  Do not drop off or pick up passengers.

–  Do not engage reverse gear.

When restarting the vehicle, beware of

cyclists, pedestrians or animals who are

not taken into account by the system.

The driver must monitor their surroundings.

Operating limits

Cruise control operates by day and night, in dry

weather or moderate rainfall.

Certain situations cannot be managed by the

system and require driver intervention.

Cases not taken into account by the system:

–  Pedestrians, cyclists, animals.

–  Stationary vehicles (e.g. traffic jams,

breakdown).



113

Driving

6



–  Vehicles crossing your lane.

–  Vehicles driving in the opposite direction.

Situations where the driver must suspend the

system:





–  Vehicles in a tight bend.

–  When approaching a roundabout.





–  When following a narrow vehicle.

Reactivate the system when conditions allow.

Situations in which the driver is prompted to

immediately resume control:

–  Excessively sharp deceleration by the vehicle

in front of you.





–  When a vehicle cuts in sharply between your

vehicle and the one in front.

Some vehicles on the road may be

poorly perceived or interpreted by the

camera and/or the radar (e.g. truck), which

can lead to an incorrect evaluation of

distances and result in inappropriate

acceleration or braking of the vehicle.

Pay particular attention:

–  When motorcycles are present and

when there are vehicles staggered across the

traffic lane.

–  When entering a tunnel or crossing a

bridge.

If any of the following malfunctions

occurs, do not use the system:

–  Following an impact on the windscreen

close to the camera or on the front bumper

(versions with radar).

–  Brake lamps not working.

If the vehicle has undergone any of the

following modifications, do not use the

system:

–  Carrying long objects on roof bars.

– Towing.

–  Use of the "space-saver" type spare wheel

(depending on version).

–  Front end of the vehicle modified (for

example by adding long-range headlamps or

painting the front bumper).

–  Obstructed radar and/or camera.

Malfunction

In the event of a malfunction,

dashes are displayed instead of

the speed setting.

This warning lamp comes on,

accompanied by a message and an

audible signal, to confirm the malfunction.

Have it checked by a CITROËN dealer or a

qualified workshop.

Lane positioning assist

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.
