Driving



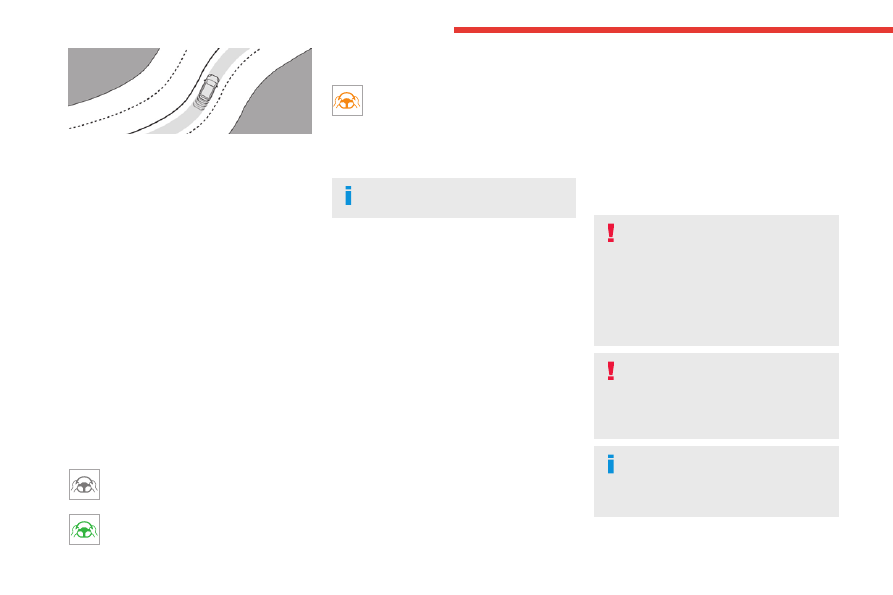

The system identifies the limits of the traffic

lane and steers the vehicle inside this lane to

maintain it in the lateral position chosen by the

driver.

To do this, the system uses a camera placed on

the upper part of the windscreen.

This function is primarily suitable for driving on

motorways and main roads.

Activation/Deactivation

The Lane positioning assist system is

automatically activated, after selecting Highway

Driver Assist mode.

For more information on the

Highway Driver

Assist

 system, refer to the corresponding

section.

The selection is confirmed by the display of

the symbols on the instrument panel or on the

head-up display (if fitted), representing the

steering wheel and the side lines.

The colour of the symbols depends on the

operating state of the system:

(grey)

One or more operating conditions is not

met; the system is paused.

(green)

All operating conditions are met; the system is

active.

(orange)

System malfunction.

If the driver no longer wishes to use the system

for some time, they can deactivate it by pressing

the button again (confirmed when the symbol

disappears).

The system status is saved when the

ignition is switched off.

Operating conditions

–  Adaptive cruise control active.

–  ESC system operational.

–  ASR system activated.

–  No trailer detected.

–  No 'space-saver' spare wheel in use.

–  Vehicle not subject to strong lateral g-forces.

–  Direction indicators not activated.

Regulation

The driver must hold the steering wheel

properly.

When regulation is activated, the symbols are

displayed in green: with small steering inputs,

the system steers the vehicle and keeps it in the

position chosen by the driver in the traffic lane.

This position is not necessarily the centre of the

lane.

The driver can feel movements in the steering

wheel.

At any time, the driver can change the position of

the vehicle by intervening on the steering wheel

and maintaining the position until the system has

taken it into account. If the chosen position is too

off-centre, an automatic re-centering manoeuvre

can occur. The system adjusts to the newly

defined position.

Pausing/Suspending the

system

The driver must act promptly if they

believe that the traffic conditions or the

state of the road surface require their

intervention, by moving the steering wheel to

temporarily suspend system operation. Any

action on the brake pedal that causes the

Adaptive cruise control system to be paused

will also cause the system to be paused.

If the system detects that the driver is not

holding the wheel firmly enough, it

triggers a series of gradual alerts and then

deactivates itself if there is no response from

the driver.

If the function is suspended due to the

prolonged release of the force holding

the steering wheel, the system must be

reactivated by pressing the button again.

115

Driving

6

Automatic suspension

Suspension of the system is accompanied by a

specific audible signal.

–  Triggering of the ESC system.

–  Insufficient lane detection. In this case, the

Active lane departure warning system function

can take over, and the system will reactivate

itself once the operating conditions are met

again.

Paused by the driver

–  Travelling outside the lane limits.

–  Too tight a grip on the steering wheel or

dynamic action on the steering wheel.

–  Action on the brake pedal (resulting in a pause

until cruise control is reactivated) or accelerator

pedal (suspension for as long as the pedal is

depressed).

–  Pausing of the Adaptive cruise control system.

–  Deactivation of the ASR system.

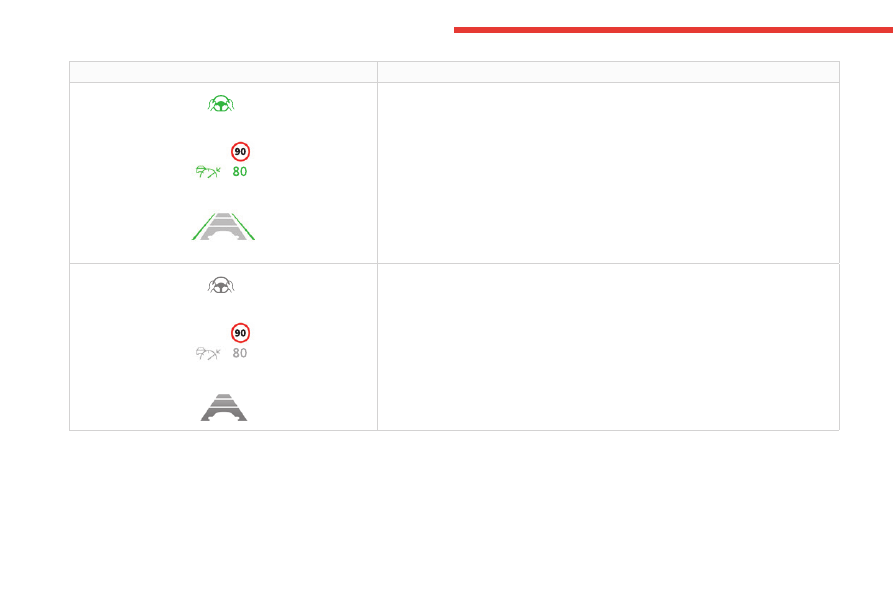

Driving situations and related alerts

The tables below describe the displays associated with the main driving situations. The actual order of display of these alerts may be different.

The locations of these symbols vary according to the display mode selected on the instrument panel and whether or not the head-up display is activated (if

fitted to vehicle).

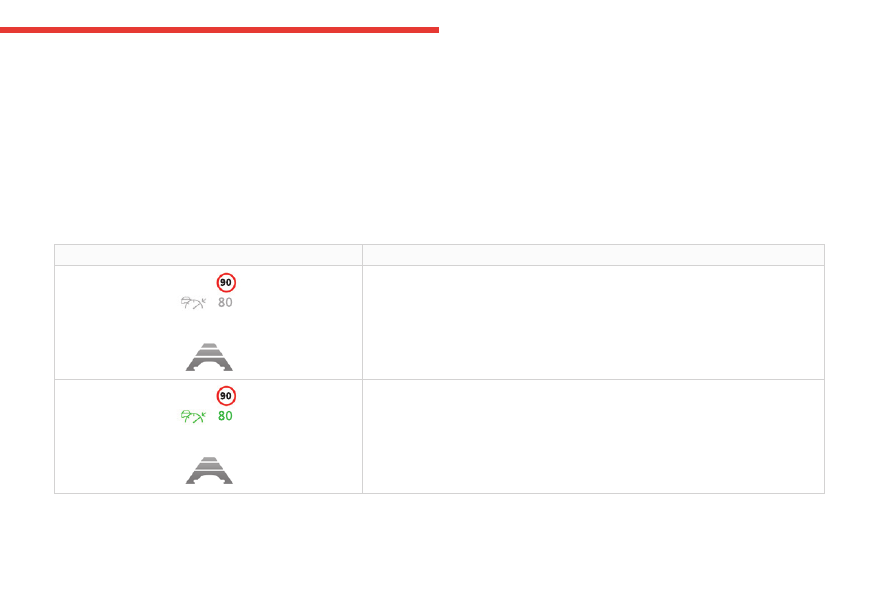

Symbols

Comments





(grey)





Cruise control paused.

Lane positioning assist not selected.





(green)





Cruise control on.

Lane positioning assist not selected.

116

Driving

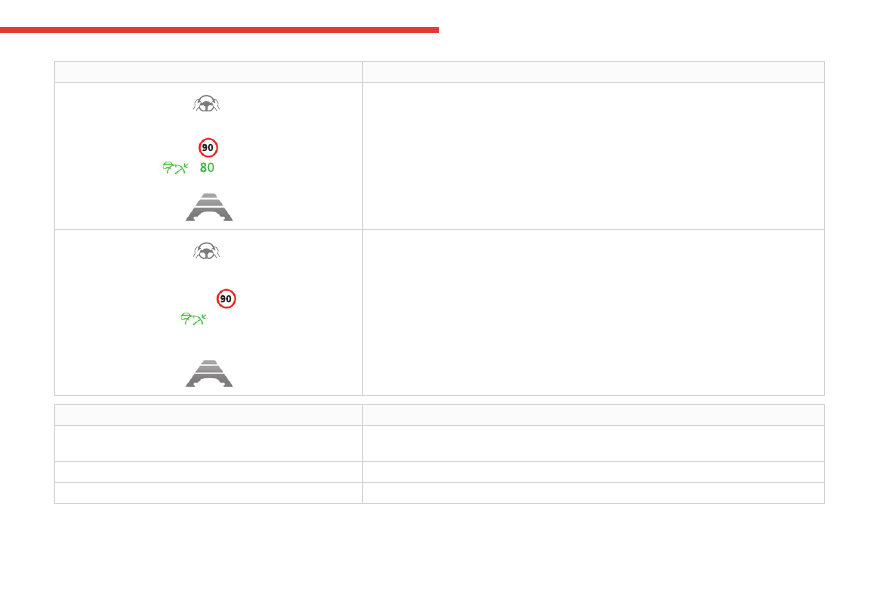

Symbols

Comments





(green)





(green)





(green lines)

Highway Driver Assist system activated.

Lane positioning assist is operating normally (steering wheel correction active).





(grey)





(grey)





Highway Driver Assist system paused by the driver.

117

Driving

6

Symbols

Comments





(grey)

(green)





Highway Driver Assist system activated.

All the operating conditions for lane positioning assist have not been met.





(grey)





(green)





Highway Driver Assist system suspended.

Cruise control and lane positioning assist are suspended.

Messages

Driving situations

"

Keep your hands on the steering wheel

"

Prolonged driving without holding the steering wheel, holding it improperly or without

applying any force.

"

Hold the steering wheel

"

Actual or imminent loss of lane positioning assist.

"

Take back control

"

Simultaneous loss of cruise control and lane positioning assist.

118

Driving

Operating limits

The system may issue an alert when the

vehicle is travelling on a long, straight

road with smooth road surface even if the

driver thinks they are holding the steering

wheel correctly.

The system may not operate or may produce

unsuitable corrections to the steering in the

following situations:

–  Poor visibility (insufficient road lighting,

snowfall, rain, fog).

–  Dazzle (headlamps of an oncoming vehicle,

low sun, reflections on a wet road surface,

leaving a tunnel, alternating light and shade).

–  Windscreen area in front of the camera

dirty, misted up, frost-covered, snow-covered,

damaged or covered by a sticker.

–  Lane markings eroded, partially hidden (snow,

mud) or multiple (roadworks, surface joints).

–  Travelling in a tight bend.

–  Winding roads.

–  Presence of a tarmac joint on the road.

Risk of undesirable operation

The system should be deactivated in the

following situations:

–  Driving with a "space-saver" type spare

wheel.

–  When towing or with a bicycle carrier

attached to a towing device, particularly when

a trailer is not connected or the trailer is not

an approved type.

–  Adverse weather conditions.

–  Driving on slippery road surfaces (risk of

aquaplaning, snow, ice).

–  In roadworks or toll booth areas.

–  Driving on racing circuits.

–  Driving on a rolling road.

Malfunction

In the event of a malfunction, the

Service warning lamp comes on

and this (orange) symbol appears on the

instrument panel, accompanied by the display of

a message and an audible signal.

Have it checked by a CITROËN dealer or a

qualified workshop.

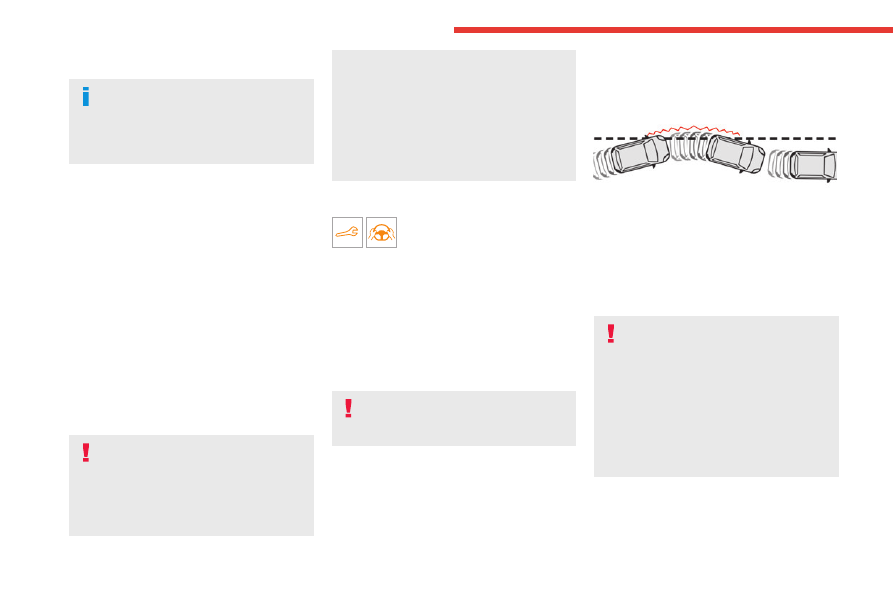

Active lane departure

warning system

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.

The system corrects the vehicle's trajectory by

alerting the driver as soon as it detects a risk of

involuntary lane departure or crossing of a verge

or hard shoulder (depending on version).

To do this, the system uses a camera, placed on

the upper part of the windscreen, identifying the

lane markings on the ground and the side of the

road (depending on version).

This system is particularly useful on

motorways and main roads.





Operating conditions

–  Vehicle speed between 40 and 112 mph (65

and 180 km/h).

–  Road marked with a central dividing line.

–  Steering wheel held in both hands.

–  Direction indicators not activated.

–  ESC system activated and operational.

The system helps the driver only if there

is a risk of the vehicle unintentionally

wandering from the lane it is being driven in. It

does not manage the safe driving distance,

vehicle speed or braking.

The driver must hold the steering wheel with

both hands in a way that allows control to

be maintained in circumstances where the

system is not able to intervene (for example, if

the central dividing line disappears).

Operation

As soon as the system identifies a risk of

involuntarily crossing one of the lane markings

119

Driving

6

detected on the ground or a lane boundary

(e.g. grass verge), it performs the trajectory

correction necessary to restore the vehicle to its

original lane.

The driver will notice a turning movement of the

steering wheel.

This warning lamp flashes during

trajectory correction.

The driver can prevent the correction by

firmly holding the steering wheel

(e.g. during an emergency manoeuvre).

The correction is interrupted immediately if

the direction indicators are operated.

While the direction indicators are activated and

for a few seconds after switching them off, the

system considers that a change of trajectory is

intentional and no correction is triggered during

this period.

Driving situations and related alerts

The table below describes the alerts and messages displayed in different driving situations.

These alerts are not displayed sequentially.

Function status

Display

Comments

OFF





Function deactivated.

ON

None.

Function active, conditions not met:

–  speed below 40 mph (65 km/h),

–  no lane marking recognised,

–  ESC operation triggered,

–  "sport" driving.

ON





Automatic deactivation/standby of the function (e.g. detection of a trailer, use of the

"space-saver" spare wheel supplied with the vehicle, malfunction).

ON

None.

Lane marking detected.

Speed above 40 mph (65 km/h).

ON





The system corrects the trajectory on the side where the risk of line crossing is detected.

The driver's hands are on the steering wheel.

120

Driving

Function status

Display

Comments

ON









"Hold the wheel".

If, while correcting the trajectory, the system determines that the correction will not be

enough and that a solid line will be crossed: the driver is warned that they must provide

additional trajectory adjustment.

If the steering wheel is not held properly, an audible warning sounds, accompanied by

a message, until the trajectory correction is completed or the driver has grasped the

steering wheel correctly.

The duration of audible warnings will increase if multiple corrections are performed

in quick succession. The warning will become continuous, persisting until the driver

responds.

Operating limits

The system goes into standby automatically in

the following cases:

–  ESC deactivated or operation triggered.

–  Speed below 40 mph (65 km/h) or greater

than 112 mph (180 km/h).

–  Electrical connection to a trailer.

–  Use of a"space-saver" spare wheel detected

(as detection is not immediate, deactivation of

the system is recommended).

–  Dynamic driving style detected, pressure on

the brake or accelerator pedal.

–  Driving over lane markings.

–  Activation of the direction indicators.

–  Crossing the inside line on a bend.

–  Driving on a tight bend.

–  Inactivity by the driver detected during

correction.

–  Narrow lane detected.

The following situations may interfere

with the operation of the system or

prevent it from working:

–  Insufficient contrast between the road

surface and the side of the road (e.g. shade).

–  Lane markings worn, hidden (snow, mud)

or multiple (roadworks, etc.),

–  Close proximity to the vehicle in front (lane

markings may not be detected).

–  Roads that are narrow, winding.

Risk of undesirable operation

The system should be deactivated in the

following situations:

–  When changing a wheel or working near a

wheel.

–  Towing or with a bicycle carrier on a towing

device, especially with trailer not plugged in or

not approved.

–  Road in poor condition, unstable or with very

poor grip (risk of aquaplaning, snow, ice).

–  Adverse weather conditions.

–  Driving on racing circuits.

–  Driving on a rolling road.

Deactivation/Activation









►  Press and hold this button to deactivate or

press briefly to reactivate the system at any time.

Deactivation is signalled by the lighting of

the indicator lamp in the button and this

warning lamp in the instrument panel.

121

Driving

6

The system is

automatically reactivated

 every

time the ignition is switched on.

Malfunction

In the event of a malfunction,

these warning lamps light up on

the instrument panel, accompanied by the

display of a message and an audible signal.

Have it checked by a CITROËN dealer or a

qualified workshop.

Blind spot monitoring

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.





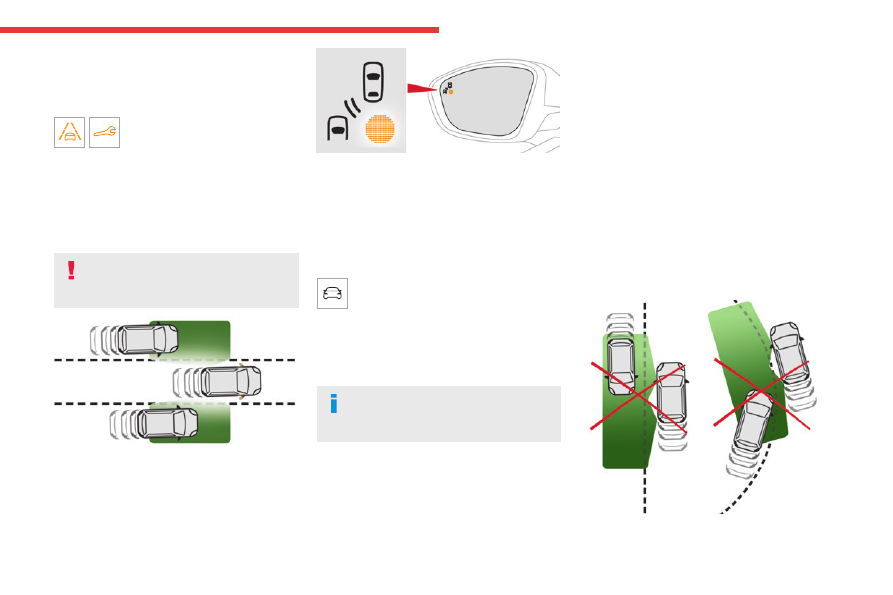

This system warns the driver of a potential

danger posed by the presence of another vehicle

(car, lorry, motorcycle) in the vehicle's blind

spots (areas hidden from the driver's field of

vision) using sensors located on the sides of the

bumpers.





The warning is given by a fixed warning lamp

that appears in the door mirror on the side in

question:

–  immediately, when being overtaken;

–  after a delay of about one second, when

overtaking a vehicle slowly.

Activation/Deactivation

It is set via the

Driving/Vehicle

 touch

screen menu.

When starting the vehicle, the warning lamp

comes on in each mirror to indicate that the

system is activated.

The status of the system is memorised when the

ignition is switched off.

The system is automatically deactivated

when towing with a towing device

approved by CITROËN.

Operating conditions

–  All vehicles are moving in the same direction

and in adjacent lanes.

–  The speed of your vehicle must be between

7 and 87 mph (12 and 140 km/h) (versions

without Park Assist) or between 19 and 87 mph

(30 and 140 km/h) (versions with Park Assist).

–  When overtaking a vehicle, the speed

difference is less than 6 mph (10 km/h).

–  When overtaken by a vehicle, the speed

difference is less than 16 mph (25 km/h).

–  Traffic is flowing normally.

–  Overtaking a vehicle over a certain period of

time and the vehicle being overtaken remains in

the blind spot.

–  You are driving on a straight or slightly curved

road.

–  Your vehicle is not pulling a trailer, a caravan,

etc.

Operating limits







122

Driving



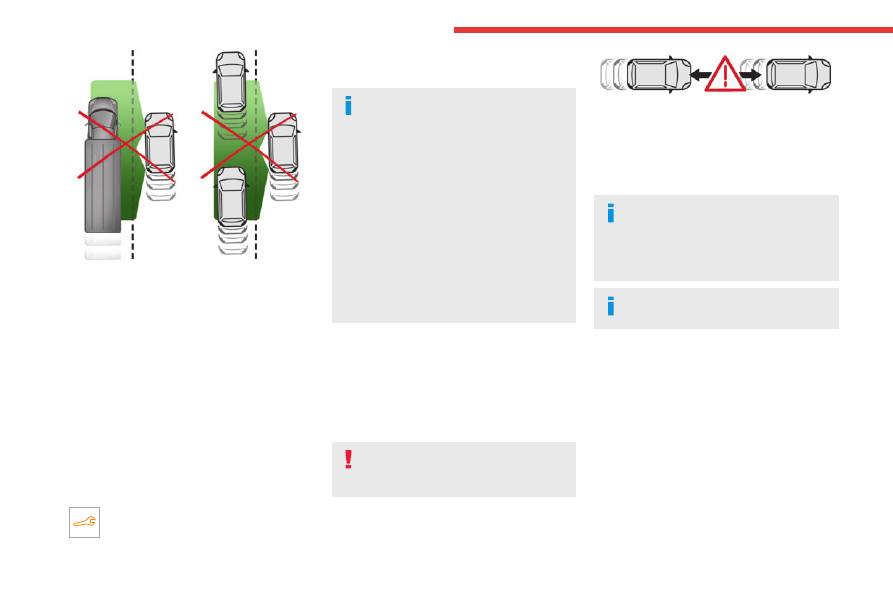

No alert is triggered in the following conditions:

–  presence of stationary objects (e.g. parked

vehicles, safety rails, lampposts, signs).

–  vehicles travelling in the opposite direction.

–  on winding roads or in case of sharp turns.

–  when overtaking or being overtaken by a

very long vehicle (e.g. truck, bus), which is both

detected in a blind spot from behind and present

in the driver's field of vision from the front.

–  quick overtaking manoeuvre.

–  very heavy traffic: vehicles detected in front

and behind are confused with a lorry or a

stationary object.

–  activation of the Park Assist function.

Malfunction

If the event of a malfunction, this warning

lamp comes on in the instrument panel,

accompanied by the display of a message.

Have it checked by a CITROËN dealer or a

qualified workshop.

The system may be temporarily disturbed

by certain climatic conditions (e.g. rain,

hail).

In particular, driving on a wet road or going

from a dry to a wet area can cause false

alerts (e.g. presence of a cloud of water

droplets in the blind spot interpreted as a

vehicle).

In bad or wintry weather, ensure that the

sensors are not covered by mud, ice or snow.

Take care not to cover the warning zone in

the door mirrors, or the detection zones on

the front and rear bumpers with adhesive

labels or other objects; they may hamper

correct operation of the system.

Active Safety Brake with

Collision Risk Alert and

Intelligent emergency

braking assistance

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.





This system:

–  warns the driver that their vehicle is at risk of

collision with the vehicle in front, a pedestrian or,

depending on version, a cyclist.

–  reduces the vehicle's speed to avoid a

collision or limit its severity.

The speed will be reduced by a

maximum of 12 mph (20 km/h) (versions

with camera only) or by a maximum of 31

mph (50 km/h) (versions with camera and

radar).

The system also takes motorcyclists into

account.

This system is comprised of three functions:

–  Collision Risk Alert.

–  Intelligent emergency braking assistance

(iEBA).

–  Active Safety Brake (automatic emergency

braking).



123

Driving

6



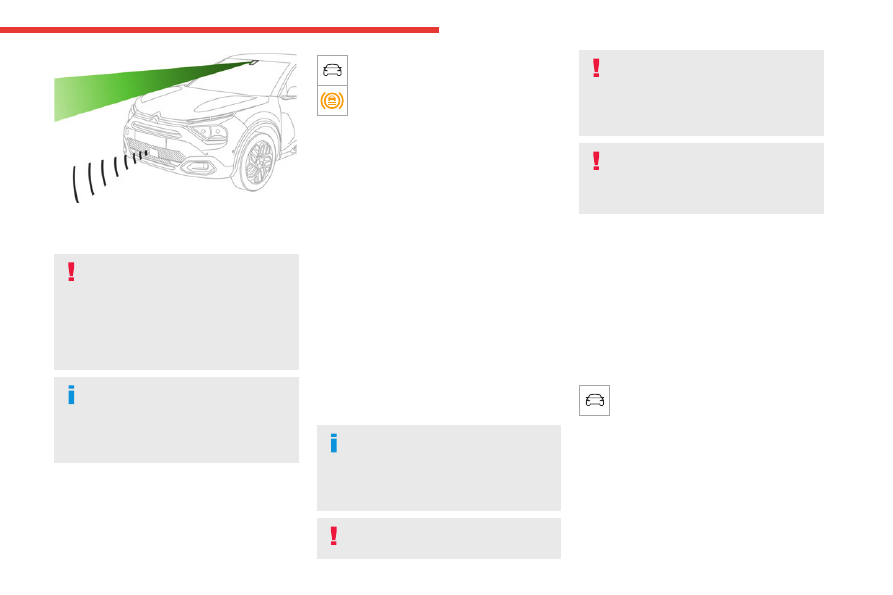

The vehicle has a multifunction camera located

at the top of the windscreen and, depending on

version, a radar located in the front bumper.

This system does not replace the need

for vigilance on the part of the driver.

This system is designed to assist the driver

and improve road safety.

It is the driver's responsibility to continuously

monitor traffic conditions in accordance with

applicable driving regulations.

As soon as the system detects a

potential obstacle, it prepares the braking

circuit in case automatic braking is needed.

This may cause a slight noise and a slight

sensation of deceleration.

Deactivation/Activation

By default, the system is automatically activated

at every engine start.

The settings are changed via the

Driving

/

Vehicle

 touch screen menu.

Deactivation of the system is signalled by

the illumination of this warning lamp,

accompanied by the display of a message.

Operating conditions and

limits

Vehicle moving forward.

ESC system operational.

Seat belts fastened for all passengers.

Stabilised speed on roads with few bends.

In the following cases, deactivating the system

via the vehicle's configuration menu is advised:

–  Towing a trailer.

–  Carrying long objects on roof bars.

–  Vehicle with snow chains fitted.

–  Before using an automatic car wash, with the

engine running.

–  Before placing the vehicle on a rolling road in

a workshop.

–  Towed vehicle, engine running.

–  Following an impact to the windscreen close to

the detection camera.

The system is automatically deactivated

when the use of certain types of

"space-saver" spare wheel (smaller diameter)

is detected, or if a fault with the brake pedal

switch or at least two brake lamps is detected.

It can be dangerous to drive if the brake

lamps are not in perfect working order.

It is possible that warnings are not given,

are given too late or seem unjustified.

The driver must always stay in control of the

vehicle and be prepared to react at any time

to avoid an accident.

Following an impact, the system is

automatically deactivated.

Have it checked by a CITROËN dealer or a

qualified workshop.

Collision Risk Alert

This function warns the driver that their vehicle

is at risk of a collision with the vehicle in front, or

with a pedestrian or cyclist present in their traffic

lane.

Modifying the alert trigger threshold

This trigger threshold determines the sensitivity

with which the function warns of the risk of

collision.

The threshold is set via

the

Driving

/

Vehicle

 touch screen menu.

►  Select one of the three pre-defined

thresholds: "Far", "Normal" or "Close".

The last threshold selected is memorised when

the ignition is switched off.

Operation

Depending on the degree of risk of collision

detected by the system and the alert trigger

threshold chosen by the driver, several different

124

Driving

levels of alert may be triggered and displayed on

the instrument panel.

The system takes account of the vehicle

dynamics, the speed of your vehicle and the one

in front, the environmental conditions and the

operation of the vehicle (actions on the pedals,

steering wheel, etc.) to trigger the alert at the

most relevant moment.

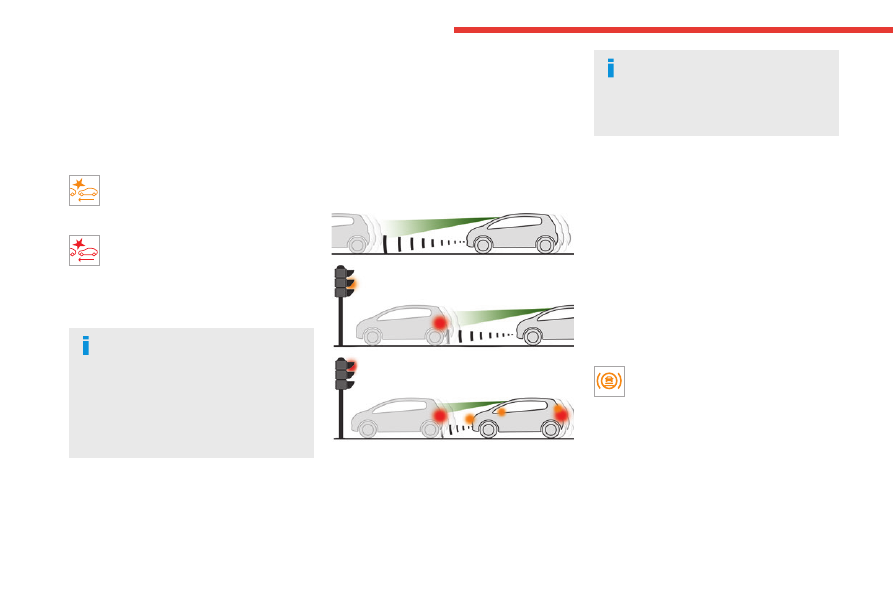

Level 1 (orange)

: visual alert only,

warning that the vehicle in front is very

close.

The message "

Vehicle close

" is displayed.

Level 2 (red)

: visual and audible alert,

warning that a collision is imminent.

The message "

Brake!

" is displayed.

Level 3

: in some cases, a vibration alert in the

form of micro-braking can be given, confirming

the risk of collision.

Where the speed of your vehicle is too

high approaching another vehicle, the

first level of alert may not be displayed: the

level 2 alert may be displayed directly.

Important:

 the level 1 alert is not displayed

when there is a stationary obstacle or

when the "

Near

" trigger threshold has been

selected.

Intelligent emergency

braking assistance (iEBA)

This function supplements braking in the event

that the driver brakes, but not enough to avoid a

collision.

This assistance will only be provided if the driver

presses the brake pedal.

Active Safety Brake





This function, also called automatic emergency

braking, intervenes following the alerts if the

driver does not react quickly enough and does

not operate the vehicle's brakes.

The system aims to reduce the speed of impact

or avoid a collision where the driver fails to react.

The speed will be reduced by a

maximum of 12 mph (20 km/h) (versions

with camera only) or by a maximum of 31

mph (50 km/h) (versions with camera and

radar).

Operation

The system operates in the following speed

ranges:

–  Between 3 mph and 50 mph (5 km/h and

80 km/h) when a stationary vehicle is detected.

–  Between 3 mph and 50 mph (5 km/h and

80 km/h) when a pedestrian is detected.

–  Between 3 mph and 50 mph (5 km/h and

80 km/h) when a cyclist is detected (versions

with camera and radar only).

–  Between 3 mph and 50 mph (5 km/h and

80 km/h) (versions with camera only) or 87 mph

(140 km/h) (versions with cameras and radar)

when a moving vehicle is detected.

This warning lamp flashes (for

approximately 10 seconds) as soon as

the function applies the vehicle’s brakes.

With an automatic gearbox or drive selector,

in the event of automatic emergency braking

bringing the vehicle to a complete stop, keep the

brake pedal depressed to prevent the vehicle

from moving off again.

With a manual gearbox, in the event of automatic

emergency braking bringing the vehicle to a

complete stop, the engine may stall.

125

Driving

6

The driver can maintain control of the

vehicle at any time by firmly turning the

steering wheel and/or firmly depressing the

accelerator pedal.

The brake pedal may vibrate slightly

while the function is operating.

If the vehicle comes to a complete stop,

automatic braking is maintained for 1 to 2

seconds.

Malfunction

In the event of a malfunction, this warning

lamp lights up on the instrument panel,

accompanied by the display of a message and

an audible signal.

Have it checked by a CITROËN dealer or a

qualified workshop.

If these warning lamps come on

after the engine has been switched

off and then restarted, contact a CITROËN

dealer or a qualified workshop to have the

system checked.

These warning lamps light up on

the instrument panel to indicate

that the driver's and/or front passenger's seat

belt is not fastened (depending on version). The

automatic braking system is deactivated until the

seat belts are fastened.

Distraction detection

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.

Depending on version, the function consists of

either the "Coffee Break Alert" system alone or

combined with the "Driver Attention Warning"

system.

These systems are in no way designed

to keep the driver awake or to prevent

the driver from falling asleep at the wheel.

It is the driver’s responsibility to stop if feeling

tired.

Take a break if you are feeling tired or at least

every 2 hours.

Activation/Deactivation

This function is set via the touch screen

Driving

/

Vehicle

 menu.

The function is activated by default when the

ignition is switched on.

Coffee Break Alert

The system triggers an alert when it

detects that the driver has not taken a

break after two hours of driving at a speed above

43 mph (70 km/h).

This alert is issued via the display of a message

encouraging the driver to take a break,

accompanied by an audible signal.

If the driver does not follow this advice, the alert

is repeated hourly until the vehicle is stopped.

The system resets itself if one of the following

conditions is met:

–  With the engine running, the vehicle has been

stationary for more than 15 minutes.

–  The ignition has been switched off for a few

minutes.

–  The driver's seat belt is unfastened and their

door is opened.

As soon as the speed of the vehicle

drops below 43 mph (70 km/h), the

system goes into standby.

Driving time starts being counted again once

the speed reaches above 43 mph (70 km/h).

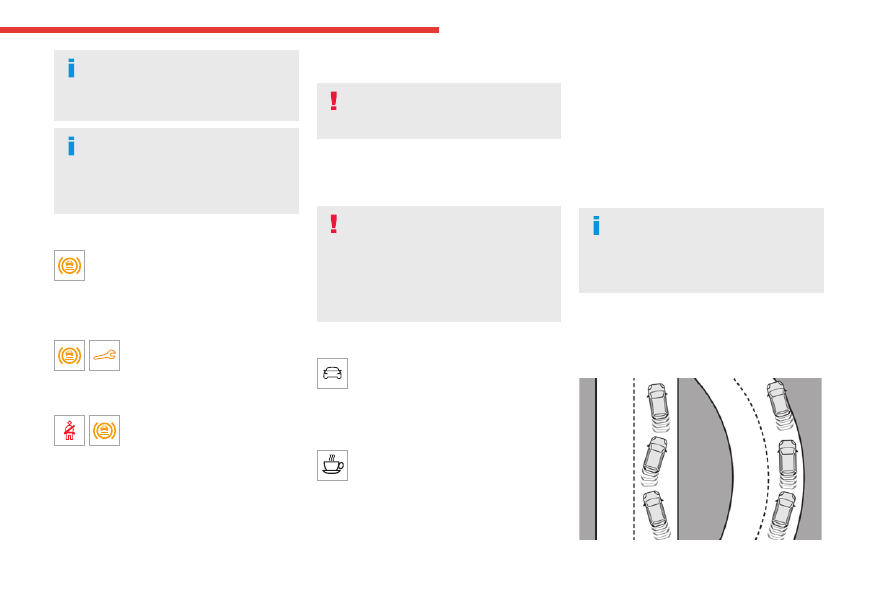

Driver Attention Warning

Depending on version, the

 Coffee Break Alert

system may be combined with the Driver

Attention Warning system.





126

Driving

The system assesses the driver's level of

alertness, fatigue and distraction by

identifying trajectory changes in relation to the

lane markings.

To do this, the system uses a camera, placed on

the upper part of the windscreen.

This system is particularly suited to fast roads

(speed higher than 43 mph (70 km/h)).

At a first alert level, the driver is warned by the

message "

Be vigilant!

", accompanied by an

audible signal.

After three first-level alerts, the system triggers

a further alert with the message "

Dangerous

driving: take a break

", accompanied by a more

pronounced audible signal.

In certain driving conditions (poor road

surface or strong winds), the system may

give alerts independent of the driver's level of

vigilance.

The following situations may interfere

with the operation of the system or

prevent it from working:

–  lane markings absent, worn, hidden (snow,

mud) or multiple (roadworks);

–  close to the vehicle ahead (lane markings

not detected);

–  roads that are narrow, winding, etc.

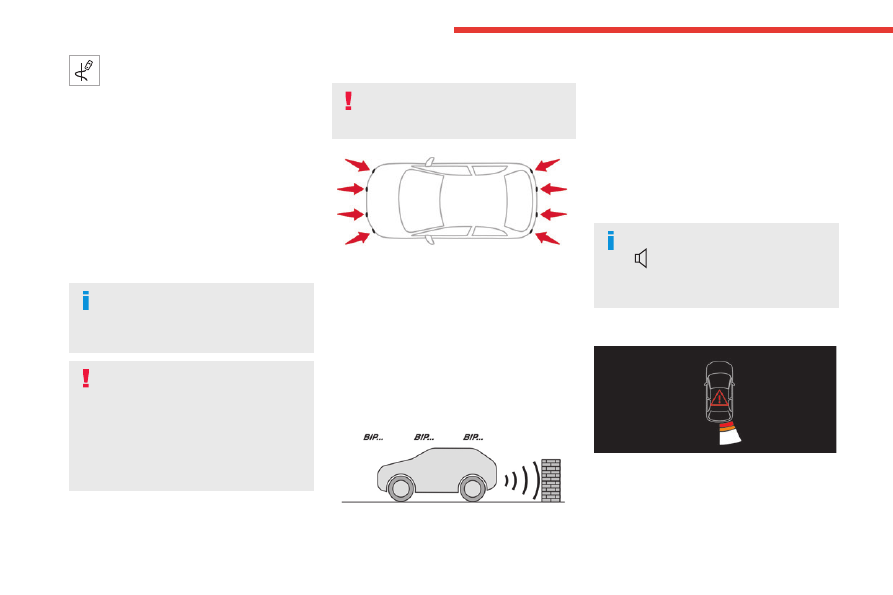

Parking sensors

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.





This system detects and signals the proximity of

obstacles (e.g. pedestrian, vehicle, tree, barrier)

using sensors located in the bumper.

Rear parking sensors

►  Engage reverse gear to

start the system

(confirmed by an audible signal).

The system is switched off when reverse gear is

disengaged.

Audible assistance





The system signals the presence of obstacles

within the sensors’ detection zone.

The proximity information is given by an

intermittent audible signal, the frequency of

which increases as the vehicle approaches the

obstacle.

When the distance between the vehicle and

the obstacle becomes less than about thirty

centimetres, the audible signal becomes

continuous.

The sound emitted by the speaker (right or

left) indicates the side on which the obstacle is

located.

Adjusting the audible signal

Depending on version, with

CITROËN Connect Nav, pressing

this button opens the window for adjusting the

volume of the audible signal.

Visual assistance





This supplements the audible signal, without

taking account of the vehicle's trajectory, by

displaying bars on the screen that represent the

distance between the obstacle and the vehicle

(white: more distant, orange: close, red: very

close).

127

Driving

6

When the obstacle is very close, the "Danger"

symbol is displayed on the screen.

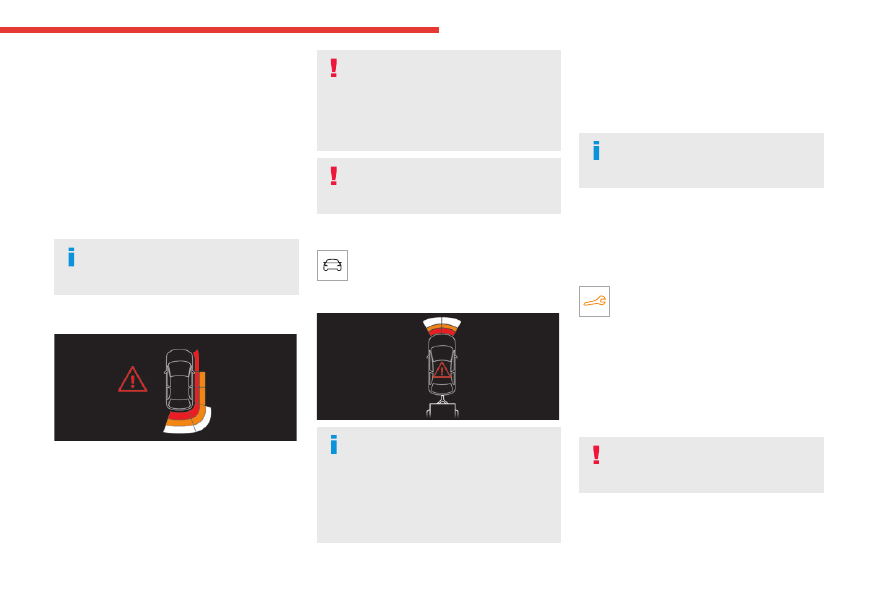

Front parking sensors

Supplementing the rear parking sensors, the

front parking sensors are triggered when an

obstacle is detected in front and the speed of the

vehicle is below 6 mph (10 km/h).

Front parking sensor operation is suspended if

the vehicle stops for more than three seconds in

forward gear, if an obstacle is no longer detected

or the vehicle speed exceeds 6 mph (10 km/h).

The sound emitted by the speaker (front

or rear) locates the obstacle relative to

the vehicle, in front or behind it.

Side parking sensors





Using four additional sensors located on the

sides of the bumpers, the system records the

position of obstacles during the manoeuvre and

indicates them when they are located alongside

the vehicle.

Only fixed obstacles are indicated

correctly. Moving obstacles detected at

the beginning of the manoeuvre may be

indicated mistakenly, while moving obstacles

that appear alongside the vehicle but were

not previously recorded will not be indicated.

Objects memorised during the

manoeuvre will no longer be stored after

switching off the ignition.

Deactivation/Activation

The settings are changed via

the

Driving

/

Vehicle

 touch screen menu.

The system status is memorised when the

ignition is switched off.





The rear parking sensors system will be

deactivated automatically if a trailer or

bicycle carrier is connected to a towing device

installed in accordance with the

manufacturer's recommendations.

In this case, the outline of a trailer is displayed

at the rear of the image of the vehicle.

The parking sensors are deactivated while the

Park Assist function is measuring a space.

For more information on the

Park

Assist

 function, refer to the corresponding

section.

When starting the vehicle, the graphic

and audible aids are only available after

the touch screen has started up.

Operating limits

If the boot is heavily loaded, the vehicle may tilt,

affecting distance measurements.

Malfunction

In the event of a malfunction when

changing into reverse gear, this warning

lamp lights up on the instrument panel,

accompanied by the display of a message and

an audible signal (short beep).

Have it checked by a CITROËN dealer or a

qualified workshop.

Reversing camera

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.



128

Driving



The reversing camera is activated automatically

when reverse gear is engaged.

The image is displayed on the touch screen.

The reversing camera function may be

supplemented by the parking sensors.





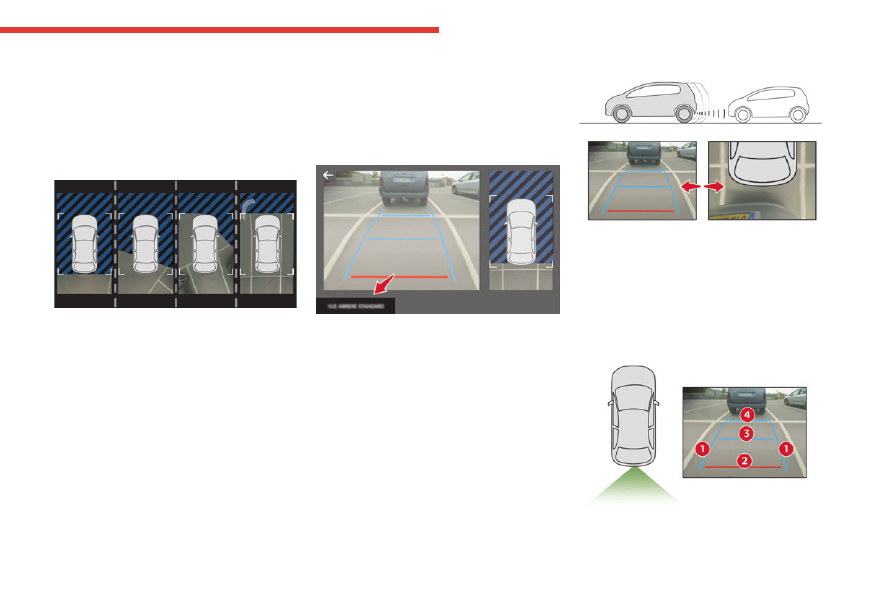

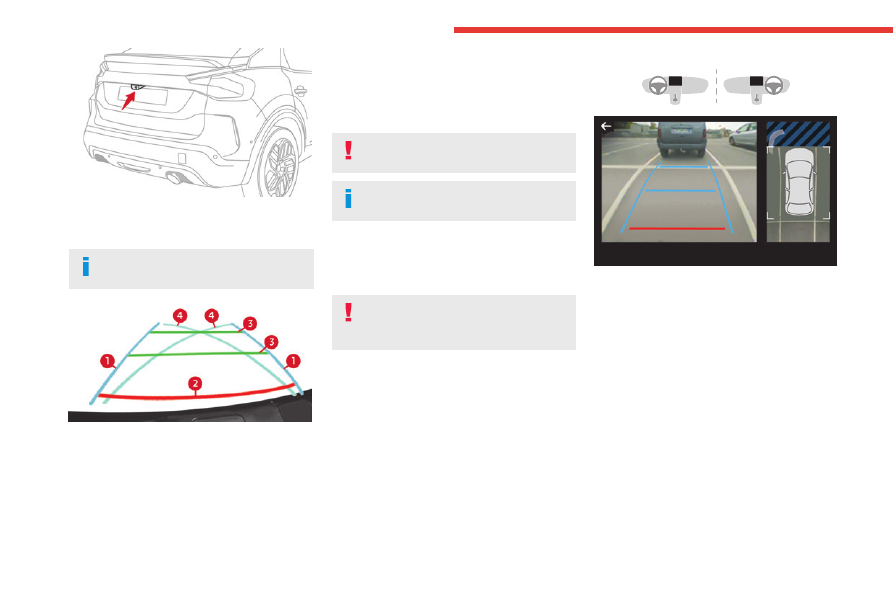

The blue lines

1

 indicate the general direction of

the vehicle (the gap corresponds to the width of

your vehicle including the mirrors).

The red line

2

 represents a distance of about

30 cm beyond the edge of your vehicle's rear

bumper.

The green lines

3

 represent distances of about 1

and 2 metres beyond the edge of your vehicle's

rear bumper.

The turquoise curves

4

 show the maximum

turning angle in either direction.

Opening the tailgate causes the display

to disappear.

Clean the reversing camera regularly

using a soft, dry cloth.

Top Rear Vision - 360

vision

For more information, refer to the

General recommendations on the use

of driving and manoeuvring aids

.

With the engine running, these systems allow

views of your vehicle’s close surroundings to be

displayed on the touch screen using one camera

for Top Rear Vision and two cameras for 360

vision.









The screen is divided into two parts with a

contextual view and a view from above the

vehicle in its close surroundings.

The parking sensors supplement the information

on the view from above the vehicle.

Various contextual views may be displayed:

–  Standard view.

–  180° view.

–  Zoom view.

AUTO mode is activated by default.

In this mode, the system chooses the best

view to display (standard or zoom).

You can change the type of view at any time

during a manoeuvre.

►  Press the button in the bottom left-hand

corner of the touch screen.

►  Select the type of view:

• "

Standard view

".

• "

180° view

".

129

Driving

6

• "

Zoom view

".

• "

AUTO view

".

The display is immediately updated with the type

of view selected.

The system status is not saved when the ignition

is switched off.

Operating principle





Using one or two cameras, the close

surroundings of the vehicle are recorded whilst

manoeuvring at low speed.

An image from above your vehicle in its close

surroundings is reconstructed (represented

between the brackets) in real time and as the

manoeuvre progresses.

It facilitates the alignment of your vehicle when

parking and allows obstacles close to the vehicle

to be seen. It is automatically deleted if the

vehicle remains stationary for too long.

With 360 vision, the image is created using

both cameras, when going forward and when

reversing.

When the function is activated, it is possible

that the view from above is not displayed. If

the system is activated when the vehicle has

already moved, the view from above can be fully

displayed.

Top Rear Vision

Rear view





To activate the camera located near the number

plate lamps, engage reverse gear and do not

exceed a speed of 6 mph (10 km/h).

The system is deactivated:

–  Automatically, at speeds above approximately

12 mph (20 km/h),

–  Automatically, if the boot is opened.

–  When changing out of reverse gear.

–  By pressing the white arrow in the upper-left

corner of the touch screen.

AUTO mode





This mode is activated by default.

Using sensors in the rear bumper, the automatic

view changes from the rear view (standard) to

the view from above (zoom) as an obstacle is

approached at the level of the red line (less than

30 cm) during a manoeuvre.

Standard view





The area behind the vehicle is displayed on the

screen.
