Compatibility of fuels





Petrol fuels conforming to the EN228 standard

containing up to 5% and 10% ethanol

respectively.





Diesel fuels conforming to the EN590, EN16734

and EN16709 standards and containing up to

7%, 10%, 20% and 30% fatty acid methyl ester

respectively. The use of B20 or B30 fuels, even

occasionally, imposes special maintenance

conditions referred to as "Arduous conditions".





Paraffinic Diesel fuel conforming to the EN15940

standard.

The use of any other type of (bio) fuel

(e.g. pure or diluted vegetable or animal

oils, domestic fuel) is strictly prohibited - risk

of damaging the engine and fuel system!

The only fuel additives authorised for use

are those that meet the B715001 (Petrol)

or B715000 (Diesel) standards.

Diesel at low temperature

At temperatures below 0 °C (+32 °F), the

formation of paraffins in summer-type Diesel

fuels could prevent the engine from operating

correctly. In these temperature conditions, use

winter-type Diesel fuel and keep the fuel tank

more than 50 % full.

At temperatures below -15 °C (+5 °F) to avoid

problems starting, it is best to park the vehicle

under shelter (heated garage).

Travelling abroad

Certain fuels could damage your vehicle’s

engine.

In certain countries, the use of a particular

fuel may be required (specific octane rating,

specific trade name, etc.) to ensure correct

operation of the engine.

For all additional information, consult a dealer.

Refuelling

Fuel tank capacity: approximately 53 litres

(Petrol or Diesel) or 43 litres (Rechargeable

hybrid).

Reserve level: approximately 6 litres.

Low fuel level

/2

1

1

When the low fuel level is reached,

this warning lamp lights up on the

instrument panel, accompanied by the display of

a message and an audible signal. When it first

comes on,

about 6 litres

 of fuel remain.

Until sufficient fuel is added, this warning lamp

appears every time the ignition is switched on,

accompanied by the message and the audible

signal. When driving, this message and audible

signal are repeated with increasing frequency as

the fuel level drops towards

0

.

You must refuel as soon as possible to avoid

running out of fuel.

For more information on

Running out of fuel

(Diesel)

, refer to the corresponding section.

A small arrow by the warning lamp

indicates which side of the vehicle the

fuel filler flap is located on.

Stop & Start

Never refuel with the engine in STOP

mode; you must switch off the ignition.

Refuelling

Any addition of fuel must be in quantities of at

least 10 litres, in order to be registered by the

fuel gauge.

Opening the filler flap may create a noise caused

by an inrush of air. This vacuum is entirely

normal, resulting from the sealing of the fuel

system.

The filler cap is built into the filler flap or must be

unscrewed (depending on version).

To refuel in complete safety:

►

Always switch off the engine.

148

Practical information













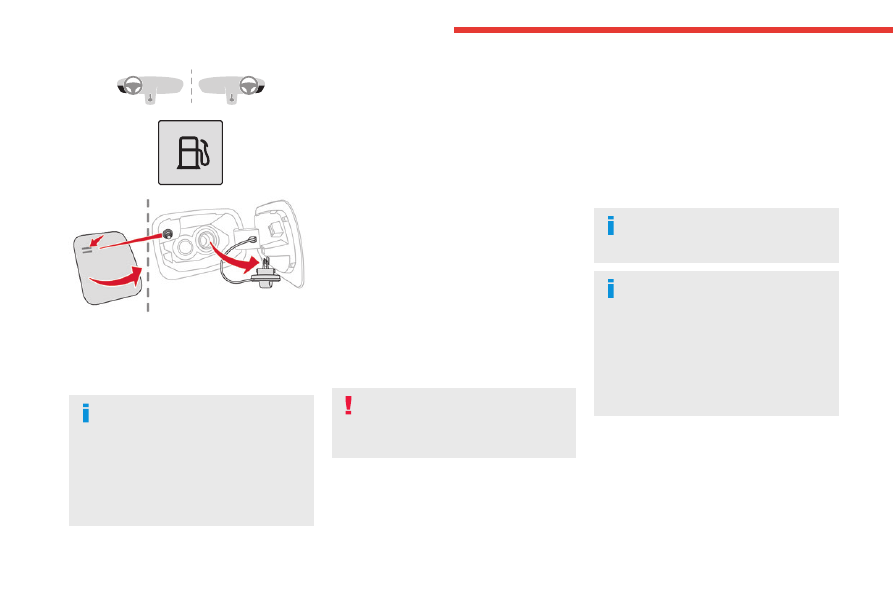

►  To open the filler flap, press the flap opening

button for more than 2 seconds or, with the

vehicle unlocked, press the upper rear corner

of the filler flap facing the ejector or the tactile

marker, if present (depending on version).

Rechargeable hybrid vehicles

After pressing the button on the

dashboard, the filler flap may not open for

several minutes. A sound is emitted when the

filler flap opens.

If the flap becomes stuck, press and hold

the button on the dashboard for more than

3 seconds.

►  Select a pump that delivers the correct fuel

type for the vehicle's engine (see a reminder

label on the inside of the filler flap).

►  Turn the filler cap to the left, remove it

and place it on its support on the filler flap

(depending on version).

►  Insert the filler nozzle and push it in as far as

possible before starting to refuel (to minimise the

risk of splashing).

►  Fill the tank.

Do not continue after the nozzle’s third cut-

out. Doing so may cause malfunctions.

►  Put the filler cap back in place and turn it to

the right (depending on version).

►  Push the fuel filler flap to close it.

The vehicle is fitted with a catalytic converter,

which helps to reduce the level of harmful

emissions in the exhaust gases.

For petrol engines, you must use unleaded

fuel.

The filler neck is narrower, allowing only

unleaded petrol nozzles to be inserted.

If you have put in the wrong fuel for

the vehicle, you must have the fuel

tank drained and filled with the correct fuel

before starting the engine.

Misfuel prevention (Diesel)

(Depending on country of sale.)

This mechanical device prevents filling the tank

of a Diesel vehicle with petrol.

Located in the filler neck, the misfuel prevention

device is visible when the filler cap is removed.

Operation

When a petrol filler nozzle is introduced into the

fuel filler neck of a Diesel vehicle, it comes into

contact with the flap. The system remains closed

and prevents filling.

Do not persist but introduce a Diesel type

filler nozzle.

The misfuel prevention device does not

prevent filling with a jerrycan, regardless

of the fuel type.

Travelling abroad

As Diesel fuel pump nozzles may be

different in other countries, the presence

of the misfuel prevention device may make

refuelling impossible.

Before travelling abroad, it is advisable to

check with a CITROËN dealer if the vehicle is

suitable for the distribution equipment of the

countries visited.

149

Practical information

7

Rechargeable hybrid

system

Electrical system

The electrical circuit of the rechargeable hybrid

system is identified by orange cables and its

components are marked with this symbol:





The rechargeable hybrid powertrain uses

a voltage of between 240 V and 400 V.

This system may be hot both when the

ignition is on and after switching it off.

Comply with the warning messages shown

on the labels, particularly inside the charging

flap.

High voltage system voltage is

dangerous and can cause burns or other

injuries or even fatal electric shock.

Since damage to high voltage components is

not visible, CITROËN recommends that you:

–  Never touch the components, damaged

or not, and never let your jewelry or other

metallic objects come into contact with these

components.

–  Never work on the orange high voltage

cables or on any other high voltage

component marked with the Electric risk label.

Any intervention on the high voltage system

must be carried out by qualified persons in

workshops qualified and approved to carry

out this type of work.

–  Never damage, modify or remove the

orange high voltage cables or disconnect

them from the high voltage network.

–  Never open, modify or remove the cover of

the traction battery.

–  Never work with cutting and forming

tools or heat sources near high voltage

components and cables.

In case of low level of fluid in the cooling

tank, the refilling shall only be performed in a

qualified and trained workshop to verify that

the leakage is not in the traction battery.

Any intervention on the high voltage system

must be carried out by qualified persons in

workshops qualified and approved to carry

out this type of work.

Damage to the vehicle or the traction battery

could result in the leakage of toxic gases or

fluids either immediately or later. CITROËN

recommends that you:

–  Always inform the fire and emergency

services in the event of an incident, warning

that the vehicle is equipped with a traction

battery.

–  Never touch the liquids leaking from the

traction battery.

–  Do not inhale the gases emitted by the

traction battery which are toxic.

–  Move away from the vehicle in the event of

incident or accident, the gases emitted being

flammable and could cause a fire.





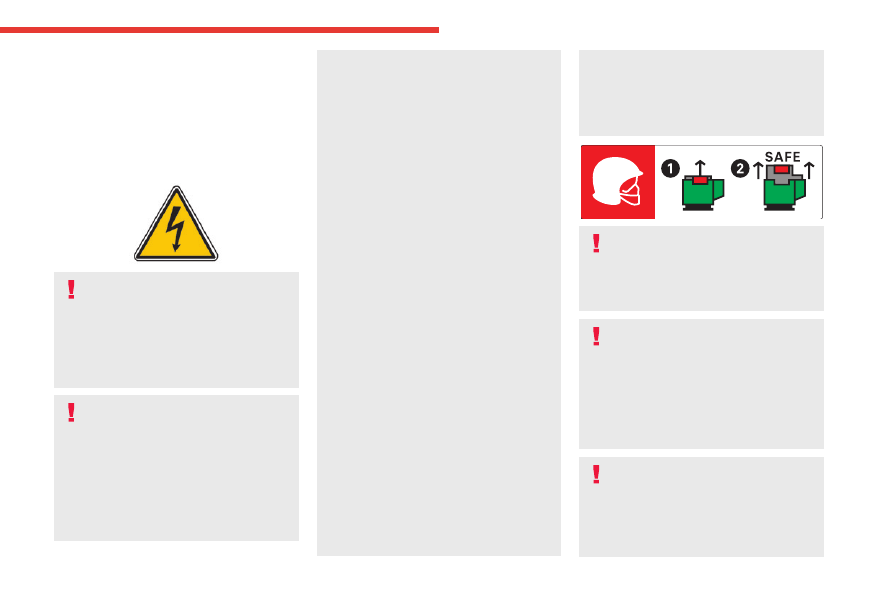

This label is intended solely for use by

firefighters and maintenance services in

the event of any work on the vehicle.

No other person must touch the device shown

on this label.

In the event of an accident or impact

to the vehicle’s underbody

In these situations, the electrical circuit or the

traction battery can be seriously damaged.

Stop as soon as it is safe to do so and switch

off the ignition.

Contact a CITROËN dealer or a qualified

workshop.

When washing

Before washing the vehicle, always

check that the charging flap is closed

correctly.

Never wash the vehicle while the battery is

on charge.

150

Practical information

High-pressure washing

To avoid damaging the electrical

components, it is expressly prohibited to

use high-pressure washing in the engine

compartment or under the body.

Do not use a pressure greater than 80 bar

when washing the bodywork.

Never allow water or dust to enter the

connector or charging nozzle - risk of

electrocution or fire!

Never connect / disconnect the charging

nozzle or cable with wet hands - risk of

electrocution!

Traction battery

The Li-ion (Lithium-ion) traction battery stores

the electrical energy needed to propel the

vehicle.

It is located under the rear seats.

The traction battery's range varies depending

on the type of driving, the route, the use of

thermal comfort equipment and the ageing of its

components.

The traction battery ageing depends on

several factors, such as climatic

conditions and the distance travelled.

To preserve the mileage of your vehicle

and the durability of your traction battery,

CITROËN recommends that you:

–  Do not fully charge the battery of your

electric vehicle daily (charge the traction

battery below 80% as often as possible).

–  Do not completely discharge the battery.

–  Do not store the vehicle for a long period

of non-use (more than 12 hours) when the

traction battery has a low or high charge level.

Prefer a charge level between 20 and 40%.

–  Limit the use of fast charging.

–  Do not expose the vehicle to temperatures

below -30°C and above +60°C for more than

24 hours.

–  Avoid charging the vehicle at negative

temperatures (except if the vehicle ran more

than 20 minutes) or above +30°C.

–  Do not use the vehicle's traction battery as

a generator of energy.

–  Do not use a generator to recharge your

vehicle's traction battery.

In the event of damage to the traction

battery

It is strictly prohibited to work on the vehicle

yourself.

Do not touch liquids coming from the battery,

and in the event of skin contact with these

products, wash abundantly with water and

contact a doctor as soon as possible.

Contact a CITROËN dealer or a qualified

workshop to have the system checked.

Disposal of the traction battery

The traction battery is designed for the life of the

vehicle if the recommendations of CITROËN are

followed.

If it becomes necessary to replace the battery,

contact the CITROËN dealer for instructions on

its disposal. Improper disposal carries the risk of

severe burns, electric shock, and damage to the

environment.

In accordance with regulations, CITROËN

ensures a second life or recycling of this

component in collaboration with qualified

operators.

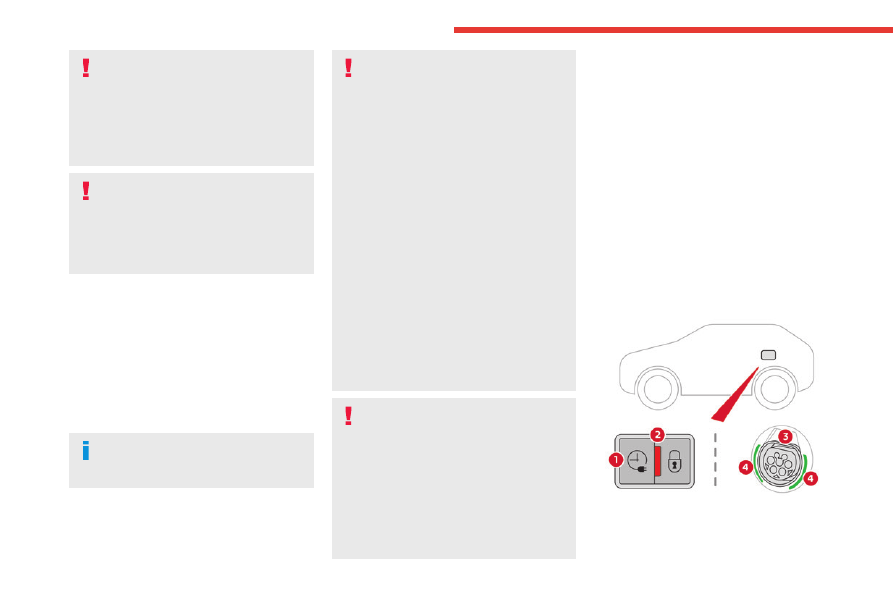

Charging flap

The charging flap is located on the rear left-hand

side of the vehicle.





1.

Deferred charging activation button

151

Practical information

7

2.

Indicator lamp confirming that the nozzle is

locked into the charging connector.

Fixed red: nozzle correctly positioned and

locked.

Flashing red: nozzle incorrectly positioned or

locking not possible.

3.

Charging connector

4.

Light guides





Status of light

guides

Meaning

Fixed white

Welcome lighting when flap

is opened

Fixed blue

Deferred charging

Flashing green

Charging

Fixed green

Charging complete

Status of light

guides

Meaning

Fixed red

Malfunction

In case of impact, even light, against the

charging flap, do not use it.

Do not dismantle or modify the charging

connector - risk of electrocution and/or fire!

Contact a CITROËN dealer or a qualified

workshop.

Charging cables, sockets

and chargers

The traction battery can be charged using

several different types of cables.

The charging cable supplied with the vehicle is

compatible with the electrical installations of the

country of sale. If you are travelling abroad, refer

to the following tables to check the compatibility

of local electrical installations with the charging

cable.

Contact a CITROËN dealer or a qualified

workshop to obtain the appropriate charging

cable(s).

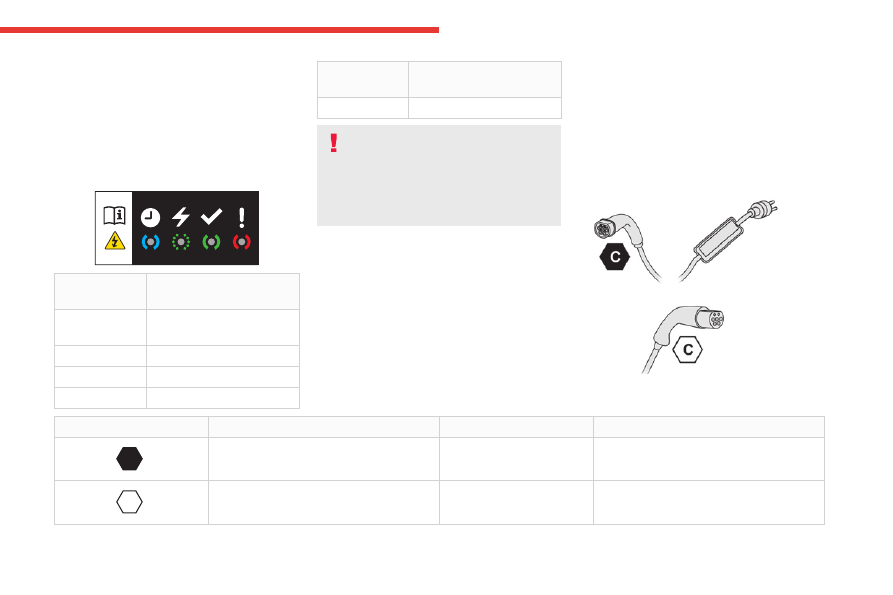

Identification labels on charging

sockets/connectors

Identification labels are affixed to the vehicle,

charging cable and charger to inform the user

about which device needs to be used.









The meaning of each identification label is as

follows:

Identification label

Location

Configuration

Power type/Voltage range



C



Charging connector (vehicle side)

TYPE 2

AC

< 480 Vrms



C



Charging socket (charger side)

TYPE 2

AC

< 480 Vrms

152

Practical information

Types of charging

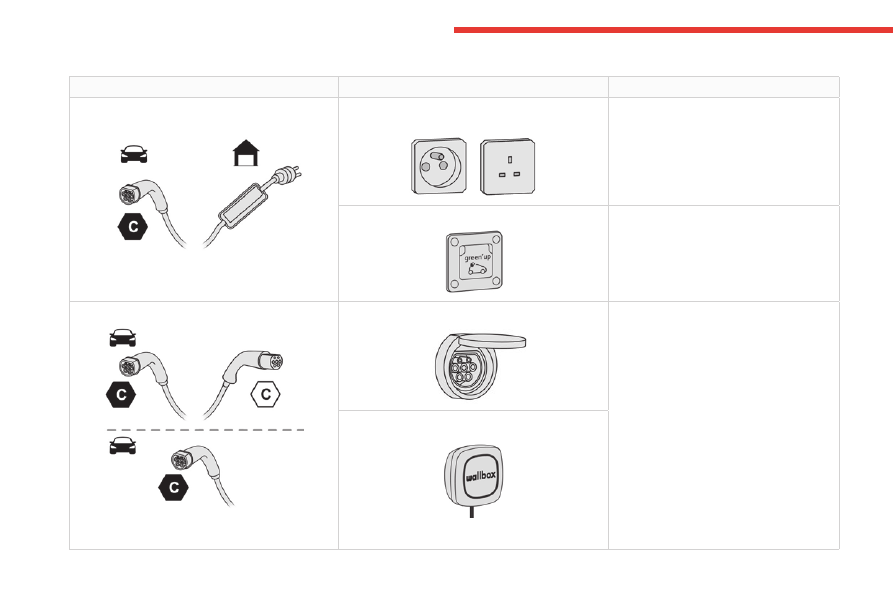

Cable type

Compatibility

Specifications

Mode 2 charging cable with integrated control

unit





Identification label

C

 on the charging connector

(vehicle side).

Conventional electrical socket (depending on

country).





Charge limited to a maximum of 8 A.

"Green'Up" type socket.





Charge limited to a maximum of 16 A.

Mode 3 charging cable





Identification labels

C

 on the charging connector

(vehicle side) and on the socket (charger side).

Accelerated charging unit socket.





Charge limited to a maximum of 32 A.

Wallbox accelerated charging unit.





153

Practical information

7

The estimated charging time is indicated

on the instrument panel when the vehicle

is connected. It may vary depending on

various factors such as the outside

temperature or the quality of the electricity

supply.

If the outside temperature is below -10°C, it

is recommended to connect the vehicle as

soon as possible as the charging time may

increase significantly. The traction battery

may not charge fully.

Domestic charging cable (mode 2)

It is essential to avoid damaging the

cable and to keep it intact.

In the event of damage, do not use it and

contact a CITROËN dealer or a qualified

workshop to replace it.

Accelerated charging unit (mode 3)

Do not dismantle or modify the

accelerated charging unit - risk of

electrocution and/or fire!

To find out how it is used, please refer to the

accelerated charging unit's user instructions.

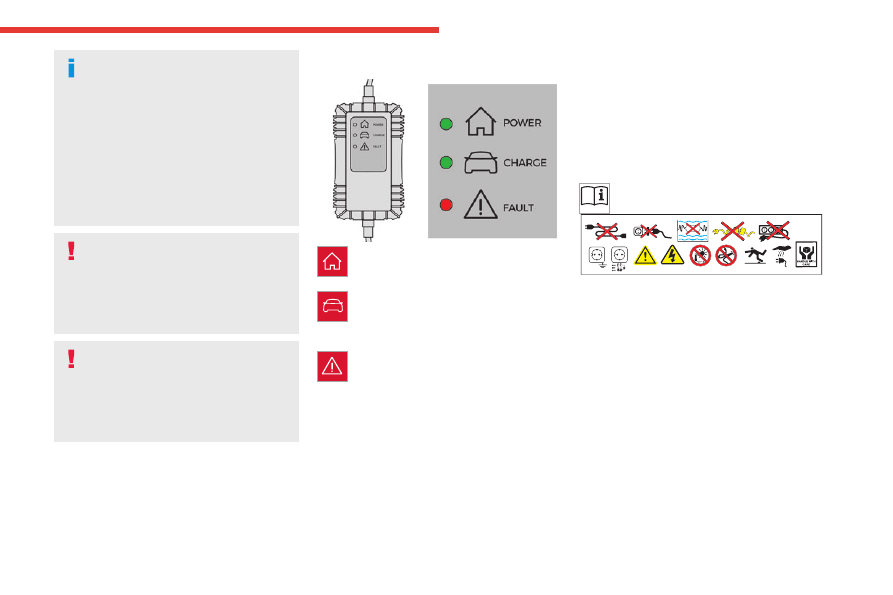

Control unit (mode 2)





POWER

Green: electrical connection established;

charging can begin.

CHARGE

Flashing green: charging in progress or

temperature pre-conditioning activated.

Fixed green: charging complete.

FAULT

Red: fault; charging not permitted or must

be stopped immediately. Check that everything

is connected correctly and that the electrical

system is not faulty.

If the indicator lamp does not go off, contact a

CITROËN dealer or a qualified workshop.

Upon plugging the charging cable into a

domestic socket, all of the indicator lamps come

on briefly.

If no indicator lamps come on, check the

domestic socket's circuit-breaker:

–  If the circuit-breaker has tripped, contact a

professional to check that the electrical system

is compatible and/or carry out any necessary

repairs.

–  If the circuit-breaker has not tripped, stop

using the charging cable and contact a

CITROËN dealer or a qualified workshop.

Control unit label - Recommendations

Refer to the handbook before use.

1.

Incorrect use of this charging cable may

result in fire, property damage and serious

injury or death by electrocution!

2.

Always use a correctly earthed power

socket, protected by a 30 mA residual

current device.

3.

Always use an electrical socket protected

by a circuit-breaker appropriate for the

electrical circuit’s current rating.

4.

The weight of the control unit must not be

borne by the electrical socket, plug and

cables.

5.

Never use this charging cable if it is

defective or in any way damaged.

154

Practical information

6.

Never attempt to repair or open this

charging cable. It contains no repairable

parts - replace the charging cable if it is

damaged.

7.

Never immerse this charging cable in water.

8.

Never use this charging cable with an

extension cable, a multi-plug socket, a

conversion adaptor or on a damaged

electrical socket.

9.

Do not unplug the plug from the wall as a

means of stopping charging.

10.

Immediately stop charging, by locking and

then unlocking the vehicle using the remote

control key, if the charging cable or wall

socket feel burning hot to the touch.

11.

This charging cable includes components

liable to cause electrical arcing or sparks.

Do not expose to flammable vapours.

12.

Only use this charging cable with CITROËN

vehicles.

13.

Never plug the cable into the wall socket (or

unplug it) with wet hands.

14.

Do not force the connector if it is locked into

the vehicle.

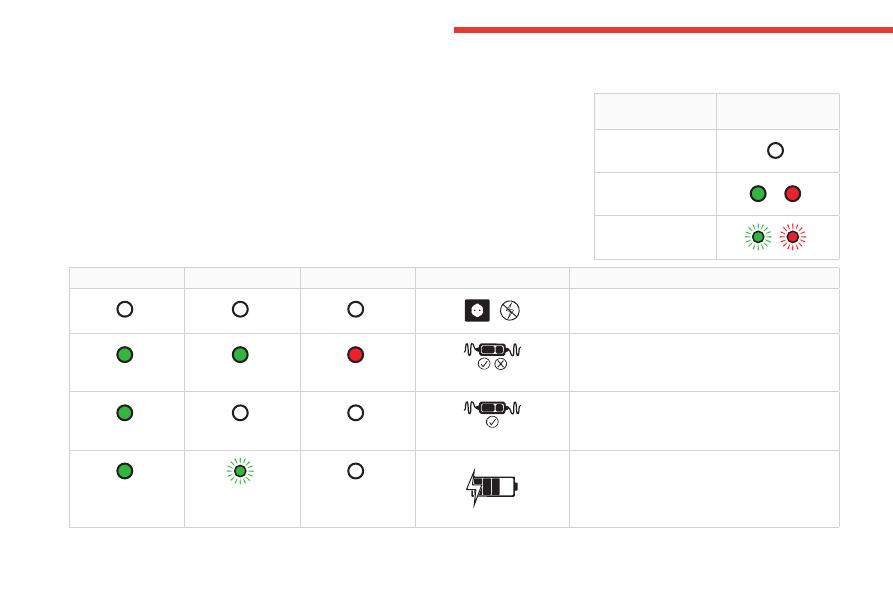

Control unit label - State of indicator

lamps

State of the

indicator lamp

Off





On







Flashing







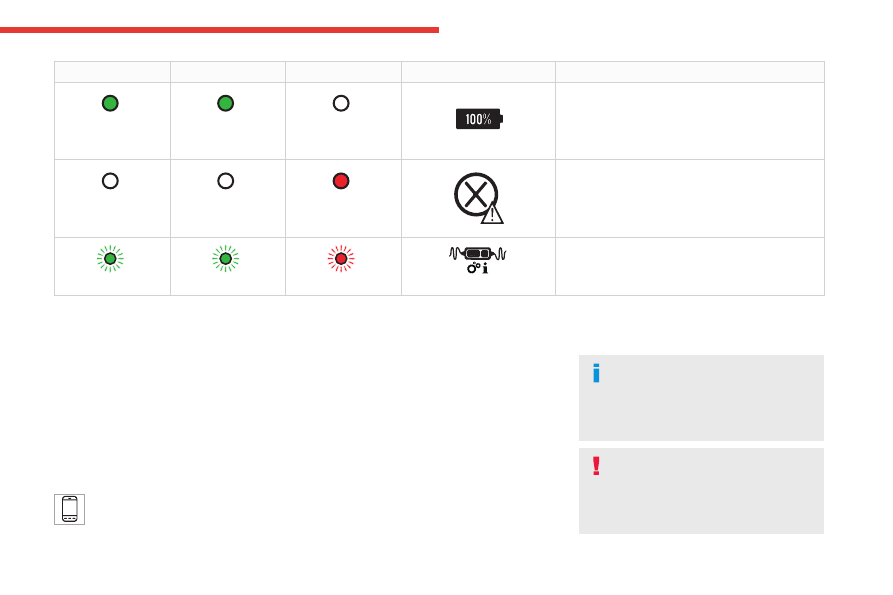

POWER

CHARGE

FAULT

Symbol

Description

















Not connected to the power supply or power is not

available from the infrastructure.





(green)





(green)





(red)





The control unit is currently performing a self-test.





(green)













Connected only to the infrastructure or to the

infrastructure and to the Electric Vehicle (EV) but

no charging in progress.





(green)





(green)









Connected to the power supply and to the Electric

Vehicle (EV).

The EV is on charge or in a temperature pre-

conditioning sequence.

155

Practical information

7

POWER

CHARGE

FAULT

Symbol

Description





(green)





(green)









Connected to the power supply and to the Electric

Vehicle (EV).

The EV is waiting for charging or the charging of

the EV is completed.













(red)





Control unit malfunction. No charging allowed.

If an error indicator reappears after a manual reset,

the control unit must be checked by a CITROËN

dealer before the next charge.





(green)





(green)





(red)





The control unit is in diagnostic mode.

Manual reset procedure

The control unit can be reset by simultaneously disconnecting the charging connector and the wall socket.

Then, reconnect the wall socket first. For more information, refer to the handbook.

Charging the traction

battery (Rechargeable

hybrid)

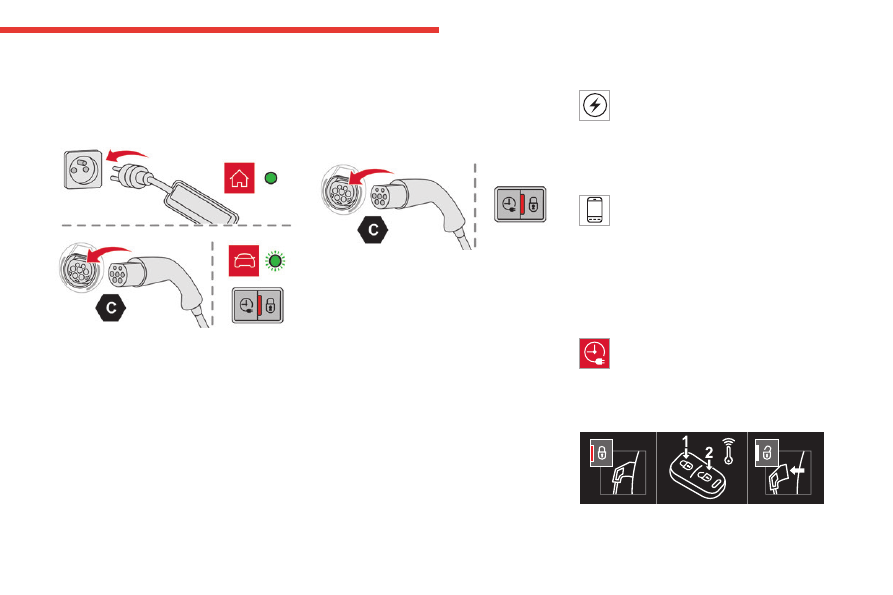

For a full charge, follow the charging procedure

without interrupting it, until it stops automatically.

Charging may be performed either immediately

(by default) or deferred.

Deferred charging is set via the touch

screen or the

MyCitroën App

 application.

When the vehicle is connected, the following

information is displayed on the instrument panel:

–  Traction battery charge status (%).

–  Remaining range (miles or km).

–  Estimated charging time (calculation may take

a few seconds).

–  Charging speed (miles or km gained per hour).

After the instrument panel has been put into

standby mode, this information can be displayed

again by unlocking the vehicle or opening a door.

It is also possible to monitor the charging

progress using the

MyCitroën App



application.

For more information on

Remote functions

,

refer to the corresponding section.

Low load / Driving

Driving when the charge level of the

traction battery is too low can lead to the

vehicle breaking down and can lead to

accidents or serious injuries. ALWAYS make

156

Practical information

sure the traction battery has a sufficient

charge level.

Low load / Parking

If the outside temperature is negative,

it is recommended not to park your vehicle

outside for several hours at a low load (less

than 20%).

Vehicle in storage for more than

1 month

In the event of a long period of non-use of

the vehicle (beyond 4 weeks) without the

possibility of charging when restarting, the

self-discharge may make it impossible to

restart if the traction battery charge level

is a low or very low, especially at negative

ambient temperatures. ALWAYS make sure

that the traction battery has a charge between

20% and 40% if you do not plan to use your

vehicle for several weeks.

Do not connect the charging cable.

Always park the vehicle in a place with

temperatures between -10°C and 30°C

(parking in a place with extreme temperatures

can damage the traction battery).

Refer to the

Accessory battery

(Rechargeable hybrid)

 section for the

battery disconnection procedure.

Precautions

Rechargeable hybrid vehicles have

been developed in accordance with the

recommendations for maximum electromagnetic

field limits established by the ICNIRP

(International Commission on Non-Ionizing

Radiation Protection - 1998 Guidelines).

Wearers of pacemakers or equivalent

devices should consult a doctor to

enquire about any applicable precautionary

measures, or contact the manufacturer of their

implanted electronic medical device to check that

it is guaranteed to operate in an environment

compliant with the ICNIRP guidelines.

If in doubt

, during charging, do not remain

inside or near the vehicle, near the charging

cable or the charging unit, even for a short time.

Before charging

Depending on the context:

►  Have a professional check that the

electrical system to be used complies with

applicable standards and is compatible with

the vehicle.

►  Have a professional electrician install

a dedicated domestic power socket or

accelerated charging unit (Wallbox)

compatible with the vehicle.

Use the charging cable supplied with the

vehicle.

For more information, contact a CITROËN

dealer or a qualified workshop.

During charging

As a safety measure, the engine will

not start if the charging cable is plugged into

the connector on the vehicle. A warning is

displayed on the instrument panel.

While charging is in progress, unlocking the

vehicle will cause the charging to stop.

If no action is taken on one of the openings

(door or boot) or on the charging nozzle, the

vehicle will lock again after 30 seconds and

charging will resume automatically.

Never work under the bonnet:

–  Some areas remain very hot, even an hour

after charging ends - risk of burns!

–  The fan may start at any time - risk of cuts

or strangulation!

After charging

Check that the charging flap is closed.

Do not leave the cable connected to the

domestic power socket - risk of short-circuit

or electrocution in the event of contact with or

immersion in water!

Charging procedure

Connection

►  Before

charging, check that the gear selector

is in mode

P

 and the ignition is off, otherwise

charging is impossible.

157

Practical information

7

►  Press on the rear of the charging flap to open

it and check that there are no foreign bodies on

the vehicle's charging connector.

The light guides in the flap come on white.

Domestic charging (mode 2)









►  First, connect the charging cable from the

control unit to the domestic socket.

When the connection is made, all of the indicator

lamps on the control unit light up, then only the

POWER

 indicator lamp remains on in green.

►  Remove the protective cover from the

charging nozzle.

►  Insert the nozzle into the vehicle's charging

connector.

The start of charging is confirmed by the flashing

of the green light guides in the flap and the

flashing of the

CHARGE

 indicator lamp in green

on the control unit.

If this is not the case, charging has not started;

restart the procedure, ensuring that all of the

connections are properly established.

The red indicator lamp in the flap comes on to

indicate that the nozzle is locked.

Accelerated charging (mode 3)





►  Follow the accelerated charging unit

(Wallbox) user instructions.

►  Remove the protective cover from the

charging nozzle.

►  Insert the nozzle into the vehicle's charging

connector.

The start of charging is confirmed by the flashing

of the green light guides in the flap.

If this is not the case, charging has not

started; restart the procedure ensuring that all

connections are properly established.

The red indicator lamp in the flap comes on to

indicate that the nozzle is locked.

Deferred charging

By default, the deferred charging start time is set

to midnight.

Depending on equipment, this time can be

changed.

Settings

With CITROËN Connect Nav

►  In the

Energy

 touch screen menu,

select the

Charge

 page.

►  Set the charging start time.

►  Press

OK

.

The setting is saved in the system.

With CITROËN Connect Radio or CITROËN

Connect Nav

You can also programme the deferred

charging function at any time from a

smartphone via the

MyCitroën App

 application.

For more information on

Remote functions

,

refer to the corresponding section.

Activation

►  After programming the deferred charging,

connect the vehicle to the desired charging

equipment.

►  Press this button in the flap within one

minute to activate the deferred charging

(confirmed by the light guides coming on in

blue).

Disconnection





Before disconnecting the nozzle from the

charging connector:

►  If the vehicle is locked, unlock it.

158

Practical information

►  If the vehicle is unlocked,

lock it and then

unlock it

.

If selective unlocking of the doors is

activated, press the unlocking button on

the remote control twice to disconnect the

nozzle.

The red indicator lamp in the flap goes out to

confirm that the nozzle is unlocked.

►  Within

30 seconds

, remove the charging

nozzle.

Domestic charging (mode 2)

The end of charging is confirmed when the

green

CHARGE

 indicator lamp on the control

unit comes on fixed and the green light guides in

the flap come on fixed.

►  After disconnection, replace the protective

cover over the nozzle and close the charging

flap.

►  Disconnect the control unit's charging cable

from the domestic socket.

Accelerated charging (mode 3)

The end of charging is confirmed by the

accelerated charging unit (Wallbox) and when

the green light guides in the flap come on fixed.

►  After disconnection, replace the nozzle on to

the charging unit and close the charging flap.

Towing device

Load distribution

►  Distribute the load in the trailer so that the

heaviest items are as close as possible to the

axle, and the nose weight approaches the

maximum permitted without exceeding it.

Air density decreases with altitude, thus reducing

engine performance. The maximum towable load

must be reduced by 10% per 1,000 metres of

altitude.

Use genuine towing devices and wiring

harnesses approved by CITROËN. We

recommend having them fitted by a CITROËN

dealer or a qualified workshop.

If not fitted by a CITROËN dealer, they must

still be fitted in accordance with the vehicle

manufacturer's instructions.

Important

: if the vehicle has a motorised

tailgate and Hands-Free Tailgate Access

function, and a towing device has been

fitted outside the CITROËN dealer network,

it is essential to visit a CITROËN dealer or

a qualified workshop to have the detection

system recalibrated - risk of malfunction of the

Hands-Free Tailgate Access function.

Certain driving or manoeuvring aid functions

are automatically deactivated while an

approved towing system is in use.

For more information about driving with a

towing device fitted to a trailer and associated

with the

Trailer stability assist

, refer to the

corresponding section.

Comply with the maximum authorised

towable weight, as indicated on your

vehicle's registration certificate, on the

manufacturer's label and in the

Technical

data

 section of this guide.

If using accessories attached to the

towing device (e.g. bicycle carriers, tow

boxes):

–  Comply with the maximum authorised nose

weight.

–  Do not transport more than 4 conventional

bicycles or 2 electric bicycles.

When loading bicycles onto a bicycle carrier

on a towball, be sure to place the heaviest

bicycles as close as possible to the vehicle.

Observe the legislation in force in the

country where you are driving.

Vehicle equipped with motorised

tailgate with hands-free function

(Hands-Free Tailgate Access)

To avoid unintentionally opening the

motorised tailgate when operating the towing

device:

–  Deactivate this function in advance in the

vehicle's configuration menu.

–  Or remove the electronic key from the

recognition zone, with the tailgate closed.

159

Practical information

7

Towing device with quickly

detachable towball

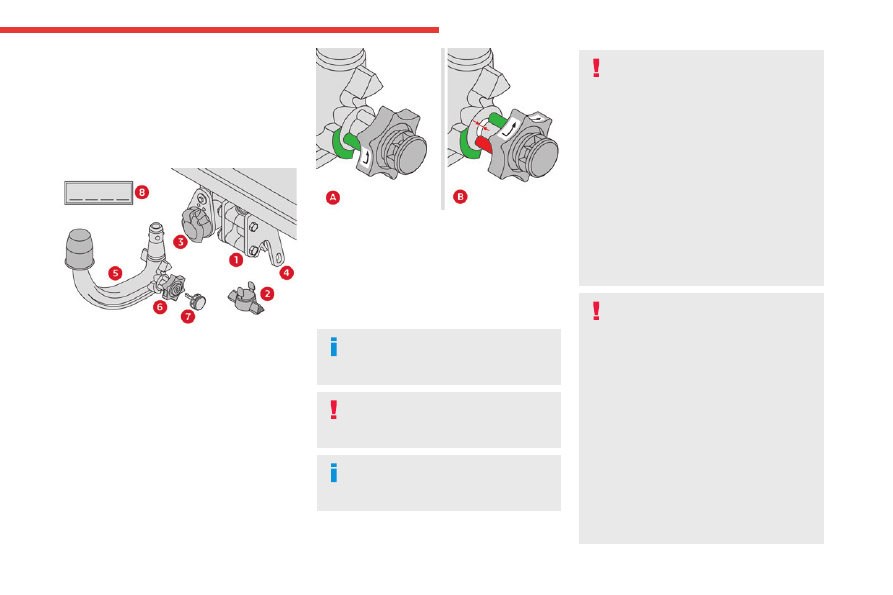

Presentation

No tools are required to install or remove this

genuine towing device.





1.

Carrier

2.

Protective plug

3.

Connection socket

4.

Safety eye

5.

Detachable towball

6.

Locking/unlocking wheel

7.

Security key lock

8.

Label to note the key references





A. Locked

 position (the

green

 marks are

opposite each other); the wheel is in contact

with the towball (no gap).

B. Unlocked

 position (

red

 mark opposite

the

green

 mark); the wheel is no longer

in contact with the towball (gap of around

5 mm).

Affix the enclosed label in a clearly visible

location, close to the carrier or in the

boot.

Trailers with LED lamps are not

compatible with the wiring harness of this

device.

To ensure complete safety while driving

with a

Towing device

, refer to the

corresponding section.

Before each use

Verify that the towball is correctly fitted,

checking the follow points:

–  The green mark on the wheel is in line with

the green mark on the towball.

–  The wheel is in contact with the towball

(position

A

).

–  The security key lock is closed and the

key removed; the wheel can no longer be

operated.

–  The towball must not be able to move in

its carrier; test by attempting to shake it with

your hand.

If the towball is not locked, the trailer can

become detached - risk of an accident!

During use

Never release the locking system with a

trailer or load carrier on the towball.

Never exceed the maximum authorised

weight for the vehicle - the Gross Train

Weight or GTW.

Always comply with the maximum authorised

load on the towing device: if it is exceeded,

this device may become detached from the

vehicle - risk of an accident!

Before driving, check the headlamp height

adjustment and check that the lamps on the

trailer operate correctly.

For more information on

Headlamp height

adjustment

, refer to the corresponding

section.

160

Practical information

After use

When travelling without a trailer or

load carrier, remove the towball and fit the

protective plug into the carrier, to provide

clear visibility of the number plate and/or its

lighting.

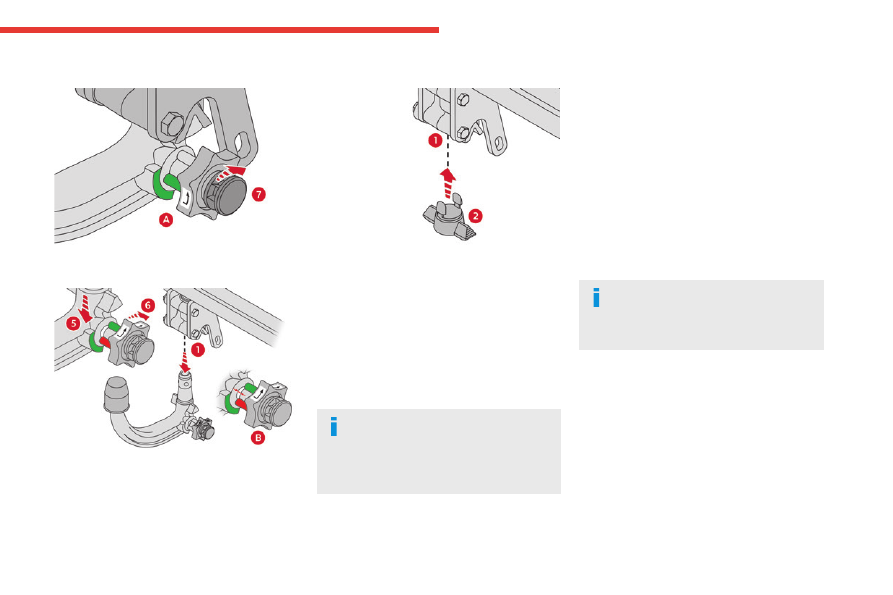

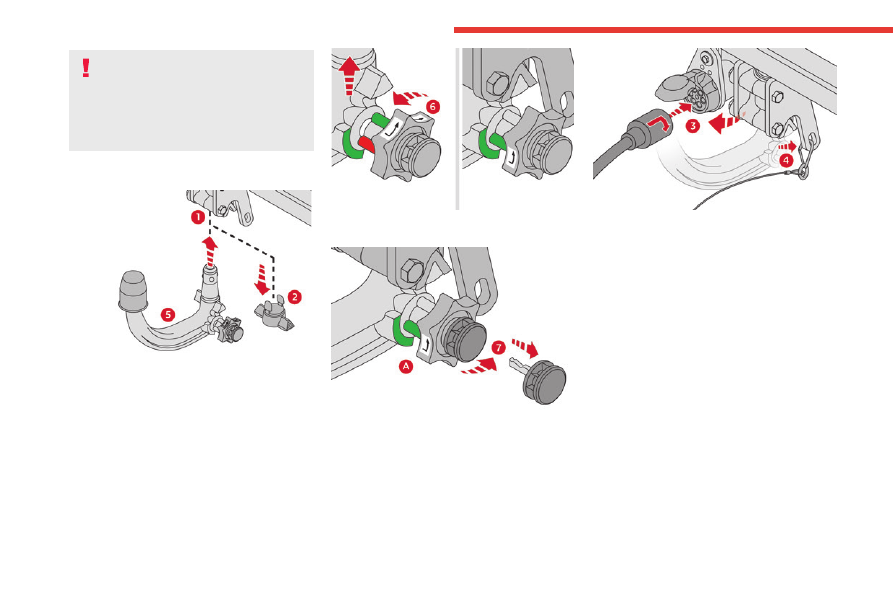

Fitting the towball





►  Below the rear bumper, remove the protective

plug

2

 from the carrier

1

.

►  Insert the end of the towball

5

 into the carrier

1

 and push it upwards; it will lock into position

automatically.





►  The wheel

6

 rotates a quarter turn anti-

clockwise; take care to keep your hands clear!





►  Check that the mechanism has correctly

locked into place (position

A

).

►  Close the lock

7

 using the key.

►  Remove the key. The key cannot be removed

while the lock is open.

►  Clip the cap onto the lock.





►  Remove the protective cover from the

towball.

►  Attach the trailer to the towball.

►  Attach the cable on the trailer to the safety

eye

4

 on the carrier.

►  Lower the connection socket

3

 to put it in

position.

►  Insert the trailer plug and rotate it by a

quarter turn to connect it to the connection

socket

3

 on the carrier.

Removing the towball

►  Grasp the trailer plug, perform a quarter turn

and pull to disconnect it from the connection

socket

3

 on the carrier.

►  Raise the connection socket

3

 to the right

again to stow it away.

►  Detach the cable on the trailer from the safety

eye

4

 on the carrier.

►  Detach the trailer from the towball.

►  Refit the protective cover to the towball.

161

Practical information

7

►  Remove the cap from the lock and press it

onto the head of the key.





►  Insert the key into the lock

7

.

►  Open the lock using the key.





►  Hold the towball

5

 firmly in one hand; using

the other hand, pull and turn the wheel

6

 fully in

a clockwise direction; do not release the wheel.

►  Extract the towball from the bottom of its

carrier

1

.

►  Release the wheel; it automatically stops in

the unlocked position (position

B

).





►  Refit the protective plug

2

 to the carrier

1

.

►  Stow the towball in its bag away from knocks

and dirt.

Maintenance

Correct operation is only possible if the towball

and its carrier are kept clean.

Before cleaning the vehicle with a high-pressure

jet wash, the towball must be removed and the

protective plug fitted to the carrier.

Affix the enclosed label in a clearly visible

location, close to the carrier or in the

boot.

Contact a CITROËN dealer or a qualified

workshop for any work on the towball system.

Energy economy mode

This system manages the duration of use of

certain functions, in order to conserve a sufficient

level of charge in the battery with the ignition off.

After switching off the engine, you can still

use functions such as the audio and telematic

system, the wipers and the dipped beam

headlamps or courtesy lamps, for a combined

duration of approximately 40 minutes.

Selecting the mode

A confirmation message is displayed when

energy economy mode is entered, and the active

functions are placed on standby.

If a telephone call is in progress at the

time, it will be maintained for around 10

minutes via the audio system’s hands-free

system.

Exiting the mode

These functions are automatically reactivated the

next time the vehicle is used.

To restore the use of these functions

immediately, start the engine and let it run:

–  For less than 10 minutes, to use the

equipment for approximately 5 minutes.

–  For more than 10 minutes, to use the

equipment for approximately 30 minutes.

Let the engine run for the specified duration to

ensure that the battery charge is sufficient.
