Citroën C5 Aircross (2022 year). Manual in english - page 6

82

Safety

It comes on in red on both the instrument panel

and the front passenger airbag and seat belts

warning lamps display, once the system detects

that a seat belt is not fastened or has been

unfastened.

Seat belts not fastened/unfastened

identification indicator lamp

The red indicator lamps on the display indicate

the location of the seat belts which are not

fastened or have been unfastened.

Not fastened at the front

When the ignition is switched on, the warning

lamp and the corresponding indicator lamps light

up if the driver and/or the front passenger have

not fastened their seat belts.

At a speed greater than 12 mph (20 km/h),

these warning lamps flash, accompanied by an

increasing audible signal for approximately two

minutes. After two minutes, these warning lamps

remain on as long as the front seatbelts are not

fastened.

Not fastened at the rear

When the ignition is switched on and with the

engine running or the vehicle moving at a speed

below 12 mph (20 km/h), the warning lamp and

the corresponding indicator lamps light up for

1 minute, if one or more rear seat belts are not

fastened.

Unfastened

After the ignition is switched on, the warning

lamp and the corresponding indicator lamps light

up if the driver and/or one or more passengers

unfasten their seat belts.

At a speed greater than 12 mph (20 km/h), these

warning lamps flash, accompanied by an audible

signal for approximately two minutes. After this

time, these warning lamps remain on as long as

the seatbelts are not refastened.

Advice

The driver must ensure that passengers

use the seat belts correctly and that they

are all fastened before setting off.

Wherever seated in the vehicle, you must

always fasten the seat belt, even for short

journeys.

Do not invert the seat belt buckles, as they

will not fulfil their role properly.

To ensure the proper functioning of the belt

buckles, make sure that there are no foreign

bodies present (e.g. a coin) before fastening.

Before and after use, ensure that the seat belt

is reeled in correctly.

After folding or moving a seat or rear bench

seat, ensure that the seat belt is positioned

and reeled in correctly.

Installation

The lower part of the strap must be

positioned as low as possible over the pelvis.

The upper part must be positioned in the

hollow of the shoulder.

At the front, adjusting the position of the

seat belt may require the seat height to be

adjusted.

In order to be effective, a seat belt must:

–  be tightened as close to the body as

possible.

–  be pulled in front of you with a smooth

movement, checking that it is not twisted.

–  must only be used to secure one person.

–  not show signs of tearing or fraying.

–  not be changed or modified, in order to

avoid affecting its performance.

Recommendations for children

Use a suitable child seat if the passenger

is less than 12 years old or shorter than 1.5

metres.

Never use the same seat belt to secure more

than one child.

Never carry a child on your lap.

For more information on

Child seats

, refer to

the corresponding section.

Maintenance

In accordance with current safety

regulations, for all work on your vehicle's

seat belts, contact a qualified workshop with

the skills and equipment needed, which a

CITROËN dealer is able to provide.

Have the seat belts checked regularly by a

CITROËN dealer or a qualified workshop,

83

Safety

5

particularly if the straps show signs of

damage.

Clean the seat belt straps with soapy water or

a textile cleaning product, sold by CITROËN

dealers.

Airbags

General information

This system is designed to improve the safety

of the occupants of the front seats and the rear

outer seats in the event of a violent collision. The

airbags supplement the action of the seat belts

equipped with a force limiting system.

Electronic detectors record and analyse the

front and side impacts sustained in the impact

detection zones:

–  In the event of violent impact, the airbags

deploy instantly and help better protect the

occupants of the vehicle; immediately after the

impact, the airbags deflate rapidly in order not

to hinder the visibility or the possible exit of the

occupants.

–  In the event of a slight impact, a rear impact

and under certain rollover conditions, the airbags

may not deploy; only the seat belt helps to

protect you in these situations.

* For more information on Deactivating the front passenger airbag, refer to the corresponding section.

The seriousness of the impact depends on the

nature of the obstacle and the speed of the

vehicle at the moment of collision.

The airbags do not operate when the

ignition is switched off.

This equipment will only deploy once. If a

second impact occurs (during the same or a

subsequent accident), the airbag will not be

deployed again.

Impact detection zones

A.

Front impact zone

B.

Side impact zone

When one or more airbags are deployed,

the detonation of the pyrotechnic charge

incorporated in the system makes a noise and

releases a small quantity of smoke.

This smoke is not harmful, but sensitive

individuals may experience irritation.

The detonation noise associated with the

deployment of one or more airbags may result

in a slight loss of hearing for a short time.

Front airbags





System that protects the driver and front

passenger in the event of a serious front impact,

limiting the risk of head and chest injury.

The driver's airbag is fitted in the centre of the

steering wheel; the front passenger airbag is

fitted in the dashboard above the glove box.

The front airbags are adaptive. In

particular, they inflate less firmly in the

presence of a smaller occupant, with the seat

set in a forward longitudinal position.

Deployment

They deploy, except the front passenger airbag

if it is deactivated*, in the event of a serious front

impact to all or part of the front impact zone

A

.

The front airbag inflates between the thorax and

head of the front occupant of the vehicle and the

84

Safety

steering wheel, driver's side, and the dashboard,

passenger's side, to cushion their forward

movement.

Lateral airbags

At the front





This system protects the driver and front

passenger in the event of a serious side impact,

limiting the risk of injury to the chest, between

the hip and the shoulder.

Each lateral airbag is fitted in the seat backrest

frame, on the door side.

Deployment

The lateral airbags are deployed on one side in

the event of a serious side impact applied to all

or part of the side impact zone

B

.

The lateral airbag inflates between the hip and

shoulder of the vehicle's occupant and the

corresponding door panel.

Curtain airbags

System contributing towards greater protection

for the driver and passengers (with the exception

of the rear centre passenger) in the event of a

serious side impact in order to limit the risk of

injury to the side of the head.

Each curtain airbag is built into the pillars and

the upper passenger compartment area.

Deployment

It deploys simultaneously with the corresponding

lateral airbag in the event of a serious side

impact applied to all or part of the side impact

zone

B

.

The curtain airbag inflates between the front

and rear occupants of the vehicle and the

corresponding windows.

Malfunction

If this warning lamp comes on in the

instrument panel, you must contact a

CITROËN dealer or a qualified workshop to have

the system checked.

The airbags may not be deployed in the event of

a serious impact.

In the event of a minor impact or bump at

the side of the vehicle or if the vehicle

rolls over, the airbags may not be deployed.

In the event of a rear or front collision, none of

the lateral airbags are deployed.

Advice

For the airbags to be fully effective,

observe the safety recommendations

below.

Adopt a normal and upright sitting position.

Fasten your seat belt and position it correctly.

Do not place anything between the occupants

and the airbags (e.g. child, animal, object), do

not fix or attach anything near or in the path of

the airbags, as this could cause injuries when

they are deployed.

Never modify the original definition of the

vehicle, particularly in the area directly around

the airbags.

Even if all of the precautions mentioned are

observed, a risk of injury or of minor burns to

the head, chest or arms cannot be ruled out

when an airbag is deployed. The bag inflates

almost instantly (within a few milliseconds)

then deflates within the same time,

discharging the hot gas via openings provided

for this purpose.

After an accident or if the vehicle has been

stolen, have the airbag systems checked.

All work must be carried out only by a

CITROËN dealer or a qualified workshop

Front airbags

Do not drive holding the steering wheel

by its spokes or resting your hands on the

centre part of the wheel.

85

Safety

5

Passengers must not place their feet on the

dashboard.

Do not smoke as deployment of the airbags

can cause burns or the risk of injury from a

cigarette or pipe.

Never remove or pierce the steering wheel or

hit it violently.

Do not fix or attach anything to the steering

wheel or dashboard, as this could cause

injuries when the airbags are deployed.

Lateral airbags

Use only approved seat covers

compatible with the deployment of these

airbags. For information on the range of seat

covers suitable for your vehicle, contact a

CITROËN dealer.

Do not fix or attach anything to the seat

backrests (e.g. clothing) as this could cause

injuries to the chest or arm when the airbag is

deployed.

Do not sit with the upper part of the body any

nearer to the door than necessary.

The vehicle's front door panels include side

impact sensors.

A damaged door or any unauthorised or

incorrectly executed work (modification or

repair) on the front doors or their interior trim

could compromise the operation of these

sensors - risk of malfunction of the lateral

airbags!

All work must be carried out only by a

CITROËN dealer or a qualified workshop

Curtain airbags

Do not fix or attach anything to the roof,

as this could cause head injuries when the

curtain airbag is deployed.

Do not remove the grab handles installed on

the roof.

Child seats

The legislation on carrying children is

specific to each country. Refer to the

legislation in force in your country.

For maximum safety, please observe the

following recommendations:

–  In accordance with European regulations,

all

children under the age of 12 or less than one

and a half metres tall must travel in approved

child seats suited to their weight

, on seats

fitted with a seat belt or ISOFIX mountings.

–

Statistically, the safest seats in your

vehicle for carrying children are the rear

seats.

–

A child weighing less than 9 kg must travel

in the "rearward facing" position both in the

front and in the rear.

It is recommended

 that children travel

on the

rear seats

 of the vehicle:

– "

rearward facing

" up to the age of 3,

– "

forward facing

" over the age of 3.

Make sure that the seat belt is correctly

positioned and tightened.

For child seats with a support leg, ensure that

the support leg is in firm and steady contact

with the floor.

An incorrectly installed child seat in a

vehicle compromises the child's safety in

the event of an accident.

Ensure that there is no seat belt or seat belt

buckle under the child seat, as this could

destabilise it.

Remember to fasten the seat belts or the

child seat harness keeping the slack relative

to the child's body to a minimum, even for

short journeys.

When installing a child seat using the seat

belt, ensure that the seat belt is tightened

correctly on the child seat and that it secures

the child seat firmly on the vehicle seat. If

the passenger seat is adjustable, move it

forwards if necessary.

Remove the head restraint before

installing a child seat with a backrest on a

passenger seat.

Ensure that the head restraint is stored or

attached securely to prevent it from being

thrown around the vehicle in the event of

sharp braking. Refit the head restraint once

the child seat has been removed.

86

Safety

Children at the rear

A child seat with ISOFIX or i-Size

mountings must never be installed on the

centre rear passenger seat.

Installing a booster seat

The chest part of the seat belt must be

positioned on the child's shoulder without

touching the neck.

Ensure that the lap part of the seat belt

passes correctly over the child's thighs.

Use a booster seat with a backrest, equipped

with a belt guide at shoulder level.

Additional protections

To prevent accidental opening of the

doors and rear windows, use the "Child lock".

Take care not to open the rear windows by

more than one third.

To protect young children from the sun's rays,

fit side blinds on the rear windows.

As a safety measure, do not leave:

–  A child alone and unsupervised inside a

vehicle.

–  A child or an animal in a vehicle which is

exposed to the sun, with the windows closed.

–  The keys within reach of children inside the

vehicle.

Child seat at the rear

Forward-facing or rearward-facing









►  Move the vehicle's front seat forward and

straighten the backrest so that the legs of the

child in the forward-facing or rearward-facing

child seat itself do not touch the vehicle's front

seat.

►  Check that the backrest of the forward-facing

child seat is as close as possible to the backrest

of the vehicle's rear seat, and ideally in contact

with it.

Centre rear seat

A child seat with a support leg must never be

installed on the

centre rear passenger seat

.

Child seat at the front





►  Adjust the front passenger seat to the

highest

 and

fully back longitudinal position

,

with the backrest straightened

.

"Forward facing"





You must leave the front passenger

airbag active.

"Rearward facing"





87

Safety

5

The front passenger airbag must be

deactivated before installing a rearward

facing child seat. Otherwise,

the child risks

being seriously injured or killed if the

airbag is deployed

.





Warning label - Front passenger airbag





You must comply with the following instruction,

as reminded by the warning label on both sides

of the passenger sun visor:

NEVER use a rearward facing child restraint

on a seat protected by an ACTIVE AIRBAG in

front of it, DEATH or SERIOUS INJURY to the

CHILD can occur.

Deactivating the front

passenger airbag





Passenger airbag OFF

To ensure the safety of the child, the front

passenger airbag MUST be deactivated

when a "rearward facing" child seat is

installed on the front passenger seat.

Otherwise, the child risks being seriously

injured or killed in the event of deployment of

the airbag.

Vehicles not equipped with a

deactivation/reactivation control

Installing a "rearward facing" child seat on

the front passenger seat is strictly prohibited

- risk of death or serious injury in the event of

airbag deployment!

Deactivating/Reactivating the front

passenger airbag

For vehicles on which it is fitted, the switch is

located inside the glove box.





With the ignition off:

►  To deactivate the airbag, turn the key in the

switch to the "

OFF

" position.

►  To reactivate it, turn the key to the "

ON

"

position.

When the ignition is switched on:

This warning lamp comes on and remains

lit to signal deactivation.

Or

This warning lamp comes on for about 1

minute to signal activation.

Recommended child seats

Range of child seats secured using a

three-

point seat belt

.

88

Safety

Group 0+: from birth to 13 kg





L1

"RÖMER Baby-Safe"

Installed in the "rearward facing" position.

Groups 2 and 3: from 15 to 36 kg





L5

"RÖMER KIDFIX 2R"

Can be fitted to the vehicle's ISOFIX

mountings.

The child is restrained by the seat belt.

A version with a removable backrest may be

used for children weighing more than 25 kg.

However, for better protection, use a booster

seat with backrest for all children weighing up

to 36 kg.

"ISOFIX" mountings

The seats shown below are fitted with ISOFIX

compliant mountings:





*

 Depending on country of sale.

The mountings comprise three rings for each

seat, indicated by a marking:

–  Two rings

A

, located between the vehicle seat

backrest and cushion.





The 2 latches on

ISOFIX child seats

 are

secured to them.

–  One ring

B

, located behind the seat, called the

TOP TETHER

, for attaching seats fitted with an

upper strap.





Front seat





Rear seats

This system prevents the child seat from tipping

forwards in the event of a front impact.

This ISOFIX mounting system provides fast,

reliable and safe fitting of the child seat in the

vehicle.

To secure the child seat to the

TOP TETHER

:

►  Remove and stow the head restraint before

installing the child seat on this seat (refit it once

the child seat has been removed).

89

Safety

5

►  Pass the strap of the child seat behind the

seat backrest, centring it between the openings

for the head restraint rods.

►  Secure the upper strap hook to ring

B

.

►  Tighten the upper strap.

When fitting an ISOFIX child seat to the

left-hand rear seat of the bench seat,

before fitting the seat, first move the centre

rear seat belt towards the middle of the

vehicle, so as to avoid the seat interfering

with the operation of the seat belt.

An incorrectly installed child seat in a

vehicle compromises the child's safety in

the event of an accident.

Strictly observe the fitting instructions

provided in the user guide supplied with the

child seat.

For information about the options for

fitting ISOFIX child seats in your vehicle,

refer to the summary table.

Recommended ISOFIX child seats

Also consult the user guide from the child

seat’s manufacturer to find out how to

install and remove the seat.

"RÖMER Baby-Safe and its ISOFIX base"

(size category:

E

)

Group 0+: from birth to 13 kg





Installed "rearward facing" using an ISOFIX

base which is attached to rings

A

.

Only suitable for installation on the front

passenger seat or the outer rear seats.

The base has a support leg, height-

adjustable, which rests on the vehicle's floor.

This child seat can also be secured with a

seat belt. In this case, only the shell is used

and attached to the vehicle seat using the

three-point seat belt.

"

RÖMER Duo Plus ISOFIX

"

(size category:

B1

)

Group 1: from 9 to 18 kg





"

RÖMER Duo Plus ISOFIX

"

(size category:

B1

)

Group 1: from 9 to 18 kg

Suitable for forward-facing installation only.

Attached to rings

A

 and ring

B

, referred to as

TOP TETHER, using an upper strap.

Only suitable for installation on the front

passenger seat or the outer rear seats. The

head restraint on the rear side seat must be

raised to the maximum.

Three seat body angles: sitting, reclining,

lying down.

This child seat can also be used in seat

positions not equipped with ISOFIX

mountings. In this case, it must be secured to

the vehicle's seat by the three-point seat belt.

Adjust the front seat of the vehicle so that the

child's feet do not touch the backrest.

i-Size child seats

i-Size child seats have two latches that are

anchored to the two rings

A

.

These i-Size child seats also have:

–  either an upper strap that is attached to ring

B

.

–  or a support leg that rests on the vehicle

floor, compatible with the approved i-Size seat

position.

Their role is to prevent the child seat from tipping

forward in the event of a collision.

For more information on the

ISOFIX mountings

,

refer to the corresponding section.

90

Safety

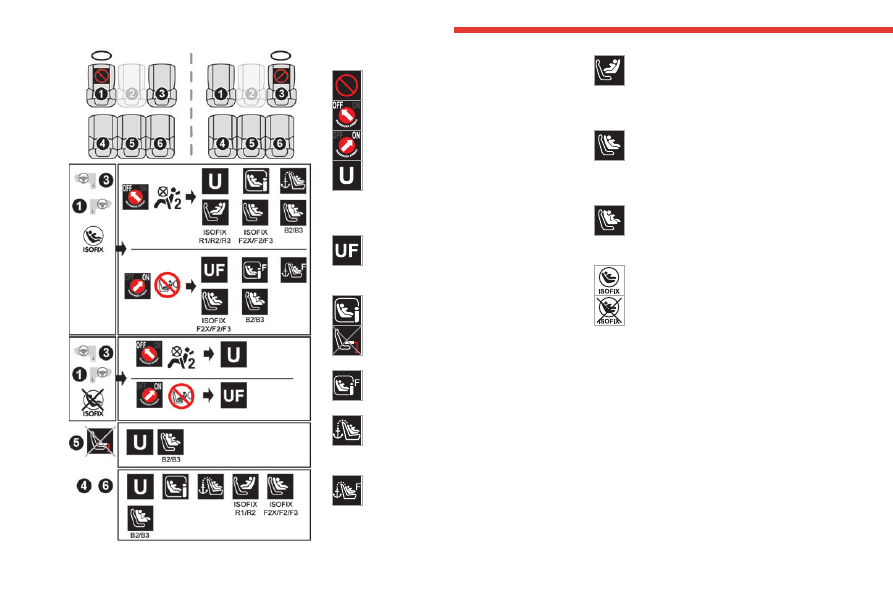

Installing universal, ISOFIX and i-Size child seats

In compliance with European regulations, this table indicates the possibilities for installing child seats secured using the seat belt and universally approved

(a)

 as well as the largest

ISOFIX

 and

i-Size

 child seats for the seat positions fitted with

ISOFIX

 anchorage points in the vehicle.

Seat numbers

Front seats

Rear seats





1

3

4

5

6





3

1

4

5

6

Front passenger airbag

-

Deactivated

"

OFF

"

(b)

Activated "

ON

"

(c)

-

-

-

Position compatible with a

universal (a)

 child seat

no

yes

(e) (h)

yes

(e) (i)

yes

yes

(f)

yes

Position compatible with an

i-Size

 child seat

no

yes

(j)

 / no

(k)

yes

no

yes

Position equipped with a

TOP

TETHER

 hook

no

yes

(j)

 / no

(k)

yes

no

yes

"

Carrycot

" type child seat

no

no

no

no

no

"Rearward facing"

ISOFIX



child seat

no

R3

(d) (j)

 / no

(k)

no

R2

no

R2

"Forward facing"

ISOFIX

 child

seat

no

F3

(d) (j)

 / no

(k)

F3

no

F3

Booster child seat

no

B3

(g)

B3

B3

B3

91

Safety

5

Rules:

–  A position that is

i-Size

 compatible is also compatible with

R1

,

R2

 and

F2X

,

F2

,

B2

.

–  A position that is

R3

 compatible is also compatible with

R1

 and

R2

.

–  A position that is

R2

 compatible is also compatible with

R1

.

–  A position that is

F3

 compatible is also compatible with

F2X

 and

F2

.

–  A position that is

B3

 compatible is also compatible with

B2

.

(a)

Universal child seat: child seat that can be installed in all vehicles using the seat belt.

(b)

To install a "

rearward facing

" child seat at this seat position, the front passenger airbag must be deactivated ("

OFF

").

(c)

Only a "

forward facing

" child seat is authorised at this seat position with the front passenger airbag activated ("

ON

").

(d)

Tilt the seat backrest to 45°, then install the child seat.

Straighten the backrest until it contacts the child seat's backrest.

(e)

For a seat with height adjustment, set it to the maximum height.

(f)

A child seat with a support leg must never be installed on the centre rear passenger seat.

(g)

The vehicle seat must be as far back as possible.

(h)

For a "rearward facing" and/or "forward facing" universal child seat (U) in groups 0, 0+, 1, 2 or 3.

(i)

For a "forward facing" universal child seat (UF) in groups 1, 2 or 3.

(j)

Seat fitted with ISOFIX compliant mountings.

(k)

Seat not fitted with ISOFIX compliant mountings.



92

Safety



Key

Seat position where the installation of a

child seat is forbidden.

Front passenger airbag

deactivated

.

Front passenger airbag

activated

.

Seat position suitable for the installation

of a child seat secured using the seat belt

and

universally approved "rearward facing"

and/or "forward facing"

 (

U

) for all sizes and

weight groups.

Seat position suitable for the installation

of a child seat secured using the seat belt

and

universally approved "forward facing"



(

UF

) for groups

1

,

2

 &

3

 only.

Seat position authorised for the

installation of an

i-Size

 child seat.

Seat position not suitable for the

installation of a child seat with support

leg.

Seat position authorised for the

installation of a

"forward facing" i-Size



child seat.

Presence of a

Top Tether

 anchorage

point at the rear of the backrest,

authorising the installation of a

universal ISOFIX

child seat

.

Presence of a

Top Tether

 anchorage

point at the rear of the backrest,

authorising the installation of a

"forward facing"

universal ISOFIX child seat

.

"Rearward facing"

ISOFIX

 child seat:

–

R1

:

ISOFIX

 child seat for a

baby

.

–

R2

:

ISOFIX reduced size

 child seat.

–

R3

:

ISOFIX large size

 child seat.

"Forward facing"

ISOFIX

 child seat:

–

F2X

:

ISOFIX

 child seat

for toddlers

.

–

F2

:

ISOFIX reduced height

 child seat.

–

F3

:

ISOFIX full height

 child seat.

Booster

 child seat:

–

B2

:

reduced width booster

 seat.

–

B3

:

full width booster

 seat.

Seat position authorised for the

installation of an

ISOFIX

 child seat.

Seat position where the installation of an

ISOFIX

 child seat is forbidden.

For seat adjustments, refer to the table

"

Installing universal, ISOFIX and i-Size child

seats

".

Manual child lock

The system prevents a rear door from being

opened using its interior handle.

The red control is located on the edge of each

rear door (marked by a label).

93

Safety

5

Activation/Deactivation





►  To activate the child lock, turn the built-in key

in the

red

 control as far as possible:

•  To the right on the left-hand rear door.

•  To the left on the right-hand rear door.

►  To deactivate the child lock, turn the key in

the opposite direction.

Do not confuse the child lock control,

which is red, with the back-up locking

control, which is black.





Electric child lock





This control prevents the opening of the rear

doors using their interior handles.

Activation/Deactivation









►  With the ignition on, press this button to

activate/deactivate the child lock.

A message is displayed, confirming activation/

deactivation of the child lock.

When the indicator lamp is on, the child lock is

activated.

With the child lock activated, it is still

possible to open the doors from outside.

This system is independent and in no

circumstances does it take the place of

the central locking control.

Check the status of the child lock each time

you switch on the ignition.

Always keep the electronic key with you when

leaving the vehicle, even for a short time.

In the event of a serious impact, the electric

child lock is switched off automatically to

permit the exit of the rear passengers.

94

Driving

Driving recommendations

►  Observe the driving regulations and remain

vigilant whatever the traffic conditions.

►  Monitor your environment and keep your

hands on the wheel to be able to react to

anything that may happen any time.

►  Drive smoothly, anticipate the need for

braking and maintain a longer safety distance,

especially in bad weather.

►  Stop the vehicle to carry out operations that

require close attention (such as adjustments).

►  During long trips, take a break every two

hours.

Important!

Never leave the engine running in a

closed space without sufficient

ventilation.

 Internal combustion engines emit

toxic exhaust gases such as carbon

monoxide. Danger of poisoning and death!

In very severe wintry conditions

(temperature below -23°C), let the engine

run for 4 minutes before moving off, to ensure

the correct operation and durability of the

mechanical components of your vehicle

(engine and gearbox).

Never drive with the parking brake

applied

. Risk of overheating and

damaging the braking system!

Never park the vehicle and never

leave the engine running on a

flammable surface (e.g. dry grass, dead

leaves).

The vehicle exhaust system is very

hot, even several minutes after the engine

stops. Risk of fire!

Never drive on surfaces covered with

vegetation (e.g. tall grass,

accumulated dead leaves, crops, debris)

such as a field, a country lane overgrown

with bushes or a grassy verge.

This vegetation could come into contact with

the vehicle's exhaust system or other systems

which are very hot. Risk of fire!

Make sure you do not leave any item in

the passenger compartment which could

act like a magnifying glass under the effect of

the sun's rays and cause a fire. Risk of fire or

damage to interior surfaces!

Never leave the vehicle unattended,

with the engine running

. If you have to

leave your vehicle with the engine running,

apply the parking brake and put the gearbox

into neutral or position

N

 or

P

 (depending on

the type of gearbox).

Never leave children inside the vehicle

unsupervised

.

On flooded roads

We strongly advise against driving on flooded

roads, as this could cause serious damage to

the internal combustion engine or electric motor,

the gearbox and the electrical systems of the

vehicle.





If the vehicle absolutely must drive through a

flooded section of road:

►  Check that the depth of the water does not

exceed 15 cm, taking account of waves that

might be generated by other users.

►  Deactivate the Stop & Start function.

►  Drive as slowly as possible without stalling. In

all cases, do not exceed 6 mph (10 km/h).

►  Do not stop and do not switch off the engine.

On leaving the flooded road, as soon as safety

conditions allow, make several light brake

applications to dry the brake discs and pads.

If in doubt about the state of your vehicle,

contact a CITROËN dealer or a qualified

workshop.

95

Driving

6

Towing

Driving with a trailer places greater

demands on the towing vehicle and

particular care must be taken.

Do not exceed the maximum towable

weights.

At altitude:

 reduce the maximum load by

10% per 1,000 metres of altitude; the lower

air density at high altitudes decreases engine

performance.

New vehicle:

 do not tow a trailer until the

vehicle has driven at least 620 miles

(1,000 kilometres).

If the outside temperature is high, let the

engine idle for 1 to 2 minutes after the

vehicle comes to a stop, to help it to cool.

Before setting off

Nose weight

►  Distribute the load in the trailer so that the

heaviest items are located as close as possible

to the axle, and the nose weight (at the point

where it joins your vehicle) approaches the

maximum permitted, without exceeding it.

Tyres

►  Check the tyre pressures of the towing

vehicle and of the trailer, observing the

recommended pressures.

Lighting

►  Check the electrical signalling on the trailer

and the headlamp beam height of your vehicle.

If a genuine CITROËN towing device is

used, the rear parking sensors will be

deactivated automatically to avoid activating

the audible signal.

When driving

Cooling

Towing a trailer uphill causes the coolant

temperature to increase. The maximum towable

load depends on the gradient and the exterior

temperature. The fan’s cooling capacity does not

increase with engine speed.

►  Reduce speed and lower the engine speed to

limit the amount of heating produced.

►  Pay constant attention to the coolant

temperature.

If this warning lamp and the

STOP



warning lamp come on, stop the

vehicle and switch off the engine as soon as

possible.

Brakes

Using the engine brake is recommended to limit

the overheating of the brakes. Braking distances

are increased when towing a trailer.

Side wind

Bear in mind that the vehicle will be more

susceptible to wind when towing.

Anti-theft protection

Electronic immobiliser

The keys contain a code, which must be

recognised by the vehicle before starting is

possible.

If the system malfunctions, indicated by the

display of a message, the engine will not start.

Contact a CITROËN dealer.

96

Driving

Starting / Switching off the

engine with the key

Key ignition switch





It has 3 positions:

–

1. Stop

: inserting and removing the key,

steering column locked.

–

2. Ignition

: steering column unlocked, ignition

on, Diesel preheating, engine running.

–

3. Starting

.

Avoid attaching heavy objects to the key

or the remote control. It would weigh

down on its shaft in the ignition switch and

could cause a malfunction.

Ignition on position

It allows the use of the vehicle's electric

equipment or the charging of accessories.

Once the state of charge of the battery drops to

the reserve level, the system switches to energy

economy mode: the power supply is cut off

automatically to preserve the remaining battery

charge.

Starting the engine

With the parking brake applied:

►  With a

manual gearbox

, place the gear lever

in neutral then fully depress the clutch pedal.

►  With an

automatic gearbox

, place the gear

selector in mode

N

 or

P

 then depress the brake

pedal.

►  Insert the key into the ignition switch; the

system recognises the code.

►  Unlock the steering column by simultaneously

turning the steering wheel and the key.

In certain cases, you may need to apply

significant force to move the steering

wheel (e.g. wheels turned to full lock).

►  With a

petrol engine

, operate the starter

motor by turning the key to position

3

 without

pressing the accelerator pedal, until the engine

starts. Once the engine has started, release the

key and allow it to return to position

2

.

Petrol engines

After a cold start, preheating the catalytic

converter can cause noticeable engine

vibrations, for anything up to 2 minutes

(accelerated idle speed).

►  With a

Diesel engine

, turn the key to position

2

, to activate the engine preheating system.

Wait until this warning lamp goes off on

the instrument panel, then turn the key to

position

3

 without pressing the accelerator pedal,

to operate the starter motor. Once the engine

has started, release the key and allow it to return

to position

2

.

In wintry conditions, the warning lamp

may stay on for a longer period. When

the engine is hot, the warning lamp does not

come on.

In mild conditions, do not leave the engine

to warm up while stationary, but move off

straight away and drive at moderate speed.

If the engine does not start straight away,

switch off the ignition. Wait a few

seconds before operating the starter motor

again. If the engine does not start after a few

attempts, do not keep trying - risk of

damaging the starter motor and the engine!

Contact a CITROËN dealer or a qualified

workshop.

Switching off the engine

►  Immobilise the vehicle.

►  With the engine at idle, turn the key to

position

1

.

►  Remove the key from the ignition switch.

►  To lock the steering column, turn the steering

wheel until it locks.

97

Driving

6

To facilitate unlocking of the steering

column, it is recommended that the

wheels be returned to the straight ahead

position before switching off the engine.

Never switch off the ignition before the

complete immobilisation of the vehicle.

With the engine off, the braking and steering

assistance systems are also cut off - risk of

loss of control of the vehicle!

Check that the parking brake is correctly

applied, particularly on sloping ground.

When leaving the vehicle, keep the key in

your possession and lock the vehicle.

Energy economy mode

After the engine has stopped (position

1. Stop

),

for a maximum combined duration of 30 minutes,

you can still use functions such as the audio and

telematics system, courtesy lamps or dipped

beam headlamps.

For more information on

Energy

economy mode

, refer to the

corresponding section.

Key left in

When the driver's door is opened, a

message is displayed, accompanied by an

audible signal, if the key has been left in the

ignition switch in position

1

.

If the key has been left in the ignition switch

in position

2

, the ignition will be switched off

automatically after one hour.

To switch the ignition back on, turn the key to

position

1

, then back to position

2

.

Starting/Switching off the

engine with Keyless Entry

and Start

The electronic key must be present in the

passenger compartment.

If the electronic key is not detected, a

message is displayed.

Move the electronic key so that the engine

can be started or switched off.

If there is still a problem, refer to the "Key

not detected - Back-up starting or Back-up

switch-off" section.

Starting





►  With a

manual gearbox

, place the gear lever

in neutral and fully depress the clutch pedal.

►  With an

automatic gearbox

, select mode

P



or

N

 and depress the brake pedal.

►  Press the "

START/STOP

" button while

maintaining pressure on the pedal until the

engine starts.

Diesel engines

In negative temperatures and/or when the

engine is cold, starting takes place only after the

preheating warning lamp goes out.

If this warning lamp comes on after

pressing the "

START/STOP

" button:

►  Keep the pedal fully depressed and do not

press the "

START/STOP

" button again until the

engine is running.

In all circumstances, if one of the starting

conditions is not met, a message is displayed.

In some circumstances, a message indicates

that it is necessary to turn the steering wheel
