Citroen C3 Dag (2010 year). Instruction

ACCESS

Anti-theft protection

  Electronic engine immobiliser
The  key  contains  an  electronic  chip
which  has  a  special  code.  When  the
ignition  is  switched  on,  this  code  must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the  engine  management  system  a  few
minutes after the ignition is switched off
and  prevents  starting  of  the  engine  by
anyone who does not have the key.

In the event of a malfunc-
tion, you are informed by
lighting of this warning lamp,

an audible signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a CITROËN dealer as soon as
possible.

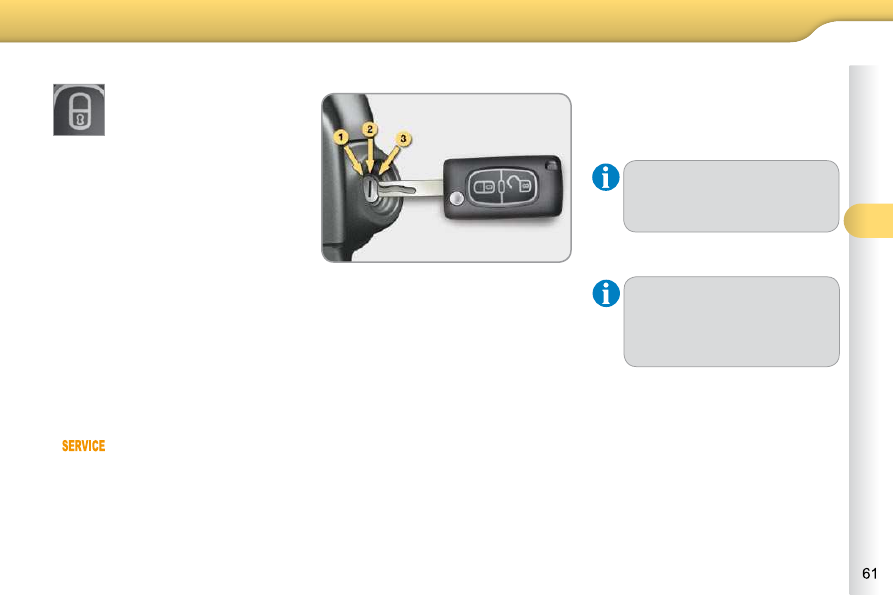

Ignition switch

Position 1: Stop

Position 2: Ignition

Position 3: Starting

Starting the vehicle

 Insert the key in the ignition switch.

The system recognises the starting
code.

 Turn the key fully towards the dash-

board to position 3 (Starting) .

 When the engine starts, release

the key.

Switching the vehicle off

 Immobilise the vehicle.
 Turn the key fully towards you to po-

sition 1 (Stop) .

 Remove the key from the ignition

switch.

Do not attach any heavy objects
to the key as this could weigh
down on it when in the ignition
switch and cause a fault.

  Key reminder
If  the  key  is  left  in  the  igni-
tion  switch,  an  audible  signal
sounds when the driver's door is
opened.

Locating your vehicle

 Press the closed pad-

lock to locate your locked
vehicle in a car park.

This is indicated by lighting of the cour-

tesy lamps and ﬂ ashing of the direction

indicators for a few seconds.

ACCESS

Lost keys

Visit a CITROËN dealer with the vehicle's V5 registration document and

your personal identiﬁ cation documents.
The CITROËN dealer will be able to retrieve the key code and the
transponder code required to order a replacement key.

         Do  not  throw  the  remote  con-
trol  batteries  away,  they  contain
metals  which  are  harmful  to  the
environment.
Take  them  to  an  approved  col-
lection point.

Remote control

The high frequency remote control is a sensitive system; do not operate
it while it is in your pocket as there is a possibility that it may unlock the
vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and
the remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even

when the ignition is switched off, except for reinitialisation.

Locking the vehicle

Driving with the doors locked may make access to the passenger compart-

ment by the emergency services more difﬁ cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modiﬁ cations to the electronic engine immobiliser

system; this could cause malfunctions.

When purchasing a second-hand vehicle

Have the key codes memorised by a CITROËN dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.

ACCESS

WINDOW CONTROLS

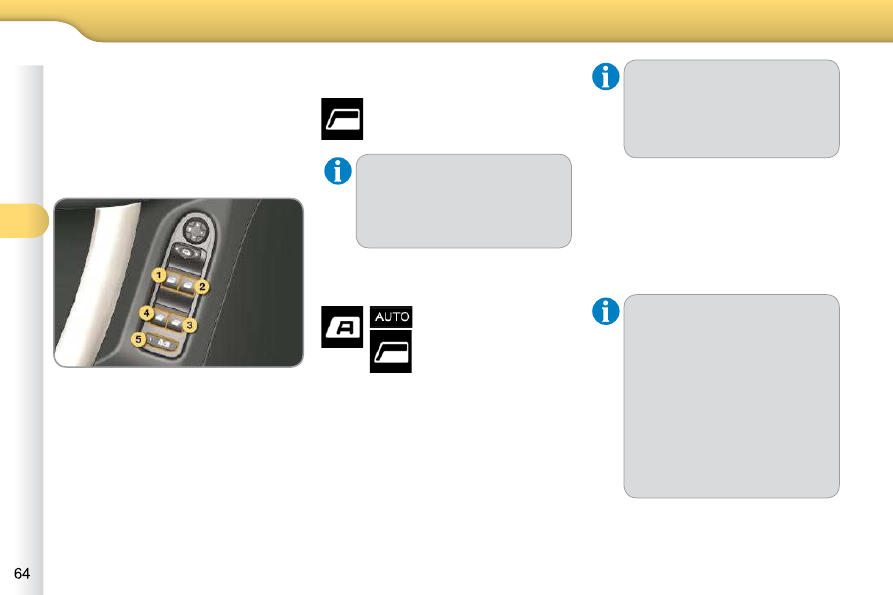

System which opens or closes a window

manually or automatically. It is ﬁ tted with

a system which provides protection if an
obstacle  is  detected  on  the  one-touch
models  and  a  deactivation  system  to
prevent  misuse  of  the  rear  switches  on
all models.

   1.    Driver's electric window switch.
  2.    Passenger's electric window switch.
  3.    Rear right electric window switch.
  4.    Rear left electric window switch.
  5.    Deactivating  the  rear  electric  win-

dow and door switches.

Electric windows

 Press or pull the switch.

The window stops as soon
as the switch is released.

The electric window switches

remain operational for approxi-

mately 45 seconds after the igni-
tion is switched off or until a front
door is opened.

One-touch electric windows

There are two methods
of operation:

manual mode

 Press or pull the switch gently.

The window stops as soon as the
switch is released.

automatic mode

 Press or pull the switch fully.

The window opens or closes
completely when the switch is
released.

 Pressing the switch again stops

the movement of the window.

The electric window switches

remain operational for approxi-

mately 45 seconds after the igni-
tion is switched off or until a front
door is opened.

Safety anti-pinch
The one-touch front electric windows are

ﬁ tted with a safety anti-pinch function.
When the window rises and meets an
obstacle, it stops and partially lowers
again.

In the event of unwanted opening

of the window on closing (for ex-

ample in the presence of frost):
 press the switch until it opens

completely,

 then pull it immediately until

it closes,

 continue to hold the switch for

approximately one second af-

ter the window has closed.

The safety anti-pinch func-
tion is not active during these
operations.

ACCESS

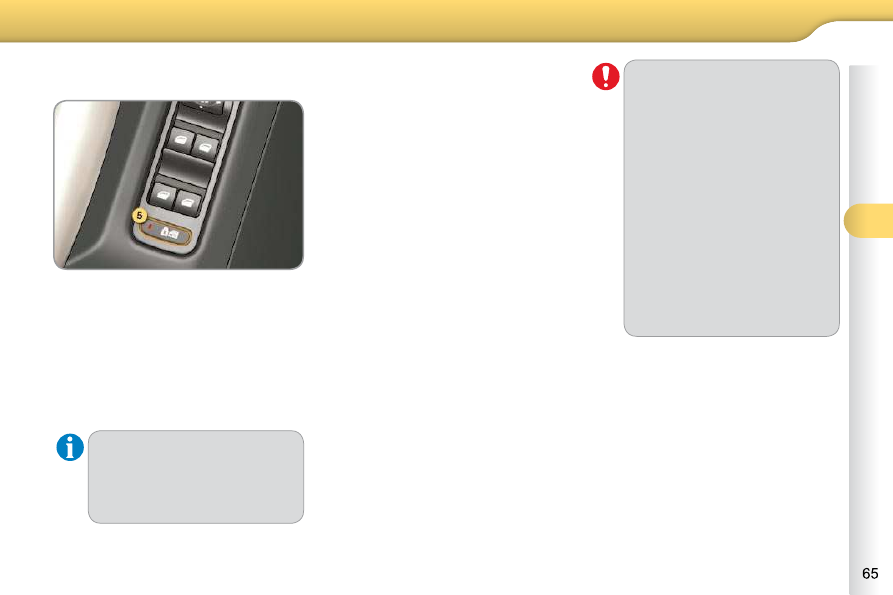

Deactivating the rear window and
door switches

 For the safety of your children, press

switch  5  to prevent operation of the
rear  windows  irrespective  of  their
position.

With the lamp on, the rear controls are
deactivated.
With the lamp off, the rear controls are
activated.

This control also deactivates the
interior  rear  door  controls  (see
"Child  safety  -  §  Electric  child
lock").

Reinitialisation

In the event of a malfunction you have
to reinitialise the operation of the elec-
tric windows:
 release the switch and pull it again

until the window closes completely,



hold the switch for approximately

one second after closing,

 press the switch to lower the win-

dow automatically.

The safety anti-pinch function is not
active during these operations.

Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In  the  event  of  contact  during
operation  of  the  windows,  re-
verse the movement of the win-
dow. To do this, press the switch
concerned.
When  the  driver  operates  the
passenger

electric

window

switches,  they  should  ensure
that no one is preventing correct
closing of the windows.
The  driver  should  ensure  that
passengers use the electric win-
dows correctly.
Be aware of children when oper-
ating the windows.

ACCESS

DOORS

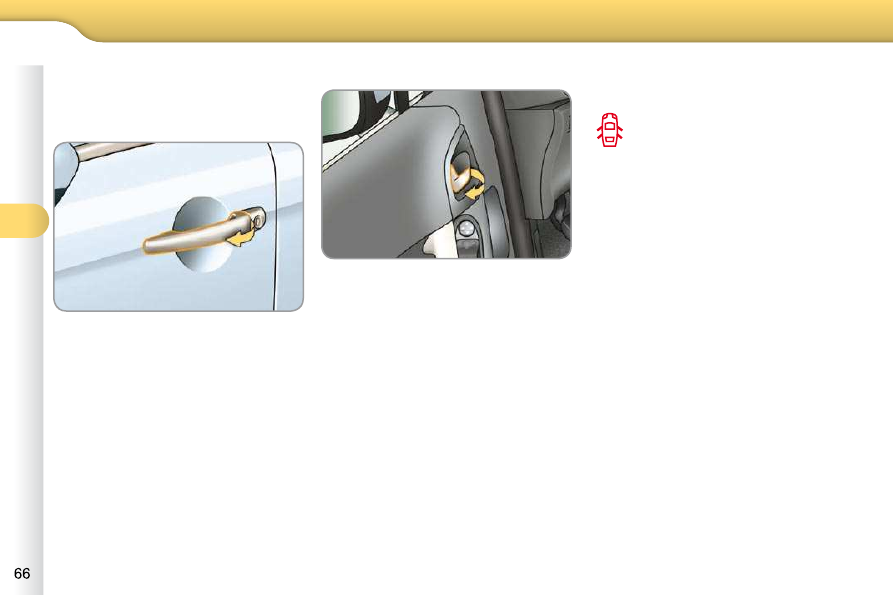

Opening

From outside

 After unlocking the vehicle using the

remote control or the key, pull the
door handle.

From inside

 Pull the front door control to open

the door; this unlocks the vehicle
completely.

 Pull the rear door control to open

the door; this unlocks only the door
opened.

Closing

When a door is not closed correctly:

when the engine is running ,
this  warning  lamp  comes  on,
accompanied  by  a  message
in  the  multifunction  screen  for
a few seconds,

when the vehicle is moving  (speed
higher  than  6  mph  (10  km/h)),  this
warning  lamp  comes  on,  accom-
panied  by  an  audible  signal  and  a
message in the multifunction screen
for a few seconds.

ACCESS

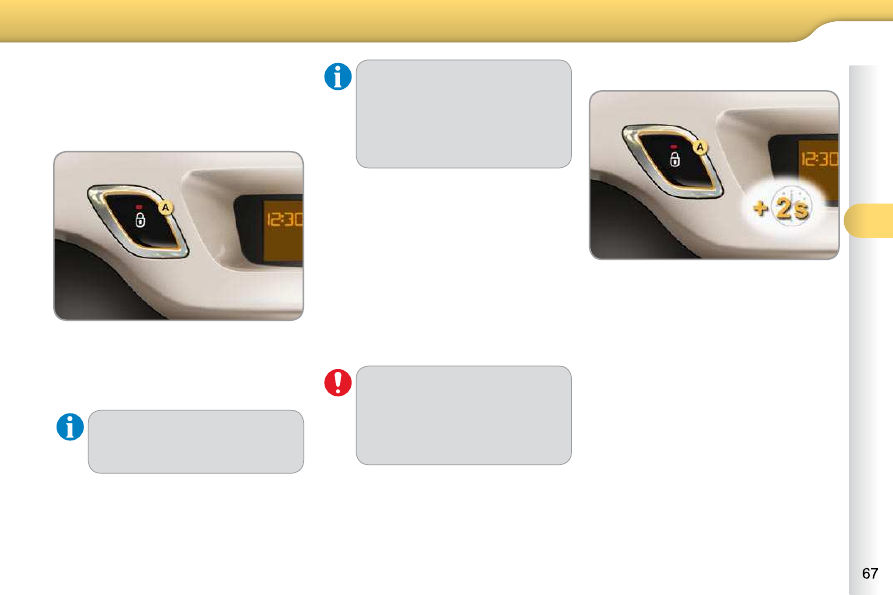

Manual centralised control

System which provides full manual
locking or unlocking of the doors from
the inside.

Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on.

If one of the doors is open, cen-
tral locking from the inside does
not take place.

Unlocking
 Press button A again to unlock the

vehicle.

The red indicator lamp on the button
switches off.

If the vehicle is locked from the
outside, the red indicator lamp

ﬂ ashes and button A is inactive.
 In this case, use the remote

control or the key to unlock
the vehicle.

Automatic centralised control

System which provides full automatic
locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this func-
tion.

Locking
When the speed exceeds 6 mph

(10 km/h), the doors and the boot lock
automatically.

If  one  of  the  doors  is  open,  the
automatic  central  locking  does
not take place.
If the boot is open, the automatic
central  locking  of  the  doors  is
active.

Unlocking
 Above 6 mph (10 km/h), press but-

ton A to unlock the doors and the
boot temporarily.

Activation

 Press button A for more than

two seconds.

A conﬁ rmation message appears on the

multifunction screen, accompanied by
an audible signal.

Deactivation
 Press button A again for more than

two seconds.

A conﬁ rmation message appears on the

multifunction screen, accompanied by
an audible signal.

ACCESS

Emergency control

To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or battery failure.

Locking the driver's door
 Insert the key in the lock, then turn it

to the right.

Unlocking the driver's door
 Insert the key in the lock, then turn it

to the left.

Locking the front and rear
passenger doors

 Remove the black cap, located on

the edge of the door, using the key.

 Insert the key in the socket, then

turn it as far as it will go.



Remove the key and reﬁ t the cap.

 On the rear doors, check that the

child lock is not activated.

Unlocking the front and rear
passenger doors
 Pull the interior door opening control.

BOOT

Opening

 After unlocking the vehicle using the

remote control or the key, pull the
handle and raise the tailgate.

Closing

 Lower the tailgate using the interior

grab handle.

when the engine is running ,

this warning lamp comes on,

accompanied by a message

on the multifunction screen for

a few seconds,

when the vehicle is moving (speed

above 6 mph (10 km/h)), this warn-

ing lamp comes on, accompanied

by an audible signal and a message

on the multifunction screen for a few

seconds.

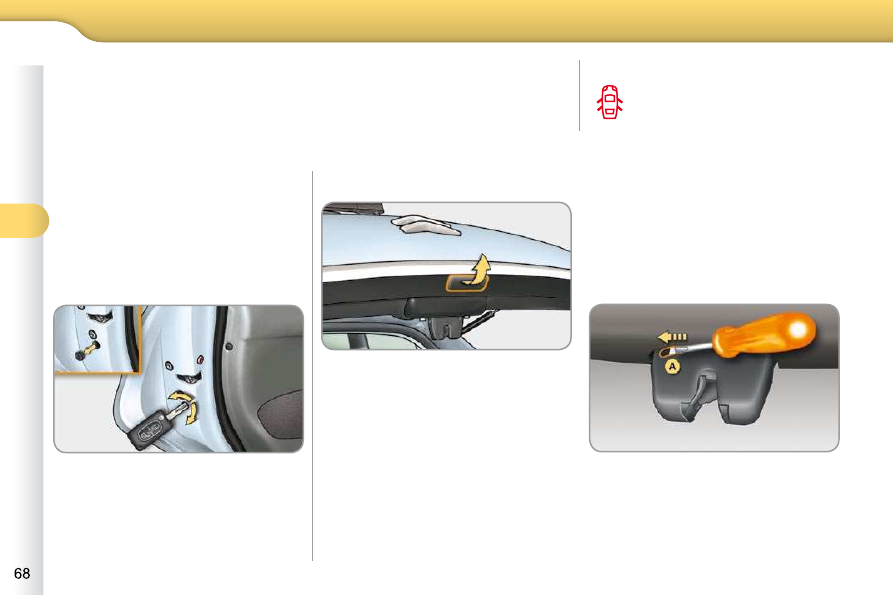

Tailgate release

System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.

Unlocking
 Fold back the rear benchseat to

gain access to the lock from inside
the boot.

 Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

If the tailgate is not closed correctly:

ACCESS

Emergency control

To lock or unlock the doors manually in
the event of a malfunction of the central
locking system or battery failure.

Locking the driver's door
 Insert the key in the lock, then turn it

to the right.

Unlocking the driver's door
 Insert the key in the lock, then turn it

to the left.

Locking the front and rear
passenger doors

 Remove the black cap, located on

the edge of the door, using the key.

 Insert the key in the socket, then

turn it as far as it will go.



Remove the key and reﬁ t the cap.

 On the rear doors, check that the

child lock is not activated.

Unlocking the front and rear
passenger doors
 Pull the interior door opening control.

BOOT

Opening

 After unlocking the vehicle using the

remote control or the key, pull the
handle and raise the tailgate.

Closing

 Lower the tailgate using the interior

grab handle.

when the engine is running ,

this warning lamp comes on,

accompanied by a message

on the multifunction screen for

a few seconds,

when the vehicle is moving (speed

above 6 mph (10 km/h)), this warn-

ing lamp comes on, accompanied

by an audible signal and a message

on the multifunction screen for a few

seconds.

Tailgate release

System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.

Unlocking
 Fold back the rear benchseat to

gain access to the lock from inside
the boot.

 Insert a small screwdriver into hole A

of the lock to unlock the tailgate.

If the tailgate is not closed correctly:

ACCESS

The key cannot be removed from

the lock until the cap is reﬁ tted.

Opening the ﬁ ller cap may cre-

ate a noise caused by an inrush
of air. This vacuum is entirely
normal, resulting from the seal-
ing of the fuel system.

FUEL TANK

Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).

Low fuel level

When  the  fuel  tank  minimum
level  is  reached  this  warning
lamp  comes  on  on  the  instru-

ment panel. When it ﬁ rst comes

on there remains approximately 5 litres
of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.

Filling

A label afﬁ xed to the inside of the ﬂ ap

reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least
5 litres, in order to be taken into account
by the fuel gauge.

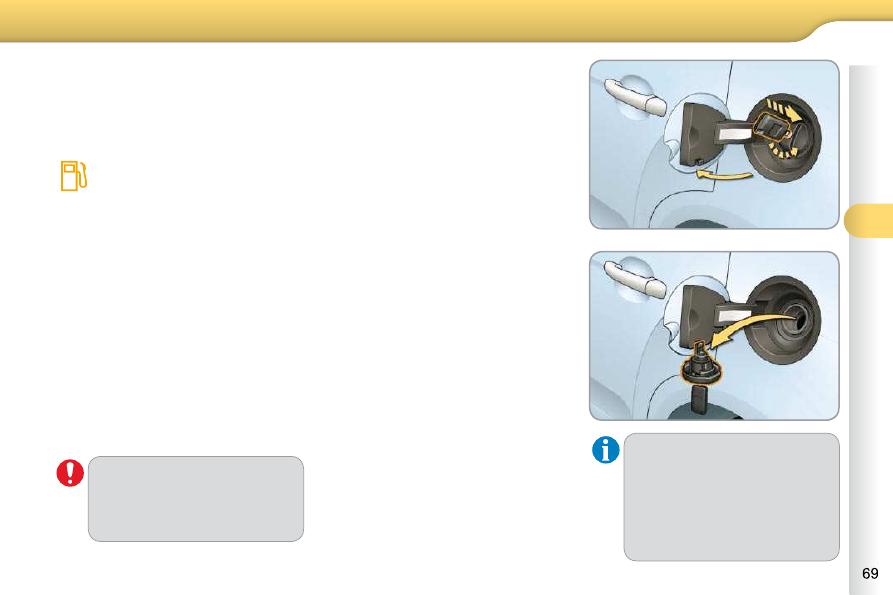

To ﬁ ll the tank safely:
 the engine must be switched off,


open the fuel ﬁ ller ﬂ ap,

 insert the key in the cap, then turn it

to the left,

 remove the cap and hook it onto

the clip located on the inside of the

ﬂ ap,



ﬁ ll the tank, but do not continue

after the 3rd cut-off of the pump ;
this could cause malfunctions.

When you have ﬁ lled the tank:
 put the cap back in place,
 turn the key to the right, then remove

it from the cap,



close the ﬂ ap.

       With  Stop  &  Start,  never  refuel
with the system in STOP mode;
you  must  switch  off  the  ignition
with the key.

ACCESS

Quality of the fuel used for
petrol engines

  The  petrol  engines  are  perfectly  com-
patible  with  E10  type  petrol  biofuels
(containing  10 %  ethanol),  conforming
to  European  standards  EN  228  and
EN 15376.
E85  type  fuels  (containing  up  to  85 %

ethanol) are reserved exclusively for

vehicles marketed for the use of this type

of fuel (BioFlex vehicles). The quality of

the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).

Quality of the fuel used for
Diesel engines

  The  Diesel  engines  are  perfectly  com-
patible  with  biofuels  which  conform  to
current and future European standards
(Diesel  fuel  which  complies  with  stan-

dard EN 590 mixed with a biofuel which

complies  with  standard  EN  14214)
available  at  the  pumps  (containing  up
to 7 % Fatty Acid Methyl Ester).
The  B30  biofuel  can  be  used  in
certain  Diesel  engines;  however,  this
use is subject to strict application of the
special  servicing  conditions.  Contact  a

CITROËN dealer or a qualiﬁ ed work-

shop.
The  use  of  any  other  type  of  (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk  of  damage  to  the  engine  and  fuel
system).

Mechanical device which prevents ﬁ lling

the tank of a Diesel vehicle with petrol. It
avoids the risk of engine damage that can

result from ﬁ lling with the wrong fuel.

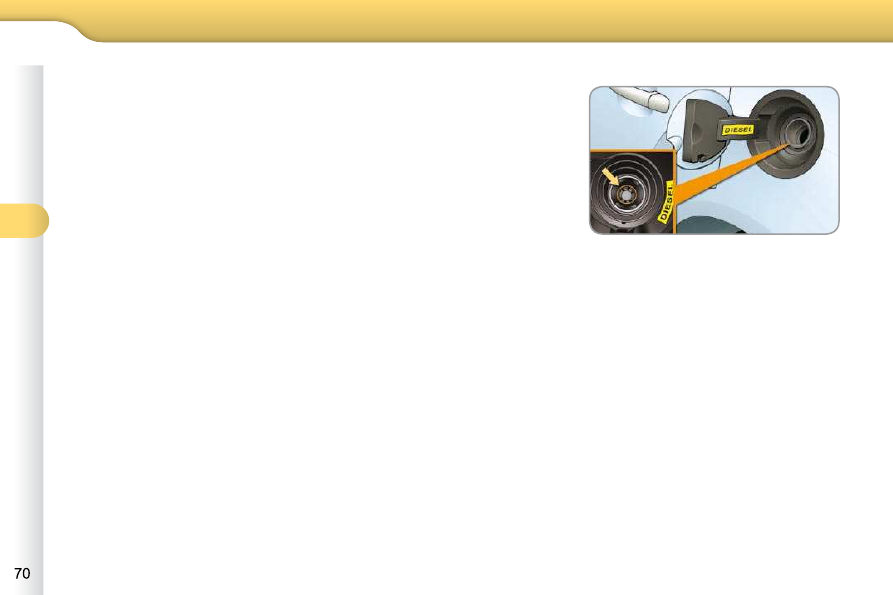

Located in the ﬁ ller neck, the misfuel

prevention device appears when the

ﬁ ller cap is removed.

MISFUEL PREVENTION

Operation

When a petrol ﬁ ller nozzle is introduced

into the fuel ﬁ ller neck of your Diesel

vehicle, it comes into contact with the

ﬂ ap. The system remains closed and

prevents ﬁ lling.
Do not persist but introduce a Diesel

type ﬁ ller nozzle.
It is still possible to use a fuel can to ﬁ ll

the reservoir.
In order to ensure a good ﬂ ow of fuel,

do not place the nozzle of the fuel can in

direct contact with the ﬂ ap of the misfuel

prevention device.

This equipment will become available
during the year.

ACCESS

Quality of the fuel used for
petrol engines

ethanol) are reserved exclusively for

vehicles marketed for the use of this type

of fuel (BioFlex vehicles). The quality of

the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).

Quality of the fuel used for
Diesel engines

  The  Diesel  engines  are  perfectly  com-
patible  with  biofuels  which  conform  to
current and future European standards
(Diesel  fuel  which  complies  with  stan-

dard EN 590 mixed with a biofuel which

CITROËN dealer or a qualiﬁ ed work-

shop.
The  use  of  any  other  type  of  (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk  of  damage  to  the  engine  and  fuel
system).

Mechanical device which prevents ﬁ lling

the tank of a Diesel vehicle with petrol. It
avoids the risk of engine damage that can

result from ﬁ lling with the wrong fuel.

Located in the ﬁ ller neck, the misfuel

prevention device appears when the

ﬁ ller cap is removed.

MISFUEL PREVENTION

Operation

When a petrol ﬁ ller nozzle is introduced

into the fuel ﬁ ller neck of your Diesel

vehicle, it comes into contact with the

ﬂ ap. The system remains closed and

prevents ﬁ lling.
Do not persist but introduce a Diesel

type ﬁ ller nozzle.
It is still possible to use a fuel can to ﬁ ll

the reservoir.
In order to ensure a good ﬂ ow of fuel,

do not place the nozzle of the fuel can in

direct contact with the ﬂ ap of the misfuel

prevention device.

This equipment will become available
during the year.

VISIBILITY

LIGHTING CONTROLS

System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.

Main lighting

The  various  front  and  rear  lamps  of
the  vehicle  are  designed  to  adapt  the
driver's  visibility  progressively  accord-
ing to climatic conditions:
   -

sidelamps, to be seen,

dipped beam headlamps to see
without dazzling other drivers,

main beam headlamps to see clearly
when the road is clear.

Additional lighting

Other lamps are installed to fulﬁ l the

requirements of particular conditions of
visibility:
-

a rear foglamp to be seen from afar,

front foglamps for even better forward
vision.

Programming

Various  automatic  lighting  control  modes
are  also  available  according  to  the  fol-
lowing options:
   -

guide-me-home lighting,

automatic illumination of headlamps.

Model without AUTO lighting

Model with AUTO lighting

Lamps off.

Automatic illumination of
headlamps.

Sidelamps only.

Dipped or main beam
headlamps.

B. Stalk for switching the headlamp

beam: pull the stalk to switch between
dipped and main beam headlamps.

In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps

temporarily

("headlamp

ﬂ ash") by maintaining a pull on the stalk.

Displays

Lighting of the corresponding indicator

lamp on the instrument panel conﬁ rms the

switching on of the lighting selected.
Depending  on  version,  the  instrument
panel  may  have  permanent  back-light-
ing. Illumination of the instrument panel is
therefore not linked to the exterior lighting.

Manual controls

The  lighting  commands  are  issued
directly  by  the  driver  by  means  of  the
ring  A  and the stalk  B .

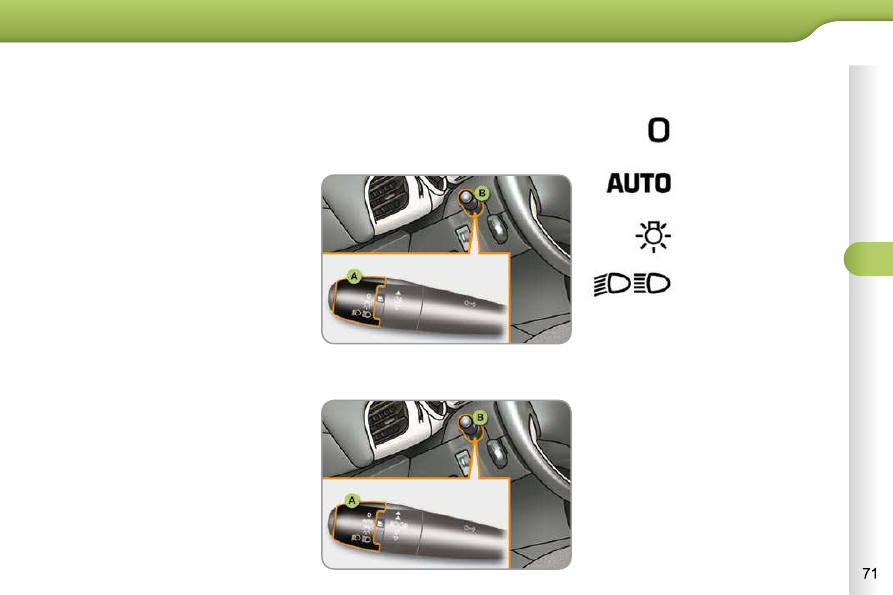

A. Main lighting mode selection ring:

turn it to position the symbol re-
quired facing the mark.

VISIBILITY

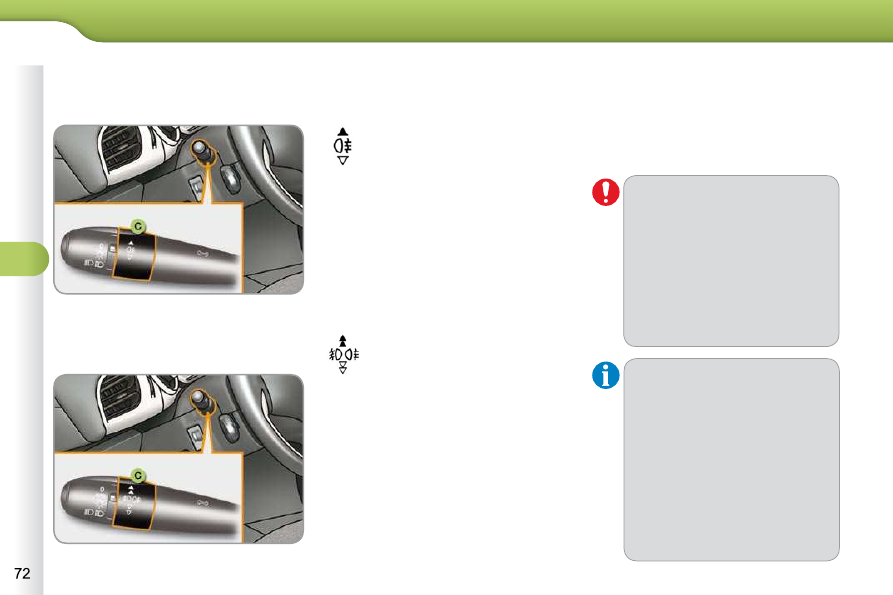

C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.

Rear foglamp

Rotate and release the ring C :


forwards a ﬁ rst time to switch on the

front foglamps.

 forwards a second time to switch on

the rear foglamp,



rearwards a ﬁ rst time to switch off

the rear foglamp

 rearwards a second time to switch

of the front fog lamps.

Model with rear foglamp only

 To switch on the foglamp, turn the

ring C forwards.

When the lighting is switched off auto-

matically (with AUTO model), the foglamp

and the dipped beam headlamps will
remain on.
 To switch off all of the lighting, turn

the ring C rearwards.

Model with front foglamps

and a rear foglamp

Front and rear foglamps

In good or rainy weather, by both
day and night, the front foglamps
and  the  rear  foglamp  are  pro-
hibited.  In  these  situations,  the
power  of  their  beams  may  daz-
zle other drivers.
Do  not  forget  to  switch  off  the
front  foglamps  and  the  rear  fo-
glamp  when  they  are  no  longer
necessary.

  Lighting on audible warning
When  the  ignition  is  switched
off,  all  of  the  lamps  switch  off
automatically,  unless  guide-me-
home lighting is activated.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch  off  the  vehicle's  lighting,
with the ignition off.

When the lighting is switched off auto-

matically (with AUTO model) or when

the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
 Turn the ring rearwards to switch

off the foglamps, the sidelamps will
then switch off.

VISIBILITY

* According to country.

Daytime running lamps *

On vehicles ﬁ tted with daytime run-

ning lamps, the dipped beams come on
when the vehicle is started.

Manual guide-me-home lighting

Temporarily  keeping  the  dipped  beam
headlamps  on  after  the  vehicle's  igni-
tion  has  been  switched  off  makes  the
driver's  exit  easier  when  the  light  is
poor.

Switching on


With the ignition off, "ﬂ ash" the

headlamps using the lighting stalk.



A further "headlamp ﬂ ash" switches

the function off.

  Switching off
The  manual  guide-me-home  lighting
switches  off  automatically  after  a  set
time.

Automatic illumination of
headlamps

The sidelamps and dipped beam head-
lamps  are  switched  on  automatically,
without  any  action  on  the  part  of  the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As  soon  as  the  brightness  returns  to  a

sufﬁ cient level or after the windscreen

wipers are switched off, the lamps are
switched off automatically.

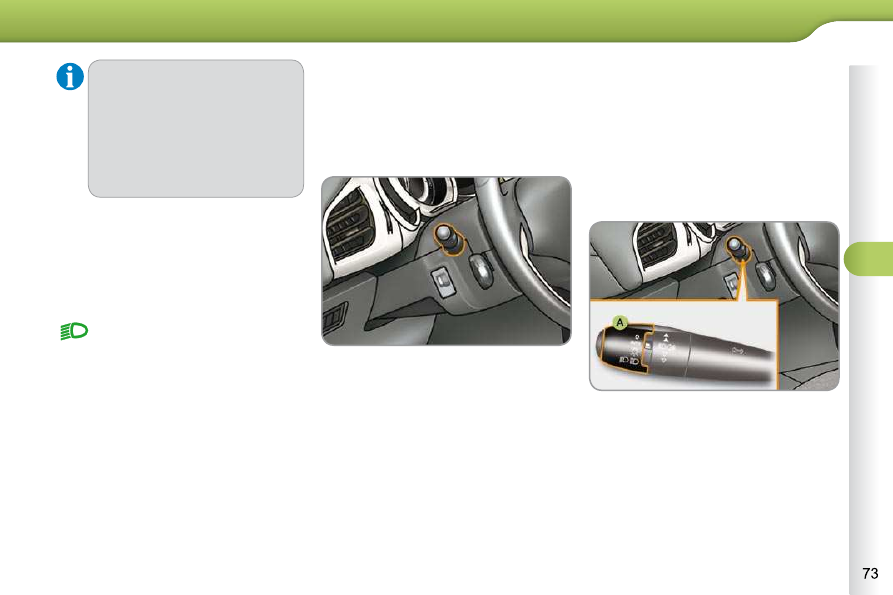

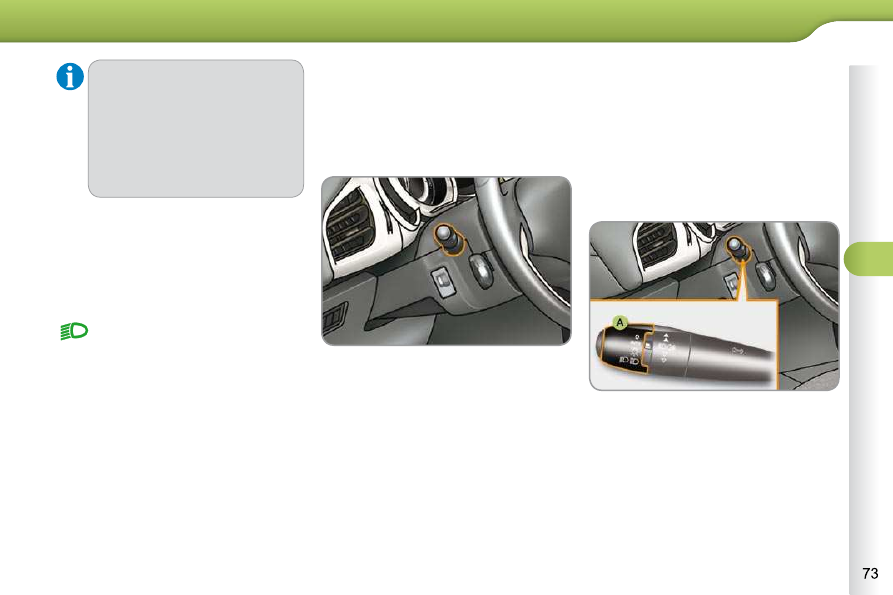

Activation
 Turn ring A to the "AUTO" position.

The automatic illumination of head-
lamps is accompanied by a message
in the multifunction screen.

Deactivation
 Turn ring A to a position other than

"AUTO" . Deactivation is accompa-
nied by a message in the multifunction
screen.

This warning lamp comes on in
the instrument panel.

The instruments and controls (instru-
ment panel, multifunction screen, air

conditioning control panel, etc.) are not

illuminated,  except  on  switching  to  the
automatic  lighting  mode  or  when  the
lighting is switched on manually.
This  function  can  be  activated/deacti-
vated by a CITROËN dealer.

In some weather conditions (e.g.

low temperature or humidity),

the  presence  of  misting  on  the
internal  surface  of  the  glass  of
the  headlamps  and  rear  lamps
is normal; it disappears after the
lamps  have  been  on  for  a  few
minutes.

VISIBILITY

To  avoid  causing  a  nuisance  to  other
road  users,  the  height  of  the  headlam-
ps should be adjusted in relation to the
load in the vehicle.
  0  .    Driver only or driver + front passenger.
  - .   Intermediate setting
  1.    5 people.
  - .   5 people + load in the boot.
  2.    Driver  only  +  maximum  authorised

load in the boot.

This position is sufﬁ cient to avoid caus-

ing dazzle.
Higher settings may limit the spread of
light from the headlamps.

The initial setting is position "0" .

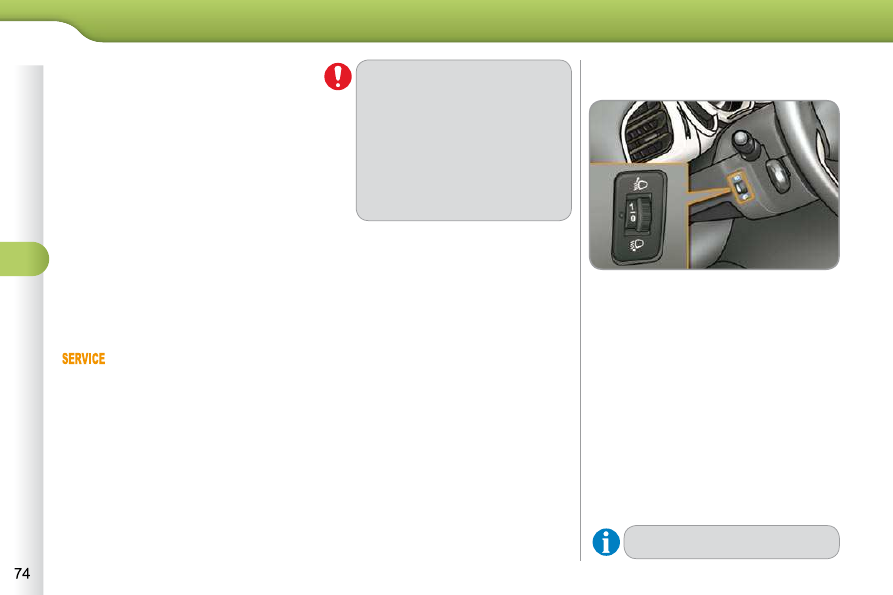

HEADLAMP ADJUSTMENT

  Coupling with the automatic
"Guide-me-home" lighting
Association  with  the  automatic  illumi-
nation  of  headlamps  provides  "guide-
me-home"  lighting  with  the  following
additional options:
   -

selection  of  the  lighting  duration  to
15,  30  or  60 seconds  in  the  vehi-
cle  parameters  in  the  multifunction

screen conﬁ guration menu (except

in the case of the monochrome
screen A, for which the duration is

set: 60 seconds),

automatic  activation  of  "guide-me-
home"  lighting  when  automatic
illumination  of  headlamps  is  in  op-
eration.

Operating fault

In fog or snow, the sunshine sen-

sor may detect sufﬁ cient light.

Therefore,  the  lighting  will  not
come on automatically.
Do  not  cover  the  sunshine  sen-
sor, coupled with the rain sensor
and  located  in  the  centre  of  the
windscreen behind the rear view
mirror;  the  associated  functions
would no longer be controlled.

In the event of a fault with
the sunshine sensor, the
lighting come on, this warn-

ing lamp is displayed in the instrument
panel and/or a message appears in the
multifunction screen, accompanied by
an audible signal.
Contact a CITROËN dealer or a qualiﬁ ed

workshop.

VISIBILITY

* According to country.

Daytime running lamps *

On vehicles ﬁ tted with daytime run-

ning lamps, the dipped beams come on
when the vehicle is started.

Manual guide-me-home lighting

Temporarily  keeping  the  dipped  beam
headlamps  on  after  the  vehicle's  igni-
tion  has  been  switched  off  makes  the
driver's  exit  easier  when  the  light  is
poor.

Switching on


With the ignition off, "ﬂ ash" the

headlamps using the lighting stalk.



A further "headlamp ﬂ ash" switches

the function off.

  Switching off
The  manual  guide-me-home  lighting
switches  off  automatically  after  a  set
time.

Automatic illumination of
headlamps

sufﬁ cient level or after the windscreen

wipers are switched off, the lamps are
switched off automatically.

Activation
 Turn ring A to the "AUTO" position.

The automatic illumination of head-
lamps is accompanied by a message
in the multifunction screen.

Deactivation
 Turn ring A to a position other than

"AUTO" . Deactivation is accompa-
nied by a message in the multifunction
screen.

This warning lamp comes on in
the instrument panel.

The instruments and controls (instru-
ment panel, multifunction screen, air

conditioning control panel, etc.) are not

illuminated,  except  on  switching  to  the
automatic  lighting  mode  or  when  the
lighting is switched on manually.
This  function  can  be  activated/deacti-
vated by a CITROËN dealer.

In some weather conditions (e.g.

low temperature or humidity),

the  presence  of  misting  on  the
internal  surface  of  the  glass  of
the  headlamps  and  rear  lamps
is normal; it disappears after the
lamps  have  been  on  for  a  few
minutes.

Citroen C3 Dag (2010 year). Instruction - part 5
