Child safety

SAFETY

JUMPY-ATLANTE-VP_EN_CHAP04_SECURITE_ED01-2014

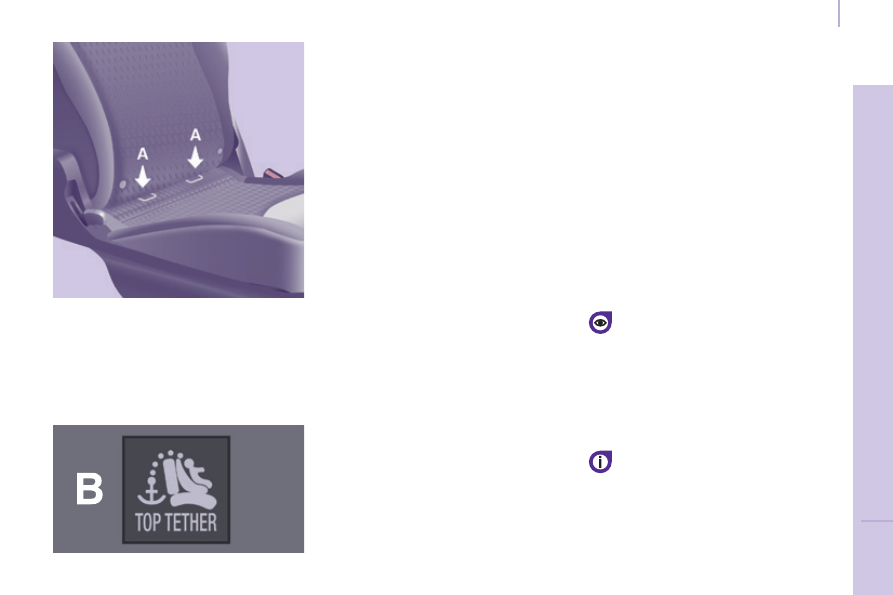

"ISOFIX" MOUNTINGS

The mountings comprise three rings for each

seat:
-

two front rings

A , located between the

vehicle seat backrest and cushion,

indicated by an "ISOFIX" marking,

a rear ring

B , located behind the

vehicle's seat, called the Top Tether, for

securing the upper strap, indicated by a

"Top Tether" marking.

Your vehicle has been approved to the latest

ISOFIX regulation.
If fitted on your vehicle, the regulation

ISOFIX mountings are located by labels.

The Top Tether is sued to secure the upper

strap of child seats that have one. In the

event of a front impact, this system limits the

forward tipping of the child seat.
This ISOFIX mounting system provides fast,

reliable and safe fitting of the child seat in

your vehicle.
The ISOFIX child seats are fitted with two

latches which are secured on the two front

rings

A .

Some also have an upper strap which is

attached to the rear ring

B .

To secure the child seat to the Top Tether:
- remove and stow the head restraint

before installing a child seat on this seat

(refit it once the child seat has been

removed),

- pass the child seat upper strap over the

top of the seat backrest, between the

apertures for the head restraint rods,

- fix the hook on the end of the upper

strap to the rear ring

B ,

tighten the upper strap.

The incorrect installation of a child seat

in a vehicle compromises the child's

protection in the event of an accident.

Observe strictly the fitting instructions

provided with the child seat.

For information on the possibilities for

installing ISOFIX child seats in your

vehicle, refer to the summary table.

Child safety

JUMPY-ATLANTE-VP_EN_CHAP04_SECURITE_ED01-2014

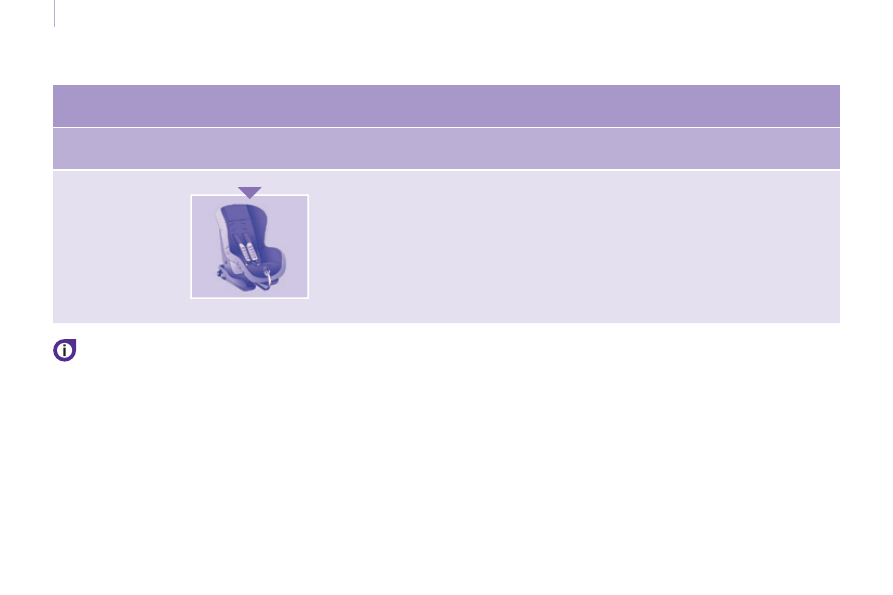

RÖMER Duo Plus ISOFI X

(size category

B1 )

Group 1: from 9 to 18 kg

Is installed only in the forward facing position.

Is attached to the rings

A and the upper ring B ,

referred to as the Top Tether, using an upper strap.

Three seat body angles: sitting, reclining, lying down.

This seat can be used on seats not fitted with ISOFIX mountings.
In this case, it must be attached to the vehicle's seat using the three-point seat belt.

Adjust the front seat of the vehicle so that the child's feet do not touch the backrest.

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE

Child safety

SAFETY

JUMPY-ATLANTE-VP_EN_CHAP04_SECURITE_ED01-2014

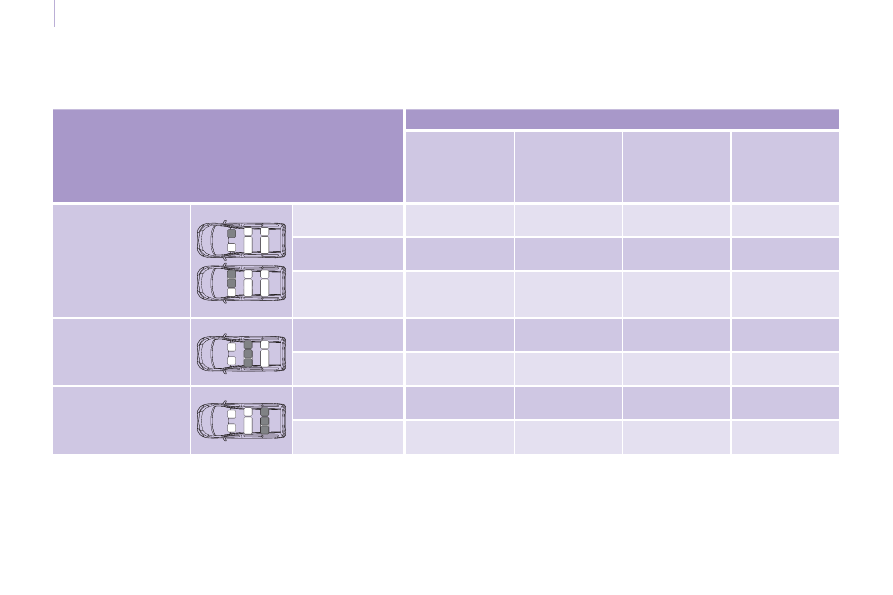

LOCATIONS FOR ISOFIX CHILD SEATS

In line with European legislation, this table indicates the options for the installation of ISOFIX child seats on the vehicle seats fitted with

ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter from

A to G ,

is indicated on the child seat next to the ISOFIX logo.

Weight of the child / indicative age

Less than

10 kg

(group 0)

Up to 6 months

approx

Less than 10 kg

(group 0)

Less than 13 kg

(group 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years approx

Type of ISOFIX child seat

Infant car seat

"rearward facing"

"rearward

facing"

"forward facing"

ISOFIX size category

Row 2 outer rear seats

with individual seats in

Row 1 (a) (b )

IL-SU

IUF, IL-SU

Row 2 outer rear seats

with 2-seat bench in

Row 1 (a) (b)

IL-SU

IUF, IL-SU

Rear seats in Row 3

(a) (b)

IL-SU

IUF, IL-SU

Child safety

JUMPY-ATLANTE-VP_EN_CHAP04_SECURITE_ED01-2014

(a) To install a child seat on a rear seat,

move the seats in front forward,

then straighten the backrest to allow

enough space for the child seat and the

child's legs.

(b) To install a child seat on a rear seat,

adjust the rear seat to the fully back

position with the backrest straightened.

IUF: seat suitable for the installation of an

I SOFIX U niversal child seat "forward

facing" fitted with an upper strap.

IL-SU: seat suitable for the installation of an

I SOFIX S emi- U niversal child seat,

either:

- "rearward facing" fitted with an upper

strap or a support leg,

- "forward facing" fitted with a support leg,
- a carrycot fitted with an upper strap or a

support leg.

Remove and stow the head restraint

before installing a child seat with

backrest on a passenger seat.
Refit the head restraint once the child seat

has been removed.

To attach the upper strap, refer to the

"ISOFIX mountings" section.

X: seat not suitable for the installation of a

child seat of the weight group indicated.

The installation of a carrycot on an outer

rear seat prevents the use of the other seats

in the row.

Child safety

SAFETY

JUMPY-ATLANTE-VP_EN_CHAP04_SECURITE_ED01-2014

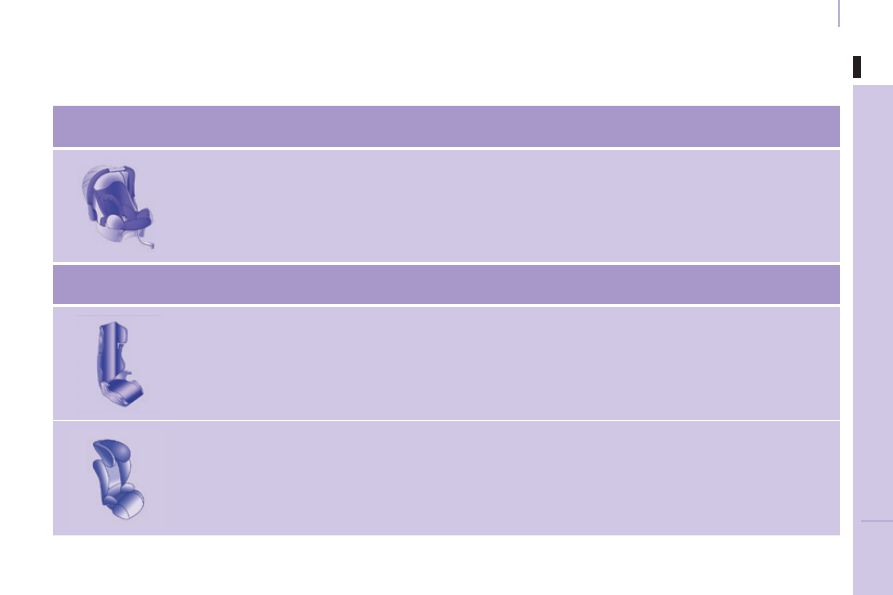

CHILD SEATS RECOMMENDED BY CITROËN

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rearward facing position

Groups 2 and 3: from 15 to 36 kg

"KLIPPAN Optima"

From 22 kg (about 6 years), the booster is used on its own.

"RÖMER KIDFIX"

Can be fixed on the vehicle's ISOFIX mountings.

The child is restrained by the seat belt.

CITROËN offers a range of recommended child seats which are

secured using a three point seat belt :

Child safety

JUMPY-ATLANTE-VP_EN_CHAP04_SECURITE_ED01-2014

Row 2 (e) (f)

Outer seats

Centre seat

Row 3 (e) (f)

Outer seats

Centre seat

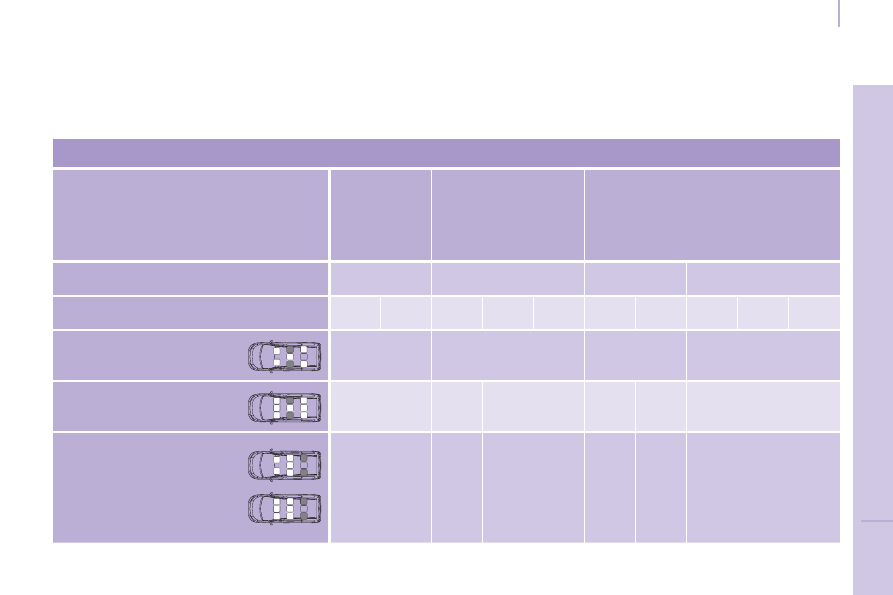

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT

In line with European legislation, this table indicates the options for installing child seats secured using a seat belt and universally

approved (a) for the weight of the child and the seat in the vehicle.

Seat

Weight of the child and indicative age

Under 13 kg
(groups 0 (b)

and 0+)

Up to approx 1 year

From 9 to 18 kg

(group 1)

1 to 3 years

approx

From 15 to 25 kg

(group 2)

3 to 6 years

approx

From 22 to 36 kg

(group 3)

6 to 10 years

approx

Row 1 (c) (d)

Individual seat

Bench, outer seat

Bench, centre

seat

L4, L5

Child safety

SAFETY

JUMPY-ATLANTE-VP_EN_CHAP04_SECURITE_ED01-2014

(a) Universal child seat: child seat that can

be installed in any vehicle using the seat

belt.

(b) Group 0: from birth to 10 kg. Infant car

seats and "car cots" cannot be installed

on the front passenger seat.

country before installing your child on

this seat.

(d) When a "rearward facing" child seat is

installed on the front passenger seat,

the front passenger airbag must be

deactivated. Otherwise the child risks

being seriously injured or even killed if

the airbag is deployed.

When a"forward facing" child seat is

installed on the front passenger seat,

the front passenger airbag must remain

active.

Remove and stow the head restraint

before installing a child seat with

backrest on a passenger seat.
Refit the head restraint once the child seat

has been removed.

U: seat suitable for the installation of a

child seat secured using a seat belt and

universally approved, "rearward facing"

and/or "forward facing".

L-: only the child seats indicated can

be installed in the seat in question

(depending on country of sale).

(e) To install a child seat on a rear seat,

move the seats in front forward, then

straighten the backrest to allow enough

space for the child seat and the child's

legs.

(f) To install a child seat on a rear seat,

adjust the rear seat to the fully back

position with the backrest straightened.

Child safety

JUMPY-ATLANTE-VP_EN_CHAP04_SECURITE_ED01-2014

For the optimum installation of a "forward

facing" child seat, ensure that the back of

the child seat is as close as possible to the

backrest of the vehicle's seat, or in contact

if possible.
The head restraint must be removed before

installing a child seat with a backrest on the

passenger seat.
Ensure that the head restraint is stowed or

attached securely so that it is not thrown

around the vehicle in the event of sharp

braking.
Refit the head restraint as soon as the child

seat is removed.

Installing a booster seat

The chest part of the seat belt must be

positioned on the child's shoulder without

touching the neck.
Ensure that the lap part of the seat belt

passes correctly over the child's thighs.
CITROËN recommends the use of a booster

seat which has a back, fitted with a seat belt

guide at shoulder level.

ADVICE ON CHILD SEATS

The incorrect installation of a child seat in a

vehicle compromises the child's protection in

the event of an accident.

Check that there is no seat belt or seat belt

buckle under the child seat, as this could

destabilise the seat.
Remember to fasten the seat belts or the

child seat harnesses

keeping the slack in

relation to the child's body

to a minimum ,

even for short journeys.

For the installation of a child seat using

the seat belt, ensure that the seat belt is

well tensioned on the child seat and that

it is holding the child seat firmly against

the vehicle's seat. If the passenger seat is

adjustable, move it forward if necessary.

At the rear, always leave sufficient space

between the front seat and:
-

a "rearward facing" child seat,

- the feet of a child seated in a "forward

facing" child seat.

For this, move the front seat forward and, if

necessary, straighten its backrest as well.

Children at the front

The legislation on carrying a child on the

front passenger seat is specific to each

country. Refer to the legislation in force in

your country.
Deactivate the passenger's airbag when a

"rearward facing" child seat is installed on

the front seat.
Otherwise, the child would risk being

seriously injured or killed if the airbag were

deployed.

As a safety precaution, do not leave:
- one or more children alone and

unsupervised in a vehicle,

- a child or an animal in a vehicle which

is exposed to the sun, with the windows

closed,

- the keys within reach of children inside

the vehicle.

To prevent accidental opening of the doors,

use the "Child Lock".
Take care not to open the rear windows by

more than one third.
To protect young children from the rays of

the sun, fit side blinds to the rear windows.

Towing a trailer

ACCESSORIES

JUMPY-ATLANTE-VP_EN_CHAP05_ACCESSOIRES_ED01-2014

For more information about weights,

refer to the administrative documents

(registration document, ...) or to the

"Weights" section of chapter 8.

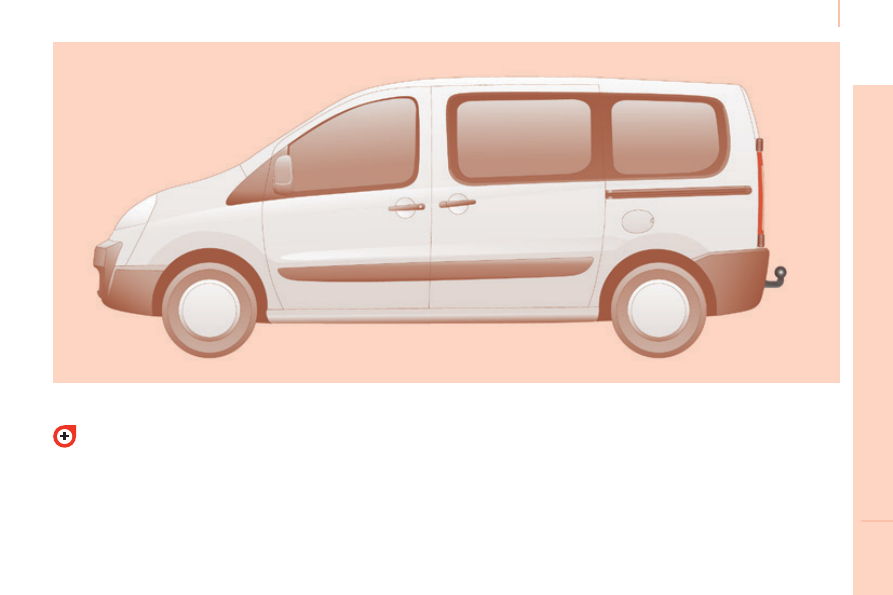

TOWING A TRAILER, CARAVAN, BOAT, ETC...

Distribution of loads
Distribute the load in the trailer so that the

heaviest objects are as close as possible

to the axle and the nose weight is close to

the maximum authorised without, however,

exceeding it.

Cooling
Towing a trailer on a slope increases the

coolant temperature.
As the fan is electrically controlled, its

cooling capacity is not dependent on the

engine speed.

Driving advice

A towed vehicle must free wheel: gearbox in

neutral.

120

Towing a trailer

JUMPY-ATLANTE-VP_EN_CHAP05_ACCESSOIRES_ED01-2014

You should therefore use a high gear to

lower the engine speed and reduce your

speed.
In all cases, pay attention to the coolant

temperature.

Tyres
Check the tyre pressures of the towing

vehicle (see the "Identification markings"

section of chapter 8) and of the trailer,

observing the recommended pressures.

Towbar

We recommend the use of genuine

CITROËN towbars and their harnesses,

which have been tested and approved from

the design stage of your vehicle, and that

you entrust the fitting of this equipment to a

CITROËN dealer.
If this equipment is not fitted by a CITROËN

dealer, it is imperative that it is fitted using

the electrical pre-equipment installed at the

rear of the vehicle and in accordance with

the manufacturer's instructions.
In accordance with the general instructions

a reminder of which has been given above,

we draw your attention to the risk associated

with fitting a towbar or electrical accessory

not recommended by CITROËN. Fitting such

equipment could result in the failure of your

vehicle's electronic system. Please obtain

information from the Manufacturer before

fitting this type of equipment.

If the coolant temperature warning

lamp comes on, stop the vehicle

and switch off the engine as soon

as possible.

Good Practice

In certain cases of particularly arduous

use (towing the maximum load up a steep

slope in high temperatures), the engine

automatically limits its power. In this case,

the air conditioning is automatically cut off to

save engine power.

See the "Levels" section of chapter 6.

Brakes
Towing increases the braking distance. Drive

at a moderate speed, change down early

and brake gradually.

Side wind
Sensitivity to side wind is increased. Drive

smoothly and at a moderate speed.

ABS/DSC
The ABS or DSC systems only control the

vehicle, not the trailer or caravan.

Rear parking sensors
The parking sensors system does not

function while the vehicle is towing.

121

Equipment

ACCESSORIES

JUMPY-ATLANTE-VP_EN_CHAP05_ACCESSOIRES_ED01-2014

OTHER ACCESSORIES

For any work on your vehicle, use

a qualified workshop that has the

technical information, competence and

equipment required, which a CITROËN

dealer is able to provide.

Installation of radiocommunication

transmitters
Before installing accessory

radiocommunication transmitters with an

external aerial on your vehicle, you are

advised to contact a representative of the

CITROËN marque.
The CITROËN Network will inform you of the

specifications (frequency band, maximum

output power, aerial position, specific

installation conditions) of the transmitters

which can be fitted, in accordance with the

Motor Vehicle Electromagnetic Compatibility

Directive (2004/104/CE).

This range is also available, structured

around comfort, leisure and maintenance:

Trims (except for 163 hp engine), front mud

flaps, rear mud flaps, spoilers, sill, ...

Audio equipment, hands-free kit, speakers, CD changer,

navigation, ...
Regardless of the audio and telematic equipment

offered on the market, the technical constraints linked

with the ﬁ tting of equipment of these families of products

mean that the special features of the equipment and its

compatibility with the capacities of your vehicle's standard

equipment must be taken into account. Please contact a

dealer for information before ﬁ tting such equipment.

Front seat covers compatible with air bags,

benches, rubber mats, carpet mats, boot

tray, roof bars, side blinds, snow chains.
To prevent the mat from becoming caught

under the pedals:
- ensure that the mat and its fixings are

positioned correctly,

- never fit one mat on top of another.

Screenwash, replacement fuses, wiper

blades, interior and exterior cleaning and

maintenance products, replacement

bulbs, ...

The fitting of electrical equipment

or accessories which are not

recommended by CITROËN may result in a

failure of your vehicle's electronic system.

Please note this specific warning. You

are advised to contact a representative

of the Marque to be shown the range of

recommended equipment and accessories.
Depending on the country in which the

vehicle is sold or operated, it is compulsory

to have a high visibility safety vest, warning

triangle and replacement bulbs available in

the vehicle.

Anti-theft alarm, window engraving, first aid

kit, high visibility safety vest, rear parking

sensors, warning triangle, ...

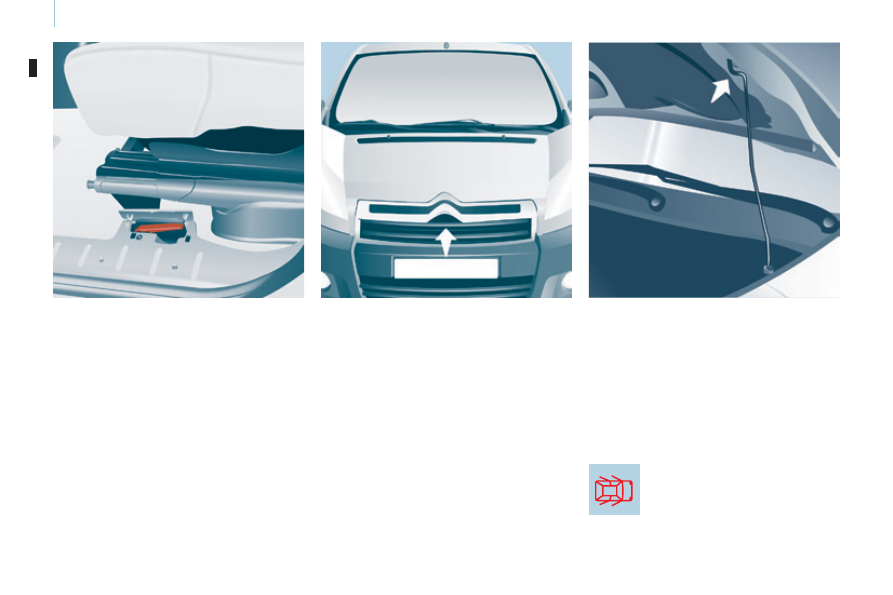

Opening the bonnet

JUMPY-ATLANTE-VP_EN_CHAP06_VERIFICATIONS_ED01-2014

OPENING THE BONNET

From inside:
- lift the cover located at the foot of the

front left seat.

- pull the release lever upwards.

To close
Lower the bonnet and release it at the end of its

travel. Check that the bonnet is properly latched.

From outside: partially open the bonnet, lift

the safety catch and raise the bonnet.

Bonnet stay

Secure the stay in one of the two notches,

according to the height required, to hold the

bonnet open.
Before closing the bonnet, replace the stay

in its housing.

"Bonnet open" warning
This warning is linked to the

alarm option

only.

With the engine running or the

vehicle moving, a warning lamp

and a diagram in the screen,

accompanied by an audible

signal, warn you that the bonnet

is not properly closed.

123

Under the bonnet

CHECKS

JUMPY-ATLANTE-VP_EN_CHAP06_VERIFICATIONS_ED01-2014

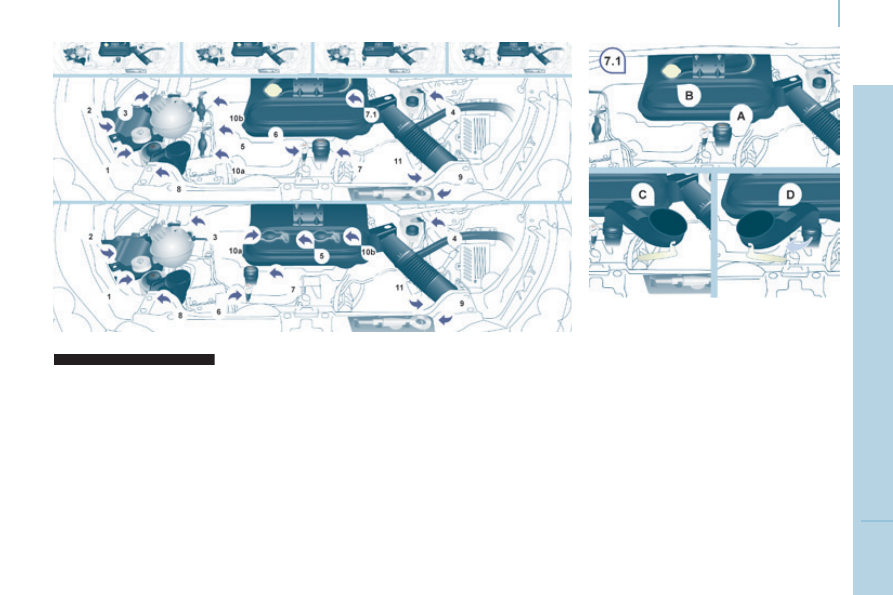

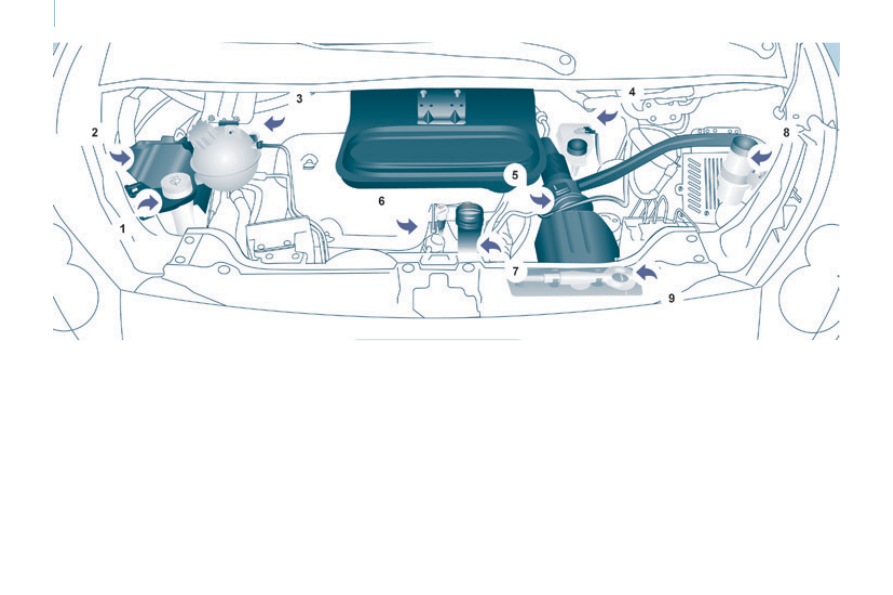

DIESEL ENGINES

8 - Power steering reservoir.

9 - Removable towing eye.

10 - Priming pump ( a : 1.6 litre HDi;

b : 2 litre HDi).

11 - Engine oil filling funnel

(2 litre HDi).

1 - Screen/headlamp wash reservoir.

2 - Fusebox.

3 - Coolant header tank.

4 - Brake and clutch fluid reservoir.

5 - Air filter.

6 - Engine oil dipstick.

7 - Engine oil filler cap.

7.1 - Engine oil filler cap.
If your vehicle is fitted with this oil filler tube,

proceed as follows:

A - Remove the oil filler cap.

B - Remove the filler tube from its location.

C - Place the filler tube in the filler opening

as shown on the illustration.

D - Turn it a 1/4 of a turn to the left to lock it

then top up the oil.

To refit, proceed in the reverse order without

forgetting to retighten the cap

A correctly.

125

Levels

CHECKS

JUMPY-ATLANTE-VP_EN_CHAP06_VERIFICATIONS_ED01-2014

LEVELS

To maintain the reliability of engines and

emission control systems, the use of

additives in engine oil is prohibited.

Changing the brake fluid

The brake fluid must be changed at

the intervals stated, according to the

manufacturer's servicing schedule.
Use fluids recommended by the

manufacturer, which fulfil DOT4 standards.
The level must be between the MIN and

MAX marks on the reservoir.
If fluid has to be added frequently, this

indicates a fault which must be checked by a

CITROËN dealer or a qualified workshop as

soon as possible.

These regular maintenance operations

will keep your vehicle in good running

order. Consult a CITROËN dealer or the

servicing and warranty booklet enclosed in

the handbook pack.

If you have to remove / refit the engine

style cover, handle it with care to avoid

damaging the fixing clips.

Check the level regularly and top up

between changes.
Check the level with the vehicle level,

engine cold, using the dipstick.

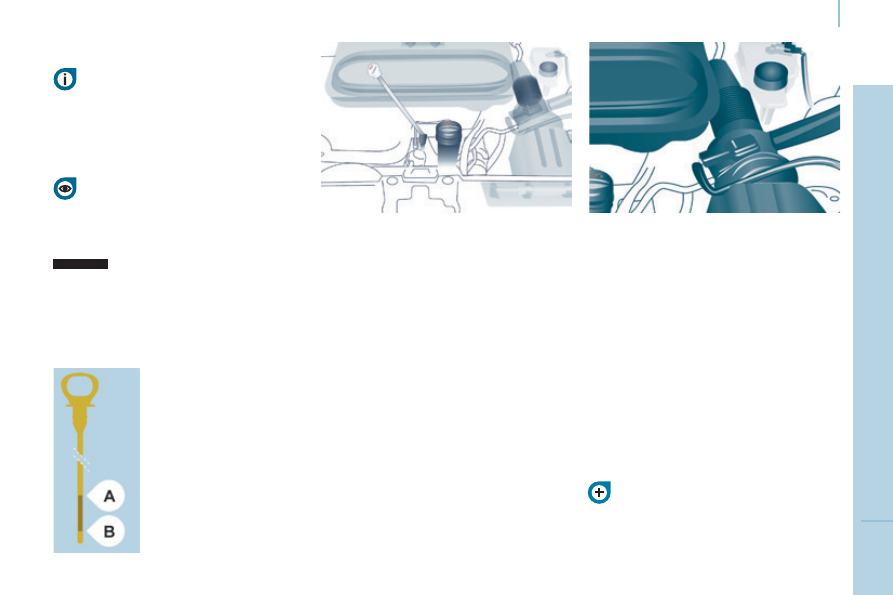

Dipstick
There are two marks on the

dipstick:
A = maximum
If you fill past this mark,

contact a CITROËN dealer

or a qualified workshop.
B = minimum
Never allow the level to fall

below this mark.

Oil change

It is imperative that this is carried out at the

intervals specified and the viscosity grade of

the oil selected must fulfil the requirements

in accordance with the manufacturer's

servicing schedule. Ask for advice from a

CITROËN dealer.
Remove the dipstick before filling.
For the 2 litre HDi engine, use the funnel

supplied when filling via the sump opening.
Check the level after filling (never exceed

the max mark).
Screw the cap back onto the sump before

closing the bonnet.
Viscosity selection
In all cases, the oil selected must meet the

manufacturer's requirements.

Warning lamps

Checking by means of the warning

lamps in the instrument panel

is described in chapter 2, refer to the

"Instruments and controls" section.

126

Levels

JUMPY-ATLANTE-VP_EN_CHAP06_VERIFICATIONS_ED01-2014

Cooling system

Only use the fluid recommended by the

manufacturer.
Otherwise, you risk seriously damaging your

engine.
When the engine is warm, the temperature

of the coolant is controlled by the engine

fan. As this fan can operate with the ignition

key removed and because the cooling

system is pressurised, wait for at least one

hour after the engine has stopped before

carrying out any work.
Slacken the cap by 1/4 of a turn to release

the pressure to prevent any risk of scalding.

When the pressure has dropped, remove the

cap and top up the level with coolant.
If fluid has to be added frequently, this

indicates a fault which must be checked by a

CITROËN dealer or a qualified workshop as

soon as possible.

The vehicle must be parked on level ground

with the engine cold. Unscrew the cap

integrated with the gauge and check the

level which must be between the MIN and

MAX marks.

Diesel additive level (Diesel

with particle emission filter)

The minimum level of this additive

is indicated by lighting of the

service warning light, accompanied by an

audible signal and a message in the screen.
When this occurs with the engine running it

is due to the start of saturation of the particle

emission filter (exceptionally prolonged

urban type driving conditions: low speed,

long traffic jams, ...).
In order to regenerate the filter, you are

advised to drive at a speed higher than

40 mph (60 km/h) for at least five minutes

as soon as possible, when traffic conditions

permit (until the message disappears and

the service warning lamp goes off).
During regeneration of the particle emission

filter, relay noise may be heard under the

dashboard.
If the message is still displayed and if the

service warning lamp remains on, contact a

CITROËN dealer or a qualified workshop.

Topping up
The level must be between the MIN and

MAX marks on the expansion bottle. If

more than 1 litre of fluid is required to top

up the level, have the system checked by a

CITROËN dealer or a qualified workshop.

Screenwash and headlamp wash

level

For best quality cleaning and for your safety,

we would advise that you use products of

the CITROËN range.
Capacity of the screenwash reservoir:

approximately 4.5 litres.
If your vehicle is fitted with headlamp

washers, the capacity of the reservoir is

7.5 litres.
To ensure optimum cleaning and prevent

freezing, this fluid must not be topped up or

replaced with plain water.

Topping up
This additive must be topped up by a

CITROËN dealer or a qualified workshop

without delay.

Citroen Jumpy Multispace (2014 year). Instruction - part 8
