Ventilation

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

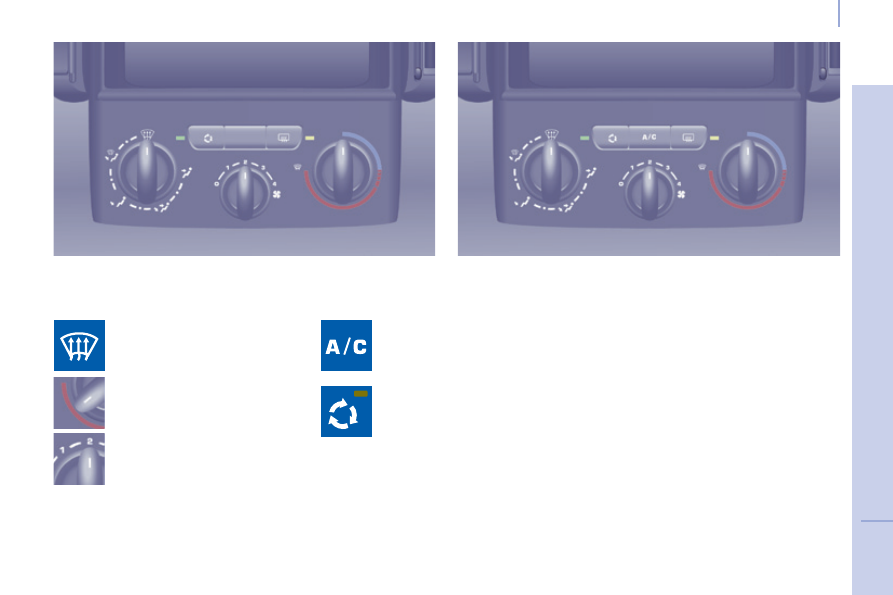

Press the air conditioning button.

Manual mode

Turn the control to this

temperature setting.

Increase the air flow setting.

DEMISTING AND DEFROSTING

Returning to exterior air intake

open permits renewal of the air

in the passenger compartment

(LED off).

Turn the control to this air

distribution setting.

Ventilation

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

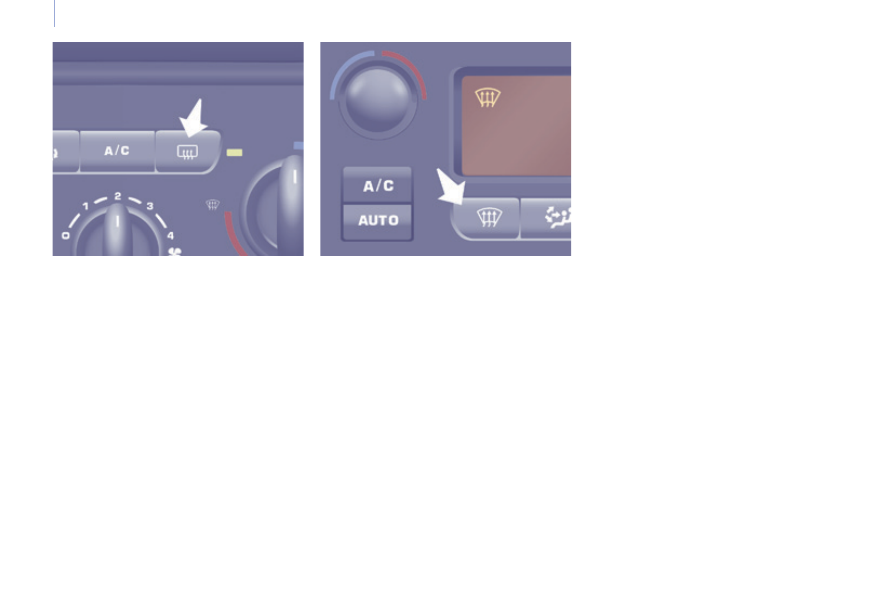

Pressing this button, with the engine

running, activates the rapid demisting -

defrosting of the rear screen and/or electric

mirrors.
This function switches off:
-

when the button is pressed,

- when the engine is switched off,
-

automatically to prevent excessive

energy consumption.

Demisting the rear screen and/or

mirrors

Automatic air conditioning: visibility

programme

The comfort programme (AUTO) may not

be sufficient to quickly demist or defrost the

windows (humidity, several passengers, ice).
In this case, select the visibility programme.

The visibility programme indicator lamp

comes on.

It activates the air conditioning, the air

flow, the defrosting of the rear screen

and provides optimum distribution of the

ventilation to the windscreen and side

windows.
It deactivates the air recirculation.

Ventilation

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

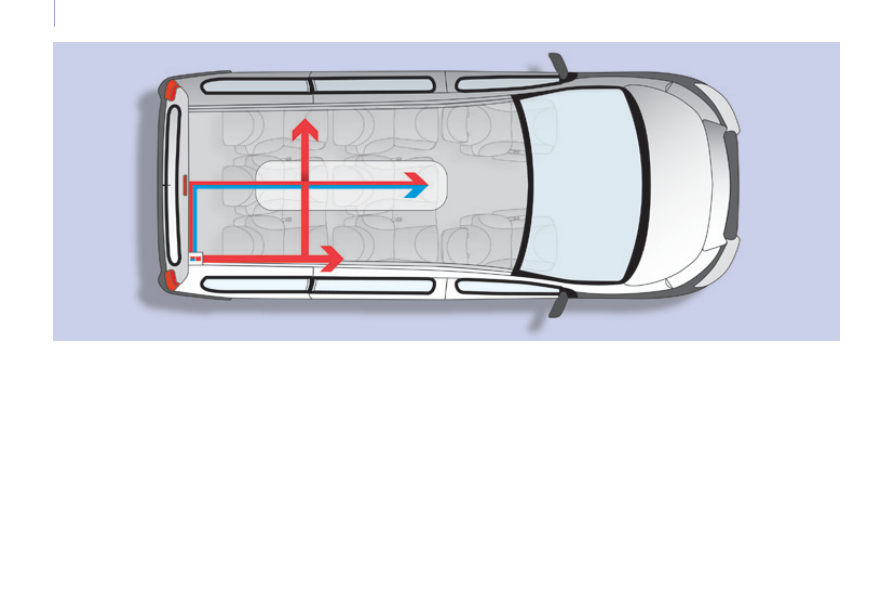

REAR VENTILATION

If your vehicle is fitted with an additional air

conditioning unit, located in the rear of the

vehicle. The distribution duct located in the

roof and the 6 individual vents provide a

perfect air distribution.
The warm air diffused at the floor, from the

front heating and air conditioning unit, is

distributed at the feet of the rear passengers

of the 2nd row.
A warm air diffusion vent, located on the

specific unit, completes the installation

for the feet of the rear passengers of the

3rd row.

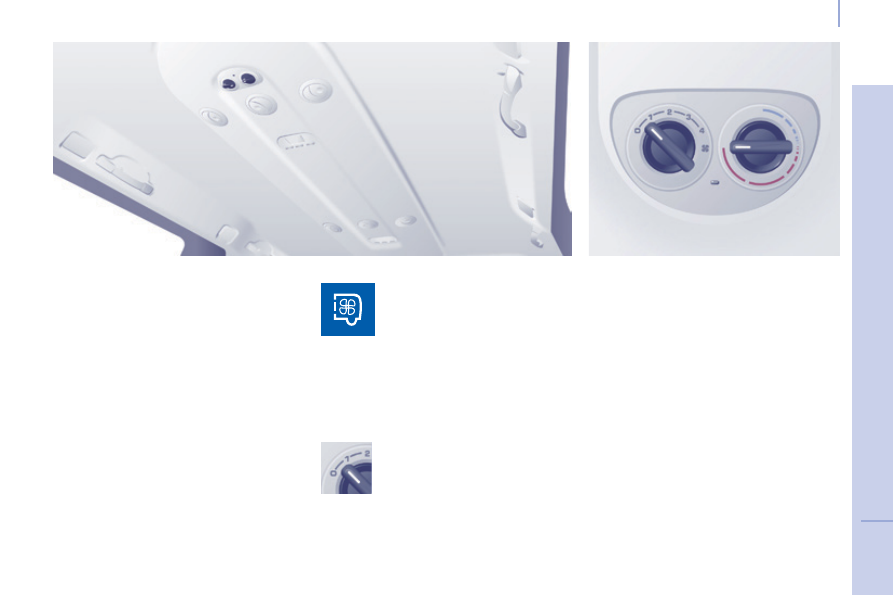

Temperature adjustment

Control  positioned:
   -   on the blue, produces cool air,
  -   on the red, produces heating.

Activation / Deactivation

Air flow

The fan speed for the air via the

vents, varies from 1 to the fastest 4.
To obtain the desired comfort

level, remember to adjust this

control.

To stop the fan, place the control in position 0.

This button, located on the

overhead storage unit, enables

you to activate or deactivate

the operation of the rear

controls from the driver's seat or the front

passenger seat.
The first press activates (green LED on).
A second press deactivates (LED off).

Ventilation

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

ADDITIONAL HEATING

Vehicles fitted with an HDi engine may be

fitted with a heater. When the engine is at

idle or the vehicle is stationary, it is normal

to notice a high-pitched whistling noise and

a slight emission of smoke and odour.

Rear ventilation

Coolant circuit heater
This is an additional and separate system

which heats the Diesel engine cooling

system to make starting easier.
It improves the demisting and defrosting

performance.

Ventilation

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Have the heater checked at least

once a year at the beginning of winter.

Maintenance and repairs should only be

carried out by a CITROËN dealer or a

qualified workshop. Use recommended

replacement parts only.

Good practice

To avoid any risk of poisoning or

asphyxiation, the heater must not be used,

even for short periods, in an enclosed space

such as a garage or workshop which is not

fitted with an exhaust gas extraction system.
Do not park the vehicle on an inflammable

surface (dry grass, dead leaves, paper…),

there is a risk of fire.
The temperature near the heater must not

exceed 120 °C. A temperature higher than

this (for example in the case of painting in

an oven) could damage the components of

the electronic circuits.
The heater is supplied by the vehicle's fuel

tank. Ensure that the low fuel warning lamp

is not on.

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Seats

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

FRONT SEATS

Depending on the version and configuration

of your vehicle, different front seats are

fitted, either:
- a driver's seat and a passenger seat,
- an individual driver's seat and a two-

seat passenger bench.

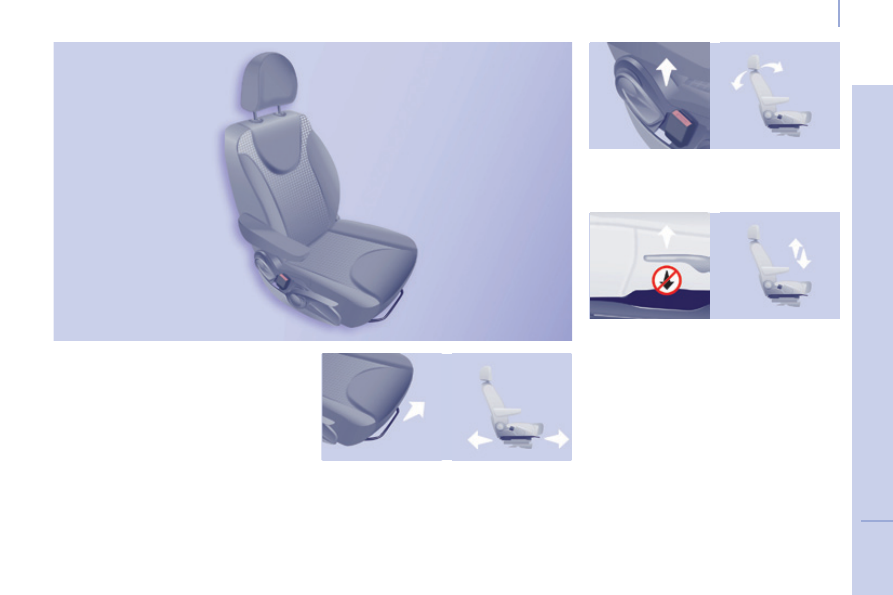

3 - Driver's seat height adjustment
Depending on the version and configuration

of your vehicle, you have either:
- a passive adjustment: pull the handle

upwards then take your weight off the

seat to raise, or push on the seat to

lower,

2 - Seat back angle adjustment
Pull the lever upwards and set the required

angle.

1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards or

backwards.

Depending on the models, the following

adjustments are available:

Seats

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

- an active adjustment: operate the handle

upwards or downwards until the desired

position is reached.

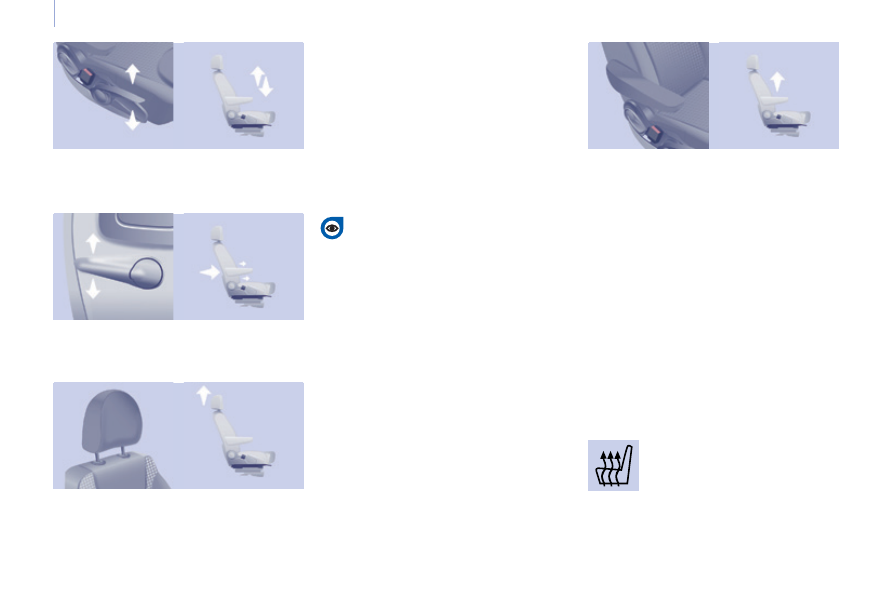

Head restraint height adjustment
To raise or lower the restraint, pull it

forwards, then slide it.

The adjustment is correct when the upper

edge of the head restraint is level with the

top of the head.

Never drive with the head restraints

removed; they must be in place and

correctly adjusted.

Front heated seat controls

Adjustable armrest
To place the armrest in its rest position:
- raise it until it is in the centreline of the

seat back.

4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain the

required position.

To remove it, set it in the high position, press

the tabs and pull upwards and forwards at

the same time.
To re-install, engage the head restraint rods

in the holes, making sure they are aligned

with the seat back.

To place the armrest in a position for use:
-

fold it down fully,

- raise it slowly to the required position,
- if you pass the required position, raise it

fully then repeat the operations above.

Press the corresponding control,

located on the overhead storage

unit.
The temperature is controlled

automatically.
Pressing a second time stops operation.

Seats

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

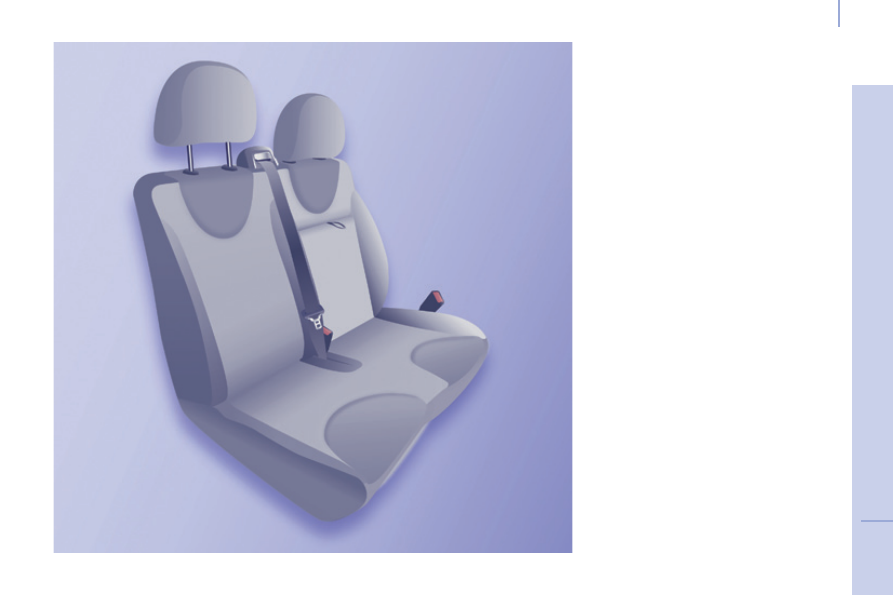

2-SEAT FRONT BENCH

If your vehicle is fitted with this bench seat,

it is fixed and has a 3rd seat belt.

Head restraint

Press the tab to adjust the height of the

head restraint.
To remove the head restraint, press the tabs

and raise the head restraint.
The adjustment is correct when the upper

edge of the head restraint is level with the

top of the head.
Never drive with the head restraints

removed; they must be in place and

adjusted correctly.

Seat back pockets

If your vehicle is fitted with these, they are

located on the backs of the front seats.

Seats

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Writing table

If fitted to your vehicle, the back of the

centre seat of the bench (Row 1) folds to

form a writing table with two cup holder

recesses.
Pull the handle located at the top of the seat

back cushion.

Seats

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

REAR SEATS

The type of rear seats depends on the

version and configuration of your vehicle.
The individual seat is always located on the

right-hand side and the bench on the left-

hand side (in the direction of travel).

Seats

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

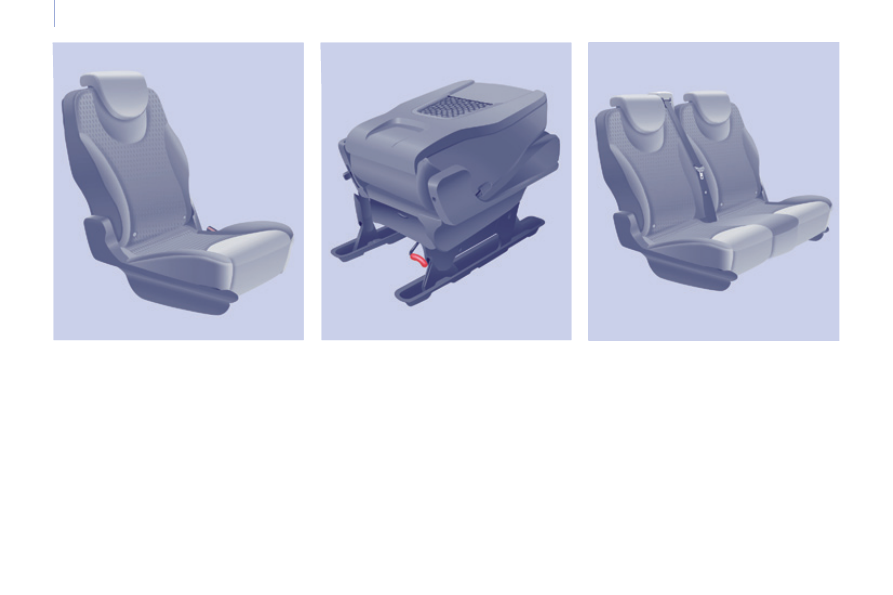

Type 2: an individual seat the back of which

can be folded to the table position then

raised, facilitating access to the rear space.

Individual passenger seat

This seat and the 2-seat bench are

interdependent. Any handling operation must

begin with the individual seat.
Two models are offered:

Two-seat bench

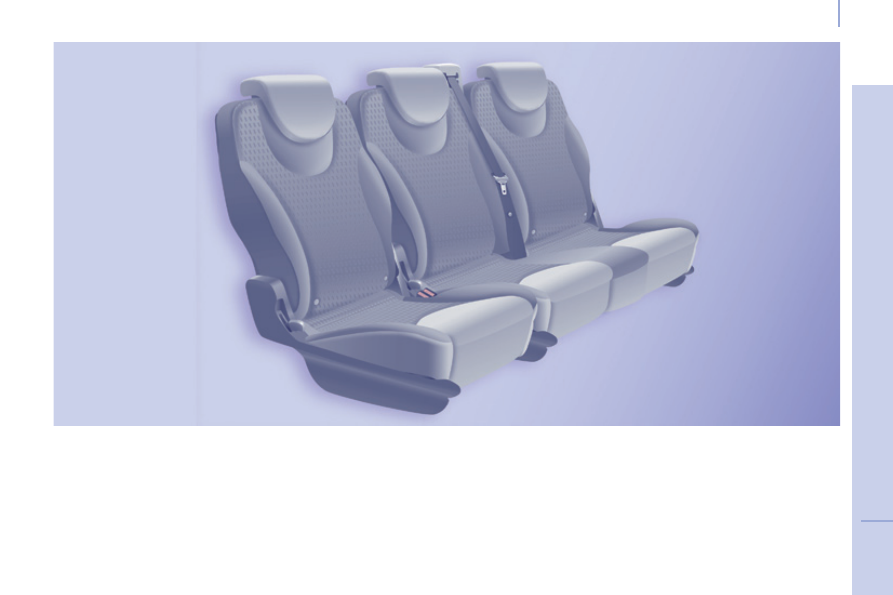

Three models are offered:

Type 1: an individual seat which can be

raised permitting access to the rear space.

Type 1: a two-seat cushion with fixed

seat back.

Seats

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Type 2: two seats with folding seat backs

and seat cushion which can be raised.

Type 3: a two-seat cushion with individual

tilting seat backs which can be folded to the

table position and cushion which can be

raised.

Specifications depending on the

type of seat

Seat fitted with this control: the seat back

can be tilted.

Seat fitted with this control: the seat back

can be tilted and raised.

Seat fitted with this control: the seat back

can be folded and coupled with the raising

control.

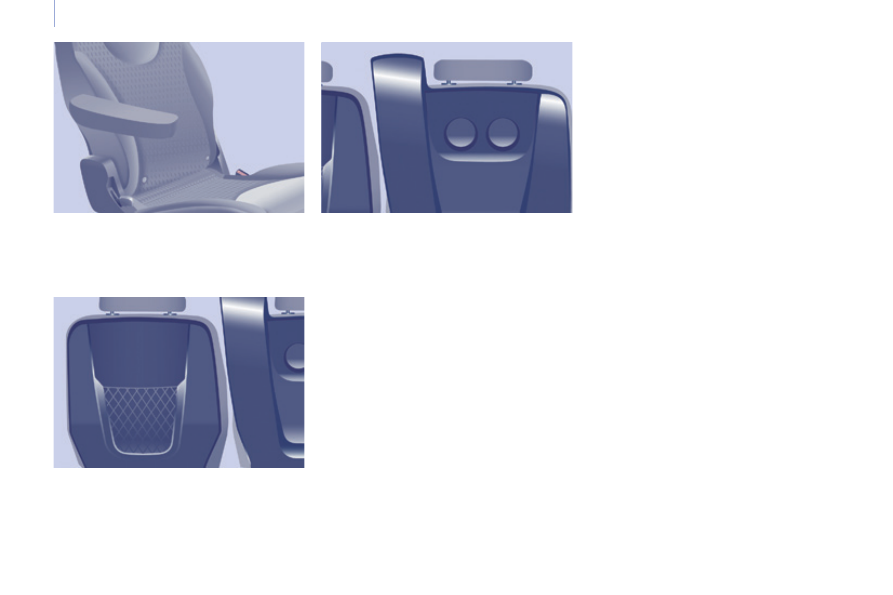

"Comma" shape head restraint.

Seats

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

This armrest may be fitted.

The seat backs of the outer seats are fitted

with a storage net.

The seat backs of the centre seats are

designed with cup holder and storage

recesses.

Seats

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

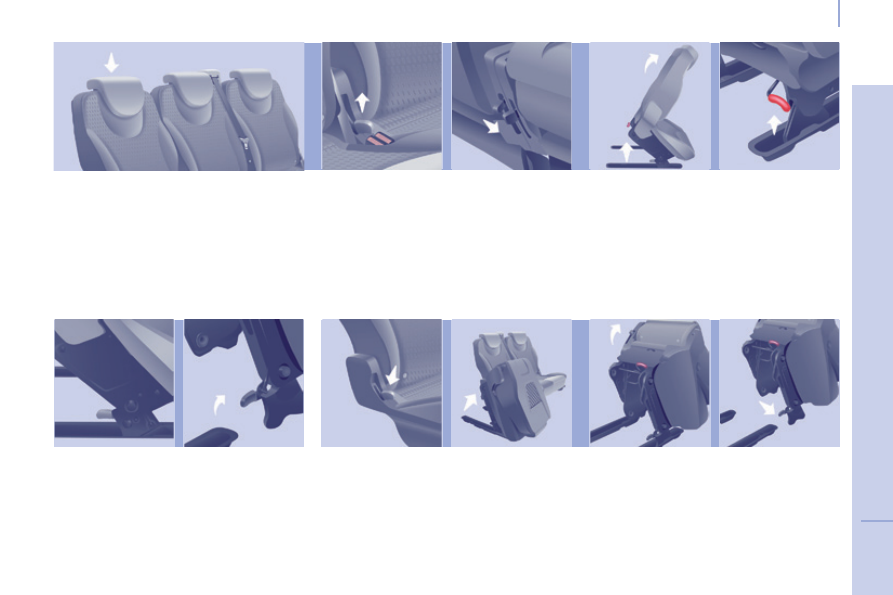

Handling

Folding the seat back to the table

position
(centre seat example)
- Place the head restraints in the low

position.

- Raise this handle to unlock the seat

back (from the rear, lower the handle).

- Tilt the seat back onto the seat cushion.

Seat and bench of type 1:
-

Raise the seat.

Seat and bench of type 2 / type 3:
- Fold the seat back to the table position

using this handle.

Raise the seat.

  -   Unlock the front feet using this handle.
  -   Disengage the seat from its anchorages.
  -   Remove the seat from the vehicle via

the side door in row 2 and via the rear in

row 3.

  -   Unlock the front feet using this handle.
  -   Disengage the seat from its anchorages.
  -   Remove the seat from the vehicle via

the side door in row 2 and via the rear in

row 3.

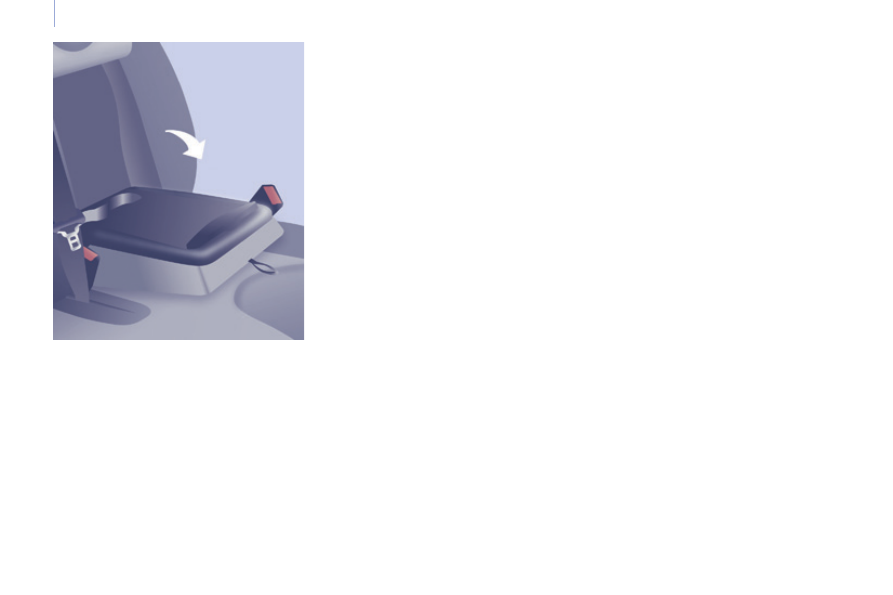

Enter, exit the vehicle: raise the seat
Always start with the individual seat located

on the right-hand side and place the head

restraint in the low position.

Seats

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

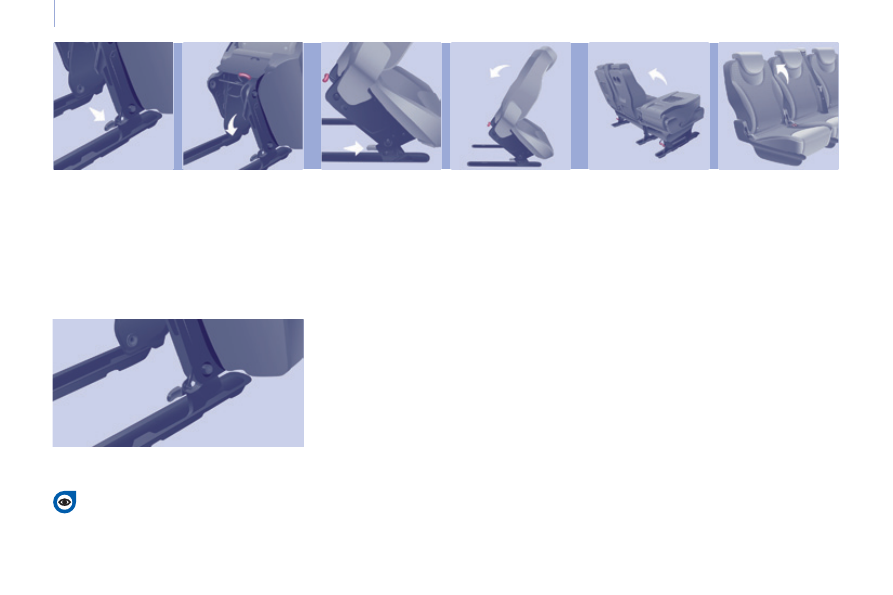

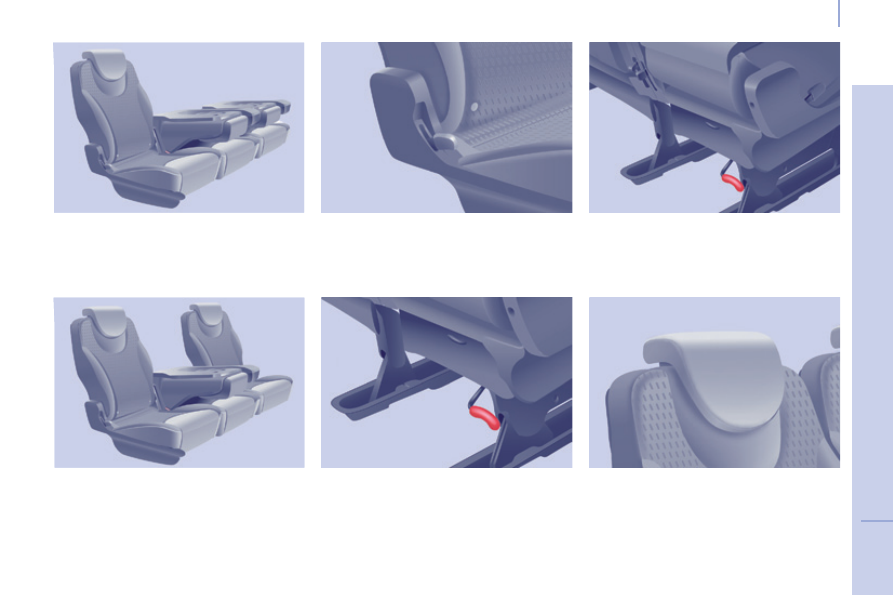

Installing the seat
Always install the bench first.
- Check that there are no objects

obstructing the anchorages and

preventing correct locking of the feet.

- Engage the front feet in the anchorages

on the floor.

- Lock the front feet using this handle.
- Tilt the seat towards the rear until the

rear feet lock. Be aware of the feet of

passengers when tilting.

For the type 2 seat and the type 2 / 3 bench:

fold up the seat back.

Correct anchoring of the front feet

Check that the seat is locked correctly

on the floor when it is returned to the

sitting position.
