Front foglamps (green)

and rear foglamps (amber,

2nd rotation of the ring

forwards).

To switch off the front and rear

foglamps, turn the ring rearwards twice

in succession.

In clear weather or in rain, both day

and night, rear foglamps dazzle and

their use is prohibited.
Do not forget to switch them off when they

are no longer needed.
Automatic illumination of the headlamps

switches off the rear foglamps, but the front

foglamps remain on.

Daytime running lamps

Depending on the country in which the vehicle

is sold, the vehicle may be equipped with

daytime running lamps. The dipped headlamps

come on when the vehicle is started.

The instruments and controls

(instrument panel, screen, air

conditioning control panel, ...) are only

illuminated on switching to the automatic

illumination of headlamps mode or when the

lamps are switched on manually.

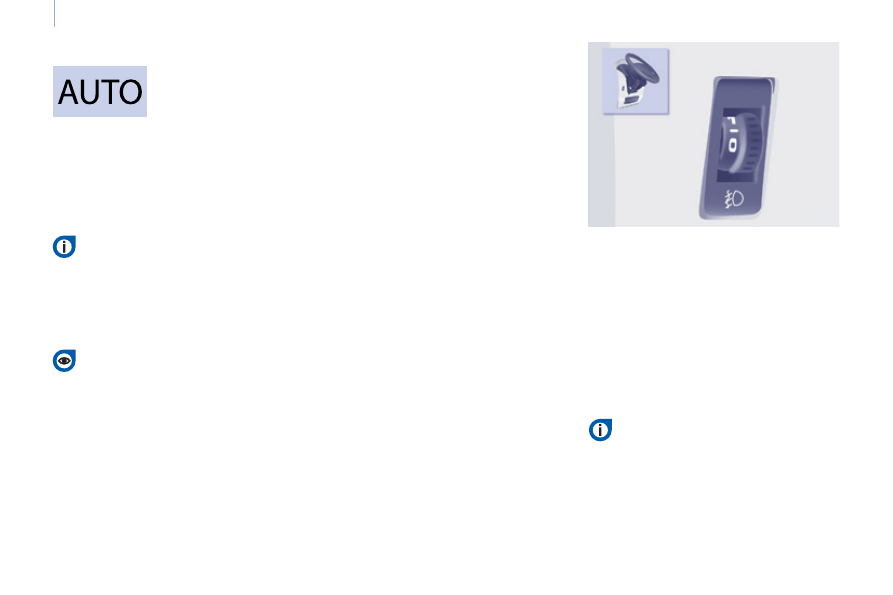

Front and rear foglamps

Rotate ring

B forwards to switch on and

rearwards to switch off. The status is

confirmed by the warning lamp in the

instrument panel.
These operate with the sidelamps and the

dipped beam headlamps.

Front foglamps (green,

1st rotation of the ring forwards).

This warning lamp comes on in

the instrument panel.

Steering mounted controls

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Automatic illumination of headlamps

Activation
Turn the ring to the

AUTO position. The

activation of this function is accompanied by

a message in the screen.

If the sunshine sensor does not function

correctly , the lighting comes on accompanied

by the service warning lamp, an audible signal

and a message in the screen.
Contact a CITROËN dealer or a qualified

workshop.

HEADLAMP BEAM

Depending on the load in your vehicle, the

beam setting must be adjusted.

0 - 1 or 2 people in the front seats.

1 - 5 people.

2 - 6 to 9 people.

3 - Driver + maximum authorised loads.

Do not cover the sunshine sensor

located on the windscreen, behind

the mirror. It is used for the automatic

illumination of headlamps and for the

automatic rain sensitive wipers.

The sidelamps and dipped

beam headlamps switch

on automatically if the light

is poor, or during operation

of the windscreen wipers. They switch off as

soon as the light becomes bright enough or

the windscreen wipers stop.
This function is not compatible with the

daytime running lamps.

Deactivation
Turn the ring forwards or rearwards. The

deactivation of this function is accompanied

by a message in the screen.
The function is deactivated temporarily when

you use the manual lighting control stalk.

Initial setting is position 0.

In foggy weather or in snow, the

sunshine sensor may detect sufficient

light. As a consequence, the lighting will not

come on automatically. If necessary, you

must switch on the dipped beam headlamps

manually.

Travelling abroad
If using your vehicle in a country

that drives on the other side of the road,

the headlamps must be adjusted to avoid

dazzling on-coming drivers.
Contact a CITROËN dealer or a qualified

workshop.

Steering mounted controls

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

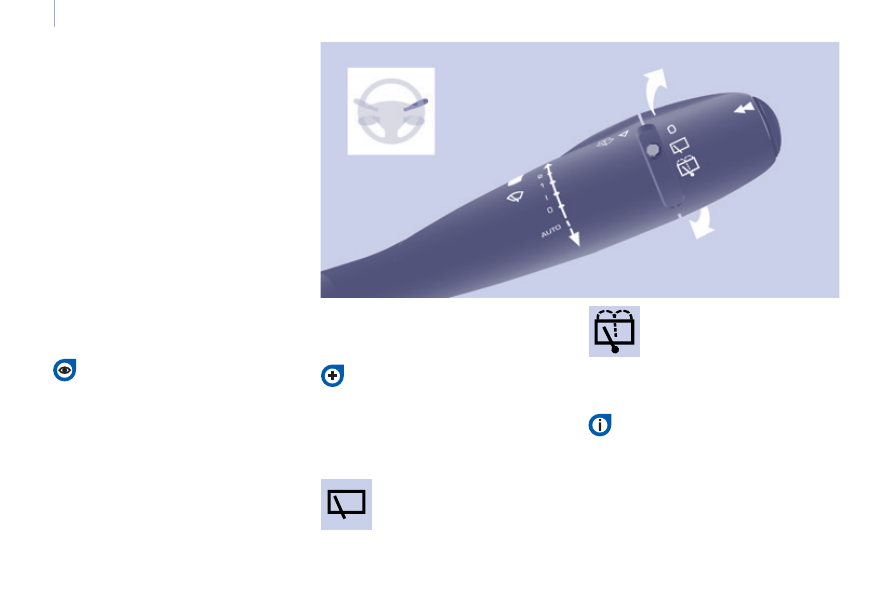

WINDSCREEN WIPER STALK

Manual windscreen wipers

2 Fast wipe (heavy rain).

1 Normal wipe (moderate rain).

l Intermittent wipe.

0     Off.
     Single  wipe
  (press downwards).

Do not cover the rain sensor,

located in the centre of the

windscreen, behind the mirror.

In the

AUTO position, the windscreen wipers

operate automatically and adapt their speed

to the intensity of the rainfall.
When not in

AUTO mode, for the other

positions, refer to the manual windscreen

wipers section.

In the

I ntermittent position, the wiping speed

is in proportion to the vehicle speed.

Wash-wipe and headlamp wash
Pull the stalk towards you, the wash-wipe

is accompanied by a timed sweep of the

wipers.
The headlamp wash is linked with the wash-

wipe, it is triggered if the dipped headlamps

are on.

To top up the levels, refer to the

"Levels" section of chapter 6.

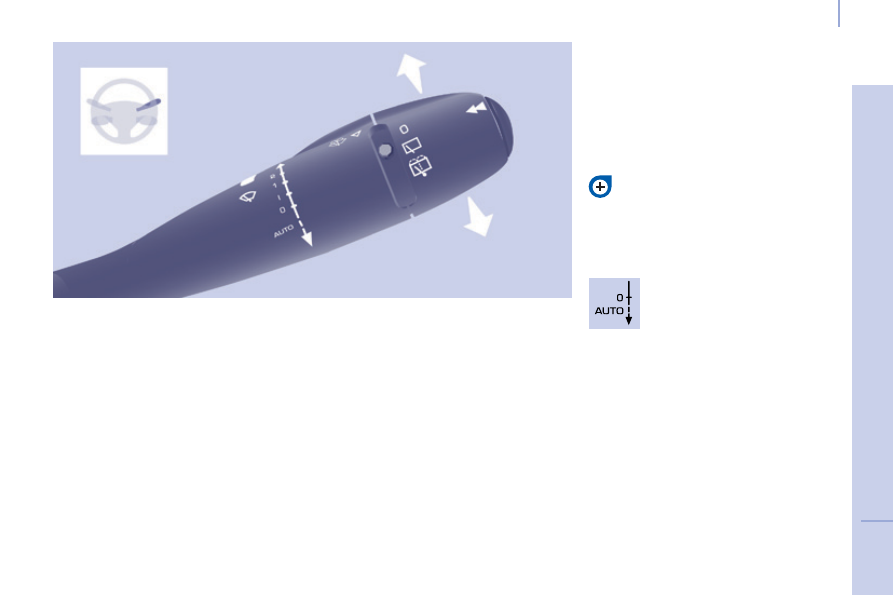

Automatic rain sensitive windscreen wipers

Whenever the ignition has been switched

off for more than one minute, with the

windscreen wiper stalk in position 2, 1 or I,

the stalk must be reactivated:
- move the stalk to any position,
- then move it back to the required

position.

Steering mounted controls

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Special position of the windscreen

wipers

In the minute following switching off of the

ignition, any action on the stalk positions the

wipers against the windscreen uprights.

This action enables you to position the

wiper blades for winter parking, cleaning or

replacement.

Refer to the "Changing a windscreen

wiper blade" section of chapter 7.

To park the wipers in their normal position

after this has been done, switch on the

ignition and move the stalk.

When using an automatic car wash,

switch off the ignition to avoid

triggering the automatic wiping.
In winter, it is advisable to wait for the

windscreen to completely clear of ice before

operating automatic wipe.

Rear wiper

Turn the ring to the first position.

Rear screenwash

Turn the ring past the first

position: the rear screenwash

then the rear wiper operates for a

fixed time.

In winter, in the event of a considerable

amount of snow or ice, switch on the

heated rear screen. Once the screen is

clear, remove the snow or ice which has

accumulated on the rear wiper blade. You

can then operate the rear windscreen wiper.

Activation
Press the control downwards. Activation of

the function is accompanied by a message in

the screen.
The automatic rain sensitive windscreen wipers

function must be reactivated by pressing the

stalk downwards, if the ignition has been

switched off for more than one minute.

Deactivation / Switching off
Place the windscreen wipers stalk in

position

I , 1 or 2 . Deactivation of the function

is accompanied by a message in the screen.

In the event of malfunction of the automatic

windscreen wipers, the windscreen wipers

will operate in intermittent mode.
Contact a CITROËN dealer or a qualified

workshop to have the system checked.

Steering mounted controls

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

CRUISE CONTROL "CRUISE"

In order for it to be programmed or

activated, the vehicle speed must be greater

than 25 mph (40 km/h) with at least 4th gear

engaged.

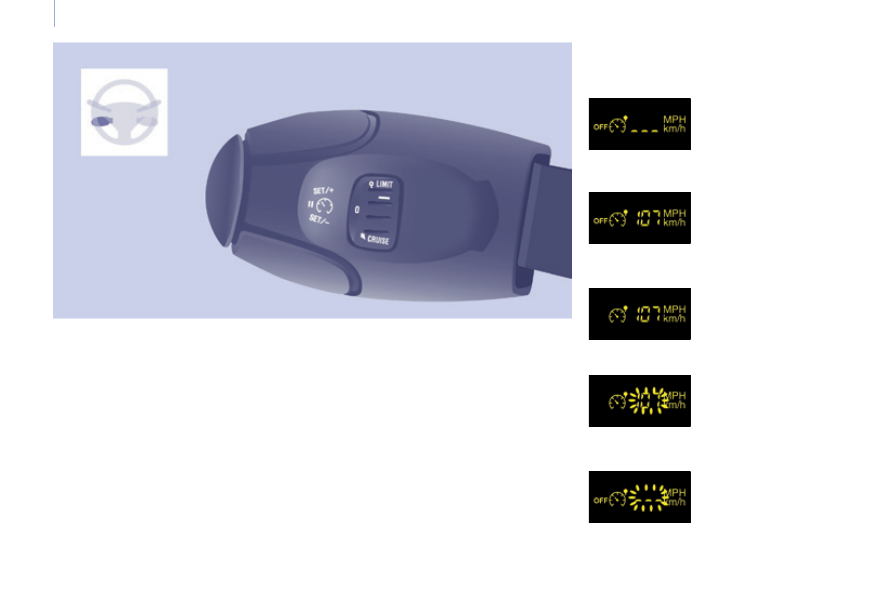

Function selected,
display of the "Cruise

Control" symbol.

Function deactivated,

OFF .

Function activated .

Vehicle speed above
the programmed speed,

which is displayed

flashing.

Operating fault detected,

OFF - the dashes flash.

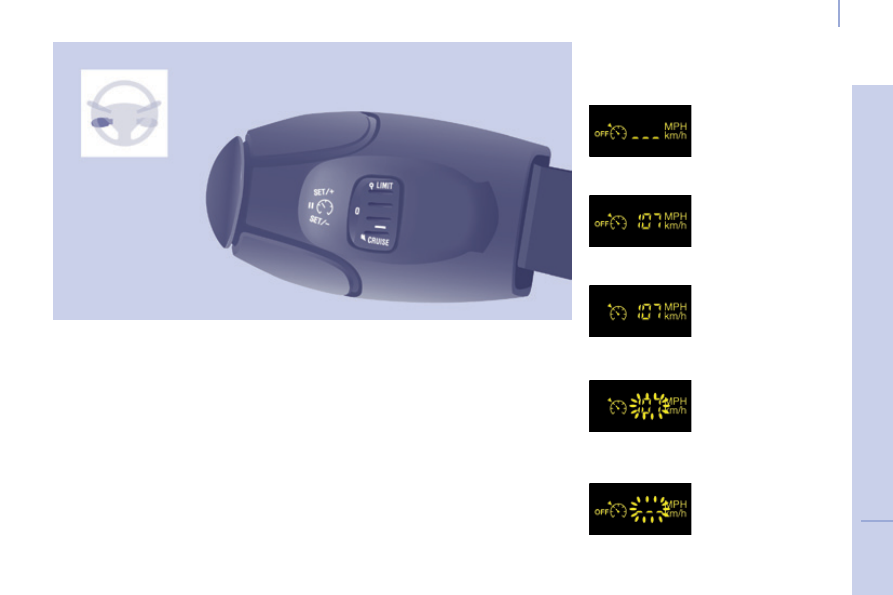

This cruise control shows the function

selection status in the instrument panel and

displays the programmed speed:

"This is the speed at which the driver wishes

to drive".
This aid to driving in free-flowing traffic

enables the vehicle to maintain the speed

programmed by the driver, unless a steep

gradient makes this impossible.

Steering mounted controls

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

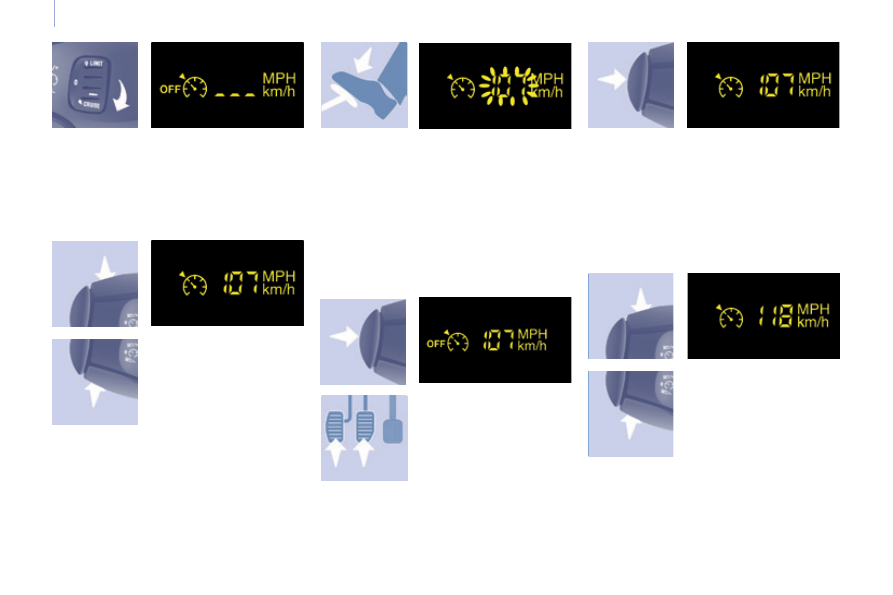

Selecting the function

- Place the switch in the

CRUISE position.

The cruise control is selected but is

not yet active and no speed has been

programmed.

First activation/

programming a speed

Reach the chosen

speed by pressing the

accelerator.

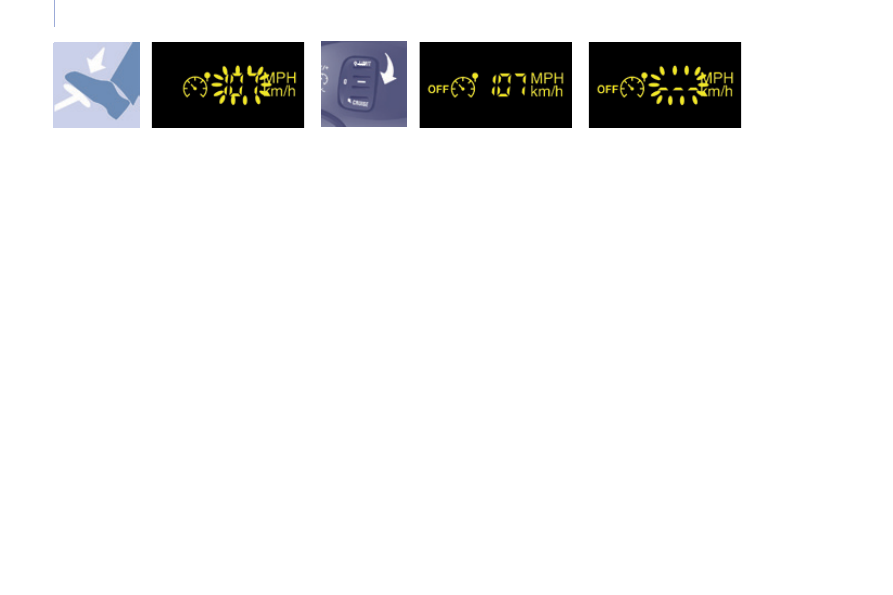

Temporarily exceeding the speed

It is possible to

accelerate and drive

momentarily at a speed greater than the

programmed speed. The value programmed

flashes.
When the accelerator pedal is released, the

vehicle will return to the programmed speed.

Reactivation

Following deactivation of the cruise

control, press this button.

Your vehicle will return to the last

programmed speed.
Alternatively, you can repeat the "first

activation" procedure.

Deactivation (off)

Press this button or

the brake or clutch

pedal.

Changing the

programmed speed

There are two methods of

memorising a speed higher

than the previous one:

Without using the accelerator:
-

press the

Set + button.

A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in

steps of 5 mph (km/h).

Press the

SET - or SET + button.

This programmes/activates the reference

speed and the vehicle will maintain

this speed.

Steering mounted controls

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

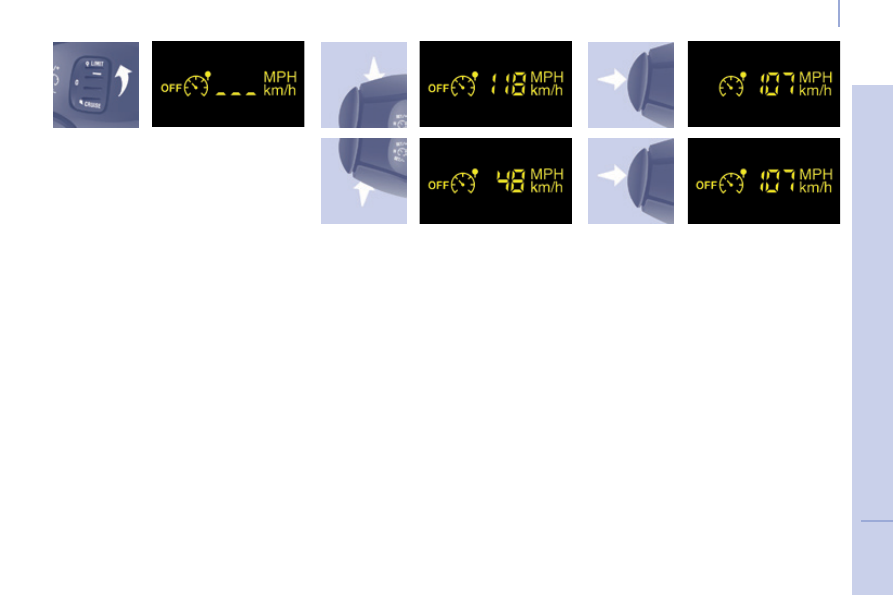

Switching the function off

- Place the dial in position

0 or switch off

the ignition to switch everything off.

Good practice

When changing the programmed reference

speed by means of a maintained press,

pay attention as the speed can increase or

decrease rapidly.
Do not use the cruise control on slippery

roads or in heavy traffic.
In the event of a steep slope, the cruise

control cannot prevent the vehicle from

exceeding the programmed speed.
In any event, the cruise control cannot

replace the need to observe the speed limits,

nor can it replace the need for vigilance and

responsibility on the part of the driver.
It is advisable to leave your feet near the

pedals.
To avoid any jamming under the pedals:
- ensure that the mat and its fixings on the

floor are positioned correctly,

- never place one mat on top of another.

The programmed speed is cleared then

replaced by three dashes. Contact a

CITROËN dealer or a qualified workshop to

have the system checked.

Using the accelerator:
- exceed the memorised speed until the

speed required is reached,

press the

Set + or Set - button.

To memorise a speed lower than the

previous one:
-

press the

Set - button.

A brief press decreases the speed by 1 mph (km/h).
A maintained press decreases the speed in

steps of 5 mph (km/h).

Cancelling the programmed

reference speed

When the vehicle becomes stationary, after

switching off the ignition, the system no

longer memorises a speed.

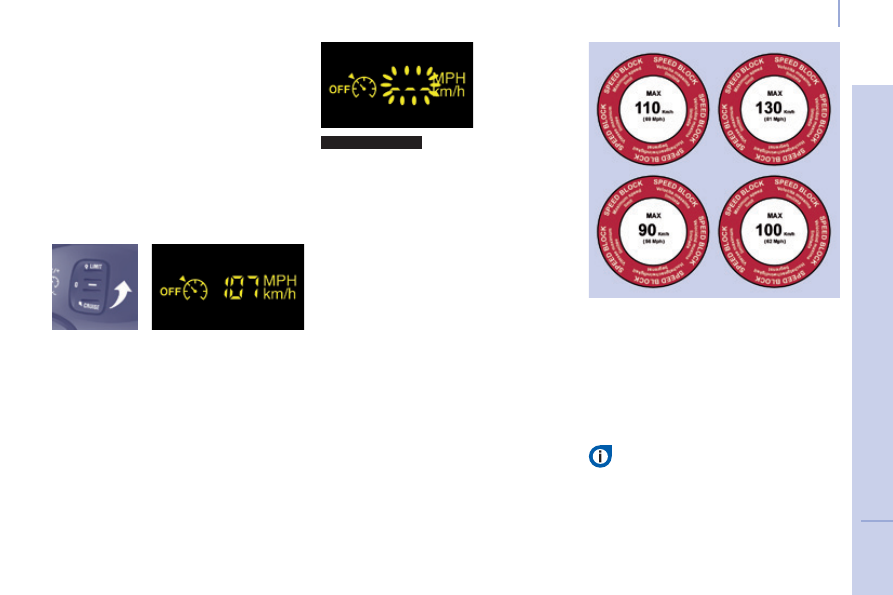

FIXED SPEED LIMITER

If your vehicle is fitted with this function,

the speed of your vehicle can be limited to

a fixed speed of approximately 56, 60, 70

or 80 mph (90, 100, 110 or 130 km/h). The

fixed maximum speed cannot be changed.

The fixed speed limiter is not a function

of the cruise control type. It cannot

be activated or deactivated by the driver

while driving.

Steering mounted controls

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

SPEED LIMITER "LIMIT"

However, pressing the pedal beyond this

point of resistance to the floor allows the

programmed speed to be exceeded. To

resume use of the limiter, simply reduce

the pressure on the accelerator pedal

gradually and return to a speed below that

programmed.

Function selected,
displaying of the "Speed

Limiter" symbol.

Function deactivated,
last programmed speed -

OFF

Function activated .

Vehicle speed above,
the programmed speed,

which is displayed

flashing.

Operating fault detected,

OFF - the dashes flash.

This speed limiter shows the function

selection status in the instrument panel and

displays the programmed speed:

The operating actions may be carried out

when stationary, with the engine running,

or with the vehicle moving.

"This is the selected speed which the driver

does not wish to exceed".
This selection is made with the engine

running while stationary or with the vehicle

moving. The minimum speed which can be

programmed is 20 mph (30 km/h).
The speed of the vehicle responds to the

pressure of the driver's foot as far as the

accelerator pedal point of resistance which

indicates that the programmed speed has

been reached.

Steering mounted controls

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Selecting the function

- Place the switch in the

LIMIT position.

The limiter is selected but is not yet

active. The screen indicates the last

programmed speed.

Programming a speed

A speed can be programmed without activating

the limiter but with the engine running.
To memorise a speed higher than the

previous one:
-

press the

Set + button.

A brief press increases the speed by 1 mph (km/h).
A maintained press increases the speed in

steps of 5 mph (km/h).

Activation/Deactivation (off)

Pressing this button once activates the

limiter, pressing the button again deactivates

it (OFF).

To memorise a speed lower than the

previous one:
-

press the

Set - button.

A brief press decreases the speed

by 1 mph (km/h).
A maintained press decreases the speed in

steps of 5 mph (km/h).

Steering mounted controls

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Switching the function off

- Place the switch in position

0 or switch

off the ignition to switch the system off.

The last programmed speed remains in the

memory.

Exceeding the programmed speed

Pressing the accelerator pedal in order to

exceed the programmed speed will have

no effect unless you press the pedal

firmly

beyond the

point of resistance .

The limiter is deactivated temporarily and

the programmed speed flashes.

Good practice

Operating fault

The programmed speed is cleared then

replaced by three dashes.
Contact a CITROËN dealer or a qualified

workshop to have the system checked.

Flashing of the speed

The speed flashes:
- following forcing of the accelerator point

of resistance,

- when the limiter cannot prevent an

increase in the vehicle speed due to the

profile of the road or on a steep descent,

- in the event of sharp acceleration.

To return to the limiter function, reduce your

speed to below the programmed speed.

In any event, the speed limiter cannot

replace the need to observe speed limits,

nor can it replace the need for vigilance and

responsibility on the part of the driver.
Always pay attention to the profile of the

road and sharp acceleration and stay in

complete control of your vehicle.
To avoid any jamming under the pedals:
- ensure that the mat and its fixings on the

floor are positioned correctly,

- never place one mat on top of another.

Ventilation

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

WITH MANUAL SETTINGS

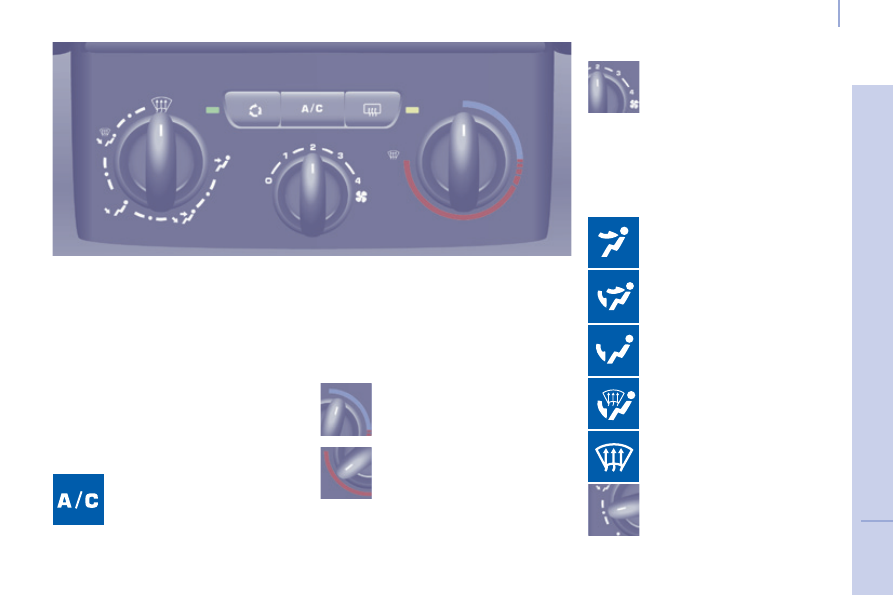

If your vehicle is fitted with these controls,

they are located on the control panel of the

dashboard centre console.

Air distribution

Air distribution is directed by turning the

control towards:

the side vents and the central

vents,

the side vents, the central vents

and the footwells,

the footwells,

the windscreen and the footwells,

Air flow

The air conditioning does not operate if the

air flow is set to 0.

The air distribution can be

modulated by placing the control

in the intermediate positions,

marked "●".

Air conditioning A/C

If fitted on your vehicle, the air conditioning

can only operate with the engine running.

Pressing the button triggers the

operation of the air conditioning,

the LED is on. Pressing the button

again switches the function off

and the LED goes off.

Temperature adjustment

Control positioned:

- in the blue zone, produces

cool air,

- in the red zone, produces

heating of the interior air.

The fan speed varies from 1 to

the fastest 4. Position 0 switches

it off.
Remember to adjust this control in

order to attain the desired comfort

level.

the windscreen.

VENTILATION

Ventilation

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Intake of exterior air

Recommended settings

For optimum operation of the manual system, the settings below are recommended:

The LED in the button is off. This is

the preferred operating position.

The LED in the button is on.

Recirculation temporarily prevents

exterior odours and smoke

from entering the passenger

compartment.
Used with the air conditioning switched

on and setting of the force of blown air

(from 1 to 4), recirculation enables you to

obtain the required ambient air comfort level

more quickly with both hot or cold settings.
This position should only be temporary.

When your ambient air comfort level has

been reached, return to the intake of exterior

air position to permit renewal of the air in the

passenger compartment and avoid misting.

This operating mode is preferable.

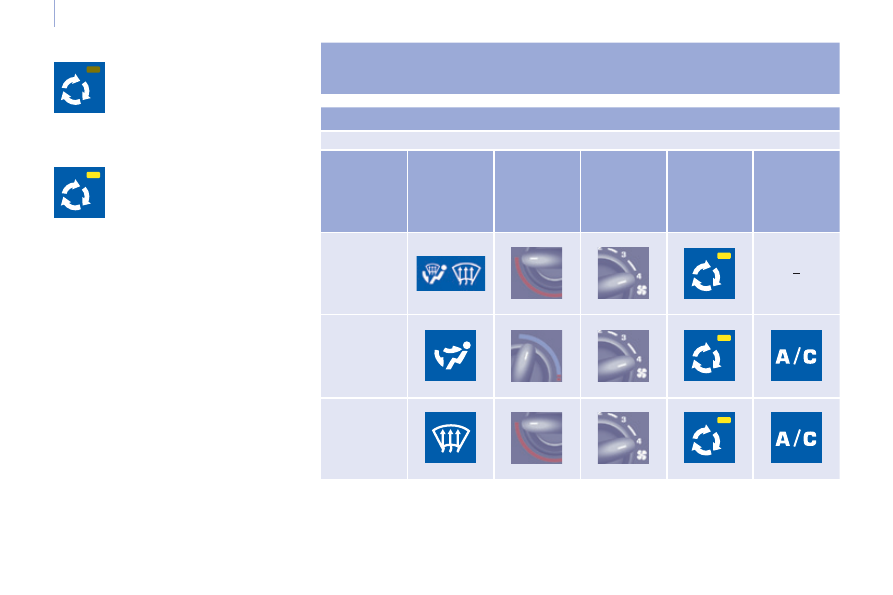

If I require...

Air

distribution

Temperature

Air flow

Air

recirculation

Air

conditioning

A/C

Heating

Cooling

Demisting

Defrosting

Recirculation of interior air

Ventilation

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

DIGITAL AIR CONDITIONING WITH SEPARATE SETTINGS

Good practice

For maximum cooling or heating of the

passenger compartment, it is possible to exceed

the value 15 by turning until LO is displayed or

the value 27 by turning until HI is displayed.
For optimum comfort, the difference between

the value displayed for the driver and for the

passenger should not be greater than 3.

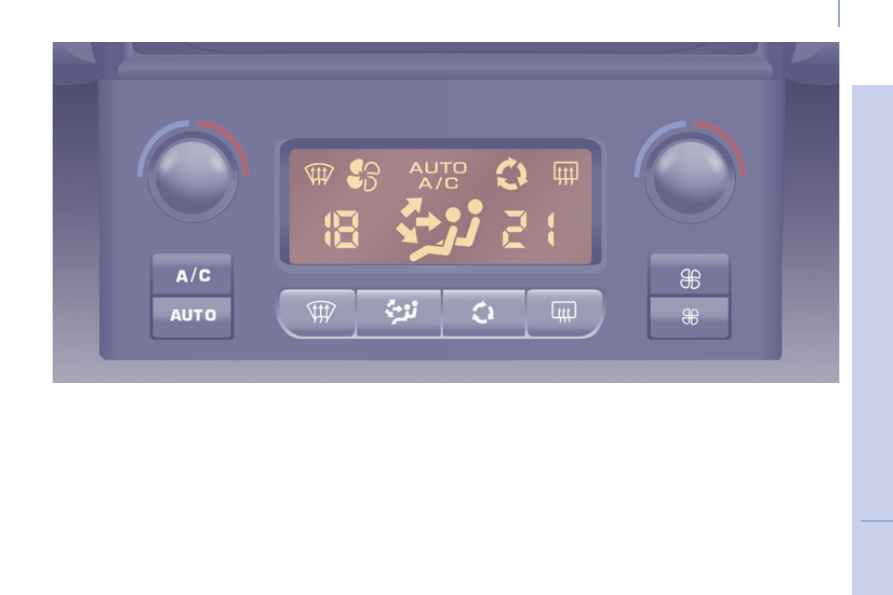

If your vehicle is fitted with this control

panel, it is located on the centre console.

On entering the vehicle, the inside

temperature may be much colder (or

warmer) than is comfortable. There is no

advantage in changing the value displayed

in order to quickly reach the level of comfort

required. The system will use its maximum

performance to reach the comfort value set.

Ventilation

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Driver or passenger side comfort value
The value indicated on the display corresponds

to a level of comfort and not a temperature in

degrees Celsius or Fahrenheit.

Automatic operation

Do not cover the sunshine sensor,

located on the windscreen behind the

mirror, it is used for regulation of the air

conditioning.

AUTO comfort programme
This is the normal air conditioning system

operating mode.

Press this button, the

AUTO

symbol is displayed.
Depending on the comfort value selected,

the system controls the distribution,

the ﬂ ow and the intake of air to guarantee comfort

and a sufﬁ cient circulation of air in the passenger

compartment. No further action on your part is required.

When the engine is cold, to prevent an excessive

diffusion of cold air, the ventilation will reach its

optimum level gradually.
For your comfort, the settings are stored when the

ignition is switched off and are reinstated the next

time the vehicle is started, if the temperature in the

passenger compartment has not changed signiﬁ cantly;

otherwise, operation resumes in automatic mode.

Turn this control to the left or to

the right to decrease or increase

the value. A setting around the

value 21 provides optimum

comfort. However, depending on your

requirements, a setting between 18 and 24

is usual.

Ventilation

EASE OF USE and COMFORT

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

Air flow
Press the

small fan button to

reduce the flow or the

large fan

button to increase the flow.
On the display, the blades of the

fan darken when the flow is increased.

Manual operation

You can, according to your requirements,

make a different selection from that offered

by the system by changing a setting.

The other functions will still be controlled

automatically. Pressing the

AUTO button

restores fully automatic operation.

Intake of exterior air /

Recirculation of interior air
Press this button to recirculate

the interior air. The recirculation

symbol is displayed.
Recirculation prevents exterior odours

and smoke from entering the passenger

compartment. Avoid prolonged operation

in interior air recirculation mode (risk of

condensation, odour and humidity).
Pressing this button again activates the

intake of exterior air.

Air distribution
Pressing this button several times

in succession directs the air flow

towards:

the windscreen,

the windscreen and footwells,

the footwells,

- the side vents, central vents and

footwells,

- the side vents and central vents.

Deactivating the system
Press the air flow

small fan button

until the fan symbol disappears.
This action deactivates all of the

system's functions, with the exception of the

air recirculation and rear screen demisting (if

fitted on your vehicle). Your comfort setting

is no longer maintained and is switched off.
For your comfort, do not deactivate the

system for long periods.

Pressing the

large fan button or

the

AUTO button reactivates the

system with the values set before

it was deactivated.

Switching the air conditioning

On / Off
Press this button, the

A/C

symbol is displayed and the air

conditioning is activated.

Pressing this button again switches off the

air cooling.

Ventilation

JUMPY-ATLANTE-VP_EN_CHAP03_ERGONOMIE ET CONFORT_ED01-2014

CORRECT USE OF THE

VENTILATION AND AIR

CONDITIONING

Vents

"Leave them open"
For optimum distribution and diffusion of hot

or cool air in the passenger compartment,

there are adjustable central and side vents

which can be directed sideways (right or

left) towards the top of the body. For your

comfort while driving, do not close them,

direct the flow of air towards the windows

instead.
The air vents directed towards the floor of

the vehicle complete the equipment.

Passenger compartment filter,

carbon filter

Ensure that this ﬁ lter is in good condition and

have all of the ﬁ lter elements replaced regularly.

Refer to the "Checks" section of

chapter 6.

Air conditioning

In all seasons, the air conditioning should

only be used with the windows closed.

However, if the interior temperature remains

high after a prolonged period parked

in the sun, first ventilate the passenger

compartment for a few minutes.

Use the AUTO mode as much as

possible as it permits optimised control

of all of the functions: air flow, passenger

compartment comfort temperature,

air distribution, air intake mode or air

recirculation in the passenger compartment.
Operate the air conditioning system for 5 to

10 minutes, once or twice a month, to keep

it in perfect working order.
It is normal that the condensation created by

the air conditioning system results in a flow

of water which may form a puddle under the

vehicle when parked.
If the system does not produce cold air, do

not use it and contact a CITROËN dealer or

a qualified workshop.

Citroen Jumpy Multispace (2014 year). Instruction - part 4
