Citroen Jumpy Multispace (2014 year). Instruction

Interior

FAMILIARISA

TION

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

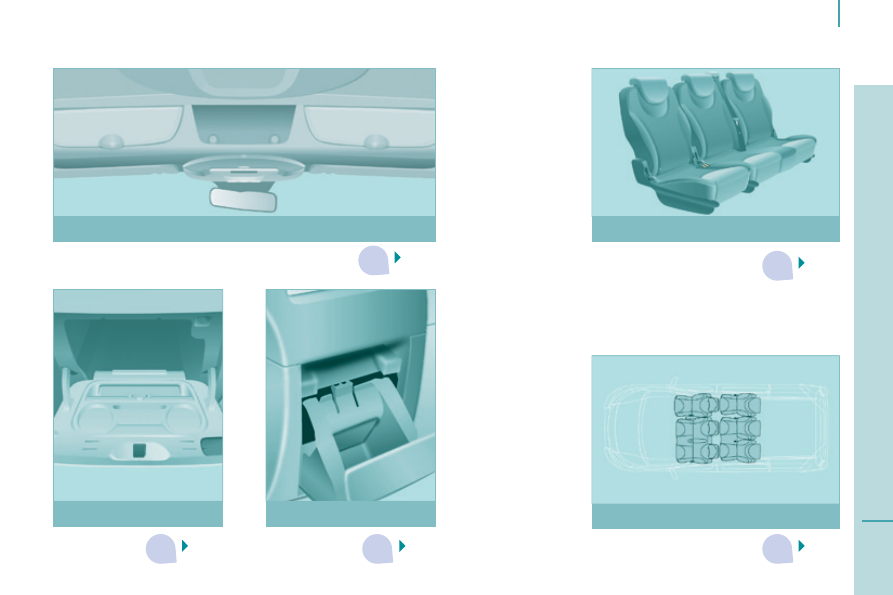

Overhead storage unit

CAB FITTINGS

Glove box

Storage compartment

Rear seats

Seating area fittings

REAR FITTINGS

Interior

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

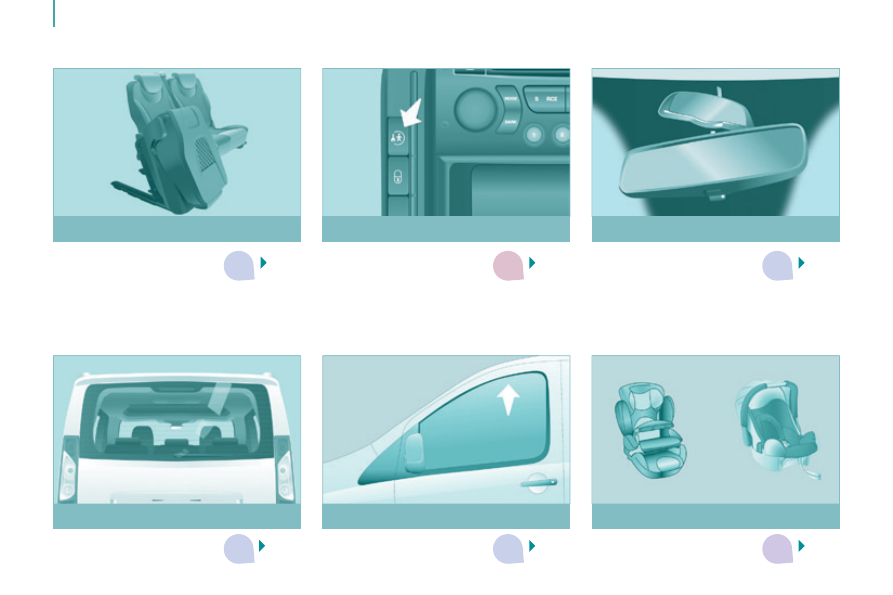

Seat and bench configurations

Rear windows

Safety anti-pinch

Electric child lock

CHILD SAFETY

Child surveillance mirror

Child seats

107

Interior

FAMILIARISA

TION

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

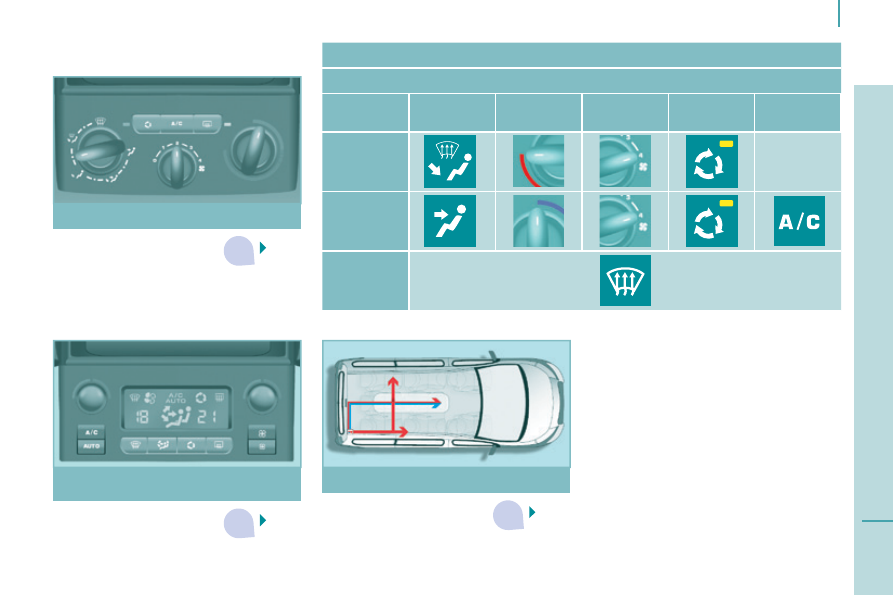

Recommended settings

For optimum use of the system, we recommend:

If I require...

Air

distribution

Temperature

Air flow

Air

recirculation

Heating

Cooling

Demisting

Defrosting

Manual controls

Digital controls, with separate driver

and passenger settings

At the rear

VENTILATION

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

Eco-driving

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel

consumption and CO

emissions.

Optimise the use of your

gearbox

With a manual gearbox, move off gently

and change up without waiting. During

acceleration change up early.

With an automatic or electronic gearbox,

give preference to automatic mode and

avoid pressing the accelerator pedal

heavily or suddenly.

Control the use of your

electrical equipment

Before moving off, if the passenger

compartment is too warm, ventilate it by

opening the windows and air vents before

using the air conditioning.
Above 30 mph (50 km/h), close the windows

and leave the air vents open.

Switch off the headlamps and front

foglamps when the level of light does not

require their use.

Avoid running the engine before moving

off, particularly in winter; your vehicle will

warm up much faster while driving.

Drive smoothly

Maintain a safe distance between vehicles,

use engine braking rather than the

brake pedal, and press the accelerator

progressively. These practices contribute

towards a reduction in fuel consumption and

emissions and also helps reduce the

background traffic noise.

If your vehicle has cruise control, make

use of the system at speeds above 25 mph

(40 km/h) when the traffic is flowing well.

As a passenger, if you avoid connecting

your multimedia devices (film, music,

video game...), you will contribute towards

limiting the consumption of electrical

energy, and so of fuel.
Disconnect your portable devices before

leaving the vehicle.

Remember to make use of equipment

that can help keep the temperature in the

passenger compartment down (sunroof

and window blinds...).
Switch off the air conditioning, unless it

has automatic regulation, as soon as the

desired temperature is attained.
Switch off the demisting and defrosting

controls, if not automatic.
Switch off the heated seat as soon as

possible.

The gear shift indicator invites you engage

the most suitable gear: as soon as the

indication is displayed in the instrument

panel, follow it straight away.
For vehicles fitted with an electronic or

automatic gearbox, this indicator appears

only in manual mode.

FAMILIARISA

TION

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

Limit the causes of

excess consumption

Spread loads throughout the vehicle;

place the heaviest items in the bottom of

the boot, as close as possible to the rear

seats.
Limit the loads carried in the vehicle and

reduce wind resistance (roof bars, roof

rack, bicycle carrier, trailer...). Use a roof

box in preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres

and refit your summer tyres.

Observe the recommendations

on maintenance

Check the tyre pressures regularly, when

cold, referring to the label in the door

aperture, driver's side.
Carry out this check in particular:
-

before a long journey,

- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres

on any trailer or caravan.

Have your vehicle serviced regularly

(engine oil, oil filter, air filter, passenger

compartment filter...) and observe the

schedule of operations recommended in the

maintenance and warranty guide.

When refuelling, do not continue after the

third cut-off of the nozzle to avoid any

overflow.

At the wheel of your new vehicle,

it is only after the first 1 800 miles

(3 000 kilometres) that you will see

the fuel consumption settle down to a

consistent average.

Access

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

Central locking

REMOTE CONTROL

ACCESS

Central unlocking

Press this button to unlock your

vehicle, cab and rear doors.
The direction indicators flash

twice and the door mirrors unfold

(unless folding was selected using the

interior control, refer to the "Mirrors and

windows" section of chapter 3).

Press this button to lock your

vehicle, cab and rear doors.
The direction indicators flash

once and the door mirrors fold.

If one of the doors is open or is not closed

correctly, the central locking will not work.

Deadlocking

If your vehicle is fitted with deadlocking,

a second press on the closed padlock on

the remote control within five seconds after

locking changes the locking to deadlocking.
This is confirmed by fixed lighting of the

direction indicators for approximately

two seconds.
Deadlocking renders the exterior and interior

door opening handles inoperative: do not

leave anyone inside the vehicle when it is

deadlocked.
If deadlocking is activated from inside the

vehicle, it will change to normal locking

when the vehicle is started.

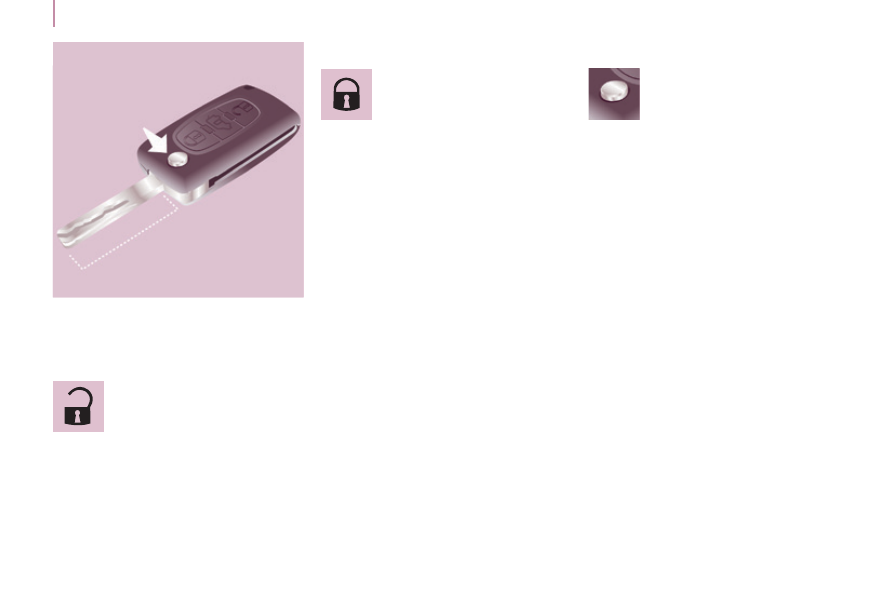

Folding / unfolding the key

Press this button to release the

key from its housing.
To fold the key, press the

chromed button then fold the key

into the housing. If you do not press the

button, the mechanism may be damaged.

Good practice

Take care not to allow the remote control to

come into contact with grease, dust, rain or

a damp environment.
A heavy object attached to the key (key

ring, ...) weighing on the shaft of the key in

the switch, may cause a malfunction.

Access

READ

Y T

O GO

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

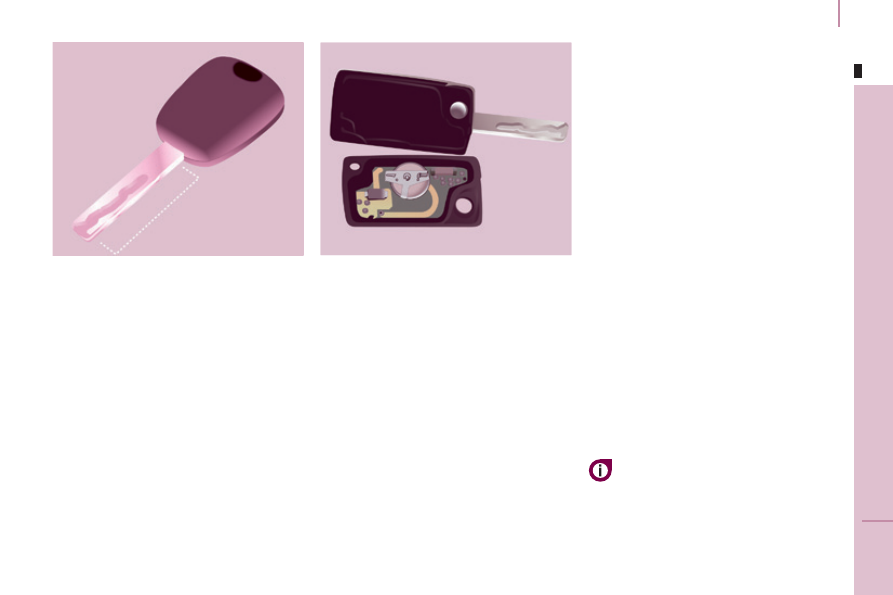

KEY

This locks and unlocks the doors on the

vehicle, opens and closes the fuel filler cap,

as well as starting and stopping the engine.

REMOTE CONTROL

ELECTRONIC

IMMOBILISER

All of the keys contain an electronic

immobiliser device.
This device locks the engine supply system.

It is activated automatically when the key is

removed from the ignition.
After the ignition is switched on, a dialogue

is established between the key and the

electronic immobiliser system.
The metal part of the key must be unfolded

correctly for correct dialogue to take place.

Reinitialising the remote control

Following changing of the remote control battery

or disconnection of the vehicle battery, the remote

control may have to be reinitialised.
Wait at least one minute before using the remote

control.
Insert the key in the ignition switch with the buttons

(padlocks) of the remote control facing you.

Switch on the ignition.
Press the locking padlock for at least

five seconds within the next ten seconds.
Switch off the ignition.
Wait at least one minute before using the

remote control.
The remote control is now working again.

There is a risk of damage if the replacement

battery is not the correct type.
Use only identical batteries or batteries of an

equivalent type to those recommended by

CITROËN dealers.
Do not discard the remote control batteries,

they contain metals which are harmful to the

environment.
Deposit them at a CITROËN dealership, or

at an authorised collection point.

Changing the battery

Battery ref.: CR1620 / 3 volts.
The "battery flat" information is given by an

audible signal, accompanied by a message

in the screen.
To replace the battery, unclip the casing

using a coin at the ring.
If the remote control does not work after the

battery has been changed, reinitialise the

remote control.

If you lose your keys

Visit a CITROËN dealer with the

vehicle's V5 registration document and

your identification document.
A CITROËN dealer will be able to retrieve

the key code and the transponder code so

that a replacement key can be ordered.

Access

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

ALARM

If fitted on your vehicle, this provides two

types of protection:
- exterior protection: it sounds if a front/

rear door or the bonnet is opened.

- interior protection: it sounds if the volume

inside the passenger compartment

changes (breaking of a window or a

movement inside the vehicle).

Disarming

- Unlock the vehicle with the remote

control or switch on the ignition, the red

LED goes off.

Good practice

Do not make any modifications to the

electronic immobiliser system.
Operating the remote control, even when it

is in your pocket, may result in involuntary

unlocking of the doors.
The simultaneous use of other high

frequency equipment (mobile telephones,

domestic alarms…), may interfere with the

operation of the remote control temporarily.
The remote control does not operate while

the key is in the ignition, even if the ignition

is off.

When purchasing a second-hand vehicle:
- have the keys memorised by a

CITROËN dealer to ensure that the keys

in your possession are the only ones

which can start the vehicle.

Locking the vehicle with complete

alarm

Setting the alarm

- Switch off the ignition and get out of

the vehicle.

- Set the alarm within five minutes of

getting out of the vehicle, by locking or

deadlocking using the remote control.

The red LED, located on the centre

console, flashes once per second.

Locking the vehicle with exterior

protection only

If, while you are away from the vehicle, you

wish to leave a window partially open or a

pet inside the vehicle, you should choose

exterior protection only.
-

Switch off the ignition.

- In the next ten seconds, press

this button, located on the

centre console, until the red

LED is on continuously.

When leaving the vehicle,

check that the lamps are

off and nothing of value is

visible.
As a safety precaution (with

children on board), remove

the key from the ignition

when leaving the vehicle,

even for a short time.

- Get out of the vehicle.
- Within the next five minutes, set the

alarm by locking or deadlocking using

the remote control (the red LED flashes

once a second).

Access

READ

Y T

O GO

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

Triggering

The siren sounds, the direction indicators

flash for approximately 30 seconds and the

red LED flashes rapidly.
- To switch it off, insert the key and switch

on the ignition.

When the alarm has been triggered ten

times in succession (when triggered for the

eleventh time) it is deactivated. Repeat the

procedure for setting the alarm.

Malfunction

When the ignition is switched on, if the

red LED remains on for ten seconds, this

indicates a fault with the siren connection.
Have the system checked by a CITROËN

dealer or a qualified workshop.

DOORS

From the inside

Locking the vehicle without alarm

- Insert the key in the lock on the driver's

door and lock it.

Do not set the alarm when washing your

vehicle.

Failure of the remote control

When the alarm is set but the remote control

does not operate:
- Unlock the doors with the key and open

the door. The alarm is triggered.

- Switch on the ignition in the next ten

seconds. The alarm is disarmed.

Automatic setting of the alarm

Depending on the country in which the

vehicle is sold, the alarm is set automatically

approximately 2 minutes after the last door

is closed.
To prevent triggering of the alarm when a

door is opened, it is imperative to press the

remote control unlocking button again.

Do not make any modifications to

the alarm system as this could cause

faults.

From the outside

Use the remote control to lock/unlock the

vehicle.
Insert the metal part of the key in the lock on

the driver's side if the remote control does

not work.

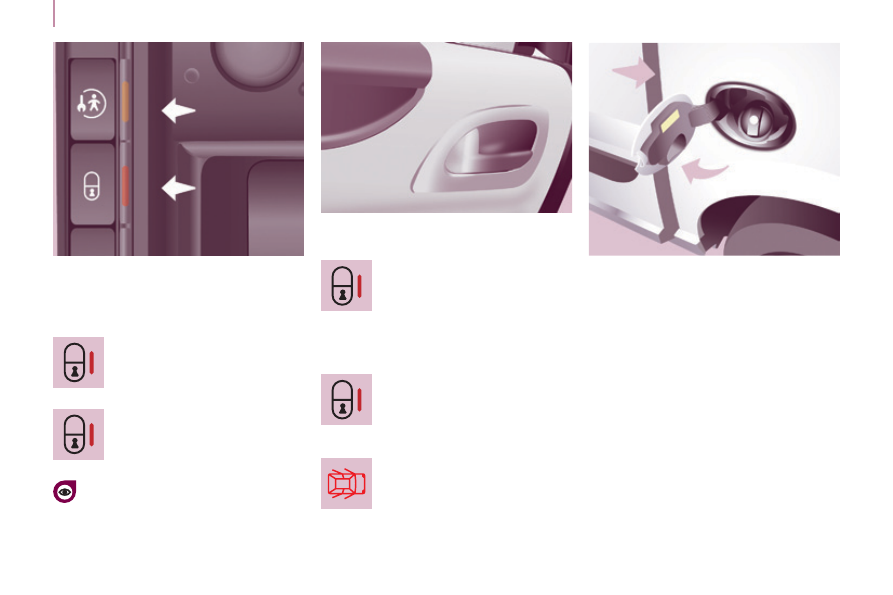

The first press permits central

locking of the vehicle.
A second press permits central

unlocking of the vehicle.

The control does not work if the vehicle has

been locked using the remote control or the

key, from the outside.

Access

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

The doors can still be opened from the

inside.

Anti-intrusion protection

The indicator lamp in the control:

- flashes if the doors are locked

when stationary with the

engine off,

- comes on if the doors are

locked and from the time the

ignition is switched on.

The system automatically locks

all of the doors when you reach

approximately 6 mph (10 km/h).

Activation / deactivation of the function

With the ignition on, a long

press on this button activates or

deactivates the function.

Opening warning lamp

If this warning lamp comes on,

check that the cab doors and

the rear or side doors are closed

correctly.

SLIDING SIDE DOOR

If fitted on your vehicle, do not open the

left-

hand side door while filling with fuel as you

risk damaging the fuel filler flap.
You can lock this door using the child lock.
Take care not to block the guide space on

the floor to allow the door to slide correctly.

Driving with the doors locked may

make access to the passenger

compartment more difficult in an emergency.

Access

READ

Y T

O GO

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

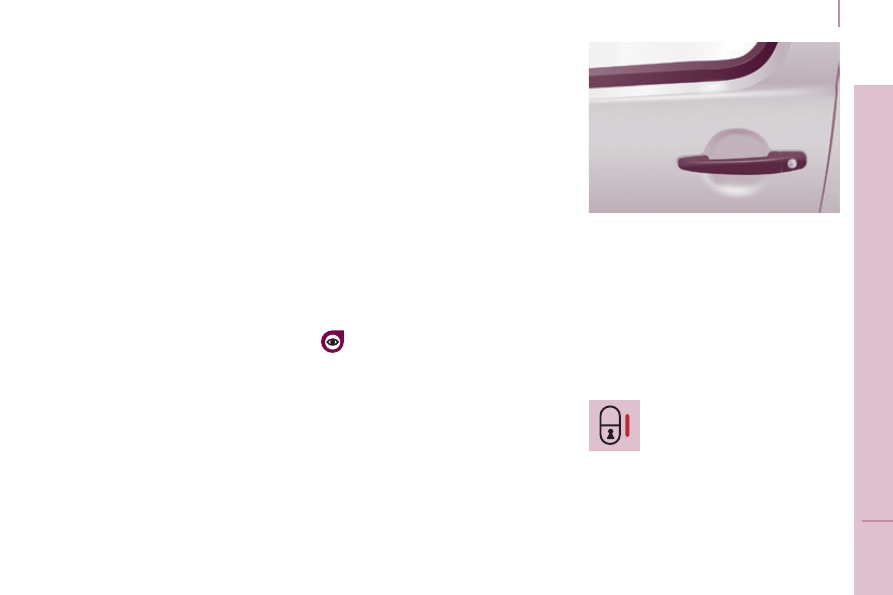

From the outside

Pull the handle towards you then towards

the rear.

With the ignition on, press

this button, the LED is on

accompanied by a message in the

screen.

This system is independent of the central

locking control.

From the inside

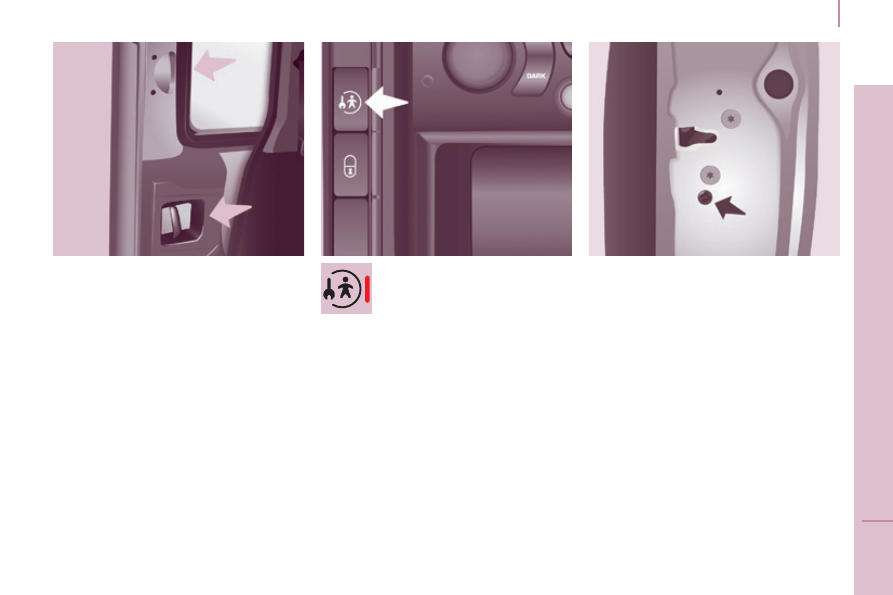

To unlock and open, push the handle

towards the rear. Ensure that the door

opens fully to lock the device at the base of

the door.

Locking / electric child lock

This prevents opening of the side doors from

the inside.

Good practice

Do not drive with the sliding side door open.
Always remove the key from the ignition

when leaving the vehicle, even for a

short time.
Each time you switch on the ignition, check

whether the child lock is active (LED on).
In the event of a serious impact, the electric

child lock is deactivated automatically.

Operation in the event of a battery

failure

Front and side passenger doors
In the event of a battery or of the central

locking fault, use the lock to lock the doors

mechanically.
- To open the door and get out of the

vehicle, pull the interior control.

- To lock the door, insert the key in the

lock, located on the edge of the door,

then turn it

one eighth of a turn .

Driver's door
- Insert the key in the lock, then turn it to

the right to lock or to the left to unlock.

Access

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

HINGED REAR DOORS

When parked with the rear

doors open to 90°, the doors

mask the rear lamps.
To signal your position to road

users travelling in the same

direction who may not have

noticed that you have stopped,

use a warning triangle or any

other device stipulated by the

legislation and regulations of

your country.

TAILGATE

From the outside

The two hinged doors open to 90°.
To open, pull the handle towards you then

pull the lever to open the left-hand door.
To close, start with the left-hand door then

close the right-hand door.

Opening to 180°

A retractable check strap system permits

extension of the opening from 90° to 180°.
Disengage the check strap towards you

when the door is partially open.
The check strap will re-attach automatically

on closing.

From the outside

If fitted on your vehicle, locking/unlocking is

via the remote control.
To open, press the control then raise the

tailgate.
A strap is provided to secure the tailgate in

the upper position.

From inside

Emergency control
In the event of a central unlocking operating

fault, this permits unlocking of the tailgate

from the inside.
Fold the rear seats to gain access to

the lock.
Insert a small screwdriver in this opening to

unlock the tailgate.

Instruments and controls

READ

Y T

O GO

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

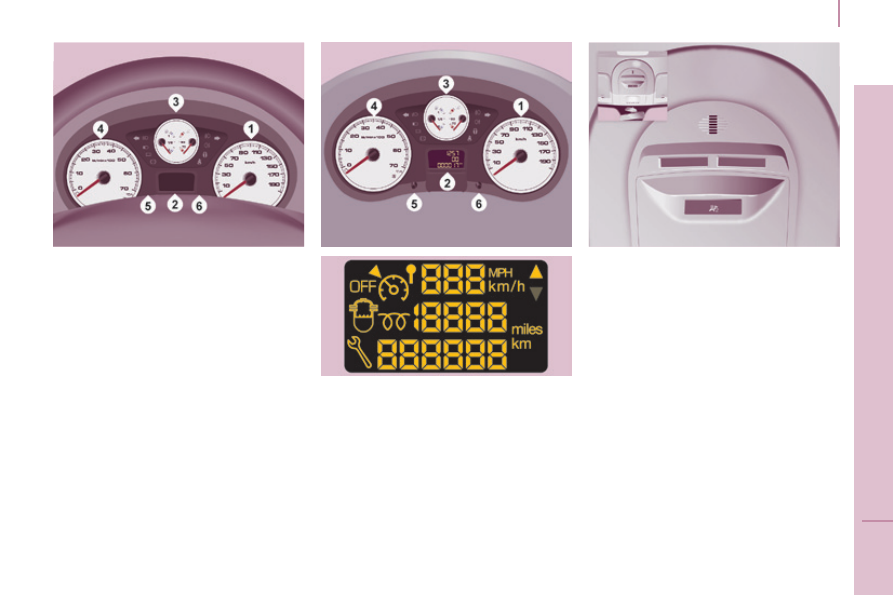

INSTRUMENT PANEL

1. Distance recorder in miles / kilometres.

2. Screen.

3. Fuel level, coolant temperature.

4. Rev counter.

5. Instrument panel lighting dimmer.

6. Trip distance recorder / service indicator

zero reset.

Instrument panel screen

Speed limiter / cruise control.

Miles / kilometres travelled.

- Service indicator, engine oil level

indicator, total miles / kilometres.

- Presence of water in the Diesel filter.
-

Diesel pre-heating.

Gear shift indicator.

Warning lamp and controls in

the overhead storage unit

Passenger airbag deactivated warning

lamp.

- Driver / passenger heated seat controls

(version with 2 front seats).

- Rear ventilation activation / deactivation

control.

INSTRUMENTS AND CONTROLS

Instruments and controls

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

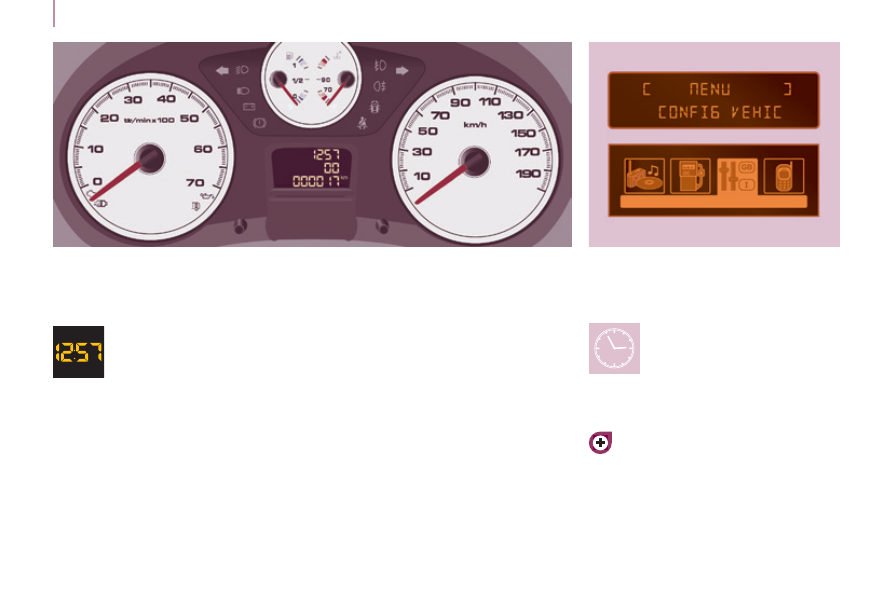

ADJUSTING THE TIME

- turn to the right to increase the hours

(hold the button to the right for rapid

scrolling),

  -   turn to the left: 24H or 12H is displayed,
  -   turn to the right to select 24H or 12H,
  -   turn to the left to complete the time

adjustment.

After approximately 30 seconds without

any action, the screen returns to the normal

display.

Centre console with screen

Centre console without screen

To adjust the time indicated in the

screen, refer to the "Adjusting the date

and time" section of chapter 9.

Instrument panel without screen

To adjust the time of the clock

on the instrument panel, use

the left-hand button on the

instrument panel then carry out

the operations in the following order:
- turn to the left: the minutes flash,
- turn to the right to increase the minutes

(hold the button to the right for rapid

scrolling),

- turn to the left: the hours flash,

The display - time sequence

is linked according to model

(version). The access to the Date

is only active when the model

version offers a date in words.

Instruments and controls

READ

Y T

O GO

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a check auto-test. They go off again almost immediately.

When the engine is running: the warning lamp becomes a warning if it remains on continuously or flashes. This initial warning may be

accompanied by an audible signal and a message in the screen.

Do not ignore these warnings .

Warning lamp

indicates

Solution - action

STOP

on, associated

with another

warning

lamp and

accompanied by

a message in the

screen.

major faults linked with the

"Brake fluid level", "Engine oil

pressure and temperature",

"Coolant temperature",

"Electronic brake force

distribution" or "Power steering"

warning lamps.

You must stop as soon as it is safe to do so. Park,

switch off the ignition and call a CITROËN dealer or

a qualified workshop.

Parking brake /

Brake ﬂ uid level /

EBFD

on.

parking brake applied or not

released correctly.

Releasing the parking brake switches off the warning lamp.

on.

low brake fluid level.

Top up using a fluid recommended by CITROËN.

remains on, even

though the level

is correct and

associated with the

ABS warning lamp.

failure of the electronic brake

force distribution.

You must stop as soon as it is safe to do so. Park,

switch off the ignition and call a CITROËN dealer or

a qualified workshop.

Engine oil

pressure and

temperature

on while driving. insufficient pressure or

temperature too high.

Park, switch off the ignition and allow to cool. Visually

check the level. Chapter 6, "Levels" section.

remains on, even

though the level

is correct.

major fault.

Call a CITROËN dealer or a qualified workshop.

Instruments and controls

JUMPY-ATLANTE-VP_EN_CHAP02_PRET A PARTIR_ED01-2014

Warning lamp

indicates

Solution-action

Coolant

temperature

and level

on with needle

in the red zone.

abnormal increase in

temperature.

Park, switch off the ignition then allow to cool. Visually

check the level.

flashing.

drop in coolant level.

Chapter 6, "Levels" section. Contact a CITROËN dealer

or a qualified workshop.

Service

on temporarily.

minor faults or warnings.

Consult the warnings log in the display or on the screen.
See chapter 9, "Trip computer" section then

"Warnings log".
Depending on the seriousness of the fault, contact a

CITROËN dealer or a qualified workshop.

remains on.

major faults.

Row 1 seat belt

not fastened

lit then flashing. the driver or a front passenger

has not fastened his seat belt.

Pull the strap then insert the tongue in the buckle.

accompanied

by an audible

signal then

remains on.

the vehicle is moving with the

driver or front passenger seat

belt not fastened.

Check that the seat belt is fastened by pulling the strap.

Chapter 4, "Seat belts" section.
The driver must ensure that all passengers have

fastened their seat belt and use it correctly.

Under-inflation

detection

on.

a deflated or punctured tyre.

Park and switch off the ignition. Change or repair the

wheel.

on,

accompanied

by the service

warning lamp.

a faulty sensor

Have it checked by a CITROËN dealer or a qualified

workshop.

Citroen Jumpy Multispace (2014 year). Instruction - part 2
