Contents

JUMPY-ATLANTE-VP_EN_CHAP00A_SOMMAIRE_ED01-2014

Remote control

Key 21
Alarm 22
Doors 23
Instrument panel

Adjusting the time

Warning lamps

Fuel gauge

Coolant 35
Tyre under-inflation detection 36
Service indicator

Lighting dimmer

5-speed manual gearbox

6-speed manual gearbox

Automatic gearbox

Gear shift indicator

Steering wheel adjustment

Starting and stopping

Controls for

lighting

wipers

Cruise control

Fixed speed limiter

Speed limiter

Heating / air conditioning,

manual 57

digital

Demisting and defrosting

Rear ventilation

Additional heating

Seats 69
2-seat front bench

Rear seats

Seat and bench

configuration 80

Cab fittings

Courtesy lamps

Toll cards/car park tickets

Seating area fittings

Rear suspension

Mirrors 91
Electric windows

Presentation 4
Exterior 6
Sitting comfortably

Seeing clearly

Driving safely

Cab fittings

Rear fittings

Child safety

Ventilation 17
Eco-driving 18

Parking brake

Hazard warning lamps

Parking sensors

Horn 96
Anti-lock braking system

(ABS) 96

Emergency braking

assistance 96

ASR and DSC

"Grip control"

Seat belts

100

Airbags 103
Lateral airbags

105

Front airbags

106

Child seats

107

Deactivating the passenger's

front airbag

108

ISOFIX mountings

111

Recommended seats

115

2. READY TO GO

20-45

4. SAFETY

94-118

1. FAMILIARISATION

4-19

3. EASE OF USE

and COMFORT 46-93

CONTENTS

Contents

JUMPY-ATLANTE-VP_EN_CHAP00A_SOMMAIRE_ED01-2014

The "Technology on board"

section presents the new audio/

navigation systems.

Towing a trailer

119

Other accessories

121

Opening the bonnet

122

Diesel engines

123

Petrol engine

124

Levels 125
Checks 127
Fuel 130
Fuel cut-off

131

Diesel priming pump

131

Battery 133
Puncture repair kit

135

Changing a wheel

137

Removable snow screen

141

Snow chains

142

Changing

a bulb

143

a fuse

148

a wiper blade

152

Towing the vehicle

153

Dimensions 156
Weights 160
Identification markings

162

Exterior 163
Instruments and controls

164

Interior 166
Technical data -

Maintenance 167

9. TECHNOLOGY on

BOARD

5. ACCESSORIES

119-121

6. CHECKS

122-132

7. QUICK HELP

133-154

8. TECHNICAL DATA

155-162

10. VISUAL SEARCH

163-169

The "Visual search" section

assists you in finding the

controls and functions and their

associated page numbers on

the schematic outlines of the

vehicle (visual index).

Emergency or assistance

9.1

eMyWay 9.3
Audio system

9.63

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

PRESENTATION

Within the chapters, symbols draw your attention to specific

information:

This handbook has been designed to familiarise you with your

new vehicle from the moment you get behind the wheel and to

describe the operating features.
Reading the handbook is made easy with the content consisting

of 10 identified chapters, which can be located by means of a

colour code specific to each one. Its sections cover, by subject, all

of the functions of the vehicle in its most complete specification.

Chapter 8 gives all of the technical data relating to your vehicle.

At the end of the document, diagrams of the outside and inside of

the vehicle will assist you in locating equipment or functions and

page numbers refer you to the relevant section of the handbook.

directs you to the chapter and section which contains detailed

information concerning a function,

indicates important information relating to use of the equipment,

alerts you to the safety of individuals and equipment on board.

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

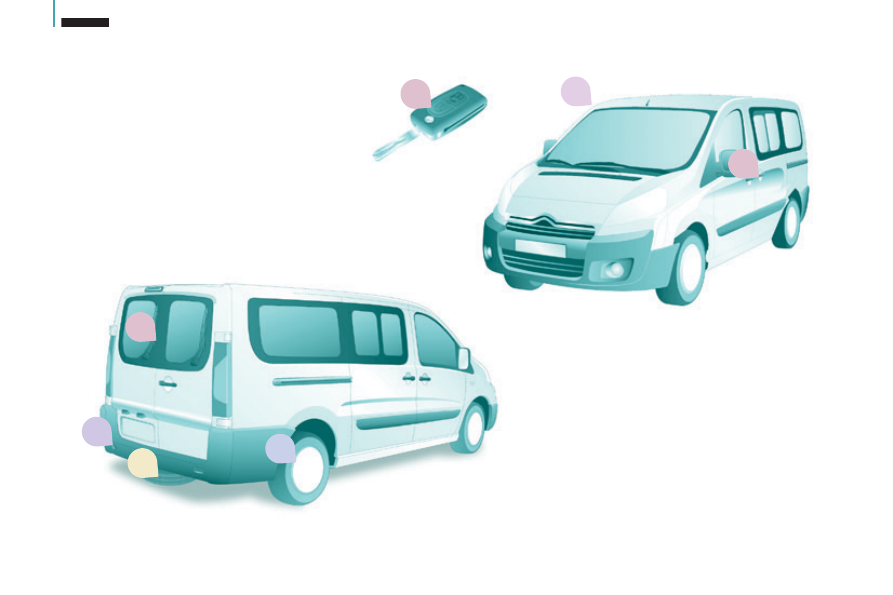

Exterior

FAMILIARISA

TION

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

Key

: section identification

: page identification

135

Rear suspension

Repairing a wheel

Parking sensors

137

Changing a wheel

Side-hinged rear doors

Key - Remote control

Sliding side door

156

Usable dimensions

Exterior

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

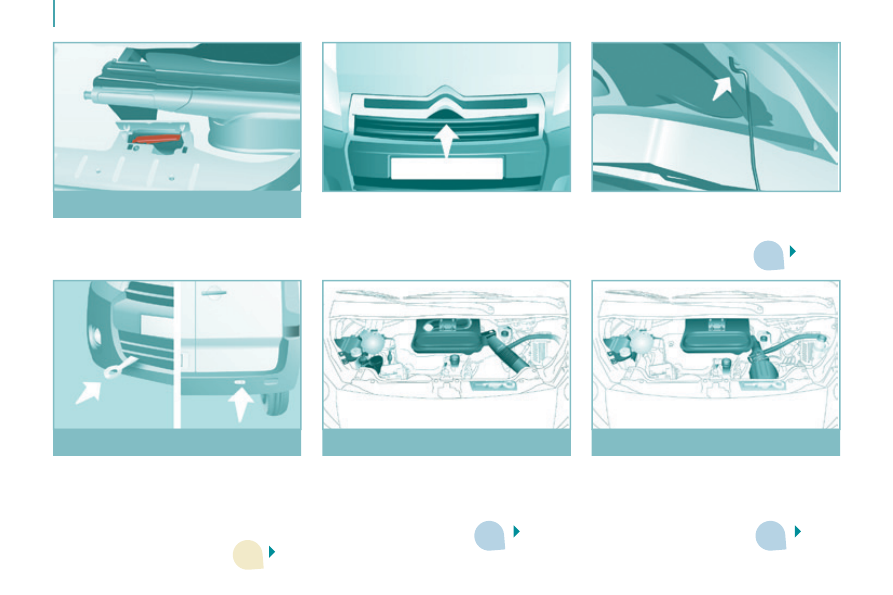

Opening the bonnet

123

Diesel engines

Petrol engine

124

153

Towing eye

122

Partially open the bonnet, lift the safety

catch and raise the bonnet.

Secure the stay in one of the two notches,

according to the height required, to hold the

bonnet open.

Lift the cover at the foot of the left-hand

seat and pull the release lever upwards.

At the front, unclip the cover by pressing it

at the bottom.
At the rear, unclip the cover using a coin or

the flat part of the towing eye.

Take care when working under the bonnet.
Refer to "Levels" in section 6 for advice on use of the fluids.

Interior

FAMILIARISA

TION

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

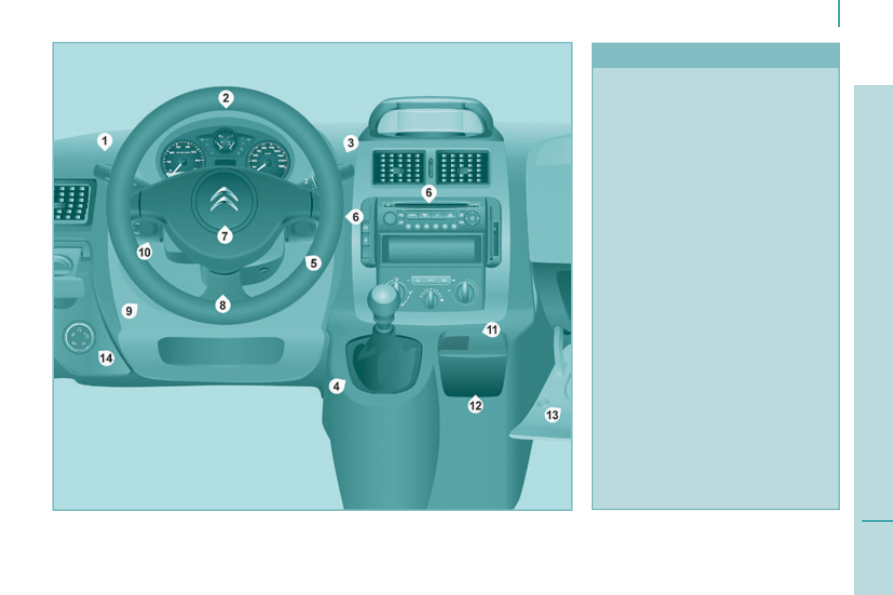

INSTRUMENTS AND CONTROLS

1. Lighting and direction indicator

control stalk.

2. Instrument panel with screen.

3. Wipers, screenwash, trip computer

control stalk.

4. Gear lever.

5. Ignition.

6. Audio system controls.

7. Driver's airbag, horn.

8. Steering wheel height and reach

adjustment.

9. Headlamp beam adjustment.

10. Cruise control, speed limiter

switches.

11. 12 volt accessory socket (120 W

max) of the cigarette lighter type.

12. Ashtray.

13. Glove box, auxiliary socket,

passenger's airbag deactivation

switch.

14. "Grip control".

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

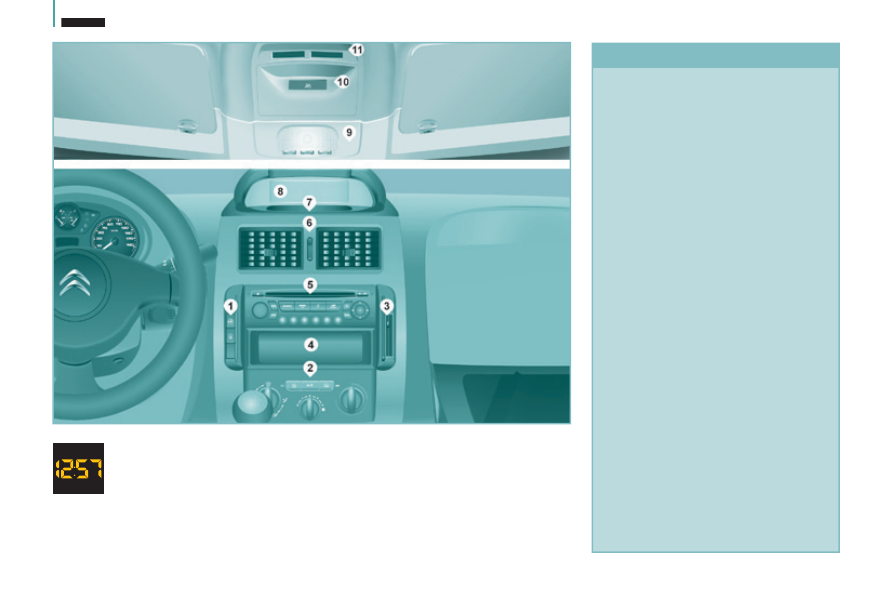

CENTRE CONSOLE AND OVERHEAD STORAGE UNIT

1. Location of controls:

- electric child lock,
- central locking/unlocking.

2. Heating and/or air conditioning

controls.

3. Location of the ticket/card storage or

controls:

- deactivation of the DSC,
- deactivation of the interior

protection alarm, alarm LED,

- deactivation of the parking

sensors.

4. Storage compartment.

5. Audio equipment or storage

compartment.

6. Central adjustable vents.

7. Hazard warning lamps switch.

8. Screen or storage compartment.

9. Courtesy lamp.

10. Passenger's airbag deactivated

warning lamp.

11. Location of the ticket/card storage,

rear ventilation deactivation switch,

heated seat controls.

ADJUSTING THE TIME

- a centre console with screen: refer

to "Adjusting the date and time" in

section 9,

- a centre console without screen: refer to

"Instruments and controls" in section 2.

Depending on the configuration of your

vehicle, you have either:

Interior

FAMILIARISA

TION

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

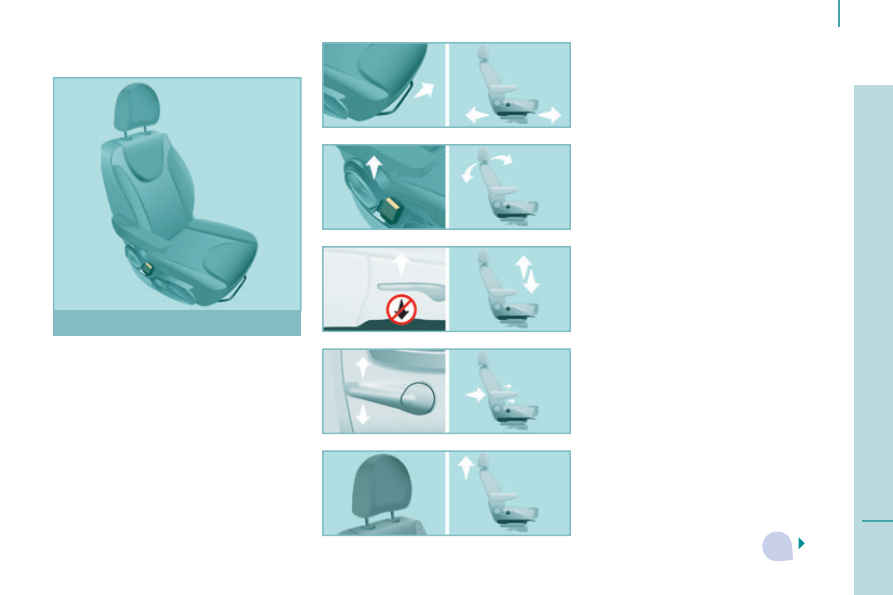

Driver's seat

SITTING COMFORTABLY

1. Forwards-backwards adjustment.

2. Backrest angle.

3. Cushion height.

4. Lumbar.

5. Head restraint height.

Interior

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

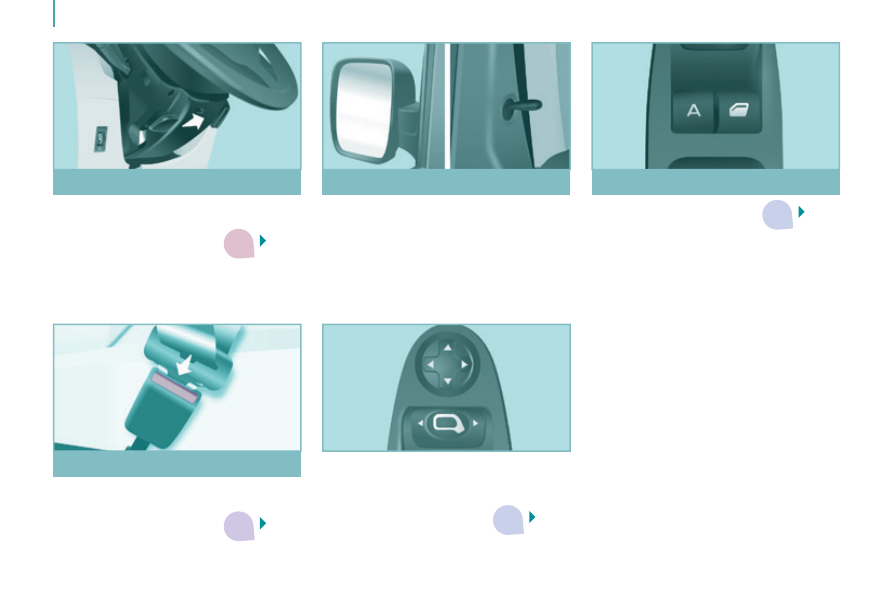

Steering wheel

Electric windows

Mirrors

Seat belts

100

Adjust the steering wheel for height and

reach.

Manual adjustments.

Electric adjustments, electric folding /

unfolding.

Height adjustment.
Fastening.

Interior

FAMILIARISA

TION

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

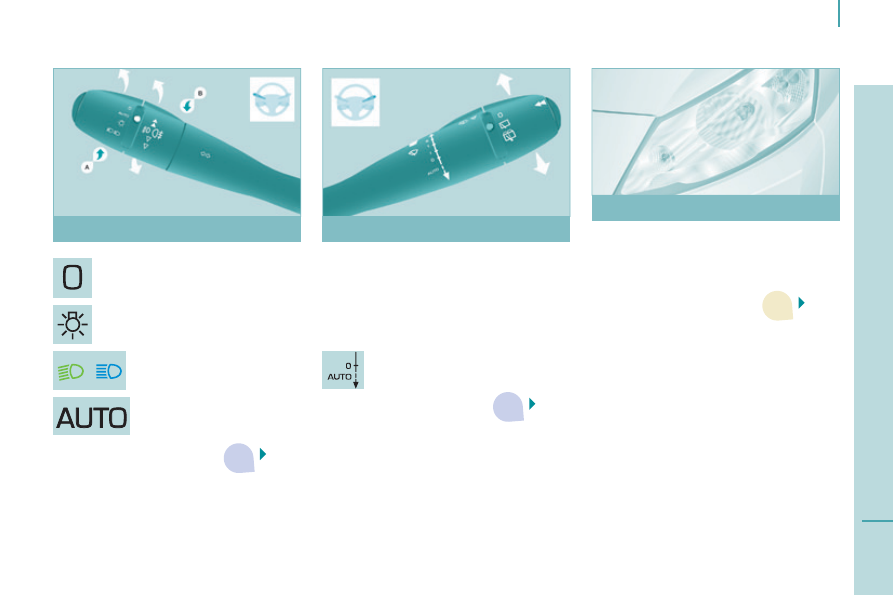

SEEING CLEARLY

Lighting off.

Sidelamps.

Main beam headlamps (blue).
Dipped beam headlamps (green).

Wiper control stalk

2 fast.

1 normal.

intermittent.

0 off.
 single wipe.

AUTO , press the stalk down.

AUTO, automatic illumination

of headlamps.

Lighting control stalk

Changing bulbs

143

In bad weather or in winter, check that the

lamps are not covered with mud or snow.

Interior

JUMPY-ATLANTE-VP_EN_CHAP01_PRISE EN MAIN_ED01-2014

Emergency or assistance call

DRIVING SAFELY

Cruise control / Speed limiter

51, 54

For the cruise control, he vehicle speed must be

higher than 25 mph (40 km/h) with at least 4th

gear engaged
For the speed limiter, the minimum vehicle speed

that can be programmed is 20 mph (30 km/h).

Grip control

This allows the vehicle to make progress in

most conditions of low grip.

This system allows an emergency or

assistance call to be sent to the dedicated

CITROËN centre.
For more information on the use of this

system, refer to section 9, "Technology

on board".

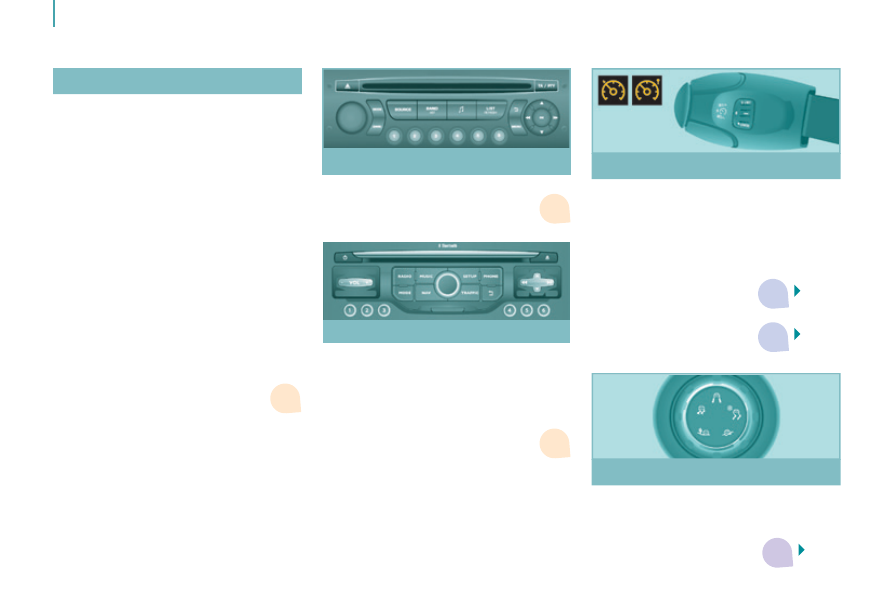

Audio system

This easy to use audio system offers a

map of Europe on SD Card, a Bluetooth

telephone connection and the playing of

MP3 / WMA files.

eMyWay

Fixed speed limiter
