Citroen DS4 (2017 year). Instruction

207

Driving

DS4_en_Chap06_conduite_ed01-2016

Going into engine START mode

With a manual gearbox, this
warning lamp switches off and the

Special cases: START invoked

automatically

With a manual gearbox in STOP mode,
if a gear is engaged without fully
depressing the clutch pedal, a warning
lamp comes on or an alert message
is displayed asking you to depress the
clutch pedal to restart the engine.

In this case the "ECO"

warning lamp

flashes for few seconds, then goes
off.

This operation is perfectly normal.

For safety reasons or to ensure smooth
operation, START mode is invoked
automatically when:
-  you open the driver's door,
-  you unfasten the driver's seat belt,
-  the speed of the vehicle exceeds 15 mph

(25 km/h) with a manual gearbox (3 km/h
(2 mph) with PureTech 130 petrol and
BlueHDi Diesel 115 and 120 versions) or
2 mph (3 km/h) with an automatic gearbox,

- the electric parking brake is being applied,
- some special conditions (battery charge,

engine temperature, braking assistance,
ambient temperature...) where the engine is
needed to assure control of a system.

With an automatic gearbox, this
warning lamp switches off and the

engine restarts automatically when:
- you release the brake pedal with the gear

selector in position D or M,

you are in position N

, with the brake pedal

released, and you place the gear selector
in position D or M,

- you engage reverse gear.

engine restarts automatically when you press
the clutch pedal fully.

208

Driving

DS4_en_Chap06_conduite_ed01-2016

Operating fault

In some cases, such as the maintaining of a
comfortable temperature in the passenger
compartment, it may be useful to deactivate the
Stop & Start.
Deactivation can be requested at any time once
the ignition has been switched on.
If the engine is in STOP mode, it restarts
straight away.
The Stop & Start is reactivated automatically
each time the ignition is switched on.

Deactivation / Reactivation

In the event of a fault in STOP mode, the
vehicle may stall. All of the instrument panel
warning lamps come on.
Depending on version, an alert message may
also be displayed asking you to put the gear
lever into position N

and put your foot on the

brake pedal.
It is then necessary to switch off the ignition,
then restart the engine.

The Stop & Start requires a 12 V
battery with special technology and
specifications. All work on this type of
battery must be carried out exclusively
by a CITROËN dealer or a qualified
workshop.
For more information on the 12 V
battery

, refer to the corresponding

section.

In the event of a malfunction with
the system, the "ECO OFF" switch
warning lamp flashes, then comes on
continuously.

With the switch on the dashboard

Pressing the switch again reactivates
the system.

Press this switch.

Deactivation is confirmed by the illumination of
the indicator lamp in the control switch and the
display of a message.

Driving on flooded roads
Before driving through a flooded road,
it is strongly recommended that you
deactivate the Stop & Start system.
For more information on Driving
advice

, particularly on flooded roads,

refer to the corresponding section.

Opening the bonnet
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid the risk of injury related
to an automatic change to START
mode.

ave it checked by a CITROËN dealer or a

qualified workshop.

The indicator lamp in the switch goes off,
accompanied by the display of a message.

209

Driving

DS4_en_Chap06_conduite_ed01-2016

Lane departure warning system

System which detects the involuntary crossing
of longitudinal traffic lane markings on the
ground (solid or broken line).
Sensors, fitted below the front bumper, trigger
a warning if the vehicle drifts over a lane
marking (speed higher than 50 mph (80 km/h)).
This system is particularly useful on motorways
and main roads.

The lane departure warning system
cannot in any circumstances replace
the need for vigilance on the part of the
driver.
It is necessary to observe driving
regulations and take a break every
two hours.

Deactivation

Press this button again, the indicator lamp

goes off.

The status of the system remains in the
memory when the ignition is switched off.

No warning is transmitted while the direction
indicator is active and for approximately
20 seconds after the direction indicator is
switched off.
A warning may be transmitted if a direction
marking (e.g. arrow) or non-standard marking
(e.g. graffiti) is crossed.

Operating fault

The detection may be impeded:
- if the sensors are dirty (mud, snow...),
- if the markings on the ground are

worn,

if there is little contrast between
the markings on the ground and
the road surface.

In the event of a malfunction, the
service warning lamp comes on,
accompanied by an audible signal
and a message in the screen.

Contact a CITROËN dealer or a qualified
workshop.

Activation

When switching the ignition on or with

the engine running, press this button; the
indicator lamp comes on.

Detection

You are warned by the vibration of the driver's
seat cushion:
- on the right-hand side, if the marking on

the ground has been crossed on the right,

- on the left-hand side, if the marking on the

ground has been crossed on the left.

210

Driving

DS4_en_Chap06_conduite_ed01-2016

Blind spot monitoring system

This driving assistance system warns the driver
of the presence of another vehicle in the blind
spot angle of their vehicle (areas masked from
the driver's field of vision), as soon as this
presents a potential danger.

Operation

This system is designed to improve safety when driving and is in no circumstances a
substitute for the use of the interior rear view mirror and door mirrors. It is the driver's
responsibility to constantly check the traffic, to assess the distances and relative speeds of
other vehicles and to predict their movements before deciding whether to change lane.
The blind spot sensor system can never replace the need for vigilance on the part of
the driver.

On switching on the ignition, or engine

running, press this button to activate the
function; the warning lamp comes on.

Sensors fitted in the front and rear bumpers
monitor the blind spots.

A warning lamp appears in the door mirror on
the side in question:
- immediately, when being overtaken,
- after a delay of about one second, when

overtaking a vehicle slowly.

211

Driving

DS4_en_Chap06_conduite_ed01-2016

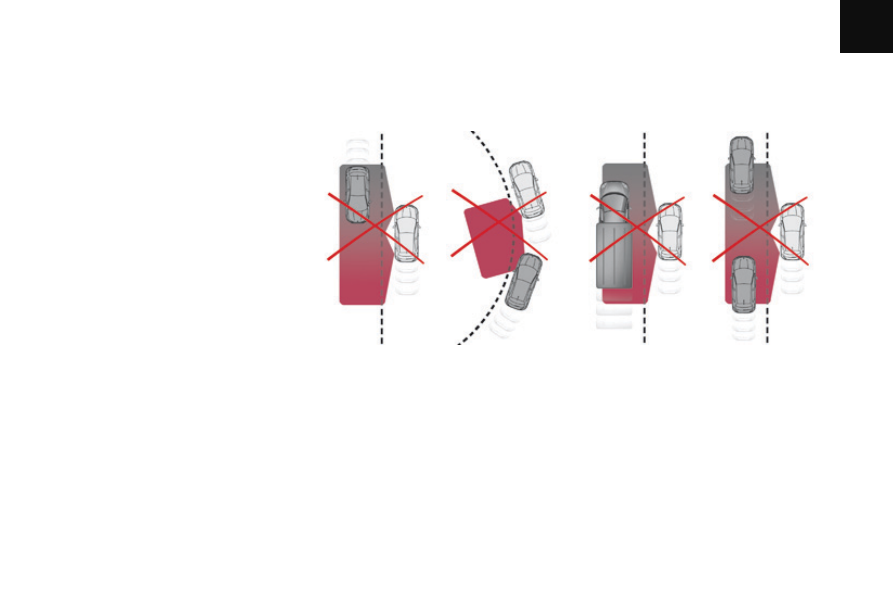

No alert will be given in the following situations:
- in the presence of immobile objects

(parked vehicles, barriers, street lamps,
road signs...),

- with vehicles moving in the opposite

direction,

- driving on a sinuous road or a sharp

corner,

The alert is given by a warning lamp which
comes on in the door mirror on the side in
question as soon as a vehicle - car, lorry,
cycle - is detected.
For this, the following conditions must be met:
- all the vehicles must be moving in the

same direction,

- the speed of your vehicle is between 7 and

75 mph (12 and 140 km/h),

- when you overtake a vehicle with a speed

difference of less than 6 mph (10 km/h),

- when a vehicle overtakes you with a speed

difference of less than 15 mph (25 km/h),

- the traffic must be flowing normally,
- in the case of an overtaking manoeuvre,

if this is prolonged and the vehicle being
overtaken remains in the blind spot,

- you are driving on a straight or slightly

curved road,

- your vehicle is not pulling a trailer, a

caravan...

- when overtaking (or being overtaken by) a

very long vehicle (lorry, coach...) which is
at the same time detected at the rear in the
blind spot angle and present in the driver's
forward field of vision,

- in very heavy traffic: vehicles detected in

front and behind are confused with a lorry
or a stationary object,

- when overtaking quickly.

212

Driving

DS4_en_Chap06_conduite_ed01-2016

Operating fault

The system may suffer temporary
interference in certain weather
conditions (rain, hail...).
In particular, driving on a wet surface
or moving from a dry area to a wet area
can cause false alerts (for example, the
presence of a fog of water droplets in
the blind spot angle is interpreted as a
vehicle).
In bad or wintry weather, ensure that
the sensors are not covered by mud,
ice or snow.
Take care not to cover the warning
zone in the door mirrors or the
detection zones on the front and rear
bumpers with adhesive labels or other
objects; they may hamper the correct
operation of the system.

To deactivate the system, press this button

again; the warning lamp goes off.

The state of the system remains in memory on
switching off the ignition.

The system is automatically
deactivated when towing with a towbar
approved by CITROËN.

In the event of a fault, the warning lamp in the
button flashes then goes off.
Have it checked by a CITROËN dealer or a
qualified workshop.

213

Driving

DS4_en_Chap06_conduite_ed01-2016

Memorising speeds

"MEM" button

Press this button to display the list of

memorised speed settings.

Go to the main menu by pressing the

"MENU"

button:

Select the "Personalisation-configuration"

menu and confirm.

Select "Vehicle parameters" menu and

confirm.

Select the "Driving assistance" line and

conform.

Select "Speeds memorised" line and

confirm.

Select "Activation" to activate the function.

With your Audio system

As a safety measure, the driver must
only modify a speed setting when
stationary.

This function allows speed settings to be registered which will then be offered as settings for two systems: the speed limiter (a maximum speed) and
the cruise control (cruising speed).
You can memorise up to six speed settings in the system, depending on version. By default, some speed settings are already memorised.

Select the speed setting to be modified and

confirm.

Modify the speed setting.

F Select "OK

" and confirm to save the

modifications.

Activating the function

Modifying a speed setting

214

Driving

DS4_en_Chap06_conduite_ed01-2016

With the touch screen tablet

Modifying a speed setting

In the secondary page, press

"Speed settings

Select the system for which you want to

memorise new speed settings:

● speed limiter

or
● cruise control.

Press this button to select a speed settings for
use by the speed limiter or cruise control.
For more information on the Speed limiter
and/or the Cruise control, refer to the
corresponding section.

F Press this button to select the

"Driving

" menu.

Choose the speed setting to be modified.

Enter the new value using the numerical

keypad and confirm.

Confirm to save the modification and quit

the menu.

"MEM" button

215

Driving

DS4_en_Chap06_conduite_ed01-2016

System which prevents the vehicle from exceeding the speed programmed by the driver.

Speed limiter

The speed limiter is a driving aid that
cannot, in any circumstances, replace the
need to observe speed limits or the need
for vigilance on the part of the driver.

Speed limiter mode selection wheel.

Programmed value decrease button.

Programmed value increase button.

Speed limiter on / pause button.

Display memorised speed settings button.

Steering mounted controls

Speed limiter on / pause indication.

Speed limiter mode selection indication.

Programmed speed value.

Selection of a memorised speed setting.

Displays in the instrument panel

The speed limiter is switched on manually.
The minimum programmed speed is
20 mph (30 km/h).
The programmed speed remains in the
system memory when the ignition is
switched off.

216

Driving

DS4_en_Chap06_conduite_ed01-2016

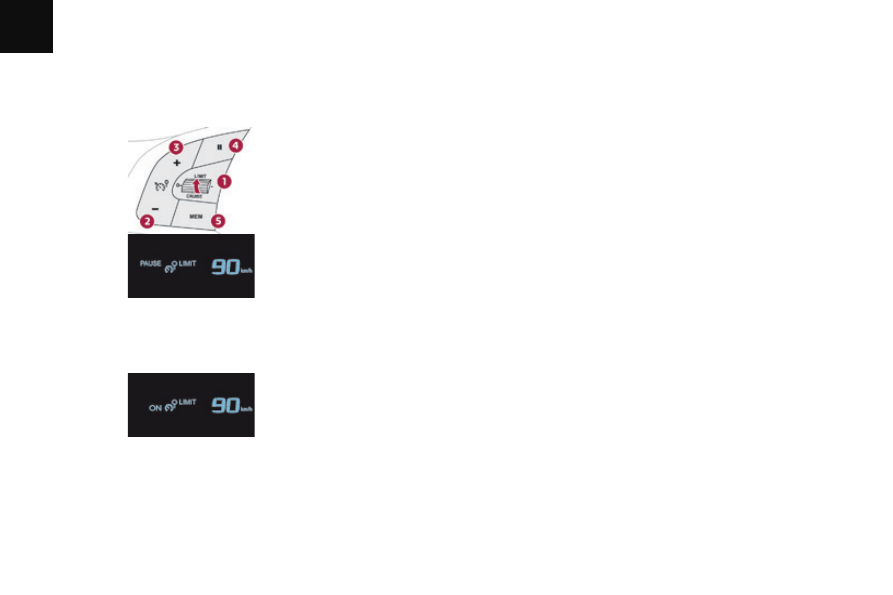

Switching on

Turn the wheel 1 to the "LIMIT" position

to select the speed limiter; the function is
paused.

If the speed setting is suitable (last speed

setting programmed in the system) press
button 4

to switch the speed limiter on.

Pressing button 4 temporarily interrupts the

function (pause).

Adjusting the limit speed setting

You do not have to switch the speed limiter on
in order to set the speed.

To modify the limit speed setting from the
current speed of the vehicle:
F

in steps of +/- 1 mph (km/h), make

successive short presses on button 2 or 3,

continuously, in steps of +/- 5 mph (km/h),

press and hold button 2 or 3.

To modify the limit speed setting using
memorised speeds and from your Audio
system:
F

first activate the system,

make a long press on button 2 or 3, the

system displays the memorised speed
closest to the actual speed of the vehicle;
this setting becomes the new limit speed,

to choose another memorised speed, make

another long press on button 2 or 3.

For more information on Memorising speeds,
refer to the corresponding section.

To modify the limit speed setting using
memorised speeds and from the touch screen:
F press button 5

to display the six memorised

speed settings,

press the button for the desired speed

setting.

This setting becomes the new limit speed.

217

Driving

DS4_en_Chap06_conduite_ed01-2016

On a steep descent or in the event of
sharp acceleration, the speed limiter will
not be able to prevent the vehicle from
exceeding the programmed speed.

The use of mats not approved by
CITROËN may interfere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned

correctly,

- do not fit one mat on top of another.

Temporarily exceeding the programmed speed

If you want to temporarily exceed the

programmed limit speed, press firmly on
the accelerator pedal, going beyond the
point of resistance

When the limit speed is exceeded but is not
due to action by the driver, there is an audible
signal to complete the alert.

Switching off

Turn wheel 1 to the "0" position: the

display of information on the speed limiter
disappears.

Operating fault

Flashing dashes indicate a fault with the speed
limiter.
Have it checked by a CITROËN dealer or a
qualified workshop.

The speed limiter is deactivated temporarily
and the displayed programmed speed flashes.

Once the speed of the vehicle returns to
the programmed setting, the speed limiter
functions again: the display of the programmed
speed setting becomes steady again.

218

Driving

DS4_en_Chap06_conduite_ed01-2016

Cruise control

Cruise control mode selection wheel.

Button for setting the current speed of the

vehicle as the cruise setting or lowering the
cruise setting.

Button for setting the current speed of the

vehicle as the cruise setting or raising the
cruise setting.

Cruise control pause / resume button.

Display memorised speed settings button.

Steering mounted controls

Cruise control pause / resume indication.

Cruise control mode selected indication.

Cruise speed setting.

Selecting a memorised cruise speed.

Displays in the instrument panel

System which automatically maintains the cruising speed of the vehicle at a setting programmed by the driver, without any action on the accelerator
pedal.

The cruise control is switched on
manually.
It requires a minimum vehicle speed of
25 mph (40 km/h) as well as:
- with a manual gearbox, the

engagement of fourth gear or
higher,

- with an automatic gearbox, the

gear selector at position D or
second gear or higher in manual
mode.

As a safety measure, you are advised
to keep your feet near the pedals at all
times.

Switching off the ignition cancels any
programmed speed setting.

The cruise control system is a driving aid
that cannot, in any circumstances, replace
the need to observe speed limits, nor the
need for vigilance on the part of the driver.

The operation of the cruise control can be
interrupted (pause):
- by pressing control 4 or by pressing the

brake or clutch pedal,

- automatically, if operation of the dynamic

stability control system is triggered.

219

Driving

DS4_en_Chap06_conduite_ed01-2016

Switching on

To start the cruise control and set a cruise

speed, once the vehicle has reached the
desired speed, press button 2 or 3: the
current speed of your vehicle becomes the
cruise speed setting.

You can release the accelerator pedal.

Adjusting the cruise speed

setting

Turn the wheel 1 to the "CRUISE" position

to select cruise control mode; the function
is paused.

Pressing button 4 interrupts operation of

the system (pause).

Pressing button 4 again restores operation

of the cruise control (ON).

The cruise control must be activated.

As a precaution, it is recommended
that the cruise speed chosen be close
to the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle.

Take care: pressing and holding button 2
or 3

results in a rapid change in the

speed of your vehicle.

To modify the cruise speed setting from the
current speed of the vehicle:
F

in steps of + or - 1 mph (km/h), make

repeated short presses on button 2 or 3,

continuously, in steps of + or - 5 mph (km/h),

press and hold button 2 or 3.

To modify the cruise speed setting using
memorised speeds and from your Audio
system:
F

first activate the system,

make a long press on button 2 or 3, the

system displays the memorised speed
closest to the actual speed of the vehicle;
this setting becomes the new cruise speed,

to choose another memorised speed, make

another long press on button 2 or 3.

For more information on Memorising speeds,
refer to the corresponding section.

To modify the cruise speed setting using
memorised speeds and from the touch screen:
F press button 5

to display the six memorised

speed settings,

press the button for the desired speed

setting.

This setting becomes the new cruise speed.

220

Driving

DS4_en_Chap06_conduite_ed01-2016

You may have to brake to control the speed of
your vehicle. In this case, the cruise control is
automatically paused.
To activate the system again, press button 4.

Only use the cruise control if the traffic
conditions will allow you to drive for a
certain time at a steady speed and at a
safe distance from the vehicle ahead.
Do not activate the cruise control
in urban areas, in heavy traffic, on
winding or steep roads, on slippery
or flooded roads, or in conditions of
poor visibility (heavy rain, fog, falling
snow...).
In some circumstances, it may not
be possible to maintain or reach the
programmed speed: towing, vehicle
heavily loaded, steep climb.

Temporarily exceeding the

programmed speed

When required (overtaking manoeuvre...), it is
possible to exceed the programmed speed by
pressing the accelerator pedal.

To return to the programmed speed, simply
release the accelerator pedal.
Once the vehicle has returned to the
programmed speed, the cruise control takes
over again: the display of the programmed
speed setting becomes steady again.

When descending a steep hill, the
cruise control system cannot prevent
the vehicle from exceeding the
programmed speed.

Switching off

Turn wheel 1 to the "0" position: the cruise

control information disappears from the
screen.

Operating fault

Flashing dashes indicate a fault with the cruise
control system.
Have it checked by a CITROËN dealer or a
qualified workshop.

The use of mats not approved by
CITROËN may interfere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned

correctly,

- never fit one mat on top of another.

The cruise control is temporarily overridden
and the programmed speed setting flashes.

221

Driving

DS4_en_Chap06_conduite_ed01-2016

Parking sensors

This system indicates the proximity of an
obstacle (e.g. pedestrian, vehicle, tree, gate)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (e.g. stake,
roadworks cone) detected initially will no longer
be detected at the end of the manoeuvre, if
they are located in blind spots in the sensors'
field of detection.

This system cannot in any circumstances replace
the need for vigilance on the part of the driver.

The system is switched on by engaging reverse
gear.
This is confirmed by an audible signal.
The system is switched off when you come out
of reverse gear.

Rear parking sensors

The proximity information is given by an
intermittent audible signal, the frequency of which
increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right-hand or
left-hand) indicates the side on which the obstacle
is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.

Visual assistance

Audible assistance

This supplements the audible signal by
displaying bars in the screen which move
progressively nearer to the vehicle.
When the obstacle is very close, the "Danger"
symbol is displayed in the screen.

222

Driving

DS4_en_Chap06_conduite_ed01-2016

Front parking sensors

Operating fault

In the event of a malfunction of the
system, when reverse gear is engaged
this warning lamp is displayed in the
instrument panel and/or a message
appears in the screen, accompanied
by an audible signal (short beep).
Contact a CITROËN dealer or a
qualified workshop.

In addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in forward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).

The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN).

In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.

Deactivation/Activation of the front

and rear parking sensors

The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.
Pressing this button again reactivates the
function. The indicator lamp in the button
goes off.

The sound emitted by the speaker
(front or rear) indicates whether the
obstacle is in front or behind.

Citroen DS4 (2017 year). Instruction - part 14
