Citroen C-Zero (2017 year). Instruction - part 3

Access

C-Zero_en_Chap02_ouvertures_ed01-2016

Charging flaps

F Pull control A

located at the bottom of the

dashboard, driver's side, to release the
charging flap.

Normal charging

F Pull control C

located under the driver's

seat, on the door side, to release the flap.

Fast charging*

For more information on Charging
the main battery, refer to the
corresponding section.

Open the access flap on the right of the

vehicle.

F Press latch B

to open the socket cover.

* Depending on equipment.

Open the flap on the left of the vehicle.

F Press latch D

to open the socket cover.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

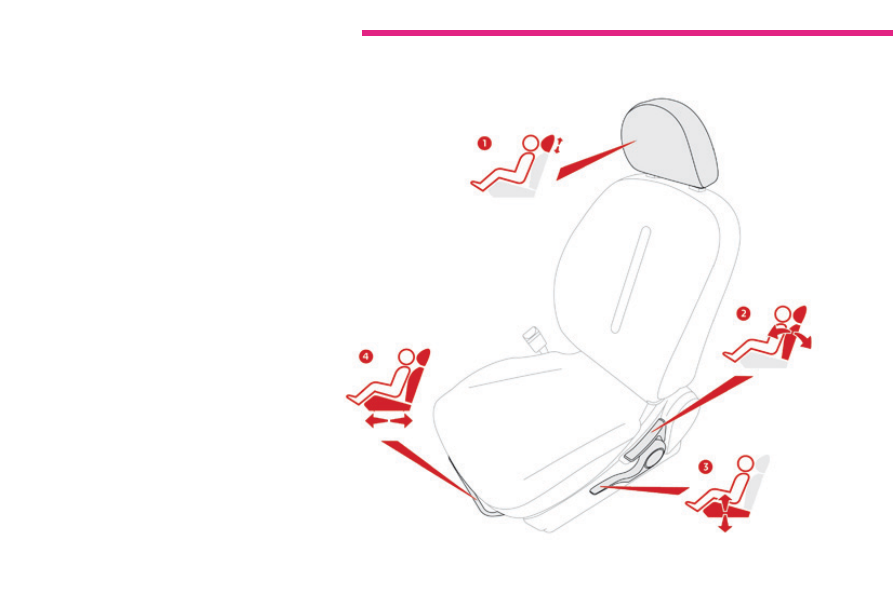

Front seats

Manual adjustments

1. Adjustable head restraint
2. Adjustment of the backrest angle

Operate the control lever and adjust the
position of the backrest to the front or
to the rear.

3. Adjustment of the driver's seat height

Raise or lower the control lever the number
of times required to obtain the desired
position.

4. Forwards-backwards adjustment of the

seat position

Lift the control bar and slide the seat
forwards or backwards.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

Head restraint height adjustment

To raise it, pull upwards.

To lower it, push it downwards, pressing

the height adjustment button at the same
time.

To remove it, raise it to the high position,

then remove it pressing the height
adjustment button at the same time.

To refit it, engage the rods of the head

restraint in the apertures, pressing the
height adjustment button at the same time.

Never drive with the removed head
restraints in the vehicle as they could
be thrown around the vehicle on sharp
braking. They must always be in place
and adjusted correctly.
After installing the head restraint, check
that the height adjustment button has
engaged correctly.
The adjustment is correct when the top
of the head restraint is aligned with the
top of the head of the seated person.

Press the control switch, located on the
dashboard, to switch on the driver's seat
heating.
The warning lamp in the switch comes on.
The temperature is controlled automatically.
Pressing a second time stops operation.

Heated seat control

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

Rear seats

Rear head restraints

These have a high position (comfort and best
safety) and a low position (best rear vision for
the driver).
They can also be removed.
To remove a head restraint:
F pull the head restraint fully upwards,
F

then, press the lug.

When carrying rear passengers, never
drive with their head restraints removed;
ensure that they are in place and in the
high position.

Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the seat and passenger compartment
are at a comfortable temperature, you can
switch off the function; reducing electric
current consumption also reduces fuel
consumption.

Prolonged use at the highest setting is not
recommended for those with sensitive skin.
There is a risk of burns for those that do
not have normal perception of heat (illness,
taking medicines, etc.).
There is a risk of overheating the system if
material with insulating properties is used,
such as cushions or seat covers.
Do not use the system:
-  if wearing damp clothing,
-  if child seats are fitted.
To avoid breaking the heating element in
the seat:
-  do not place heavy objects on the seat,
-  do not kneel or stand on the seat,
-  do not place sharp objects on the seat,
-  do not spill liquids onto the seat.
To avoid the risk of short-circuit:
-  do not use liquid products for cleaning

the seat,

- never use the heating function when

the seat is damp.

Rear seat comprising two adjustable, foldable
backrests and a fixed cushion.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

Adjusting the backrest
angle

To adjust the backrest:
F pull the control forwards to release the

backrest,

adjust the backrest then release the

control.

The backrest can be adjusted to one of seven
positions.

Always ensure that the backrest has
engaged correctly.

Returning the seat backrest to its original position

push the seat backrest in position and

secure it,

refit the head restraints or put them back in

place.

1. place the head restraints in the low position

or remove them if necessary,

2. pull the control forwards to release

backrest,

fold the backrest forward.

Folding the backrest

When returning the backrest to its
original position, take care not to trap
the seat belts.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

Mirrors

Adjustment

The mirrors can be adjusted when the ignition
switch is in the "ON" or "ACC" position.
F Move control A

to the right or to the left to

select the corresponding mirror.

F Direct control B in all four directions to

adjust the mirror.

When adjustment is complete, return control A
to the central position.

Door mirrors

The mirrors can also be folded
manually.
However, you must never unfold them
manually

, otherwise the mirrors may

not remain in place correctly when
driving.
Always use control C to unfold them.

Electric folding / unfolding*

With the ignition switch in the "ON" or

"ACC" position: press control C to unfold
them

With the ignition switch in the "LOCK"

position: press control C within
30 seconds

to fold them.

* Depending on version.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

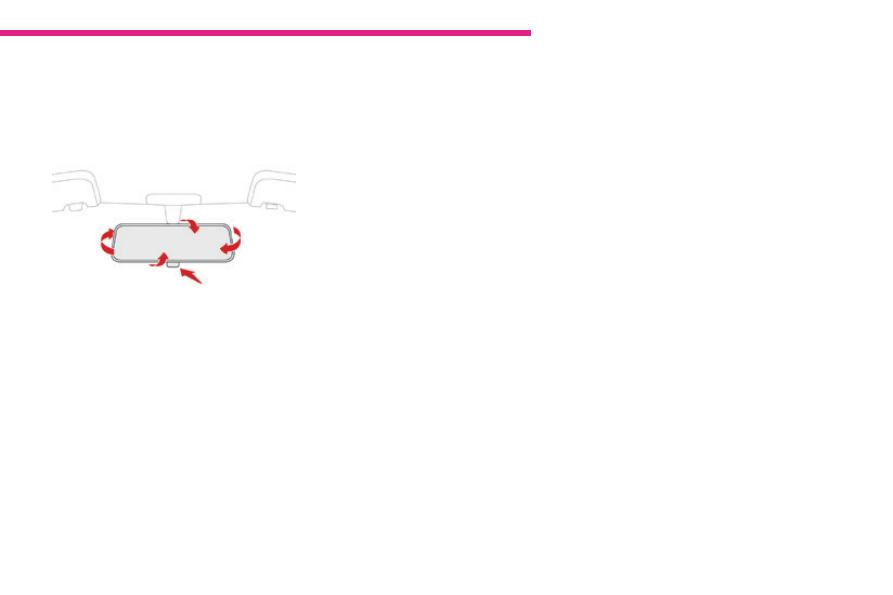

Rear view mirror

Adjust the mirror by moving it up or down and/
or to the left or right.
The rear view mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push or pull
the lever on the lower edge of the mirror.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

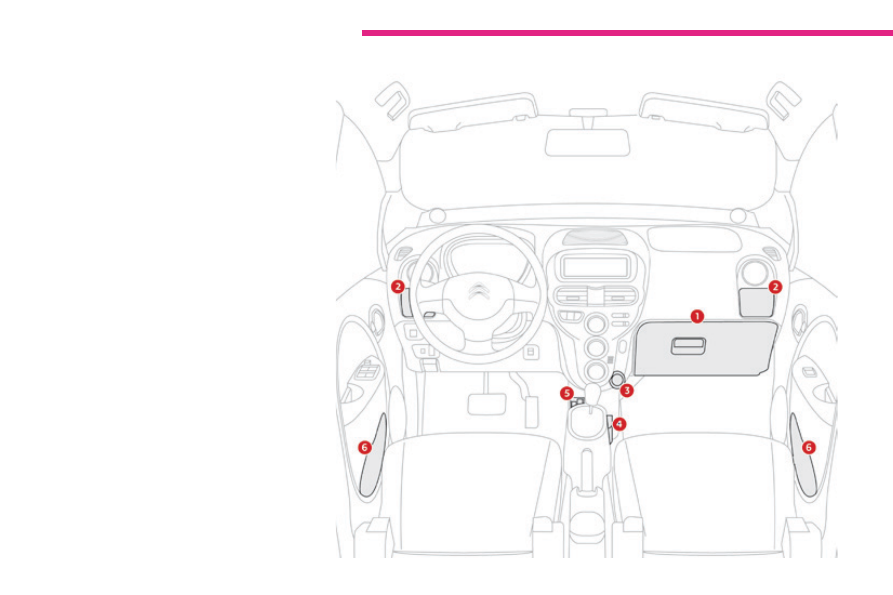

Interior fittings

1. Glove box
2. Retractable cup holder

Press the cover to open the cup holder

3. 12 V accessory socket (120 W)

Observe the maximum power rating to
avoid damaging your accessory

4.  Open storage
5.  USB Player
6.  Door pocket

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

12 V accessory socket

To connect a 12 V accessory (max power:

120 W), lift the cover and connect a
suitable adaptor.

Mats

To prevent any risk of jamming under
the pedals:
- only use mats suited to the fixings

already present in the vehicle; it is
imperative that these fixings are
used.

- never fit one mat on top of another.

When removing the mat on the driver's side,
move back the seat as far as possible and
remove the fixings.
When refitting, position the mat correctly on the
pins and clip the fixings. Check that the mat is
secured firmly.

The sun visors fold forwards, and to the side
when they are unhooked.
They are fitted with a vanity mirror and a ticket
holder.

Sun visor

The connection of an electrical device
not approved by CITROËN, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or interference with displays
in the screens.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

When connected to the USB port, the portable
device charges automatically.

For more information on the use of
this system, refer to the Audio and
Telematics

section.

USB Player

This USB port is located at the bottom of the
centre console.
It allows the connection of portable devices,
such as a digital audio player of the iPod

type

or a USB memory stick.
It reads the audio files which are transmitted to
your audio system and played via the vehicle's
speakers.
You can manage these files using the audio
system controls.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

Ventilation

Air intake

The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.

System which creates and maintains good
conditions of comfort and visibility in the
vehicle's passenger compartment.

Controls

The incoming air follows various routes
depending on the controls selected.
The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
select the air vents used in the passenger
compartment.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.
These controls are grouped together on control
panel A

on the centre console.

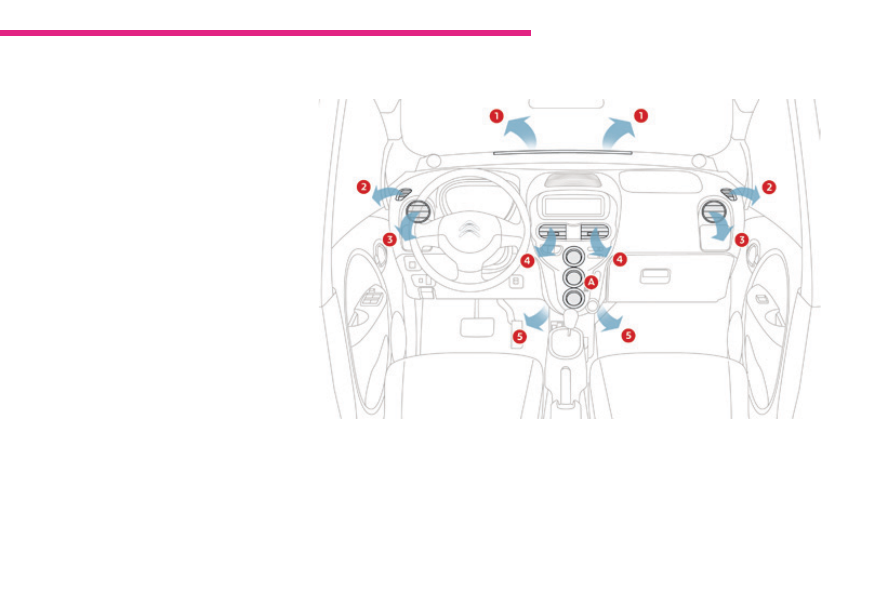

Air distribution

Windscreen demisting/defrosting vents.

Front side window demisting/defrosting

vents.

Side adjustable air vents.

Central adjustable air vents.

Air outlets to the front footwells.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

If the interior temperature remains very high after the vehicle has been parked in

the sun for a considerable time, first ventilate the passenger compartment for a few
moments by opening the windows.

Place the air flow control at a sufficient level to provide an adequate renewal of air in
the passenger compartment.

Condensation created by the air conditioning results in a discharge of water under the

vehicle when stationary, which is perfectly normal.

To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.

Favour the intake of exterior air as prolonged use of the air recirculation may cause

misting of the windscreen and the side windows.

Operate the air conditioning system for 5 to 10 minutes, once or twice a month to keep it

in good working order.

Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly.

To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly.

If the system does not produce cold air, do not use it and contact a CITROËN dealer or

a qualified workshop.

Recommendations for ventilation and air conditioning

The heating and air conditioning use
energy from the main battery. Their use
increases electrical consumption and
reduces the range of the vehicle.
Remember to switch off the heating or
air conditioning as soon as they are no
longer needed.

During normal charging of the
vehicle, the ventilation, heating and
air conditioning can be activated from
the ACC

position of the switch.

During fast charging of the vehicle, the
ventilation, heating and air conditioning
cannot be activated.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

Air conditioning

1. Temperature adjustment

Turn the dial from blue

(cold) to red (hot) to adjust
the temperature to your
requirements.

Adjustments can be made manually or automatically.
1.

Temperature

Air flow

Air distribution

Exterior air intake / Interior air recirculation

"Max" button

Air conditioning On / Off

When the dial is placed on "●", the fan
air will be at the exterior temperature.
If you move the dial to "●" while using
the heating or air conditioning, these
will stop immediately.

Heating / Ventilation

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

4. Air intake / Air recirculation

The intake of exterior air prevents the formation
of mist on the windscreen and side windows.
The recirculation of interior air isolates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
the formation of mist.

F Press this button to recirculate

the interior air. The indicator
lamp comes on to confirm this.

Press the button again to

permit the intake of exterior air.
The indicator lamp switches off
to confirm this.

3. Air distribution adjustment

Place the dial in the desired
position to distribute air to:

central and side vents,

central, side and footwell vents,

footwells,

windscreen, side windows and
footwells,

windscreen and side windows.

The air distribution can be adapted by placing
the dial in an intermediate position.

With the dial in the "AUTO" position, air
distribution is adjusted automatically,
according to the temperature selected.

2. Air flow adjustment

F Turn the dial to the

right to increase air
flow and to the left
to reduce it.

With the dial in the "AUTO" position,
the air flow is adjusted automatically,
according to the interior temperature.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

6. Air conditioning On / Off

Switching on

F Press the "A/C" button, the associated

indicator lamp comes on.

The air conditioning does not operate when
the air flow adjustment is set to off.

Switching off

F Press the "A/C"

button again, the

associated indicator lamp goes off.

Switching off may result in some discomfort
(humidity, misting).

5. "MAX" button

The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.

It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting

in winter, above 3 °C.

This button allows the passenger compartment
to be quickly heated or cooled. It only
works when the air flow control is not in the
"OFF

" position.

Press this button. The corresponding
indicator lamp comes on.

The place the temperature control in the
desired position:
-  on "●" for maximum ventilation,
-  between "●" and "H" for maximum heating,
-  between "C" and "●" for maximum air

conditioning.

To obtain cool air sooner, you can use
air recirculation for a few moments.
Then return to the intake of exterior air.

Ease of use and comfort

C-Zero_en_Chap03_ergonomie-et-confort_ed01-2016

Switch off the demisting/defrosting of
the rear screen and the door mirrors
as soon as appropriate, so as to limit
electrical consumption and optimise the
range of the vehicle.

Front demist -

defrost

Rear screen demist - defrost

The control button is located on the right of the centre console.

Press this button to demist/

defrost the rear screen and,
depending on version, the door
mirrors. The indicator lamp
associated with the button
comes on.

Place the air distribution control in
this position.

Switching on

Switching off

The demisting/defrosting switches off
automatically to prevent excessive electric
consumption.
F

It is possible to stop the demisting/

defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.

For rapid demisting - defrosting, you
can also press the "MAX

" button.

The intake of exterior air is selected (indicator
lamp off) and depending on equipment, the air
conditioning starts running (indicator lamp on).

Place the temperature control
between "●" and "H".

Place the air flow control
in the desired position.

Content .. 1 2 3 4 ..
