Warning lamps

Warning / indicator lamp

State

Cause

Action / Observations

Braking

On fixed.

The braking system fluid level has
dropped significantly.
or
Braking assistance system fault.

You must stop as soon as it is safe to do so.
Top up with brake fluid listed by CITROËN.
If the problem persists, have the system checked
by a CITROËN dealer or qualified workshop.

On fixed, associated
with the ABS warning
lamp.

The electronic brake force distribution
(EBFD) system has a fault.

You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.

Anti-lock
Braking System
(ABS)

On fixed.

The anti-lock braking system has a
fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
CITROËN dealer or a qualified workshop without
delay.

When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further.
If you encounter any problems, do not hesitate to contact a CITROËN dealer or a qualified workshop.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

Electronic
stability
programme
and anti-slip
regulation (ESP/
ASR)

Flashing.

Activation of the ESP/ASR systems.

The systems optimise traction and improve the
directional stability of the vehicle.
Adapt your driving and moderate your speed.

On fixed.

Fault in the ESP/ASR systems.

Have it checked by a CITROËN dealer or a qualified
workshop.

Door(s) open

On fixed,
accompanied by an
audible signal.

A door or the boot is still open.

Close the door or boot.

12 V battery
charge

On fixed.

The 12 V battery charging circuit has
a fault (dirty or loose terminals, slack,
transformer fault, etc.).

The warning lamp should go off when the motor is
started.
If it does not go off, contact a CITROËN dealer or
qualified workshop.

Electric power
steering

On fixed.

The electric power steering has a
fault.

Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.

Warning / indicator lamp

State

Cause

Action / Observations

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Front seat belt
not fastened /
unfastened

On fixed, then
flashing, accompanied
by an audible signal.

The driver and/or the front passenger
has not fastened or has unfastened
their seat belt.

Pull the strap, then insert the tongue in the buckle.

Right-hand rear seat
belt unfastened

On fixed.

The right-hand rear passenger has
unfastened their seat belt.

Pull the strap then insert the tongue in the buckle.

Left-hand
rear seat belt
unfastened

On fixed.

The left-hand rear passenger has
unfastened their seat belt.

Under-inflation

On fixed.

The tyre pressure for one or more
wheels is too low.

Check the tyre pressures as soon as possible.
This check should preferably be done with the tyres
cold.
You must reinitialise the system after every adjustment
of one or more tyre pressures and after replacing one
or more wheels.
For more information on the Under-inflation
detection

, refer to the corresponding section.

Flashing then fixed.

The system has a fault and/or one
or more wheels does not have a
detected sensor.

The tyre pressures are no longer monitored.
Have the system checked by a CITROËN dealer or a
qualified workshop.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

Airbags

On temporarily.

When you switch on the ignition, this
warning lamp comes on for a few
seconds, then goes off.

If it does not go off, contact a CITROËN dealer or a
qualified workshop.

On fixed.

Fault with one of the airbag or seat
belt pretensioner systems.

Have it checked by a CITROËN dealer or a qualified
workshop.

Protection
system for the
main battery

On fixed.

The state of charge of the main
battery is too low or the temperature
of the main battery is too low...

The power from the motor is limited.
Charge the main battery as soon as possible.
If the warning lamp does not go off, contact a
CITROËN dealer or qualified workshop.

Self-diagnosis
system of the
main electrical
circuit

On fixed.

Fault in the main electrical circuit.

You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.

Warning / indicator lamp

State

Cause

Action / Observations

Reduction of the
engine brake

Flashing.

The main battery is fully charged, the
engine brake is reduced temporarily.

Anticipate your braking as much as possible: use the
brake pedal to slow down or stop the vehicle.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

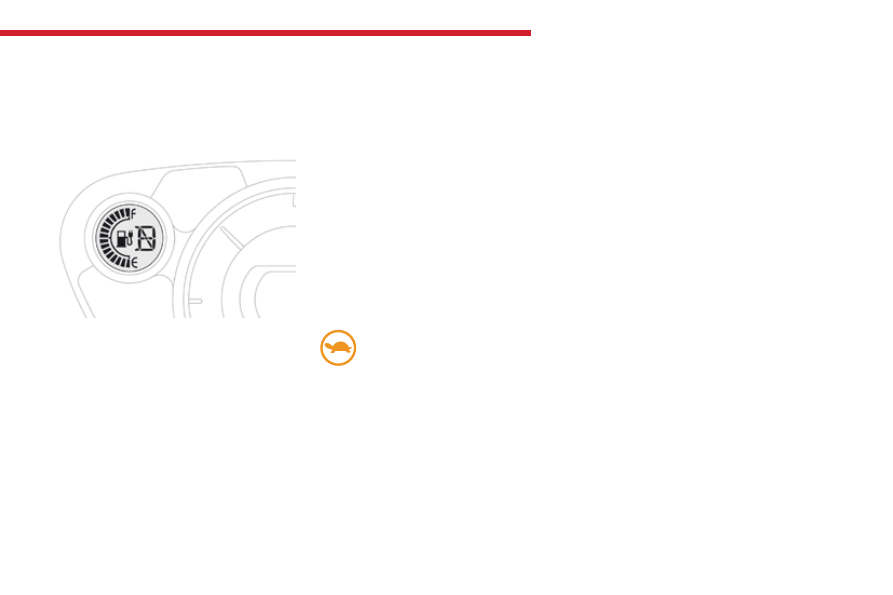

Main battery state of charge indicator

Display

Four successive alerts indicate that the energy
available in the main battery is dropping to a
low level:
- 2 bars of the state of charge gauge in the

instrument panel, on and flashing: starting
to use the reserve.

- The last bar in the state of charge gauge

flashing.

- The last bar disappears: display of the

range disappears; the heating and air
conditioning are switched off.

Low energy alerts

- Display of this warning lamp in

the instrument panel: progressive
reduction in the power available
from the motor.

The state of charge of the main battery is
displayed continuously in the instrument panel.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

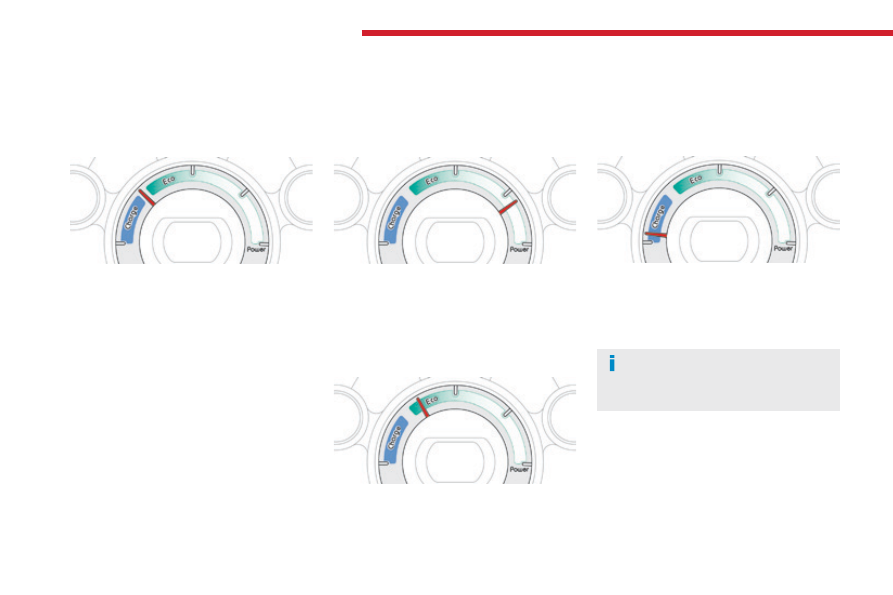

Energy consumption / generation indicator

Energy consumption

On switching on the ignition, your vehicle
neither consumes nor generates energy in its
electric traction system: the needle is in the
"neutral" position (provided that the heating and
air conditioning are off).

"Eco" zone

A system that informs the driver of the level of energy consumption or generation of the main battery.

"Neutral" position

"Charge" zone

The needle moves to the right in proportion to
the energy consumption by the vehicle.

The needle is in this zone when the vehicle is
used so as to moderate electric consumption
and optimise its range.

The needle moves to the left in proportion to
the level of charge sent to the main battery,
during periods of deceleration and braking.

In cold weather, the capacity for
regeneration via braking is reduced.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

Instrument panel screen

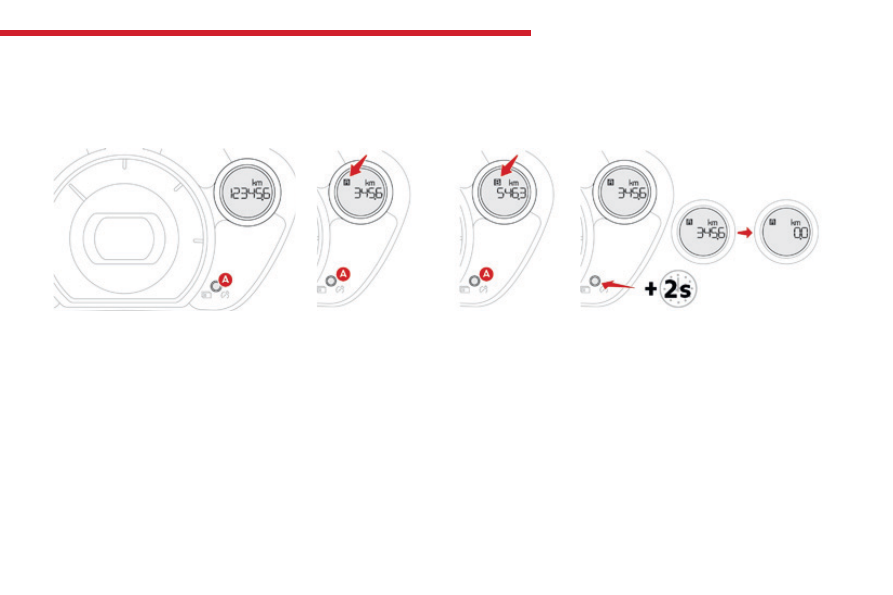

When the ignition switch is in the "ON" position, press button A repeatedly to display the following information in turn.

Distance recorder

System for measuring the total distance
travelled by the vehicle during its life.
Press button A

The total distance appears in the screen.

Reset to zero

With the ignition on and either trip A or B
displayed, press the button for more than
2 seconds.

Trip distance recorder (Trip A or B)

Each of these trip recorders indicates the
distance travelled since the last reset.
Press button A

to display the desired trip.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

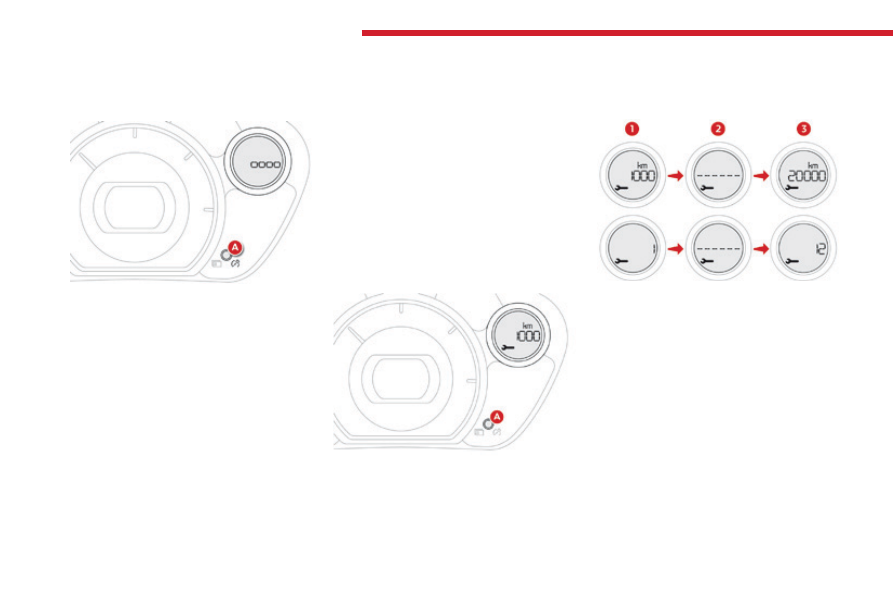

Service indicator

When the ignition is switched on, press
button A

several times in succession until the

service indicator is displayed in the desired
units.

This point can be indicated in one of two ways:
- the miles (km) remaining,
- the time remaining to the next service.

Operation

The screen indicates that 620 miles

(1000 km) or 1 month remain before the
next service.

2. The screen indicates that the date for the

service has been exceeded.

Every time the ignition is switched on,
the service spanner is displayed for a
few seconds to remind you that a service
should be carried out as soon as possible.

3. Once the service has been carried out, the

distance or the number of months to the
next service is displayed again.

System which informs the driver when the
next service is due in accordance with the
manufacturer's servicing schedule.
The point at which the next service is due
is calculated from the last service indicator
zero reset.

System for manual adjustment of the
brightness of the instruments and controls in
relation to the exterior brightness.
With the lighting on or off, press button A to
select the function, then hold down to change
the intensity of the lighting of the instruments
and controls in "day" or "night" mode.
The intensity of the lighting increases each time
button A

is pressed.

When the lighting reaches the maximum
setting, press again to change to the minimum
setting.
When the lighting reaches the required
intensity, release button A

The setting is saved when you release button A
and retained when the ignition switch is turned
to OFF.

Lighting dimmer

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

The display of "---"

, indicating that the

service date has arrived, comes on
automatically after a certain time and
distance travelled. The screen then
indicates the time remaining before the
next service is due.

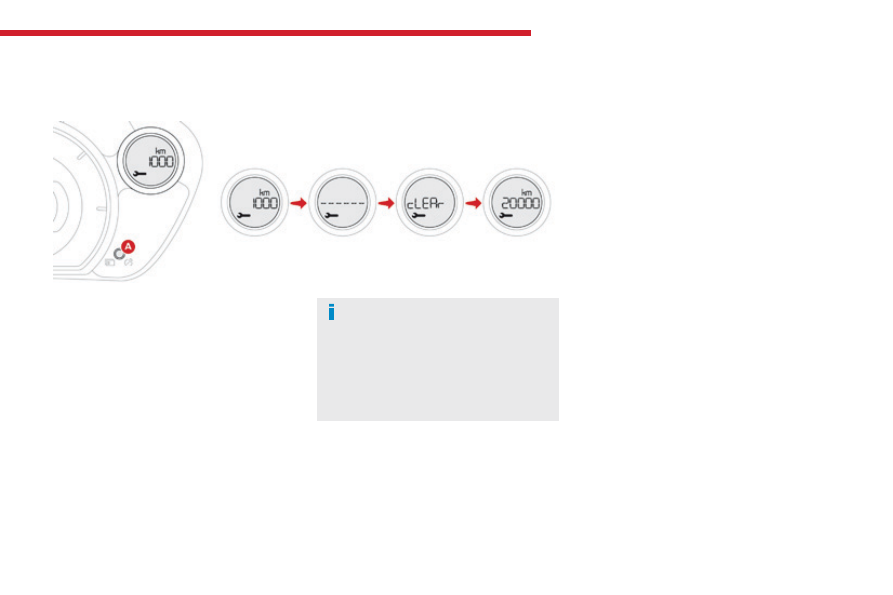

Resetting the service indicator to zero

After each service, the service indicator should
be rest to zero.
The procedures is as follows:
F

Switch off the ignition (switch in the LOCK

or ACC position).

F Press the reset button A

several times in

succession until the service indicator is
displayed.

F Press and hold the reset button for a few

seconds until the spanner flashes

F Press the reset button while the spanner is

flashing to change the display from "---" to
"CLEAR"

The distance (or time) remaining before the
next service is due is displayed.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

This function gives an estimate of the number
of miles (km) that your vehicle can still cover,
based on the recent conditions of use (driving
style, use of heating, air conditioning...).

Range indicator

When the remaining range falls to a
low level, "- - -" is displayed in the

instrument panel.

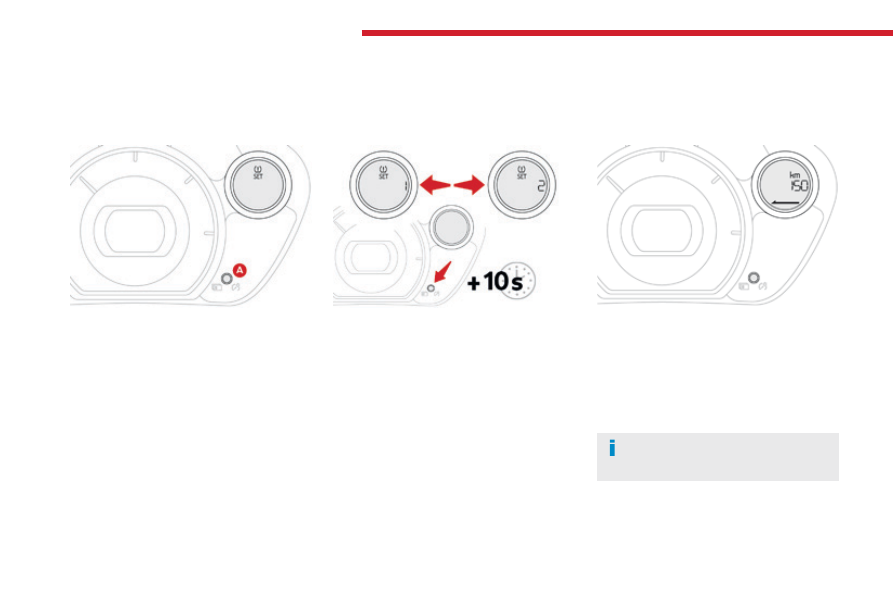

Under-inflation detection

Selecting the set of wheels and

tyres fitted

If you have previous registered a second set
of wheels and tyres with sensor, you have to
select the corresponding set in the instrument
panel screen after fitting them.
Carry out the following procedure to do this.
F Press button A

to select the system.

F Press and hold button A for more than

10 seconds

, to change from set of tyres

and wheels 1 to set 2 or the other way
round.

You have to reinitialise the under-inflation
detection system after adjusting one or more
tyre pressures or after changing one or more
wheels.
Carry out the following procedure to do this.
F Press button A

to select the system.

F Press and hold button A for at least

3 seconds

There is an audible signal and the under-
inflation warning lamp flashes slowly until the
initialisation is complete.

Access

C-Zero_en_Chap02_ouvertures_ed01-2016

System used for centralised locking or unlocking of the vehicle using the door lock barrel or from a distance. It is also used to start the vehicle, as well
as providing protection against theft.

Remote control key

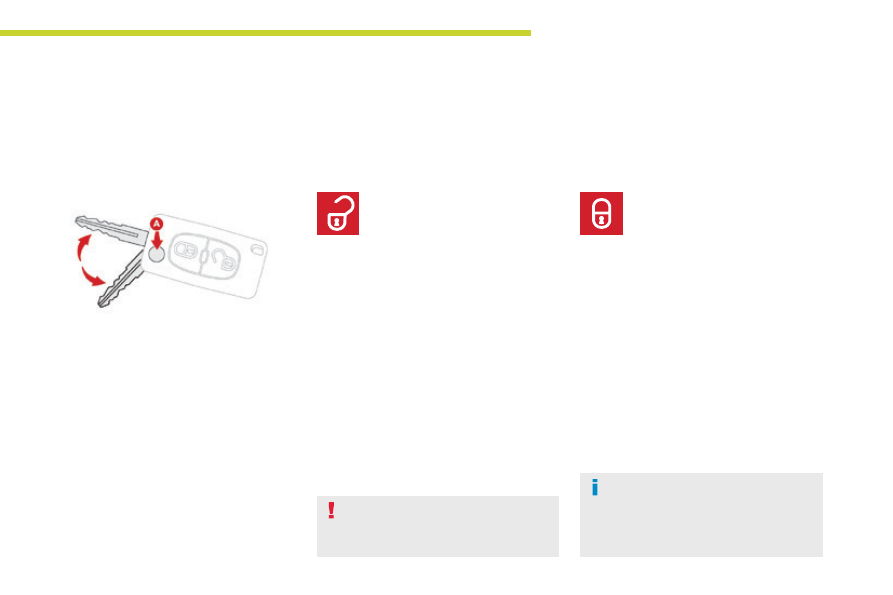

Unfolding / Folding the key

F Press button A

to unfold or fold the key.

Unlocking using the remote
control

Press the open padlock to unlock

the vehicle.

Locking the vehicle

Unlocking is confirmed by the interior lighting
which comes on for approximately 15 seconds
and the direction indicators which flash twice

Depending on version, the door mirrors unfold
at the same time.

Unlocking using the key

Turn the key to the right in the driver's

door

lock to unlock the vehicle.

Locking is confirmed by the interior lighting
which comes on for about 15 seconds and the
direction indicators which flash twice

On the other hand, the door mirrors do not
unfold.

Normal locking using the remote
control

Press the closed padlock to lock

the vehicle.

Locking is confirmed by the direction indicators
which come on once.
Depending on version, the door mirrors fold at
the same time.

Normal locking using the key

Turn the key to the left in the driver's door

lock to lock the vehicle.

Locking is confirmed by the direction indicators,
which flash once

On the other hand, the door mirrors do not fold.

The vehicle will lock itself again
automatically after thirty seconds
unless a door or the boot is opened.
This function avoids inadvertent
unlocking.

The passenger's door lock barrel does
not lock or unlock the other doors and/
or the boot.

Unlocking the vehicle

Access

C-Zero_en_Chap02_ouvertures_ed01-2016

Anti-theft protection

Electronic immobiliser

The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised to permit
starting.
This electronic immobiliser locks the control
system a few moments after the ignition is
switched off and prevents starting by anyone
who does not have the key.
In the event of a malfunction and if your vehicle
does not start, contact a CITROËN dealer as
soon as possible.

Remote control problem

In the event of a remote control malfunction,
you can neither unlock nor lock your vehicle.
F

First of all, use the key in the driver's door

lock to unlock or lock your vehicle.

Then, contact a CITROËN dealer to check

the operation of the remote control and
replace the battery if necessary.

Access

C-Zero_en_Chap02_ouvertures_ed01-2016

Lost keys

Visit a CITROËN dealer with the vehicle's V5 registration document and your personal
identification documents.
The CITROËN dealer will be able to retrieve the key code and the transponder code
required to order a replacement key.

Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working.
The remote control does not operate when the key is in the ignition, even when the ignition
is switched off.

Locking the vehicle

Driving with the doors locked may make access to the passenger compartment by the
emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the ignition when you
leave the vehicle, even for a short time.

Anti-theft protection

Do not make any modifications to the electronic immobiliser system; this could cause
malfunctions.

When purchasing a second-hand vehicle

Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your
possession are the only ones which can start the vehicle.

Access

C-Zero_en_Chap02_ouvertures_ed01-2016

Doors

From outside

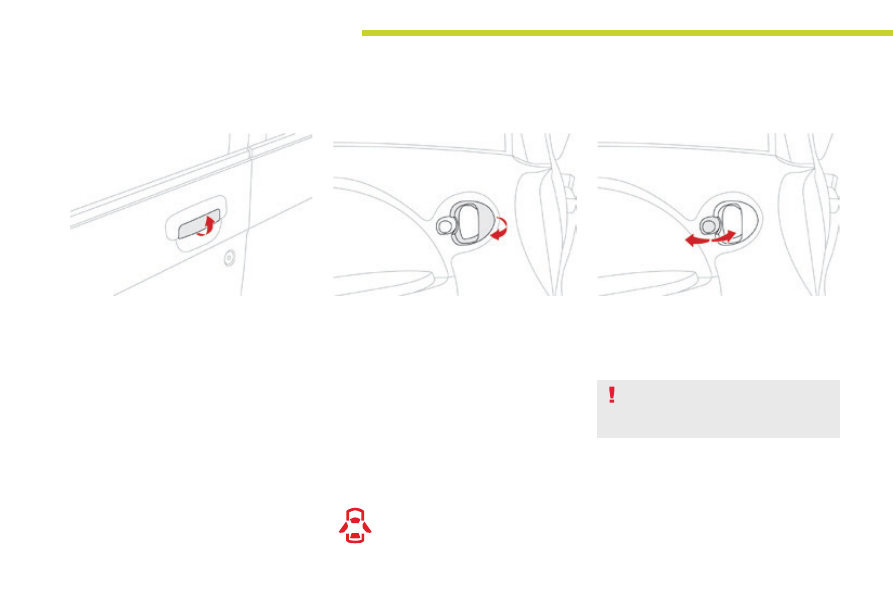

After unlocking the vehicle using the

remote control or the key, pull the door
handle.

From inside

F Pull the front or rear door control to open

the door.

If the doors are locked:
- opening the driver's door unlocks the other

doors,

- the front passenger or rear doors must

then be unlocked manually using the front
locking control before they can be opened.

If a door or the boot is not closed
correctly, this warning lamp comes on
in the instrument panel until the door
in question or the boot is closed.

Opening

Closing

Locking/ unlocking from
the inside

Press the button on the driver's door

towards the front to lock and towards the
rear to unlock the vehicle completely.

The buttons on the front and rear
passenger doors only lock / unlock the
door in question.

Access

C-Zero_en_Chap02_ouvertures_ed01-2016

Boot

Opening

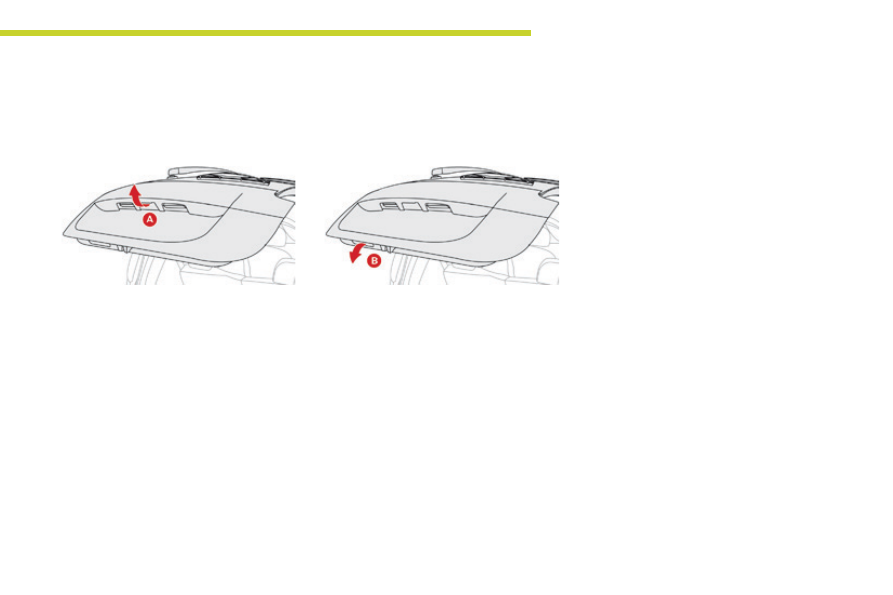

After unlocking the vehicle using the

remote control or the key, press the
handle A

and open the tailgate.

F Pull the handle B

downwards to guide the

tailgate down,

release the handle and press the exterior

surface of the tailgate gently to close it.

Closing

Access

C-Zero_en_Chap02_ouvertures_ed01-2016

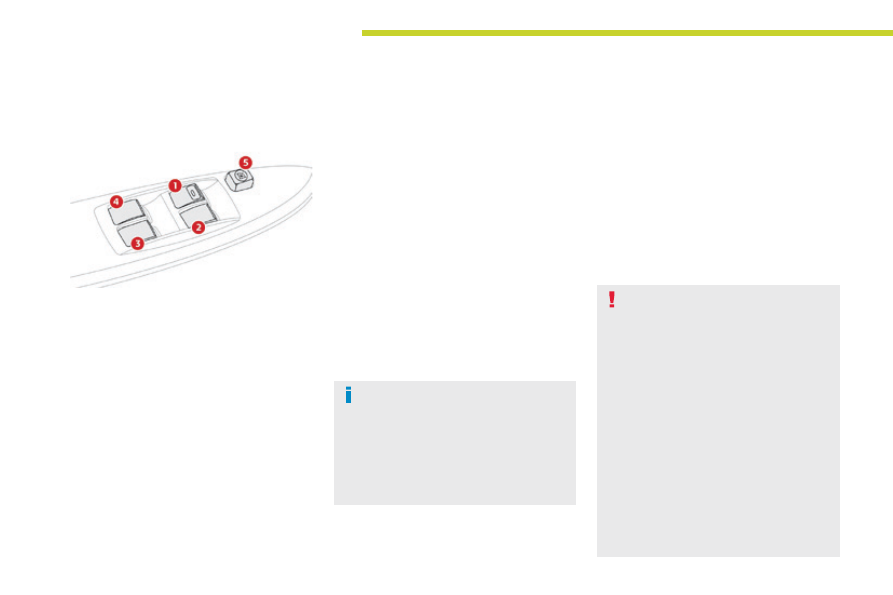

Driver's electric window.

Passenger's electric window.

Rear right electric window.

Rear left electric window.

Deactivating the passenger and rear

electric window switches.

Electric windows

Operation

Deactivating the passenger and
rear electric window switches

F For the safety of your children, press switch 5

to prevent operation of the passenger and rear
electric windows irrespective of their position.

When the button is pressed down, the switches are
deactivated.
When the button is raised, the switches are activated.

System which opens or closes a window manually or automatically. It is fitted with a deactivation system to prevent misuse of the rear controls.

The electric window switches
remain operational for approximately
30 seconds after the ignition is switched
off.
The windows can no longer be opened
or closed after the driver's door is
closed.

With the ignition on:
F

Press the switch gently to open or pull it

gently to close. The window stops as soon
as the switch is released.

Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.
When the driver operates the
passenger electric window switches,
they must ensure that no one
is preventing correct closing of
the windows.
The driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.

Automatic one-touch mode (driver's side)
F

Press the switch fully to open. The driver's

window opens completely when the switch
is released.

Pressing the switch again stops the

movement of the window.

Citroen C-Zero (2017 year). Instruction - part 2
