This handbook describes all of the equipment available in
the whole range.
Your vehicle will be fitted with some of the equipment
described in this document, depending on its trim level,
version and the specification for the country in which it
is sold.

The descriptions and illustrations are given without any
obligation. Automobiles CITROËN reserves the right
to modify the technical specifications, equipment and
accessories without having to update this edition of the
handbook.

This document is an integral part of your vehicle. It
should be passed on to the new user in the event of sale
or transfer.

safety warning

contributes to the protection of the
environment

additional information

CITROËN has a presence on every continent,

a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.

Happy motoring!

At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.

Contents

Instrument panel

Indicator and warning lamps

Main battery state of charge indicator

Energy consumption / generation indicator 20
Distance recorder

Trip distance recorder

Mirrors 36
Interior fittings

Ventilation

Heating

Air conditioning

Front demist - defrost

Rear screen demist - defrost

Remote control

Lighting controls

Automatic illumination of headlamps

Headlamp adjustment

Wiper control

Courtesy lamp

General safety recommendations

Hazard warning lamps

Automatic operation of brake lamps

Horn

Pedestrian horn

Emergency or assistance

Braking assistance systems

Trajectory control systems

Engine brake reduction indicator lamp

Seat belts

Airbags

Child seats

Deactivating the passenger front airbag

Ease of use and comfort

Lighting and visibility

Safety

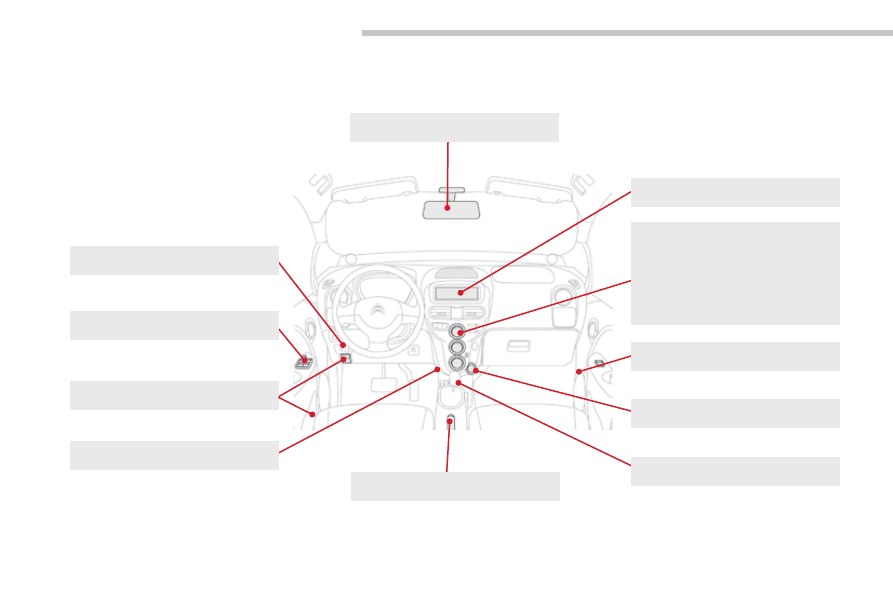

Overview

C-Zero_en_Chap00b_vue-ensemble_ed01-2016

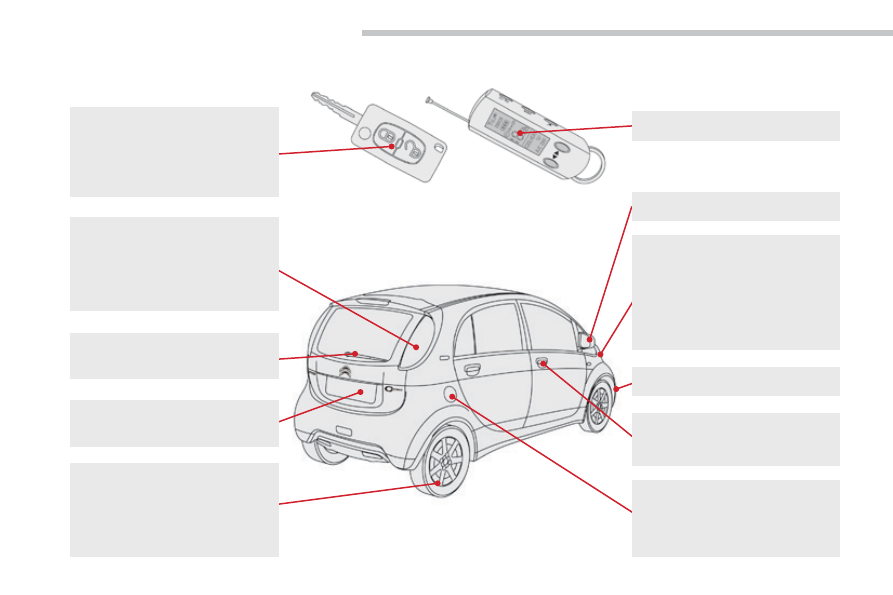

Exterior

Remote control key

25-27

- unfolding / folding the key

- unlocking / locking the vehicle
- anti-theft protection
Starting - Stopping the vehicle

Lighting

53-55

Headlamp height adjustment

Changing bulbs

126-131

- front lamps

- foglamps

- daytime running lamps
- direction indicator repeaters

Wipers

56-57

Changing a wiper blade

112

Door mirrors

Doors 28
- opening / closing
Electric windows

Charging flaps

Charging the main

battery

97-105

- normal
- fast

ABS, EBFD, EBA, ASR, ESP 63-65

Tyre pressures

143

Under-inflation detection

92-95

Changing a wheel

121-124

Snow chains

125

Boot

- opening / closing

Changing bulbs

131-133

- rear lamps
- 3

brake lamp

- number plate lamps

- foglamp

Towing

139

Remote control

47-52

Overview

C-Zero_en_Chap00b_vue-ensemble_ed01-2016

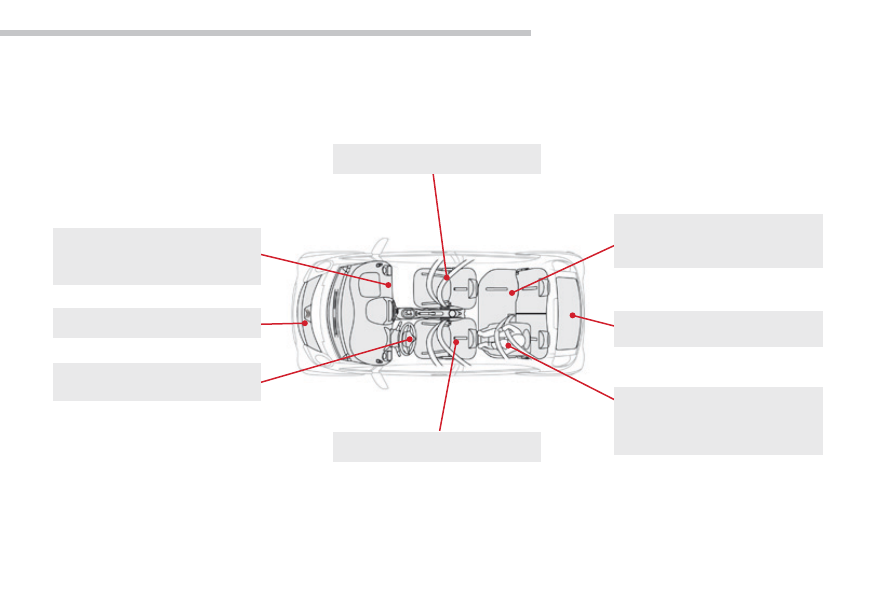

Interior

Rear compartment

Front compartment

Seat belts

Rear seats

Temporary puncture

repair kit

117-120

Mats

Airbags

70-73

Front seats

32-34

Child seats

74-82

ISOFIX mountings

ISOFIX child seats

84-85

Child lock

Interior fittings

38-40

Deactivating the passenger's

front airbag

Overview

C-Zero_en_Chap00b_vue-ensemble_ed01-2016

Electric windows

Dashboard fuses

Ventilation

Heating

Air conditioning

Front demist / defrost

Rear screen demist / defrost

12 V accessory socket

Parking brake

Rear view mirror

USB Player

Opening the bonnet

106

Instruments and controls

Opening the charging flaps

Audio system

145-162

Drive selector

90-91

Overview

C-Zero_en_Chap00b_vue-ensemble_ed01-2016

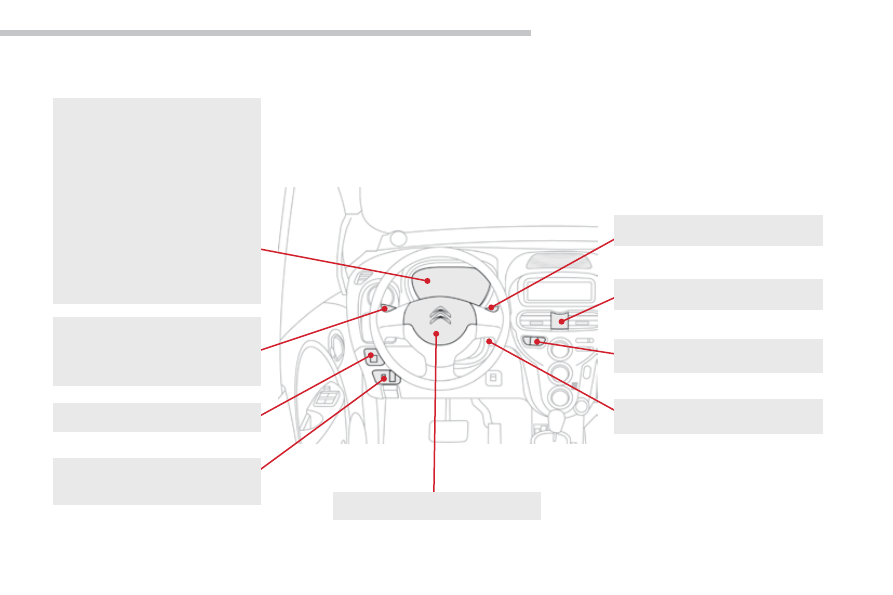

Instruments and controls (continued)

Lighting control

53-55

Direction indicators

Automatic operation

of brake lamps

Instrument panels

Warning lamps

11-18

Indicators

19-24

- main battery state of charge

indicator

- energy consumption /

generation indicator

-  speedometer
-  total distance recorder
-  trip distance recorder
-  lighting dimmer
-  service indicator
-  range indicator

Horn

Hazard warning lamps

Wiper control

56-57

Ignition switch, starting / stopping

the vehicle

Door mirrors

Emergency or assistance

call 61-62

Headlamp height adjustment

Pedestrian horn

Overview

C-Zero_en_Chap00b_vue-ensemble_ed01-2016

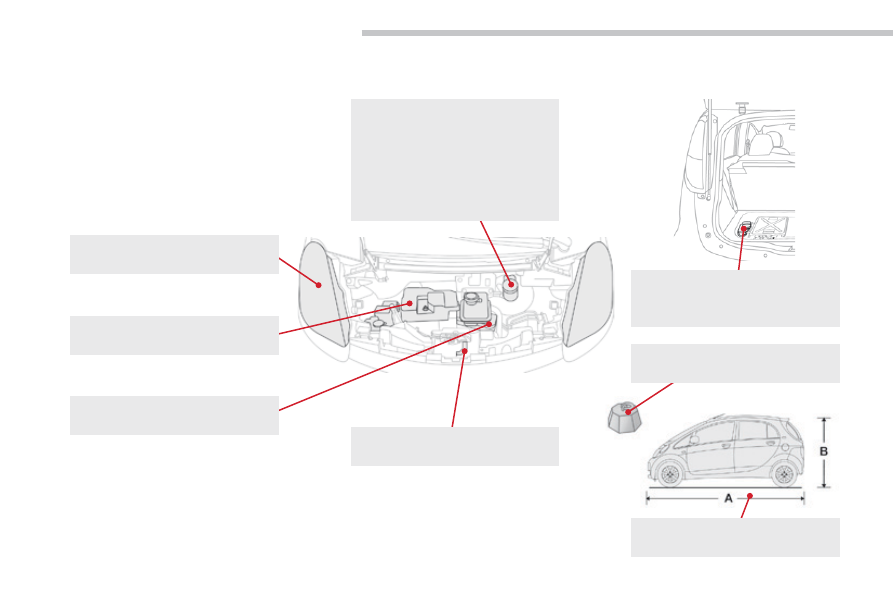

Technical data - Maintenance

Front compartment

107

Checking levels

109-110

- 12 V battery electrolyte
- brake fluid

- heating system fluid
- screenwash fluid
Checking components

Changing front bulbs

12 V battery

Opening the bonnet

Electric motor

Weights

Rear compartment

Checking the coolant

level 110

Front compartment

fuses

134 , 137-138

Dimensions

142

Identification markings

143

Eco-driving

C-Zero_en_Chap00c_eco-conduite_ed01-2016

For more economical driving, and increased range

Practical advice for everyday use to optimise the range of your vehicle by conserving battery power.

Adopt a smooth driving
style

The electrical consumption of your vehicle
depends greatly on your journey, your driving
style and your speed.
In all cases, adopt a smooth driving style.

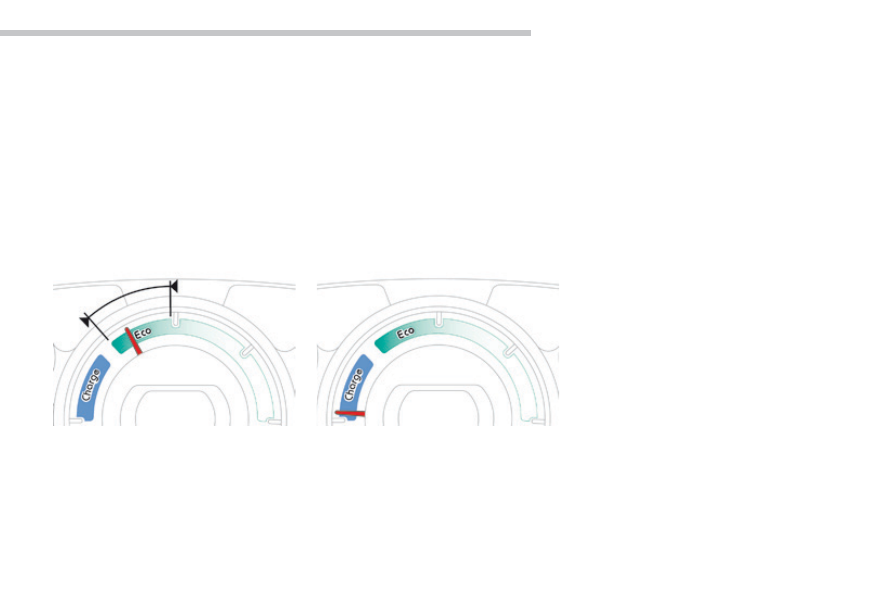

Stay in the "Eco" zone

indicated in the energy

consumption / generation meter: depress
the accelerator pedal progressively, without
sudden movement, and if the conditions permit,
drive at steady and moderate speed.

Recover energy

Anticipating the driving conditions allows you to
recover energy and increase the range of your
vehicle.

Use the "Charge" zone

of the energy

consumption / generation meter whenever
possible: anticipate the traffic slowing down
and if the conditions permit, use deceleration
rather than the brakes.

Control the use of your
electrical equipment

The heating and air conditioning systems
operate on energy from the main battery.
Excessive use of these systems greatly
reduces the range of your vehicle. Remember
to switch them off once the desired level of
comfort is reached and check their settings
every time you set off.
Control also the use of demisting / defrosting
and the heated seat.

Limit the causes of excess
consumption

As with any vehicle, limit the loads carried
in the vehicle and reduce wind resistance
(windows open above 30 mph (50 km/h), roof
bars, roof box, etc.).

Observe the recommendations
on maintenance

Check the tyre pressures regularly and
follow the schedule for routine servicing
recommended by CITROËN.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

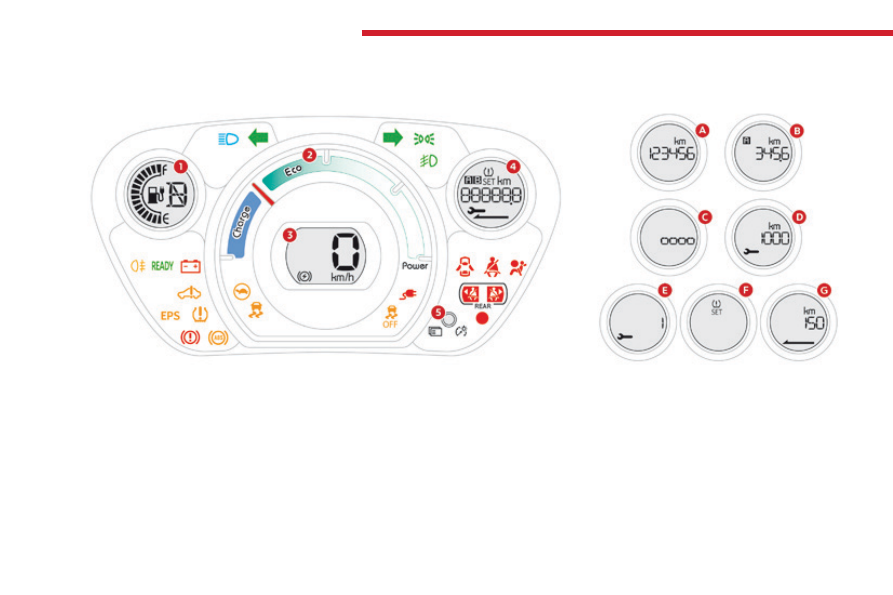

Instrument panel

Panel bringing together the various gauges and indicators for the operation of the vehicle.

1. State of charge indicator for the main

battery.

Drive selector position indicator.

2. Energy consumption / generation

indicator.

3. Speedometer.

Temporary engine brake reduction
indicator.

A.  Total distance recorder.
B.  Trip distance recorder (Trip A or B).
C.  Instrument panel lighting dimmer.
D.  Distance remaining to the next service.
E.  Time remaining to the next service.
F.  Under-inflation detection.
G.  Remaining range.

4. Screen.
5. Screen control button.

Display the various functions in turn.

Reset the function selected (trip recorder
or service indicator).

Adjust the level of the lighting dimmer.

Gauges and indicators

Screen

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

Indicator and warning lamps

Visual indicators informing the driver that a
system is in operation, is deactivated or has
a fault.

Associated warnings

The illumination of certain warning lamps may
be accompanied by an audible signal.
The warning lamps may come on continuously
(fixed) or flash.

Certain warning lamps may come on in
one of two modes. Only by relating the
type of lighting to the operating status
of the vehicle can it be ascertained
whether the situation is normal or
whether a fault has occurred.

When the ignition is switched on

Certain warning lamps come on for a few seconds
when the vehicle's ignition is switched on.
These same warning lamps go off after a few
seconds.
If you notice one of these warning lamps
remaining on, refer to the information on the
warning lamp in question.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

Operation indicator lamps

Warning / indicator lamp

State

Cause

Action / Observations

Left-hand
direction
indicator

Flashing with audible
signal.

The lighting stalk is pushed down.

Right-hand
direction
indicator

Flashing with audible
signal.

The lighting stalk is pushed up.

Hazard warning
lamps

Flashing with audible
signal.

The hazard warning lamps switch,
located on the dashboard, has been
operated.

The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.

Sidelamps and/
or dipped beam
headlamps

On fixed.

The sidelamps and/or dipped beam
headlamps are on.

Front foglamps

On fixed.

The front foglamps are switched on.

Turn the ring on the stalk rearwards twice to switch off
the front foglamps.

Rear foglamp

On fixed.

The rear foglamp is switched on.

Turn the ring on the stalk rearwards to switch off the
rear foglamp.

Main beam
headlamps

On fixed.

The lighting stalk is pulled towards
you.

Pull the stalk to return to dipped beam headlamps.

If one of the following indicator lamps comes on in the instrument panel, this confirms that the corresponding system has come into operation.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

Warning / indicator lamp

State

Cause

Action / Observations

Ready
(ready to move
off)

On fixed,
accompanied by an
audible signal when it
comes on.

The vehicle is ready to move off and
you can press the accelerator.

The illumination period corresponds to the powering-up
of the vehicle.

Parking brake

On fixed.

The parking brake is applied or not
properly released.

Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the Parking brake, refer to
the corresponding section.

Main battery
charge (normal
or fast)

On fixed.

The main battery is on charge.

On completion of the charge, the lamp goes off.

Flashing.

The charging cable is connected to
the vehicle but the main battery is not
yet charging.

Check the connection of the charging cable.

Instruments

C-Zero_en_Chap01_instruments-de-bord_ed01-2016

Deactivation indicator lamps

Warning / indicator lamp

State

Cause

Action / Observations

Passenger's
airbag system

On fixed, on the
centre console.

The control switch, located in the
glove box, is set to the OFF position.
The passenger's front airbag is
deactivated.

Set the control switch to the ON position to activate
the passenger's front airbag. In this case, do not fit a
child seat in the rear-facing position.
Remember to check the state of the control switch
before starting your vehicle.

ESP/ASR

On fixed.

The ESP/ASR off switch, located at
the bottom of the dashboard (driver's
side) is activated.
The ESP/ASR is deactivated.
ESP: electronic stability programme.
ASR: anti-slip regulation.

Press the button to activate the ESP/ASR.
The ESP/ASR system is automatically activated on
starting the vehicle.

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This may be accompanied by an audible signal.

Citroen C-Zero (2017 year). Instruction - part 1
