VISIBILITY

62 -

  Dipped/Main beam change
Pull the stalk towards you.
  Note:   with  the  ignition  off,  when  the
driver's  door  is  opened,  a  buzzer
sounds if you have left your lights on.

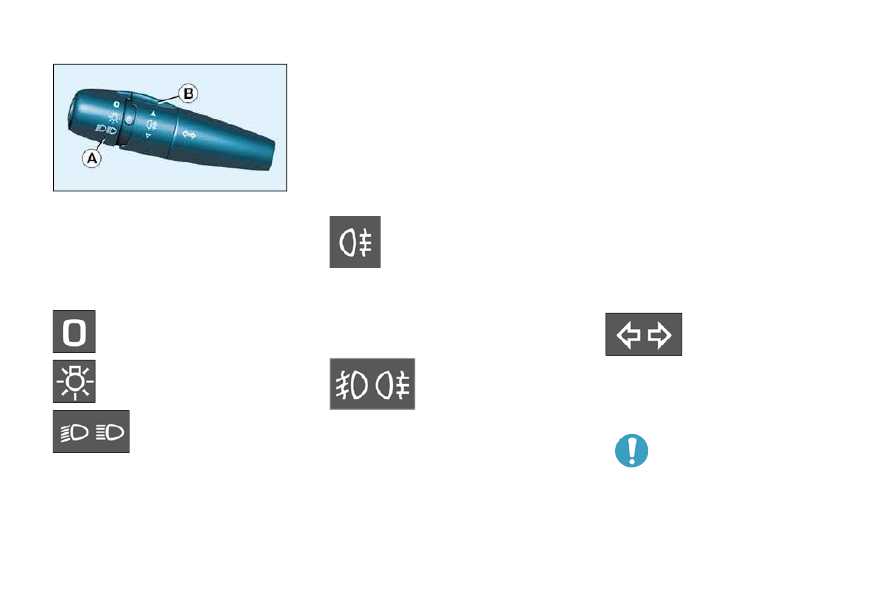

LIGHTS STALK

Lights off

Side lights

Dipped/Main beam
headlamps

Front fog lamps and rear fog
lamp

Rotate the ring forwards to switch on
and backwards to switch off. The sta-

tus is conﬁ rmed by the indicator light

on the instrument panel.

  "Follow-me-home" lighting
In poor light, or at night, if you leave
your  vehicle,  the  side  lights  and
dipped headlamps may remain on for
approximately one minute.
To activate this function:
   -

place the key in the STOP position,

place the lights stalk in position 0 ,

- ﬂ ash the headlamps,
-

exit the vehicle and lock it.

In  good  or  rainy  weather,
both day and night, the front
fog  lamps  and  the  rear  fog
lamp  are  dazzling  and  are
prohibited.

Do not forget to switch them off when
they are no longer needed.

Left: downwards.
Right: upwards.

Direction indicators (ﬂ ashers)

Vehicles ﬁ tted with a rear

fog lamp only (ring B)

Vehicles ﬁ tted with

front fog lamps and
a rear fog lamp

(ring B)

Front fog lamps (ﬁ rst rotation of the

ring forwards).
Front and rear fog lamps (2nd rotation
of the ring forwards).
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.

Front and rear lights

Selection is by turning ring A.

Rotate the ring forwards.
This only operates with the dipped/
main beam headlamps.

VISIBILITY -

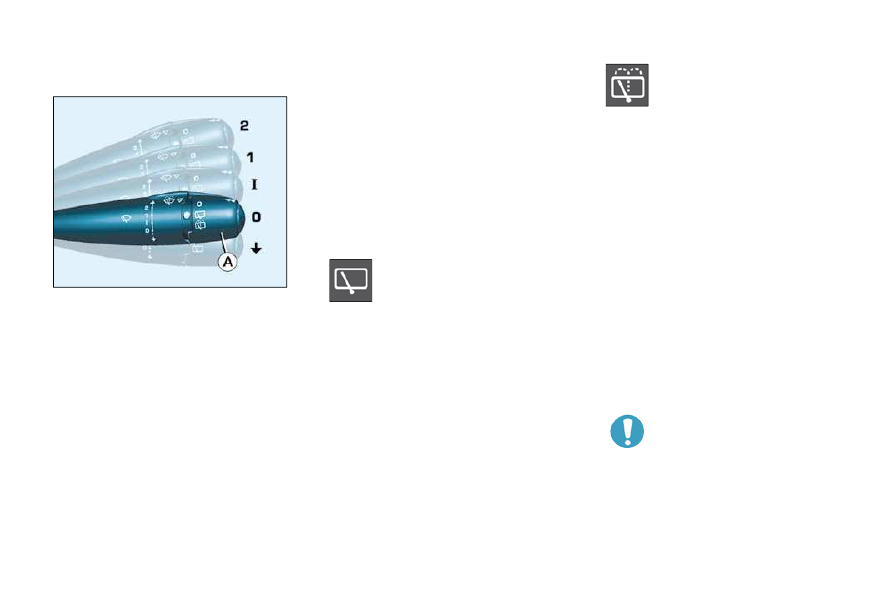

Windscreen wipers

2 Fast wipe

(heavy rain).

1 Normal wipe

(moderate rain).

Intermittent wipe.

0 Off.
 Single wipe

(press downwards).

WINDSCREEN WIPER STALK

Windscreen and headlamp wash

(according to country)
Pull  the  windscreen  wiper  stalk  to-
wards  you.  The  windscreen  wash
then  the  windscreen  wipers  operate

for a ﬁ xed period.
The headlamp wash is also activated,
if the headlamps are on.

Rear windscreen wiper

Turn ring A

to the ﬁ rst notch.

The wiping speed is inverse-
ly proportional to the speed
of the vehicle.

In winter, in the event of a
considerable amount of snow
or ice, switch on the rear win-
dow demister. Once deicing
is complete, remove the snow

or ice which has accumulated on the
rear wiper blade. You can now ope-
rate the rear windscreen wiper.

Rear windscreen wash
Turn ring A

past the ﬁ rst

notch: the windscreen wash
then the windscreen wiper

operate for a ﬁ xed time.

  Operation
In  position   1   or   2 ,  when  the  vehicle
stops, the windscreen wiper changes
to a lower wiping speed, then resumes
its initial speed when the vehicle starts
again.
In the  I ntermittent position, the wiping
speed is proportional to the speed of
the vehicle.

Automatic rear windscreen
wiping
 place the front wipers stalk in a

position other than 0 ,

 engage reverse gear,
 the rear wiper operates with inter-

mittent wiping.

  Note : if a bicycle carrier is used, con-
tact  a  CITROËN  dealer  to  have  this
function disarmed.

VISIBILITY

64 -

ELECTRIC WINDOWS

Always remove the ignition
key when leaving the vehicle,
even for a short time.
If an obstacle is encountered
while the electric windows

are  in  use,  you  must  reverse  the
movement of the window. To do this,
press the switch concerned.
When  the  driver  operates  the  pas-
senger  electric  window  switches,  he
must  ensure  that  no  one  is  prevent-
ing correct closing of the windows.
The driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.

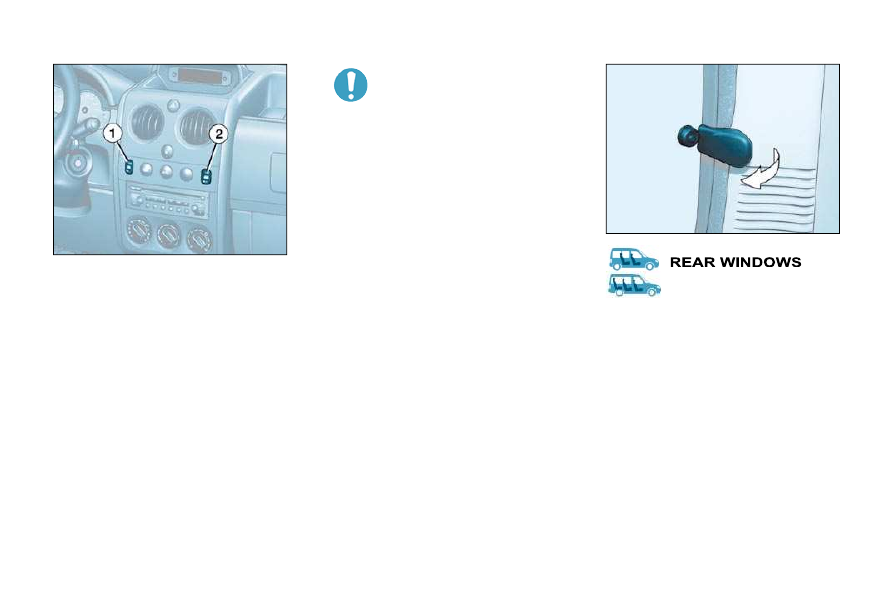

1. Driver's electric window

switch

2. Passenger electric window

switch

You have two options:
-

Manual operation:

Press switch 1 . The window
stops as soon as the switch is re-
leased.

Automatic operation (driver):

Press and hold switch 1 . One
touch completely opens or closes
the window.

Automatic closing only operates
when the engine is running.

To partially open the rear windows,
tilt the lever and push it fully to lock
the windows in the open position.

VISIBILITY -

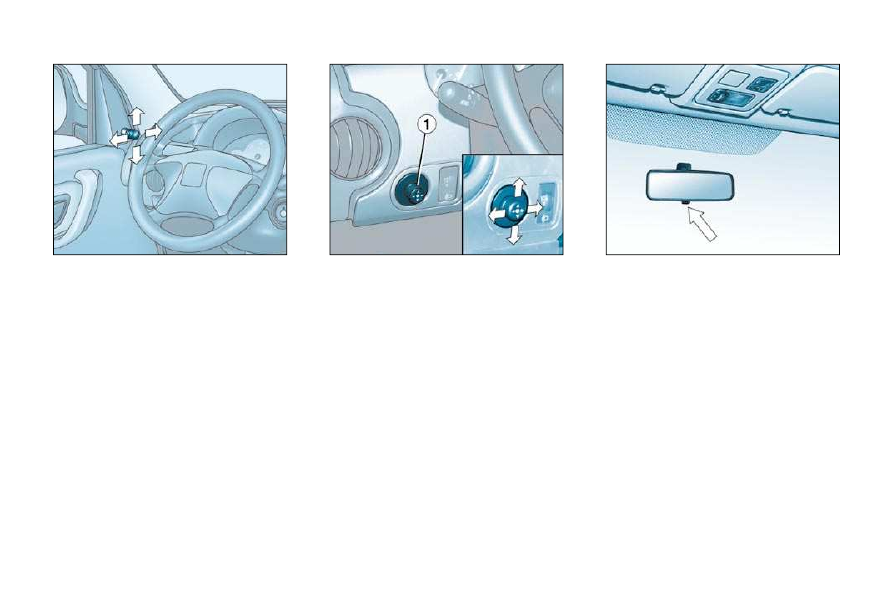

THE EXTERIOR MIRRORS

Passenger side exterior
mirror electric control

From the driver's seat, move the con-
trol 1 in all four directions to adjust.

THE MANUAL INTERIOR
MIRROR

Manual mirrors

Move  the  lever  in  all  four  directions
to adjust.
When  the  vehicle  is  parked,  the  ex-
terior  mirrors  can  be  folded  back
manually.

The interior mirror has two positions:
-

day (normal),

night (anti-dazzle).

To  change  from  one  to  the  other,
push  or  pull  the  lever  on  the  lower
edge of the mirror.

LIFE ON BOARD -

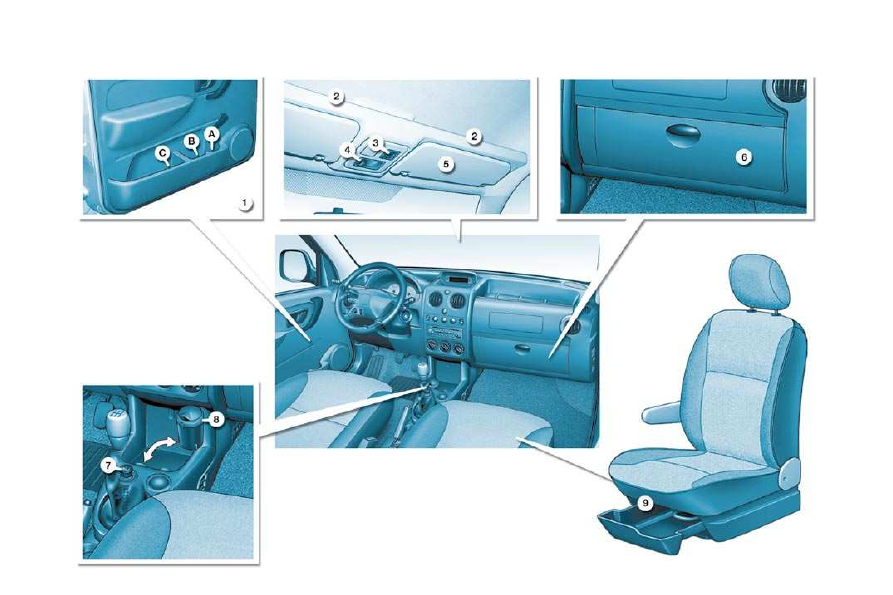

FRONT LAYOUT

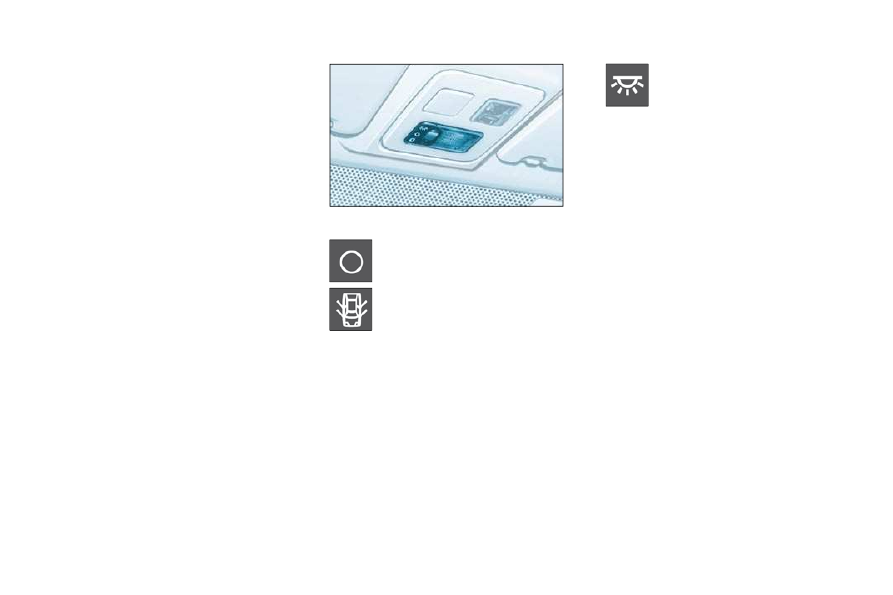

4. Courtesy lights

5. Sun visors

Permanently off.

On entering the vehicle:

they come on when the
vehicle is unlocked or
when a door is opened,

they  switch  off  after  approxi-
mately 30 seconds with the doors
closed,  or  when  the  ignition  is
switched on.

On leaving the vehicle:
-

they come on when the key is re-
moved from the ignition (timing
of approximately 30 seconds) or
when a door is opened,

they switch off after approximately
30 seconds  with  all  of  the  doors
closed,  or  immediately  when  the
vehicle is locked.

In this position, the courtesy light may

ﬂ ash while driving if a door is not closed

correctly.
If a door is open, it will switch off auto-
matically after approximately 10 minutes
or when the ignition is switched on.

Permanently on when the
key is in the accessories po-
sition or the ignition is on.

  1. Storage in the doors
   A.   Bottle holder.
  B.   Can holder.
  C.   Storage compartment.

2. Overhead storage
Maximum load: 5 kg .

3. Map reading lights
Turn the dial to the right or to the left
to switch them on.
Place the dial in the centre to switch
them off.

6. Glove box

7. Lighter
It permits the connection of a telephone
charger, a baby's bottle warmer, ...

8. Removable ashtray
Pull the cover to open the ashtray.
To empty, after opening, remove it by
pulling upwards.

9. Storage drawer (passenger)
To open the drawer, lift it slightly and
pull it forwards.

LIFE ON BOARD

68 -

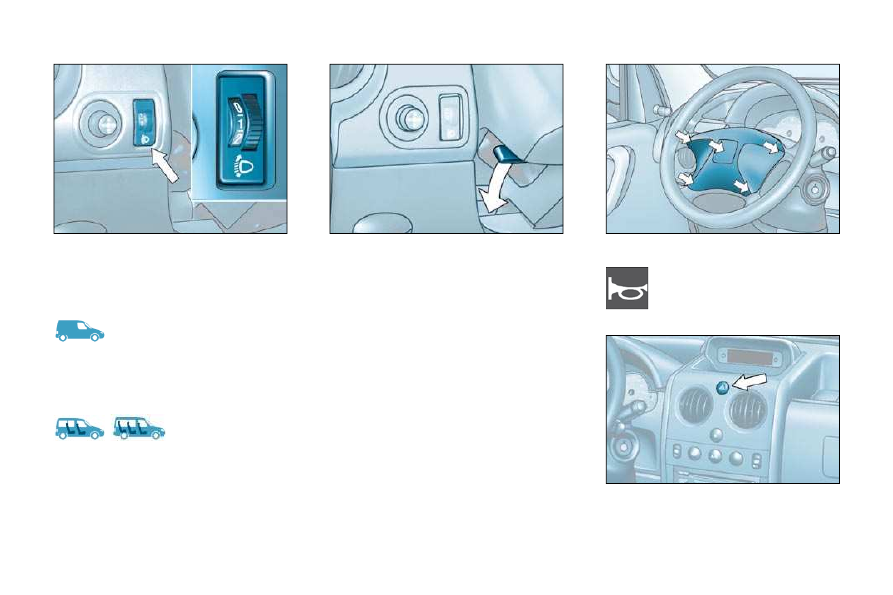

STEERING WHEEL HEIGHT
ADJUSTMENT

HEADLAMP ADJUSTMENT

HORN

HAZARD WARNING LIGHTS

Press the button, the direction indicators

ﬂ ash.
They can operate with the ignition off.

Press one of the spokes or
the centre of the steering
wheel.

   0 -   With no load.
  1 -   With partial load.
  2 -   With average load.
  3 -   With maximum authorised load.

   0  -  1 or 2 people in the front seats.
  -   -  3 people.
  1  -  5 to 7 people.
  2 -   5 to 7 people + maximum autho-

rised load.

3 - Driver + maximum authorised load.

Initial setting is position 0.

Depending on the load in your vehicle,
it is recommended that the headlamp
beam is adjusted.

When stationary, lower the handle to
unlock the steering wheel.
Adjust to the desired height and
lift the handle to lock the steering
wheel.

LIFE ON BOARD -

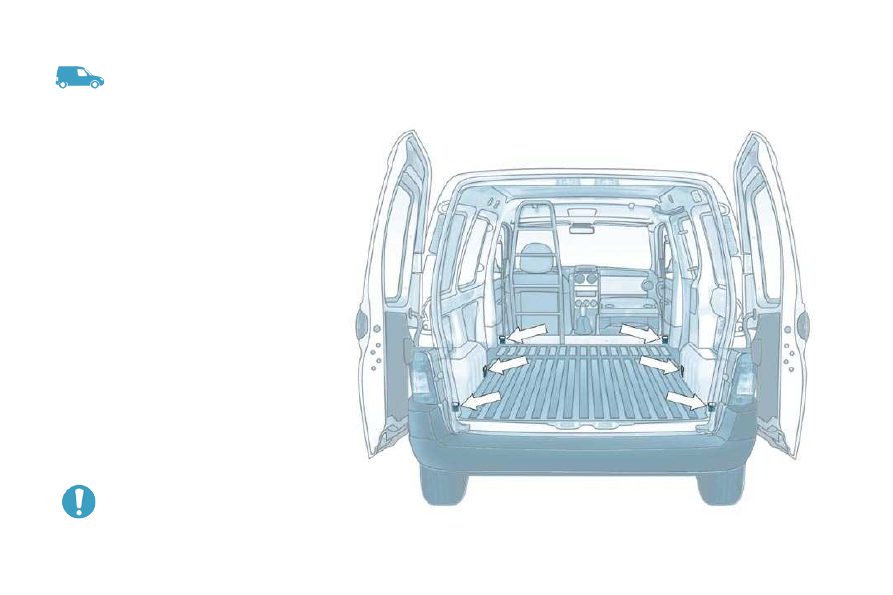

LASHING RINGS

It is recommended that the
load is immobilised by secur-

ing it ﬁ rmly using the lashing

rings on the ﬂ oor.

Use the 6 lashing rings on the lug-

gage compartment ﬂ oor to secure

your loads.
You can use suitable load retainers
(half-height partitions, grille, etc.)
supplied by the CITROËN network.

LIFE ON BOARD -

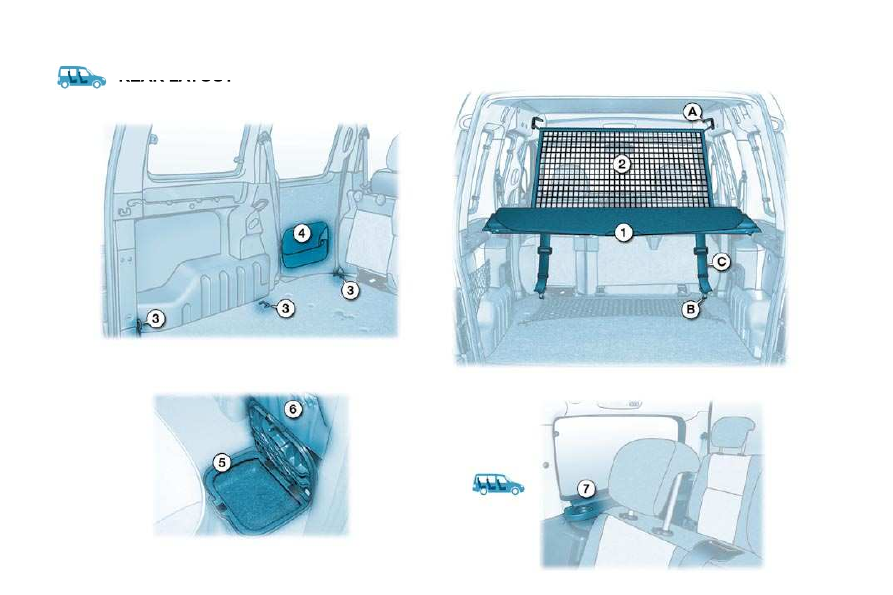

1. Load-space cover
To install it:
-

position the front ends of the load
space cover on its support and
press gently to put it in place,

unfold the load space cover fully,

position the rear ends of the load
space cover on its support and
press gently to put it in place.

To remove it:
-

unclip the rear ends,

fold the load space cover fully,

unclip the front ends and remove
the load space cover.

To store it, fold it like an accordion.
Do not roll it .

2. High load retaining net
The high load retaining net can be ﬁ tted

behind the front or rear seats.
Open the covers  A  of the correspond-
ing upper fastenings.
Fit the ends of the metal bar in these
fastenings.
Secure  the  two  net  strap  hooks  be-
hind  the  front  seats,  with  the  rear
seat folded, or in the stowing rings  B

on the ﬂ oor.
The rings are located directly below
the corresponding upper fastenings.
Pull the two straps C taut.

3. Stowing rings

4. Side door storage

compartments

5. Trays between the front and

rear seats

6. Seat back storage pockets

7. Cup holder

DRIVING

72 -

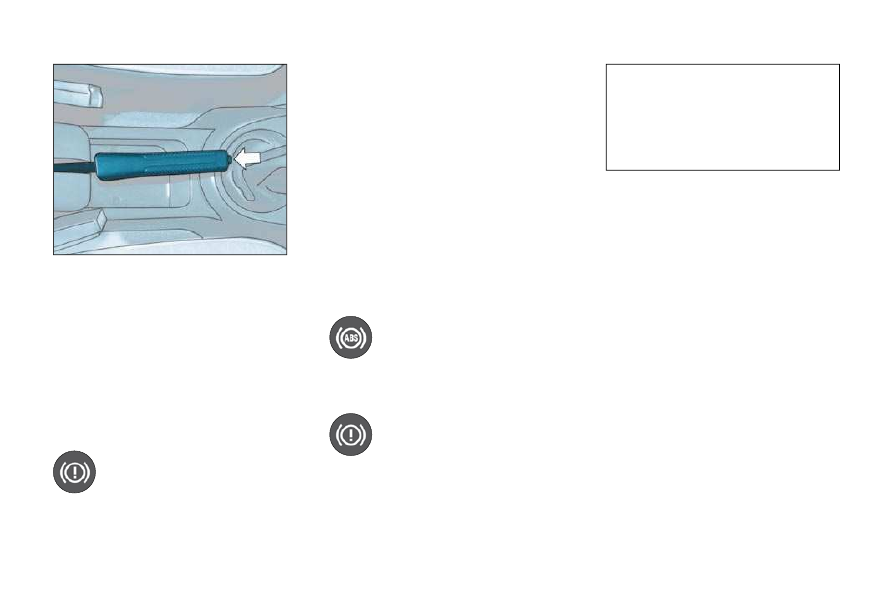

HANDBRAKE

Illumination  of  this  warning
light and of the  STOP  warn-
ing  light,  accompanied  by
an  audible  signal  (while  the

vehicle is moving), indicates that the
handbrake is still applied or has not
been released fully.

ANTI-LOCK BRAKING
SYSTEM (ABS) AND THE
ELECTRONIC BRAKE FORCE
DISTRIBUTION (EBFD)

The  ABS,  in  conjunction  with  the
electronic  brake  force  distribution,
increases  the  stability  and  manoeu-
vrability  of  your  vehicle  on  braking,
in particular on poor or slippery road
surfaces.
  Note:   when  changing  wheels  (tyres
and rims), make sure that these are
approved.
The anti-lock braking system comes
into  operation  automatically  when
there is a risk of wheel lock.

When this warning light comes
on,  connected  to  the   STOP
and   ABS   warning  lights,  it
indicates  that  there  is  a  mal-

function  of  the  electronic  brake  force
distribution, which can cause a loss of
control of the vehicle when braking.
  Stop immediately.
In  both  cases,  consult  a  CITROËN
dealer.

When

this

warning

light

comes on, accompanied by a
buzzer, it indicates that there
is a malfunction of the ABS,

which can cause a loss of control of
the vehicle when braking.

Normal operation of the ABS may
make itself felt by slight vibrations
of the brake pedal.
In emergency braking, press

very ﬁ rmly without releasing the

pressure.

Releasing
Pull the handle and press the button
to release the handbrake.

Applying
When parking, pull the handbrake to
immobilise your vehicle.

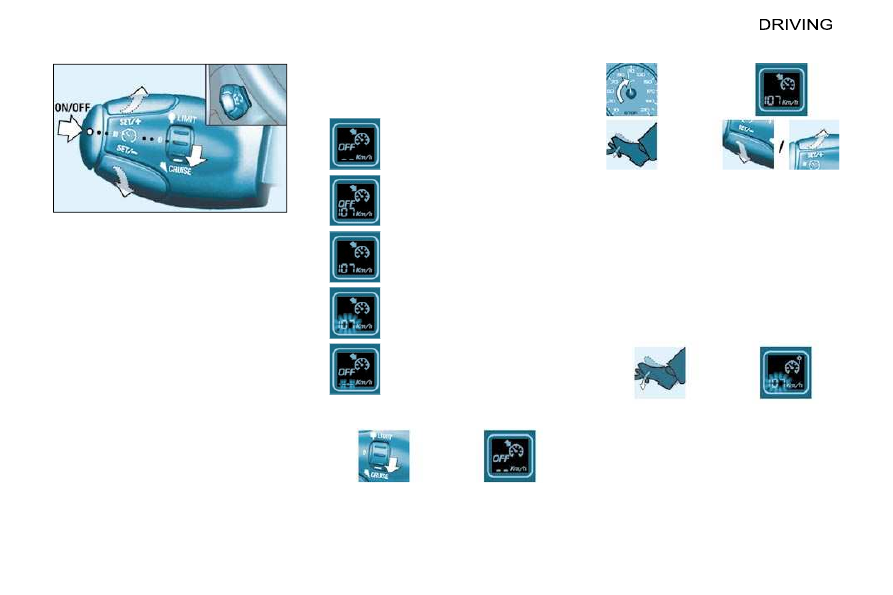

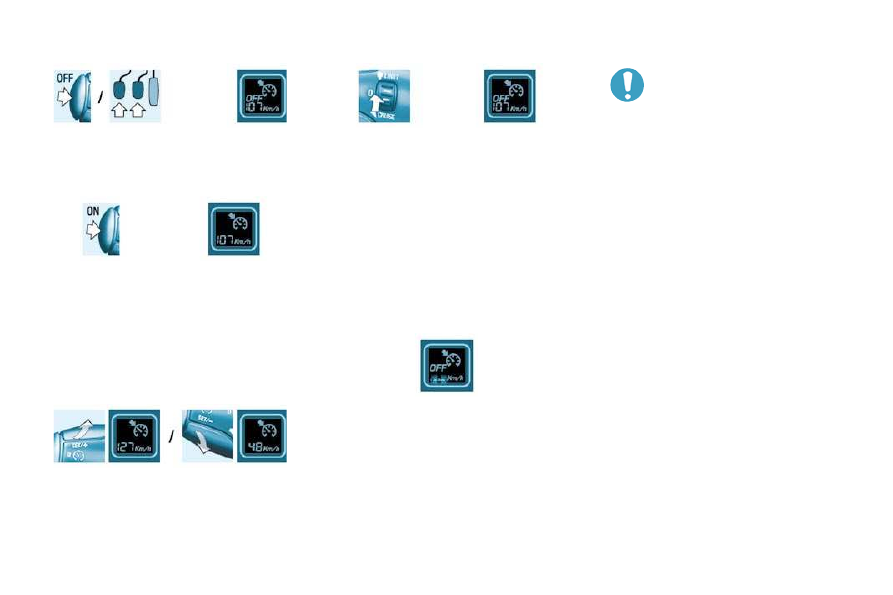

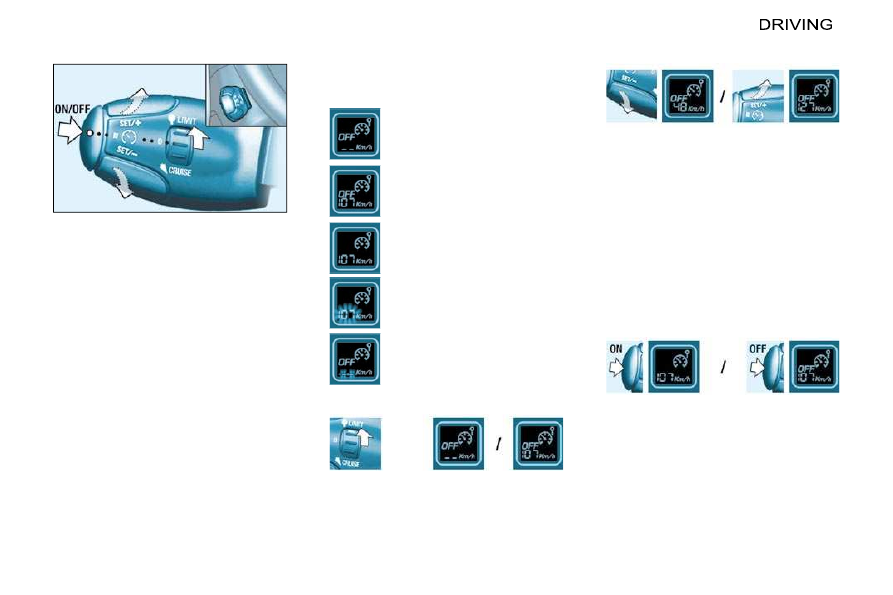

SPEED LIMITER *

The status of the function is displayed
on the instrument panel in accord-
ance with the following sequences:

Function selected,
displaying of the "Speed
Limiter" symbol.

Function deactivated,
last programmed speed - OFF
(example at 66 mph
(107 km/h)).

Function activated
(example at 66 mph (107 km/h)).

Vehicle speed above
66 mph (107 km/h),
the programmed speed is

displayed ﬂ ashing.

Operating fault detected,

OFF - the dashes ﬂ ash.

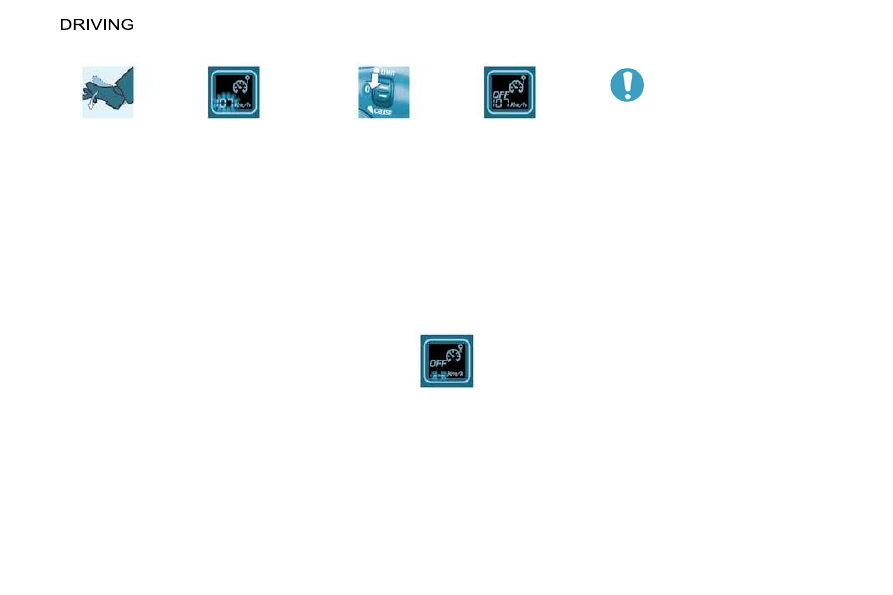

Selecting the function
 Place the dial in the LIMIT position.

The limiter is selected but is not yet
active. The display indicates dash-
es or the last programmed speed.

Programming a speed
A speed can be programmed without
activating the limiter but with the en-
gine running.
 A brief or extended press of the

SET -

button

decreases

the

speed.

 A brief or extended press of

the SET + button increases the
speed.

  Activation/deactivation (off)
When  you  have  programmed  your
speed, pressing this button once acti-
vates the limiter and the programmed
speed is displayed, pressing the but-
ton again deactivates it (OFF).

The operating actions must be carried

out when stationary, with the engine

running, or with the vehicle moving.

* According to version.

74 -

Exceeding the programmed

speed
Pressing the accelerator pedal in or-
der to exceed the programmed speed
will have no effect unless you press
the pedal

ﬁ rmly beyond the point of

resistance .
The limiter is deactivated temporarily
and the programmed speed which is

still displayed ﬂ ashes.

Flashing of the speed

The speed ﬂ ashes:
-

following forcing of the accelerator
point of resistance,

when the limiter cannot prevent
an increase in the vehicle speed

due to the proﬁ le of the road or on

a steep descent,

in the event of sharp acceleration.

  In  any  event,  the  speed  lim-
iter cannot replace the need
to  observe  speed  limits,  nor
can  it  replace  the  need  for
vigilance  and  responsibility
on the part of the driver.

The driver must always pay attention

to the proﬁ le of the road, take care

on sharp acceleration and remain in
perfect control of his vehicle.
To prevent the mat from becoming
trapped under the pedals:
- ensure that the mat and its ﬁ xings

are positioned correctly,

never ﬁ t one mat on top of another.

Switching the function off
 Place dial in position 0 or switch

off  the  ignition  to  switch  the  sys-
tem  off.  The  last  programmed
speed remains in the memory.

Operating fault
In the event of a limiter malfunction,
a message is displayed on the multi-
function display accompanied by an
audible signal.
The programmed speed is cleared and

the dashes ﬂ ash for a few seconds.
Contact a CITROËN dealer to have
the system checked.

To return to the limiter function, re-
duce your speed to the programmed
speed or below.

CRUISE CONTROL *

The status of the function is displayed
on the instrument panel in accord-
ance with the following sequences:

Function selected,
displaying of the "Cruise
Control" symbol.

Function deactivated,
OFF (example at 66 mph
(107 km/h)).

Function activated
(example at 66 mph (107 km/h)).

Vehicle speed above
(e.g. 73 mph (118 km/h)),
the programmed speed is

displayed ﬂ ashing.

Operating fault detected,

OFF - the dashes ﬂ ash.

Selecting the function
 Place the switch in the CRUISE

position. The cruise control is se-
lected but is not yet active and no
speed has been programmed.

First activation/programming a
speed
 Reach the chosen speed by

pressing the accelerator.

     Press the  SET -  or  SET +  button.
This  programmes  the  reference
speed  and  the  vehicle  will  maintain
this speed.

Temporary exceeding of the

speed
It is possible to accelerate and drive
momentarily at a speed greater than
the programmed speed. The value

programmed ﬂ ashes.
When  the  accelerator  pedal  is  re-
leased,  the  vehicle  will  return  to  the
programmed speed.

The cruise control has a display on
the instrument panel to indicate the
programmed reference speed.

The  cruise  control  maintains  a  con-
stant  vehicle  speed  programmed  by
the driver.
In  order  for  it  to  be  programmed  or
activated, the vehicle speed must be
greater  than  25  mph  (40  km/h)  with
at least fourth gear engaged.
If the vehicle is ﬁ tted with a speed lim-

iter and cruise control, these functions
cannot be activated at the same time.

* According to version.

DRIVING

76 -

When  changing  the  pro-
grammed  reference  speed
by  means  of  a  maintained
press,  pay  attention  as  the
speed  can  increase  or  de-
crease rapidly.

Do not use the cruise control on slip-

pery roads or in heavy trafﬁ c.
In  the  event  of  a  steep  slope,  the
cruise  control  cannot  prevent  the
vehicle  from  exceeding  the  pro-
grammed speed.
In any event, the cruise control can-
not  replace  the  need  to  observe  the
speed  limits,  nor  can  it  replace  the
need  for  vigilance  and  responsibility
on the part of the driver.
It is advisable to leave your feet near
the pedals.
To  prevent  the  mat  from  becoming
trapped under the pedals:
   -   ensure that the mat and its ﬁ xings

are positioned correctly,

never ﬁ t one mat on top of another.

Deactivation (off)
 Press this button or the brake or

clutch pedal.

Changing the programmed

reference speed
When the speed is displayed:
 press SET + button to increase it.
 press the SET - button to decrease it.

Reactivation
 Following deactivation of the

cruise control, press this button.

Your vehicle will return to the last
programmed speed.
Alternatively, you can repeat the "ﬁ rst

activation" procedure.

Switching the function off
 Place the dial in position 0 or

switch off the ignition to switch
everything off.

  Operating fault
In  the  event  of  a  cruise  control  mal-
function,  a  message  is  displayed  on
the  multifunction  display  accompa-
nied by an audible signal.
The  programmed  speed  is  cleared

and the dashes ﬂ ash for a few se-

conds.
Contact a CITROËN dealer to have
the system checked.

Cancelling the programmed

reference speed
When  the  vehicle  becomes  station-
ary,  after  switching  off  the  ignition,
the  system  no  longer  memorises  a
speed.

DRIVING -

FRONT AIRBAGS

These are folded in the centre of the
steering  wheel  for  the  driver  and  in
the  fascia  for  the  front  passenger.
They  are  deployed  simultaneously,
except  in  cases  where  the  passen-
ger air bag is disarmed, in the event
of  a  serious  front  impact  applied  in
the impact zone  A  in the longitudinal
centreline  of  the  vehicle,  on  a  hori-
zontal plane and from the front of the
vehicle towards the rear. The air bag

inﬂ ates between the front occupant of

the vehicle and the fascia to cushion
his forward movement. The airbags
therefore limit the risk of injury to the
head and chest.

The airbags have been designed to
maximise the safety of the occupants
in the event of serious collisions. They
work in conjunction with the force-lim-
iting seat belts. The electronic detec-
tors register and analyse any abrupt
deceleration of the vehicle in the im-
pact detection zones (see diagram):
if the triggering threshold is reached,

the airbags inﬂ ate instantly and pro-

tect the occupants of the vehicle.

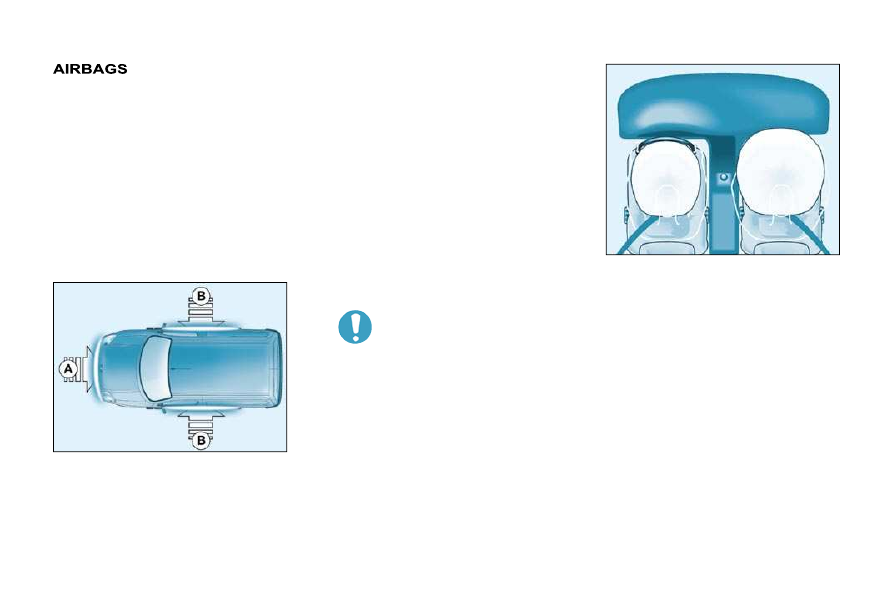

  Impact detection zones
   A.   Front impact zone.
  B.   Side impact zone.

Immediately after the impact, the

airbags deﬂ ate rapidly so that they

do  not  hinder  the  visibility  of  the  oc-
cupants  nor  their  exit  if  necessary
from the vehicle.
The  airbags  are  not  deployed  in  the
case  of  minor  impacts,  rear  impacts
or in certain roll-over conditions. The

seat belt is sufﬁ cient to ensure maxi-

mum  protection  in  these  situations.
The  seriousness  of  a  collision  de-
pends  on  the  nature  of  the  obstacle
and  the  speed  of  the  vehicle  at  the
moment of the collision.

Airbags only operate when the ig-

nition is switched on.

  Note : the gas escaping from
the  airbags  can  be  a  minor
irritant.

Citroen Berlingo First Dag (2010 year). Instruction - part 5
