Citroen Berlingo First Dag (2010 year). Instruction

COMFORT -

VENTILATION

1. Windscreen de-icing or

demisting vents.

2. Front window de-icing or

demisting vents.

  3.   Side vents.
  4.   Centre vents.
  5.   Air outlets to front footwells.

The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate  the  air  conditioning  system
for  5  to  10  minutes,  once  or  twice  a
month,  to  keep  it  in  perfect  working
order.
The  water  created  by  the  air  condi-
tioning  condensation  is  discharged
via an opening provided for this pur-
pose.  Therefore,  a  puddle  of  water
may  form  underneath  the  vehicle
when stationary.
If  the  system  does  not  produce
cold  air,  do  not  use  it  and  contact  a
CITROËN dealer.

  De-icing the rear windows and
mirrors
With  the  engine  running,  pressing
the control de-ices the rear windows
and mirrors.
It switches off automatically after ap-
proximately twelve minutes.
Pressing  the  control  again  switch-
es  the  de-icing  system  on  again  for
twelve minutes.
It  is  possible  to  switch  off  the  de-
icing  by  pressing  the  control  before
the twelve minutes have elapsed.

Advice on operation

Select the air distribution most suited
to your requirements and the climatic
conditions.
Gradually  adjust  the  temperature
setting for your comfort.
Position the air control in the ''Outside
Air'' position.
For  perfectly  even  air  distribution,
take  care  not  to  obstruct  the  exterior
air intake grille and the vents. Check

that the passenger compartment ﬁ lter

is in good condition.
When  the  engine  is  cold,  to  prevent
too great a distribution of cold air, the
ventilation  will  increase  to  its  opti-
mum level gradually.
In order to be effective, the air condi-
tioning  ( A/C   button),  should  only  be
used with the windows closed.
If  the  interior  temperature  remains
very high following a prolonged period
parked  in  the  sun,  do  not  hesitate  to
ventilate the passenger compartment
for a few minutes.

COMFORT

36 -

Intake of exterior air.

HEATING

Turn the control from posi-
tion 1 to position 4 to obtain

an air ﬂ ow sufﬁ cient to en-

sure your comfort.

2. Air ﬂ ow adjustment and air

intake control

Turn the control from posi-
tion 1 to position 4 to obtain

an air ﬂ ow sufﬁ cient to en-

sure your comfort.

As  soon  as  possible,  position  the
control  in  the  exterior  air  intake
position  to  prevent  misting  of  the
windows.

This is the normal operating position.

Passenger compartment
isolation.

This position prevents exterior odours
and smoke entering the passenger
compartment.

1. Air ﬂ ow adjustment

COMFORT -

These settings are recommended for
cold climates.

  3. Temperature adjustment
To be adjusted to your requirements.
From  blue  (exterior  temperature)  to
red (hot).

4. Air distribution adjustment

This setting is recommended for high
temperatures.

Windscreen and side windows
(de-icing/demisting).

To quickly de-ice or demist the wind-
screen and side windows:
-

position the air intake control in
the ''Outside Air" position,

- turn the temperature and air ﬂ ow

controls to maximum,

close the centre vents.

Windscreen, side windows
and footwells.

Footwells.

Centre and side vents.

COMFORT

38 -

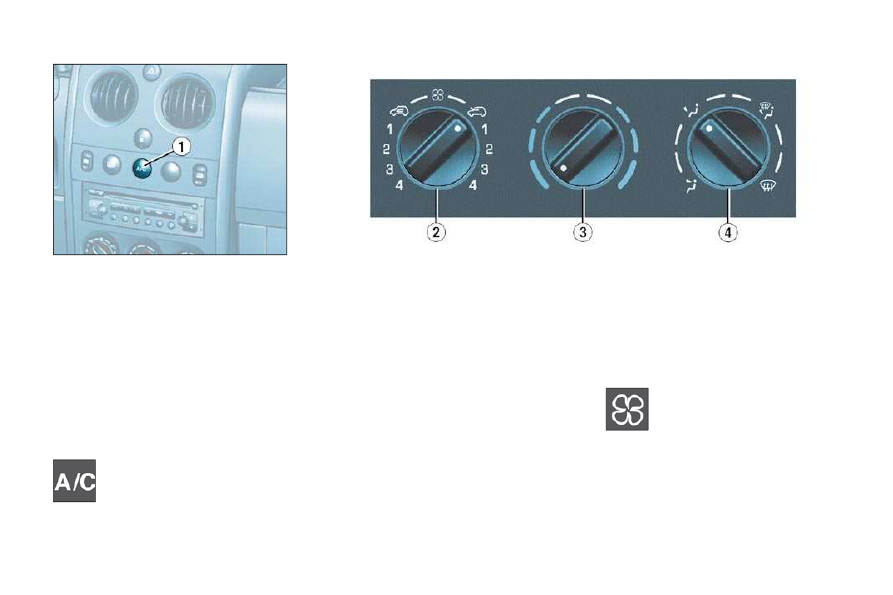

Press the switch to activate
the air conditioning. The indi-
cator light comes on.

2. Air ﬂ ow adjustment and air

intake control

Turn the control from posi-
tion 1 to position 4 to obtain

an air ﬂ ow sufﬁ cient to en-

sure your comfort.

AIR CONDITIONING

The air conditioning does not

operate while the air ﬂ ow adjust-

ment control is in the minimum

position.
  Note:   to  optimise  the  operation  of
the  air  conditioning,  leave  the  vents
open.

  1. Air conditioning control
The  air  conditioning  is  designed  to
operate  in  all  seasons.  In  summer,
it  enables  the  temperature  to  be
lowered  and  in  winter,  above  0 °C,
it  increases  the  effectiveness  of  the
demisting.

COMFORT -

Additional heater
Vehicles which are ﬁ tted with an HDI

engine may be ﬁ tted with automatic

additional  heating  to  improve  your
comfort.
When the engine is idling or the vehi-
cle is stationary, it is quite normal to
notice a high-pitched whistling noise
and  a  slight  emission  of  smoke  and
odour.

Centre and side vents.

This setting is recommended for high
temperatures.

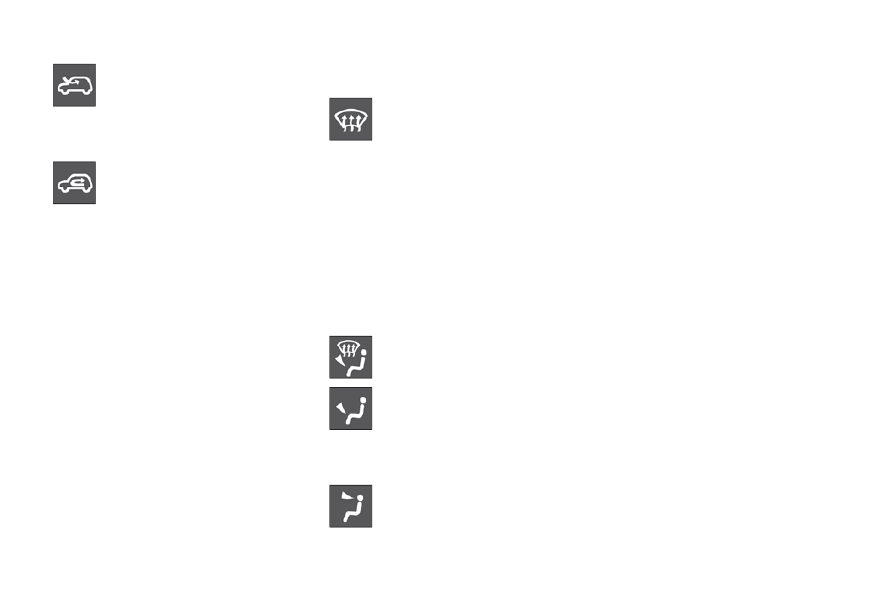

Recirculation of interior air.

This position prevents exterior odours
and  smoke  entering  the  passenger
compartment.
Used simultaneously with the air con-
ditioning,  recirculation  enables  both
heating  and  cooling  performance  to
be improved.
Used  without  the  air  conditioning,
recirculation may result in misting of
the windows.
As  soon  as  possible,  position  the
control in the exterior air intake posi-
tion.

  3. Temperature adjustment
To be adjusted to your requirements.
From  blue  (cold  when  the  air  condi-
tioning is on) to red (hot).

4. Air distribution adjustment

Windscreen and side windows
(de-icing/demisting).

To quickly de-ice or demist the wind-
screen and side windows:
- turn the temperature and air ﬂ ow

controls to maximum,

close the centre vents,

position the air intake control in
the "Outside Air" position,

start the air conditioning.

Footwells.

These settings are recommended for
cold climates.

Windscreen, side windows
and footwells.

Intake of exterior air.

This is the normal operating position.

SEATS -

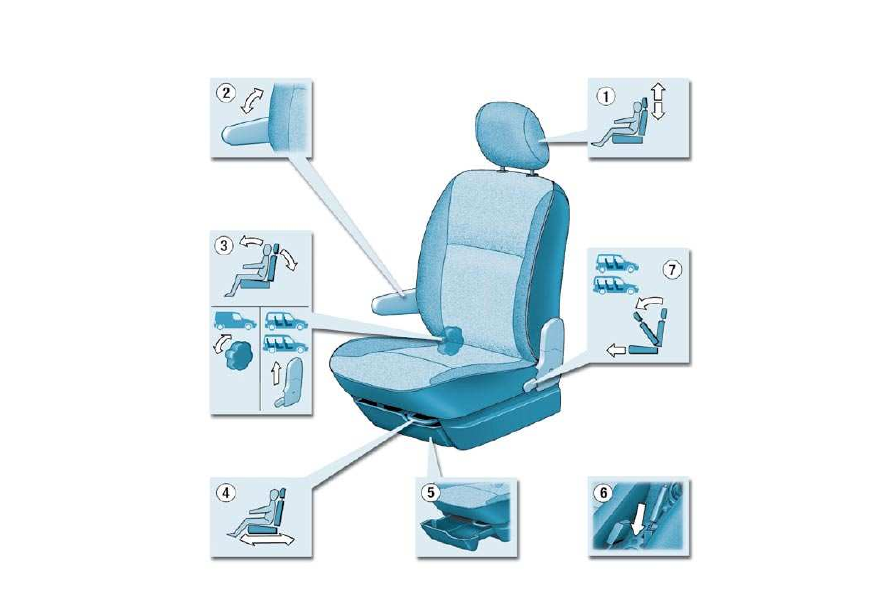

FRONT SEATS

  The adjustment is correct when
the  upper  edge  of  the  head  re-
straint is level with the top of the
head.

To remove the head restraint, place it
in the top position, press the tabs and
pull it upwards.
To put it back in position, locate the
stems of the restraint in the holes,
taking care to keep them in line with
the seat back.

No person or object must pre-
vent the seat from returning
to its initial position; return to
this position is necessary for
the seat to lock in place.

4. Forwards-backwards

adjustment

Lift the control and slide the seat for-
wards or backwards.

1. Head restraint height

adjustment

To raise or lower the restraint, slide it.

2. Armrests
These can be folded back.

3. Seat back angle adjustment

5. Storage drawer (version with

passenger air bag)

There is a storage drawer under the
front passenger seat.
To open it, lift it and pull.

  6. Heated seats switch
Press the switch. The temperature is
controlled automatically.
Pressing  the  switch  again  stops  op-
eration.
  Note:   the  command  for  activation  of
heating of the seat(s) remains memo-
rised for two minutes after the ignition
has been switched off.

7. Access to rear seats

(version with one
sliding side door only)

Do not place heavy objects
in the drawers.

A. Turn the knob.

B. Pull the lever (version

with one sliding side
door only).

Never drive with the head
restraints

removed;

they

must be in place and cor-
rectly adjusted.

Lift the control to fold the seat back
and move the seat forwards.
On repositioning, the seat returns to
its initial position (driver's side).

SEATS

42 -

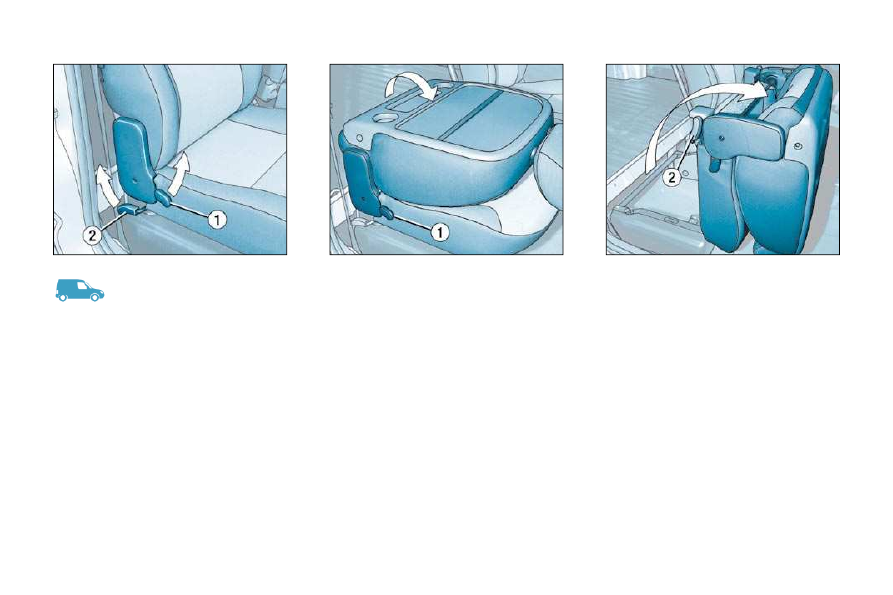

MULTIFUNCTION PASSENGER SEAT

To fold the seat fully:
Pull the control  2  upwards and tilt the
whole seat.
It  is  not  necessary  to  remove  the
head restraint.
This provides access to a box which
enables  you  to  store  objects  so  that
they cannot be seen from outside the
vehicle.

If your vehicle is not ﬁ tted with a load

blocking partition, it can accommo-
date long objects (up to 2.10 m).
These must be placed on the front

edge of the ﬂ oor and secured using

the rear bar of the boot or using the
lashing rings.

To fold the seat back:
Pull the control 1 upwards and tilt the
seat back.
This provides a ﬂ at surface, recess-

es for drinks and a strap for retaining
documents.

SEATS -

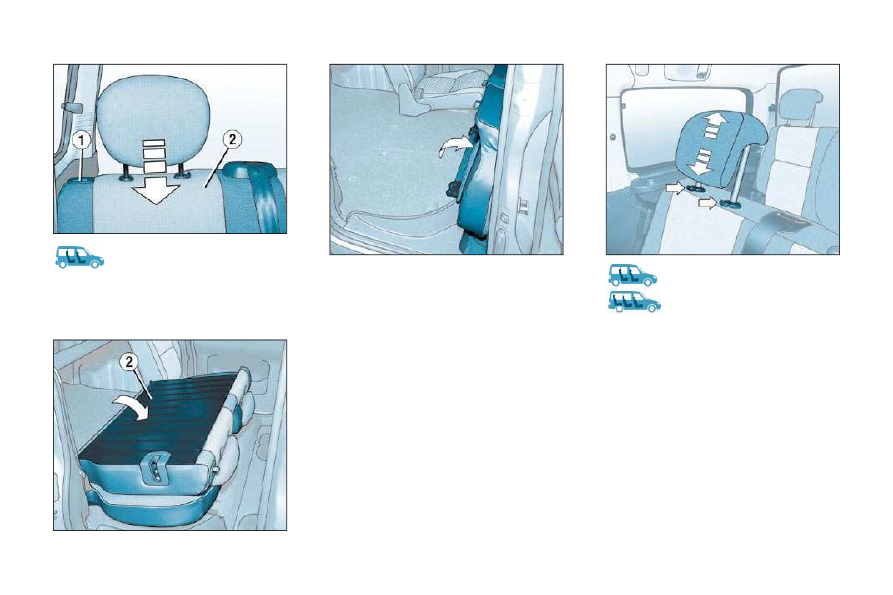

To fold the rear bench seat:
-

lower the head restraint,

press control 1 to unlock the seat
back 2 ,

fold the seat back 2 onto the seat,

place the seat in the "folded" posi-
tion.

When repositioning:
-

tilt the folded seat rearwards,

lift the seat back,

check that the seat is locked cor-
rectly.

Take care not to trap the seat belts.

REAR BENCH SEAT
(5 SEAT VERSION)

HEAD RESTRAINT

This is of the "comma" type.
High  position:  press  the  two  tabs  at
the same time, lift the head restraint
and raise it.
Low  position:  push  the  two  tabs  at
the  same  time  and  press  the  top  to
lower the head restraint.
To  remove  the  head  restraint:  place
it  in  the  high  position,  lift  it  then  re-
move it.
Store  it  inside  the  vehicle,  securing

it ﬁ rmly.
To  install  the  head  restraint:  engage
the  rods  of  the  head  restraint  in  the
holes keeping it in line with the seat
back.

SEATS

44 -

REAR BENCH SEATS
(7 SEAT VERSION)

The bench seats of row 2 and row 3
are independent and adjustable.

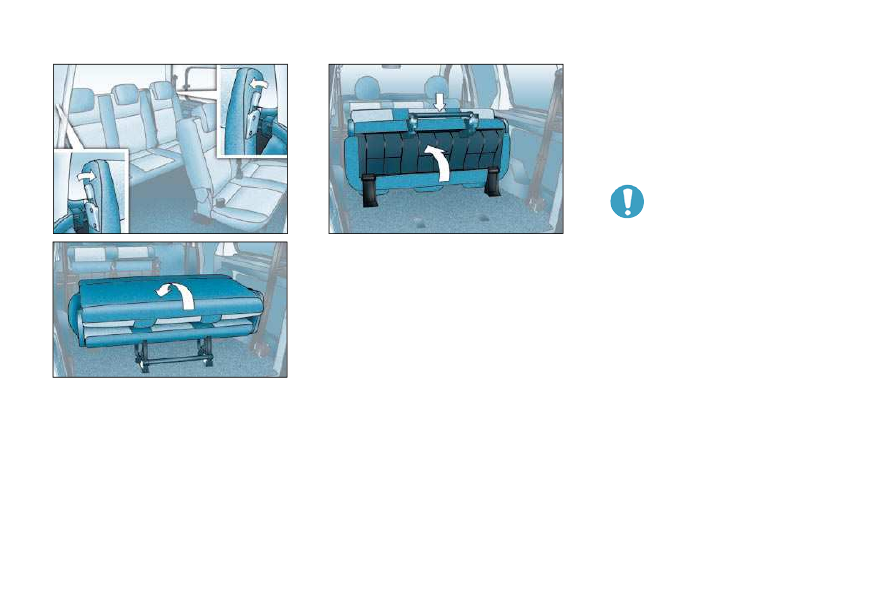

Row 2 bench seat

Placing the bench seat in the
table position
-

Lower the head restraints fully.

Operate  the  control  to  fold  the
seat  back  onto  the  bench  seat
cushion.

Returning the seat back to
the sitting position
-

Return the seat back to its original
position and check that it is se-
cured on the pillar of the vehicle.

Placing the bench seat in the fully
folded position
-

Place the seat in the table posi-
tion.

Pull  the  handle,  located  behind
the  bench  seat,  to  release  the
feet  from  their  anchorage  on  the

ﬂ oor.

Tilt the bench seat forwards.

Returning the bench seat to its
original position

Before folding the bench seat,
ensure that:

in row 3, no passenger's foot is at
one of the bench seat anchorages

on the ﬂ oor,

the seat belt is available for the
side passenger.

fold back the bench seat.

SEATS -

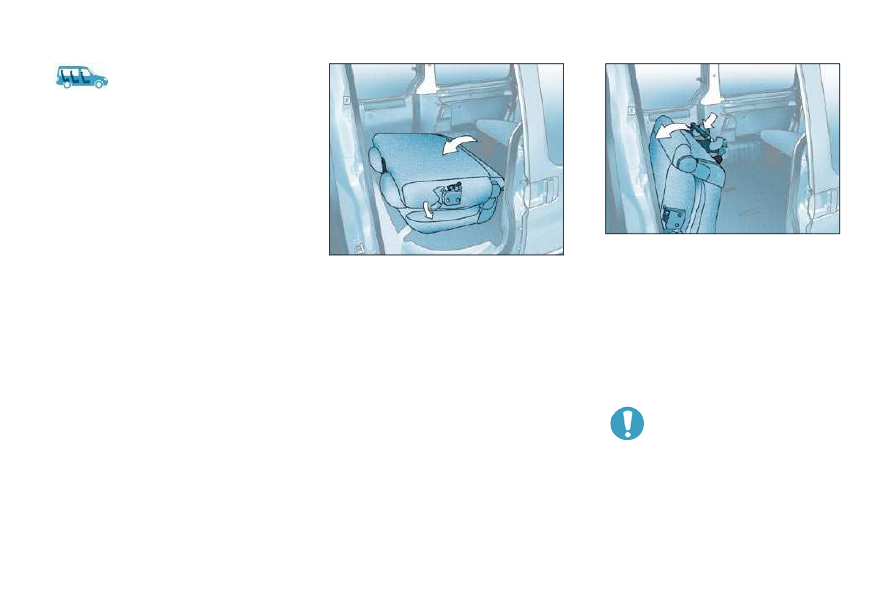

Row 3 bench seat

Placing the seat back in the table
position
-

Lower the head restraints fully.

Operate the two controls simulta-
neously to fold the seat back onto
the bench seat cushion.

Returning the seat back to the
sitting position
-

Return the seat back to its original
position and check that it is se-
cured on the pillars of the vehicle.

Placing the bench seat in the fully
folded position
-

Place the seat in the table position.

Raise the handle, located behind
the bench seat, to release the
feet from their anchorage on the

ﬂ oor.

Tilt the bench seat forwards.

Returning the bench seat to its
original position
-

Before  folding  back  the  bench
seat,  ensure  that  the  seat  belt
is  available  for  the  side  passen-
gers.

Fold back the bench seat.

Access to row 3

From the vehicle's right-hand sliding
door,  a  passage  next  to  the  row 2
bench  seat  provides  access  to  the
row 3 bench seat.

Good practice

Do  not  place  hard  or  heavy
objects  on  the  seat  backs
forming  a  table,  they  could

become dangerous projectiles in the
event or sharp braking or impact.
Following the various operations:
-

do not remove a head restraint

without storing it, ﬁ x it to a sup-

port in the vehicle,

do not block the passage to row 3,

ensure that the passengers can
always access the seat belts and
fasten them easily,

a passenger must never take his
seat without adjusting and fasten-
ing his seat belt.

a passenger seated in row 3 must
ensure that he does not obstruct
the row 2 bench seat anchoring
recesses.

SEATS

46 -

GENERAL POINTS RELATING
TO CHILD SEATS

Although  one  of  CITROËN's  main
criteria when designing your vehicle,
the  safety  of  your  children  also  de-
pends on you.
For  maximum  safety,  please  follow
these precautions:
   -

all children under the age of 12

or less than one metre ﬁ fty tall

must travel in approved child
seats suited to their weight ,

on seats ﬁ tted with a seat belt or

ISOFIX mountings * .

a child weighing less than 9 kg
must travel in the "rearwards-
facing" position in the front.

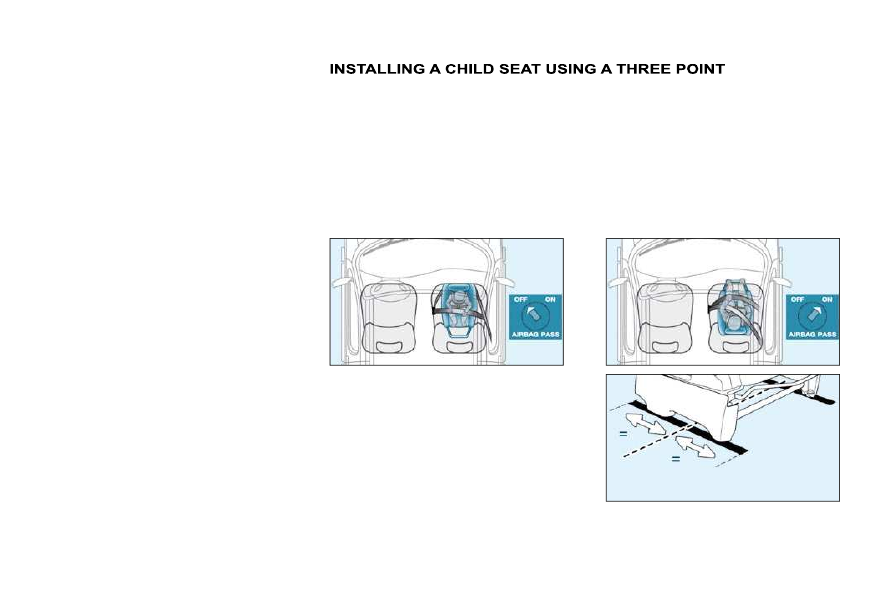

SEAT BELT

  "Forwards-facing"
When  a  "forwards-facing"  child  seat
is  installed  on  the   front  passenger
seat , adjust the vehicle's seat to the
intermediate

longitudinal

position

with the seat back upright and leave
the passenger air bag armed.

* The rules for transporting chil-

dren are speciﬁ c to each country.

Consult the current legislation in
your country.

Intermediate longitudinal

position

  "Rearwards-facing"
When a "rearwards-facing" child seat
is  installed  on  the   front  passenger
seat ,  it  is  essential  that  the  passen-
ger air bag *  is disarmed. Otherwise,
the  child  would  risk  being  seri-
ously injured or killed if the air bag

were to inﬂ ate .

SEATS -

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

The use of the restraining cushion is

compulsory for transporting young

children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''.

"KLIPPAN Optima"

From the age

of 6 years

(approximately 22 kg),
the booster is used on

its own.

Passenger airbag OFF

SEATS -

CHILD SEATS RECOMMENDED BY CITROËN

CITROËN offers a complete range of recommended child seats which are
secured using a three point seat belt :

Group 0: from birth to 10 kg

Group 0+: from birth to 13 kg

"ROMER Baby-Safe Plus"

Installed in the rear-facing position.

Groups 1, 2 and 3: from 9 to 36 kg

"KIDDY Life"

The use of the restraining cushion is

compulsory for transporting young

children (from 9 to 18 kg).

Groups 2 and 3: from 15 to 36 kg

"RECARO Start''.

"KLIPPAN Optima"

From the age

of 6 years

(approximately 22 kg),
the booster is used on

its own.

Passenger airbag OFF

SEATS

48 -

INSTALLING CHILD SEATS SECURED USING THE SEAT BELT

In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a), in accordance with the weight of the child and the seat in the vehicle:

Weight of the child and indicative age

Seat

Below 13 kg

(groups 0 (b) and 0+)

Up to 1 year approx

From 9 to 18 kg

(group 1)

From 1 to 3 years approx

From 15 to 25 kg

(group 2)

From 3 to 6 years approx

From 22 to 36 kg

(group 3)

From 6 to 10 years approx

Front passenger (c)

Row 2

Side

Centre

Row 2 *

Right

Left

Row 3 *

Side

Centre

SEATS -

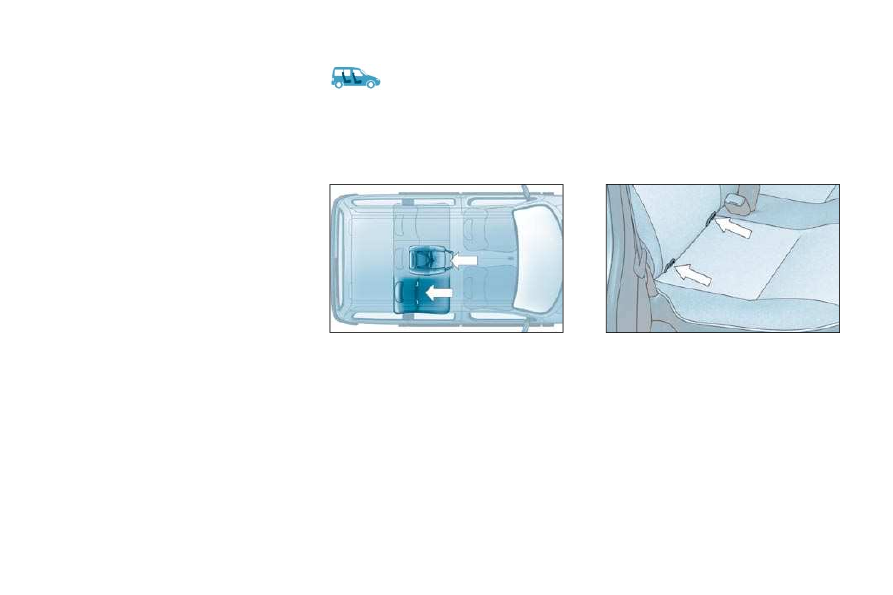

"ISOFIX" MOUNTINGS

These are two rings located between
the seat back and the seat cushion.
This ISOFIX mounting system gua-

rantees reliable, safe and fast ﬁ tting

of the child seat in your vehicle.

The ISOFIX child seats

are ﬁ tted

with two locks which are secured
easily on these rings.

Your vehicle has been approved in ac-
cordance with the ISOFIX regulation .
The seats, represented below, are ﬁ t-

ted * with regulation ISOFIX mountings:

(a) Universal child seat: child seat

which can be installed in all ve-
hicles using the seat belt.

(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force

in your country before installing
your child on this seat.

U Seat suitable for the installation of

a child seat secured using a seat
belt and universally approved,
"rear facing" and/or "forward
facing".

* Ludospace 7 seat version: mountings

not available.

Citroen Berlingo First Dag (2010 year). Instruction - part 3
