Citroen Berlingo First Dag (2010 year). Instruction - part 1

FAMILIARISATION

4 -

FAMILIARISATION -

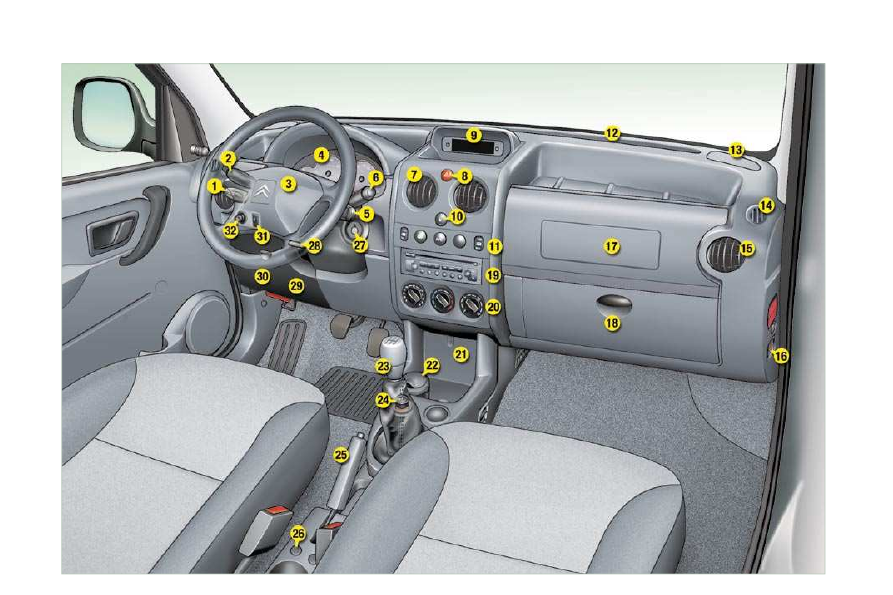

INSTRUMENTS AND CONTROLS

12. Windscreen demisting vents.

13. Speaker (tweeter).

14. Door window demisting vents.

15. Side adjustable heating/

ventilation vents.

16. Passenger air bag disarming control.

17. Upper glove box or passenger air bag.

18. Lower glove box.

19. RD3 audio equipment.

20. Heating/air conditioning controls.

21. Storage compartment.

22. Movable ashtray.

23. Gear lever.

24. Lighter.

25. Handbrake.

26. Heated seats control.

27. Steering lock and ignition.

28. Steering wheel adjustment

control.

29. Bonnet release.

30. Fuse box.

31. Headlamp height adjustment.

32. Passenger's electric mirror

control.

1. Speed limiter/cruise control

switch.

2. Lights and direction indicators

controls.

3. Driver's air bag.

Horn.

4. Instrument panel.

5. Audio equipment steering wheel

control.

6. Wipers/wash-wipe controls.

7. Central adjustable heating/

ventilation vents.

8. Hazard warning lights switch.

9. Multifunction display or clock.

10. Central locking button.

11. Controls:

- Electric windows.
- Rear door windows or tailgate

demisting.

- Air conditioning.

FAMILIARISATION

6 -

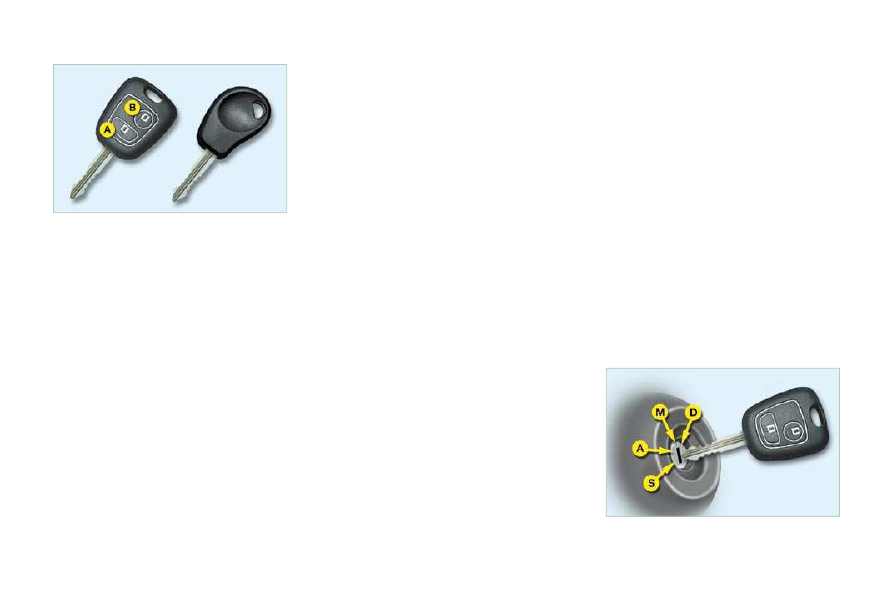

THE KEYS

The keys allow you to switch on the
ignition  and  operate  the  passenger
air  bag  disarming  switch,  as  well  as
to  independently  operate  the  locks

on the doors and the fuel ﬁ ller cap.

STARTING

The remote control

  Central locking
From the front doors, the keys allow
you to lock and unlock the doors and
tailgate.
If  one  of  the  doors  or  the  tailgate  is
open,  it  is  impossible  to  operate  the
central locking.
  The  remote  control  performs  the
same functions at a distance.

Unlocking
Press button B to unlock the vehicle.
This is conﬁ rmed by rapid ﬂ ashing of

the direction indicators.

  Locating the vehicle
To  locate  your  vehicle,  previously
locked, in a car park:
      press button  A , the courtesy lights

come on and the direction indica-

tors ﬂ ash for a few seconds.

 54

Locking
Press button A to lock the vehicle.
This is conﬁ rmed by ﬁ xed lighting of

the direction indicators for approxi-
mately two seconds.

  STOP position (S):
The ignition is off.
To  release  the  steering,  turn  the
steering  wheel  slightly  while  turning
the key, without forcing it.

Accessories position (A):
The ignition is off but the accessories
can be used.

On position (M):
The ignition is on.

  Starting position (D):
Operates the starter.
Release  the  key  when  the  engine
has started. Never operate the starter
while the engine is running.

FAMILIARISATION -

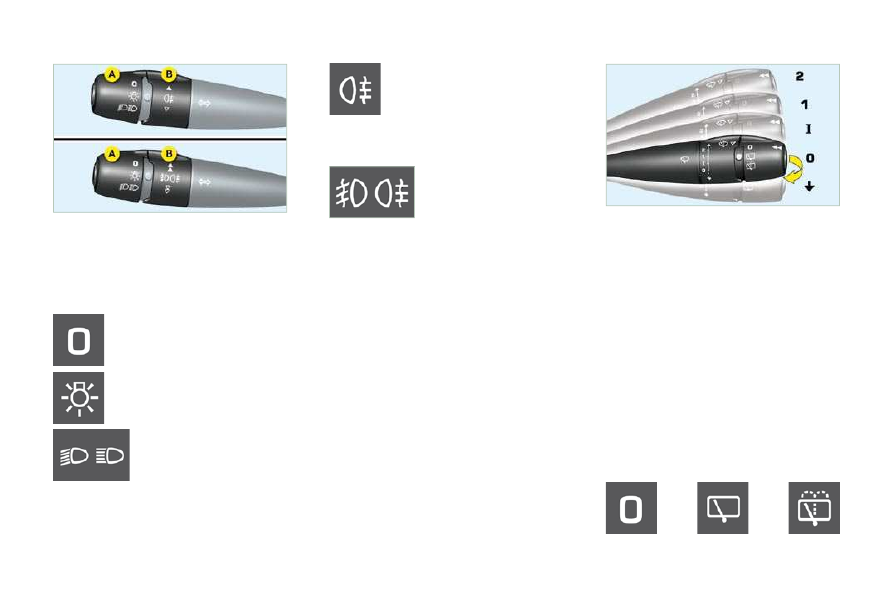

WINDSCREEN WIPERS

STEERING WHEEL STALKS

LIGHTING

Front  fog  lamps  (1 st   turn  of  the  ring
forwards).
Front  fog  lamps  and  rear  fog  lamp
(2 nd  turn of the ring forwards).
To switch off: turn the ring rearwards.

Lights off

Side lights

Dipped headlamps/
Main beam headlamps

Vehicles ﬁ tted with a rear

fog lamp (ring B)

Turn the ring forwards.

Vehicles ﬁ tted with

front fog lamps and a
rear fog lamp (ring B)

Off

Wash-

wipe

Intermittent

wipe

Rear

 62

 63

Front and rear lights (ring A)

  Front
  2    Rapid wipe (heavy rain).
  1    Normal wipe (moderate rain).
  I    Intermittent wipe.
  0    Off.
      Single wipe.

Windscreen wash-wipe: pull the stalk
towards you.

FAMILIARISATION

8 -

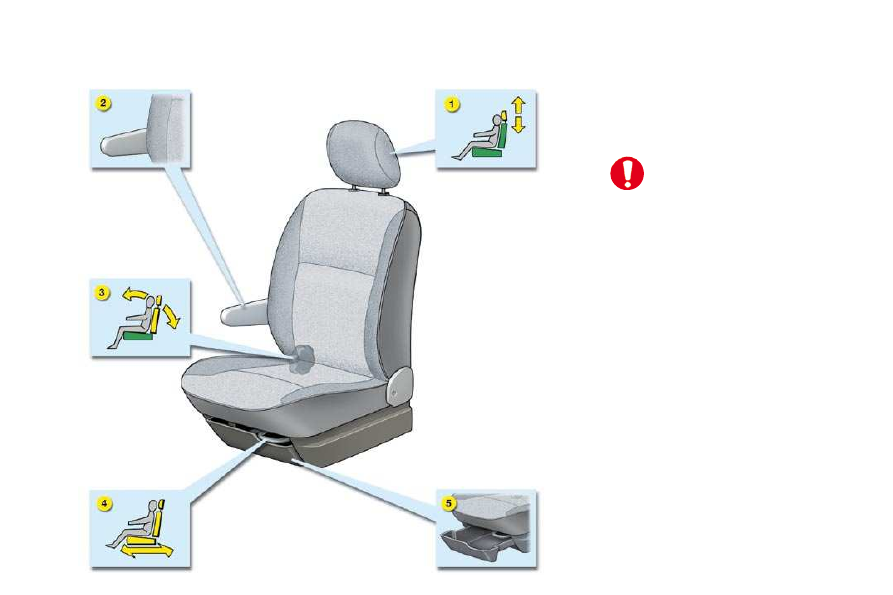

FRONT SEATS

Never travel with the head
restraints removed.

  2.   Armrest.
  3.   Seat back angle adjustment.
  4.   Forwards-backwards adjustment.
  5.   Storage drawer

(passenger).

 40

1. Head restraint height adjustment.

FAMILIARISATION -

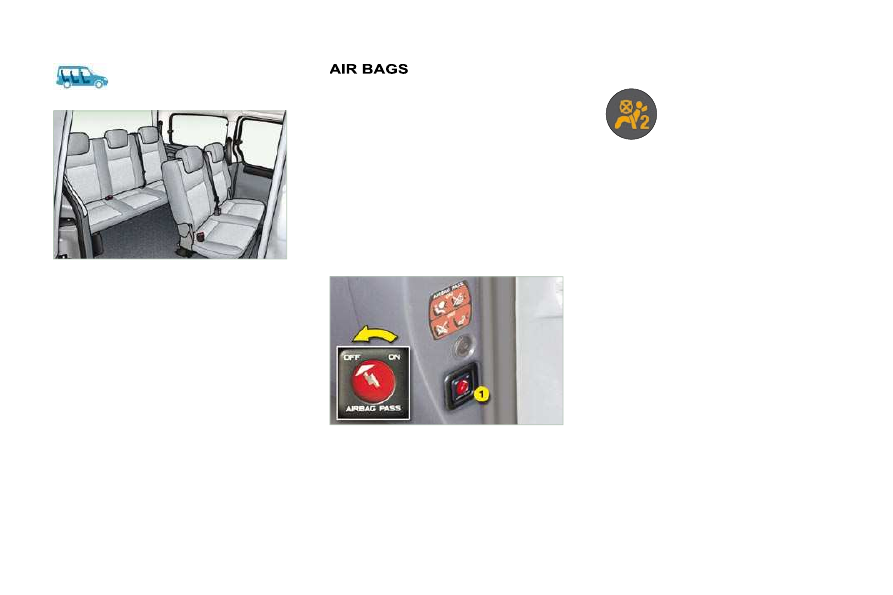

REAR BENCH SEATS
(7 SEAT VERSION)

Disarming the passenger air bag
 With the ignition off , insert the

ignition  key  into  the  passenger
air bag switch  1  and turn it to the
"OFF"  position.

 As soon as you remove the child

seat, turn the air bag switch to the
"ON" position to activate the air
bag again.

Disarming check

With the ignition switched on
(2 nd   notch),  illumination  of
this  warning  light  indicates
that  the  passenger  air  bag
is  disarmed  (switch  in  the
"OFF"  position).

The warning light remains on through-
out the duration of disarming.

 79

Front air bags

These  are  folded  in  the  centre  of  the
steering  wheel  for  the  driver  and  in  the
fascia  for  the  front  passenger.  They  are
deployed simultaneously, except in cases
where the passenger air bag is disarmed.

Precautions regarding the
passenger air bag
 disarm the air bag if you install a

rear-facing child seat,

 activate the air bag for an adult

passenger.

 78

Side air bags *

Side air bags are incorporated into the
front seat back frame, on the door side.
They are deployed independently of
each other, on whichever side the
collision occurs.

 44

The 7 seat version is ﬁ tted with a

2-seat bench in row 2 and a 3-seat
bench in row 3.

* According to version.

FAMILIARISATION

10 -

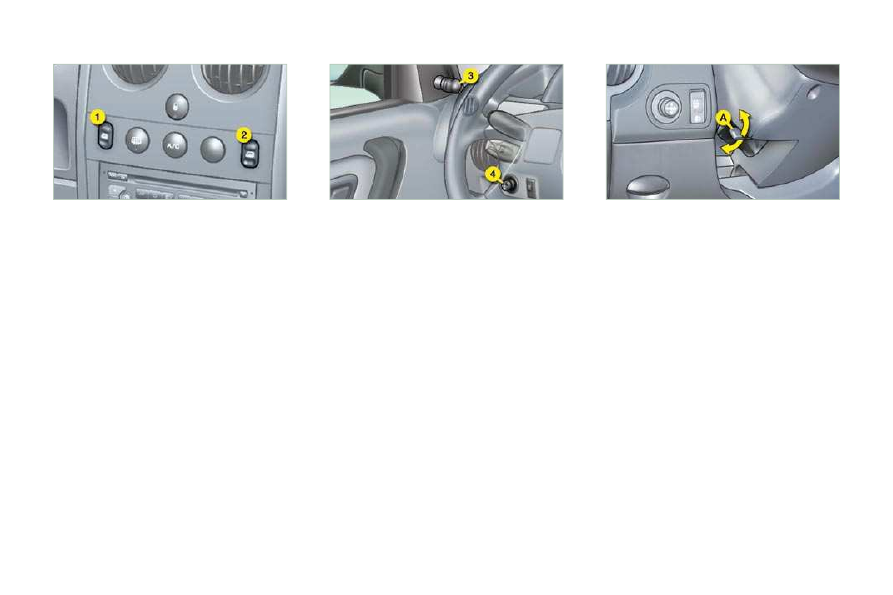

STEERING WHEEL HEIGHT
ADJUSTMENT

 When stationary, push the control

A forwards to unlock the steering
wheel.

 Adjust the height of the steering

wheel.

 Lock it by pulling control A towards

you fully.

ELECTRIC WINDOWS

Driver's electric window.

Passenger's electric window.

EXTERIOR MIRRORS

 Move the manual control 3 in all

four directions to adjust.

Electric control for the
passenger's side mirror

 From the driver's seat, adjust in

all four directions by operating
the control 4 .

Manual mode:
 Press the switch. The window

stops as soon as the switch is re-
leased.

Automatic mode (driver):
 Press and hold the switch. One

touch completely opens or closes
the window.

 64

 65

 68

FAMILIARISATION -

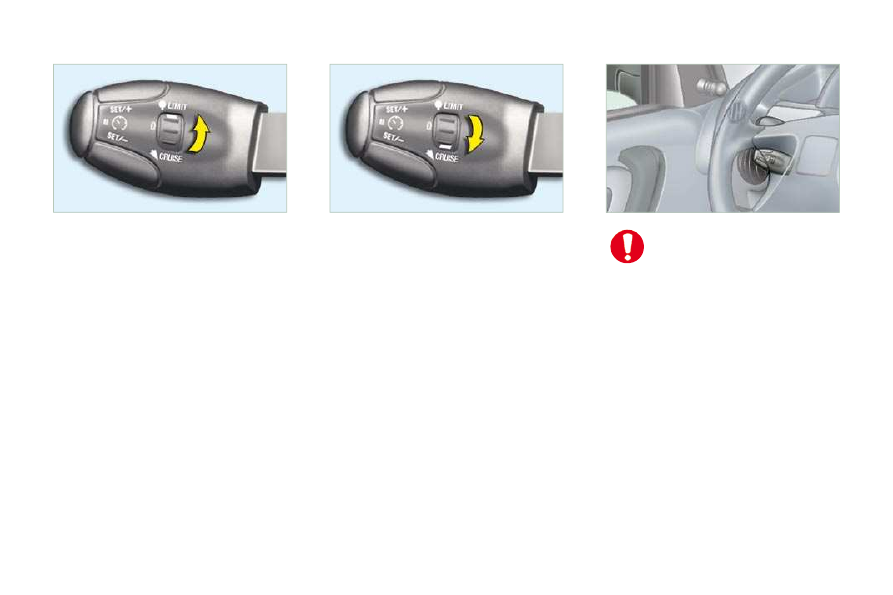

SPEED LIMITER *

CRUISE CONTROL *

 75

 73

If the vehicle is ﬁ tted with

a speed limiter and cruise
control, these functions can-
not be activated at the same
time.

This  limiter  indicates  the  status  of
selection  of  the  function  on  the  in-
strument  panel  and  displays  the
programmed  speed.  The  minimum
speed  which  can  be  programmed  is
at least 18 mph (30 km/h).
It  prevents  exceeding  of  the  speed
programmed by the driver, this func-
tion remains active regardless of any
action on the brake or clutch pedals.
On  the  other  hand,  pressing  the  ac-
celerator pedal to the point of resist-
ance does not have any effect.
It is possible to exceed the programmed
speed temporarily by pressing the acce-

lerator ﬁ rmly beyond this point of resist-

ance.
The operating actions must be carried
out with the engine running.

The  cruise  control  has  a  display  on
the  instrument  panel  to  indicate  the
programmed reference speed.
It enables the vehicle to maintain the
reference speed programmed by the
driver.
In  order  for  it  to  be  programmed  or
activated, the vehicle speed must be
greater  than  25  mph  (40  km/h)  with
at least fourth gear engaged.

* According to version.

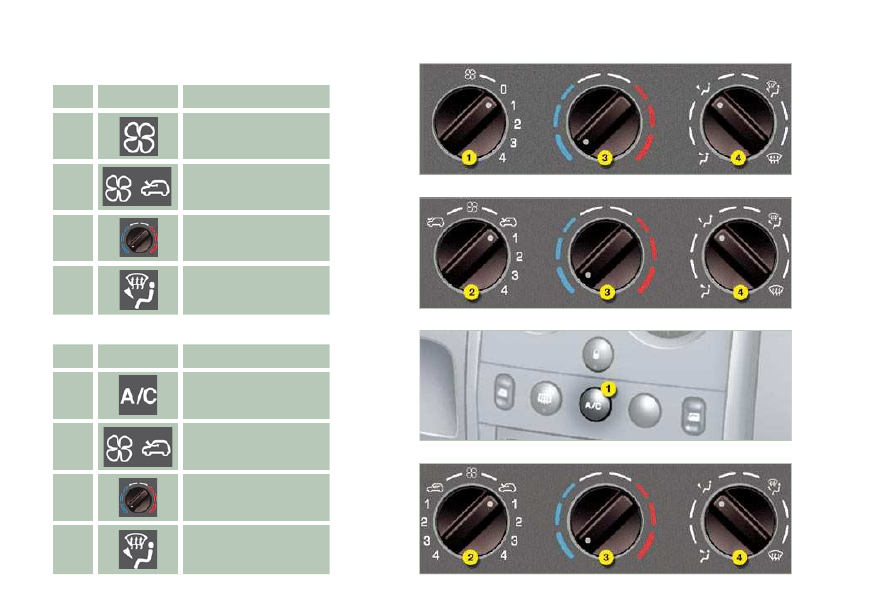

FAMILIARISATION

12 -

N°

Symbol

Function

Air ﬂ ow adjustment.

Air ﬂ ow adjustment

and air intake
control.

Temperature
adjustment.

Air distribution
adjustment.

N°

Symbol

Function

Air conditioning
control.

Air ﬂ ow adjustment

and air intake
control.

Temperature
adjustment.

Air distribution
adjustment.

 36

 38

HEATING

AIR CONDITIONING

FAMILIARISATION -

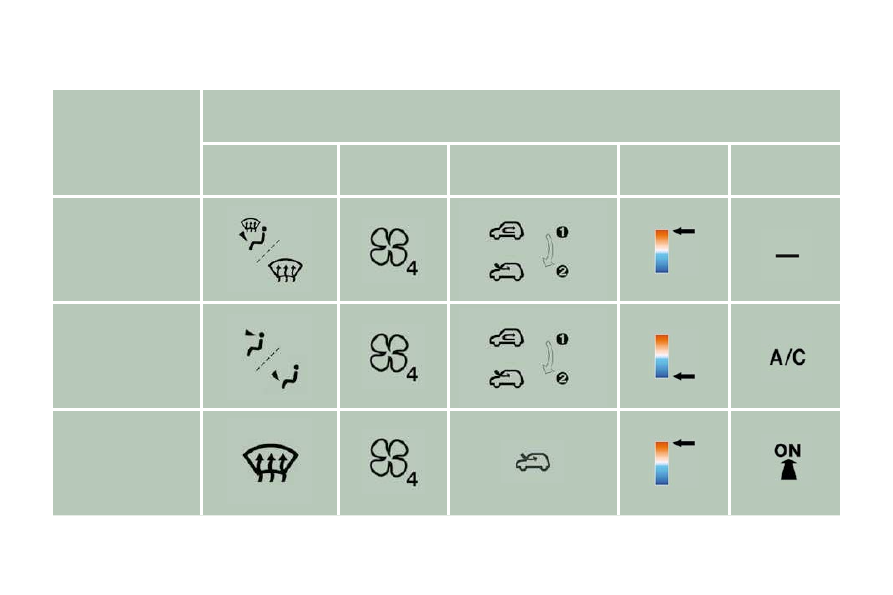

RECOMMENDED INTERIOR SETTINGS

I require...

Heating or Manual air conditioning

Air distribution

Air ﬂ ow

Air recirculation/

Intake of exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DE-ICING

FAMILIARISATION

14 -

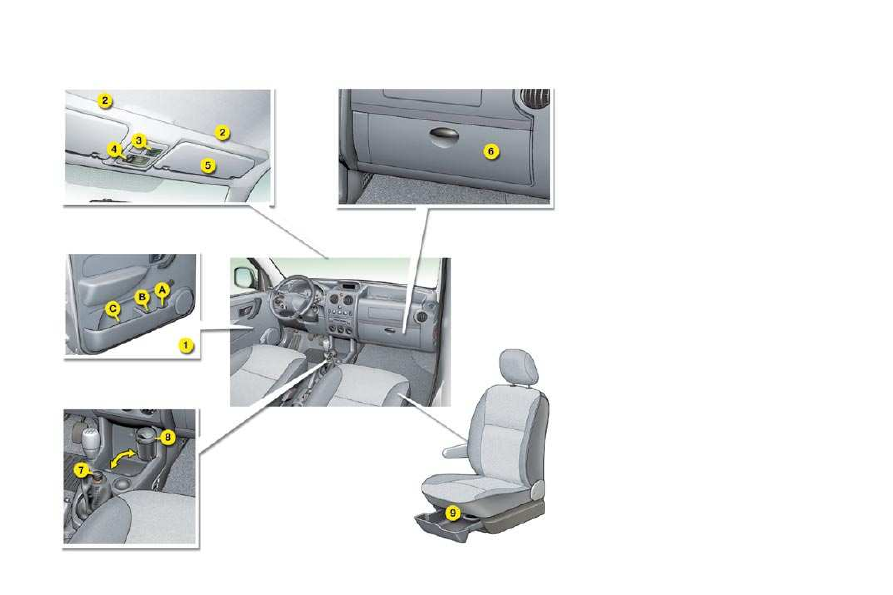

FRONT LAYOUT

1. Storage compartments in the doors.

   A.   Bottle holder.
  B.   Can holder.
  C.   Storage compartment.

2. Overhead storage.

3. Map reading light.

4. Courtesy light.

5. Sun visors.

6. Glove box.

7. Lighter.

8. Removable ashtray.

9. Storage drawer (passenger).

 67

FAMILIARISATION -

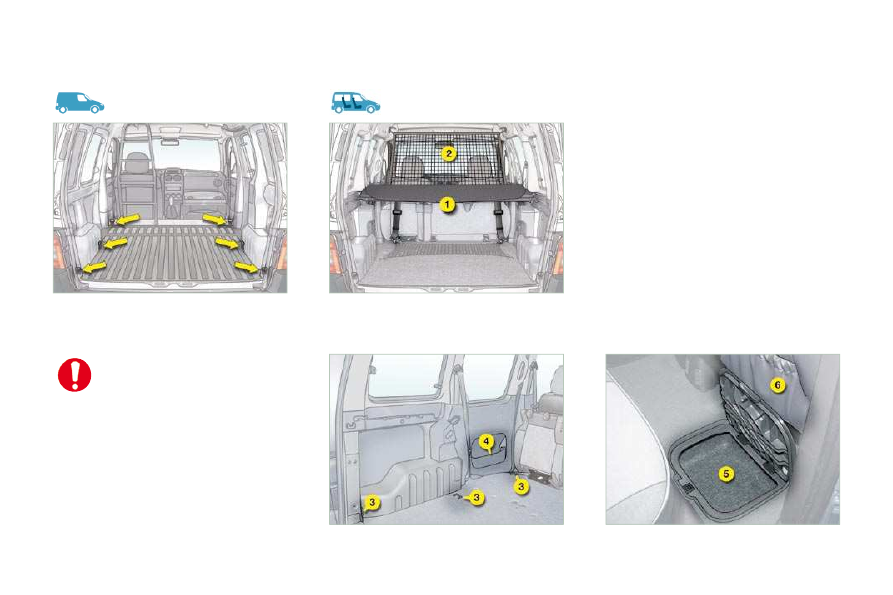

REAR LAYOUT

Stowing rings
For greater safety, always en-
sure that the loads transported

are secured ﬁ rmly.

 69

1. Load space cover.

2. High load retaining net.

3. Stowing rings.

4. Side door storage compartment.

5. Trays between the front and rear

seats.

6. Seat back storage pockets.

 70

FAMILIARISATION

16 -

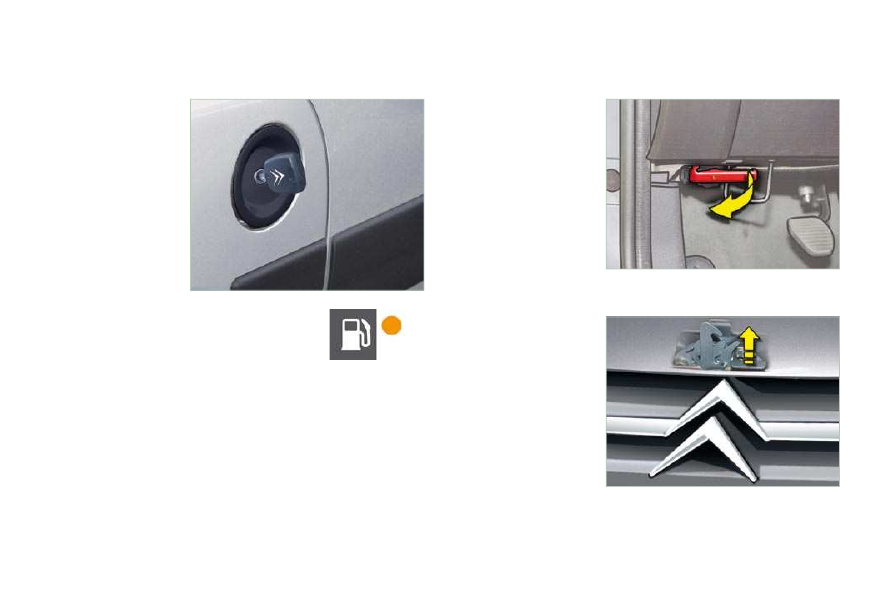

This operation must be carried out
with

the engine switched off .

 Insert the key then turn it to the

left.

 Remove the cap.
A label indicates which type of fuel to
use.
When you ﬁ ll your tank, do not continue

after the third cut-off of the pump. This
could cause engine malfunctions.
The capacity of the tank is approx-
imately 55 litres for petrol engines
and 60 litres for Diesel engines.

From  the  time  this  light  comes  on,
you  have  enough  fuel  left  to  cover
approximately 30 miles (50 km) .
  Note:  the right-hand sliding side door
cannot be opened while the fuel tank
cap is removed.

Outside the vehicle: Lift the control,
raise the bonnet and secure the strut
to keep the bonnet open.

OPENING THE BONNET

Inside the vehicle: Pull the control
on the left-hand side, under the fascia
panel.

Low fuel level

warning light

 61

FILLING WITH FUEL

MONITORING and DISPLAY SCREENS

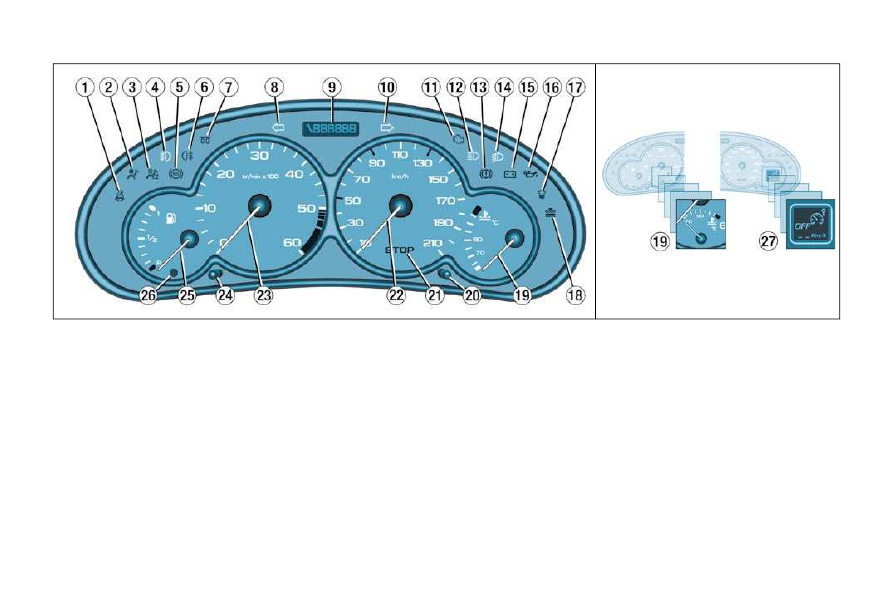

18 -

1. Seat belt not fastened warning

light

2. Front and side air bags warning

light

3. Passenger air bag disarmed

warning light

4. Front fog lamps indicator light

5. Anti-lock braking system (ABS)

warning light

6. Rear fog lamp indicator light

7. Diesel pre-heat warning light

8. Left hand direction indicator

9. Total distance recorder, service

indicator and engine oil level
indicator

10. Right hand direction indicator
11. Emission control system warning

light

12. Main beam headlamps indicator light
13.

Handbrake, low brake ﬂ uid

level and electronic brake force

distribution warning light

14. Dipped beam headlamps

indicator light

15. Battery charge warning light
16.

Engine oil pressure and

temperature warning light

17.

Water in diesel ﬁ lter warning light

18. Low coolant level warning light

19.

Coolant temperature indicator

20.

Total distance recorder button

21. Central (STOP) warning light

22. Speedometer

23.

Rev counter

24.

Lighting rheostat button

25.

Fuel level indicator

26.

Low fuel level warning light

27.

Speed limiter/cruise control

display

INSTRUMENT PANEL: PETROL - DIESEL

MONITORING and DISPLAY SCREENS -

INSTRUMENTS AND
CONTROLS

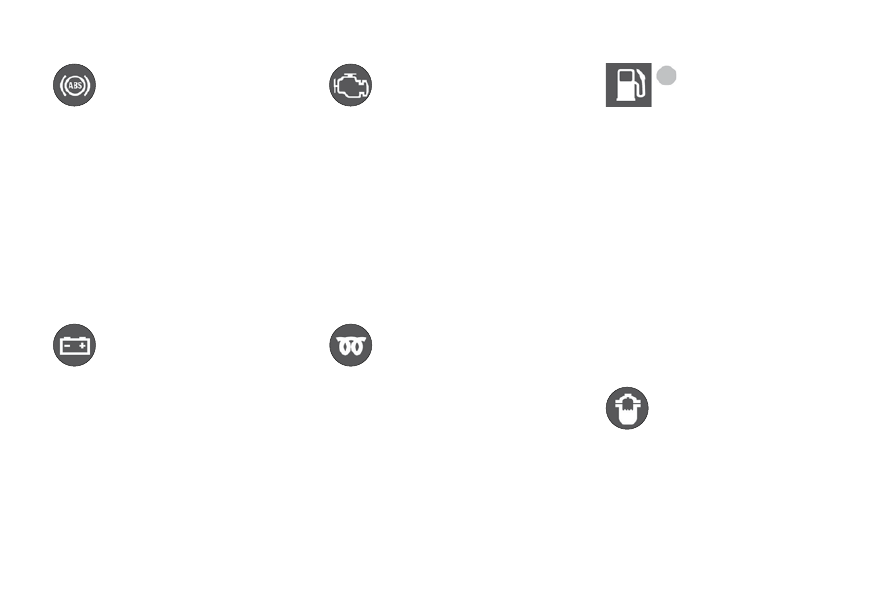

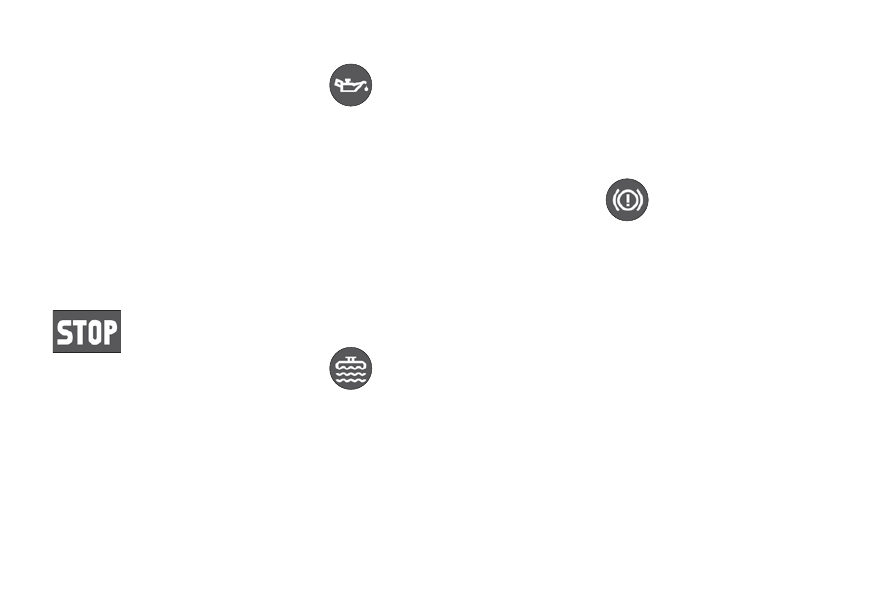

A permanently lit warning light or

one ﬂ ashing, with the engine run-

ning, indicates an operating fault

of the unit concerned. The illumi-

nation of certain warning lights

may be accompanied by an audi-

ble signal and a message on the

display. Do not ignore this warn-

ing: consult a CITROËN dealer as

soon as possible.

If the central STOP warning light

comes on when you are driving,

stop your vehicle immediately,

where it is safe to do so.

Central (STOP)
warning light

Linked to the warning
lights:

- ''engine oil pressure and tempe-

rature'',

''low coolant level'',

'handbrake'',

- ''low brake ﬂ uid level'',
- ''electronic brake force distribution

system fault''.

Linked with the "coolant temperature"

indicator.

You must stop if the light ﬂ ashes

with the engine running.

Consult a CITROËN dealer.

Engine oil pressure

and temperature

warning light

Linked to the central (STOP) warning

light.

You must stop.
This  warning  light  indicates  one  of
the following:
   -   insufﬁ cient oil pressure indicated

by the message

"Oil pressure

insufﬁ cient" on the display.

- a lack of oil in the lubrication circuit.

Top up the level.

- an oil temperature which is too

high. To lower the oil temperature,

reduce your speed.

Lighting of the warning light is ac-

companied by an audible signal.

Consult a CITROËN dealer.

Low engine coolant

level warning light

Linked to the central (STOP)

warning light.

This comes on for a few seconds

when the ignition is switched on.
Lighting of this warning light is ac-

companied by an audible signal and

the message

"Top up engine ﬂ uid

level" on the display.

You must stop.
Wait for the engine to cool before

topping up the level.

The cooling circuit is pressurised.

Handbrake, low

brake fluid level and

Electronic Brake Force

Distribution system

fault warning light

Linked to the central (STOP) warning

light.
This comes on each time the ignition

is switched on.
Lighting of this warning light is ac-

companied by an audible signal and

a message on the display indicating

the cause of the warning:
-

"Handbrake on", if the handbrake

is applied or not fully released.

"Brake ﬂ uid level low" if there is

an excessive drop in brake ﬂ uid

level (if the warning light remains
on even when the handbrake is

released).

"Braking fault" is displayed to-

gether with the ABS warning

light, indicating a malfunction of

the Electronic Brake Force Distri-

bution system.

You must stop.

Consult a CITROËN dealer.

In the event of breakdown and to

prevent any risk of burns, un-

screw the cap by two turns to allow

the pressure to drop.

When the pressure has dropped, re-

move the cap and top up the level.

Consult a CITROËN dealer.

MONITORING and DISPLAY SCREENS

20 -

Battery charge warning

light

This comes on for a few se-
conds when the ignition is

switched on. Lighting of this warning

light, when the engine is running, ac-

companied by an audible signal and

the message

"Battery charge fault"

on the display, indicates one of the
following:
- faulty operation of the charging

circuit,

slack battery or starter terminals,

  -   a cut or slack alternator belt,
  -   an alternator failure.
Consult a CITROËN dealer.

Emission control

system warning light

This comes on for a few
seconds each time the igni-

tion is switched on.

If it comes on with the engine running,

accompanied by an audible signal

and the message on the display:
-

"Antipollution fault", this indi-

cates a failure of the emission

control system .

"Catalytic converter fault", this

indicates a malfunction of the in-

jection or ignition system. There

is a risk of damage to the catalytic

converter (petrol engine only).

Consult a CITROËN dealer.

Diesel engine

pre-heat warning
light

Wait until the warning light goes out

before starting the engine.

If the temperature is high enough,

the warning light comes on for less

than one second. You can start the

engine without waiting.

Low fuel level

warning light

This comes on for a few
seconds when the igni-

tion is switched on.

When the ignition is on, it is accom-

panied by an audible signal and the

message

"Fuel level low" on the

display.

If it ﬂ ashes with the fuel gauge needle

in the lowest position, when the igni-

tion is on, this indicates a malfunction

of the fuel gauge.

When this warning light ﬁ rst comes

on, you have enough fuel left to drive

approximately 30 miles (50 km) .
Capacity of the tank:
-

approximately 55 litres for petrol
engines,

approximately 60 litres for Diesel

engines.

Water in diesel filter

indicator *

There is a risk of damage to the

injection system.

Consult a CITROËN dealer as soon

as possible.

Anti-lock braking

system (ABS) warning

light

This comes on for a few seconds each

time the ignition is switched on.
If the warning light remains on or
comes on above 8 mph (12 km/h),

this indicates an ABS malfunction.
However, the vehicle retains conven-

tional servo-assisted braking.
Lighting of this warning light, accom-

panied by an audible signal and the

message

"ABS fault" on the display,

indicates an ABS fault.

Consult a CITROËN dealer.

* According to country.

Content .. 1 2 ..
