Citroen Berlingo First Dag (2010 year). Instruction - part 4

SEATS -

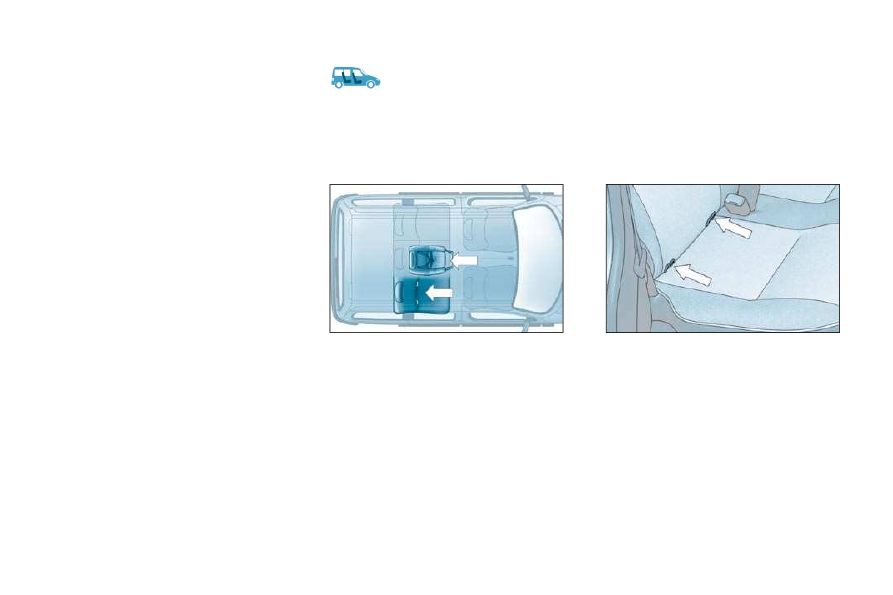

"ISOFIX" MOUNTINGS

These are two rings located between
the seat back and the seat cushion.
This ISOFIX mounting system gua-

rantees reliable, safe and fast ﬁ tting

of the child seat in your vehicle.

The ISOFIX child seats

are ﬁ tted

with two locks which are secured
easily on these rings.

Your vehicle has been approved in ac-
cordance with the ISOFIX regulation .
The seats, represented below, are ﬁ t-

ted * with regulation ISOFIX mountings:

(a) Universal child seat: child seat

which can be installed in all ve-
hicles using the seat belt.

(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force

in your country before installing
your child on this seat.

U Seat suitable for the installation of

a child seat secured using a seat
belt and universally approved,
"rear facing" and/or "forward
facing".

* Ludospace 7 seat version: mountings

not available.

50 -

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE

Isoﬁ x KIDDY

Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position,

on the rear side seat only.

Installed in the forwards facing position.

The body of this child seat must be in contact
with the back of the vehicle's front seat.

It is imperative that the vehicle's front seat is adjusted
to the intermediate longitudinal position.

This child seat can also be used on

seats which are not ﬁ tted with ISOFIX

mountings.

In this case, it is compulsory to secure
the child seat to the vehicle's seat
using the three-point seat belt.

Follow the instructions for ﬁ tting

the child seat indicated in the seat
manufacturer's installation guide.

SEATS -

ADVICE ON CHILD
SEATS

The incorrect installation of a
child seat in a vehicle com-

promises the child's protection in the
event of an accident.
Remember to fasten the seat belts or
the child seat harnesses  keeping the
slack  in relation to the child's body to
a minimum, even for short journeys.
For  optimum  installation  of  the  "for-
ward  facing"  child  seat,  ensure  that
the back of the child seat is in contact
with  the  back  of  the  vehicle's  seat
and that the head restraint does not
cause any discomfort.
If  the  head  restraint  has  to  be  re-
moved,  ensure  that  it  is  stored  or
attached  securely  to  prevent  it  from
being  thrown  around  the  vehicle  in
the event of sharp braking.

Children under the age of 10 must not
travel in the "forward facing" position
on  the  front  passenger  seat,  unless
the  rear  seats  are  already  occupied
by other children, cannot be used or
are absent.
Deactivate  the  passenger  airbag
when a "rear facing" child seat is in-
stalled  on  the  front  seat.  Otherwise,
the  child  would  risk  being  seriously
injured or killed if the airbag were to

inﬂ ate.

As a safety precaution, do not leave:
-

one or more children alone and
unsupervised in a vehicle,

a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

the keys within reach of children
inside the vehicle.

  Installing a booster seat
The  chest  part  of  the  seat  belt  must
be positioned on the child's shoulder
without touching the neck.
Ensure  that  the  lap  part  of  the  seat
belt passes correctly over the child's
thighs.
CITROËN  recommends  the  use  of  a

booster seat which has a back, ﬁ tted

with a seat belt guide at shoulder level.

prevent

accidental

opening of the doors, use
the "Child lock".
Take care not to open the
rear windows by more than
one third.

To protect young children from the

rays of the sun, ﬁ t side blinds on the

rear windows.

SEATS

52 -

SEAT BELTS

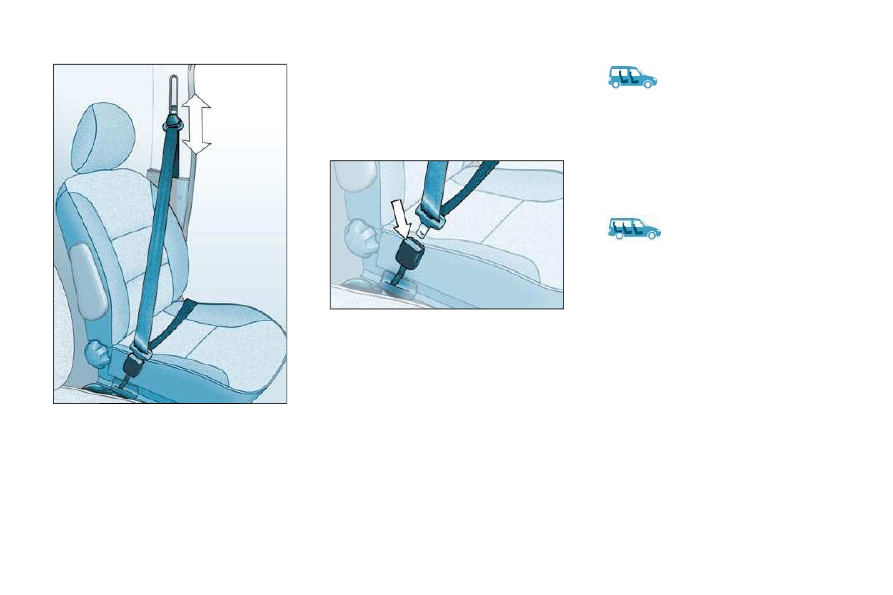

  Locking the seat belts
Pull the strap, then insert the end into
the buckle.
Check  that  the  seat  belt  is  fastened
correctly by pulling the strap.

Unfastening the seat belts
Press the button on the buckle.

  Front seat belts
with pre-tensioner
Safety in the event of frontal impacts
has  been  improved  by  the  introduc-
tion  of  pre-tensioning  seat  belts  for
the front seats.
Depending on the seriousness of the
impact,  the  pre-tensioning  system
instantly  tightens  the  seat  belts  and
pulls  them  against  the  bodies  of  the
occupants.
The  pre-tensioning  seat  belts  are
armed when the ignition is on.

  Seat belt height adjustment
To  lower  or  raise:  slide  the  control
downwards or upwards.

Rear seat belts
(5 seat version)

The rear seats are ﬁ tted with three

three-point inertia reel seat belts
(two-part rear seat, 1/3 - 2/3).

Rear seat belts
(7 seat version)

In row 2
The rear seats are ﬁ tted with two

three-point inertia reel seat belts.

In row 3
The rear seats are ﬁ tted with three

three-point inertia reel seat belts.

SEATS -

      The  driver  must  ensure  that
the passengers use the seat
belts  correctly  and  that  they
are  all  properly  restrained
before setting off.

Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as

they will not fulﬁ l their role fully.
If  the  seats  have  armrests * ,  the  lap
part  of  the  seat  belt  must  always
pass under the armrest.
The  seat  belts  are  ﬁ tted  with  an  in-

ertia reel permitting automatic adjust-
ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are ﬁ tted with an au-

tomatic  locking  device  which  comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle  rolls  over.  You  can  release
the  device  by  pulling  rapidly  on  the
strap and releasing it.

In order to be effective, a seat belt:
-

must be tightened as close to the
body as possible,

must restrain one adult only,

must not bear any trace of cuts or
fraying,

must be pulled in front of you with
a smooth movement, checking
that it does not twist,

- must not be transformed or modiﬁ ed

to avoid altering its performance.

In  accordance  with  current  safety
regulations,  all  repairs  and  checks
must  be  carried  out  by  a  CITROËN
dealer who guarantees that the work
is carried out correctly.
Have  your  seat  belts  checked  regu-
larly by a CITROËN dealer and par-
ticularly  if  the  straps  show  signs  of
damage.
Clean the seat belt straps with soapy
water  or  a  textile  cleaning  product,
sold by CITROËN dealers.

* According to model.

Recommendations for children:
-

use a suitable child seat if the pas-
senger is less than 12 years old or

shorter than one metre ﬁ fty,

do not use the strap-guide * when
a child seat is installed.

never use the same seat belt to
secure more than one person,

never allow a child to travel on
your lap.

  Depending  on  the  nature  and  se-
riousness  of  the  impacts ,  the  pre-
tensioning  device  may  be  triggered
before  and  independently  of  the  air
bags. Triggering of the pre-tensioners
is  accompanied  by  a  slight  emission
of harmless smoke and a noise, due
to  the  activation  of  the  pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following  an  impact,  have  the  seat
belts  system  checked,  and  if  neces-
sary replaced, by a CITROËN dealer.

After  folding  or  moving  a
seat  or  rear  bench  seat,
ensure  that  the  seat  belt
is positioned and rolled up
correctly.

ACCESS and STARTING

54 -

KEYS

The keys allow you to switch on the
ignition and operate the passenger
air bag disarming switch as well as to
independently operate the locks on

the doors and the fuel ﬁ ller cap.

        Locating your vehicle
To  locate  your  vehicle,  if  you  have
locked it, in a car park:
      press button  A , the courtesy lamps

come on and the direction indica-

tors ﬂ ash for a few seconds.

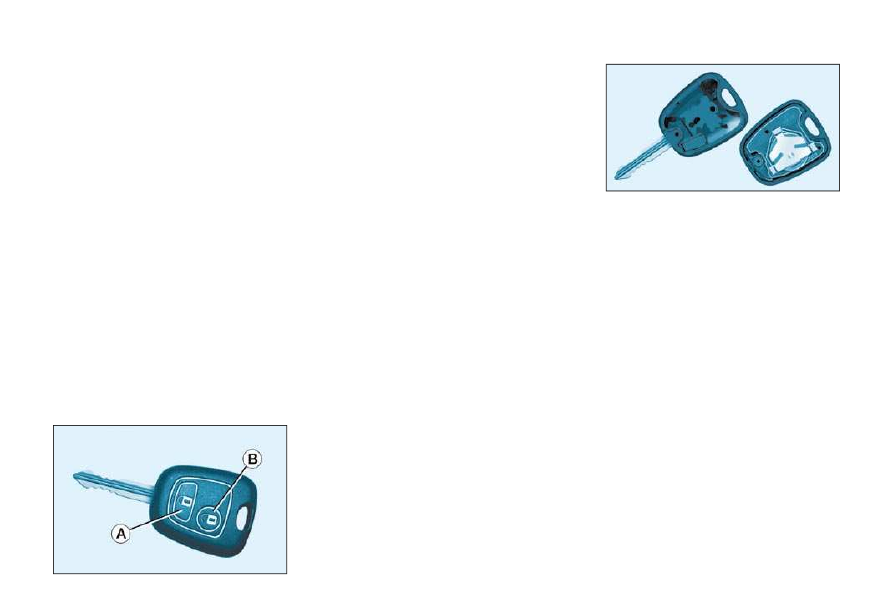

Changing the battery of the
remote control

CR 2016/3 volt battery.

The information "battery ﬂ at" is given

by an audible signal accompanied
by the message "Remote control

battery ﬂ at" on the screen.
To change the battery, unclip the

casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,

re-programme the remote control.

Reinitialising the remote
control



Switch off the ignition.



Switch the ignition on again.

 Press button A immediately for a

few seconds.

 Switch off the ignition and remove

the remote control key from the

ignition lock. The remote control

is now working again.

Remote control

Central locking
From the front doors, the keys allow
you to lock and unlock the doors and

tailgate.
If one of the doors or the tailgate is
open, the central locking does not

work.
The remote control performs the
same functions at a distance.

Locking
Press button A

to lock the vehicle.

This is conﬁ rmed by ﬁ xed lighting of

the direction indicators for approxi-

mately two seconds.

Unlocking
Press button B

to unlock the vehicle.

This is conﬁ rmed by rapid ﬂ ashing of

the direction indicators.
  Note :  if  the  vehicle  is  locked  and
unlocking  is  activated  inadvertently,
unless  the  doors  are  opened  within
30 seconds, the vehicle will lock au-

tomatically.

ACCESS and STARTING -

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who

does not have the key.
The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code
must be recognised for the vehicle to

start.

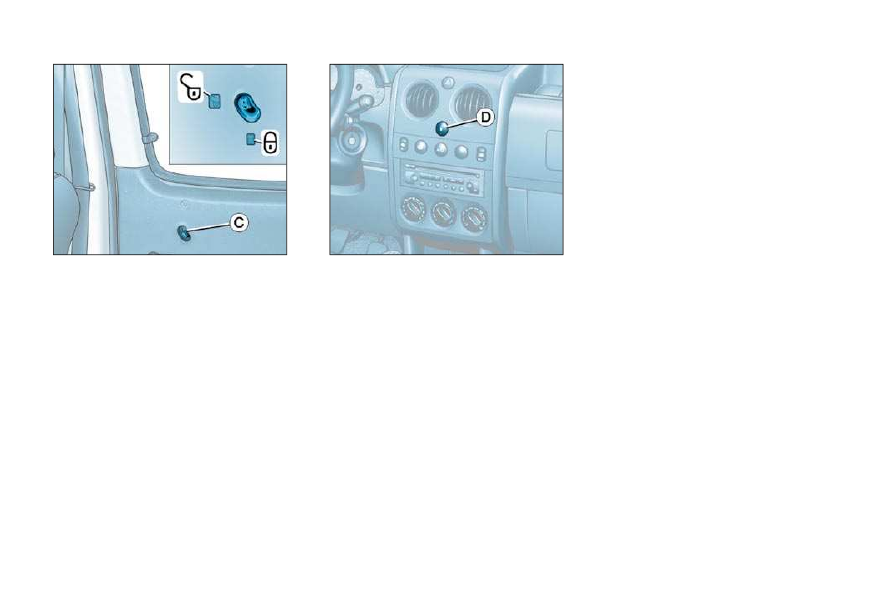

  If  the  system  does  not  function
correctly,   the  central  locking  button
indicator  light,  situated  in  the  centre

of the fascia, ﬂ ashes rapidly when the

ignition is switched on (2nd notch),
accompanied by an audible signal

and a message on the display.
In this case your vehicle will not

start.
Contact a CITROËN dealer as soon

as possible.

Key in ignition

A buzzer sounds on opening the
driver's door, if the key has been left

in the ignition.

Make a careful note of the

number of each key. This

number is coded on the label

attached to the key.

The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-

cle, without you being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,

except for reprogramming.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services

more difﬁ cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,

even for a short time.
Do not repeatedly press the buttons
of your remote control out of range of

your vehicle.
You run the risk of stopping it from
working and the remote control would

have to be reprogrammed.

When purchasing a second-hand ve-

hicle, have the key codes memorised
by a CITROËN dealer, to ensure that
the keys in your possession are the

only ones which can start the vehicle.

Do not make any modiﬁ cations to the

electronic engine immobiliser system.

If the keys are lost
Visit a CITROËN dealer with the vehi-

cle's V5 registration certiﬁ cate and your

personal identiﬁ cation documents.
The CITROËN network will be able to
retrieve the key code and the trans-
ponder code to order a replacement

key.

A heavy object (key fob...), attached

to the key and weighing down on
its shaft in the ignition switch, could

cause a malfunction.

ACCESS and STARTING

54 -

KEYS

The keys allow you to switch on the
ignition and operate the passenger
air bag disarming switch as well as to
independently operate the locks on

the doors and the fuel ﬁ ller cap.

        Locating your vehicle
To  locate  your  vehicle,  if  you  have
locked it, in a car park:
      press button  A , the courtesy lamps

come on and the direction indica-

tors ﬂ ash for a few seconds.

Changing the battery of the
remote control

CR 2016/3 volt battery.

The information "battery ﬂ at" is given

by an audible signal accompanied
by the message "Remote control

battery ﬂ at" on the screen.
To change the battery, unclip the

casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,

re-programme the remote control.

Reinitialising the remote
control



Switch off the ignition.



Switch the ignition on again.

 Press button A immediately for a

few seconds.

 Switch off the ignition and remove

the remote control key from the

ignition lock. The remote control

is now working again.

Remote control

Central locking
From the front doors, the keys allow
you to lock and unlock the doors and

tailgate.
If one of the doors or the tailgate is
open, the central locking does not

work.
The remote control performs the
same functions at a distance.

Locking
Press button A

to lock the vehicle.

This is conﬁ rmed by ﬁ xed lighting of

the direction indicators for approxi-

mately two seconds.

Unlocking
Press button B

to unlock the vehicle.

This is conﬁ rmed by rapid ﬂ ashing of

the direction indicators.
  Note :  if  the  vehicle  is  locked  and
unlocking  is  activated  inadvertently,
unless  the  doors  are  opened  within
30 seconds, the vehicle will lock au-

tomatically.

ACCESS and STARTING -

ELECTRONIC ENGINE
IMMOBILISER

This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who

does not have the key.
The ignition key has an electronic

chip which has a special code. When

the ignition is switched on, the code
must be recognised for the vehicle to

start.
  If  the  system  does  not  function
correctly,   the  central  locking  button
indicator  light,  situated  in  the  centre

of the fascia, ﬂ ashes rapidly when the

ignition is switched on (2nd notch),
accompanied by an audible signal

and a message on the display.
In this case your vehicle will not

start.
Contact a CITROËN dealer as soon

as possible.

Key in ignition

A buzzer sounds on opening the
driver's door, if the key has been left

in the ignition.

Make a careful note of the

number of each key. This

number is coded on the label

attached to the key.

The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-

cle, without you being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off,

except for reprogramming.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services

more difﬁ cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,

even for a short time.
Do not repeatedly press the buttons
of your remote control out of range of

your vehicle.
You run the risk of stopping it from
working and the remote control would

have to be reprogrammed.

When purchasing a second-hand ve-

hicle, have the key codes memorised
by a CITROËN dealer, to ensure that
the keys in your possession are the

only ones which can start the vehicle.

Do not make any modiﬁ cations to the

electronic engine immobiliser system.

If the keys are lost
Visit a CITROËN dealer with the vehi-

cle's V5 registration certiﬁ cate and your

personal identiﬁ cation documents.
The CITROËN network will be able to
retrieve the key code and the trans-
ponder code to order a replacement

key.

A heavy object (key fob...), attached

to the key and weighing down on
its shaft in the ignition switch, could

cause a malfunction.

ACCESS and STARTING

56 -

* According to country.

THE ALARM SYSTEM *

The alarm offers two types of protection:
-

exterior protection: the alarm
sounds if a door, the boot or the
bonnet is opened ;

interior  protection:   the  alarm
sounds  if  there  is  a  variation  in
the   volume  inside  the  vehicle
(breaking of a window or move-
ment inside the vehicle)

Setting the alarm
Switch the ignition off and get out of

the vehicle.

Activate the alarm within ﬁ ve minutes

following your exit from the vehicle,

by  locking  using  the  remote  control
key  (the  red  indicator  light  on  the
switch  1 , which can be seen from the

outside, ﬂ ashes once a second).

  Warning
If,  on  setting  the  alarm,  a  door,  the
boot  or  the  bonnet  are  not  closed
correctly, the siren sounds for a mo-

ment.
Close the vehicle correctly to set the

alarm.
If the interior protection alarm is trig-
gered ten times in succession, it is

disarmed automatically. It must be

set again in order for it to operate

correctly.

When the alarm is triggered, the siren

sounds and the direction indicators

ﬂ ash for thirty seconds.
After it has been triggered, the alarm

becomes operational again.

Note: if you wish to lock your vehicle
without setting the alarm, lock it using

the key in the door lock.

  Disarming the alarm
Unlock  the  vehicle  using  the  remote
control key (the red indicator light on
the switch  1

goes out).

Note:

if the warning light ﬂ ashes, it is

a sign that the alarm has been trig-

gered in your absence.

To stop it, switch on the ignition.

Note: when the alarm is set, but the
remote control no longer works:
 unlock the doors using the key

and open the door; the alarm is
triggered;

 switch the ignition on within ten

seconds; the alarm is disarmed.

  To set the alarm with exterior
protection only
If, while you are away from the vehicle,
you  wish  to  leave  a  window  partially
open  or  a  pet  inside  the  vehicle,  you

need to select exterior protection only:

Switch off the ignition.

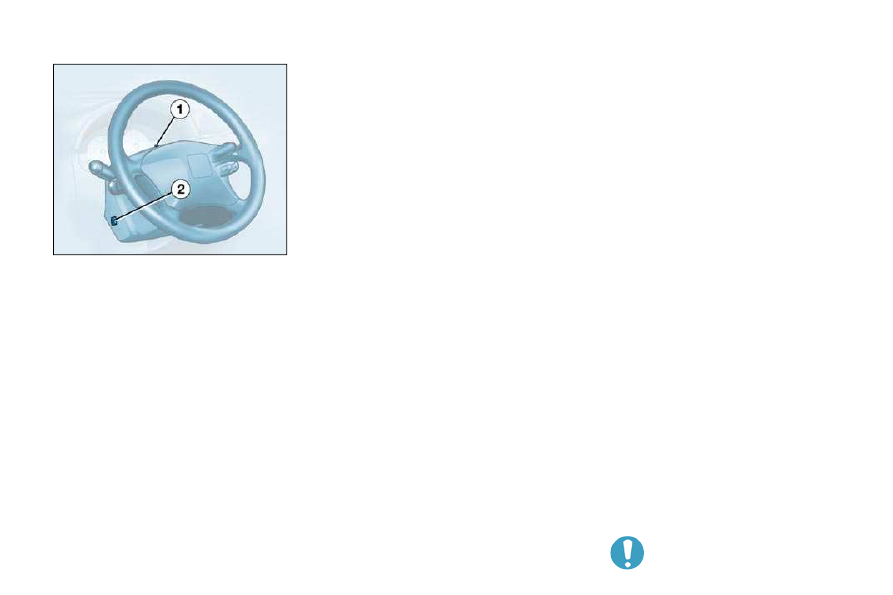

Press the button 2 until the light 1

comes on continuously.

Get out of the vehicle.
Press the locking button of the

remote control.

The doors lock.
The red light on the switch ﬂ ashes

once a second.

Malfunction

When the ignition is switched on,

ﬁ xed lighting of the red indicator light,

located in the centre of the fascia, in-

dicates a siren connection fault.
Contact a CITROËN dealer to have

the system checked.

Do not make any modiﬁ ca-

tions to the alarm system, this

could cause malfunctions.

ACCESS and STARTING -

FRONT DOORS AND SLIDING
SIDE DOORS

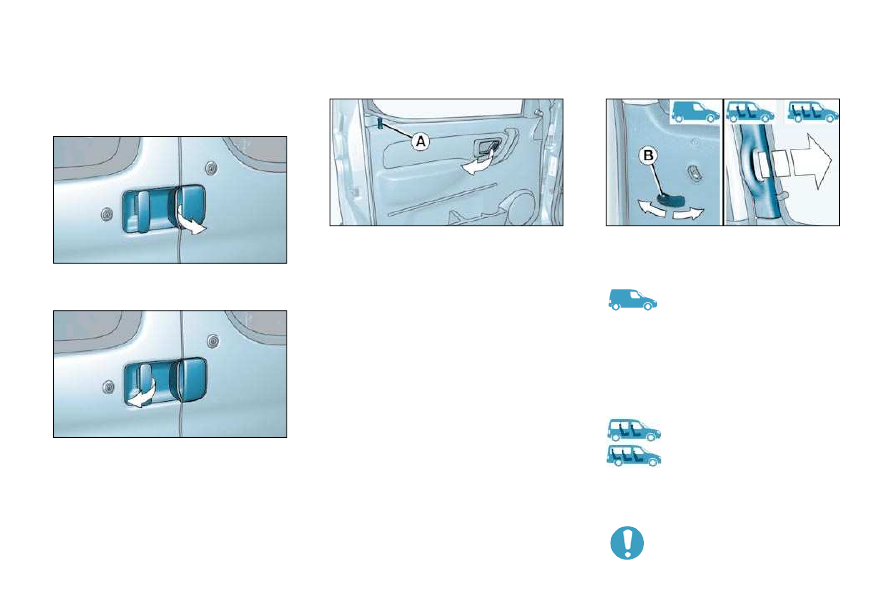

Front doors

Side doors

  Front doors
The  driver's  door  opening  control
permits  complete  unlocking  of  the

vehicle.

Side doors

Opening the doors from inside

Opening the doors from outside

Sliding side doors

If the fuel tank cap is removed,
the right-hand side door can-

not be opened.

Locking Unlocking from the inside

Front doors
To lock, lower button A

The closing control of one of the front
doors permits complete locking of

the vehicle.
To unlock and open, lift button A and

pull the handle towards you.
The driver's door opening control
permits complete unlocking of the

vehicle.

From the inside, the sliding
side door is opened and

closed using the handle.
  A point of resistance at the
end  of  the  opening  travel
secures  the  door  in  the

open position.

The side door opening/closing
control only controls the door

concerned.

To close, push the control B forwards

and slide the door.
To open, pull the control B rearwards

and slide the door.

ACCESS and STARTING

58 -

Locking from the inside
Lower or raise control C to lock or unlock

from the inside.

  Locking from the inside
Pressing  control   D   operates  the
central  locking,  when  the  doors  are

closed.

  Automatic central locking
Your  vehicle  can  lock  automatically
while  driving  (speed  greater  than

6mph (10 km/h)). You can activate or

deactivate this function.

Unlocking from the inside
Press control D

It is still possible to open the doors

from the inside.

Activation
Press and hold control D

Activation of the function is accom-
panied by an audible signal and a

message on the display.

Deactivation
Press and hold control D

Deactivation of the function is accom-

panied by an audible signal.

Notes:
-

doors locked and ignition off: the

indicator light ﬂ ashes,

doors locked and ignition on: the

indicator light remains on.

ACCESS and STARTING -

REAR DOORS

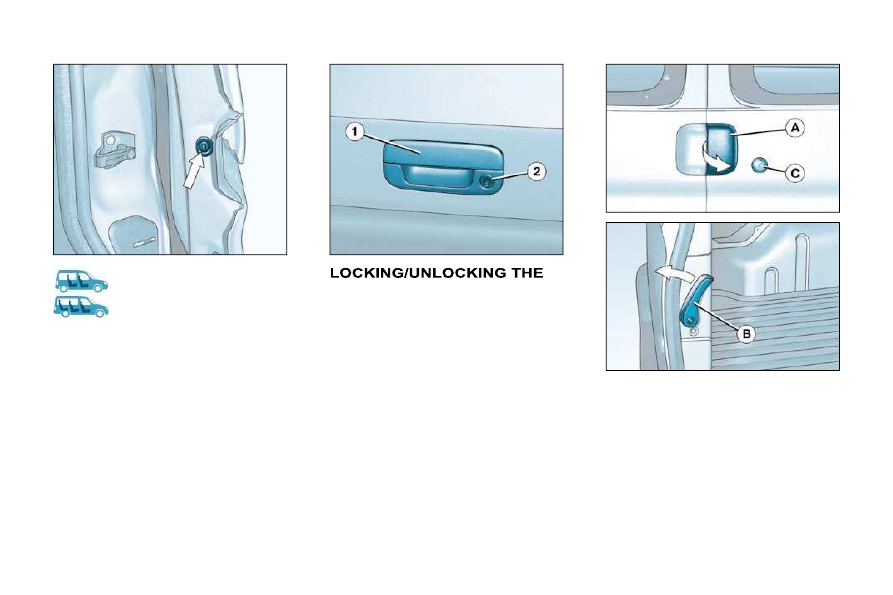

Side door child lock

  Opening the doors from outside
To open, pull the rear right door han-
dle  A  towards you and open the rear
left door by pulling the lever  B  on the

inside.
You can unlock the rear doors by
inserting the key in the lock C

This prevents opening of the side

door from the inside.
Turn the control a quarter turn using

the ignition key.

TAILGATE

To open the tailgate, operate the
handle 1

and lift it.

You can unlock the tailgate by inserting
the key in the lock 2

ACCESS and STARTING -

REAR DOORS

Side door child lock

  Opening the doors from outside
To open, pull the rear right door han-
dle  A  towards you and open the rear
left door by pulling the lever  B  on the

inside.
You can unlock the rear doors by
inserting the key in the lock C

This prevents opening of the side

door from the inside.
Turn the control a quarter turn using

the ignition key.

TAILGATE

To open the tailgate, operate the
handle 1

and lift it.

You can unlock the tailgate by inserting
the key in the lock 2

ACCESS and STARTING

60 -

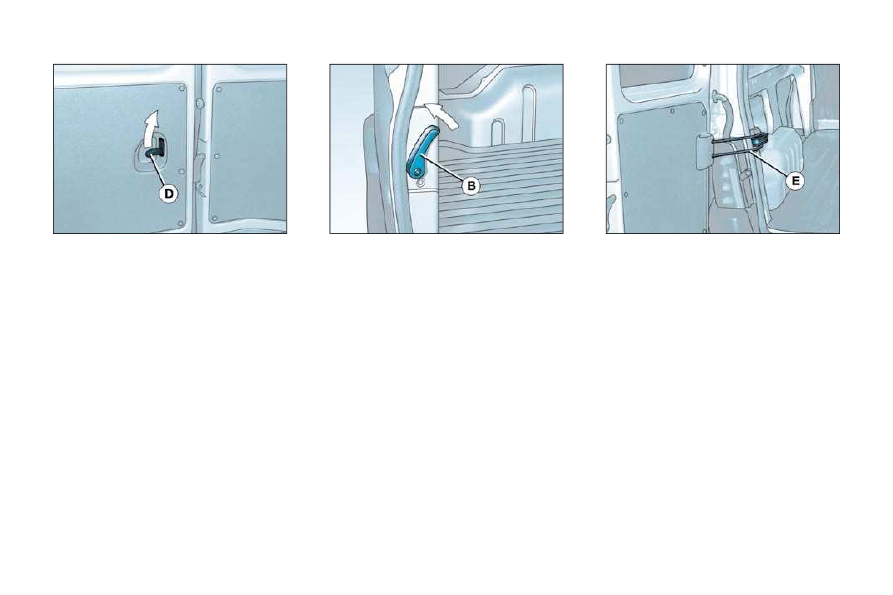

Opening the doors from inside
The rear door opening controls only

unlock these doors.
To open, lift lever D

To open the other door, push lever B

Note: when closing from the inside,

close the right-hand door ﬁ rst ensuring

that lever B is in the vertical position

then close the left-hand door.

  Opening the rear doors to 180°
To  open  the  rear  doors  to  180°,
release  the  check  strap   E   towards

you when the door is partially open.

When closing the door, the check

strap hooks itself in place again auto-

matically.

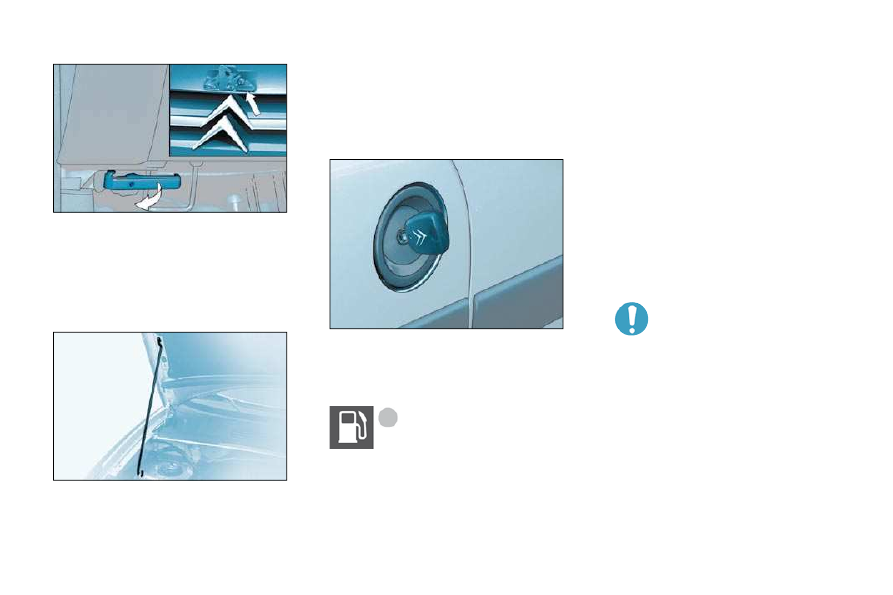

ACCESS and STARTING -

OPENING THE BONNET

Inside the vehicle: pull the handle on

the left-hand side, under the fascia.
Outside the vehicle: lift the catch

and raise the bonnet.

BONNET STRUT

Secure the strut to hold the bonnet

open.
Before closing the bonnet, replace

the strut in its housing.

FILLING WITH FUEL

When the minimum

fuel level in the tank is
reached, this warning

light comes on.

When the cap is removed,

the right-hand sliding side

door cannot be opened.
The key cannot be removed
from the lock until the cap
has been replaced on the

fuel tank.

A label reminds you which type of

fuel to use.

When you ﬁ ll your tank, do not con-

tinue after the third cut-off of the

pump. This could cause your vehicle

to malfunction.

To close
Lower the bonnet and release it at

the end of its travel.

Check that the bonnet is locked.

Low fuel level

  You  have  enough  fuel  remaining
to drive for approximately 30 miles
(50 km).
  The  engine  must  be  switched  off

when ﬁ lling with fuel.


Insert the key then turn it to the left.



Remove the cap.

  The capacity of the tank is approxi-
mately 55 litres for petrol engines
and 60 litres for Diesel engines.
   

After ﬁ lling the tank, lock the cap.

Content .. 2 3 4 5 ..
