GETTING TO KNOW YOUR VEHICLE

EADLIGHT

IME

ELAY

— I

QUIPPED

This feature provides the safety of headlight

illumination for up to 90 seconds after exiting your

vehicle.
To activate the delay feature, place the ignition in

the OFF position while the headlights are still on.

The 90 second delay interval begins when

headlight switch is turned off. If the headlights or

parking lights are turned back on or the ignition is

placed in the ON position, the delay will be

cancelled.
When exiting the vehicle the driver can choose

to have the headlights remain on for 30, 60, or

90 seconds or not remain on. You can change the

timer setting through the Uconnect system

page 141.

If the headlights are turned off before the ignition,

they will turn off in the normal manner.

NOTE:

The headlights must be turned off within

45 seconds of placing the ignition in the OFF

position to activate this feature.

IGHTS

-O

EMINDER

If the headlights or the parking lights are left on

after the ignition is placed in the OFF position, the

vehicle will chime when the driver's door is opened.

RONT

IGHTS

— I

QUIPPED

To activate the front fog lights, turn on the parking

lights or the low beam headlights and push the

headlight switch control knob. Pushing the

headlight switch control knob a second time will

turn the front fog lights off.

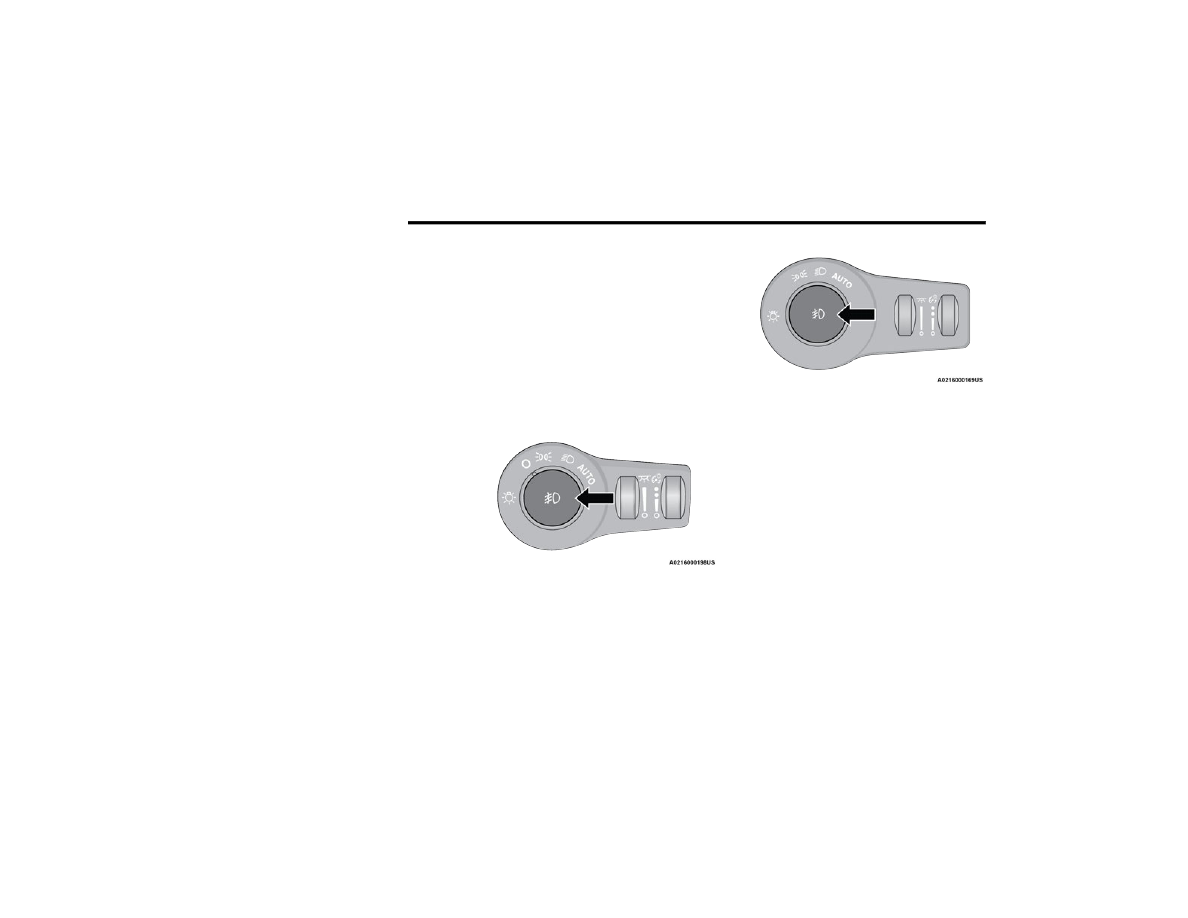

Fog Light Switch

Fog Light Switch (Vehicles Sold In Canada Only)

URN

IGNALS

Move the multifunction lever up or down to

activate the turn signals. The arrows on each side

of the instrument cluster flash to show proper

operation.

NOTE:

If either light remains on and does not flash, or

there is a very fast flash rate, check for a defective

outside light bulb.

GETTING TO KNOW YOUR VEHICLE

Turn Signal Warning

If the vehicle electronics sense that the vehicle has

traveled for about 1 mile (1.6 km) with a turn

signal on, a chime will sound and a message will

display in the cluster to alert the driver.

ANE

HANGE

SSIST

— I

QUIPPED

Tap the multifunction lever up or down once,

without moving beyond the detent, and the turn

signal (right or left) will flash three times then

automatically turn off.

ATTERY

ROTECTION

This feature provides battery protection to avoid

wearing down the battery if the headlights or

parking lights are left on for extended periods of

time when the ignition is in the OFF position. After

eight minutes of the ignition being in the OFF

position and the headlight switch in any position

other than OFF or AUTO, the lights will turn off

automatically until the next cycle of the ignition or

headlight switch.
The battery protection feature will be disabled if

the ignition is placed in any position other than OFF

during the eight minute delay.

INTERIOR LIGHTS

NTERIOR

OURTESY

IGHTS

The courtesy light switches are used to turn the

courtesy lights on/off.

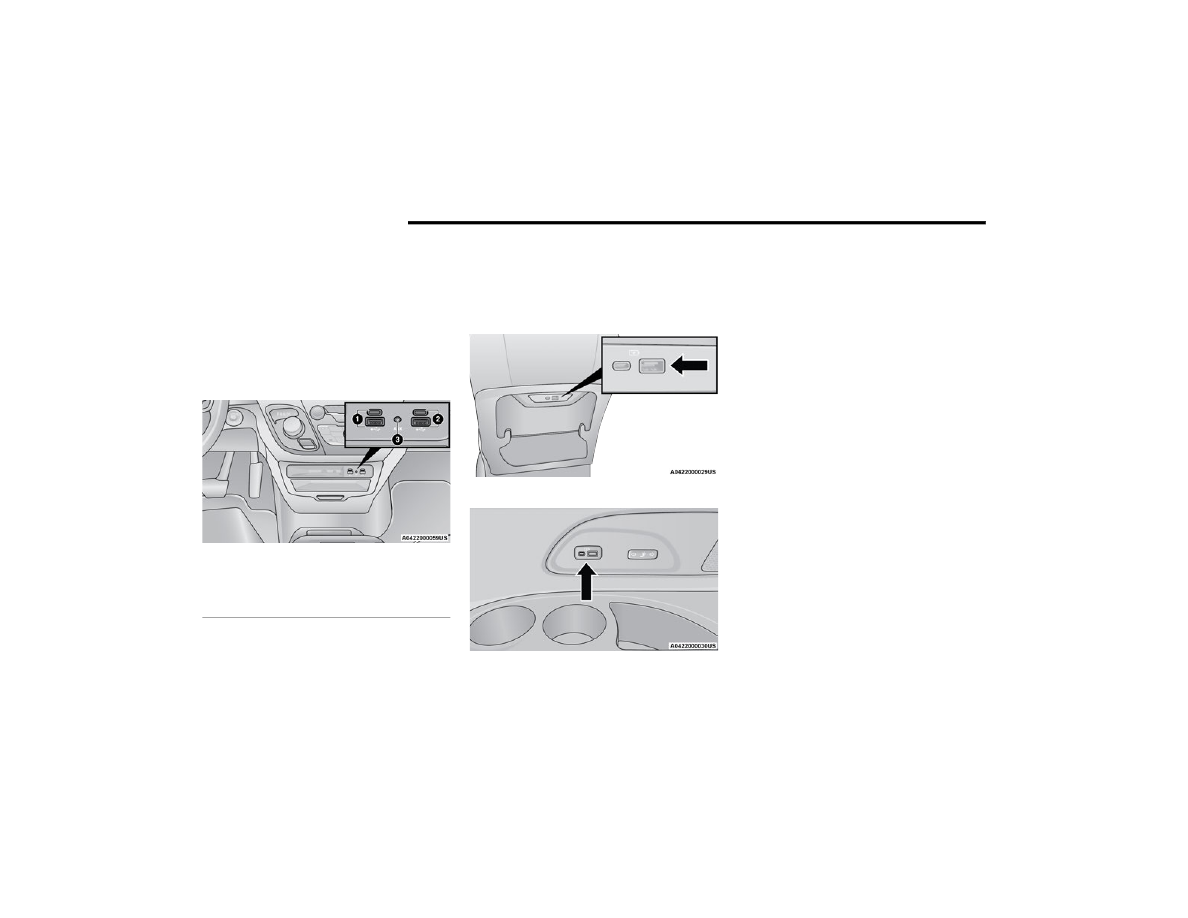

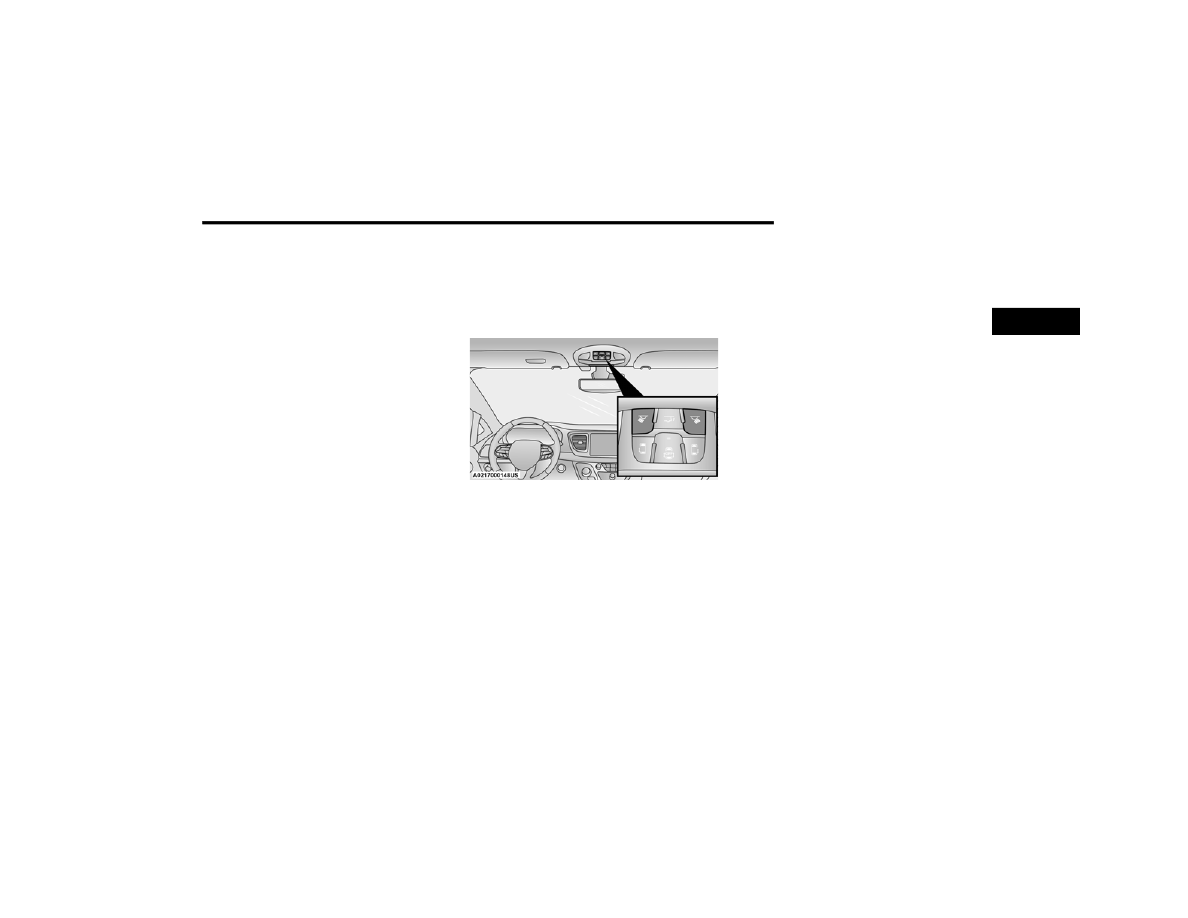

Courtesy Light Switches

To operate the courtesy lights, push either the

driver or passenger light switch.

NOTE:



Before exiting the vehicle, make sure that the

interior lights are turned off. This will prevent the

battery from discharging once the doors are

closed.



If a light is left on, it will automatically be turned

off approximately 10 minutes after the ignition

is in the OFF position.

Rear Courtesy/Reading Lights —

If Equipped

Located above the rear passengers are courtesy/

reading lights. The lights turn on when a front door,

a sliding door or the liftgate is opened. If your

vehicle is equipped with Remote Keyless Entry

(RKE) the lights will also turn on when the unlock

button on the key fob is pushed.
The courtesy lights also function as reading lights.

Push the lens to turn these lights on while inside

the vehicle. Push the lens a second time to turn

each light off.

GETTING TO KNOW YOUR VEHICLE

Dimmer Controls

The dimmer controls are part of the headlight

switch, and are located on the driver’s side of the

instrument panel.
With the parking lights or headlights on, rotating

the right dimmer control upward will increase the

brightness of the instrument cluster lights.

Rotating the left dimmer control will adjust the

interior light levels of the ambient lighting on the

instrument panel and doors.

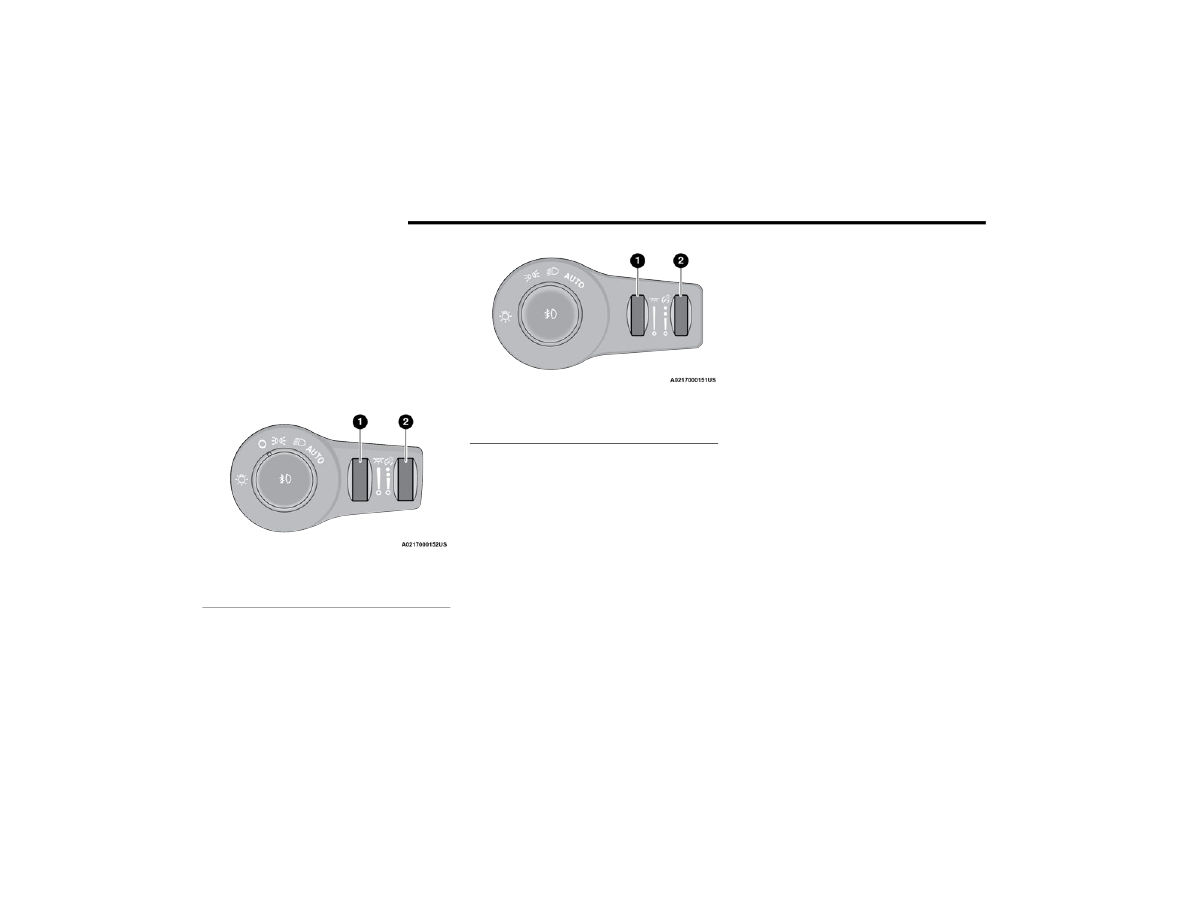

Dimmer Controls

Dimmer Controls (Vehicles Sold In Canada Only)

At the top detent of the instrument panel dimmer

(parade mode), all the interior lights will illuminate.

At the bottom most setting (extreme bottom)

interior lights are turned off (dome off), and the

cluster, radio and instrument lighting go to their

lowest dimmable setting.

Parade Mode

(Daytime Brightness Feature)

Rotate the instrument panel dimmer control

upward to the first detent. This feature brightens

all text displays such as the odometer, instrument

cluster display, and radio when the position lights

or headlights are on.

WINDSHIELD WIPER AND WASHERS

The windshield wiper/washer controls are located

on the right side of the steering column. The front

wipers are operated by rotating a switch, located

on the end of the lever.

INDSHIELD

IPER

PERATION

The wipers and washers are operated by a switch

within the wiper lever. Rotate the switch at the end

of the lever upward, to the first detent past the

intermittent settings for low-speed wiper

operation. Rotate the switch at the end of the lever

upward to the second detent past the intermittent

settings for high-speed wiper operation. To turn the

windshield wipers off, rotate the switch within the

lever all the way down to OFF.

1 — Ambient Light Dimmer Control
2 — Instrument Panel Dimmer Control

GETTING TO KNOW YOUR VEHICLE

Washer And Wiper Controls

NOTE:

Always remove any buildup of snow that prevents

the windshield wiper blades from returning to the

off position. If the windshield wiper switch is turned

off and the blades cannot return to the off position,

damage to the wiper motor may occur.

Intermittent Wipers
Use the intermittent wiper when weather

conditions make a single wiping cycle with a

variable pause between cycles desirable. Rotate

the switch at the end of the wiper lever to the first

detent position, and then turn the switch at the end

of the lever to select the desired delay interval.

There are four delay settings, which allow you to

regulate the wipe interval from a minimum of one

cycle every second to a maximum of approximately

36 seconds between cycles. The delay intervals

will double in duration when the vehicle speed is

10 mph (16 km/h) or less.

Windshield Washers
To use the washer, pull the lever rearward toward

you and hold. If the lever is pulled while on the

intermittent setting, the wipers will turn on and

operate for several wipe cycles after the lever is

released, and then resume the intermittent

interval previously selected. If the lever is pulled

while the wipers are in the off position, the wipers

will operate several cycles, then turn off.
Mist
Push the lever upward to the MIST position and

release for a single wiping cycle.

NOTE:

The Mist feature does not activate the washer

pump; therefore, no washer fluid will be sprayed on

the windshield. The wash function must be used in

order to spray the windshield with washer fluid.
For information on wiper care and replacement,

see

page 253.

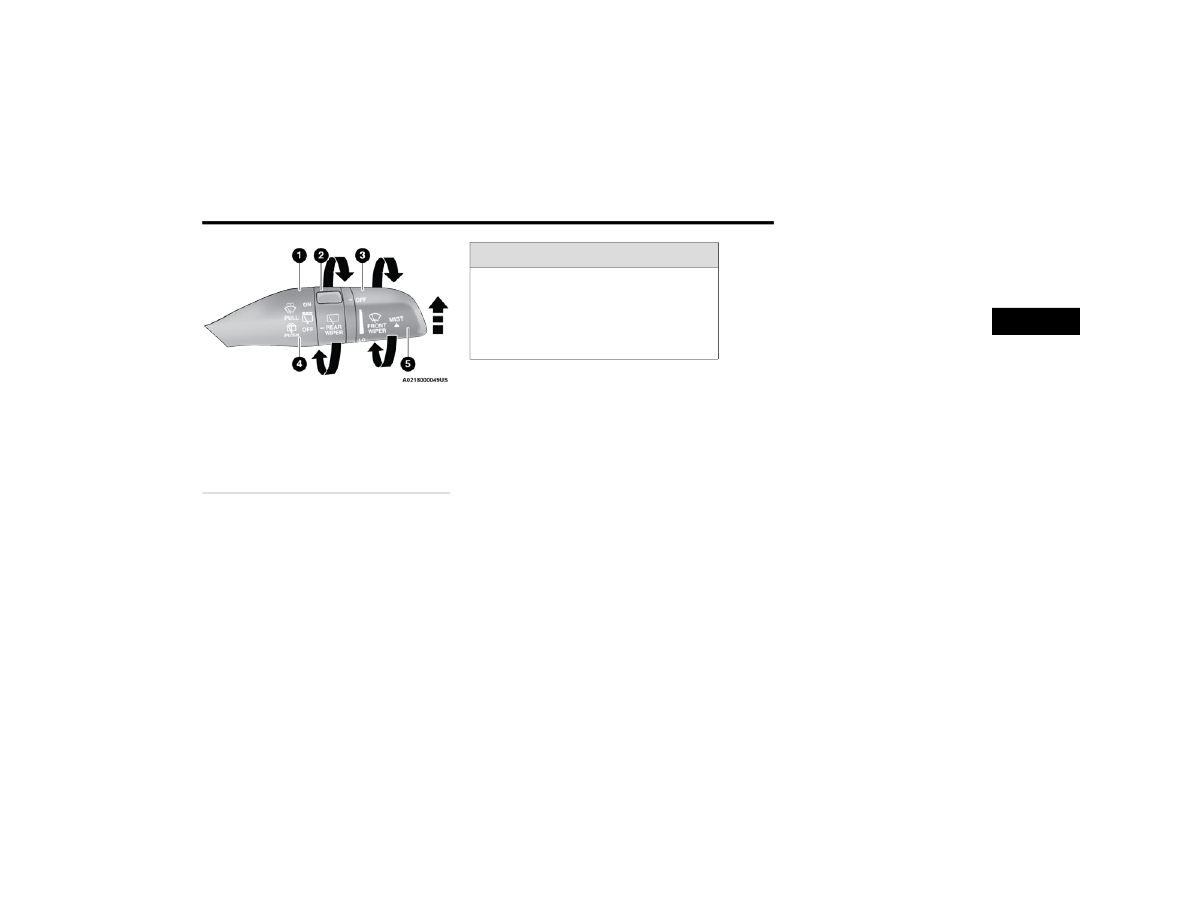

1 — Pull For Front Washer
2 — Rotate For Rear Wiper Operation
3 — Rotate For Front Wiper Operation
4 — Push Forward For Rear Washer
5 — Push Up For Mist

WARNING!

Sudden loss of visibility through the windshield

could lead to a collision. You might not see other

vehicles or other obstacles. To avoid sudden

icing of the windshield during freezing weather,

warm the windshield with the defroster before

and during windshield washer use.

GETTING TO KNOW YOUR VEHICLE

EAR

IPER

ASHER

The rear wiper/washer is operated by rotating a

switch, located at the middle of the lever.

Rotate the center portion of the lever

upward to the first detent for intermittent

operation and to the second detent for

continuous rear wiper operation.

Rear Window Washer Operation

Pushing the windshield wiper lever

forward activates the rear window

washer. If the lever is pushed while on

the intermittent setting, the wipers will

turn on and operate for several wipe cycles after

the lever is released, and then resume the

intermittent interval previously selected. If the

lever is pushed while the wipers are in the off

position, the wipers will operate several wipe

cycles, then turn off.

CLIMATE CONTROLS

ANUAL

LIMATE

ONTROL

ESCRIPTIONS

UNCTIONS

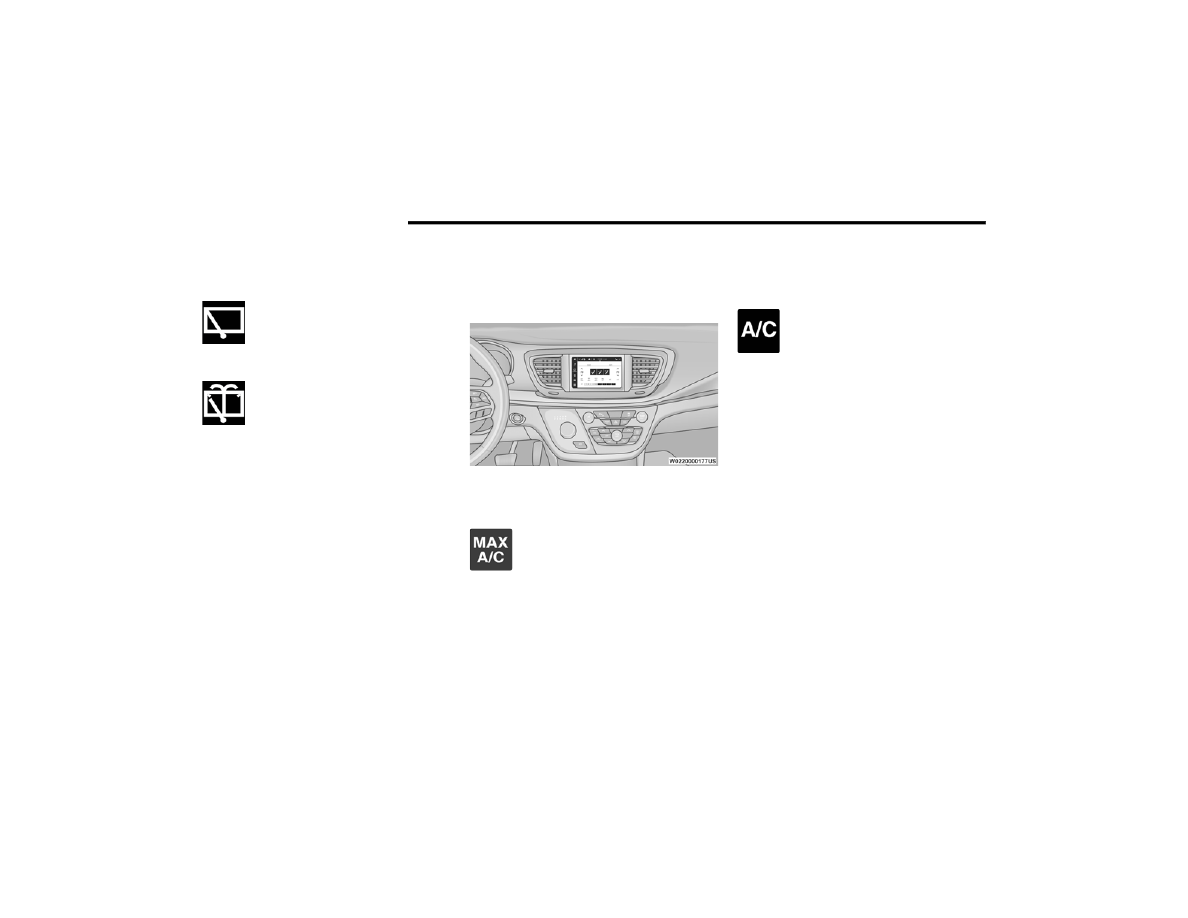

Uconnect 5 With 7–inch Display

Manual Temperature Controls

MAX A/C Button

Press and release the MAX A/C button to

change the current setting. The indicator

illuminates when MAX A/C is on.

Performing this function again will cause

the MAX A/C operation to switch into manual mode

and the MAX A/C indicator will turn off.

NOTE:

The MAX A/C setting is only available on the touch

screen.

A/C Button

Press and release the A/C button to

change the current setting. The indicator

illuminates when A/C is on.

NOTE:



For Manual Climate Controls, if the system is in

Mix, Floor or Defrost Mode, the A/C can be

turned off, but the A/C system shall remain

active to prevent fogging of the windows.



If fog or mist appears on the windshield or side

glass, select Defrost mode, and increase blower

speed if needed.



If your air conditioning performance seems

lower than expected, check the front of the A/C

condenser (located in front of the radiator), for

an accumulation of dirt or insects. Clean with a

gentle water spray from the front of the radiator

and through the condenser.

GETTING TO KNOW YOUR VEHICLE

Recirculation Button

Press and release this button to change

the system between recirculation mode

and outside air mode. The Recirculation

indicator and the A/C indicator illuminate

when the Recirculation button is pressed.

Recirculation can be used when outside conditions

such as smoke, odors, dust, or high humidity are

present. Recirculation can be used in all modes

except for Defrost. Recirculation may be

unavailable (button on the touchscreen greyed

out) if conditions exist that could create fogging on

the inside of the windshield. The A/C (Air

Conditioning) can be deselected manually without

disturbing the mode control selection. Continuous

use of the Recirculation mode may make the

inside air stuffy and window fogging may occur.

Extended use of this mode is not recommended.

Recirculation mode may automatically adjust to

optimize customer experience for warming,

cooling, dehumidification, etc.
On systems with Manual Climate Controls (if

equipped), the Recirculation mode is not allowed

in Defrost mode to improve window clearing

operation. Recirculation is disabled automatically

if this mode is selected. Attempting to use

Recirculation while in this mode causes the LED in

the control button to blink, and then turn off.

Front Defrost Button

Press and release the Front Defrost

button to change the current airflow

setting to Defrost mode. The indicator

illuminates when this feature is on. Air

comes from the windshield and side window

demist outlets. When the defrost button is

selected, the blower level may increase. Use

Defrost mode with maximum temperature settings

for best windshield and side window defrosting

and defogging.

Performing this function will cause the Automatic

Temperature Control (ATC) to switch into manual

mode. If the Front Defrost mode is turned off the

climate system will return the previous setting.

Rear Defrost Button

Push and release the Rear Defrost

Control button to turn on the rear window

defroster and the heated outside mirrors

(if equipped). An indicator will illuminate

when the rear window defroster is on. The rear

window defroster automatically turns off after

15 minutes.

CAUTION!

Failure to follow these cautions can cause

damage to the heating elements:



Use care when washing the inside of the rear

window. Do not use abrasive window cleaners

on the interior surface of the window. Use a

soft cloth and a mild washing solution, wiping

parallel to the heating elements. Labels can

be peeled off after soaking with warm water.



Do not use scrapers, sharp instruments, or

abrasive window cleaners on the interior

surface of the window.



Keep all objects a safe distance from the

window.

GETTING TO KNOW YOUR VEHICLE

Front Temperature Control

These buttons provide the driver and passenger

with independent temperature control.

Push the red button on the faceplate or

touchscreen or press and slide the

temperature bar towards the red arrow

button on the touchscreen for warmer

temperature settings.

Push the blue button on the faceplate or

touchscreen or press and slide the

temperature bar towards the blue arrow

button on the touchscreen for cooler

temperature settings.

SYNC Button

Press the SYNC button on the

touchscreen to toggle the Sync feature

on/off. The SYNC indicator is illuminated

when this feature is enabled. SYNC is

used to synchronize the front and rear passenger

temperature settings with the driver temperature

setting. Changing the front or rear passenger

temperature setting while in SYNC will

automatically exit this feature. Pressing SYNC on

the touchscreen while in the Front Climate screen

synchronizes the driver and passenger

temperatures only. In order to SYNC rear

temperature to driver temperature, the

touchscreen must be on the Rear Climate screen.

NOTE:

The SYNC setting is only available on the touch

screen.

Blower Control

Blower Control is used to regulate the

amount of air forced through the Climate

Control system. There are seven blower

speeds available.

The speeds can be selected using either the

blower control knob on the faceplate or the

buttons on the touchscreen.



Faceplate: The blower speed increases as you

turn the blower control knob clockwise from the

lowest blower setting. The blower speed

decreases as you turn the blower control knob

counterclockwise.



Touchscreen: Use the small blower icon to

reduce the blower setting and the large blower

icon to increase the blower setting. Blower

speed can also be selected by pressing the

blower bar area between the icons.

Mode Control

The airflow distribution mode can be

adjusted so air comes from the

instrument panel outlets, floor outlets,

defrost outlets and demist outlets.

Faceplate: Push the button in the center of the

knob to change the airflow distribution mode.
Touchscreen: Select Mode by pressing one of the

Mode Buttons on the touchscreen.

Panel Mode

Air comes from the outlets in the

instrument panel. Each of these outlets

can be individually adjusted to direct the

flow of air. The air vanes of the center

outlets and outboard outlets can be moved up and

down or side to side to regulate airflow direction.

There is a shut-off wheel located below the air

vanes to shut off or adjust the amount of airflow

from these outlets.

Bi-Level Mode

Air comes from the instrument panel

outlets and floor outlets. A slight amount

of air is directed through the defrost and

side window demister outlets.

NOTE:

Bi-Level mode is designed under comfort condi

tions to provide cooler air out of the panel outlets

and warmer air from the floor outlets.

GETTING TO KNOW YOUR VEHICLE

Floor Mode

Air comes from the floor outlets. A slight

amount of air is directed through the

defrost and side window demister

outlets.

Mix Mode

Air is directed through the floor, defrost,

and side window demister outlets. This

setting works best in cold or snowy

conditions that require extra heat to the

windshield. This setting is good for maintaining

comfort while reducing moisture on the

windshield.

Climate Control OFF Button

Press and release this button to turn the

Climate Control ON/OFF.

Controlling The Rear Climate Controls

From The Front MTC Display/Touchscreen

The Three-Zone Manual Temperature Control

(MTC) system allows for adjustment of the rear

climate controls from the front MTC display/

touchscreen.

To change the rear system settings:



Press the "Rear Climate" button on the touch

screen to display the rear climate controls. The

control functions now operate the rear system.



Press the "Front Climate" button on the touch

screen to return to the front climate controls.

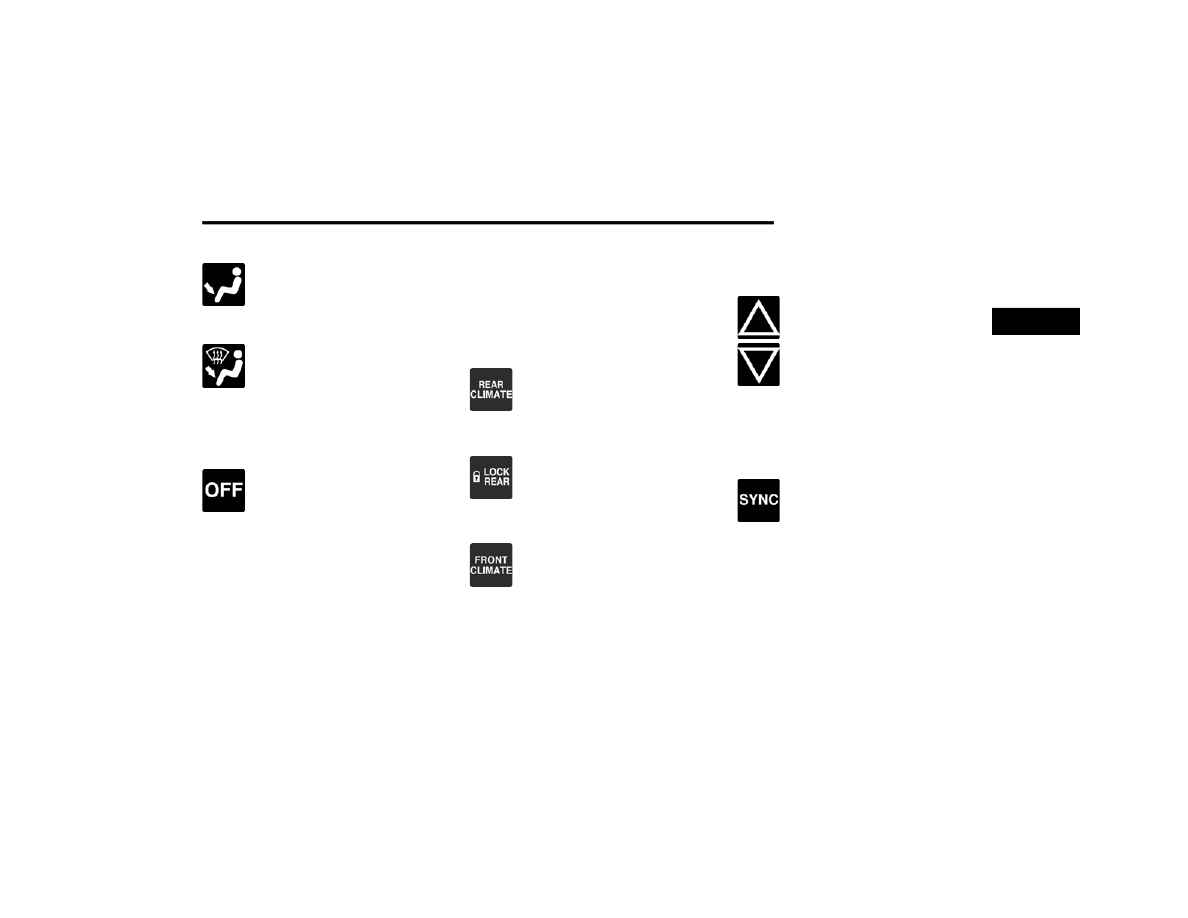

REAR CLIMATE CONTROL BUTTON

Press and release this button to access

the rear climate controls. The indicator

will illuminate when the rear climate

controls are on.

REAR LOCK BUTTON

Press and release this button to lock out

the rear manual temperature controls

from adjusting the rear temperature and

blower settings.

FRONT CLIMATE BUTTON

Press and release this button to change

the display on the Uconnect system back

to the Front Climate Controls.

REAR TEMPERATURE CONTROL

These buttons provide the rear passengers with

independent temperature control.

Push the up arrow button on the

touchscreen to increase the

temperature.
Push the down arrow button on the

touchscreen to decrease the

temperature.

NOTE:

When the SYNC feature is active, the passenger’s

temperature moves up and down with the driver’s

temperature.

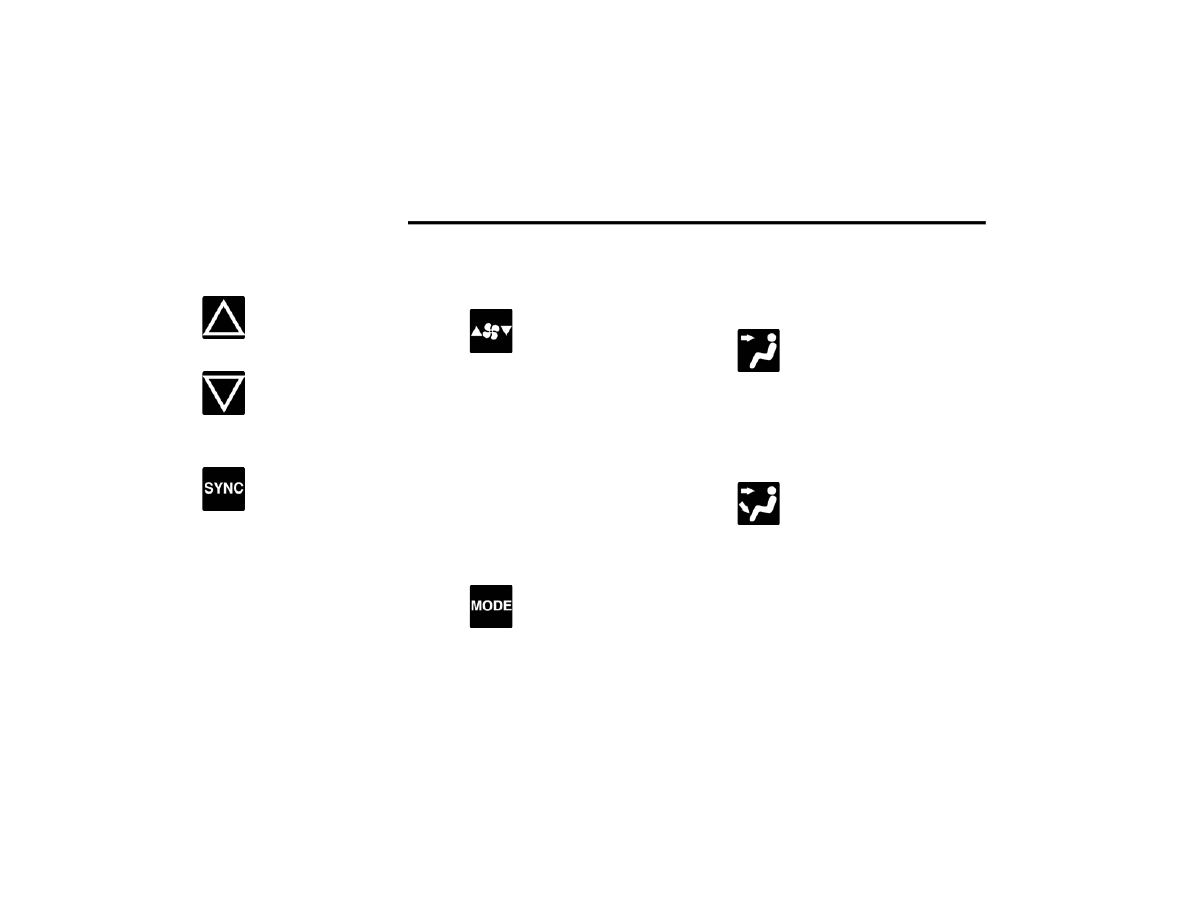

SYNC BUTTON

Press the SYNC button on the

touchscreen to toggle the SYNC feature

on/off. The SYNC indicator is illuminated

when this feature is enabled. SYNC is

used to synchronize the front and rear passenger

temperature settings with the driver temperature

setting. Changing the front or rear passenger

temperature setting while in SYNC exits this

feature.

NOTE:

The SYNC setting is only available on the touch

screen.

GETTING TO KNOW YOUR VEHICLE

BLOWER CONTROL

Blower Control is used to regulate the

amount of air forced through the Climate

Control system. There are seven blower

speeds available. Adjusting the blower

causes automatic mode to switch to manual

operation. The speeds can be selected using the

buttons on the touchscreen.

PANEL MODE

Press this button on the touchscreen to

change the air distribution mode to Panel

Mode. In Panel Mode, air comes from the

outlets in the headliner. Each of these

outlets can be individually adjusted to direct the

flow of air. Moving the air vanes of the outlets to

one side will shut off the airflow.

BI-LEVEL MODE

Press this button on the touchscreen to

change the air distribution mode to

Bi-Level Mode. In Bi-Level Mode, air

comes from the headliner outlets and

floor outlets.

NOTE:

Bi-Level Mode is designed under comfort condi

tions to provide cooler air out of the panel outlets

and warmer air from the floor outlets.

FLOOR MODE

Press this button on the touchscreen to

change the air distribution mode to Floor

Mode. In Floor Mode, air comes from the

floor outlets.

REAR PASSENGER CLIMATE CONTROL OFF

BUTTON

Press and release this button to turn the

Rear Climate Controls off.

Rear Manual Temperature Control (MTC)

The rear Manual Temperature Control (MTC)

system has floor air outlets at the rear right side of

the third row seats and overhead outlets at each

outboard rear seating position. The system

provides heated air through the floor outlets or

cool, dehumidified air through the headliner

outlets.

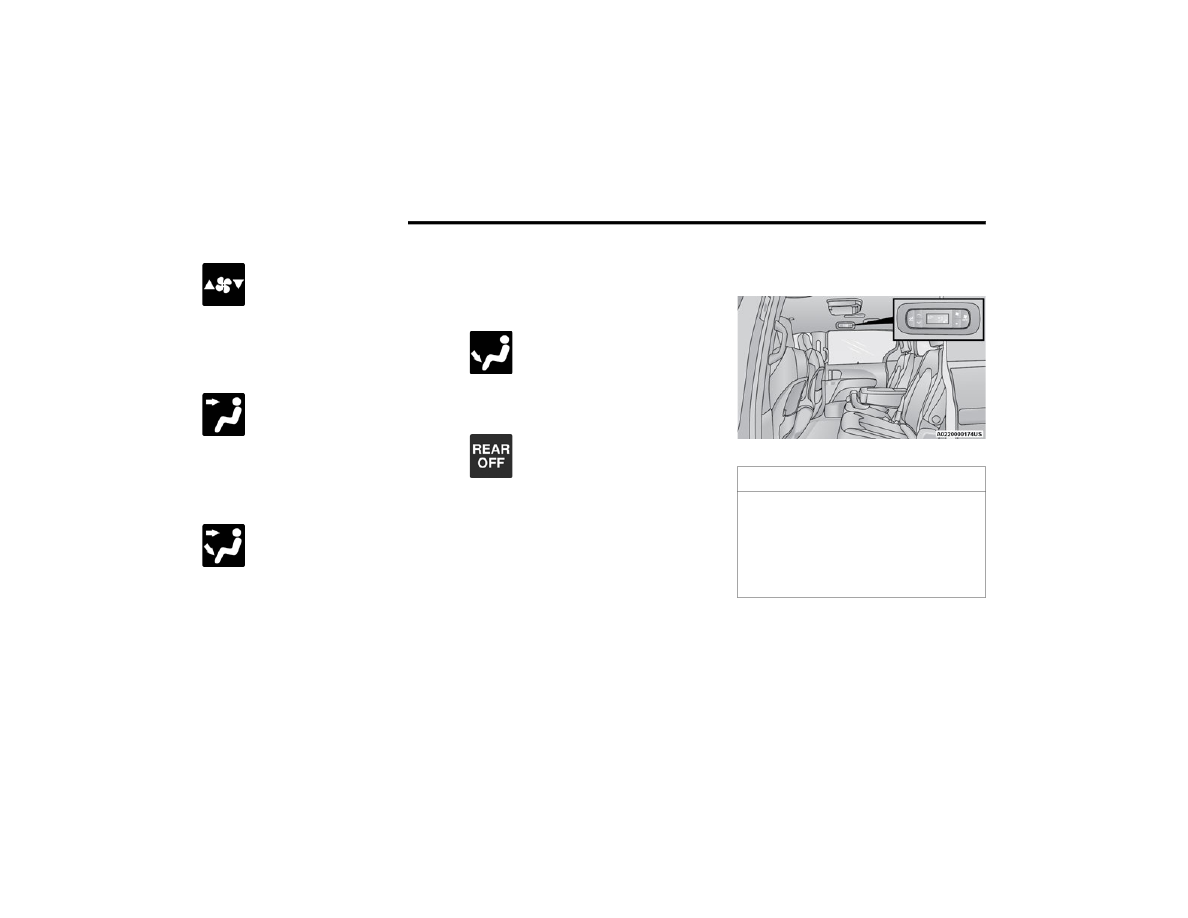

The rear system temperature control buttons are

located on the headliner on the passenger side of

the vehicle.

Rear Manual Climate Controls

CAUTION!

Interior air enters the Rear Automatic

Temperature Control system through an intake

grille, located in the floor under the passengers’

seats. Do not block or place objects directly in

front of the inlet grille or heater outlets. The

electrical system could overload causing

damage to the blower motor.

GETTING TO KNOW YOUR VEHICLE

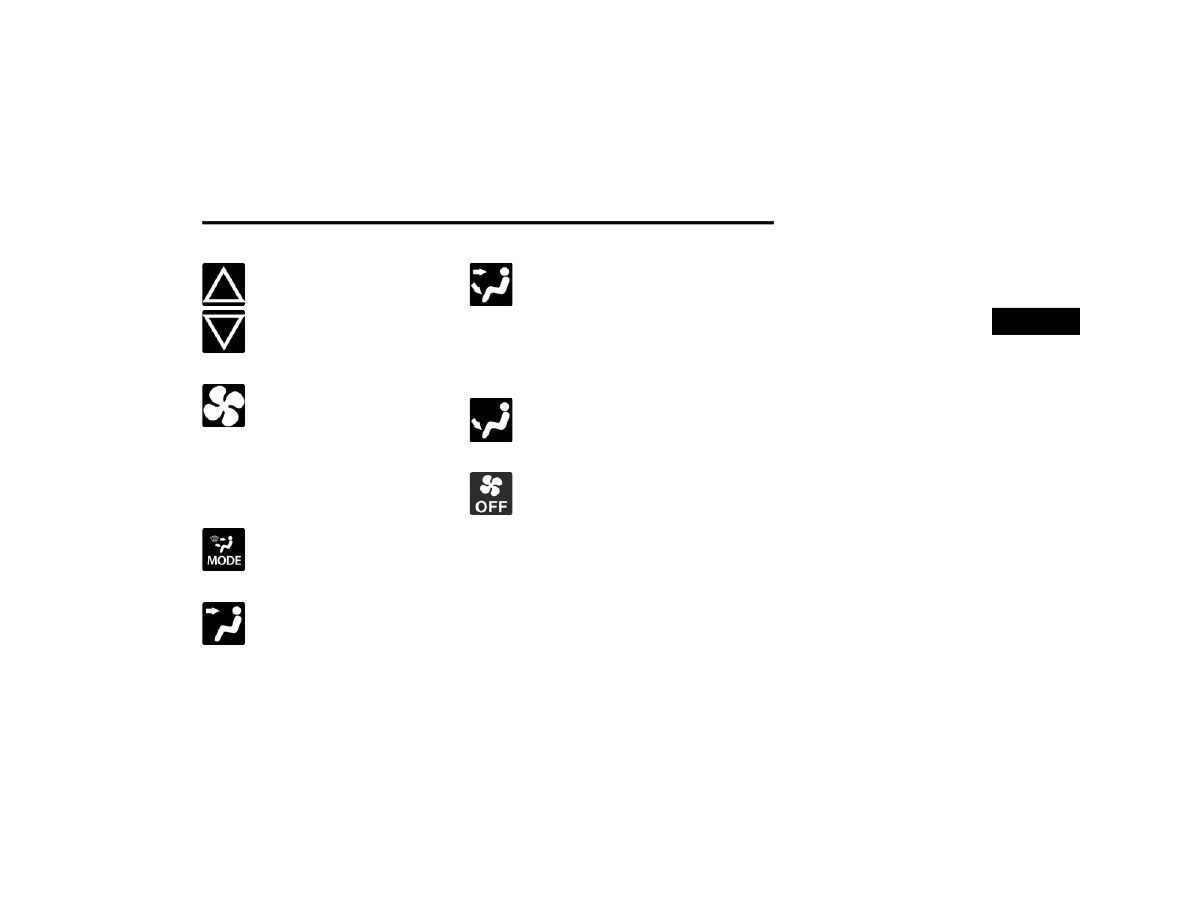

REAR TEMPERATURE CONTROL

Push the up arrow button to raise the

temperature. The rear temperature

settings are displayed in control head.
Push the down arrow button to lower the

temperature. The rear temperature

settings are displayed in control head.

REAR BLOWER CONTROL

The rear blower control can be manually

set to off, or any fixed blower speed by

pushing the blower control buttons. This

allows the rear seat occupants to control

the volume of air circulated in the rear of the

vehicle. The larger of the two icons increases

blower speed, whereas the smaller of the two icons

decreases the blower speed.

REAR MODE CONTROL

Push this button on the Rear Climate

Controls to change the air distribution

mode for the rear passengers.

PANEL MODE

Air comes from the outlets in the

headliner. Each of these outlets can be

individually adjusted to direct the flow of

air. Moving the air vanes of the outlets to

one side will shut off the airflow.

BI-LEVEL MODE

Air comes from both the headliner outlets

and the floor outlets.

NOTE:

In many temperature positions, the Bi-Level mode

is designed to provide cooler air out of the head

liner outlets and warmer air from the floor outlets.

FLOOR MODE

Air comes from the floor outlets.

REAR CLIMATE CONTROL/BLOWER OFF

To manually set the rear blower controls

to off, press the Rear Climate Control/

Blower Off button.

PERATING

IPS

Refer to the chart at the end of this section for

suggested control settings for various weather

conditions.

Summer Operation

The engine cooling system must be protected with

a high-quality antifreeze coolant to provide proper

corrosion protection and to protect against engine

overheating. OAT coolant (conforming to

MS.90032) is recommended.

Winter Operation

To ensure the best possible heater and defroster

performance, make sure the engine cooling

system is functioning properly and the proper

amount, type, and concentration of coolant is

used. Use of the Air Recirculation mode during

Winter months is not recommended, because it

may cause window fogging.

Vacation/Storage

For information on maintaining the Climate Control

system when the vehicle is being stored for an

extended period of time, see

page 292.

Window Fogging

Vehicle windows tend to fog on the inside in mild,

rainy, and/or humid weather. To clear the

windows, select Defrost or Mix mode and increase

the front blower speed. Do not use the

Recirculation mode without A/C for long periods,

as fogging may occur.

GETTING TO KNOW YOUR VEHICLE

Outside Air Intake

Make sure the air intake, located directly in front of

the windshield, is free of obstructions, such as

leaves. Leaves collected in the air intake may

reduce airflow, and if they enter the air distribution

box, they could plug the water drains. In Winter

months, make sure the air intake is clear of ice,

slush, and snow.

Cabin Air Filter

The Climate Control system filters out dust and

pollen from the air. Contact an authorized dealer to

service your cabin air filter, and to have it replaced

when needed.

Operating Tips Chart

INTERIOR STORAGE AND EQUIPMENT

TORAGE

Glove Compartment

The glove compartment is located on the

passenger side of the instrument panel.
To open the glove compartment, pull the release

handle.

Release Handle

Front Door Storage

Both interior front door panels have multiple

pockets for storage.

WEATHER

CONTROL SETTINGS

Hot Weather And

Vehicle Interior Is Very

Hot

Set the mode control to

(Panel Mode),

(A/C) on, and blower

on high. Roll down the

windows for a minute

to flush out the hot air.

Adjust the controls as

needed to achieve

comfort.

Warm Weather

Turn (A/C) on and

set the mode control to

(Panel Mode).

Cool Sunny

Operate in (Bi-Level

Mode.

Cool & Humid

Conditions

Set the mode control to

(Floor Mode) and

turn (A/C) on to

keep windows clear.

Cold Weather

Set the mode control to

(Floor Mode). If

windshield fogging

starts to occur, move

the control to (Mix

Mode).

WEATHER

CONTROL SETTINGS

WARNING!

If containers of hot liquid are placed in the bottle

holder, they can spill when the door is closed,

burning the occupants. Be careful when closing

the doors to avoid injury.

GETTING TO KNOW YOUR VEHICLE

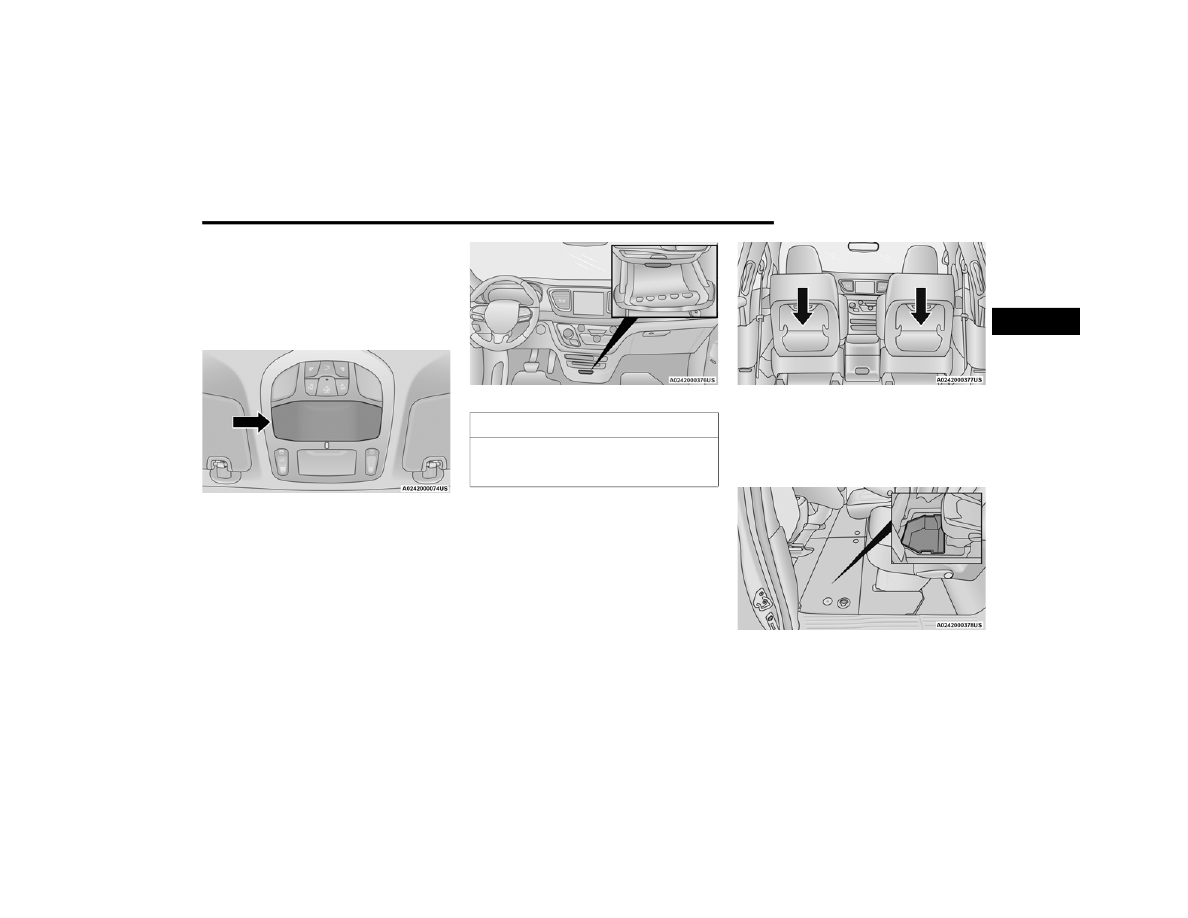

Overhead Sunglass Storage

At the front of the overhead console, a

compartment is provided for the storage of one

pair of sunglasses.
From the closed position, push the indentation to

open the compartment.

Overhead Sunglass Door Latch

The door will slowly rotate to the full open position.

Instrument Panel Drawer

There is a storage drawer located in the lower

center of the instrument panel. It can be released

by pushing the access button above it. The drawer

is actuator assisted once the access button is

pushed. Pull drawer outward to the fully open

position.

Drawer Access Button

Front Seatback Storage — If Equipped

The front seatbacks have a storage pocket on

some models.

Front Seatback Storage

Second Row Floor Storage Bins

There are removable storage bins (if equipped)

located in the areas below the load floor, located in

front of the second row seats.

In Floor Storage Bin

CAUTION!

The storage drawer must be closed while driving.

If left open during a collision, additional damage

may occur to property or the drawer mechanism.

GETTING TO KNOW YOUR VEHICLE

(Continued)

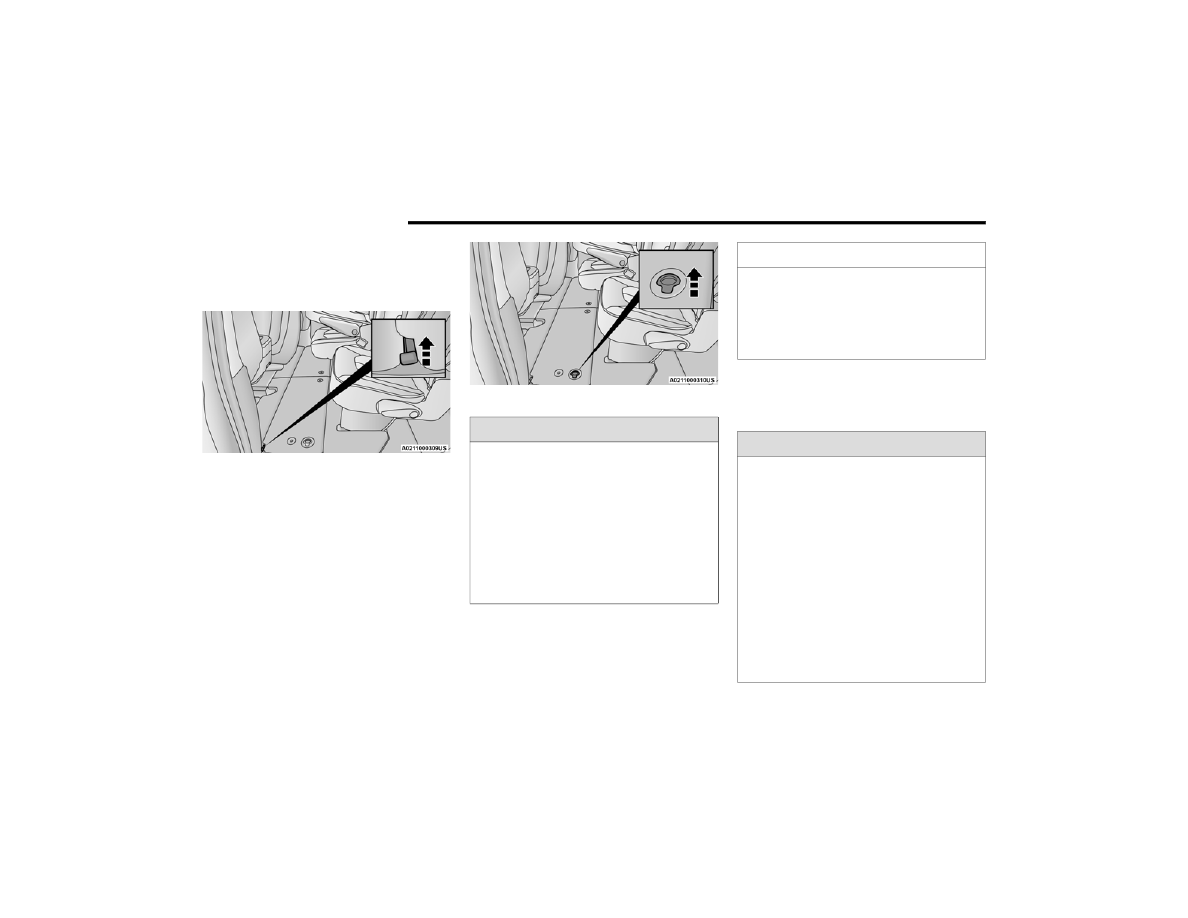

1. To access the storage bins with front seats in

the rearward position, place the lock rod in

the unlocked position so the load floor can

fold upwards towards the seatback.

Lock Rod

NOTE:



Push the lock rod inward for the locked

position.



Pull outward on the lock rod for the

unlocked position.

2. Pull the latch located near the second row seat

to open the floor panel.

Floor Latch

STORAGE BIN SAFETY WARNING

Carefully follow these warnings to help prevent

personal injury or damage to your vehicle:

WARNING!

In a collision, serious injury could result if the

seat storage bin covers are not properly latched.



Do not drive the vehicle with the storage bin

covers open.



Keep the storage bin covers closed and

latched while the vehicle is in motion.



Do not operate the storage bin covers while

the vehicle is in motion.



Do not use a storage bin latch as a tie down.

CAUTION!

The storage bin cover must lay flat and be

latched to avoid damage from contact with the

front seat tracks, which have minimal clearance

to the cover. If the storage bin cover is left in the

open position, front seat adjustment may

damage the cover.

WARNING!



Always close the storage bin covers when your

vehicle is unattended.



Do not allow children to have access to the

second row seat storage bins. Once in the

storage bin, young children may not be able to

escape. If trapped in the storage bin, children

can die from suffocation or heat stroke.



In a collision, serious injury could result if the

seat storage bin covers are not properly

latched.



Do not drive the vehicle with the storage bin

covers open. Keep the storage bin covers

closed and latched while the vehicle is in

motion.

GETTING TO KNOW YOUR VEHICLE

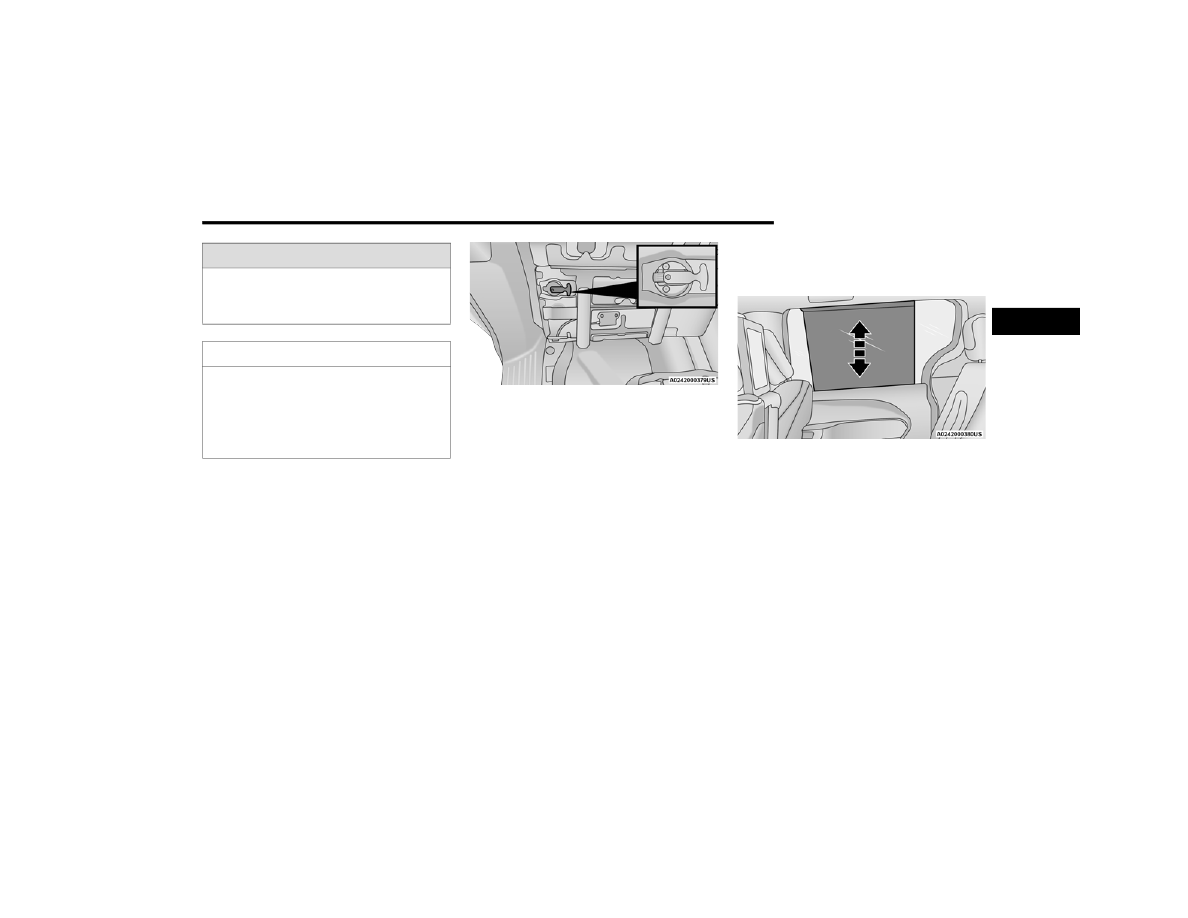

SEAT STORAGE BIN COVER EMERGENCY

RELEASE LEVER

As a security measure, the Seat Storage Bin Cover

has an Emergency Release Lever built into the

latching mechanism.

Storage Bin Cover Emergency Release Lever

NOTE:

In the event of an individual being locked inside

the storage bin, the storage bin cover can be

opened from inside of the bin by pushing on the

glow-in-the-dark lever attached to the storage bin

cover latching mechanism.

CREENS

— I

QUIPPED

Sun screens are available for second row seating

windows. The screens store in the sill trim panels,

and the tops of the windows are equipped with

hooks that the sun screens attach to when pulled

out.
Gently pull up on the tab to raise the sun screen.

Continue pulling the sun screen until the tab is

near the top of the window.

Once the screen is completely to the top of the

window, extend the top bar of the sun screen over

the two hooks attached to the top of the window.

Sun Screen Extended

To lower the sun screen, gently lift the tab upward

to disengage the hooks, and feed the screen back

into the base sill.

USB/AUX C

ONTROL

There are numerous USB ports located throughout

the vehicle that allow an external USB device to be

plugged into the USB port. There are four, fully

functional USB ports: Two Mini-USBs (Type C) and

two Standard USBs (Type A). There is also an AUX

port located between the USB ports.



Do not operate the storage bin covers while

the vehicle is in motion.



Do not use a storage bin latch as a tie down.

CAUTION!

The storage bin cover must lay flat and be

latched to avoid damage from contact with the

front seat tracks, which have minimal clearance

to the cover. If the storage bin cover is left in the

open position, front seat adjustment may

damage the cover.

WARNING!

GETTING TO KNOW YOUR VEHICLE

NOTE:

Two devices can be plugged in at the same time,

and both ports will provide charging capabilities.

Only one port can transfer data to the system at a

time. A pop-up will appear and allow you to select

the device transferring data.
For example, if a device is plugged into the Type A

USB port and another device is plugged into the

Type C USB port, a message will appear and allow

you to select which device to use.

Front Center Stack AUX Jack And USB Ports

There are multiple USB “Charge Only” ports in this

vehicle.



On the back of the front row seats (if equipped).



Above the rear cup holder in the third row seats

(if equipped).

Rear Seat USB Charging Port

3rd Row USB Charging Port

NOTE:

The USB “Charge Only” ports will recharge battery

operated USB devices when connected.
Different scenarios are listed below when a

non-phone device is plugged into the smaller and

larger USB ports, and when a phone device is

plugged into the smaller and larger USB ports:



“A new device is now connected. Previous

connection was lost”.



“(Phone Name) now connected. Previous

connection was lost”.



“Another device is in use through the same USB

port. Please disconnect the first device to use

the second device”.

Plugging in a phone or another USB device may

cause the connection to a previous device to be

lost.

OWER

UTLETS

Your vehicle is equipped with 12 Volt (15 Amp)

power outlets, and 5 Volt (2.5 Amp) USB ports, that

can be used to power cellular phones, small

electronics and other low powered electrical

accessories.

1 — Type C And Type A USB Ports 1
2 — Type C And Type A USB Ports 2
3 — AUX Port

GETTING TO KNOW YOUR VEHICLE

The power outlets can be labeled with either a

“key” or a “battery” symbol to indicate how the

outlet is powered. Power outlets labeled with a

“key” are powered when the ignition is in the

ON/RUN or ACC position, while the outlets labeled

with a “battery” are connected directly to the

battery and powered at all times.

NOTE:

All accessories connected to the “battery” powered

outlets should be removed or turned off when the

vehicle is not in use to protect the battery against

discharge.

Your vehicle may be equipped with a front power

outlet located either on the center stack, or at the

bottom of the instrument panel near the storage

tray.

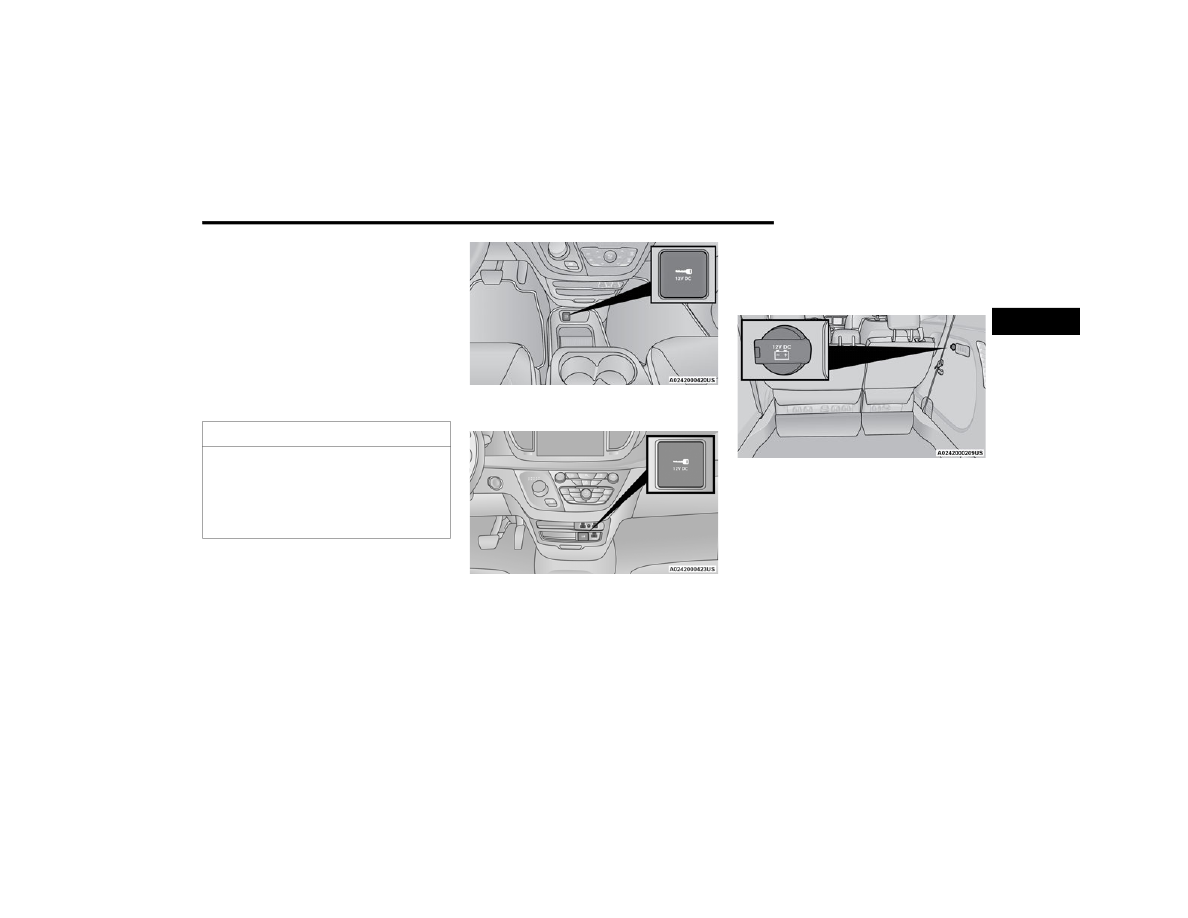

12 Volt Front Power Outlet (Near Storage Tray) -

If Equipped

12 Volt Front Power Outlet (On Center Stack) -

If Equipped

In addition to the front power outlets, there is also

a power outlet located in the rear cargo area.
The rear power outlet is located in the right rear

cargo area.

Rear Power Outlet

NOTE:

The instrument panel power outlet can be changed

to “battery” (powered at all times) by switching the

power outlet fuse in the Power Distribution Center

panel from fuse location F95A to F95B.

CAUTION!

Power outlets are designed for accessory plugs

only. Do not insert any other object in the power

outlets as this will damage the outlet and blow

the fuse. Improper use of the power outlet can

cause damage not covered by your New Vehicle

Limited Warranty.

Chrysler Voyager (2022 year). Manual in english - page 4
