(4) Set storage bin into console housing and close

door. (Fig. 16).

FLOOR CONSOLE KEY LOCK
TUMBLER - FOLD-IN-FLOOR

REMOVAL

(1) The key lock tumbler may be removed by

depressing the tab on the lock cylinder with a stiff
wire, to release the lock tumbler.

(2) Pull key and lock tumbler from the lock cylin-

der.

INSTALLATION

(1) Place lock tumbler and key into the lock cylin-

der and push tumbler in until it lock into position.

FLOOR CONSOLE LID LATCH -
FOLD-IN-FLOOR

REMOVAL

(1) Open floor console door and remove the three

screws attaching door to the hinge.

(2) Remove the six screws attaching inner door

panel, and separate inner panel from outer (Fig. 18).

(3) Remove two screws attaching lock cylinder to

door, and remove lock cylinder.

(4) Remove lock latch and handle as necessary

(Fig. 19).

INSTALLATION

(1) Place lock latch and door release handle into

position (Fig. 19).

(2) Place lock cylinder into position. Install two

screws attaching lock cylinder (Fig. 18).

(3) Place the inner and outer door panels together.

Install six screws attaching door panels.

(4) Place door panel into position, and install the

three screws attaching door to the hinge.

HEADLINER

REMOVAL

(1) Remove sun visors and vanity mirrors.
(2) Remove sun visor center supports.
(3) Remove grab handles, if equipped. (Refer to 23

- BODY/INTERIOR/GRAB HANDLE - REMOVAL).

(4) If equipped, remove coat hooks.
(5) If equipped, remove overhead rail console sys-

tem. (Refer to 23 - BODY/INTERIOR/OVERHEAD
RAIL CONSOLE SYSTEM - REMOVAL).

(6) Remove A-pillar trim covers. (Refer to 23 -

BODY/INTERIOR/A-PILLAR TRIM - REMOVAL).

(7) Remove B-pillar upper trim covers (Fig. 20).

(Refer to 23 - BODY/INTERIOR/B-PILLAR UPPER
TRIM - REMOVAL).

(8) Remove C-pillar upper trim covers (Fig. 21).

(Refer to 23 - BODY/INTERIOR/C-PILLAR TRIM -
REMOVAL).

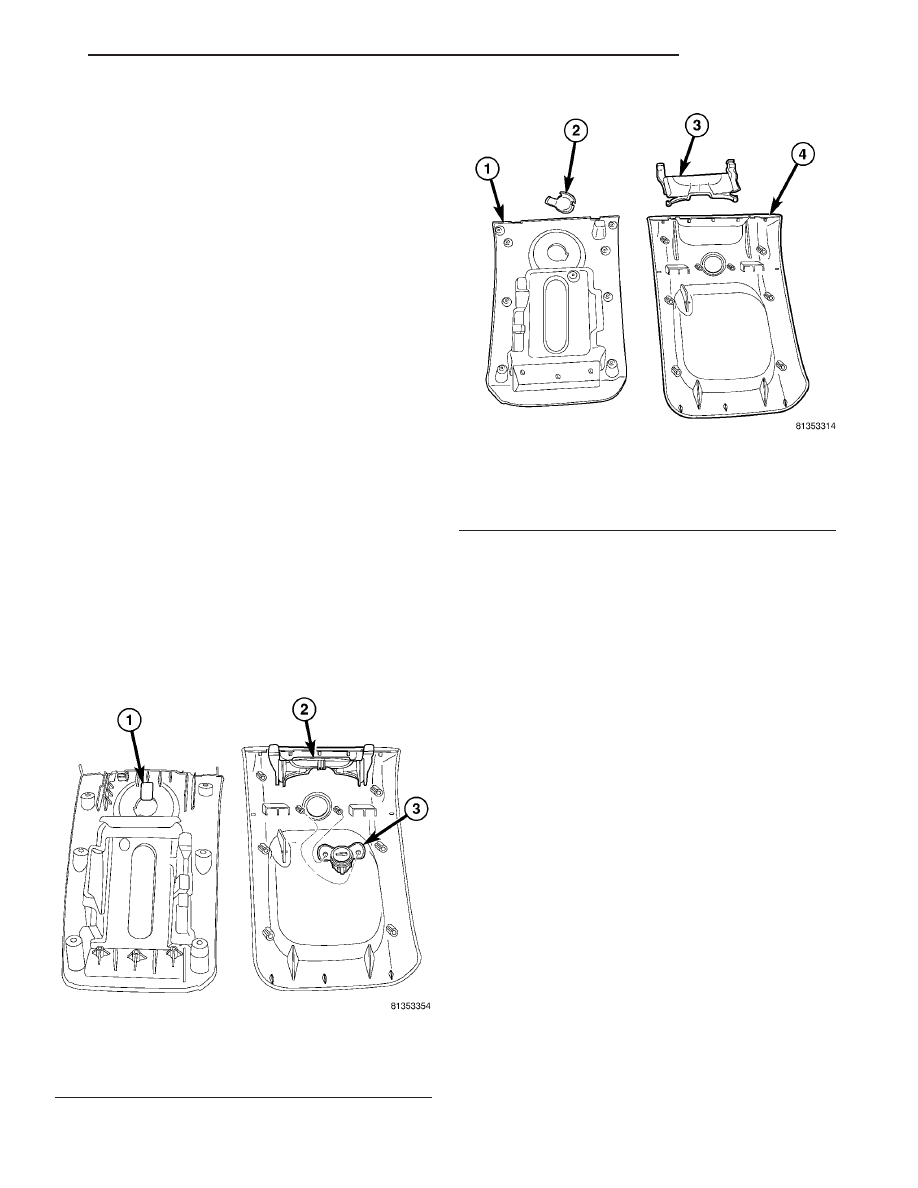

Fig. 18 DOOR LATCH

1 - LOCK LATCH
2 - CONSOLE DOOR RELEASE HANDLE
3 - LOCK CYLINDER

Fig. 19 FLOOR CONSOLE DOOR

1 - INNER DOOR PANEL
2 - LOCK LATCH
3 - CONSOLE DOOR RELEASE HANDLE
4 - OUTER DOOR PANEL

RS

INTERIOR

23 - 99

FLOOR CONSOLE - FOLD-IN-FLOOR (Continued)

(9) Remove D-pillar trim covers. (Refer to 23 -

BODY/INTERIOR/RIGHT D-PILLAR TRIM PANEL -
REMOVAL) and (Refer to 23 - BODY/INTERIOR/
LEFT D-PILLAR TRIM PANEL - REMOVAL).

(10) Remove liftgate opening header trim.
(11) If equipped, remove overhead console screws.
(12) If equipped, remove reading lamps.
(13) Remove dome lamp.
(14) Remove push in locking fasteners attaching

headliner to rear roof header and roof bows (Fig. 22).

(15) Remove Overhead Rail Console System with

DVD Player and related parts, if equipped. (Refer to
23 - BODY/INTERIOR/OVERHEAD RAIL CONSOLE
- REMOVAL)

(16) Remove wiring connections.
(17) Remove headliner from roof (Fig. 23), (Fig.

24), (Fig. 25), (Fig. 26) and (Fig. 27).

(18) Extract headliner through liftgate opening.
(19) With the overhead rail system, second roof

bow rail console bracket (Fig. 28).

(20) With the overhead rail system, forth roof bow

rail console bracket (2) (Fig. 29).

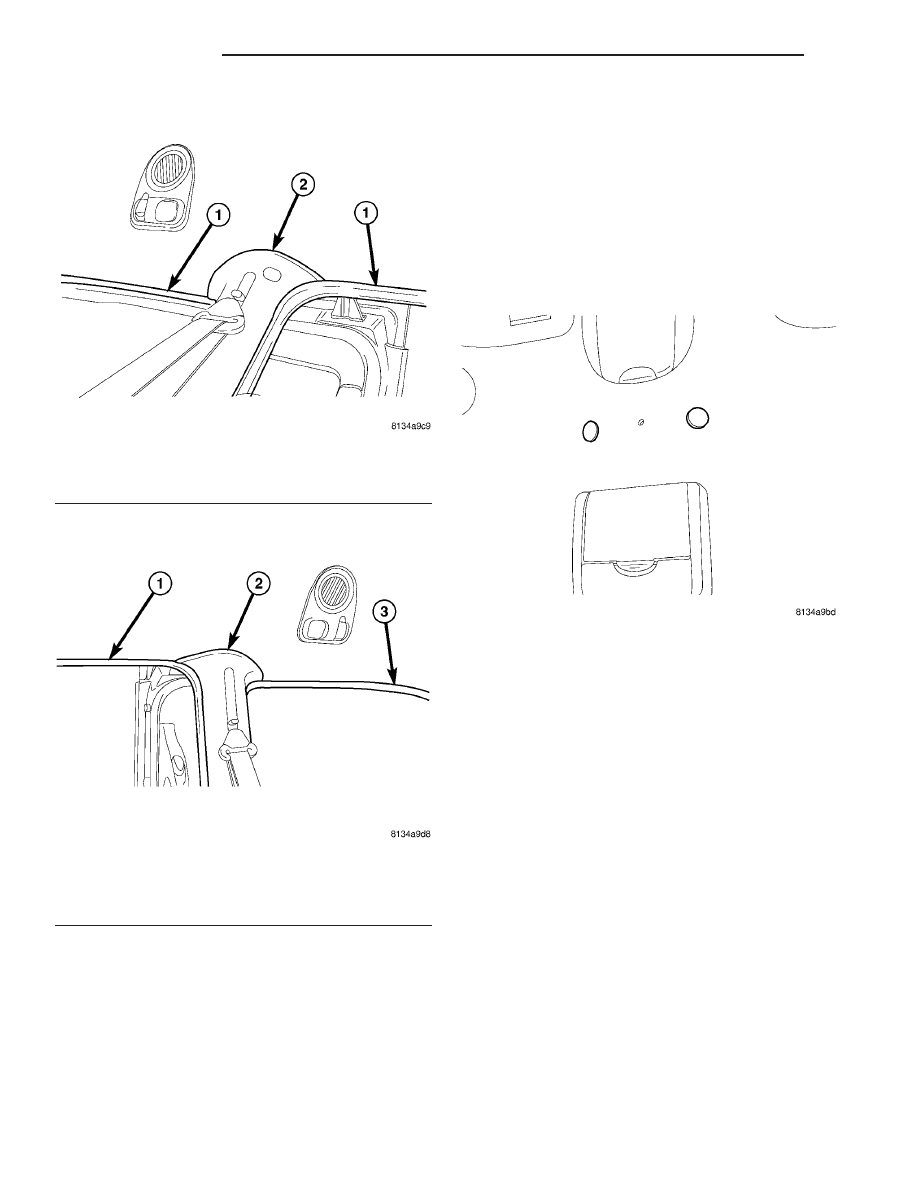

Fig. 20 HEADLINER AT B-PILLAR

1 - FRONT AND SLIDING DOOR WEATHERSTRIP SEAL
2 - B-PILLAR UPPER TRIM PANEL

Fig. 21 HEADLINER AT C-PILLAR

1 - SLIDING DOOR WEATHERSTRIP
2 - C-PILLAR UPPER TRIM PANEL
3 - REAR QUARTER WINDOW OPENING WEATHERSTRIP

Fig. 22 HEADLINER PUSH PINS

23 - 100

INTERIOR

RS

HEADLINER (Continued)

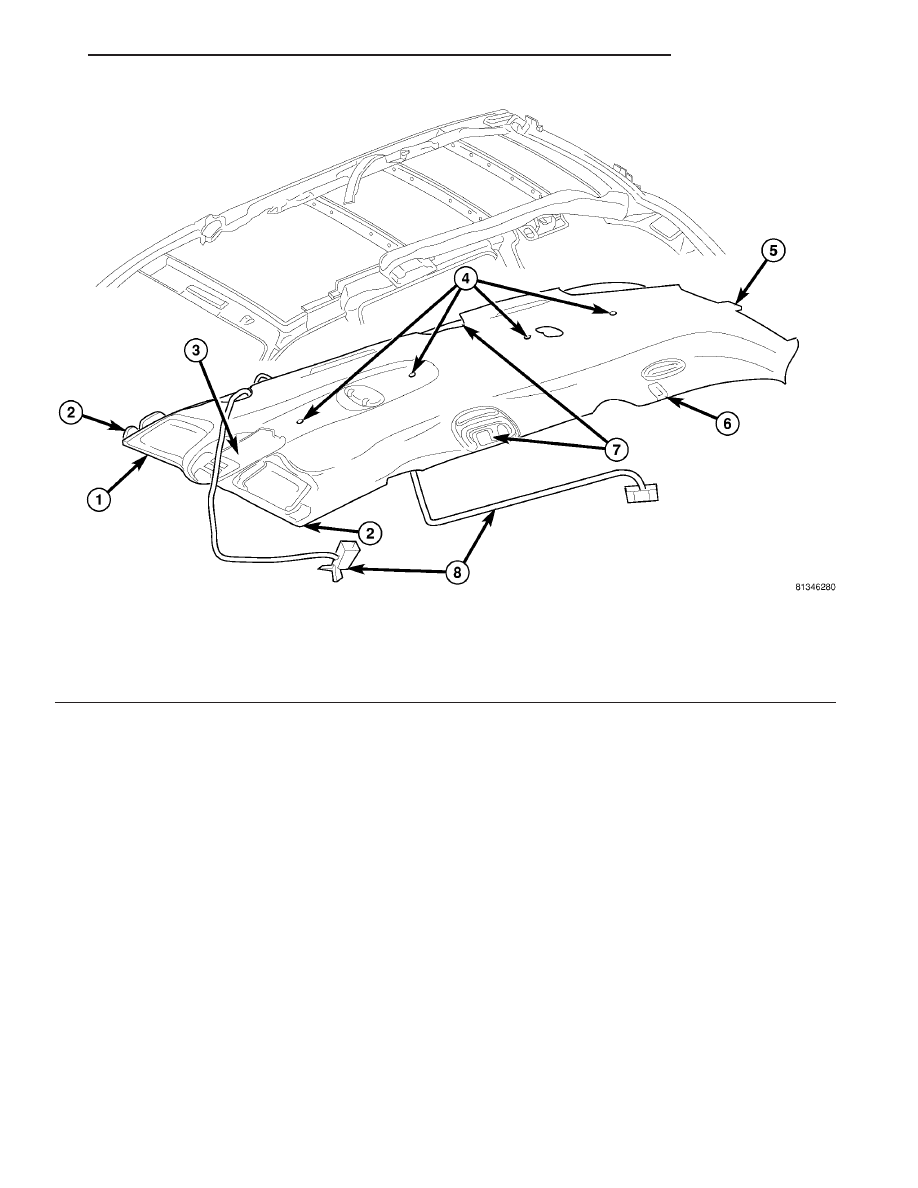

Fig. 23 HEADLINER WITH SIDE CURTAINS

1 - 4-WAY LOCATOR AT FRONT OF HEADLINER
2 - PUSH IN CLIPS ON SUN VISOR RETAINER RACKET AND
TWO SCREWS IN SUN VISOR SWIVEL BRACKET
3 - ONE SCREW IN OVER HEAD CONSOLE
4 - PUSH PINS ATTACHING HEADLINER TO OVERHEAD

5 - 2 WAY LOCATOR AT REAR OF HEADLINER
6 - COAT HANGER HOOKS
7 - 2-WAY LOCATORS
8 - WIRE HARNESS

RS

INTERIOR

23 - 101

HEADLINER (Continued)

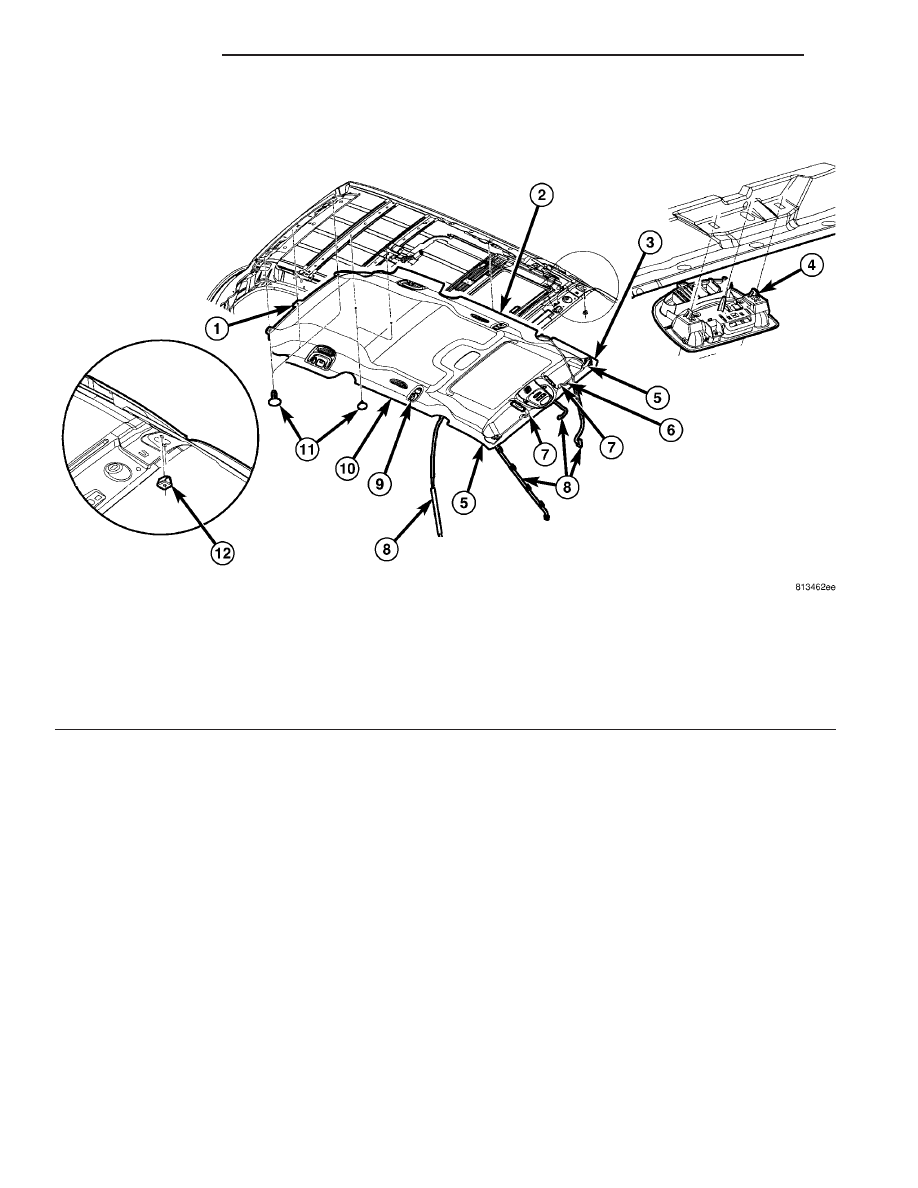

Fig. 24 HEADLINER WITH SIDE AIR CURTAINS AND SUNROOF

1 - 2-WAY LOCATOR AT FRONT OF HEADLINER
2 - LIP OUT WEATHERSTRIP ONTO HEADLINER
3 - HEADLINER
4 - 2-WAY LOCATOR PIN
5 - PUSH IN CLIP AND TWO SCREWS ATTACHING SUN VISOR
SWIVEL BRACKET
6 - 4-WAY LOCATOR PINS

7 - PUSH ON CLIPS ON SUN VISOR CENTER SUPPORTS
8 - WIRE HARNESS
9 - COAT HANGER HOOK
10 - 2-WAY LOCATOR
11 - PUSH PIN FASTENERS
12 - PLASTIC NUT

23 - 102

INTERIOR

RS

HEADLINER (Continued)
