Chrysler PT Cruiser. Manual - part 921





BASECOAT/CLEARCOAT
FINISH

DESCRIPTION

On most vehicles a two-part paint application

(basecoat/clearcoat) is used. Color paint that is
applied to primer is called basecoat. The clearcoat
protects the basecoat from ultraviolet light and pro-
vides a durable high-gloss finish.

CAUTION: Do not use abrasive chemicals or com-
pounds on painted surfaces. Damage to finish can
result.
Do not use harsh alkaline based cleaning solvents
on painted surfaces. Damage to finish or color can
result.

PAINT CODE

DESCRIPTION

Exterior vehicle body colors are identified on the

Body Code plate. (Refer to VEHICLE DATA/VEHI-
CLE

INFORMATION/BODY

CODE

PLATE

-

DESCRIPTION). The paint code is also identified on
the Vehicle Safety Certification Label which is
located on the drivers door shut face. The first digit
of the paint code listed on the vehicle indicates the
sequence of application, i.e.: P = primary coat, Q =
secondary coat. The codes listed in the Color Code
Chart are used for manufacturing purposes.

PAINT TOUCH-UP

DESCRIPTION

When a painted metal surface has been scratched

or chipped, it should be touched up as soon as possi-
ble to avoid corrosion. For best results, use Mopar

t

Scratch Filler/Primer, Touch Up Paints and Clear Top
Coat. (Refer to VEHICLE DATA/VEHICLE INFOR-
MATION/BODY CODE PLATE - DESCRIPTION).

WARNING: USE AN OSHA APPROVED RESPIRATOR
AND SAFETY GLASSES WHEN SPRAYING PAINT
OR SOLVENTS IN A CONFINED AREA. PERSONAL
INJURY CAN RESULT.

TOUCH UP PROCEDURE

(1) Scrape loose paint and corrosion from inside

scratch or chip.

(2) Clean affected area with Mopar

t Tar/Road Oil

Remover, and allow to dry.

(3) Fill the inside of the scratch or chip with a coat

of filler/primer. Do not overlap primer onto good sur-
face finish. The applicator brush should be wet
enough to puddle-fill the scratch or chip without run-
ning. Do not stroke brush applicator on body surface.
Allow the filler/primer to dry hard.

(4) Cover the filler/primer with color touch up

paint. Do not overlap touch up color onto the original
color coat around the scratch or chip. Butt the new
color to the original color, if possible. Do not stroke
applicator brush on body surface. Allow touch up
paint to dry hard.

(5) On vehicles without clearcoat, the touch up

color can be lightly finesse sanded (1500 grit) and
polished with rubbing compound.

(6) On vehicles with clearcoat, apply clear top coat

to touch up paint with the same technique as
described in Step 4. Allow clear top coat to dry hard.
If desired, Step 5 can be performed on clear top coat.

WARNING: AVOID PROLONGED SKIN CONTACT
WITH PETROLEUM OR ALCOHOL – BASED CLEAN-
ING SOLVENTS. PERSONAL INJURY CAN RESULT.

FINESSE SANDING/BUFFING &
POLISHING

DESCRIPTION

Minor acid etching, orange peel, or smudging in

clearcoat or single-stage finishes can be reduced with
light finesse sanding, hand buffing, and polishing. If
the finish has been finesse sanded in the past,
it cannot be repeated. Finesse sanding opera-
tion should be performed by a trained automo-
tive paint technician.

CAUTION:

Do

not

remove

clearcoat

finish,

if

equipped. Basecoat paint must retain clearcoat for
durability.

23 - 142

PAINT

PT

QUARTER GLASS - PT-27

TABLE OF CONTENTS

page

page

QUARTER GLASS - PT-27

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 143

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . 143

QUARTER GLASS - PT-27

REMOVAL

(1) Raise quarter glass to full up position, if possi-

ble, to aid in removal.

(2) Remove quarter trim panel. (Refer to 23 -

BODY/INTERIOR/QUARTER

PANEL

TRIM

-

REMOVAL).

(3) Lower convertible top.
(4) Remove water dam.
(5) Disconnect wire connector to power window

motor.

(6) Remove fasteners attaching quarter window

module to inner quarter panel (Fig. 1).

(7) Lift quarter window module upward and out

opening at top of quarter panel.

(8) Separate quarter glass from quarter window

module.

INSTALLATION

(1) Raise glass lift channel to full up position.
(2) Position quarter glass on quarter window mod-

ule (Fig. 1).

(3) Loosely install fasteners holding quarter glass

to quarter window module.

(4) Lower convertible top.
(5) Lower quarter window module into position

through opening in top of quarter panel.

(6) Install fasteners holding quarter window mod-

ule to inner quarter panel.

(7) Connect wire connector to power window motor.
(8) Adjust quarter glass as necessary (Refer to 23 -

BODY/ADJUSTABLE QUARTER GLASS - ADJUST-
MENTS).

(9) Install water dam. (Refer to 23 - BODY/DOOR

- FRONT/WATER DAM - INSTALLATION).

(10) Install quarter trim panel. (Refer to 23 -

BODY/INTERIOR/QUARTER

PANEL

TRIM

-

INSTALLATION).

ADJUSTMENTS

ADJUSTMENT

Refer to Front Door Glass - Adjustments PT-27 for

proper adjustment procedures. (Refer to 23 - BODY/
DOOR - FRONT/DOOR GLASS - ADJUSTMENTS).

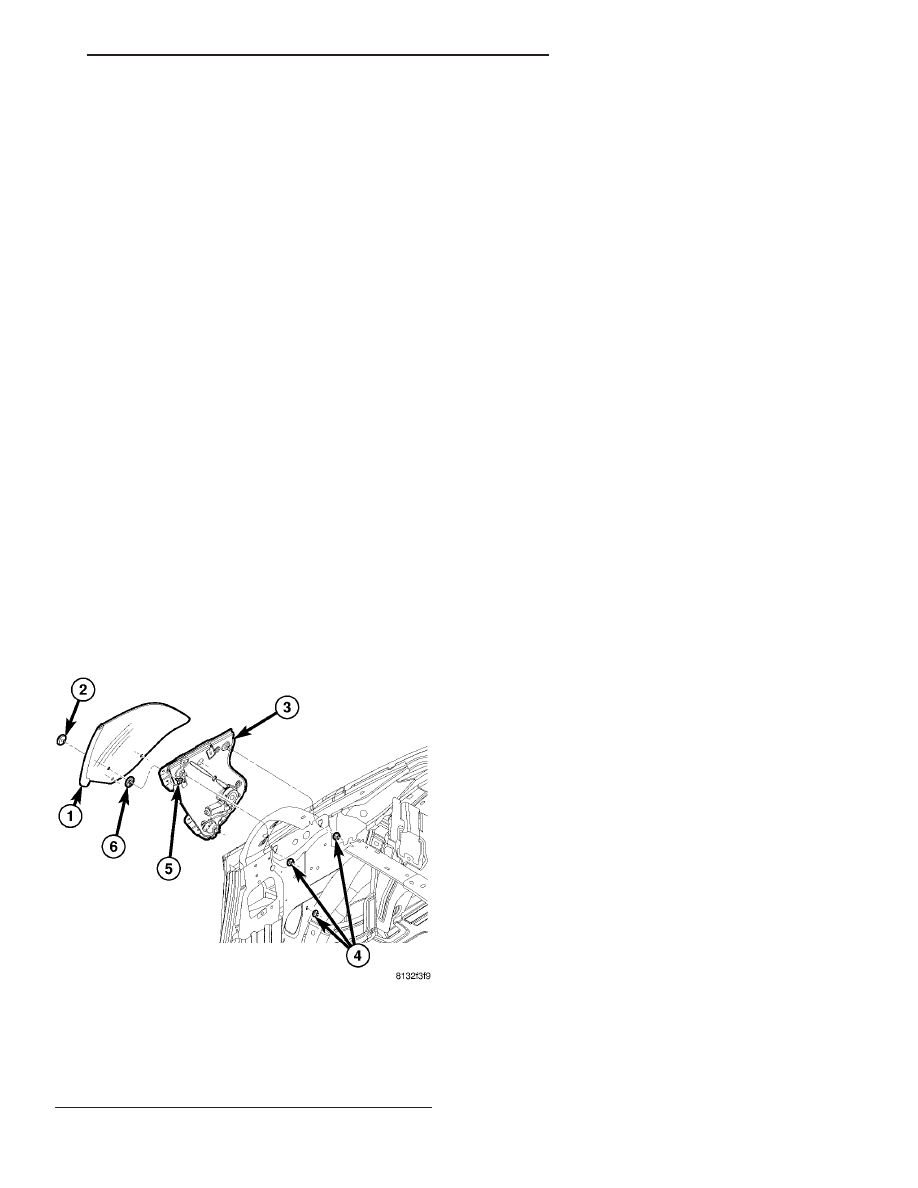

Fig. 1 QUARTER WINDOW REGULATOR

1 - QUARTER WINDOW GLASS
2 - QUARTER GLASS RETAINER AND NUT
3 - QUARTER WINDOW REGULATOR
4 - REGULATOR ATTACHING NUTS
5 - QUARTER GLASS ATTACHING SCREW
6 - GLASS TO LIFT PLATE BUSHING

PT

QUARTER GLASS - PT-27

23 - 143

SEATS

TABLE OF CONTENTS

page

page

CHILD SEAT TETHER ANCHOR BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 145

FRONT SEAT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 145

FRONT SEAT BACK - WITH FRONT SEAT

BACK PANEL
REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 149

FRONT SEAT BACK

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 152

REMOVAL - PT-27 ONLY

. . . . . . . . . . . . . . . 156

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 160

INSTALLATION - PT-27 ONLY

. . . . . . . . . . . 163

FRONT SEAT BACK COVER/FOAM

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 168

REMOVAL - PT-27 ONLY

. . . . . . . . . . . . . . . 172

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 174

INSTALLATION - PT-27 ONLY

. . . . . . . . . . . 178

FRONT SEAT BACK COVER - WITHOUT

FRONT SEAT BACK PANEL
REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 183

FRONT SEAT CUSHION

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 187

REMOVAL - PT-27 ONLY

. . . . . . . . . . . . . . . 189

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 190

INSTALLATION - PT-27 ONLY

. . . . . . . . . . . 191

FRONT SEAT CUSHION COVER

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 193

REMOVAL - PT-27 ONLY

. . . . . . . . . . . . . . . 194

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 194

INSTALLATION - PT-27 ONLY

. . . . . . . . . . . 195

HEADREST - FRONT/REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 196

REAR SEAT

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 197

REMOVAL - PT-27 ONLY

. . . . . . . . . . . . . . . 197

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 198

INSTALLATION — PT-27 ONLY

. . . . . . . . . . 198

REAR SEAT BACK

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 200

REMOVAL - PT-27 ONLY

. . . . . . . . . . . . . . . 200

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 201

INSTALLATION - PT-27 ONLY

. . . . . . . . . . . 201

REAR SEAT BACK COVER/FOAM

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 202

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 202

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 205

INSTALLATION - PT-27 ONLY

. . . . . . . . . . . 205

REAR SEAT BACK CUSHION COVER/FOAM -

PT-27
REMOVAL - PT-27 ONLY

. . . . . . . . . . . . . . . . . 208

INSTALLATION - PT-27 ONLY

. . . . . . . . . . . . . 209

REAR SEAT BOLSTER - PT-27

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 210

REAR SEAT BOLSTER COVER - PT-27

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 211

REAR SEAT CUSHION

REMOVAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . 212

REMOVAL - PT-27 ONLY

. . . . . . . . . . . . . . . 212

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 212

INSTALLATION - PT-27 ONLY

. . . . . . . . . . . 212

REAR SEAT BACK CUSHION / COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 212

REAR SEAT LATCH COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 213

UNDER SEAT STORAGE BIN

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 214

23 - 144

SEATS

PT

CHILD SEAT TETHER ANCHOR
BEZEL

REMOVAL

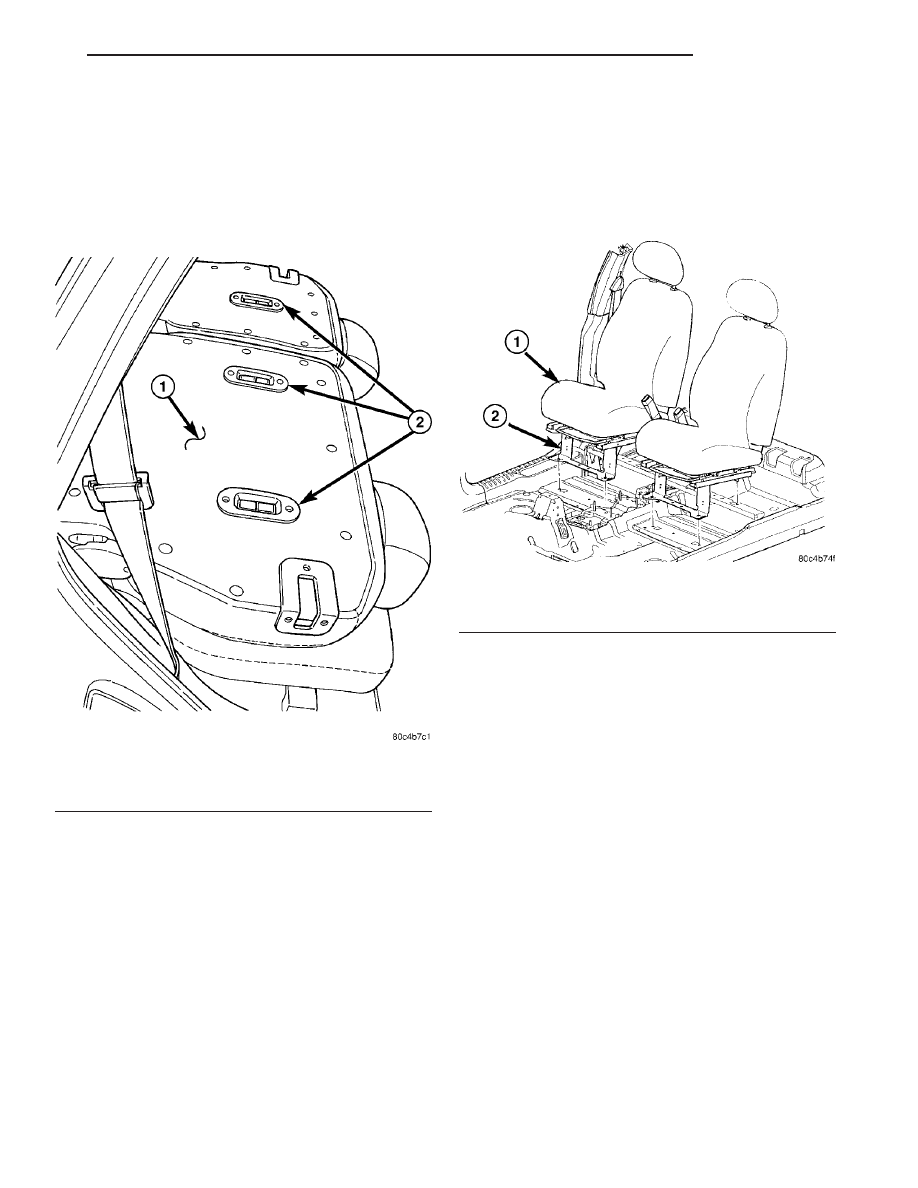

(1) Lay rear seat back down (Fig. 1).
(2) Remove screws attaching Child Tether anchor

bezel.

INSTALLATION

(1) Place Child Tether anchor bezel in position

(Fig. 1).

(2) Install screws attaching bezels.

FRONT SEAT

REMOVAL

WARNING: BEFORE SERVICING THE SEAT THE
AIRBAG SYSTEM MUST BE DISARMED. FAILURE
TO DO SO MAY RESULT IN ACCIDENTAL DEPLOY-
MENT OF THE AIRBAG AND POSSIBLE PERSONAL
INJURY. REFER TO RESTRAINT SYSTEMS FOR
SERVICE PROCEDURES.

(1) Move seat to forward position.
(2) Remove bolts attaching rear of the seat track.
(3) Move seat to rearward position.
(4) Remove bolts attaching front of seat track to

floor (Fig. 2).

(5) Disengage electrical connectors, if equipped.
(6) Remove seat from vehicle.

INSTALLATION

WARNING: BEFORE SERVICING THE SEAT THE
AIRBAG SYSTEM MUST BE DISARMED. FAILURE
TO DO SO MAY RESULT IN ACCIDENTAL DEPLOY-
MENT OF THE AIRBAG AND POSSIBLE PERSONAL
INJURY. REFER TO RESTRAINT SYSTEMS FOR
SERVICE PROCEDURES.

(1) Place seat into position in vehicle. Do not use

the head restraint, side shield, recliner handle, or the
adjuster lift bar to move the seat (Fig. 2).

(2) Engage electrical connectors, if equipped.
(3) Install bolts attaching seat track to floor cross-

member. Tighten front seat bolt to 55 N·m (40 ft.
lbs.) torque.

(4) Install rear seat track attaching bolts. Tighten

rear seat bolts to 55 N·m (40 ft. lbs.) torque.

Fig. 1 CHILD TETHER ANCHOR BEZEL

1 - REAR SEAT BACK
2 - CHILD TETHER ANCHOR BEZEL

Fig. 2 FRONT SEAT

1 - FRONT SEAT ASSEMBLY
2 - FRONT SEAT RISER

PT

SEATS

23 - 145















Content   ..  919  920  921  922   ..
