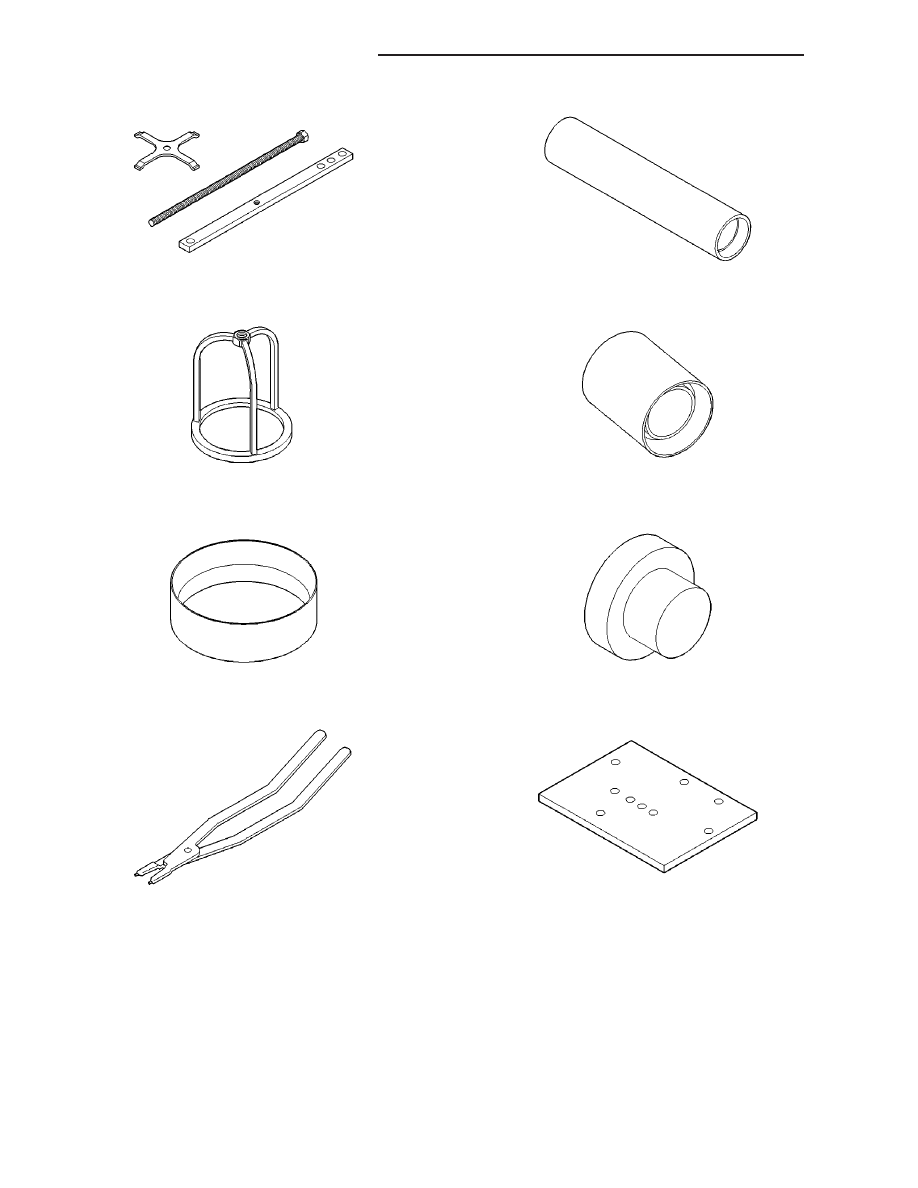

Compressor 5058A

Compressor 5059-A

Installer 5067

Pliers 6051

Installer 6052

Installer 6053

Button 6055

Plate 6056

21 - 222

40TE AUTOMATIC TRANSAXLE

40TE AUTOMATIC TRANSAXLE (Continued)

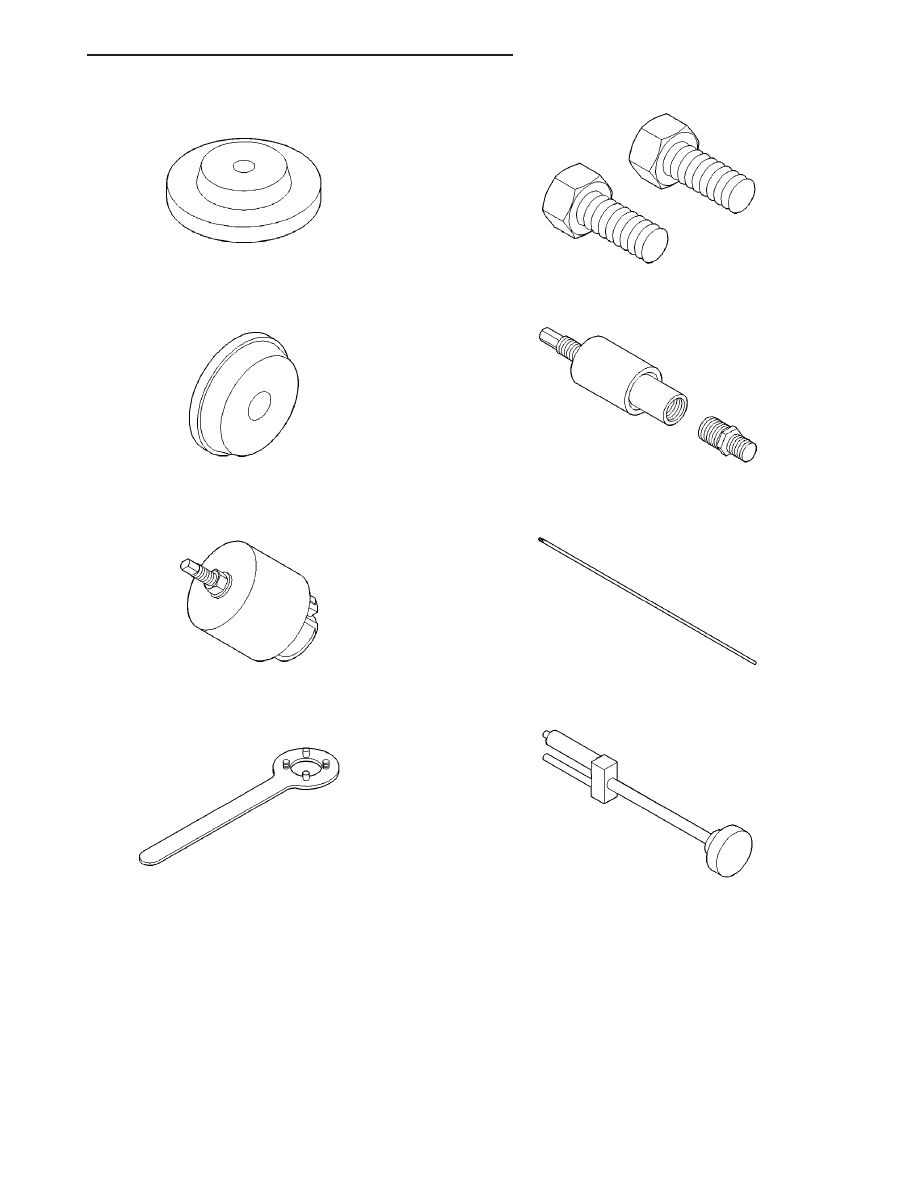

Disk 6057

Installer 6061

Remover 6062-A

Holder 6259

Bolt 6260

Installer 6261

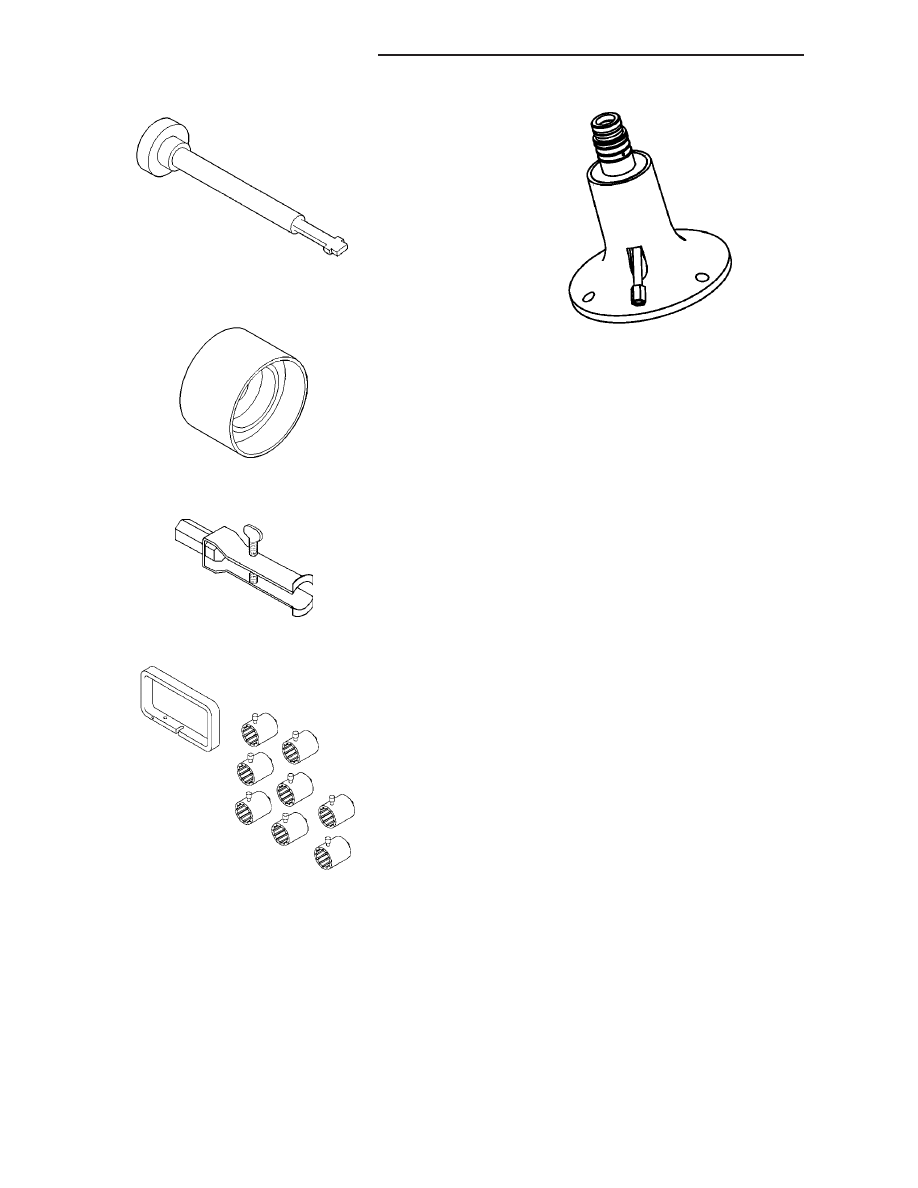

Tip 6268

Remover/Installer 6301

40TE AUTOMATIC TRANSAXLE

21 - 223

40TE AUTOMATIC TRANSAXLE (Continued)

ACCUMULATOR

DESCRIPTION

The 4XTE underdrive, overdrive, low/reverse, and

2/4 clutch hydraulic circuits each contain an accumu-
lator. An accumulator typically consists of a piston,
return spring(s), and a cover or plug. The overdrive
and underdrive accumulators are located within the
transaxle case, and are retained by the valve body
(Fig. 164).

The low reverse accumulator (Fig. 165) is also

located within the transaxle case, but the assembly is
retained by a cover and a snap-ring.

The 2/4 accumulator is located in the valve body. It

is retained by a cover and retaining screws (Fig.
166).

OPERATION

The function of an accumulator is to cushion the

application of a frictional clutch element. When pres-
surized fluid is applied to a clutch circuit, the appli-
cation force is dampened by fluid collecting in the
respective accumulator chamber against the piston
and spring(s). The intended result is a smooth, firm
clutch application.

DRIVING CLUTCHES

DESCRIPTION

Three hydraulically applied input clutches are used

to drive planetary components. The underdrive, over-
drive, and reverse clutches are considered input
clutches and are contained within the input clutch
assembly (Fig. 167). The input clutch assembly also
contains:

• Input shaft

• Input hub

• Clutch retainer

• Underdrive piston

• Overdrive/reverse piston

• Overdrive hub

• Underdrive hub

OPERATION

The three input clutches are responsible for driving

different components of the planetary geartrain.

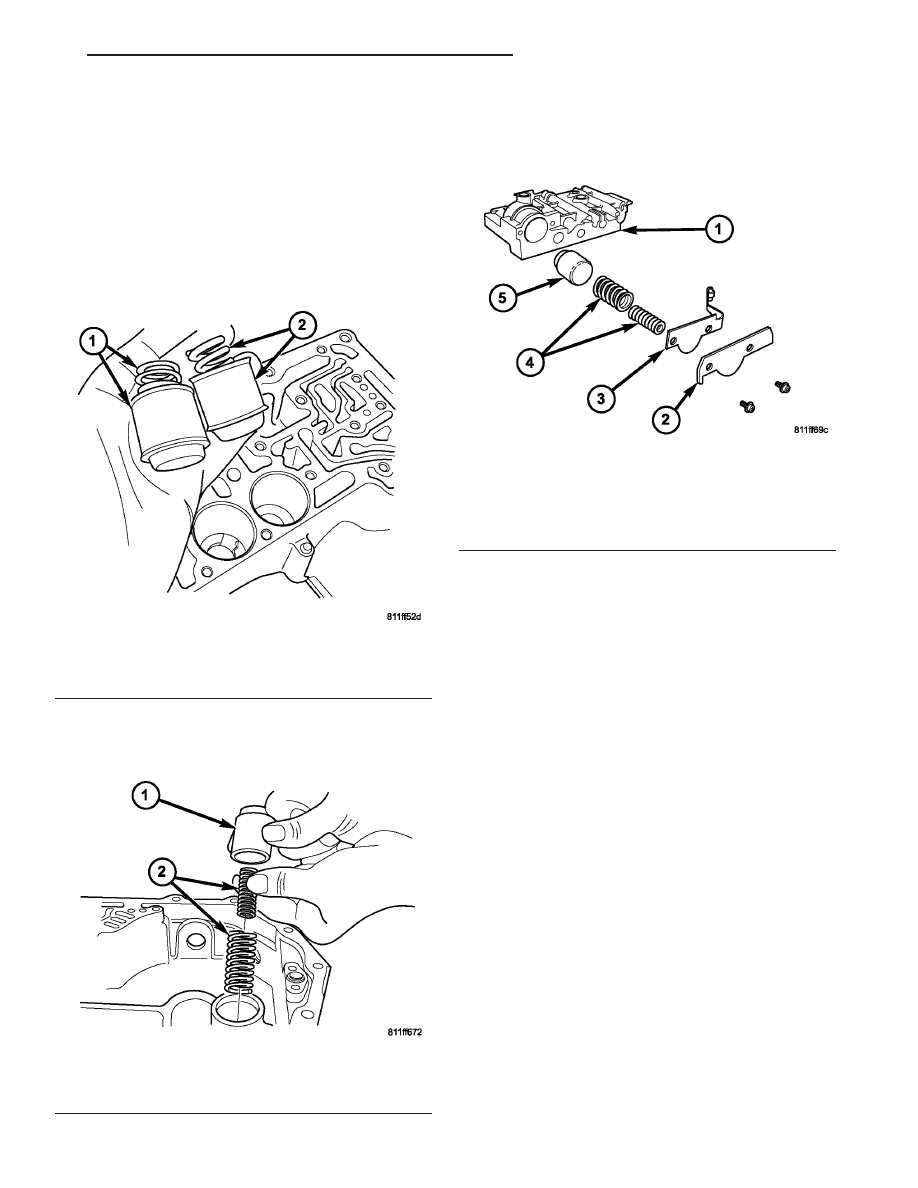

Fig. 164 Underdrive and Overdrive Accumulators

1 - OVERDRIVE PISTON AND SPRING
2 - UNDERDRIVE PISTON AND SPRING

Fig. 165 Low/Reverse Accumulator

1 - PISTON
2 - RETURN SPRINGS

Fig. 166 2/4 Accumulator Assembly

1 - VALVE BODY
2 - RETAINER PLATE
3 - DETENT SPRING
4 - RETURN SPRINGS
5 - PISTON

40TE AUTOMATIC TRANSAXLE

21 - 225
