Overdrive

21 - 214

40TE AUTOMATIC TRANSAXLE

PT

40TE AUTOMATIC TRANSAXLE (Continued)

Overdrive

(EMCC)

PT

40TE AUTOMATIC TRANSAXLE

21 - 215

40TE AUTOMATIC TRANSAXLE (Continued)

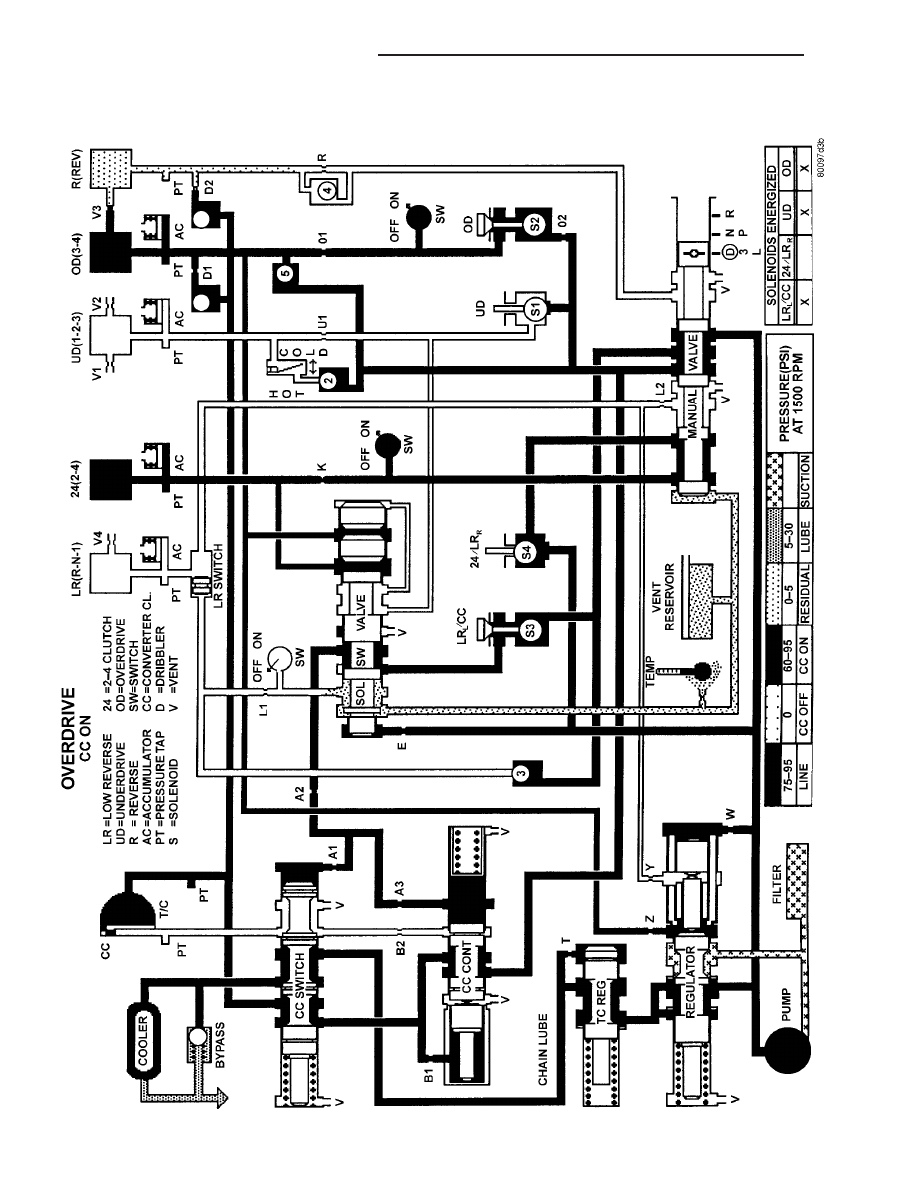

Overdrive

(CC

On)

21 - 216

40TE AUTOMATIC TRANSAXLE

PT

40TE AUTOMATIC TRANSAXLE (Continued)

SPECIFICATIONS

GENERAL SPECIFICATIONS

DESCRIPTION

SPECIFICATION

Transaxle Type

Fully adaptive, electronically controlled, four speed

automatic with torque converter and integral differential

Cooling Method

Oil-to-Water Heat Exhanger

Lubrication

Pump (internal-external gear-type

GEAR RATIOS

DESCRIPTION

SPECIFICATION

First Gear

2.84

Second Gear

1.57

Direct Gear

1.00

Overdrive Gear

0.69

Reverse Gear

2.21

BEARING SETTINGS (END PLAY & TURNING TORQUE)

DESCRIPTION

METRIC

STANDARD

Differential Assembly

0.6-2 N·m

5-18 in. lbs.

Output Hub

0.3-2 N·m

3-8 in. lbs.

Transfer Shaft (End Play)

0.051-0.102 mm

0.002-0.004 in.

Overall Drag At Output Hub

0.3-1.9 N·m

3-16 in. lbs.

CLUTCH CLEARANCES

DESCRIPTION

METRIC

STANDARD

Low/Rev Clutch (Select Reaction

Plate)

0.89-1.47 mm

0.035-0.058 in.

Two/Four Clutch (No Selection)

0.76-2.64 mm

0.030-0.104 in.

Reverse Clutch (Select Snap Ring)

0.89-1.37 mm

0.035-0.054 in.

Overdrive Clutch (No Selection)

1.07-3.25 mm

0.042-0.128 in.

Underdrive Clutch (Select Reaction

Plate)

0.94-1.50 mm

0.037-0.059 in.

OIL PUMP CLEARANCES

DESCRIPTION

METRIC

STANDARD

Outer Gear-to-Crescent

0.060-0.298 mm

0.0023-0.0117 in.

Inner Gear-to-Crescent

0.093-0.385 mm

0.0036-0.0151 in.

Outer Gear-to-Pocket

0.089-0.202 mm

0.0035-0.0079 in.

Outer Gear Side Clearance

0.020-0.046 mm

0.0008-0.0018 in.

Inner Gear Side Clearance

0.020-0.046 mm

0.0008-0.0018 in.

PT

40TE AUTOMATIC TRANSAXLE

21 - 217

40TE AUTOMATIC TRANSAXLE (Continued)
