INPUT SHAFT

DESCRIPTION

METRIC

SPECIFICATION

End Play

0.127-0.635mm

0.005-0.025 in.

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Bolt, Differential

Cover-to-Case

19

—

165

Bolt, Differential Ring

Gear-to-Case

95

70

—

Bolt, Differential Bearing

Retainer-to-Case

28

21

—

Bolt, Driveplate-to-

Crankshaft

95

70

—

Bolt, Extension Housing/

Plate-to-Case

28

21

—

Bolt, Oil Pan-to-Case

19

—

165

Bolt, Output Gear

271

200

—

Bolt, Output Gear

Stirrup/Strap

23

17

—

Bolt, Oil Pump-to-Case

27

20

—

Bolt, Reaction Support-to-

Case

27

20

—

Bolt, Solenoid/Pressure

Switch Assy.-to-Case

12

—

110

Bolt, Torque Converter-to-

Driveplate

75

55

—

Bolt, Transfer Gear Cover

20

—

175

Bolt, Valve Body-to-Case

12

—

105

Fitting, Oil Cooler Line

12

—

105

Nut, Tranfer Gear

271

200

—

Tap, Transaxle Pressure

5

—

45

Screw, L/R Clutch

Retainer

5

—

45

Screw, Solenoid/Pressure

Switch Assy. Connector

4

—

35

Screw, Valve Body-to-

Transfer Plate

5

—

45

Sensor, Input Speed

27

20

—

Sensor, Output Speed

27

20

—

Sensor, Transmission

Range Sensor

5

—

45

21 - 218

40TE AUTOMATIC TRANSAXLE

PT

40TE AUTOMATIC TRANSAXLE (Continued)

SPECIAL TOOLS

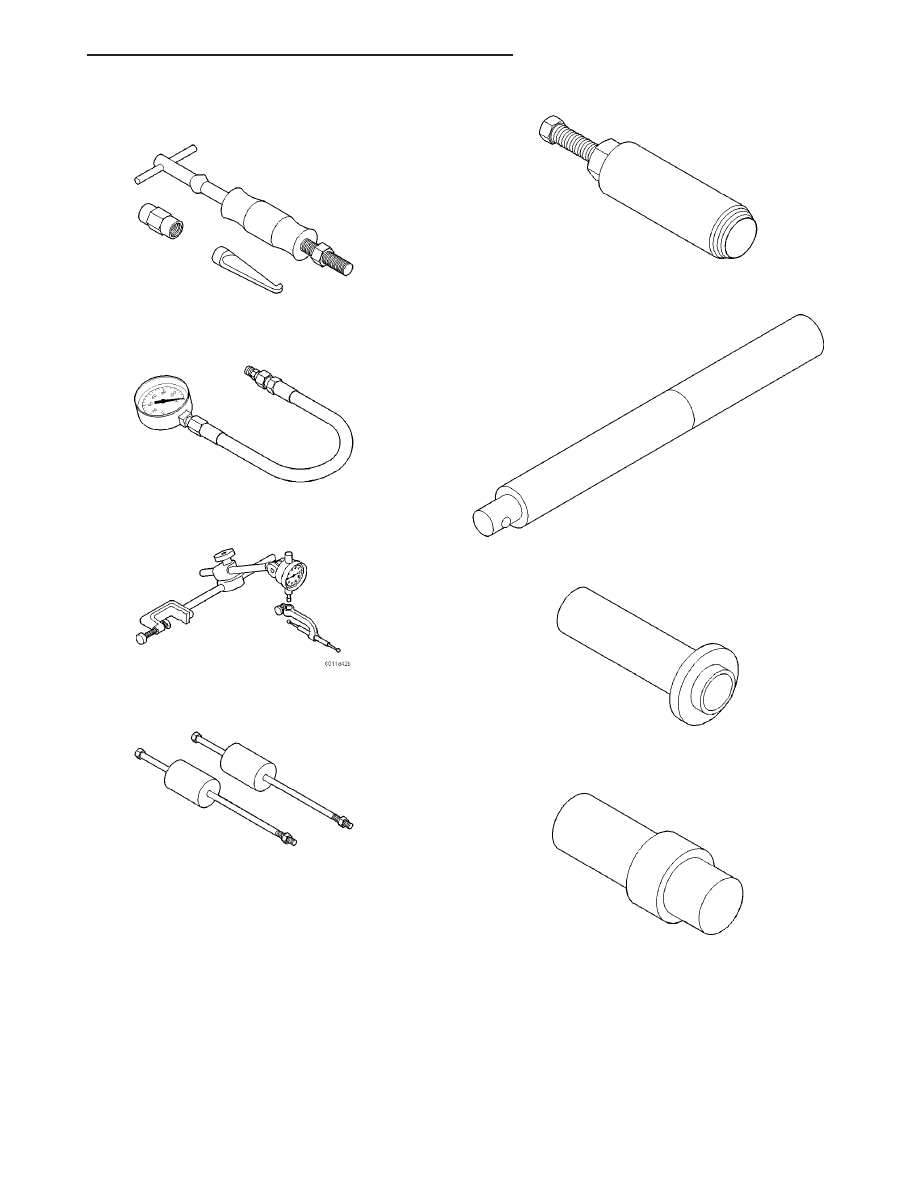

Puller C-637

Pressure Gauge (High) C-3293SP

Dial Indicator C-3339

Oil Pump Puller C-3752

Seal Puller C-3981B

Universal Handle C-4171

Seal Installer C-4193A

Adapter C-4996

PT

40TE AUTOMATIC TRANSAXLE

21 - 219

40TE AUTOMATIC TRANSAXLE (Continued)

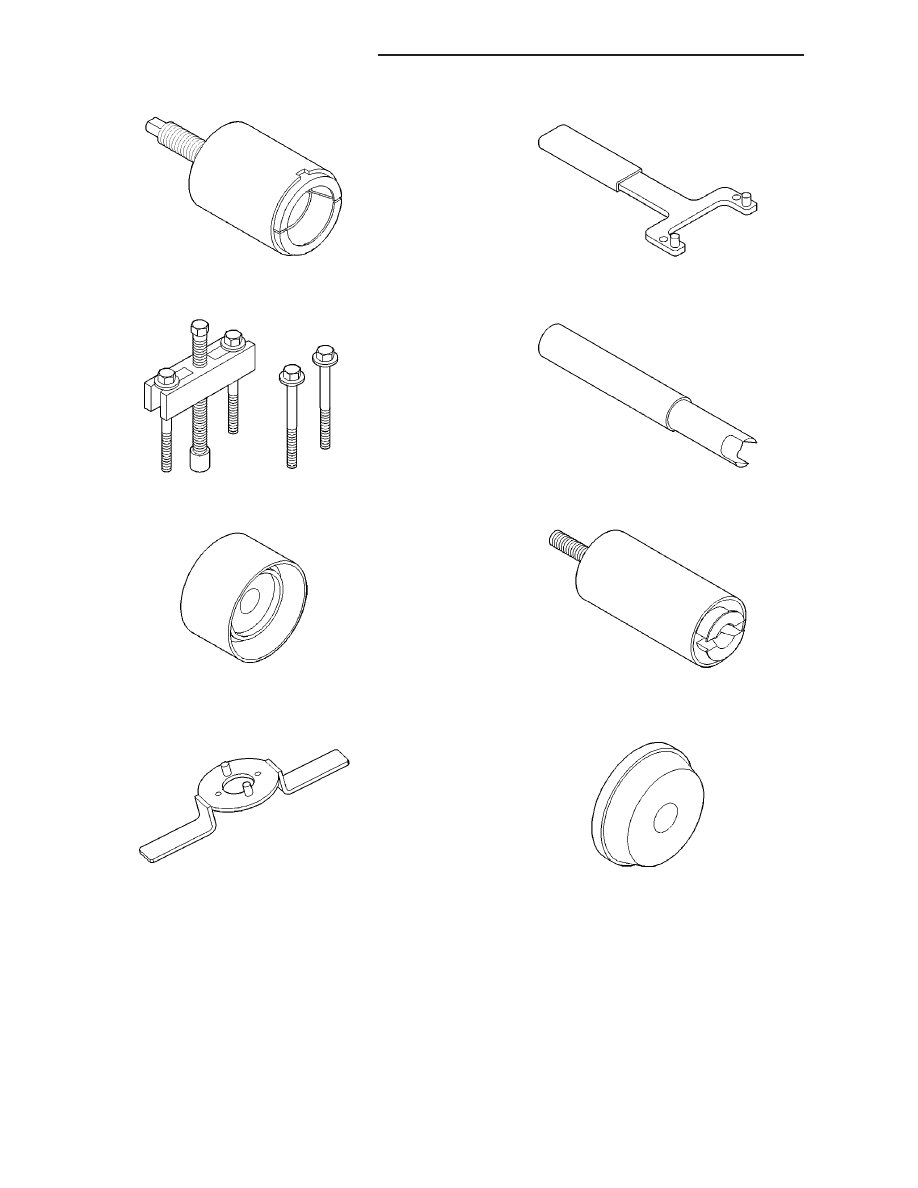

Remover Kit L-4406

Gear Puller L-4407A

Bearing Installer L-4410

Gear Checking Plate L-4432

Bearing Puller L-4435

Differential Tool L-4436A

Special Jaw Set L-4518

Installer L-4520

21 - 220

40TE AUTOMATIC TRANSAXLE

PT

40TE AUTOMATIC TRANSAXLE (Continued)

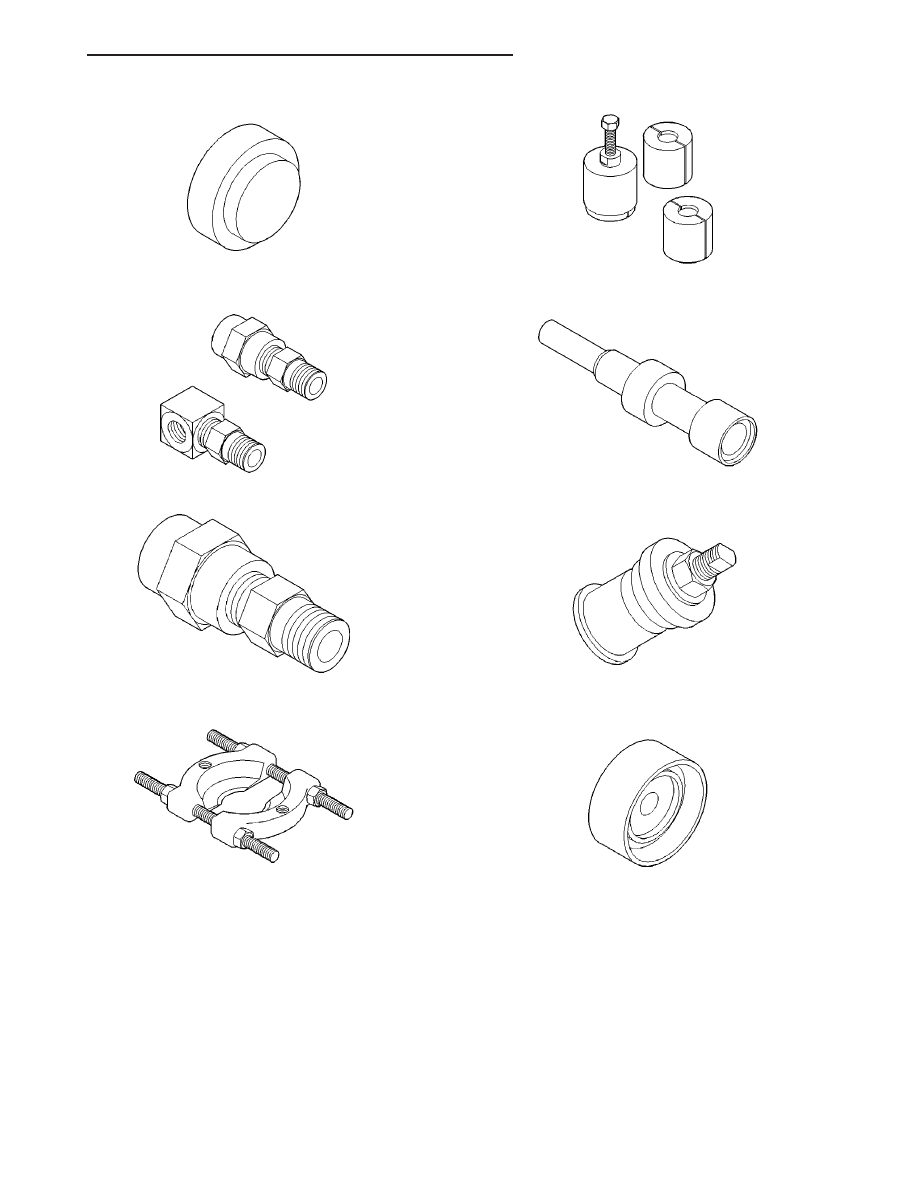

Thrust Button L-4539-2

Adapter L-4559

Adapter L-4559-2

Bearing Splitter P-334

Puller Set 5048

Remover/Installer 5049-A

Installer 5050A

Installer 5052
