ASSEMBLY

NOTE: Input and intermediate shaft sealed roller
bearings do not get installed until transaxle assem-
bly.

(1) Using Tools C-4171 and 8924, install reverse

shaft needle bearing (Fig. 250). Drive until tool bot-
toms on case.

(2) Using Tools C-4171 and 8866, install differen-

tial bearing race (Fig. 251). Drive until race bottoms
in case.

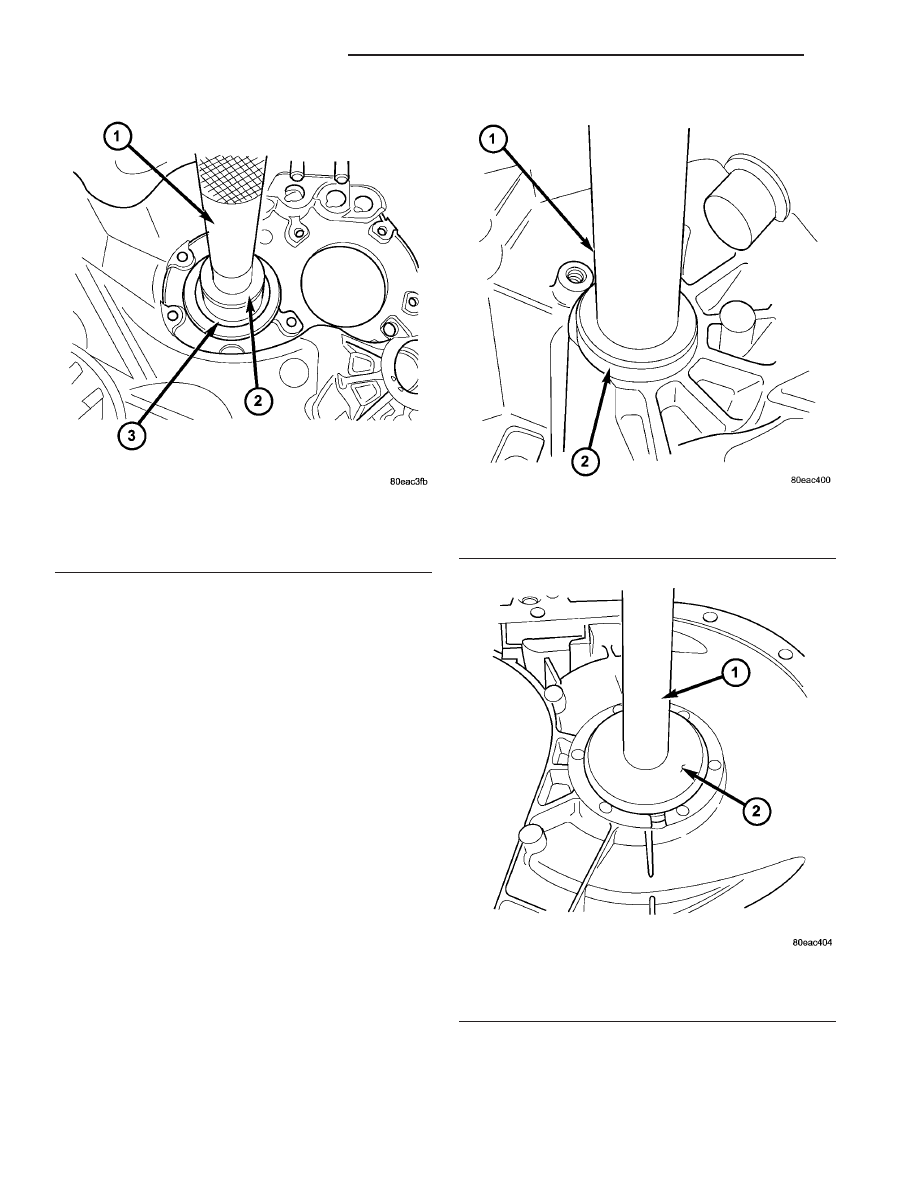

Fig. 249 Intermediate Shaft Bearing Removal

1 - TOOL C-4171
2 - TOOL 6954
3 - INTERMEDIATE BEARING

Fig. 250 Reverse Shaft Needle Bearing Installation

1 - TOOL C-4171
2 - TOOL 8924

Fig. 251 Differential Bearing Race Installation

1 - TOOL C-4171
2 - TOOL 8866

21 - 94

G288 MANUAL TRANSAXLE

PT

TRANSAXLE HOUSING (Continued)

T350 MANUAL TRANSAXLE

TABLE OF CONTENTS

page

page

T350 MANUAL TRANSAXLE

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 96

DIAGNOSIS AND TESTING - COMMON

PROBLEM CAUSES

. . . . . . . . . . . . . . . . . . . . 97

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 102

CLEANING

. . . . . . . . . . . . . . . . . . . . . . . . . . . 109

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . 109

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 109

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 114

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . 116

SPECIAL TOOLS

. . . . . . . . . . . . . . . . . . . . . . . 117

AXLE SEAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 119

BACK-UP LAMP SWITCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 119

DIFFERENTIAL

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 120

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 124

ADJUSTMENTS

DIFFERENTIAL BEARING PRELOAD

ADJUSTMENT / SHIM SELECTION . . . . . . . 127

DIFFERENTIAL BEARING CUPS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 128

FLUID

STANDARD PROCEDURE - FLUID DRAIN AND

FILL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

GEAR SHIFT BOOT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 129

GEAR SHIFT CABLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 132

ADJUSTMENTS

ADJUSTMENT - GEARSHIFT CROSSOVER

CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

GEAR SHIFT KNOB

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 136

GEAR SHIFT MECHANISM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 138

INPUT BEARING AND SLEEVE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 139

INPUT SHAFT

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 139

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 142

OUTPUT SHAFT

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 144

OUTPUT BEARING AND RACE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 146

REAR BEARING OIL FEED TROUGH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 146

SHIFT CROSSOVER LEVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 147

SHIFT CROSSOVER SHAFT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 147

SHIFT CROSSOVER SHAFT BUSHING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 147

SHIFT RAIL AND FORK

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 148

SHIFT RAIL BUSHINGS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 148

SHIFT SELECTOR SHAFT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 148

SHIFT SELECTOR SHAFT BUSHING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 149

SHIFT SHAFT SEALS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 149

SYNCHRONIZER

DISASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . 149

CLEANING

CLEAN

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

INSPECTION

INSPECT

. . . . . . . . . . . . . . . . . . . . . . . . . . . 149

ASSEMBLY

. . . . . . . . . . . . . . . . . . . . . . . . . . . 149

VEHICLE SPEED SENSOR

DESCRIPTION

VEHICLE SPEED SENSOR

. . . . . . . . . . . . . 151

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 151

PT

T350 MANUAL TRANSAXLE

21 - 95

T350 MANUAL TRANSAXLE

DESCRIPTION

This five speed is a constant-mesh manual trans-

axle. All gear ranges, except reverse, are synchro-
nized. The reverse gear utilizes a reverse brake for
shifting ease. The reverse idler gear is supported on
a sliding spindle idler shaft. The transaxle case is
aluminum with a steel end–plate bearing cover. It is
housed in a die-cast aluminum case featuring a two–
piece, middle split design (Fig. 1).

The T350 transaxle internal components can be

serviced only by separating the gear case from the
bellhousing case.

CAUTION: The transaxle output shaft is serviced as
a unit. No disassembly and reassembly is possible.
Damage to the transaxle may result.

TRANSAXLE IDENTIFICATION

The transaxle model, assembly number, and build

date are on a metal I.D. tag that is attached to the
end cover of the transaxle (Fig. 2). This information
is also shown on a bar code label that is attached to
the front of the transaxle (Fig. 3).

NOTE: Transaxles use various final drive gear ratios
in different vehicle applications. Therefore, it is nec-
essary that the correct transaxle assembly number
is used when ordering service parts.

GEAR RATIOS

CAUTION: All gears and shafts must not be inter-
changed with other transaxles; they will not func-
tion correctly.

The differential is a conventional arrangement of

gears that is supported by tapered roller bearings.
The final output gear turns the ring gear and differ-
ential assembly, thereby turning the drive axle
shafts.

The gear ratios of each transaxle are shown in the

following chart. The chart also shows which transax-
les are available with the reverse–input shaft brake.
This brake allows easier shifting into reverse and
helps eliminate reverse gear clash.

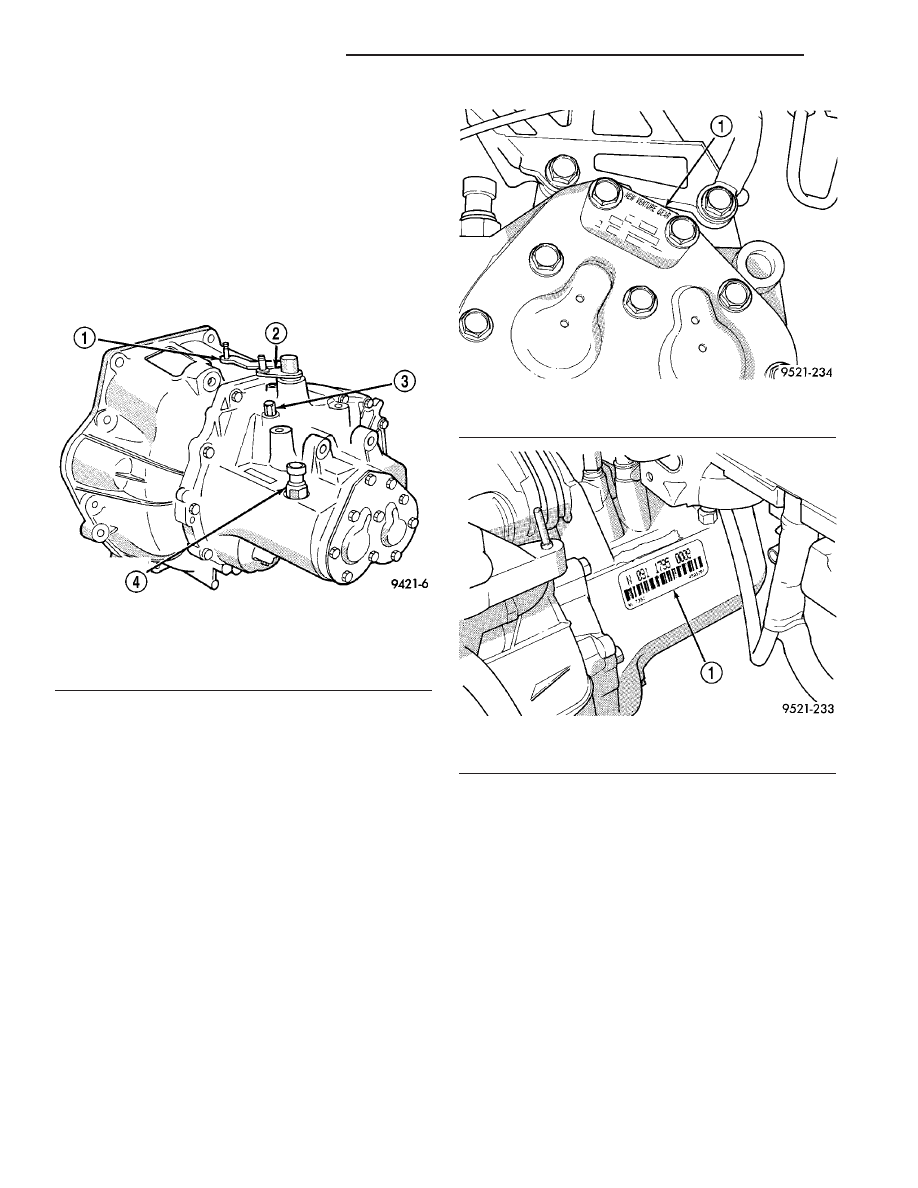

Fig. 1 T350 Manual Transaxle

1 - SHIFT LEVER
2 - CROSSOVER LEVER
3 - VENT
4 - REVERSE LAMP SWITCH

Fig. 2 Metal I.D. Tag

1 - METAL I.D. TAG

Fig. 3 Bar Code Label

1 - BAR CODE LABEL

21 - 96

T350 MANUAL TRANSAXLE

PT

GEAR

1.6L

2.0L

2.4L

1st

3.50

3.50

3.50

2nd

1.95

1.95

1.95

3rd

1.36

1.36

1.36

4th

0.97

0.97

0.97

5th

0.81

0.81

0.72

FINAL

DRIVE

RATIO

4.12

3.94

3.94

REVERSE

BRAKE

YES

YES

YES

CLUTCH

RELEASE

SYSTEM

HYDRAULIC

HYDRAULIC

HYDRAULIC

GEARSHIFT PATTERN

The T350 transaxle shift pattern is a modified

H–pattern (Fig. 4). Overdrive fifth and reverse gears
are in–line and outboard of the first through fourth
gear positions.

LUBRICANT/ADDITIVES

NOTE: All T350 Manual Transaxles require the use
of ATF+4 (Automatic Transmission Fluid).

Hypoid gear lube or engine oil should not be

used in this transaxle. Hard shifting effort, bear-
ing, gear, and/or synchronizer failure may occur if
incorrect fluid is used.

The addition of any fluids to the transaxle, other

than the fluid listed above, is not recommended. An
exception to this policy is the use of special dyes to
aid in detecting fluid leaks. The use of transmission
sealers should be avoided, since they may adversely
affect seals and synchronizers.

SEALANTS

The sealant used to seal the transaxle case halves

and input bearing is Mopar

t Gasket Maker, Loctitet

518, or equivalent. The sealant used for the bearing
end plate cover is Mopar

t RTV.

DIAGNOSIS AND TESTING - COMMON
PROBLEM CAUSES

The majority of transaxle malfunctions are a result

of:

• Insufficient lubrication

• Incorrect lubricant

• Misassembled or damaged internal components

• Improper operation

HARD SHIFTING

Hard shifting may be caused by a misadjusted

crossover cable. If hard shifting is accompanied by
gear clash, synchronizer clutch and stop rings or gear
teeth may be worn or damaged.

Misassembled synchronizer components also cause

shifting problems. Incorrectly installed synchronizer
sleeves, struts, or springs can cause shift problems.

Worn, damaged, missassembled or leaking hydrau-

lic system/components can also cause difficult shift-
ing or gear clash.

NOISY OPERATION

Transaxle noise is most often a result of worn or

damaged components. Chipped, broken gear or syn-
chronizer teeth, and brinnelled, spalled bearings all
cause noise.

Abnormal wear and damage to the internal compo-

nents is frequently the end result of insufficient
lubricant.

SLIPS OUT OF GEAR

Transaxle disengagement may be caused by mis-

aligned or damaged shift components, or worn teeth
on the drive gears or synchronizer components. Incor-
rect assembly also causes gear disengagement.

LOW LUBRICANT LEVEL

Insufficient transaxle lubricant is usually the

result of leaks, or inaccurate fluid level check or refill
method. Vehicle must be level to accurately
check fluid level.
Leakage is evident by the pres-
ence of oil around the leak point. If leakage is not
evident, the condition is probably the result of an
underfill.

If air–powered lubrication equipment is used to fill

a transaxle, be sure the equipment is properly cali-
brated. Equipment out of calibration can lead to an
underfill condition.

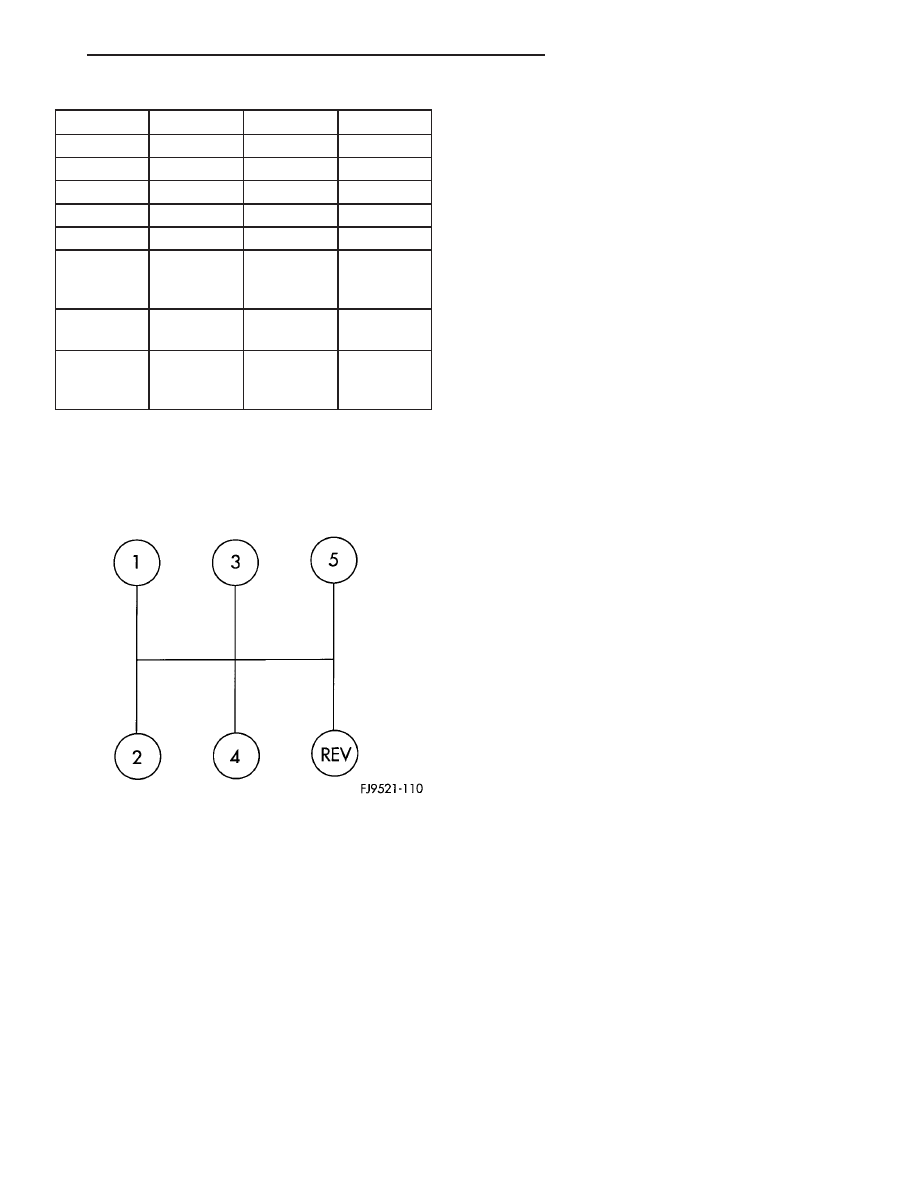

Fig. 4 T350 Transaxle Shift Pattern
