CAUTION: Make sure O-ring gasket is properly
seated in water pump groove before tightening
screws. An improperly located O-ring may cause
damage to the O-ring, resulting in a coolant leak.

(3) Assemble pump body to block (Fig. 40) and

tighten screws to 12 N·m (105 in. lbs.).

(4) Rotate pump by hand to check for freedom of

movement.

(5) Fill cooling system (Refer to 7 - COOLING/EN-

GINE - STANDARD PROCEDURE). Pressurize cool-
ing system to 103 Kpa (15 psi) with pressure tester
and check water pump shaft seal and O-ring for
leaks.

(6) Install rear timing belt cover and camshaft

sprockets (Refer to 9 - ENGINE/VALVE TIMING/
TIMING BELT AND SPROCKETS - INSTALLA-
TION).

(7) Install timing belt (Refer to 9 - ENGINE/

VALVE TIMING/TIMING BELT AND SPROCKETS -
INSTALLATION).

WATER PUMP INLET TUBE

REMOVAL

The water pump inlet tube connects the water

pump to the radiator and heater core. This tube is
sealed by an O-ring and held in place by fasteners to
the block.

CAUTION: Do not use any sharp tools to remove
hoses from inlet tube. This may cause the tube to
leak.

(1) Drain cooling system (Refer to 7 - COOLING/

ENGINE - STANDARD PROCEDURE).

(2) Remove upper radiator closure panel and cen-

ter brace (Refer to 23 - BODY/EXTERIOR/RADIA-
TOR CLOSURE PANEL - REMOVAL).

(3) Remove lower radiator hose and heater return

hose from the inlet tube (Fig. 42).

(4) Remove the inlet tube to block bolts (Fig. 42).
(5) Rotate tube while removing from the engine

block (Fig. 43).

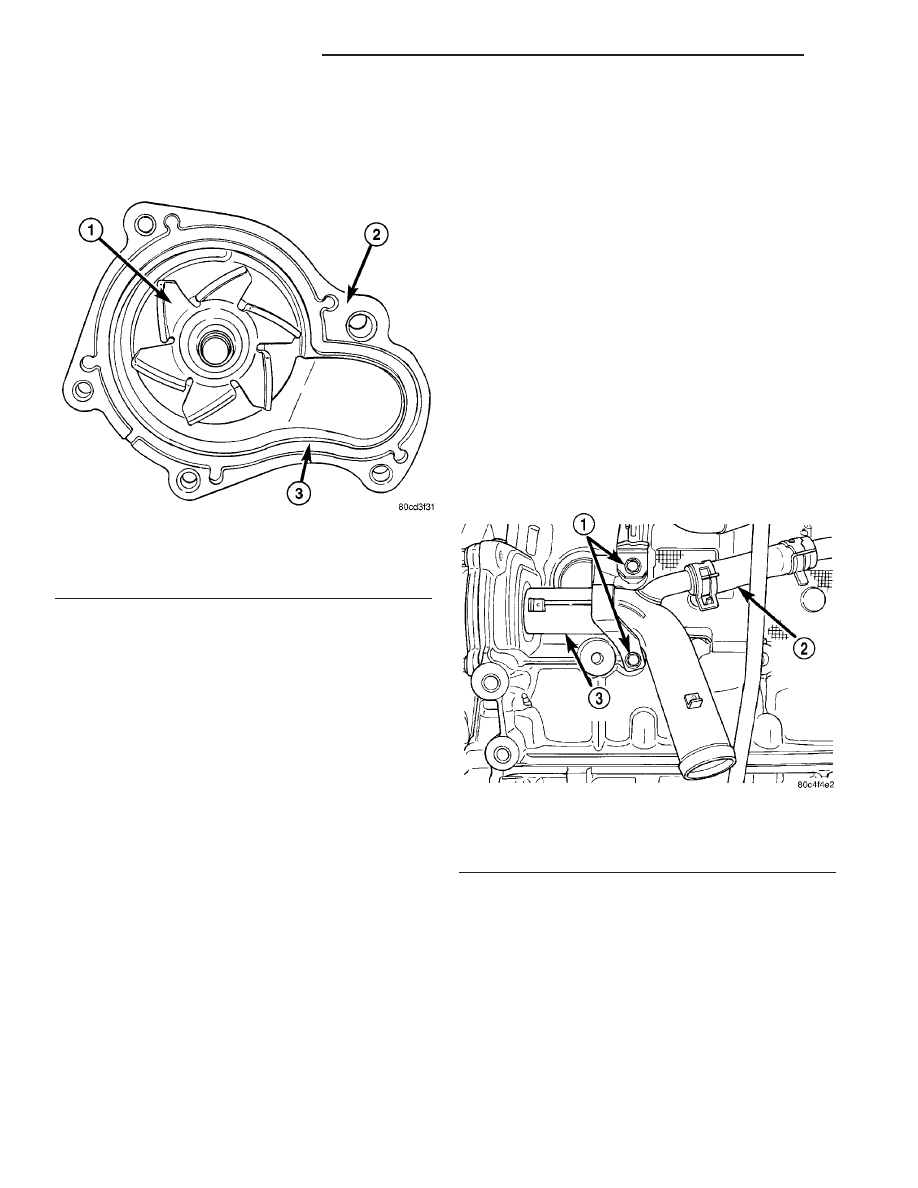

Fig. 41 Water Pump Body

1 - IMPELLER
2 - WATER PUMP BODY
3 - O-RING LOCATING GROOVE

Fig. 42 Water Pump Inlet Tube Fasteners

1 - BOLTS
2 - HOSE - HEATER RETURN
3 - WATER PUMP INLET TUBE

7 - 62

ENGINE - 2.0/2.4L DOHC

PT

WATER PUMP (Continued)

INSTALLATION

(1) Inspect the O-ring for damage before installing

the tube (Fig. 43). Replace O-ring as necessary.

(2) Lubricate

O-ring

with

Mopar

t Dielectric

Grease and install inlet tube into the cylinder block
opening (Fig. 43).

(3) Install inlet tube bolts and tighten to 12 N·m

(105 in. lbs.) (Fig. 42).

(4) Connect lower radiator hose and heater return

hose to inlet tube (Fig. 42).

(5) Install upper radiator closure panel and center

brace (Refer to 23 - BODY/EXTERIOR/RADIATOR
CLOSURE PANEL - INSTALLATION).

(6) Fill cooling system (Refer to 7 - COOLING/EN-

GINE - STANDARD PROCEDURE).

(7) Pressure test system to 103 kPa (15 psi) and

check for leaks.

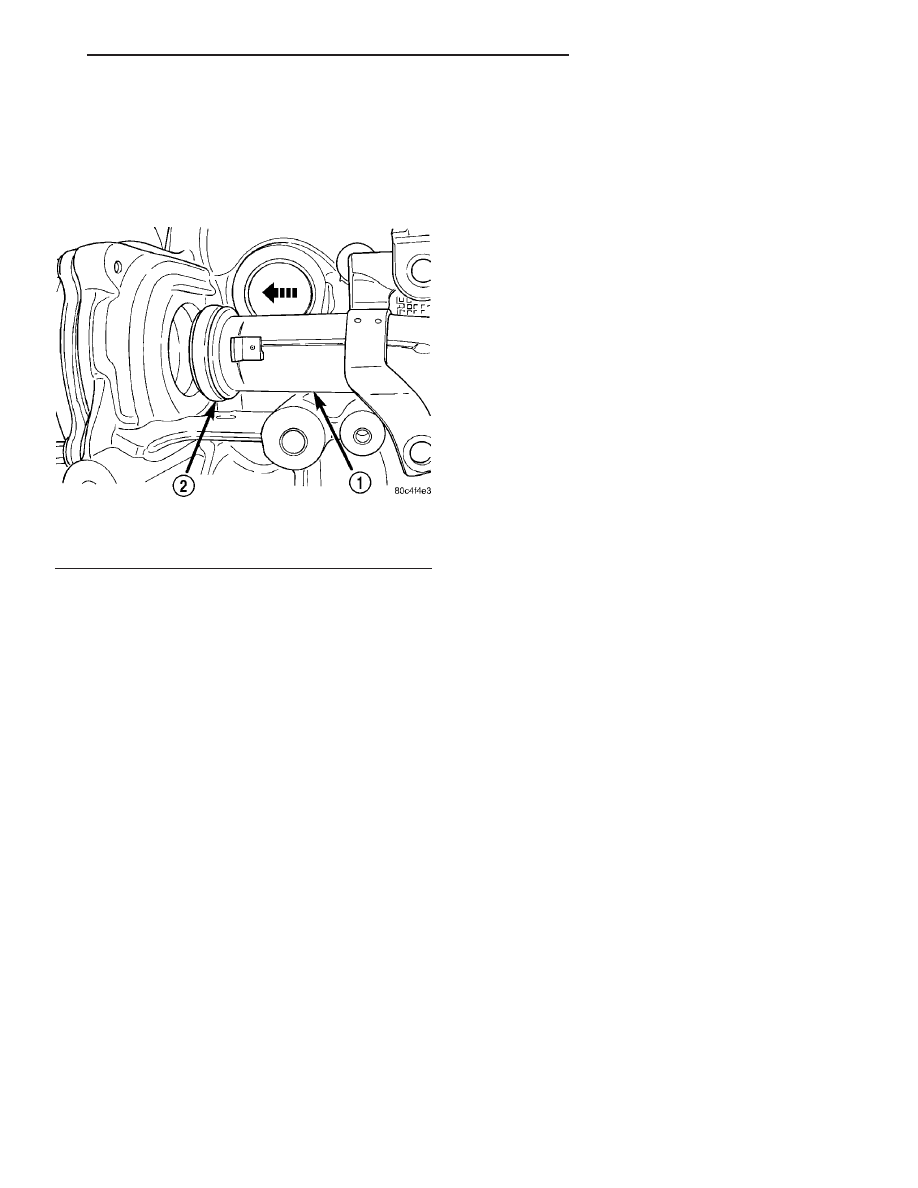

Fig. 43 Water Pump Inlet Tube—Installation

1 - TUBE
2 - O-RING

PT

ENGINE - 2.0/2.4L DOHC

7 - 63

WATER PUMP INLET TUBE (Continued)

TRANSMISSION

TABLE OF CONTENTS

page

page

TRANSMISSION COOLER HOSES

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 64

AUTOMATIC TRANSMISSION OIL COOLER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 64

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

CLEANING

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 65

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 66

TRANSMISSION COOLER
HOSES

DESCRIPTION

The transmission oil cooling circuit uses special

aggressive fittings for the transmission oil cooler
hoses. Whenever a transmission oil cooler hose is
removed from a transmission fitting (at transmis-
sion), it must be cut off flush with the fitting, and a
service splice kit must be used upon reassembly.
Refer to instructions provided with splice kit. When-
ever a transmission oil cooler hose is removed from a
transmission oil cooler fitting (at radiator), it must be
replaced with a new hose. Removing the hose from
the aggressive fitting will scrape material from inside
the hose making the hose larger. Failure to replace
the hose or install a service splice kit will result in
transmission oil leaks.

When hose clamp replacement is necessary, replace

with constant tension spring type hose clamps.
Always use proper hose clamp pliers on clamps. Use
of improper hose clamp pliers may bend hose clamps
out-of-round resulting in transmission oil leaks.

AUTOMATIC TRANSMISSION
OIL COOLER

DESCRIPTION

Non - Turbo

The automatic transmission oil cooler consists of

an external air-to-oil type mounted in front of the
radiator (Fig. 1). Rubber hoses connect the oil coolers
to the automatic transmission. Use only approved
transmission oil cooler hoses and clamps for replace-
ment. The hoses are molded to the fit space avail-
able.

Turbo

The automatic transmission oil cooler consists of

an external air-to-oil type mounted in front of the air

conditioning condenser (Fig. 2). Rubber hoses connect
the oil cooler to the automatic transmission. Use only
approved transmission oil cooler hoses and clamps
for replacement. The hoses are molded to the fit
space available.

REMOVAL

Non - Turbo

(1) Remove front fascia (Refer to 13 - FRAME &

BUMPERS/BUMPERS/FRONT

FASCIA

-

REMOVAL).

NOTE: When the transaxle cooler lines are removed
from the rolled-groove type fittings at the cooler
and transaxle, damage to the inner wall of hose will
occur. To prevent potential leakage, the cooler
hoses and clamps must be replaced.

(2) Loosen hose clamps. Disconnect hoses from

transmission oil cooler (Fig. 3).

(3) Remove

screws

attaching

transmission

oil

cooler to radiator (Fig. 3).

(4) Remove transmission oil cooler (Fig. 3).

Fig. 1 Automatic Transmission Oil Cooler

7 - 64

TRANSMISSION

PT

Turbo

NOTE: When the transaxle cooler lines are removed
from the rolled-groove type fittings at the cooler
and transaxle, damage to the inner wall of hose will
occur. To prevent potential leakage, the cooler
hoses and clamps must be replaced.

(1) Remove grille (Refer to 23 - BODY/EXTERIOR/

GRILLE - REMOVAL).

(2) Remove upper radiator closure panel (Refer to

23

-

BODY/EXTERIOR/RADIATOR

CLOSURE

PANEL - REMOVAL) (Fig. 4).

(3) Remove radiator closure panel center brace

(Fig. 4).

(4) Remove fasteners attaching transmission oil

cooler to air conditioning condenser (Fig. 5).

(5) Loosen hose clamps. Disconnect hoses from

transmission oil cooler.

(6) Remove transmission oil cooler.

CLEANING

Check the external cooler for debris on the cooling

fin surfaces. Clean as necessary.

INSPECTION

Inspect all hoses, tubes, clamps and connections for

leaks, cracks, or damage. Replace as necessary. Use
only approved transmission oil cooler hoses that are
molded to fit the space available.

Inspect external coolers for leaks, loose mounts, or

damage. Replace as necessary.

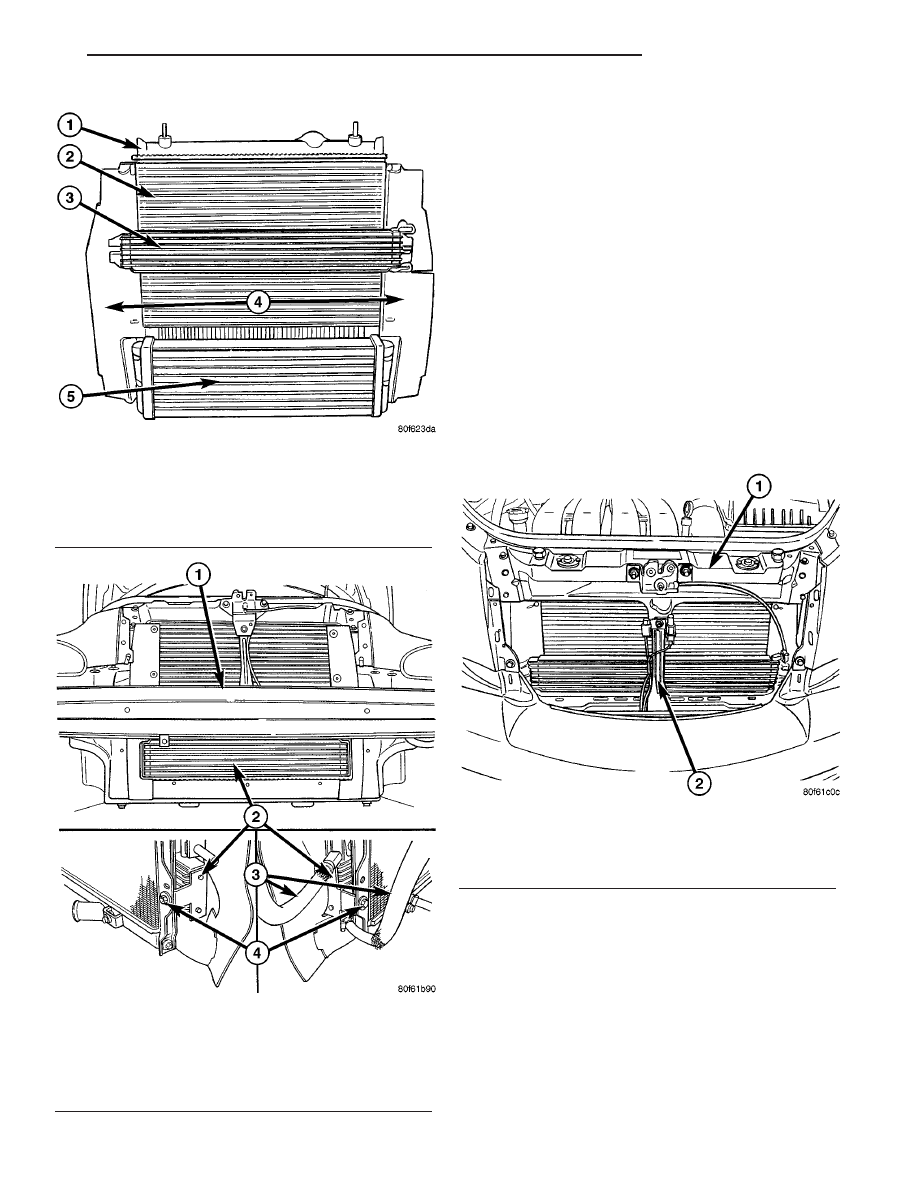

Fig. 2 Cooling Module - 2.4L Turbo

1 - RADIATOR
2 - A/C CONDENSER
3 - AUTOMATIC TRANSMISSION OIL COOLER
4 - AIR SEALS
5 - CHARGE AIR COOLER

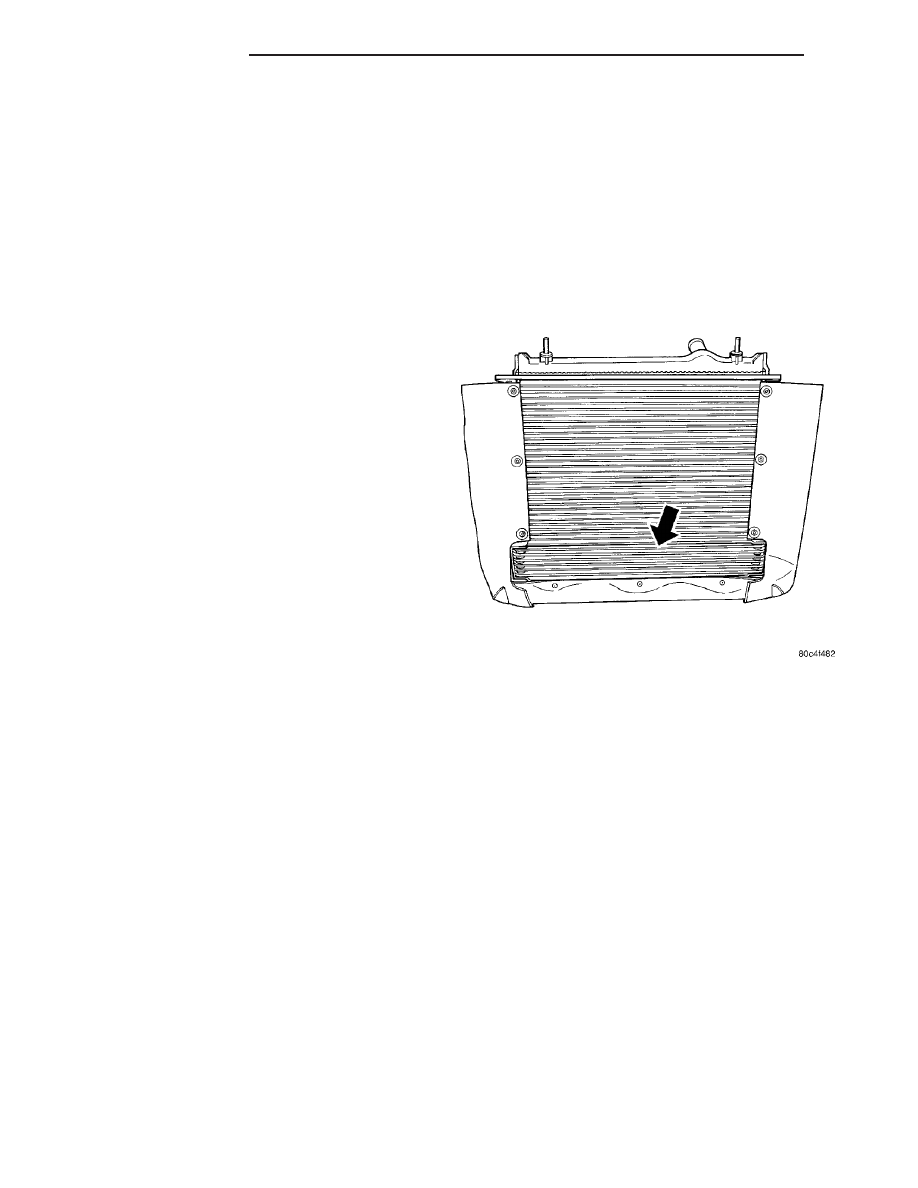

Fig. 3 Automatic Transmission Oil Cooler -

Removal/Installation

1 - FRONT BUMPER (FASCIA REMOVED)
2 - TRANSMISSION OIL COOLER
3 - HOSES
4 - SCREWS

Fig. 4 Upper Radiator Closure Panel and Center

Brace

1 - UPPER RADIATOR CLOSURE PANEL
2 - CENTER BRACE

PT

TRANSMISSION

7 - 65

AUTOMATIC TRANSMISSION OIL COOLER (Continued)
