WINDSHIELD WASHER SOLVENT LEVEL SWITCH REPLACEMENT (CHEVROLET)

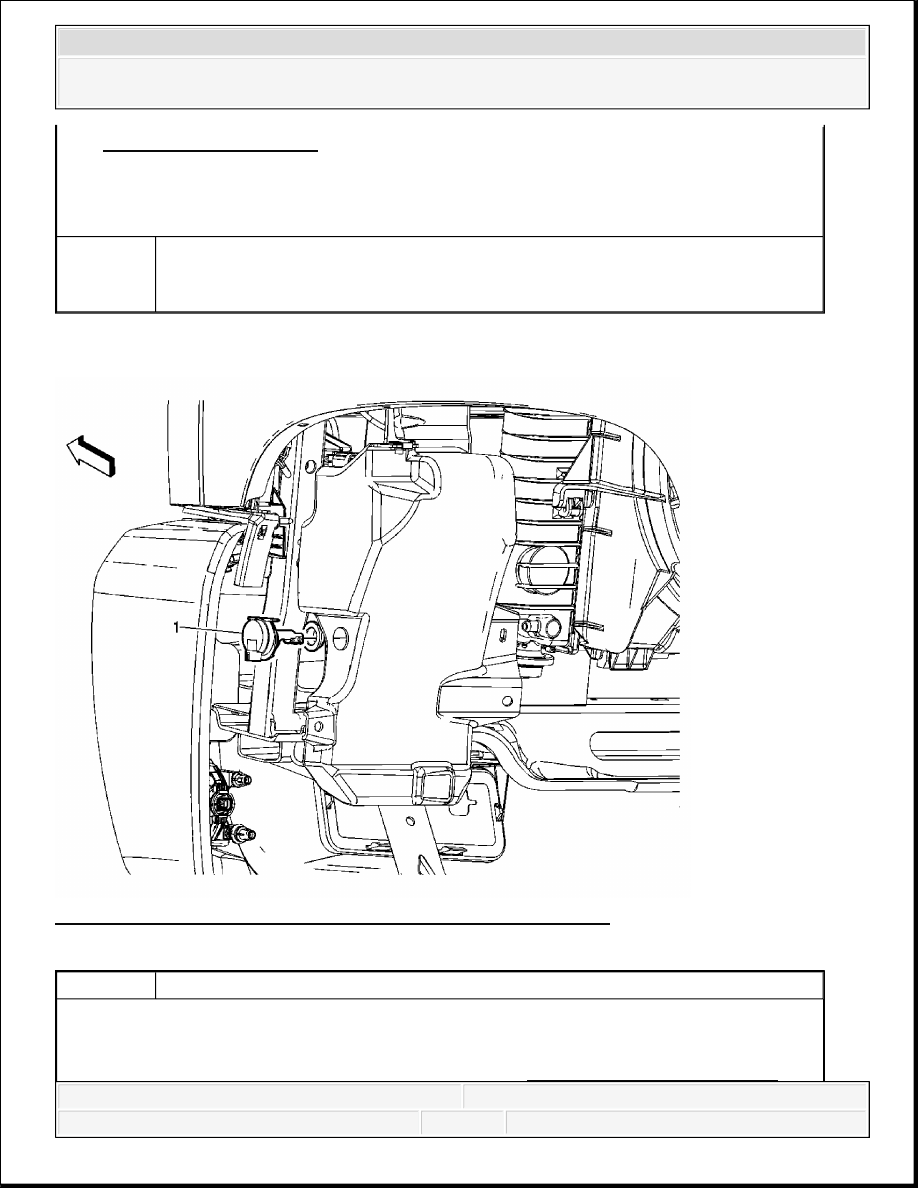

Fig. 15: Windshield Washer Solvent Level Switch (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
Container Replacement.
2. Using two flat-bladed tools placed under the edges of the level indicator pry outward
to release the level sensor from the washer container.
3. Discard the level indicator grommet.
1
Windshield Washer Solvent Level Indicator
Tip: Ensure the square edge of the level indicator faces upward upon
installation.
Callout
Component Name
Preliminary Procedures
1. Remove the windshield washer container. Refer to Windshield Washer Solvent
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
WINDSHIELD WASHER SOLVENT HEATER REPLACEMENT

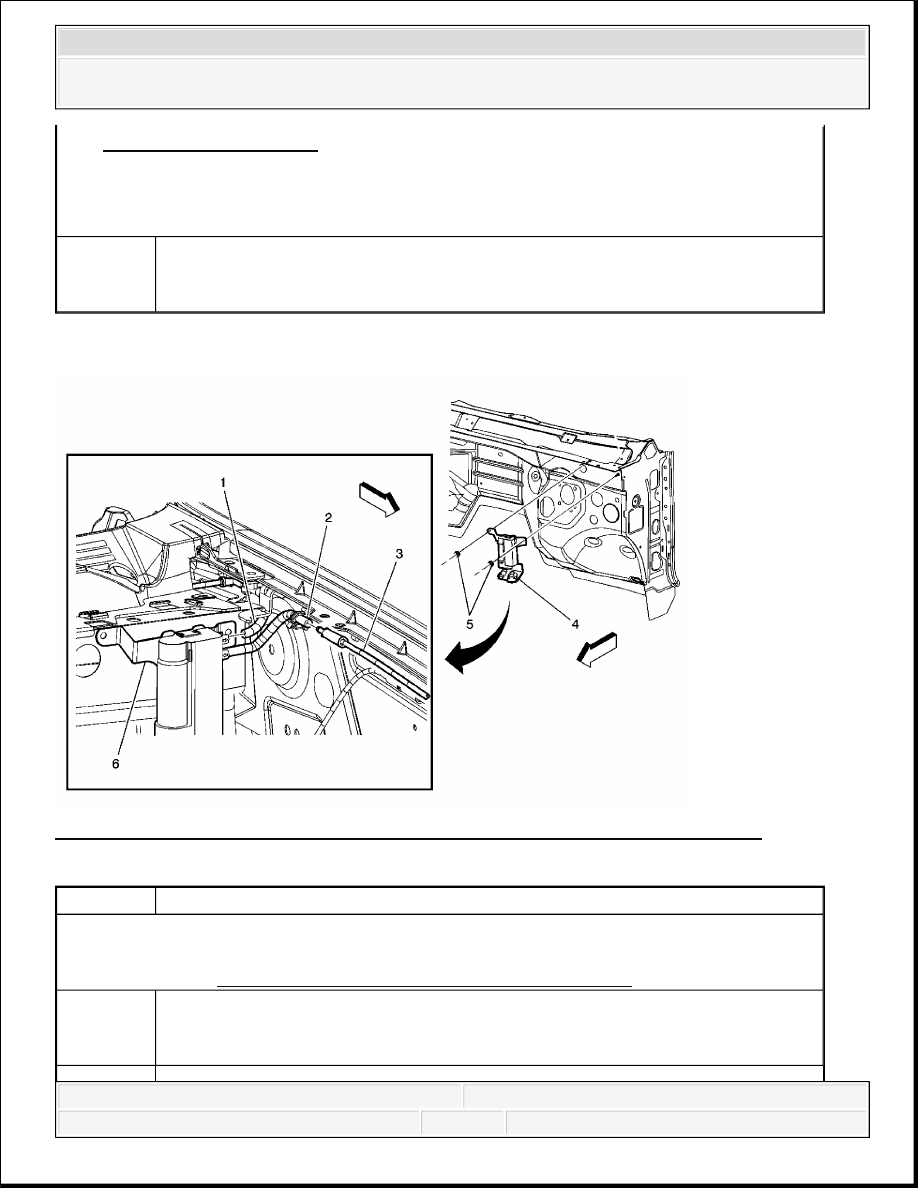

Fig. 16: View Of Windshield Washer Solvent Heater Assembly & Components
Courtesy of GENERAL MOTORS CORP.
Container Replacement.
2. Using two flat-bladed tools placed under the edges of the level indicator pry outward
to release the level sensor from the washer container.
3. Discard the level indicator grommet.
1
Windshield Washer Solvent Level Indicator
Tip: Ensure the square edge of the level indicator faces upward upon
installation.
Callout
Component Name
Preliminary Procedure:
Remove the front fender rear upper brace in order to access the washer solvent heater
assembly. Refer to Front Fender Rear Upper Brace Replacement .
1
Windshield Washer Nozzle Hose (Outlet)
Tip: Disconnect the air inlet panel hose from the outlet side of the heater
assembly.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
AIR INLET GRILLE PANEL REPLACEMENT
2
Windshield Washer Pump Hose (Inlet)
3
Windshield Washer Pump Hose
4
Windshield Washer Solvent Heater Assembly Electrical Connectors (Qty: 2)
Tip: Disconnect the electrical connectors.
5
Windshield Washer Solvent Heater Assembly Nuts (Qty: 2)
Tighten: 9 N.m (80 lb in)
NOTE:
Refer to Fastener Notice .
6
Windshield Washer Solvent Heater Assembly
Procedure
1. Disconnect the electrical connectors after removing the heater from the
lower plenum panel studs.
2. Prime the heated washer fluid unit after installation.
3. Cycle the normal wash function until washer fluid sprays from the
windshield washer nozzles.
4. The normal wash function fills the heated washer unit with washer solvent
after replacement.
5. Activate the heated washer spray function and inspect for proper
operation.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

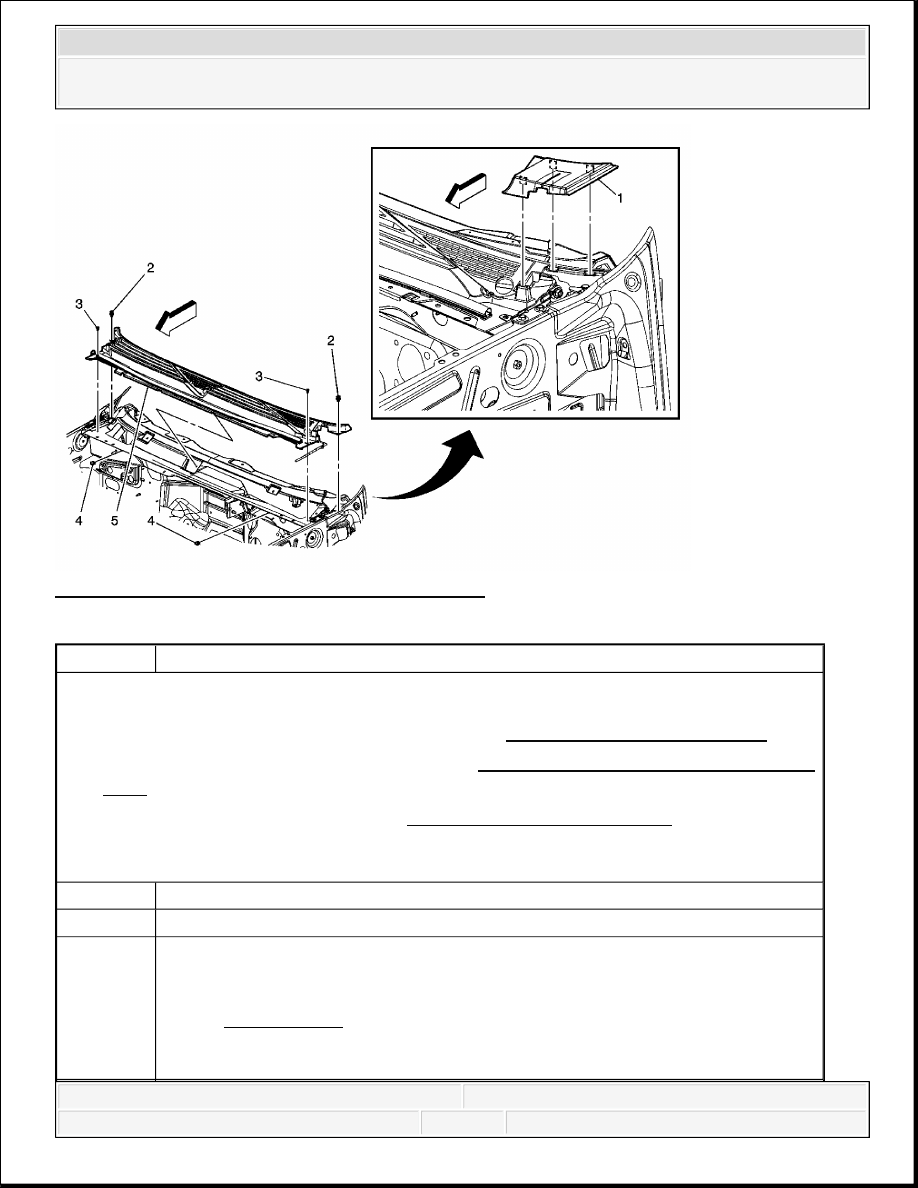

Fig. 17: View Of Air Inlet Panel & Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure
1. Remove the fixed antenna, if equipped. Refer to Radio Antenna Replacement .
2. Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement
(LD).
3. Remove the rear hood seal. Refer to Hood Rear Seal Replacement .
4. Remove the two outer clips securing the air inlet grille panel to the flange on the air
plenum.
1
Air Inlet Grille Panel End Panel (Qty: 2)
2
Air Inlet Grille Panel Retainer (Qty: 2)
3
Air Inlet Grille Panel Screw (Qty: 2)
Tighten: 1.3 N.m (12 lb in)
NOTE:
Refer to Fastener Notice .
