WINDSHIELD WIPER ARM REPLACEMENT (LD)

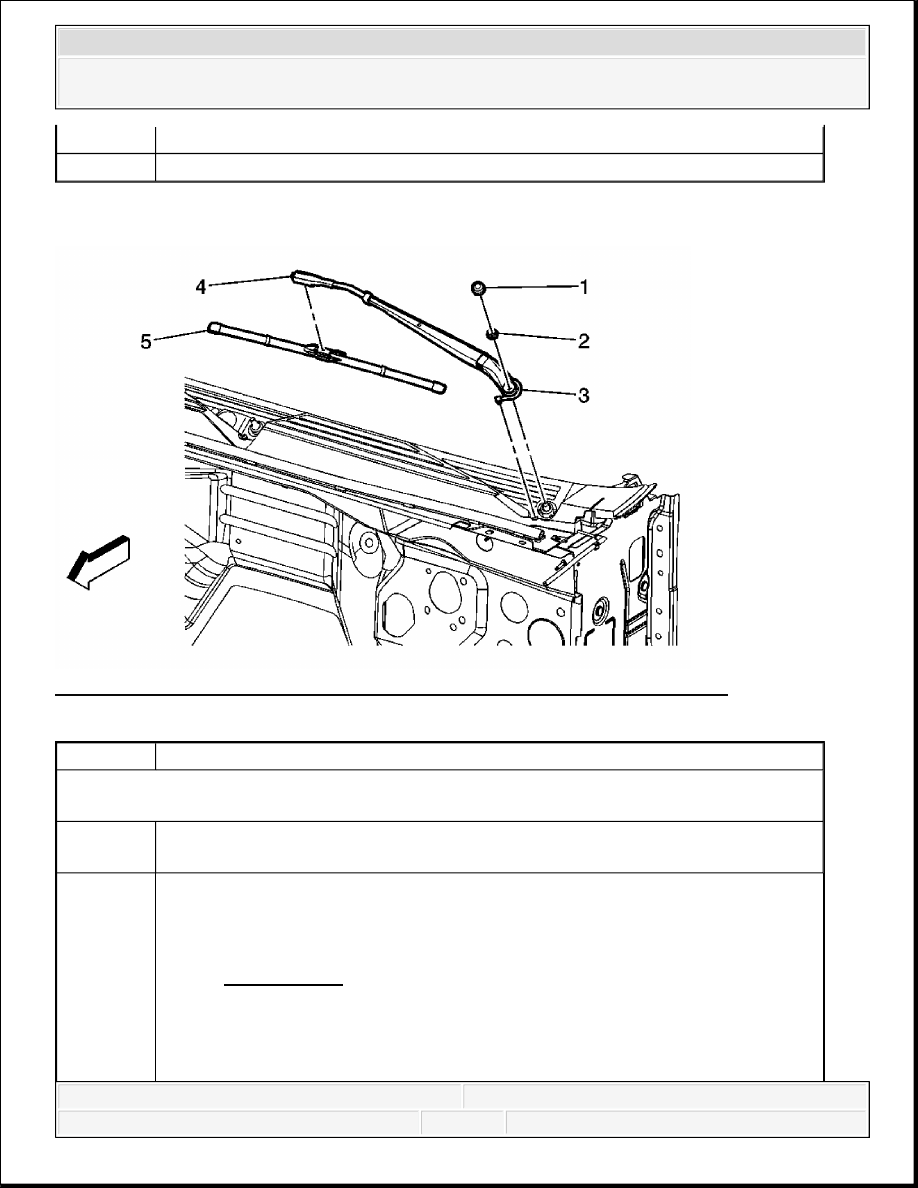

Fig. 18: View Of Windshield Washer Blade Assembly & Components (LD)
Courtesy of GENERAL MOTORS CORP.
4
Air Inlet Grille Panel Clip
5
Air Inlet Grille Panel
Callout
Component Name
Preliminary Procedure:
Open the hood in order to access and remove the wiper arm assembly.
1
Windshield Washer Arm Finish Cap
Tip: Use a small flat-bladed tool to remove the finish cap.
2
Windshield Washer Arm Nut
Tip: Hold the wiper blade to the vertical black bar target mark located at the
lower center portion of the windshield.
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
WINDSHIELD WIPER BLADE REPLACEMENT
Tighten: 30 N.m (22 lb ft)
3
Windshield Washer Arm Hose
Tip: Rotate the hose clockwise around the end of the washer wiper arm upon
installation.
4
Windshield Washer Arm Assembly
Tip: Use the J 39637 .
Special Tools:
J 39637 Wiper Arm Puller
5
Windshield Washer Blade Assembly
Tip: Pinch the 2 outer tabs on the arm, rotate the blade rearward and slide the
blade forward to release the wiper blade from the wiper arm assembly.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Wipers and Washers - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

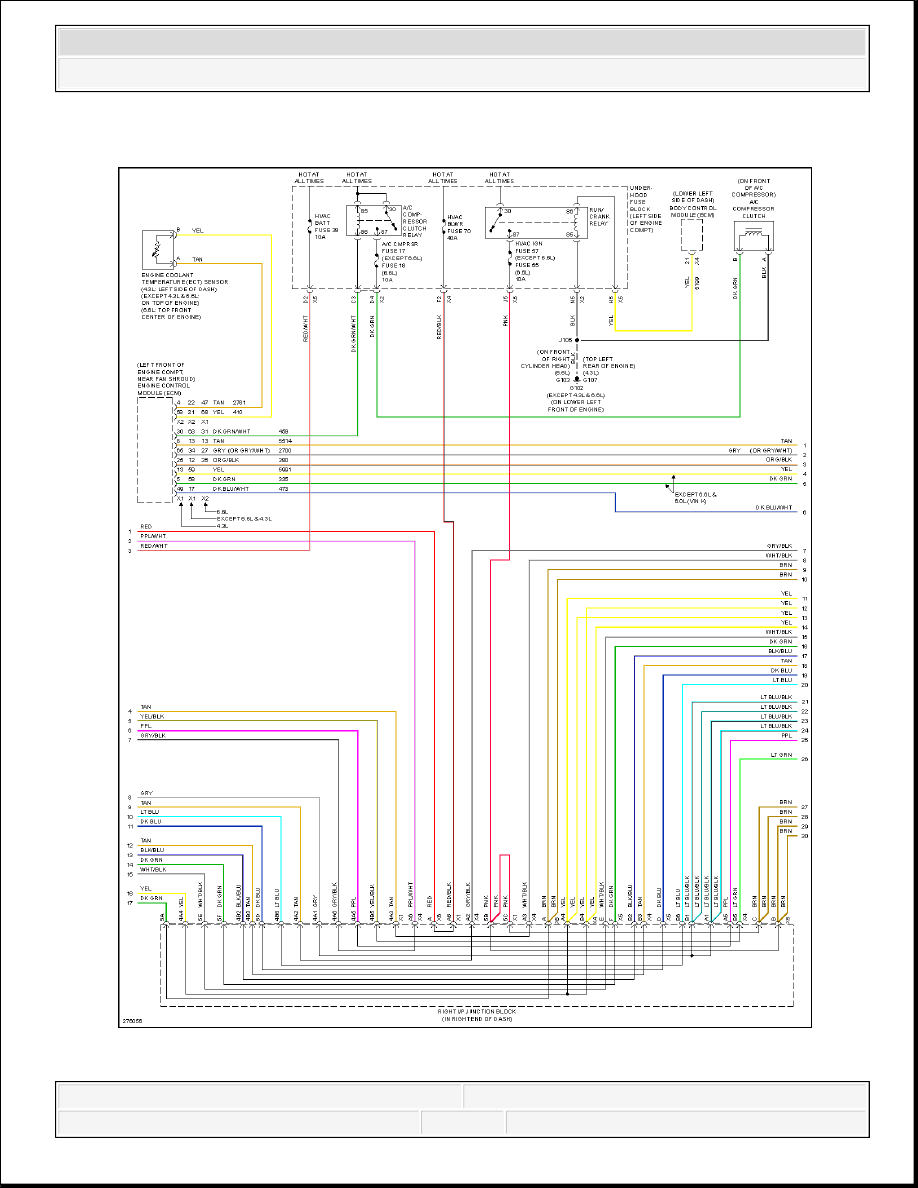

AIR CONDITIONING
2008 Chevrolet Silverado 1500
2008 SYSTEM WIRING DIAGRAMS Chevrolet - Silverado 1500
2008 Chevrolet Silverado 1500
2008 SYSTEM WIRING DIAGRAMS Chevrolet - Silverado 1500
