Chery    QQ    Maintenance Manual                        Transmission System

I、 Disassemble

（1） 5th  gear

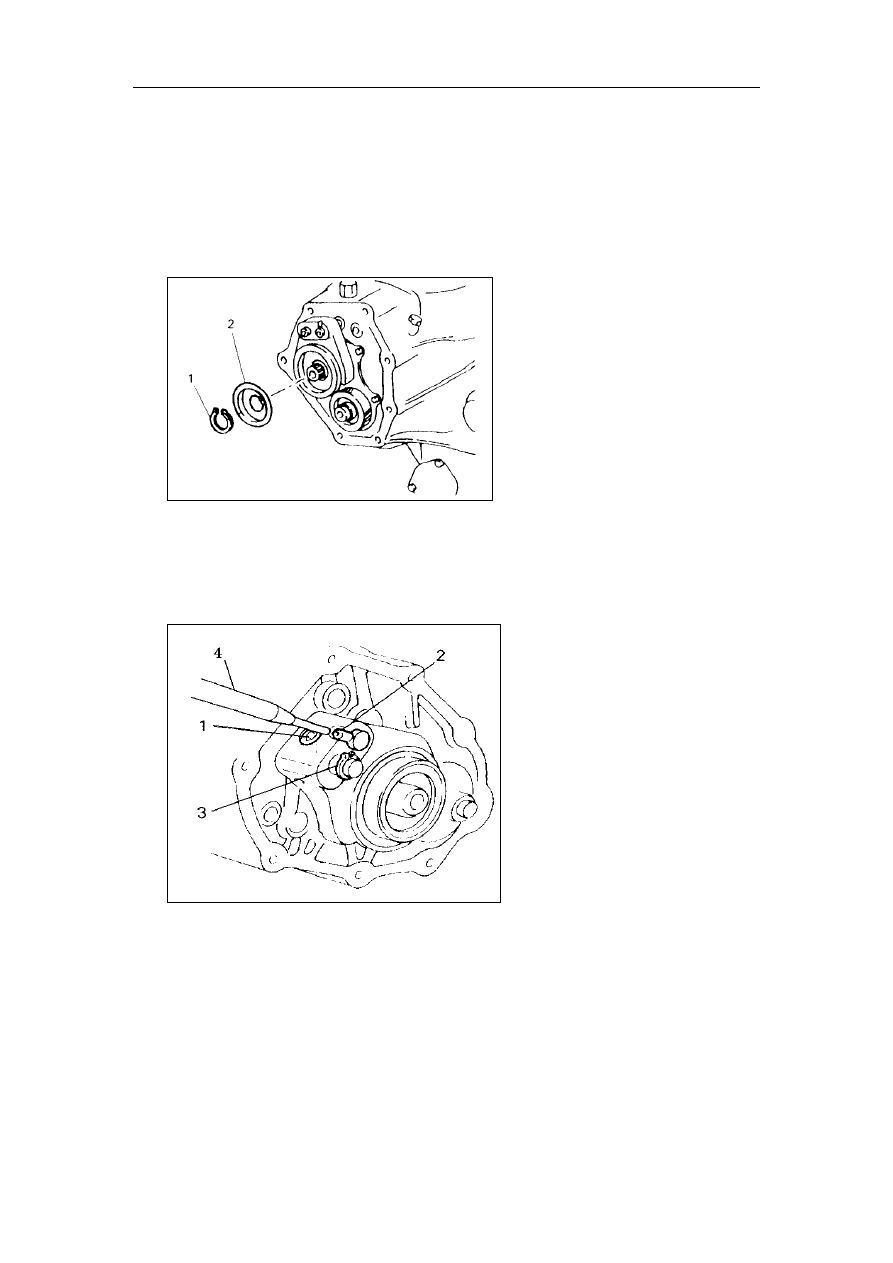

1  Loosen 8  bolt , remove the rear  gear  box.
2  Remove the  snap  ring，thrust gasket.

Caution: do not distort the snap ring.





1- Snap ring

2-Thrust gasket



Fig.3-1

3    Remove the 5th shift fork bolt and placement.

It is much easier to magnetize the placement.

4    Remove the and snap ring. slotted spring pin.




1- 5th Shift fork bolt

2- Slotted spring pin

3- Snap ring

4- Special tool



                      Fig.3-2







5    Remove the 5th Shift fork、5th synchronizer assembly、synchronizer ring.



56

•

Chery    QQ    Maintenance Manual                        Transmission System

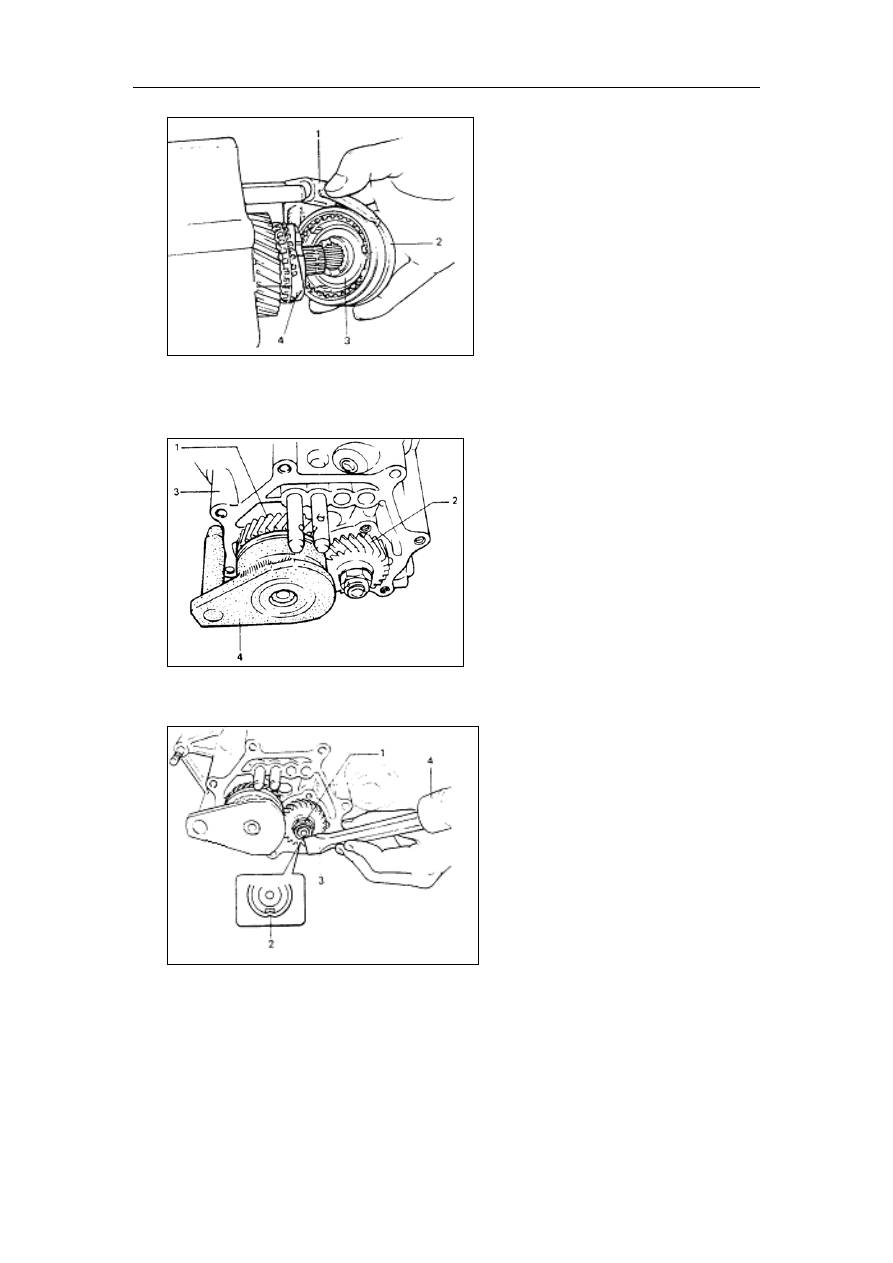

1- 5th shift fork

2- 5th hub sleeve

3- 5th hub

4- 5th  synchronizer

ring

                      Fig.3-3
6    Fasten the input shaft,output shaft 5th gear, install special 5th    gear lock tool

on the input shaft 5th gear and transmission case.



1- 5th gear

2- 5th driven gear

3-

Transmission case



4- Special tool



                        Fig.3-4
7    The output shaft nut：Use chisel to loosen the welded part of the    nut.



1- 5th lock nut

2-Nut

3- Chisel



                          Fig.3-5
8    Remove 5th driven gear,5th gear,transmission thrust board.




（2）  Shift and  select  lever  shaft ,input shaft,output shaft



57

•

Chery    QQ    Maintenance Manual                        Transmission System

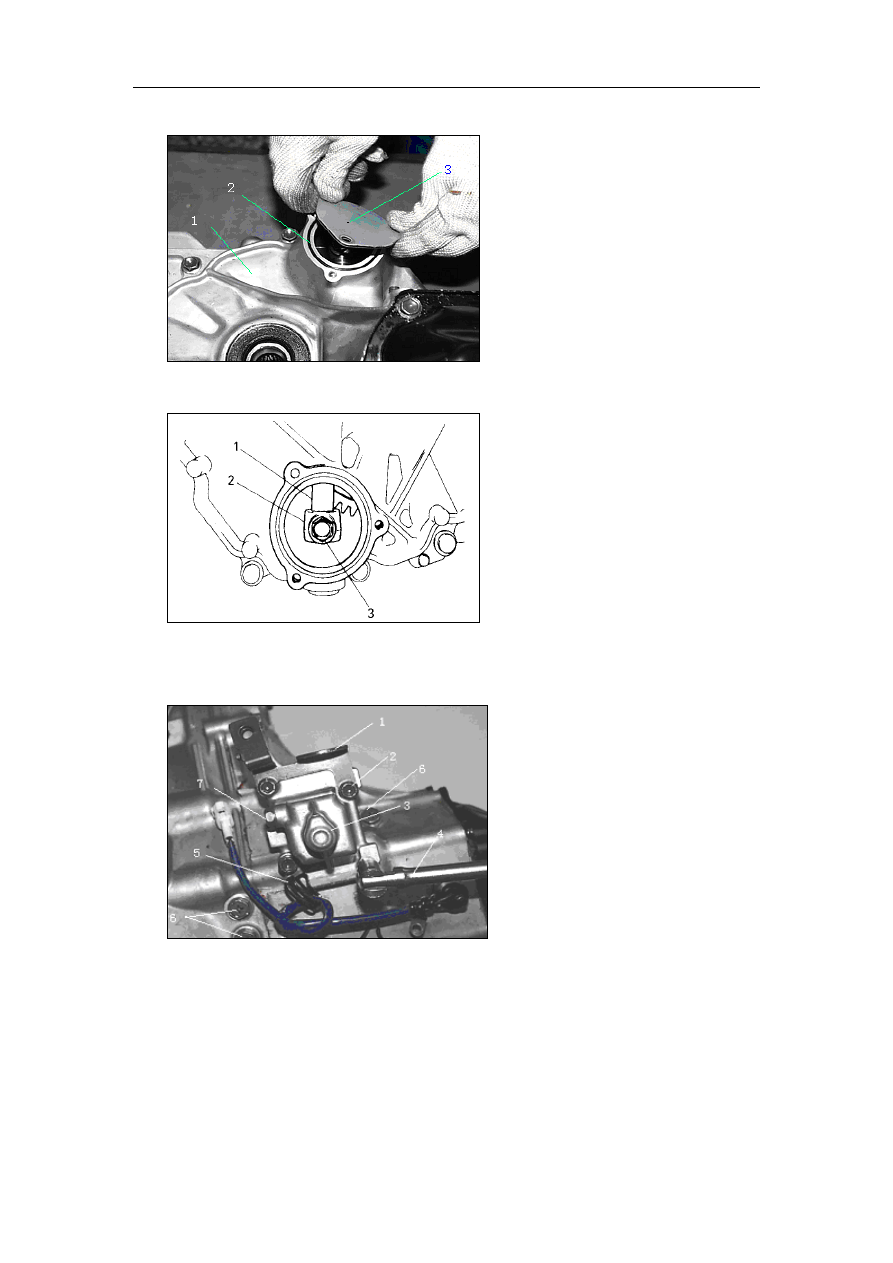

1    Loosen 3 bolt, remove the transmission cover board.



1-

Transmission case



2- O-ring

3- Transmission cover board





                            Fig.3-6
2、  Remove shift and select lever shaft fork.



1- Shift and select lever shaft

2- Shift and select lever shaft fork

3- Bolt

                                Fig.3-7
3    Remove the 3 shift fork shaft bolt and gasket, take out the spring    and ball.
4    Loosen the 4 bolt on the case, take out the clip、stationary rings and case.

1.  Stationary rings assembly

1- Bolt

3-Case

4- Special tool

5- Clip

6- Shift fork bolt

7-Reverse,5th Interlock  roller





                          Fig.3-8
5    Screw off the restrict bolt and gasket.
6    Remove the backup light switch.

Notice: When removing the shift and select lever shaft assembly,    reserve , 5th

interlock  roller need not be removed.



58

•

Chery    QQ    Maintenance Manual                        Transmission System

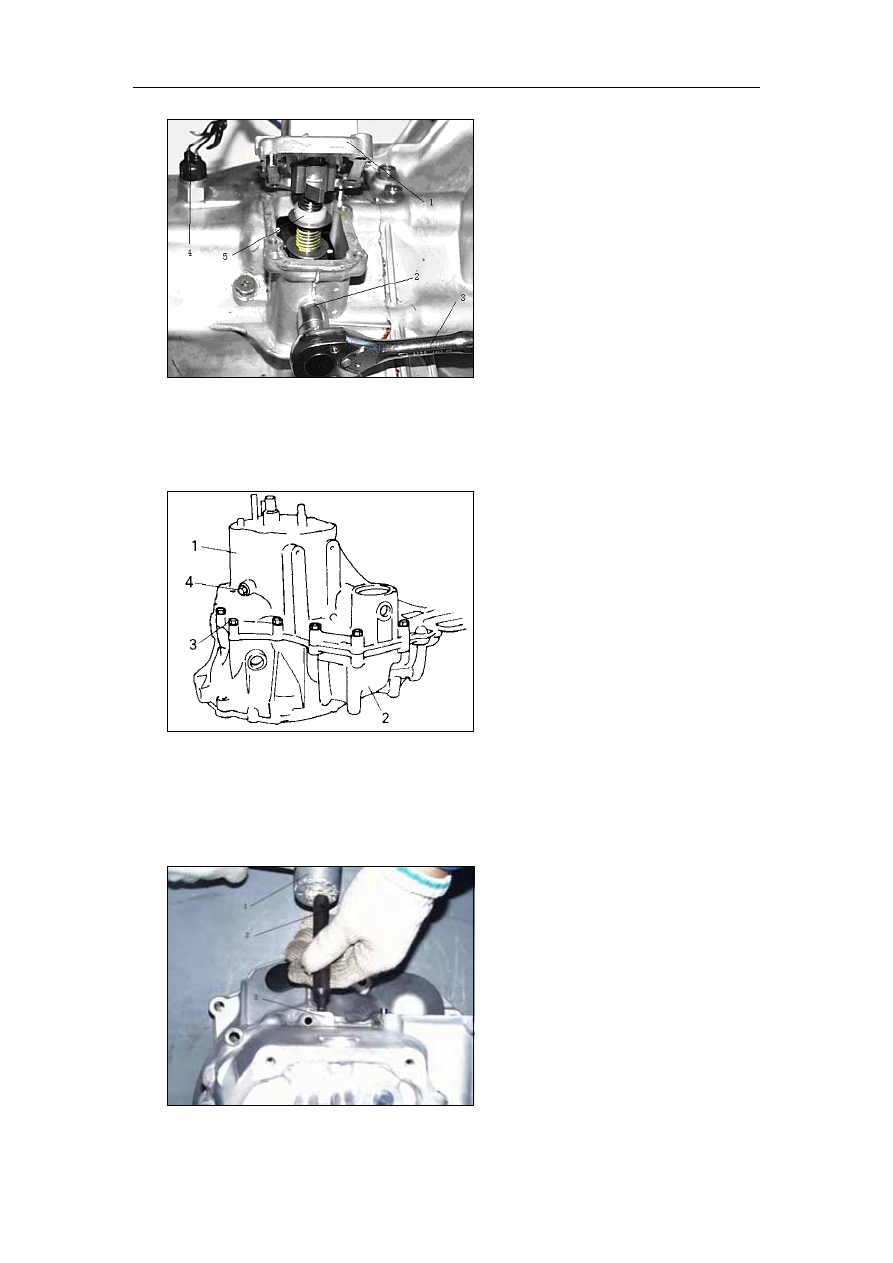

1-Case

2- Restrict bolt

3- Special tool

4-

Backup light switch

assembly



5-

Shift and select lever

shaft





                          Fig.3-9
7  Take out the shift and  select  lever  shaft  assembly.
8    Remove the reverse shaft bolt and gasket.
9    Loosen the 11 bolt    from the case outer.



1-Transmission case

2- Clutch housing

3- Transmission case bolt

4- Reverse idler gear shaft bolt





Fig.3-10

10    Use screwdriver separate clutch housing and transmission case.

Caution: Do not insert the tools into the joint of the two crust, otherwise the joint

can be damaged.





1- Aluminiun Hammer

2- Special tool

3- Transmission case

                        Fig.3-11
