Chery    QQ    Maintenance Manual                        Transmission System

2.Connect the VSS connector.
3.Connect the cathode of the battery .

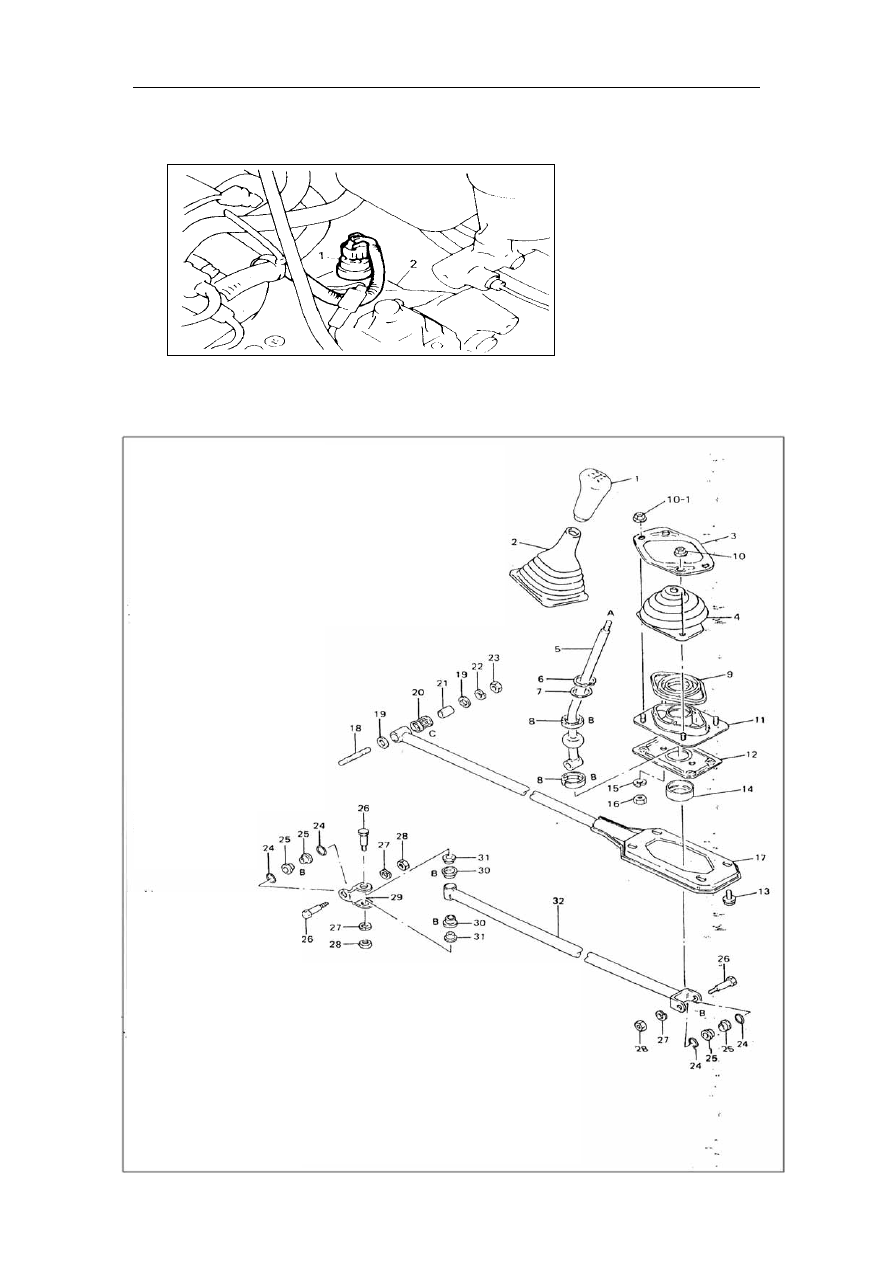

1- VSS

2- Transaxle

Fig.2-12

VI．  Shift and select lever shaft control system


































48

22. Strengthen pole

spring gasket



23. Strengthen pole   bolt

24. O-ring

25. Shift and select lever

shaft spacer



13. Bolt

14. Back

boot

15  Seat spring  gasket

16.  Seat bolt

17. Strengthen

pole

18.  Strengthen pole  bolt

19. Strengthen

pole

gasket

20. Strengthen

pole

spacer

21. Strengthen

pole

spacer



26.  Shift and select lever shaft bolt

27. Spring

gasket

28. Nut

29. Connecter

30. Outer

pipe

31.  Inter   pipe

32.

Shift and select shaft



1.  Shift and select lever

shaft handle

2.  Boot

3.  Boot bracket

4.  Bot

5.  Shift and select lever

shaft

6. Snap

ring

7. Gasket

8.  Shift and select lever

shaft  seat

9. Seat

boot

10.  Seat assembly blot

11. Seat

assembly

12. Support

assembly

•

Chery    QQ    Maintenance Manual                        Transmission System

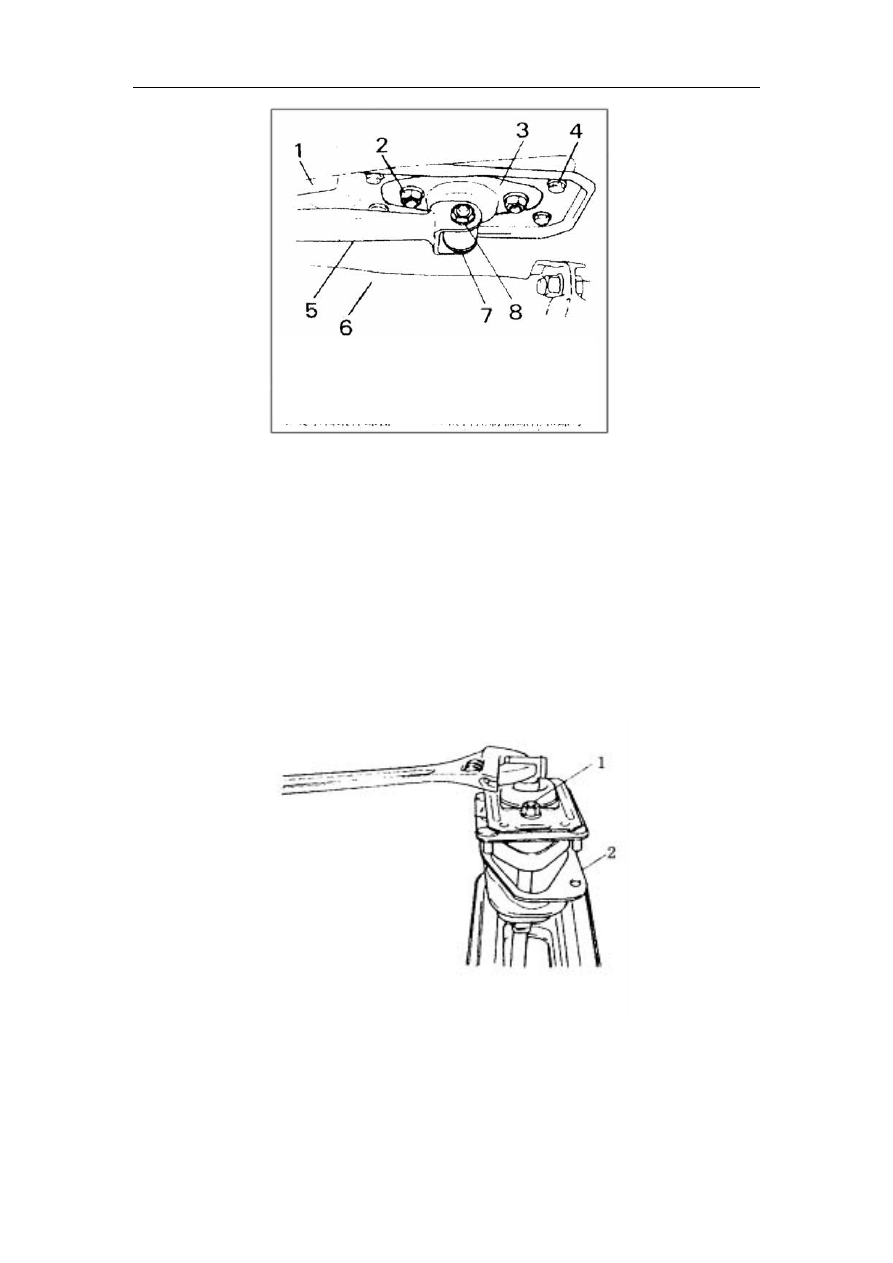

1.Strengthen pole   2. Nut 3. Control shift lever retainer 4.

Control shift lever retainer bolt   6.NO.1 exhaust pipe

5. Shift and select lever shaft              7. Shift lever 8. Shift and

select lever shaft bolt and nut
















Disassembly:
On the lift.
1．  Remove the shift and select lever shaft bolt and nut, take apart the shift and select
lever shaft from the shift lever.
2．  Remove the 4 pieces of control shift lever retainer bolt. Demount the strengthen
pole nut beside the transaxle, and move the strengthen pole aside.
In the cab.
1．  Have shift lever shaft housing，disassembly 2 bolt from shift lever shaft housing.
2．  Demount the 4 nuts on the shift lever assembly, push the shift lever
into the floor hole and pull out the shift lever assembly from the floor.




1 Bolt

2 Blacket

On the workbench;

1．  Use the clamp to fix the holder of the shift lever, demount the bolt, remove

the shift lever.

2．  Demount the 2 shift lever assembly nut, break down the shift lever .




49

•

Chery    QQ    Maintenance Manual                        Transmission System



Installation

1．

  According to the reverse demounting order, install the shift lever , if necessary,

replace the used parts.
Notice:

After installation, please check if the shift lever works smoothly.

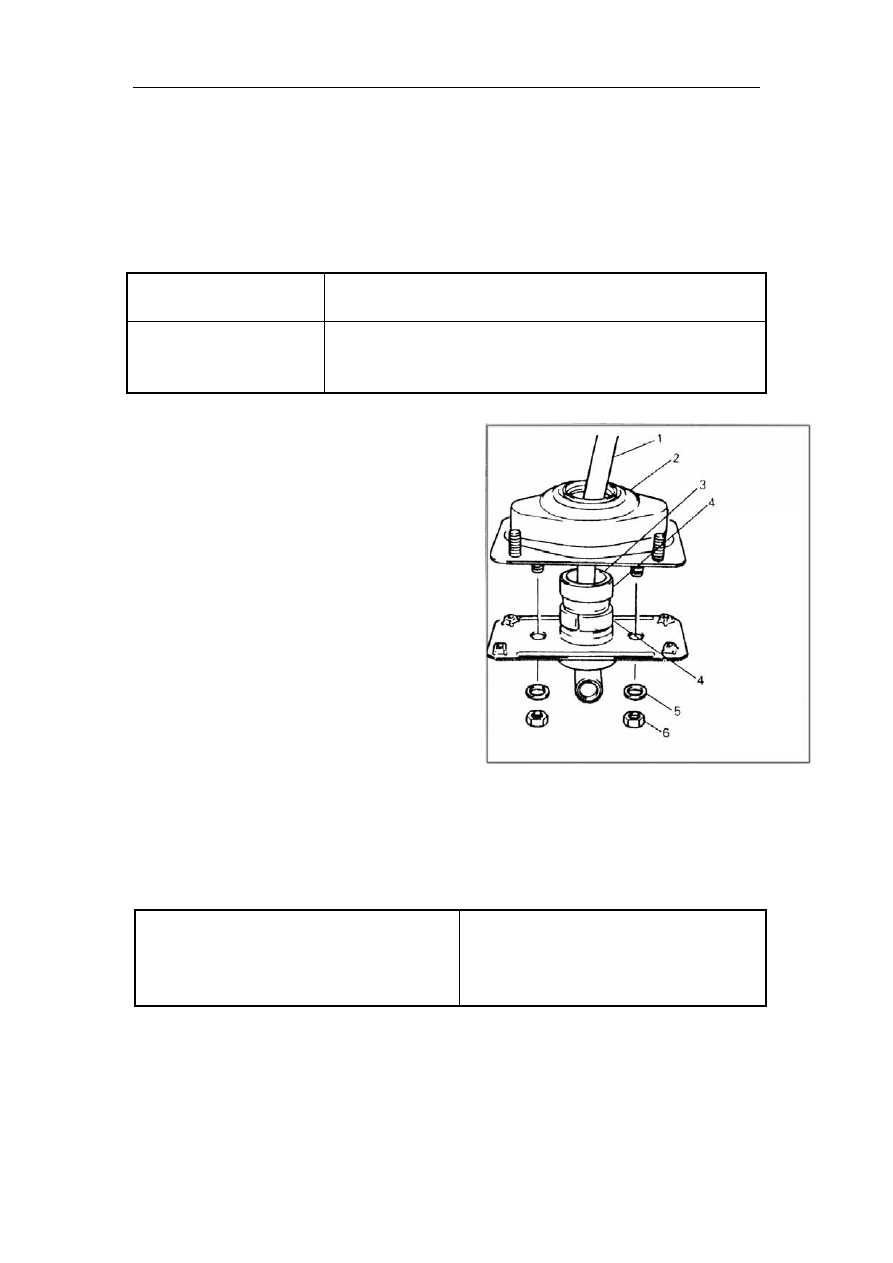

Shift lever vertical

freeplay

0-0.2mm(0-0.007in)

Thickness of the
optional adjust
washer .

0.8,1.0,1.2 and 1.4nim(0.03,0.04,0.05 and 0.06in)


2．  Spread whorl glue, fix the

handle on the shift lever ,check the handle level

1.Shift

lever

2.Shift
lever
assembly
3.Adjust
washer
4. Shift

lever

5. Snap
ring
6. Shift

lever

3．  Install shift lever assembly

and the related parts on the original
  position. When fixing the position of
the shift lever, first install the 4
pieces of control shift lever retainer
bolt and 4 pieces of shift lever
assembly nut, adjust the position of,
screw the bolt and nut tightly.






Notice:

·Do not spread lubricant on the strengthen pole spacer beside the transaxle.
·  Spread lubricant on the shift and select lever shaft boot.
·  Check if the boot has been installed correctly.

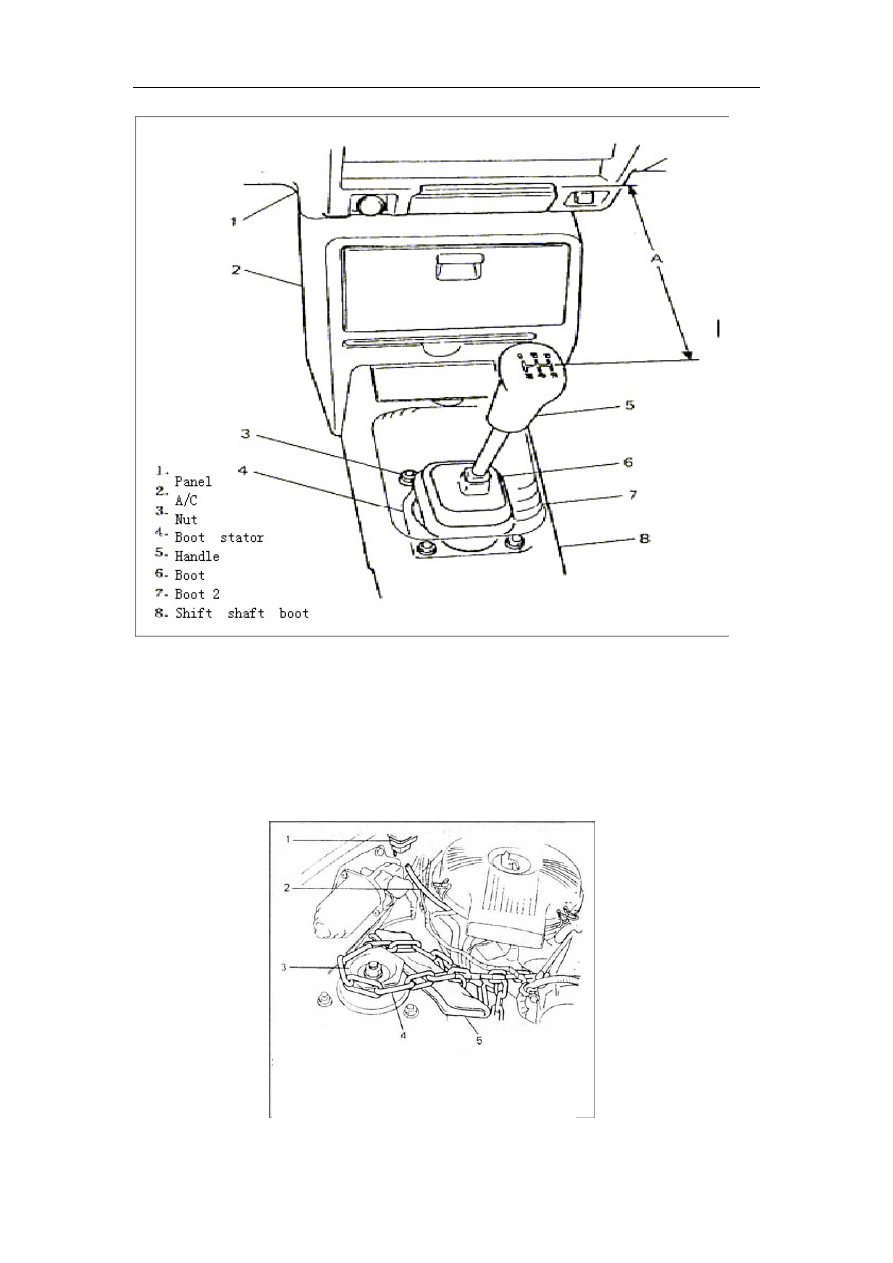

The position of the shift lever  ：Distance

from A

270mm



50

•

Chery    QQ    Maintenance Manual                        Transmission System







Section 3 Disassembly and installation of the transaxle

I  Dismantle  transaxle

Under the engine lid.


1  Map  2 Vacuum hose  3 Bracket
4 Chain  5  Gasket
