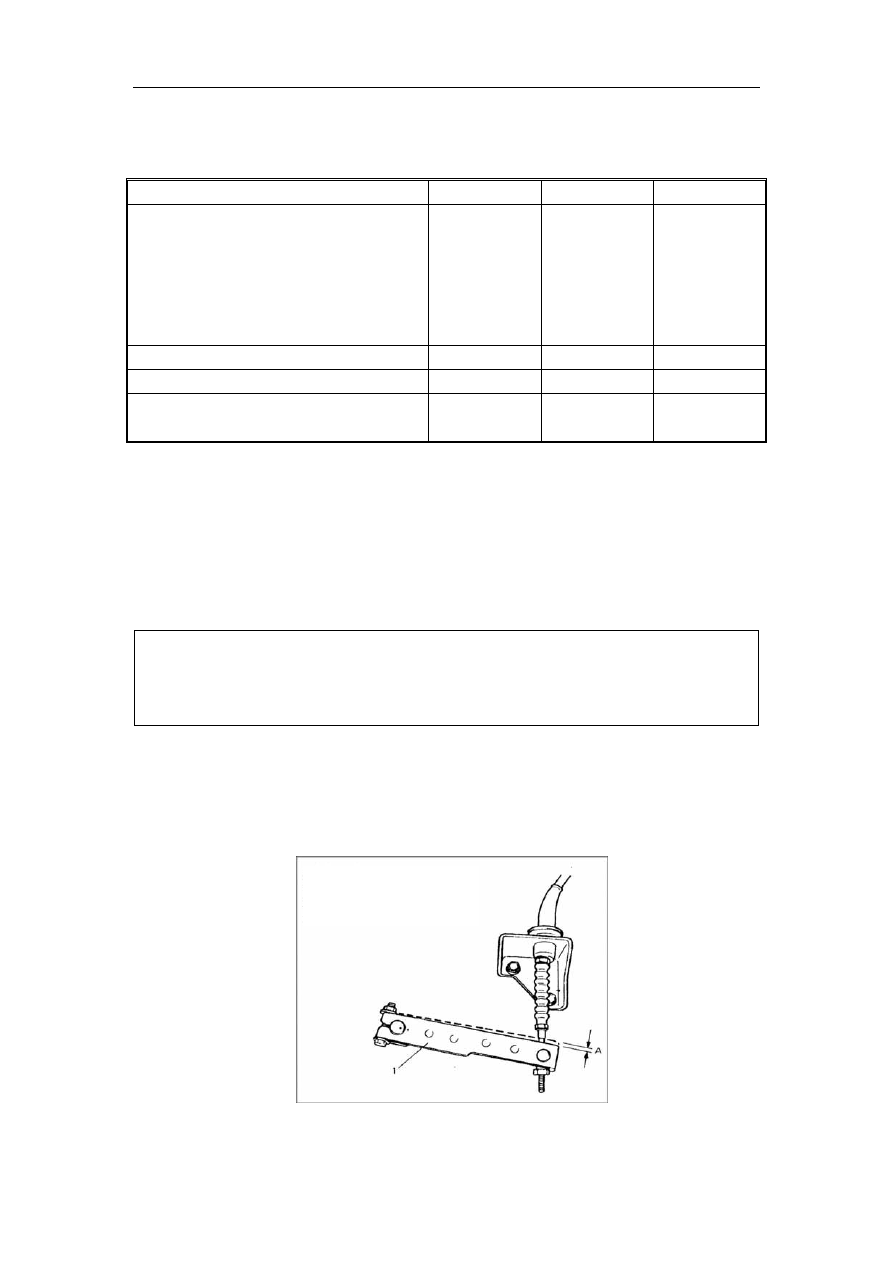

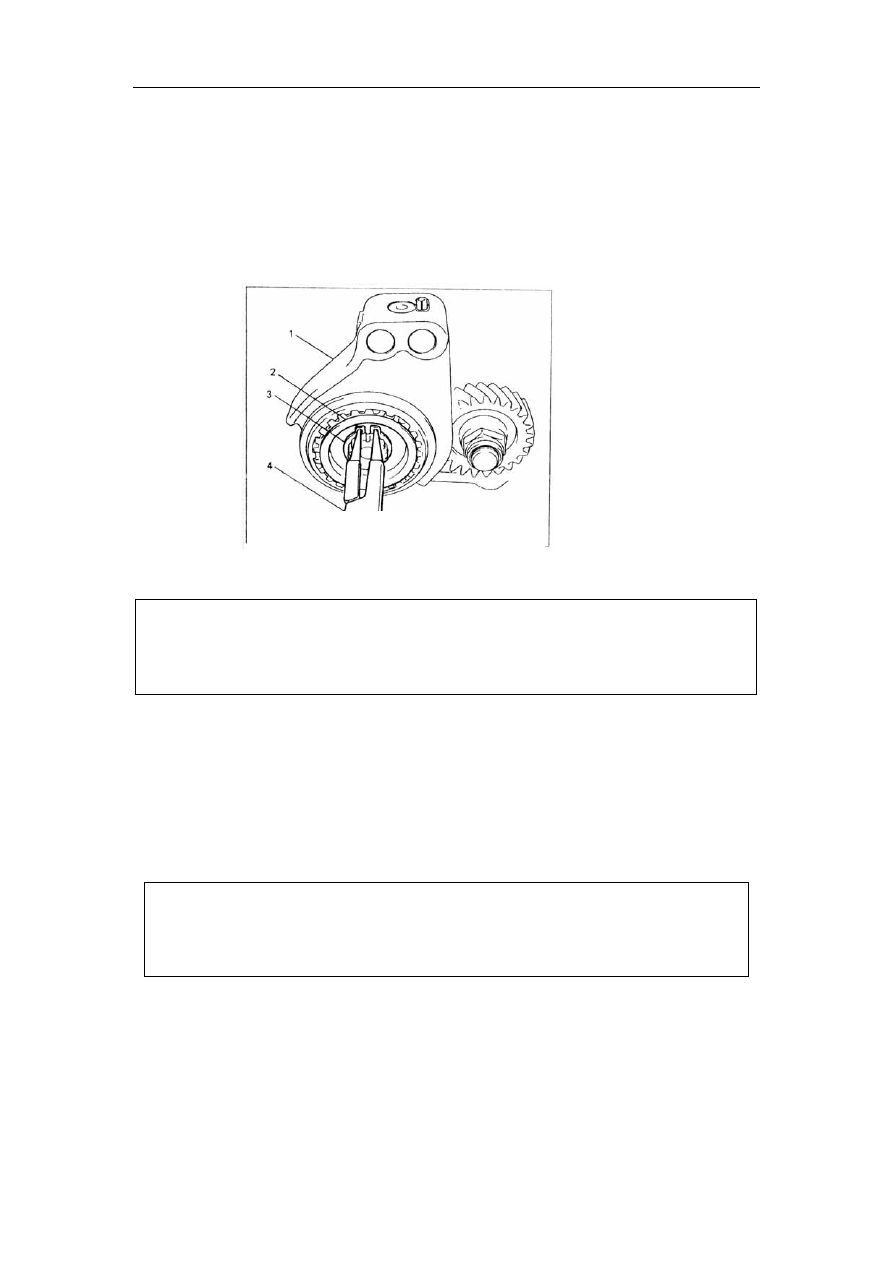

Chery QQ Maintenance Manual Transmission System
1． Disconnect the battery ground; remove the battery and the blacket.
2． Screw the clutch cable nut off, Remove the connect from the cable and
dismantle the cable from the blacket.
3． Disconnect the wiring harness and connector.
4． Remove the speedometer cable boot, and dismantle the speedometer cable.
5． Remove the fixing transaxle bolt.
6．Remove the 2 starter bolt and starter, meanwhile disconnect the starter lable.
7． Disconnect the vacuum hose from the map.
8． Hang engine and bracket chain，keep engine calm.
Caution:
Put gasket under the chain in order to prevent the damage of the vehicle surface.
On the Lift:
1． Use 10mm special tool and spanner to let out the transaxle oil.
2． Screw off the shift and select lever shaft bolt and nut, remove the control
from the shift shaft.
3． Screw off the strengthen pole nut, remove the strengthen pole and gasket.
4． Disconnect the exhaust pipe.
5． Meanwhile, remove the exhaust pipe nut。
6． Remove the clutch down clapboard.
7． Remove Ball joint bolt and nut from the Steering, then remove each
Suspension arm.
8．Use big drive screw disassembly drive shaft snap ring from differential side.
9． Screw the bolt and nut of the transaxle 、engine assembly.
10．Support the transaxle by transaxle jack.
11．From engine retainer bracket，disassembly 2 blot。
12． First remove the 3 bolt and 2 nut, then remove the blacket.
13． Down the jack and the transaxle, disassembly the bolt between the engine
and transaxle, separate input shaft and clutch disc, take the transaxle.
52

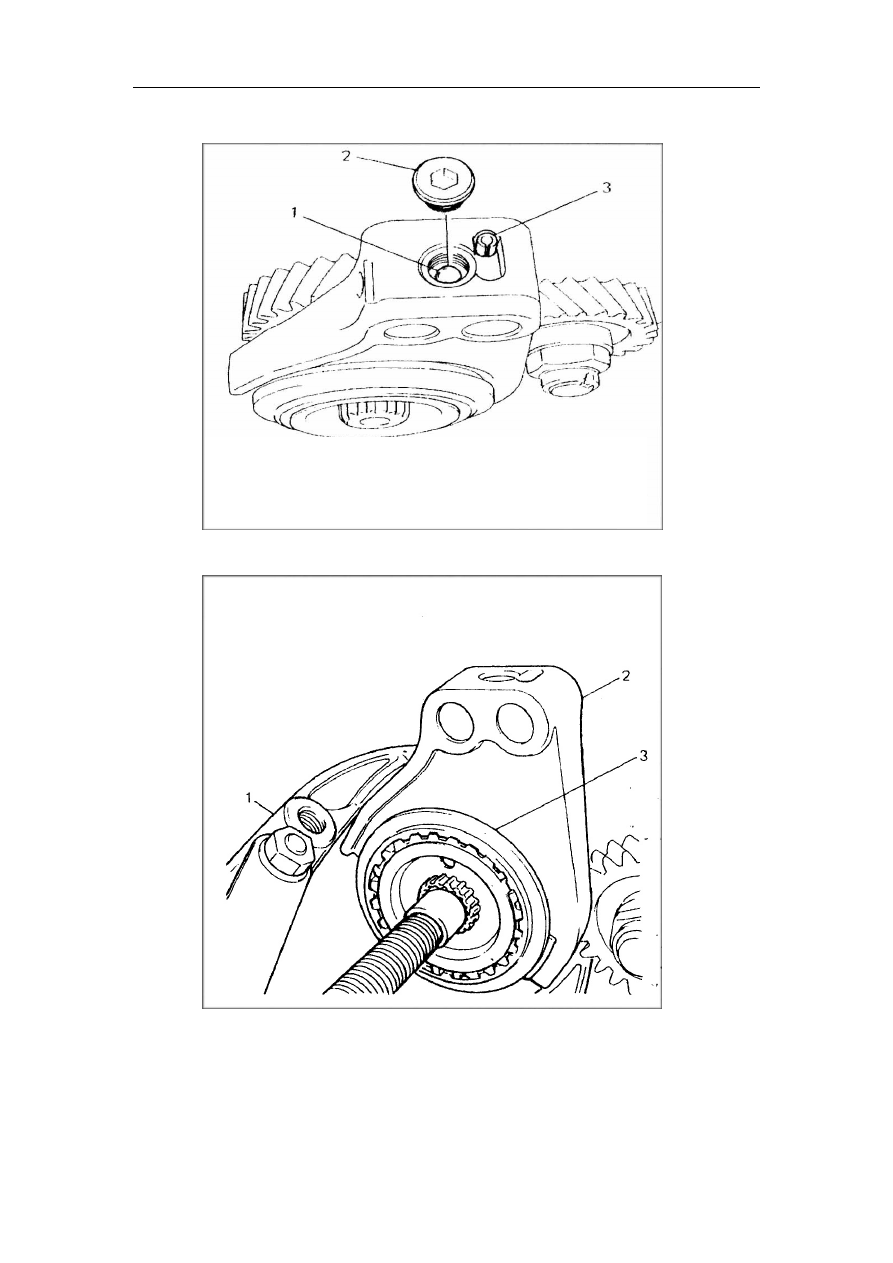

1 Drive shaft universal
coupling
2 Dirvenscrew

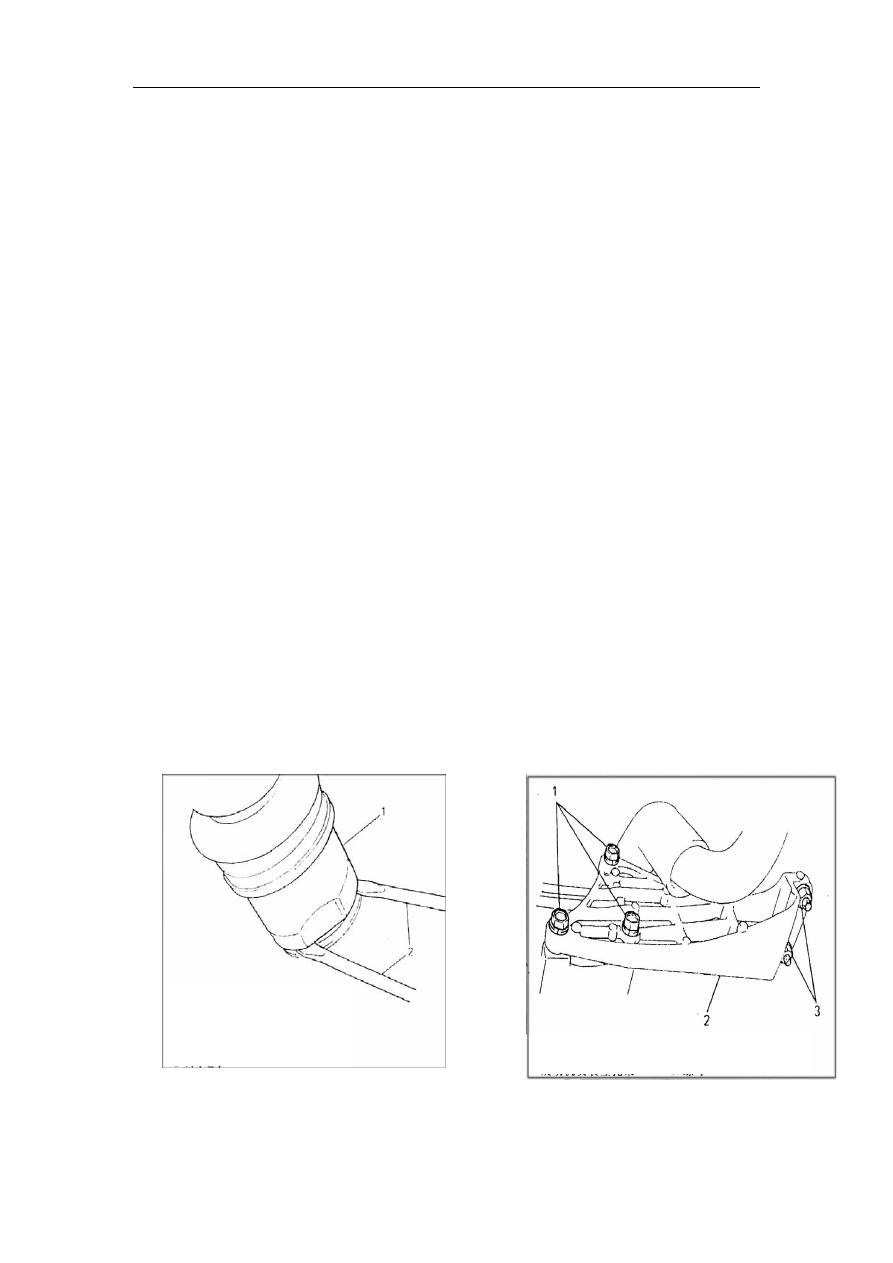

1 Bolt 2 Engine blacket 3 Nut
