Chery QQ Service Manual                              BCM Computer Control System

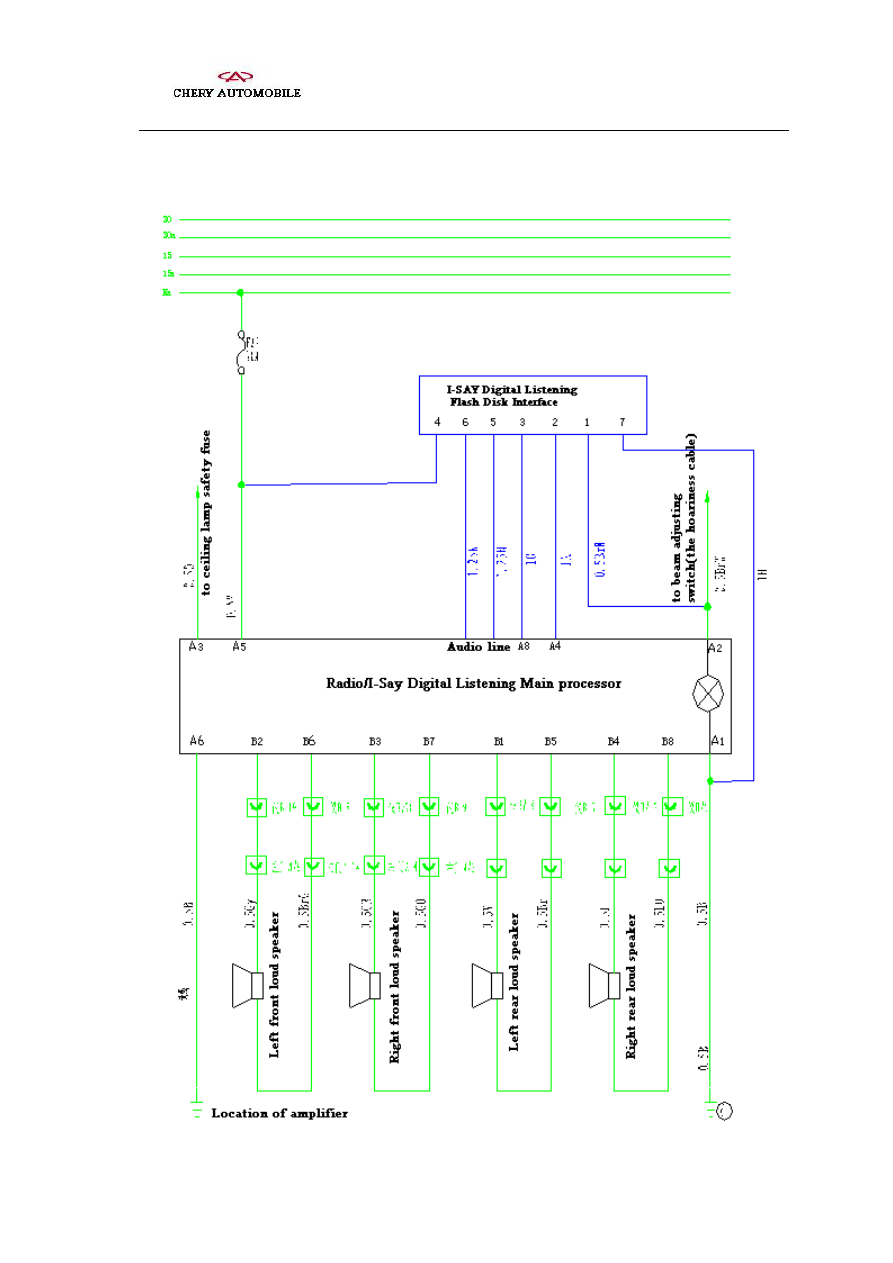

3. Audio circuit diagram





- 96 -



Chery QQ Service Manual                              BCM Computer Control System





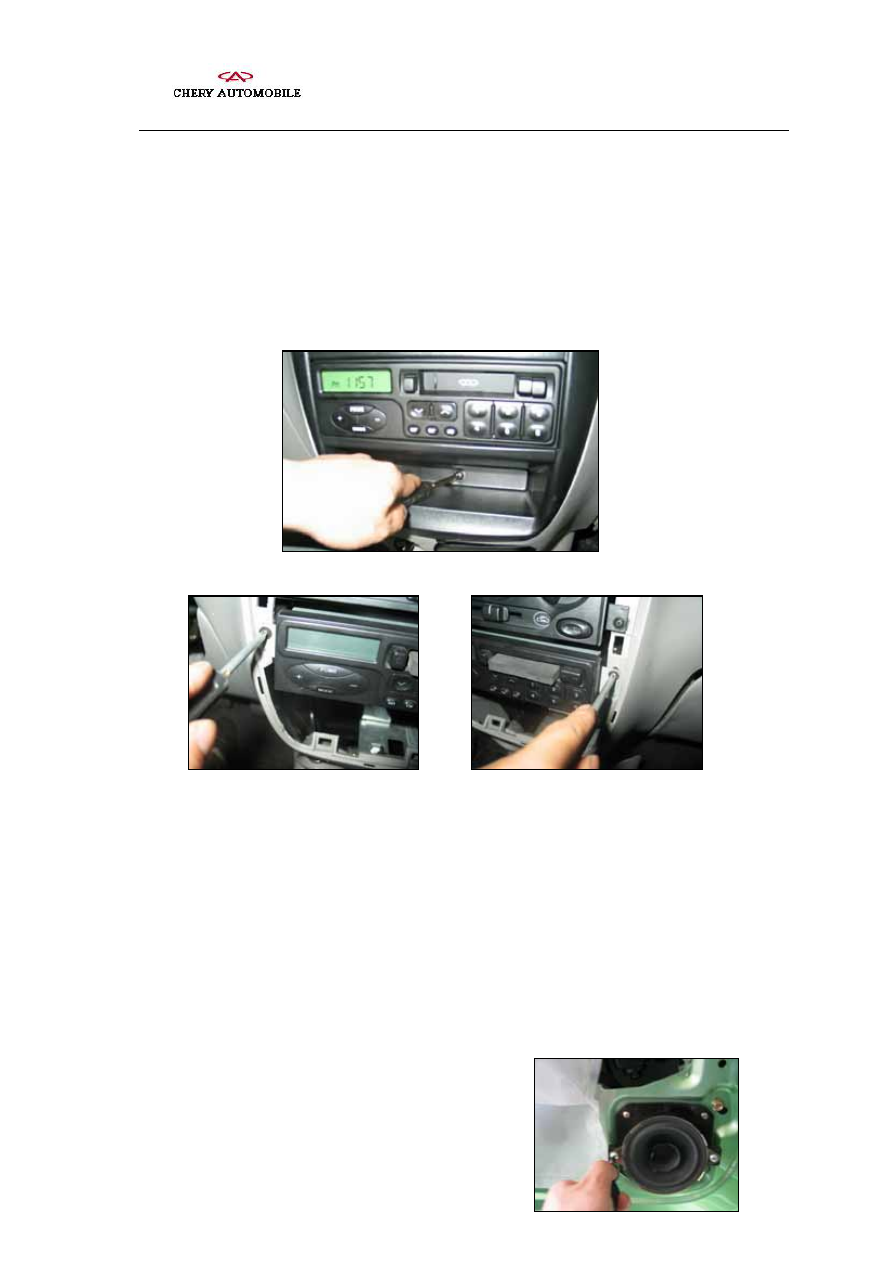

IV. Disassembly and assembly of the Audio system

1. Disassembly and assembly of the Audio system

Disassembly:

Turn off the power and ignition switch, and remove wires connected with the battery.

Remove the outer shield of the radio.














Loosen the two holding bolts on both sides of the main processor.














Remove wires connect with the main processor and take out the device.

Assembly: Reverse to the disassembly process.

2. Disassembly and assembly of speakers

Note:  Do not touch its vibration membrane



or other parts. Otherwise, the sound effect

will be affected or damaged!

Disassembly of the front speaker

Remove the panel shield (see the notes for the vehicle body).

Remove the four holding bolts.



Take out the beam plug.
Remove the speaker.

- 97 -



Chery QQ Service Manual                              BCM Computer Control System






Assembly: Reverse to the disassembly process.


3. Disassembly and assembly of the antenna

Disassembly: Remove the top light (refer to Disassembly of Top Light).
Loosen the bolts.
Remove the plug connected to signal reception lines to remove the antenna.

Assembly: Reverse to the disassembly process.

































- 98 -



Chery QQ Service Manual                              BCM Computer Control System





Chapter 6:

 Inspection and Repair of Other Accessories

Ⅰ

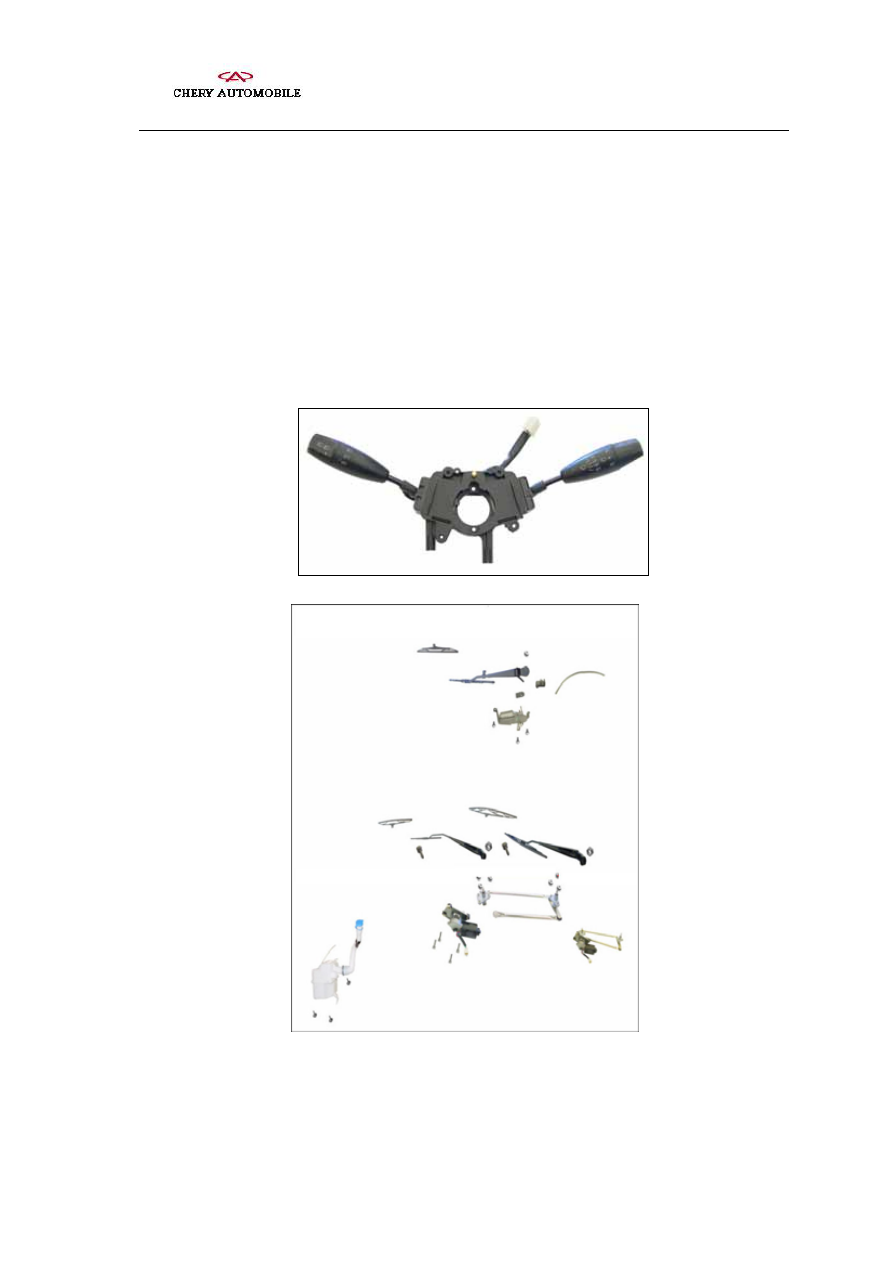

.The structure and maintenance of wiper and wash equipment

1.

 The structure of wiper and wash equipment



Wiper and    washer equipment of Chery S11 consist of fuse, combination wiper switch

with intermittent position, windshield wiper relay and motor,    rear wiper motor, wiper

abutment, connecting rod assembly, locating lever, wiper rubber strip, water injection

pump, reservoir and nozzle etc. They are shown as follows:












































- 99 -
