Chery QQ Service Manual                              BCM Computer Control System






(2) Mode selection (MODE)

Press (3) key repeatedly and you will be able to select the function modes in the
following order: VOL→BAS→TRE→BL→ FA→VOL.

In each mode, press “+” or “-” to adjust electrical frequency for each mode.

VOL
Press “+” or “-” to adjust volume electrical frequency in the range of 0-63.

BAS
Press “+” or “-” to adjust BAS volume in the range of –7 to 7.

TRE
Press “+” or “-” to adjust the volume of left or right sound track in the electrical
frequency range of 15L to 15R.

FA

Press “+” or “-” to adjust the volume of left or right sound track in the electrical
frequency range of 15L to 15R.

(3) Waveband function selection key (BD)

Press (4) key repeatedly to select the functions in the following order:

FM2 →FM2→ FM3→FM4 →AM1→ AM2

When the desired waveband is selected, press “∧” or “∨” to select radio stations
manually or automatically. When the desired radio station is selected, press (3) and “+”
or “-” to adjust volume.

(4) Clock function key (CLK)

Press (5) key to toggle between radio frequency and clock display. In the radio mode,
press CLK, and the clock will be displayed for five seconds before the radio mode
returns. Press this key for a long time and simultaneously press “∧” or “∨”, and then
the time (hour and minute) can be adjusted.

(5) Automatic Preset Save key (AS)

Press (6) key and hold for less than two seconds, and then the preset radio stations set by
using this key will be displayed one by one. However, by pressing this key and hold for
more than two seconds, you will have the character of “ATP” displayed and the device
started to scan the radio status automatically. At the same time, six effective radio
stations will be automatically saved and the device will start to repeat the order of the six
stations until users select one of them by pressing a key (1-6).


- 92 -



Chery QQ Service Manual                              BCM Computer Control System





(6) Save key (1-6)

Radio Save key (1-6) can save more than 30 radio stations (18 FM stations and 12 AM
stations). When users need to save radio stations, they can do so by pressing “ ” or “ ”

∧

∧

to select a desired station and then press the key (1-6) to save it to the key.

(7) Tuning key (“ ” or “ ”)

∧

∨




By pressing “ ” or “ ” for a short time, users can search for radio stations manually

∧

∨

(AM: 9KHZ and FM: 50HZ) until a desired station is reached. Then, when pressing “ ”

∧

or “ ” for more than one second, users can locate an ideal station. If “ ” or “ ” is

∨

∧

∨

pressed in the process of automatic search, the radio frequency will return to the last
station frequency status.

2. Notes for radio operation

(1) Turn on: When POWER key (2) is pressed and characters are displayed, the device is
in the mode of radio.

(2) Press BD key (4) to select FM2, FM2, FM3, AM1 and AM2.

(3) Tuning key: Pressing “ ” or “ ” to manually search for station

∧

∨

s upward and

downward. Press the key for more than one second, and then the automatic search will be
triggered and continue until the desired station is selected.

(4) Manual station saving: Select a desired wave band station to save it to one of the six
Save keys (1-6). Press this key (1-6) for two seconds, and then the selected station will
be saved to it. The six keys can save one of the FM1, FM2, FM3, AM1 and AM2
stations.

(5) Audio adjustment: Press “MODE” key to display “VOL” and then press “+” or “-”
within five seconds to adjust volume. If “+” or “-” is pressed within five seconds, the
display will return to the main display status. This method applies to BAS, TRE, BL and
FA, too.

(6) Automatic scanning save (six): After pressing this key for about two seconds, users
can receive a signal that is used to confirm memory and displays and automatically saves
six radio stations with strong radio signals. Pressing this key or one of the six numeric
keys will stop this function. If the six saved stations cannot be found, these stations will
disappear.

(7) Stereo: ST9 will be automatically displayed when a stereo station is received (stereo
indication)

(8) Scan and save programs: By browsing the preset keys (1-6), the saved stations can be
retrieved.

3. Notes for Tape player operation


- 93 -



Chery QQ Service Manual                              BCM Computer Control System





(1) The turn-on operation is the same as in the radio mode.

(2) Insert gently a cassette with the open side on the right into the compartment. When
the display shows TAPE and “◄” or “►”, the device is in normal play status.

(3) Volume adjustment: the operation is the same as in the radio mode.

(4) Select songs: Press FF “►►” or FW “◄◄” to find desired programs quickly.

(5) Playing direction conversion: Press FF “►►” and FW “◄◄” at the same time to
reverse the playing direction.

(6) Radio and player conversion: Just by inserting a cassette gently into the compartment
will change the device from the status of radio to that of music player. Press Reject (12)
to remove the cassette, and then the device changes to the status of radio.

Press FF or RW keys (when the operations of FF or RW complete, the device will
automatically change from the status of radio to that of player).




II. CD player panel (Option)(illustrated just by using VDO CD player and please
refer to the supplied specifications for other players)

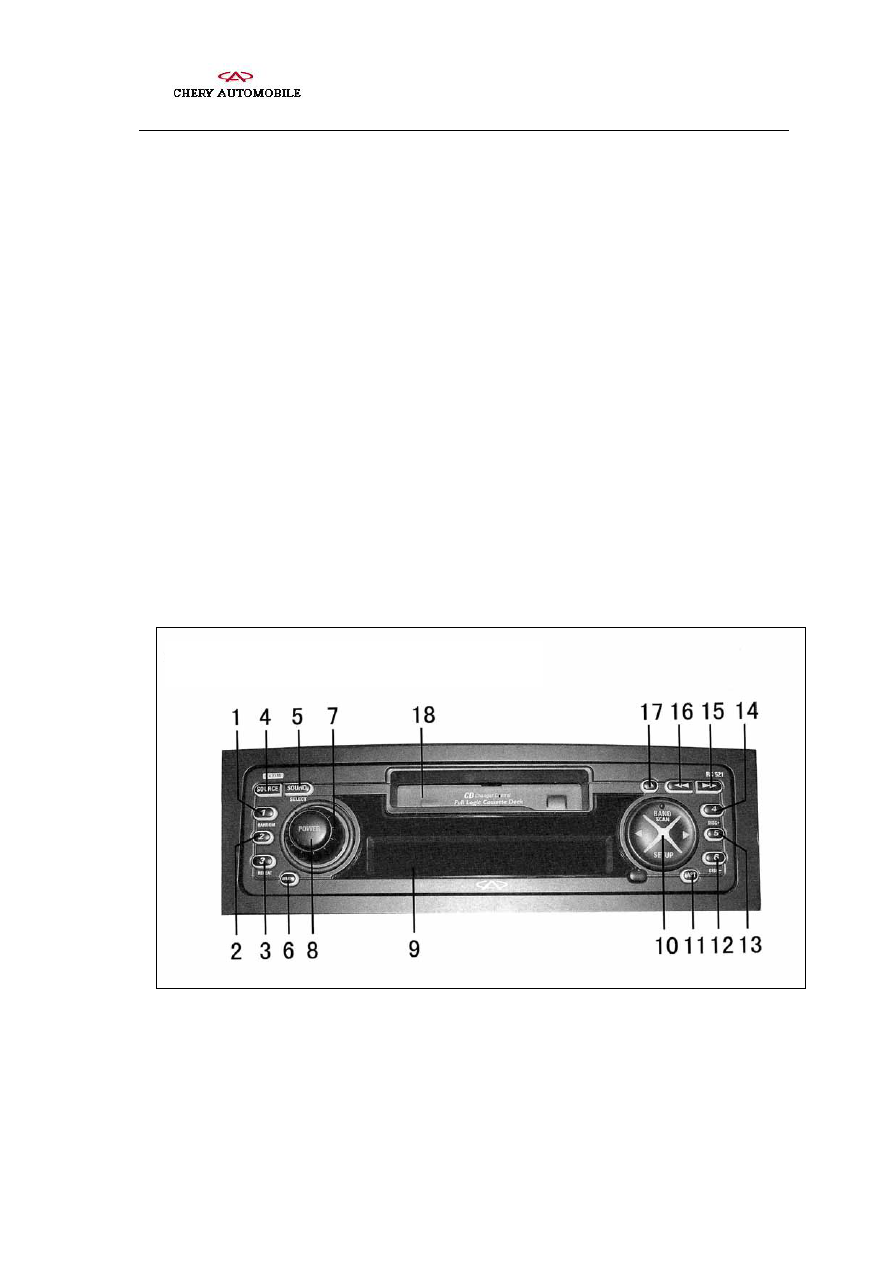

Panel of VDO Audio System (Option)





Notes for function keys

1 Preset Key 1            RANDOM: CD player starts/stops random playing
2 Preset Key 2
3 Preset Key 3
4 Source: sound source
5 Sound: Press for a short time: sound effect mode    Select: Press for a long time: Sound

- 94 -



Chery QQ Service Manual                              BCM Computer Control System





setting mode

6 MUTE
7 Volume
8 Power switch
9 Display
10 BAND

SCAN: Radio frequency scanning/CD player song scanning

◄ ►: High-end and low-end scanning (playing)



Previous/next song (CD cassette)





Automatic music scan system

11 AST: automatic saving system
12. Preset key 6  DISC-: Choose forward discs    13. Preset key 5
14 Preset key 4

DISC+: Choose backward discs

15 Fast Forward ►►
16 Rewind
17 Reject ▲ Press for a short time to reverse the cassette        Press for a long time to
reject the cassette
18 Cassette compartment

Note: VDO CD player is optional. See supplied manuals for the information on use and
maintenance of VDO CD players.

III. Audio system maintenance

1. Before the radio maintenance, shut off the ignition switch and disconnect the battery
negative wire.

2. Common problems and troubleshooting


Symptom Possible

Cause

Solution



Fuse broken

Replace it with another fuse of

the same type

The main processor fails

to be turned on

Wrong wiring

Check the wiring against the

wiring diagram

Speakers and wires

Check connections and speakers

The main processor

works but without sound

output

Main processor out

of order

Consult a professional radio

technician

External signal

antenna

Check the connection between

the antenna and main processor or

amplifier power.

Poor sound quality of the

main processor, with

interference

Dirty magnetic

tapes and heads

Clean magnetic heads

Tapes damaged

Replace the broken cassettes

Cassettes blocked

Main processor

failure

Consult a professional radio

technician
