Chery QQ Service Manual                              BCM Computer Control System







Ignition switch “ON”, power window switch

“DOWN”

Nonconducting

Ignition switch “ON”, power window switch

“UP”

Nonconducting

B9-Grounding

Ignition switch “ON”, power window switch

“DOWN”

Conducting

Ignition switch “ON”, antitheft switch “ON”

Conducting

B10-Grounding

Ignition switch “ON, antitheft switch “OFF”

Nonconducting

Open the boot lid

Conducting

B11-Grounding

Shut the boot lid

Nonconducting

Antitheft works

  Power supply

voltage

B13-Grounding

Antitheft fails

Nonconducting

Open the door

Conducting

B14-Grounding

Shut the door

Nonconducting

B16-Grounding

Normal Nonconducting



In case of difference with the above, BCM computer (antitheft computer) should be

maintained or replaced.

5). For power window control of antitheft computer, refer to “Power Window

Maintenance”.

6). For central door lock control of antitheft computer, refer to of “Central Door Lock

Maintenance”.

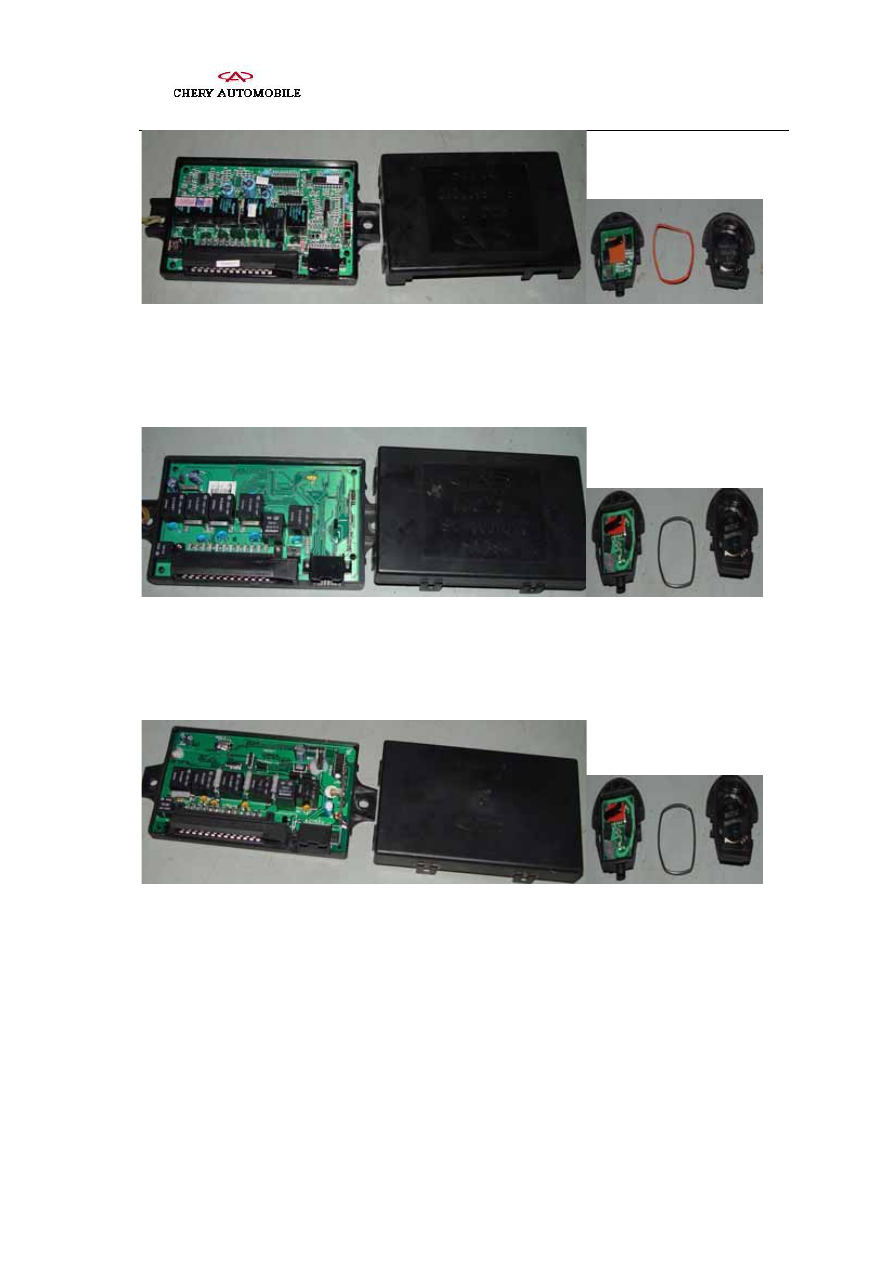

4.  Division and match of QQ remote controls

QQ remote controls features two brands and three modules.

I) 9CG, two modules

1) Module 1


- 88 -



Chery QQ Service Manual                              BCM Computer Control System





- 89 -




(Electrical parts and relay are set on the same side in the module. It has a small lock of
remote control with projected mark, a red seal circle, and two batteries. )

2) Module 2





(Electrical parts and relay are set on different sides in the module. It has a small lock of
remote control with projected mark, a black seal circle, and two batteries. )

II). 9AK, one module





(Electrical parts and relay are set on different sides in the module. It has a small lock of
remote control with dented mark, a black seal circle, and three batteries. )

III). Match methods




1.  9CG match methods

1)  Turn ignition switch on three times within 7 seconds. Upon the third time (switch on),

observe the antitheft indicator.

2)  Antitheft indicator will flash three seconds, pause 1 second, and then light up again.

Wait until it extinguishes and turn down ignition switch.

3)  Turn ignition switch on again, and then press any key of remote control; meanwhile



Chery QQ Service Manual                              BCM Computer Control System





antitheft indicator will flash once. This indicates this remote control has entered into
the system.


Note: The first remote control is set into the system After Step 3). Following that, press
any key of the second remote control to set it into the system. Many service stations only
operate one remote control hereto. So, another control doesn’t work after setting.
Furthermore, the settings will definitely fail in case of improper process or operation. In
this case, do not replace remote control or module casually. Be advised to try again

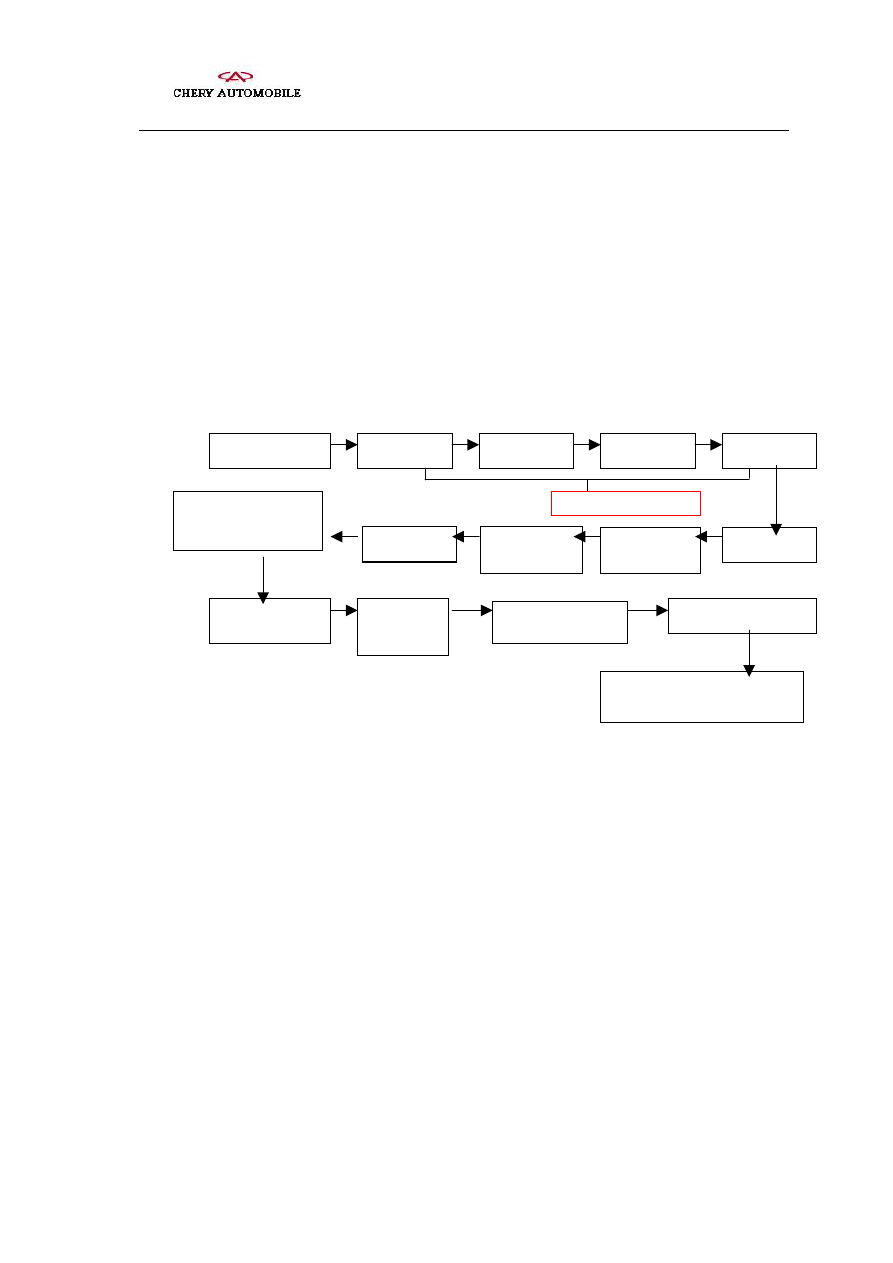

strictly according to this operation process. Operate as in the figure below.



Operation process:



Insert key into the
hole



Turn ignition
switch on

Indicator flashes 3

seconds

Indicator

extinguishes

Indicator

lights up again

Wait until indicator

extinguishes

Turn ignition

switch on



Press lock key of another
remote control

Turn ignition switch off, wait until
10 seconds for match success











Turn ignition

switch on

Turn ignition
switch off

Turn ignition
switch off

Turn ignition
switch on

Within 7 seconds










Press lock key of
remote control

Turn ignition
switch off
































- 90 -



Chery QQ Service Manual                              BCM Computer Control System







Chapter 5 Operation and Maintenance of Audio System


I. Audio system functions and operations (illustrated just by using Baoling
Electronic Tuning Radio (ETR) and please refer to the supplied specifications for
other radios).

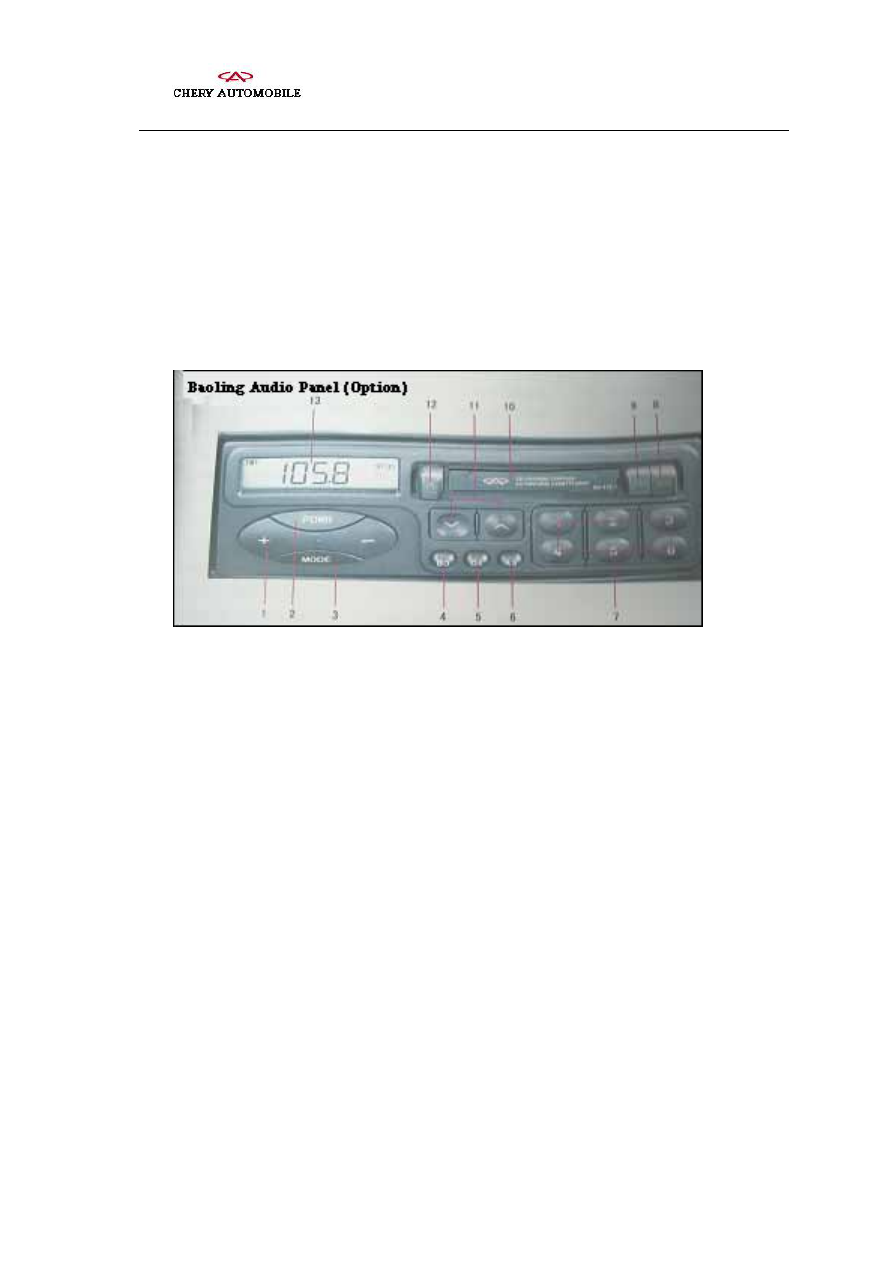

(I) Panel of audio system and air conditioner (option)











h










Panel notes:

1 Volume
2 Power ON/OFF
3 Mode selection key
4 Waveband selection key
5 Clock key or CDMD key
6 Automatic Save key
7 Save key
8 Fast Forward key
9 Rewind key
10 Cassette compartment
11 Tuning key
12 Reject key
13 LCD display screen

1. Notes of key function

(1) Power ON/OFF (POWER)

Press (2) key to turn on and press it again to turn off the device (Note: the device is
initialized when it is electrified for the first time because the power of the chip on the
main processor is reset).
