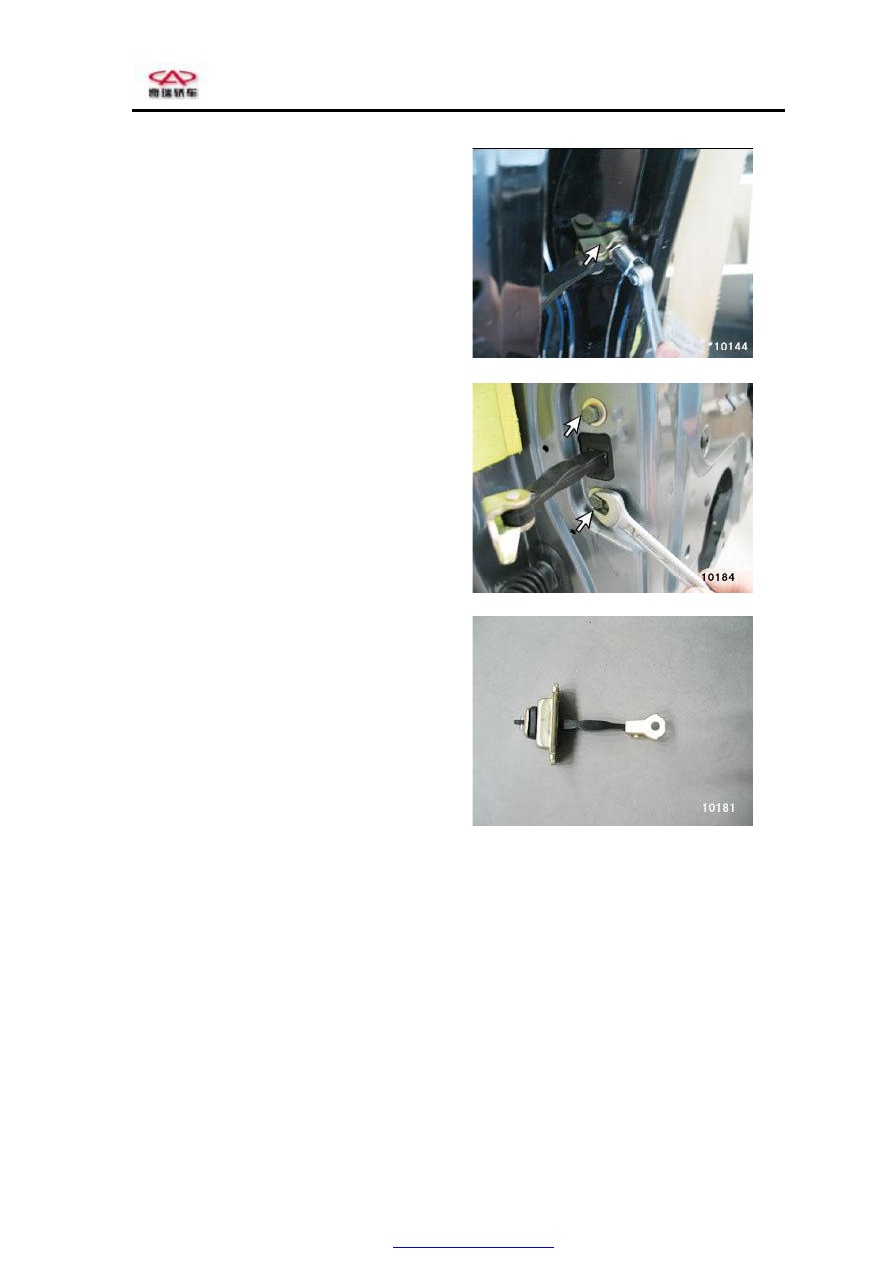

Door Limiter Disassembly and Assembly l. Remove the connecting bolts between the limiter and B column.
2. Unscrew the two fixing bolts between the limiter and door.
3. Remove the stopper code from the door cavity.
Assemble in the reverse order of disassembly. Assembling requirements: The tightening torque of bolt shall be 7.2±0.7 N·m. the torque of bolt mounted on the door post shall be 25±3 N·m, and the torque of bolt mounted on the door shall be 9±1 N·m. The door stopper shall operate flexibly and reliably, without being clamped, seized and etc. The lubricating grease shall be applied between the tower rod and slide block of the limiter.
