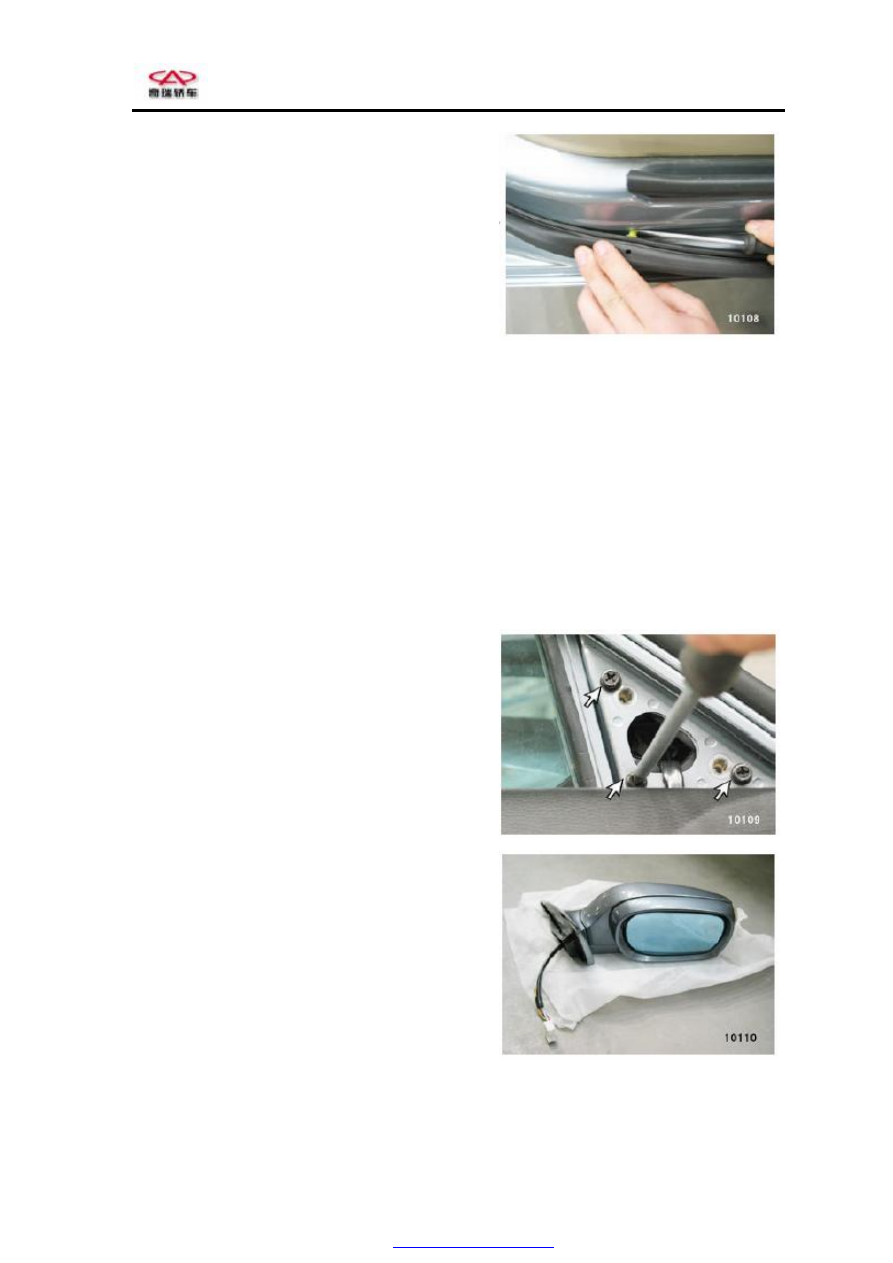

Door Weather Seal Disassembly and Assembly Pull the weather seal by hand, and, at the same time, apply the clip disassembling tool to remove all clips. Remarks: Do not apply too much force to pull the weather seal suddenly so as to avoid damaging the seal.
Assembling requirements: All corners shall be assembled in their proper positions during assembly without wrinkle. The joint of weather seal shall be placed in the middle position under the door opening. The stiffness of weather seal shall be moderate, and shall not influence the opening and closing of door when the door lock and hinge are adjusted to the working condition. The hardness of weather seal shall be appropriate, and not change considerably with the change of temperature. The surface of adhesive strip shall have no defects such as stamping mark, deformation, warpage and etc, after assembly. The one end of platen of front doorsill platen assy. shall match well with the contact part of lower shield of A column or B column, the platen shall be assembled in its proper position, without looseness and other phenomena, and the carpet has no exposure and other defects after assembly. Exterior Rear-View Mirror Disassembly and Assembly l. Remove the trim. 2. Detach the door panel and loosen the connector plug of harness. 3. Remove the three screws.
4. Disconnect the connector, and take out the rear-view mirror.
