Chery Eastar Service Manual Body Dimension and Accessories 13

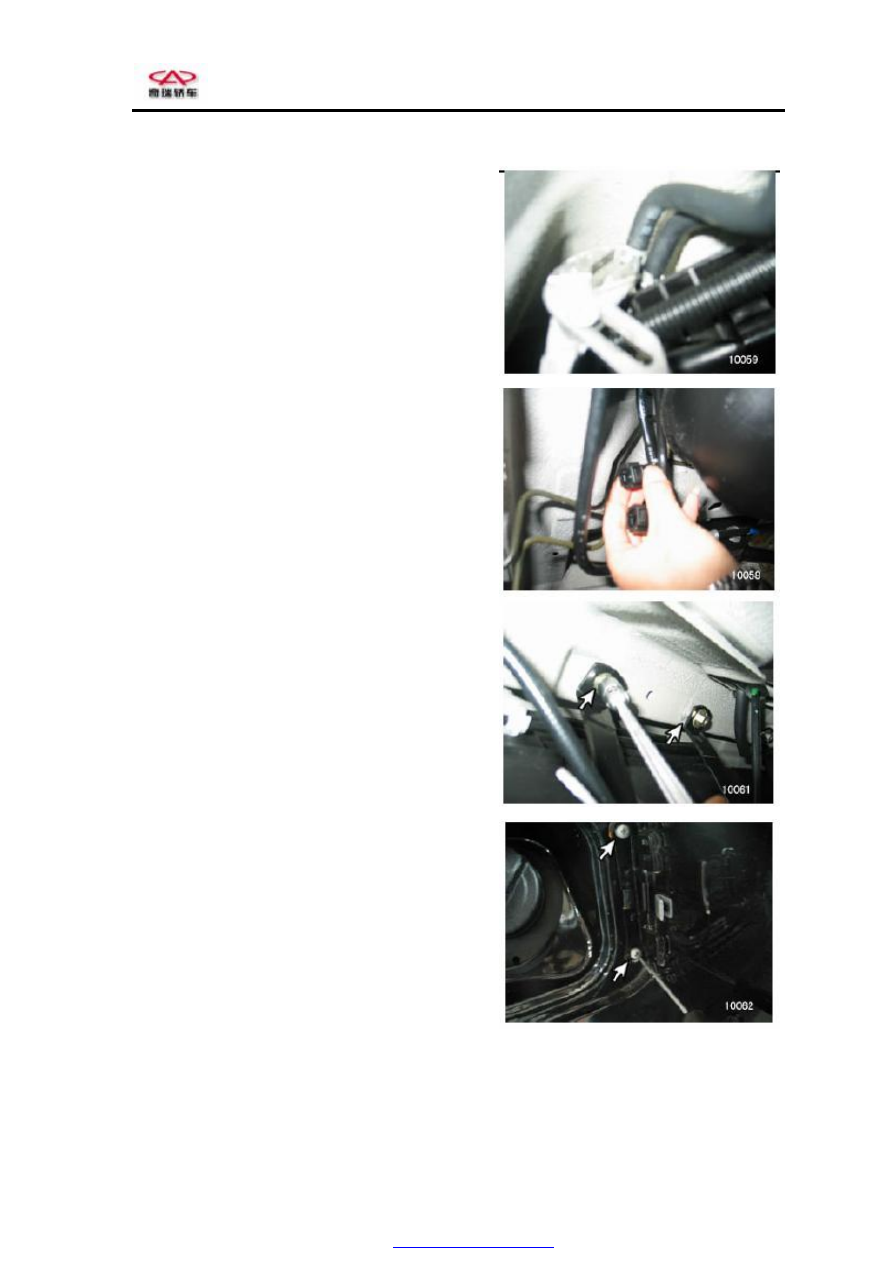

5. Loosen the air pipe from the fuel tank to canister.
6. Loosen the fuel pump outlet and oil return pipe.
7. Unscrew the three fixing bolts on the saddle.

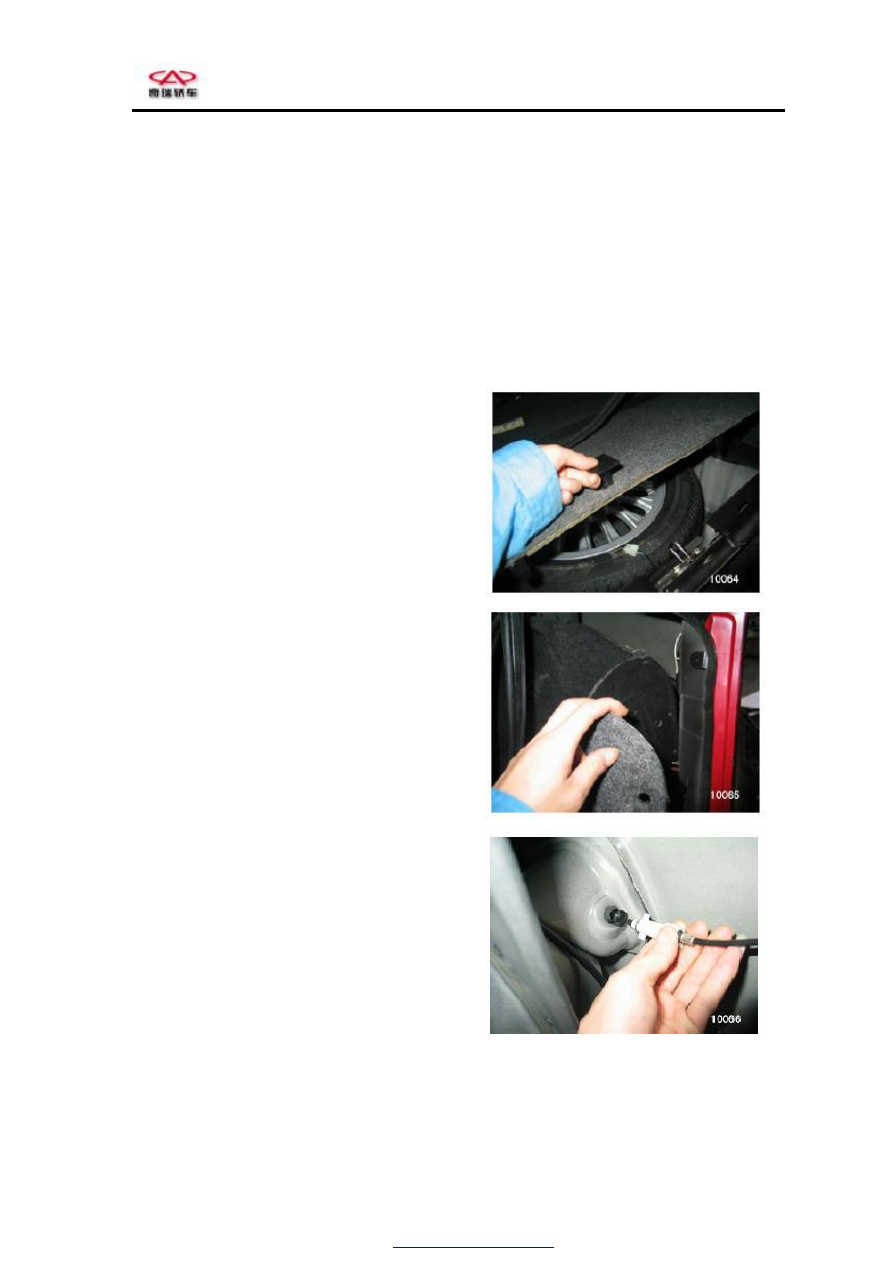

8. Remove the fuel tank, and disconnect the harness of fuel pump. Disassemble the fuel tank cap. Unscrew the two fixing bolts, and remove the fuel tank cap.
Assemble in the reverse order of disassembly. Assembling requirements: The assemblage clearance between the fuel tank cap and the body shall be uniformly (3±0 5) mm. the maximum error of flatness between the edge of cover and the edge of rear fender is ±0 5 mm, which can’t make an influence on its appearance. PDF created with pdfFactory Pro trial version |
