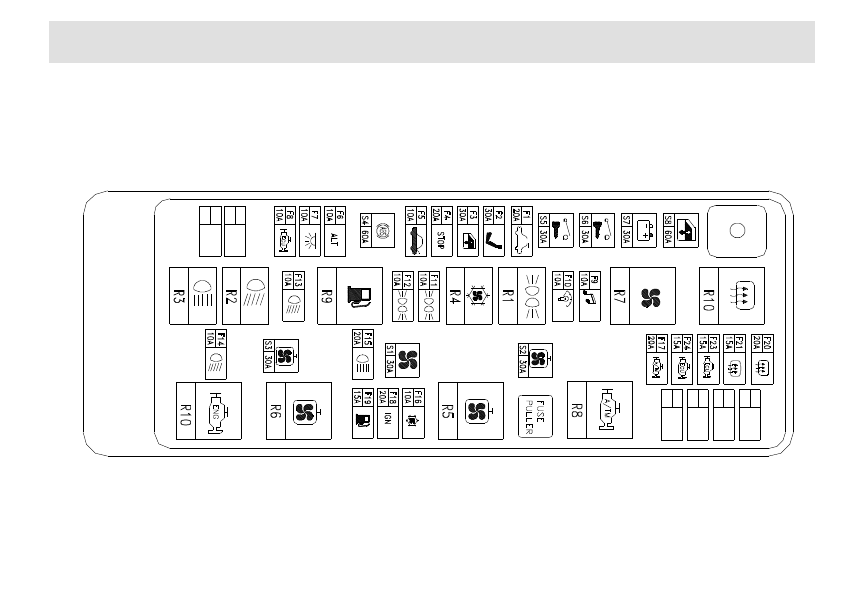

Fuse box in the engine compartment

Fuse box is located on the left-hand side of the engine compartment, behind the battery. When checking or changing the fuse, press the latch,
lift the hood and then lift off the cover.

Emergency Handling

130

Central fuse
box

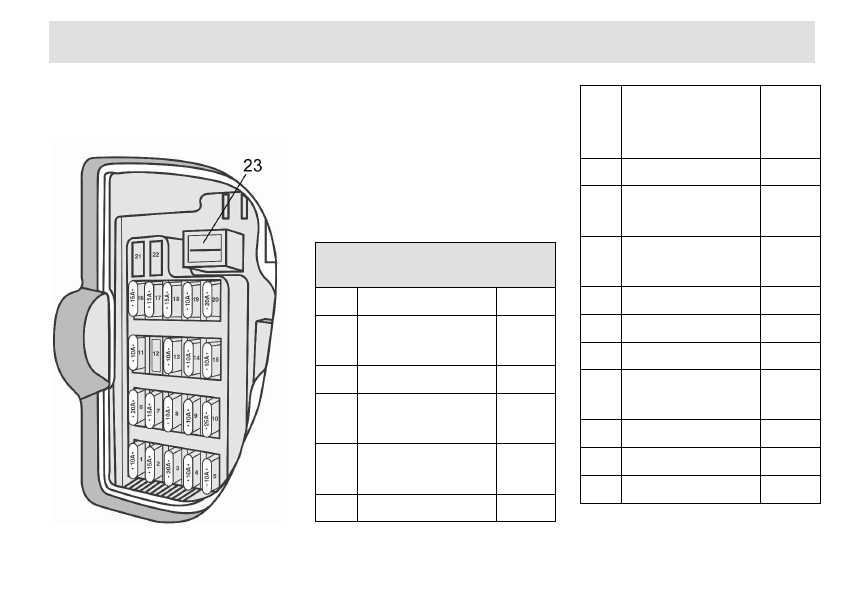

The central fuse box is located on the

left-hand side of instrument cluster,

cockpit. Open driver side door, you can

see the fuse box cover and change the

fuse.

Central fuse box

Fuse

Connecting

circuit

Ampere

1

rear-view mirror

adjustment switch

10A

2  AV

compartment

15A

3

Seat heating & spare

power

20A

4

Air conditioner

control panel

10A

5

Diagnostic

instrument

10A

6

Glove compartment

lamp & cigarette

lighter

20A

7

Audio

system

15A

8

Radio & sunroof

panel

10A

9

Windshield

washer/wiper panel

10A

10  Windshield

wiper

25A

11 Airbag

10A

12 Spare

10A

13

Automatic

transmission control

10A

14 ISU

10A

15

Air

conditioner

panel

10A

16

Key

relay

15A

Emergency Handling

131

17 Reversing

lamp

15A

18 ABS

15A

19 ATC

ISU

10A

20 Airblower

20A

21 Spare

10A

22 Spare

20A

23

Fuse

clip

Fuse replacement

Fuse color

Color

Amperage

Grey

2

Violet

3

Pink

4

Brown

5

Brown

7.5

Red

10

Blue

15

Yellow

20

Colorless

25

Green

30

Cartridge fuse color

Colour

Ampere

Blue

20

Pink

30

Green

40

Red

50

Yellow

60

Brown

70

Black

80

A tweezer is onboard and inside the fuse

box, engine compartment.

Wheel Replacement

Before raising the car, make sure the

following things:

Park the car in a propriate position. Make

sure it will not infuence the traffic or

expose you to the risk.

Park the car on a firm & horizantal surface.

If nessesary, use a block to brace the tire.

Turn the steering wheel to the

Emergency Handling

132

straight-ahead position.

Choose P if the car has automatic

transmission.

Spare wheel

If some tire measure

differes from the other(no matter

wheel or tire), you must comply with

the following instructions.

Ÿ

Do not exceed the maximum speed

of 80Km/h

Ÿ

Drive as short as possible.

Ÿ

Whenever, do not place spare wheel

more than one.

Ÿ

Do not use snow chain for the spare

wheel.

Ÿ

Do not pass the automatic car

washer.

Spare wheel is located under the floor of

luggage compartment.

1.  Take out the luggage compartment

panel.

2.  Unscrew the clips.

3.

Take out the spare wheel.

Jack

The jack is only for wheel

replacement. When using a jack, do

not work under the vehile.

The maximum load of jack

is 1200 Kg.

The jack is in the left storage of the

luggage compartment.

Nut
