  Chery A15 Maintenance Manual

    Installing procedures are in the reversed

order. Remember to replace all clips with

new ones.



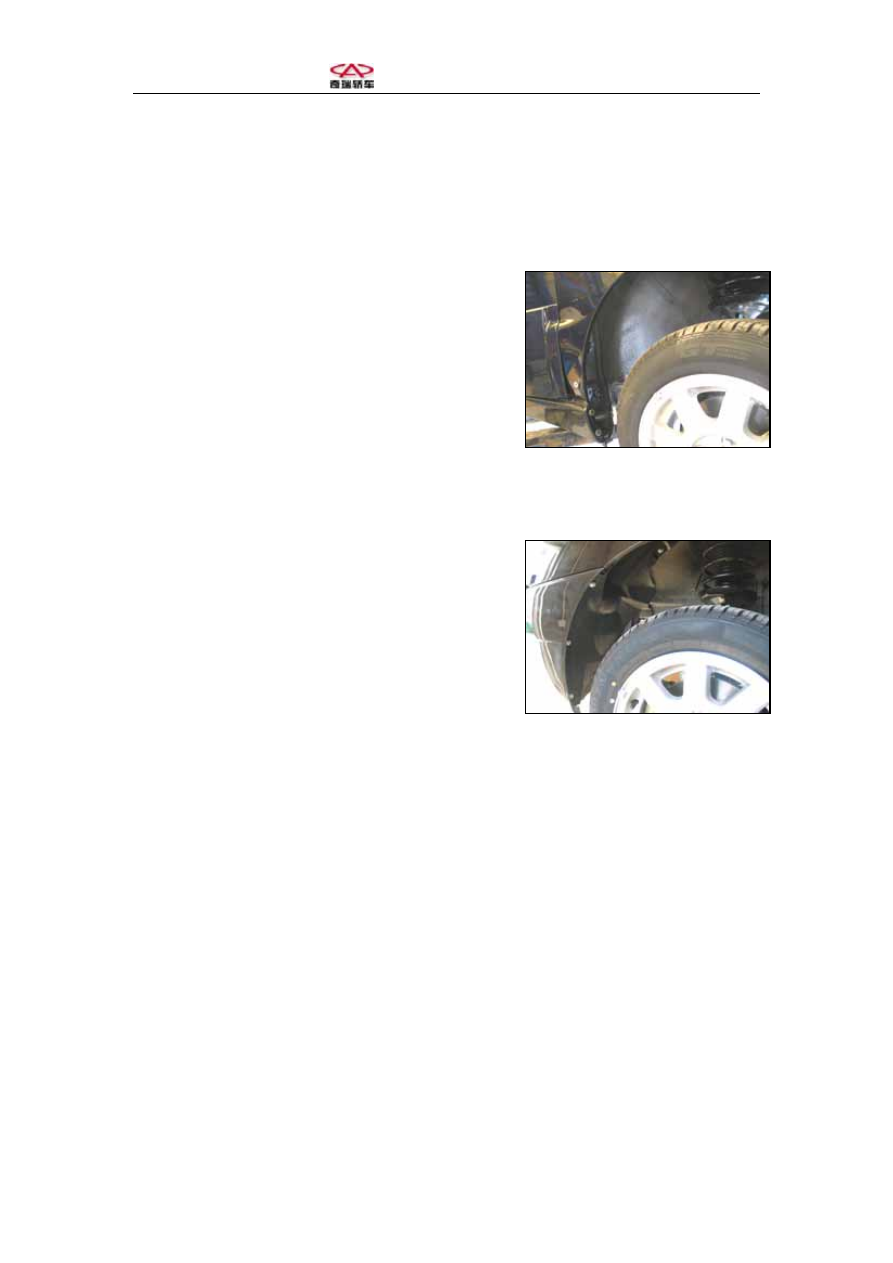

VII. Front wheel cover fenderboard

Disassembling and installing

Loosen the set screws between the

front wheel cover and the fenderboard.

      Installing procedures are in the

reversed order.



VIII. Rear wheel cover fenderboard

Disassembling and installing

Loosen the set screws between the

rear wheel cover and the fenderboard.

Installing procedures are in the

reversed order.



  Chery A15 Maintenance Manual



Chapter Eight   Internal Accessories























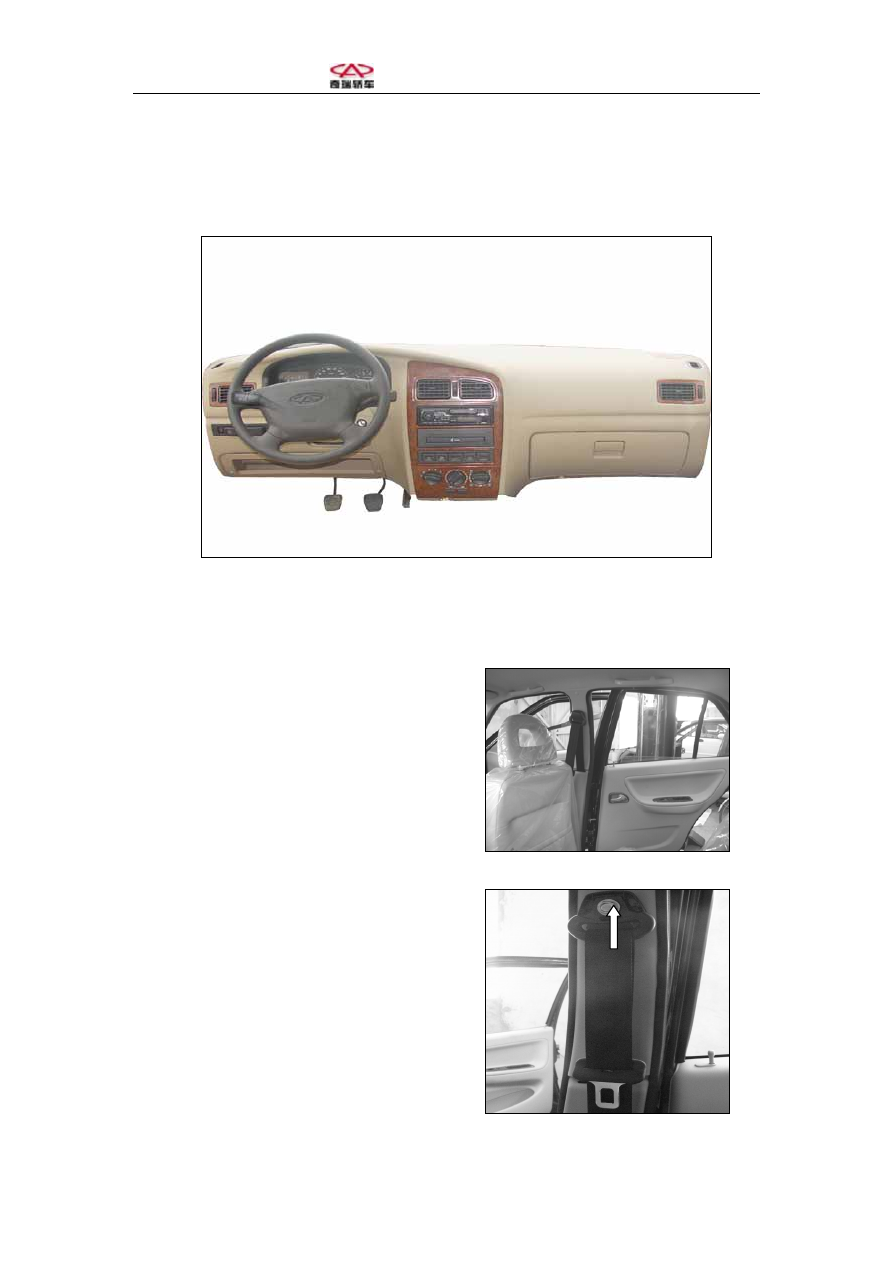

I. Front seat safety belt

Disassembly and installation

Disassemble doorsill scuff strip and

remove part of doorframe weather strip.





Remove the cover and loosen the set bolt

between safety belt and pillar B.





  Chery A15 Maintenance Manual



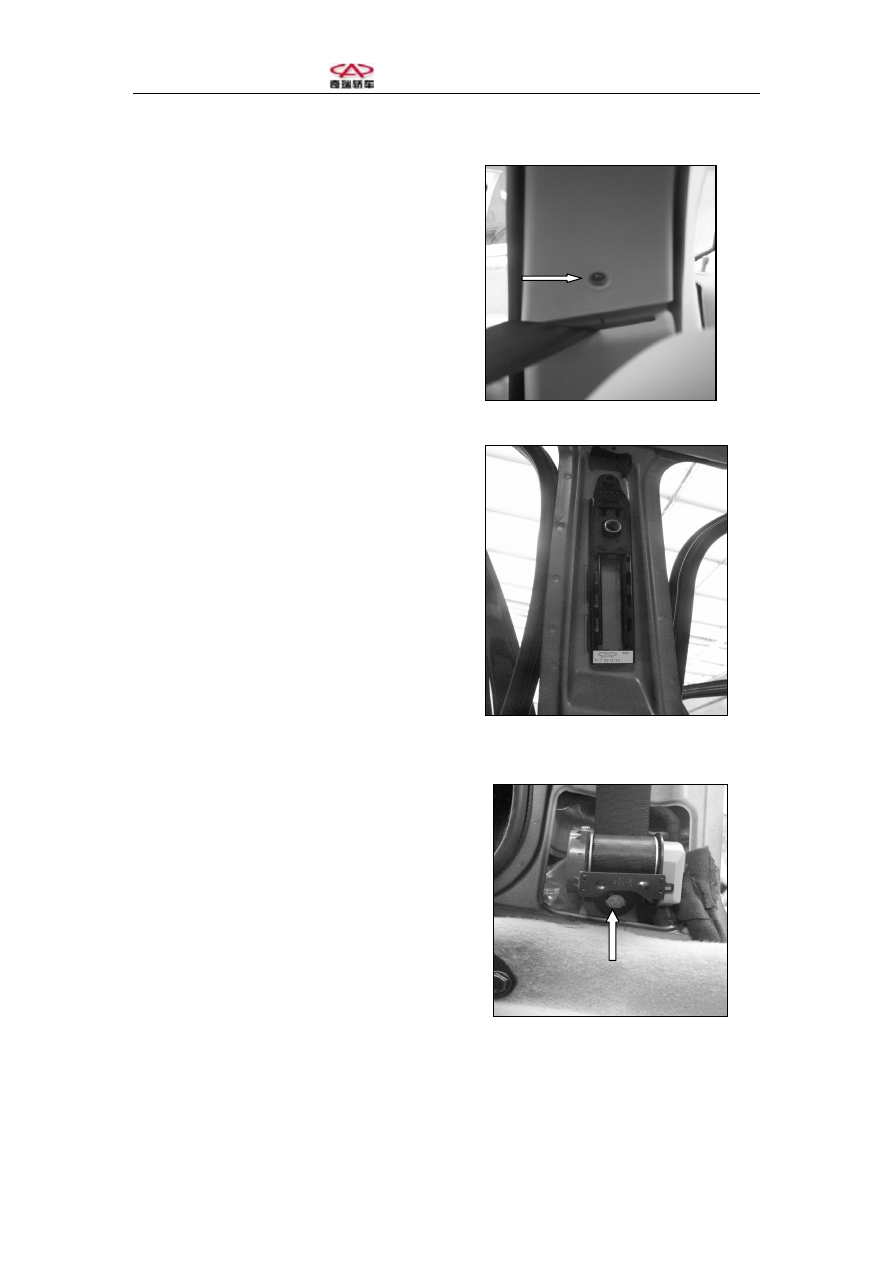

Remove the nut, loosen the bolt on inner

lining of pillar B, and remove the upper

garnish of pillar B.

















Loosen the two setscrews on the bottom

plate of pillar B and remove lower

garnish of pillar B.



















Remove the decorative cover and loosen

the set bolts between safety belt and

vehicle floor, then the set bolt between

automatic locking device and pillar B.











  Chery A15 Maintenance Manual



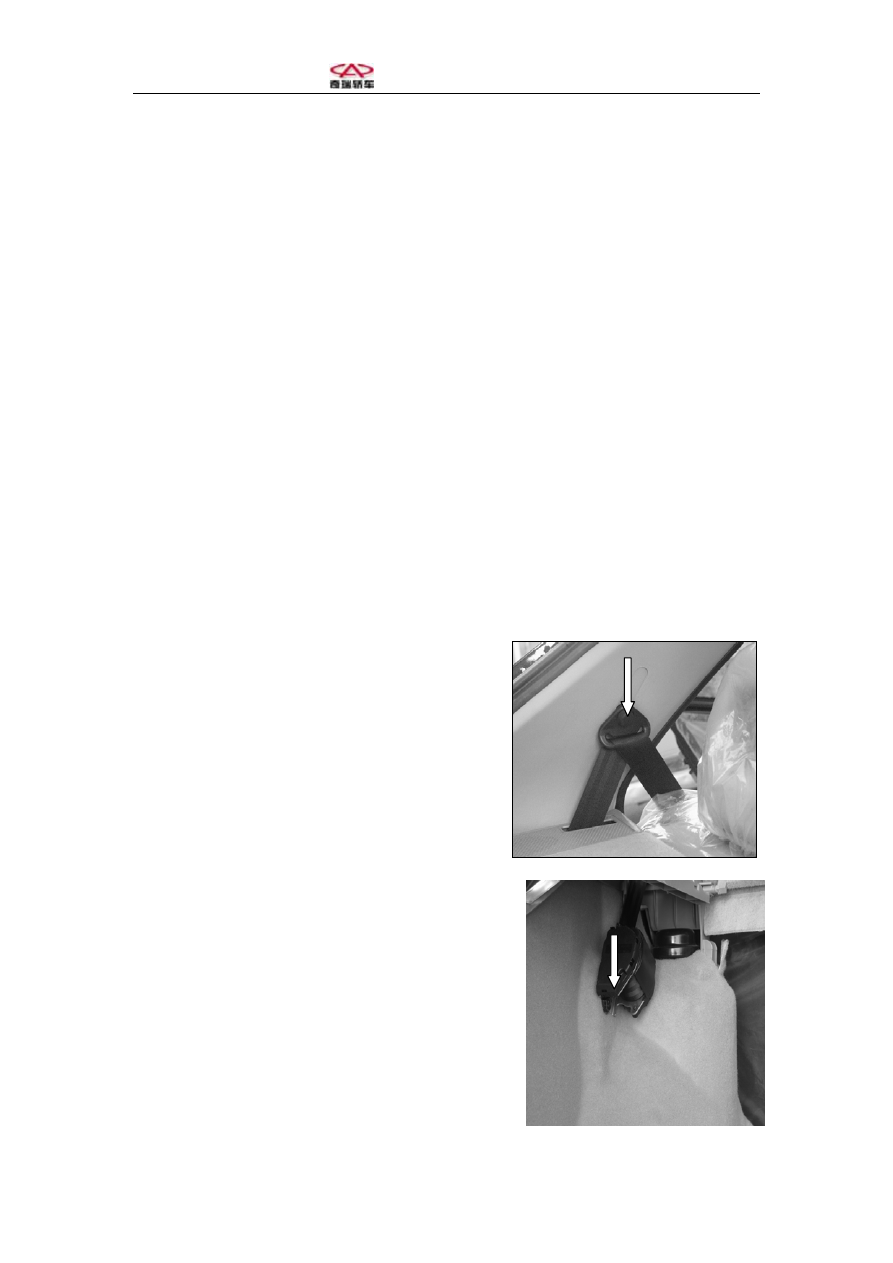

Loosen the set bolt for the turn plate and remove the turn plate. Then remove the belt

unit. Be careful not to make the belt twisted.

Installation procedures are in reversed order. Bear in mind that tightening torque for

set bolt between the safety belt and the automatic turning device is 50±10N•m. The

left seat safety belt shall turn 180º  to the right and the right seat safety belt shall turn

180º  to the left, as shown in the above figure.



II. Front seat safety belt lock

Disassembly and installation

Loosen the set bolt between the lock and the front seat frame.

Place the safety belt lock on upper part of the fixing lever while installing. Tighten the

set bolt with a tightening torque of 50±10N.m.



III. Rear seat safety belt

Disassembling and installing

Remove the decorative top of the nut.

Loosen the two set bolts between the

safety belt and C column and the rear wheel

cover.



Loosen the set bolt of the automatic

winder and fold the safety belt. Be careful

not to twist the belt because the belt has

been disengaged from its fixing device and

the belt is reversely wound around the automatic

winder.
