  Chery A15 Maintenance Manual



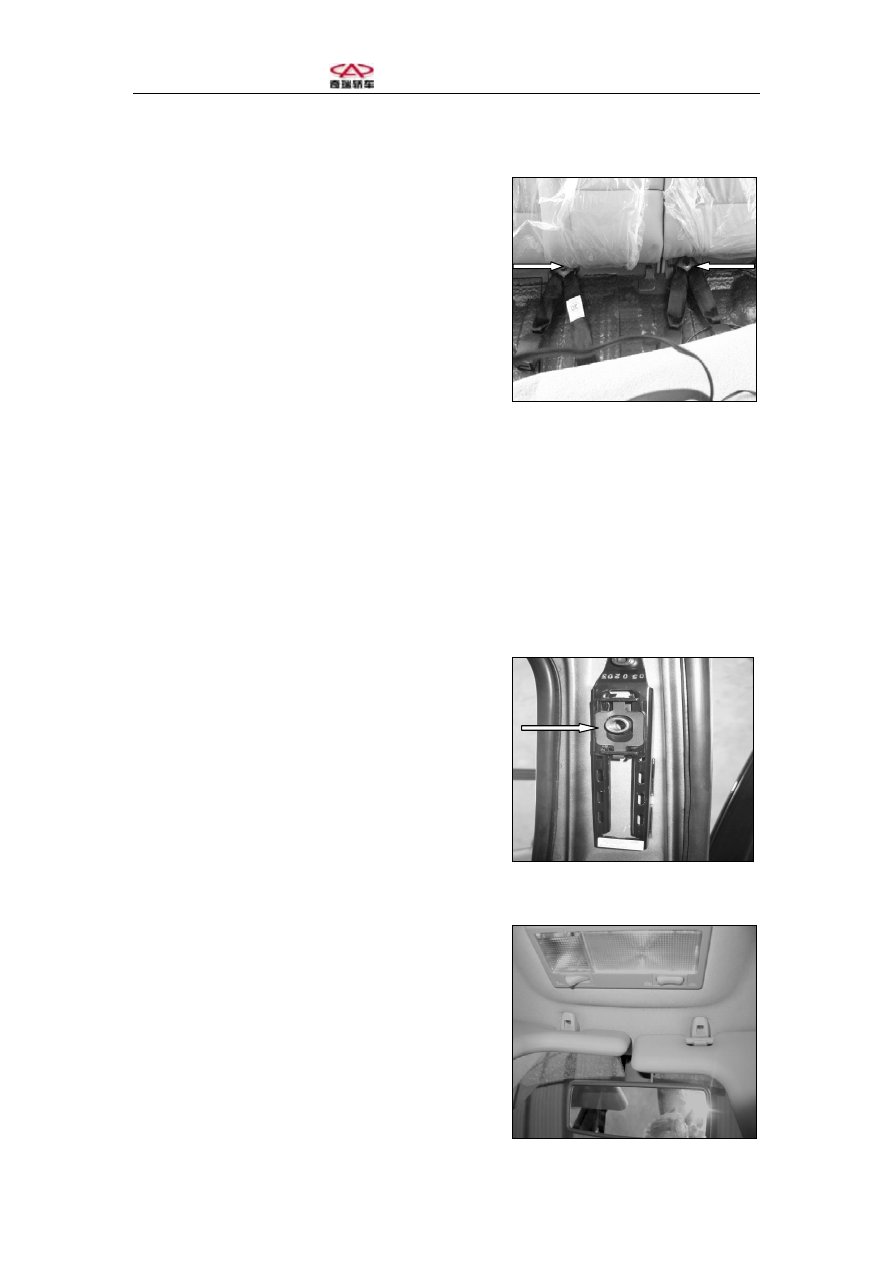

IV. Middle and rear rows

safety belt lock

Disassembling and installing

      Fold the rear seat forwardly till the

set bolt for the lock can be touched.

Loosen the set bolt for the lock and

the bolt between the safety belt of the middle seat

and the chassis.

      Installing procedures are in the

reversed order. Bear in mind that

tightening torque for the safety belt of

the middle seat and the lock is 50±10N.m.



V. Height regulator

Disassembling and installing

For the models with safety belt height

regulator, the two set bolts between it

and B column should be loosened.



Installing procedures are in the

reversed order.



VI. Internal rear view mirror

Disassembling and installing

Rotate the internal rear view mirror

until angle between its arm and the

vehicle is 15º  ～20º.

  Chery A15 Maintenance Manual



Installing procedures are in the

reversed order.



Adhering of glass

Remove adhesives on the glass with the

wire brush. Polish the area to be adhered

with 360/400 grain sand paper. Keep the

surface clean without any dust and grease.

Scrape off adhesive on the windscreen

with the glass scraper.

Don’t damage the protective lacker

coating, on which scratches can be normally

seen.

Mark the location of the mirror



board with the marks facing upward. Use a point

with distance A=12 mm from the lacker as the center, clean the area to be adhered

with detergent. Then dry it with

non-peeling

cloth.

Spray base coating on surface of the glass and timber. Dry them in open air for

at least 10 minutes. Dip the sealing glue filter in water and heat it to 50℃  then use it.

Evenly apply a 2mm layer of sealing material on glass surface.

For fitting of the glass fixing board, use adhesive fiber to fix it during hardening

process of adhesive. This period lasts about 14 hours.



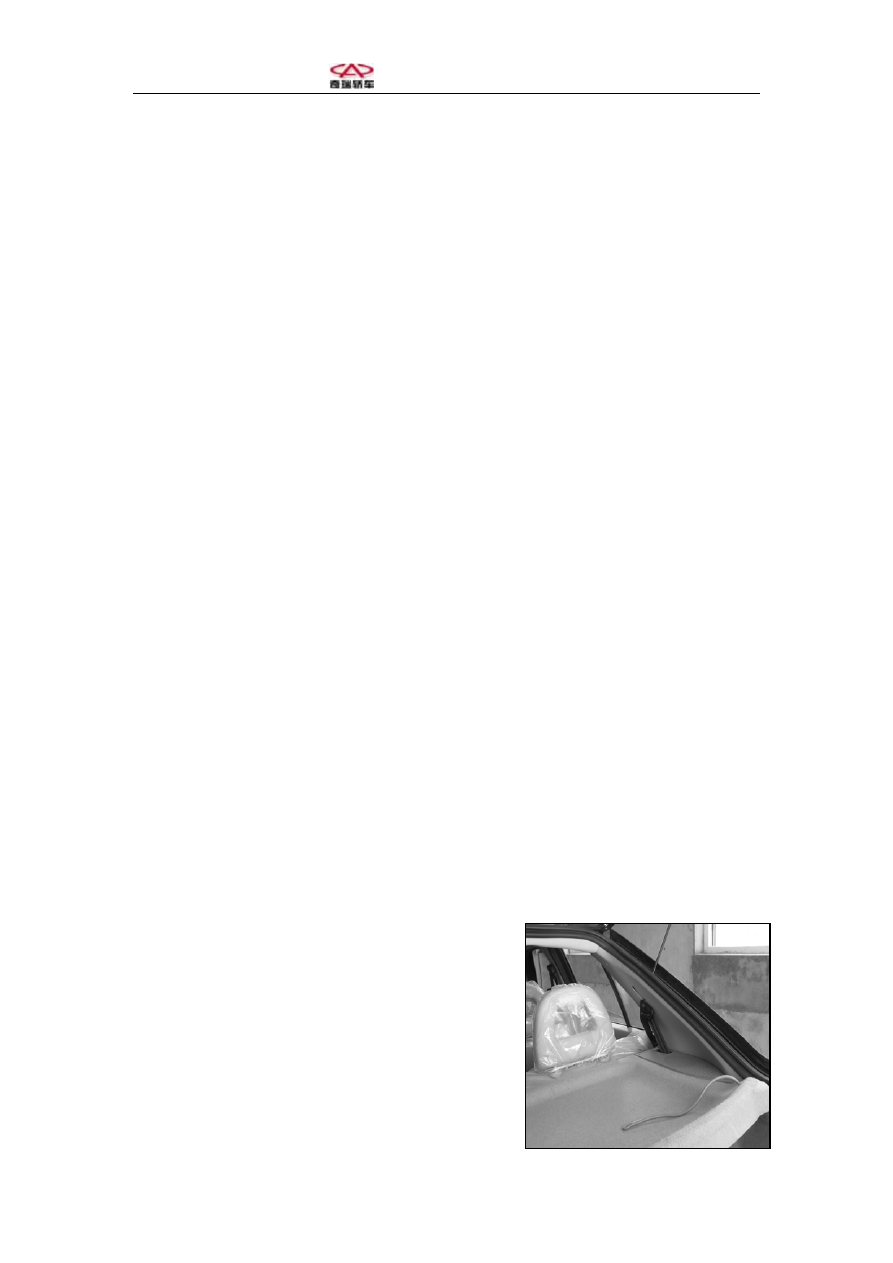

VII. Rear coatrack

Disassembling and installing

Draw out the lift lever of the rear

door bracket. Draw out the rear panel and

disengage it from the bracket fixture.

  Chery A15 Maintenance Manual





Installing procedures are in the

reversed order.







VIII. Rear loudspeaker cover

Disassembling and installing

Remove the set bolts on top and bottom

of the rear safety belt (for models with rear safety

belt). Loosen the 4 nuts on the bracket and remove

them.

Installing procedures are in the

reversed order. Bear in mind that tightening

torque is 50±10N.m.



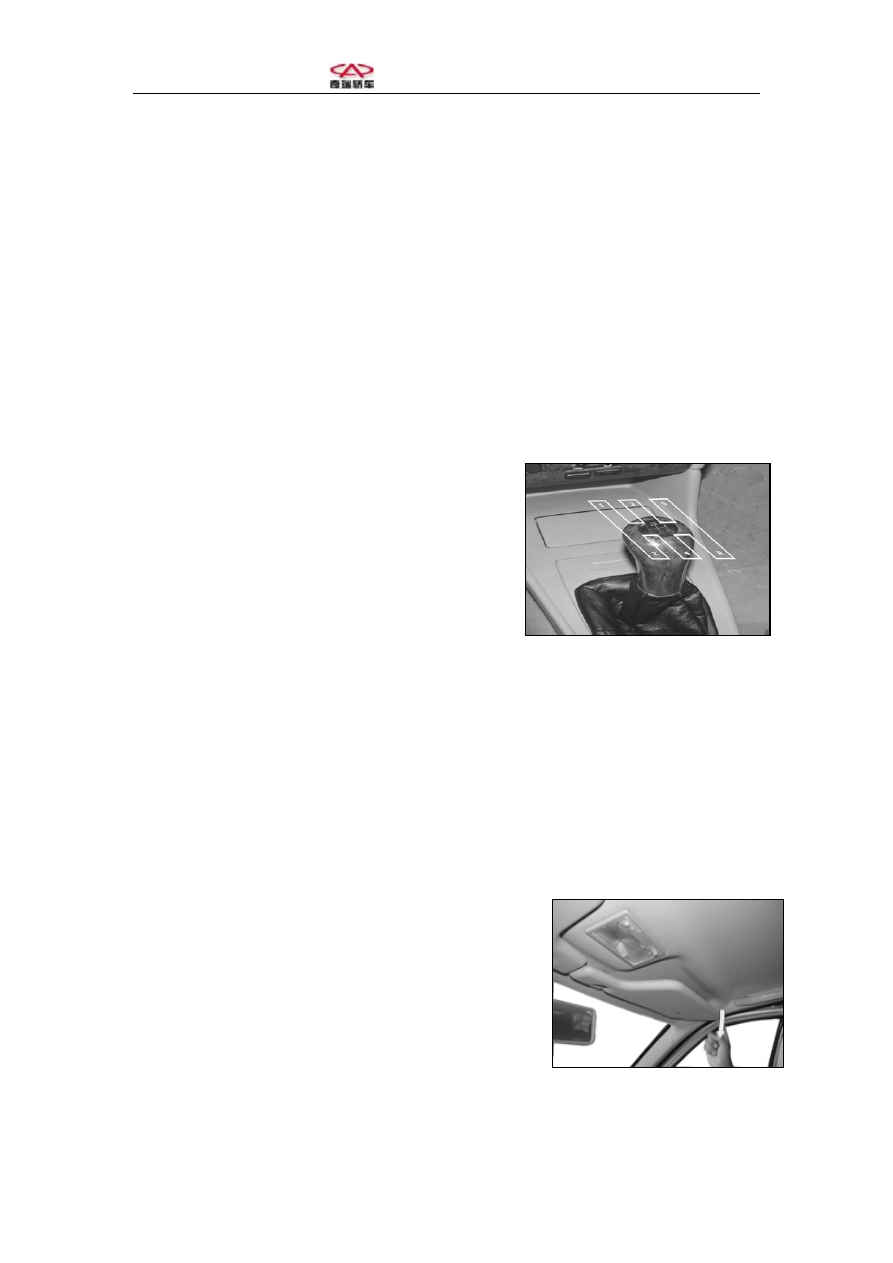

IX. Gearshift lever

Disassembling and installing



Disassemble the dust corraguted sleeve

on the gearshift lever. Remove the set screws

between the panel and vehicle body and cause the

corraguted sleeve pass through the hole on the panel.

Remove the panel.





  Chery A15 Maintenance Manual

X. Sunshield and its bracket

Disassembling and installing

      After removing the bracket and the

set screws, remove the sunshield. For

models equipped with the door-control

mirror with a light, the electrical

system should be removed.

      Installing procedures are in the

reversed order.





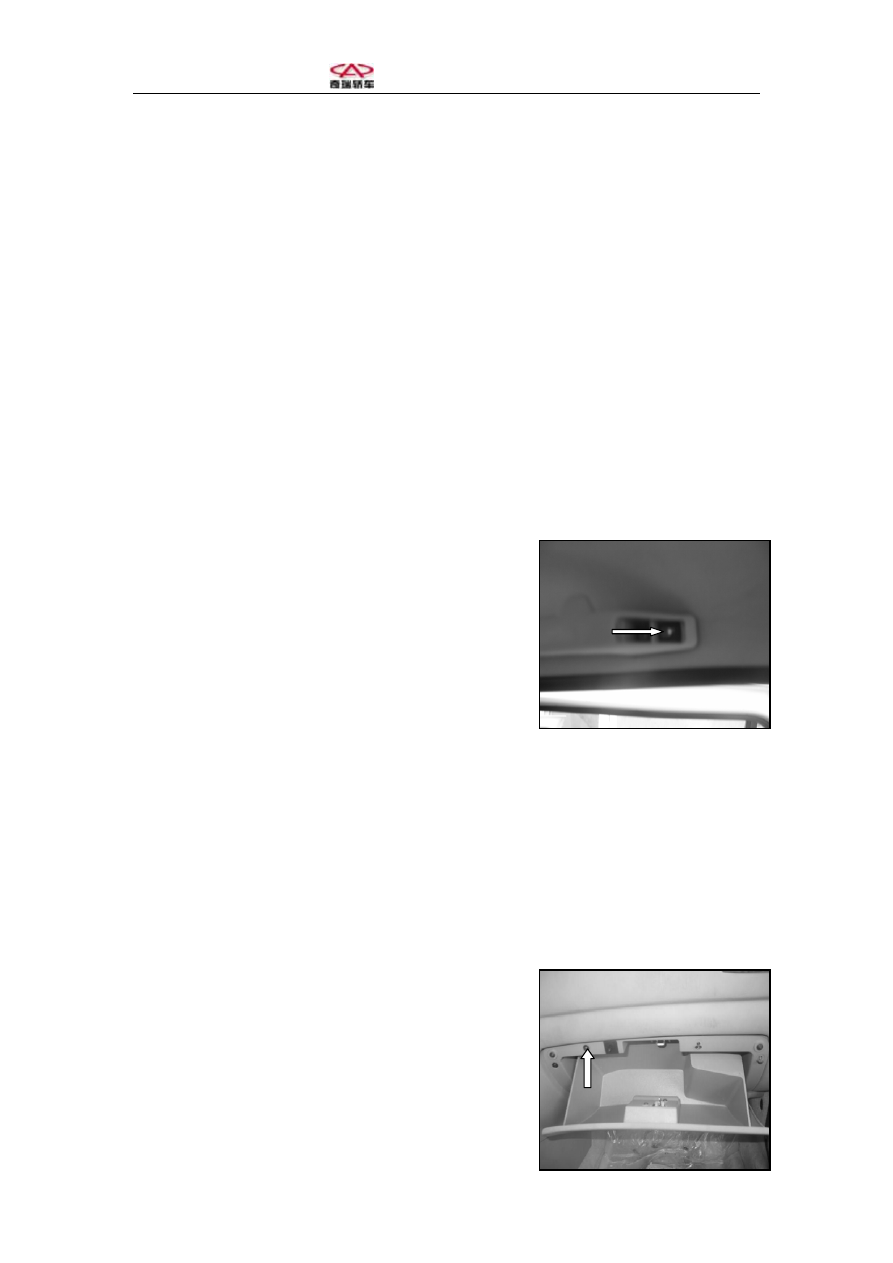

XI. Passenger armrest

Disassembling and installing

Disassemble the lid on interior armrest

end with the screwdriver and remove the

set bolt.

      Take out the set bolt between the

armrest and the vehicle body. Remove the

armrest.



Installing procedures are in the

reversed order.



XII. Glove box

Disassembling and installing

Take out the set screws between the

tool box and the instrument panel and remove

the luminance and power lines. Remove the
