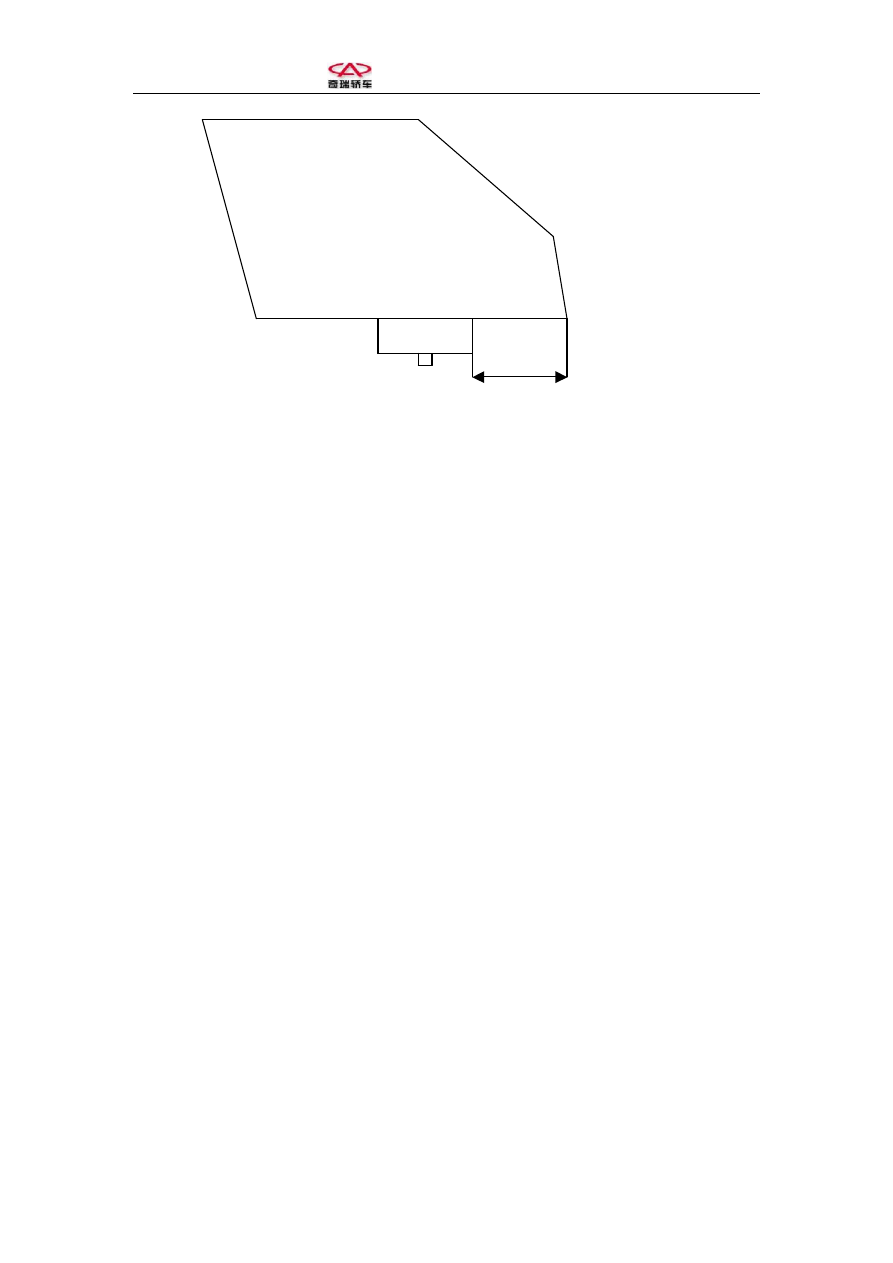

After installing and adjusting, it must be assured that the glass can be lifted and

lowered stably and smoothly. No shaking, vibrating or shocking of glass is allowed.

Lifting-lowering period should be 3

±

1S.

  Chery A15 Maintenance Manual



Chapter Seven   External Accessories



I. Fuel port lid

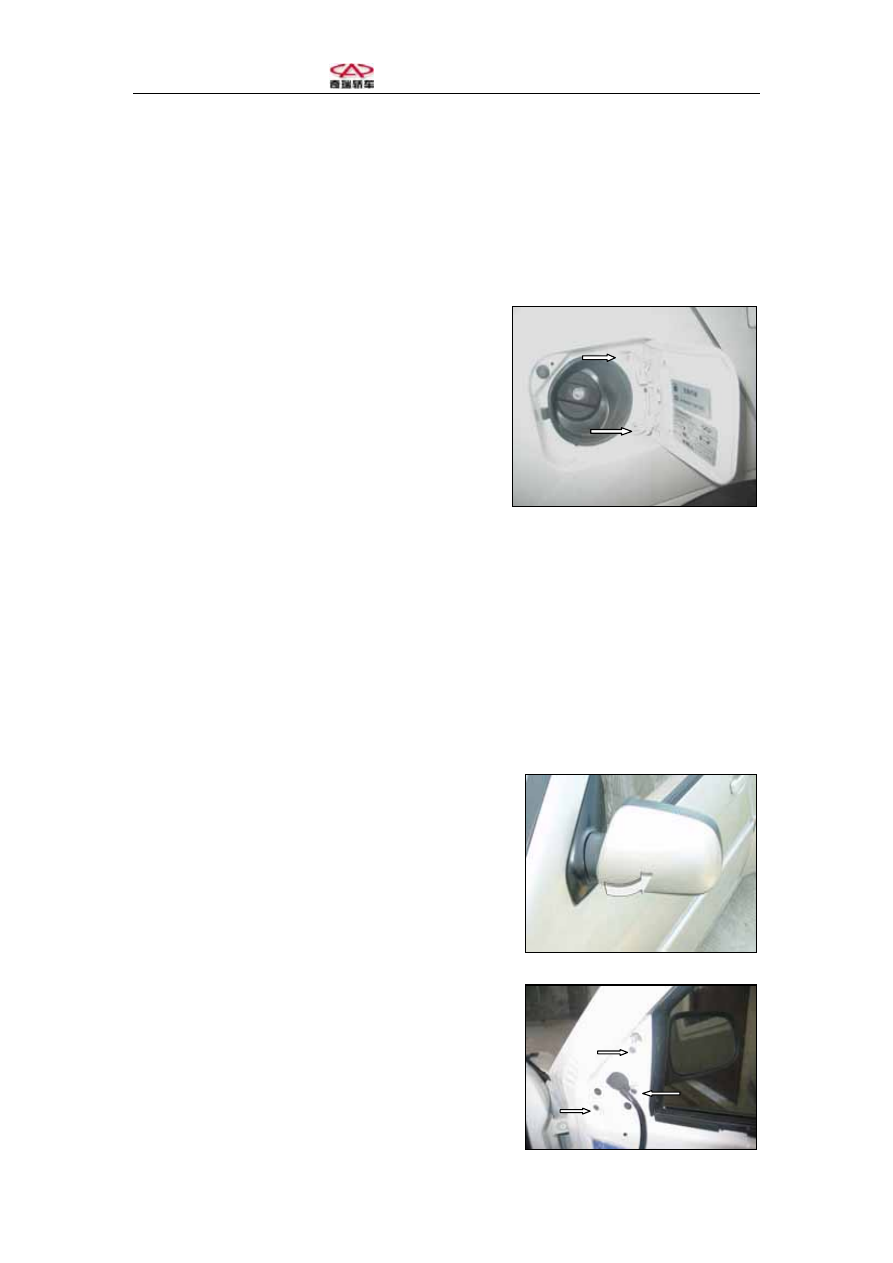

      When disassembling the fuel port lid,

loosen the two set screws on vehicle

body side.











Installing procedures are in the reversed order.

Maintain a dimension of (4±0.5)mm. Average

error between the lid edge and the rear fender is

±0.5mm so as not to affect vehicle appearance.



II. External rear view mirror

Disassembling and installing

When disassembling the rear view mirror,

disassemble the internal guard plate of

the front door according to instructions.

1.  Disassemble the inner quarter block

of the rear view mirror.



2.  Remove the three set screws between

the rear view mirror and the internal plate

of the front door. Pull out the plug for

  Chery A15 Maintenance Manual

the rear view mirror. Remove the rear view

mirror.

Installing procedures for rear view

mirror are in the reversed order. Tightening

torque for the bolt is 3±0.3N.m.







III. Rear view mirror glass

Disassembling and installing

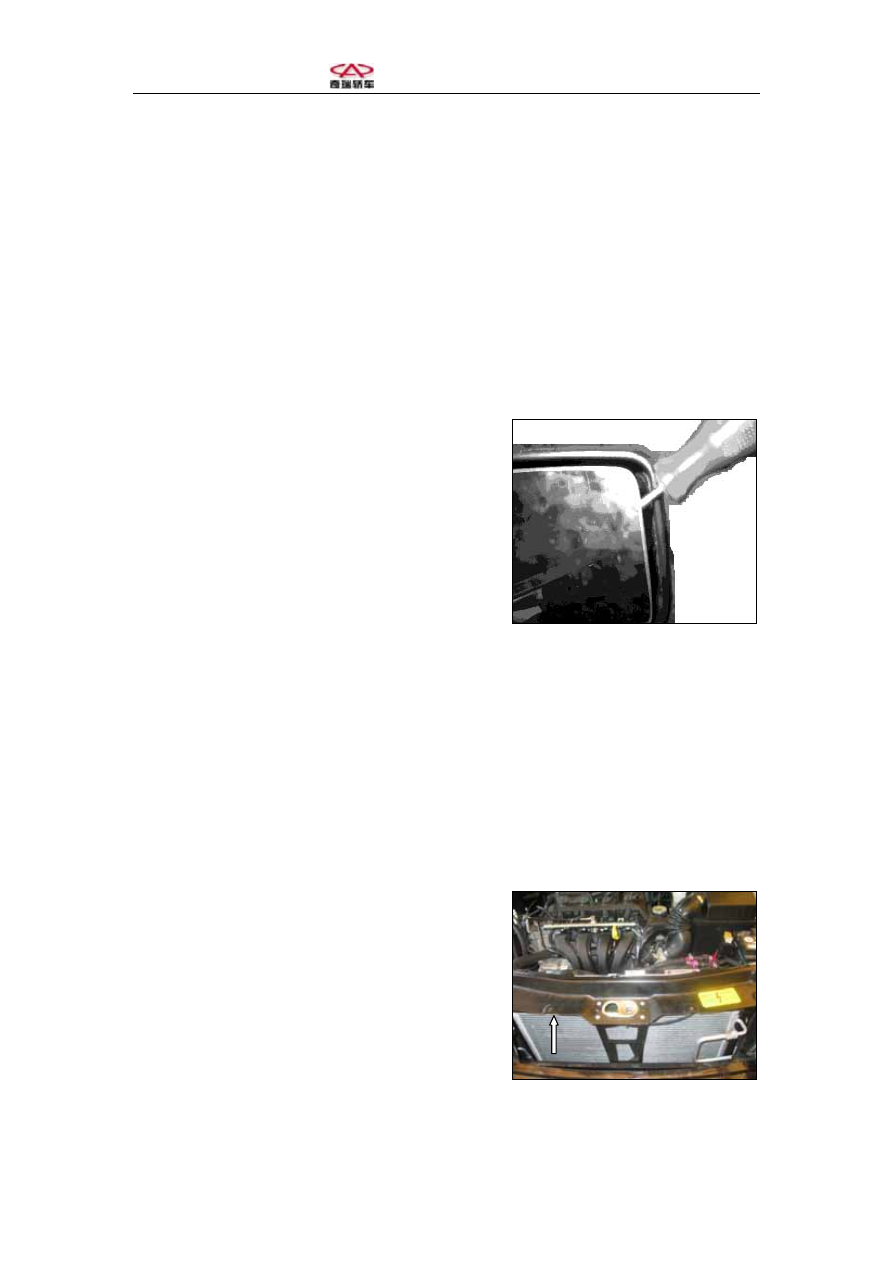

1.  Prize the top and bottom of the external

rear view mirror with the disassembling

tool for the rear view mirror glass to

disengage it from the roll ball joint and

the hook. Be careful not to damage the

rear view mirror frame.

    When fitting it, place the glass and

the guide pin in place and only center of

the glass can be pressed. Wear protection

gloves.



  IV. Radiator grill

    Disassembling and installing

When disassembling the radiator grill, first

remove the four set bolts between its top and

the front panel, then remove the radiator grill.

    Installing procedures are in the reversed order.

Tightening torque is 3.5±2N.m.

  Chery A15 Maintenance Manual



V. Inner guard board of the

luggage compartment

Disassembling and installing

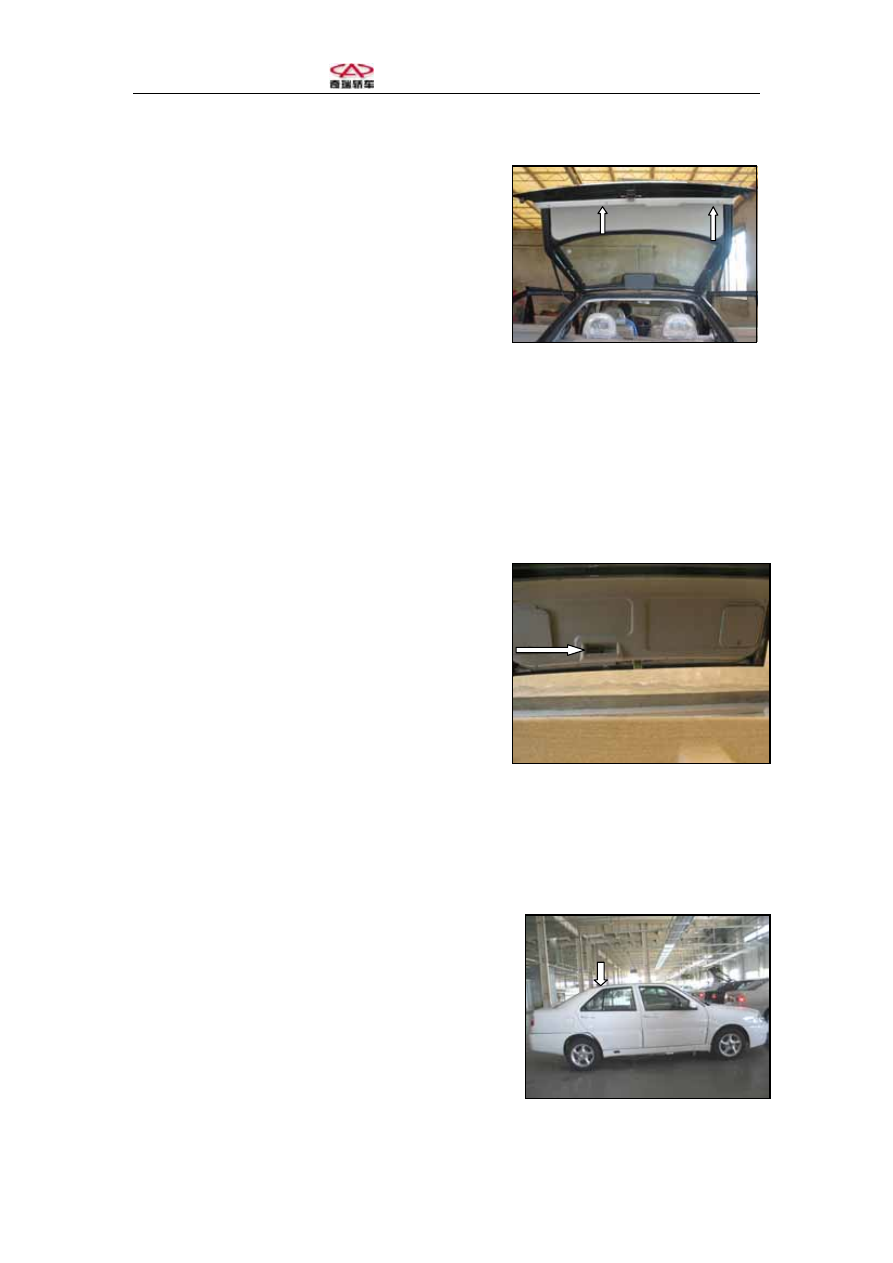

1.  Remove the eleven set bolts on

outer frame of the inner guard plate

of the rear lid. Then knock open the

plastic clamp with the screwdriver.

Remove the inner guard plate of the

rear lid.





2.  Loosen the set screw between the

button and the molded decoration frame

of the rear door. Remove the molded decoration.







Installing procedures are in the

reversed order. Remember the position of

the rear door opening button.

VI. Roof decorative strip

Disassembling and installing

      Begin prizing from the rear window glass

with the plastic wedge and loosen the clip

of drip rail with hands. Open the clips

with the screwdriver and remove them. The

clips can’t be reused.
