  Chery A15 Maintenance Manual













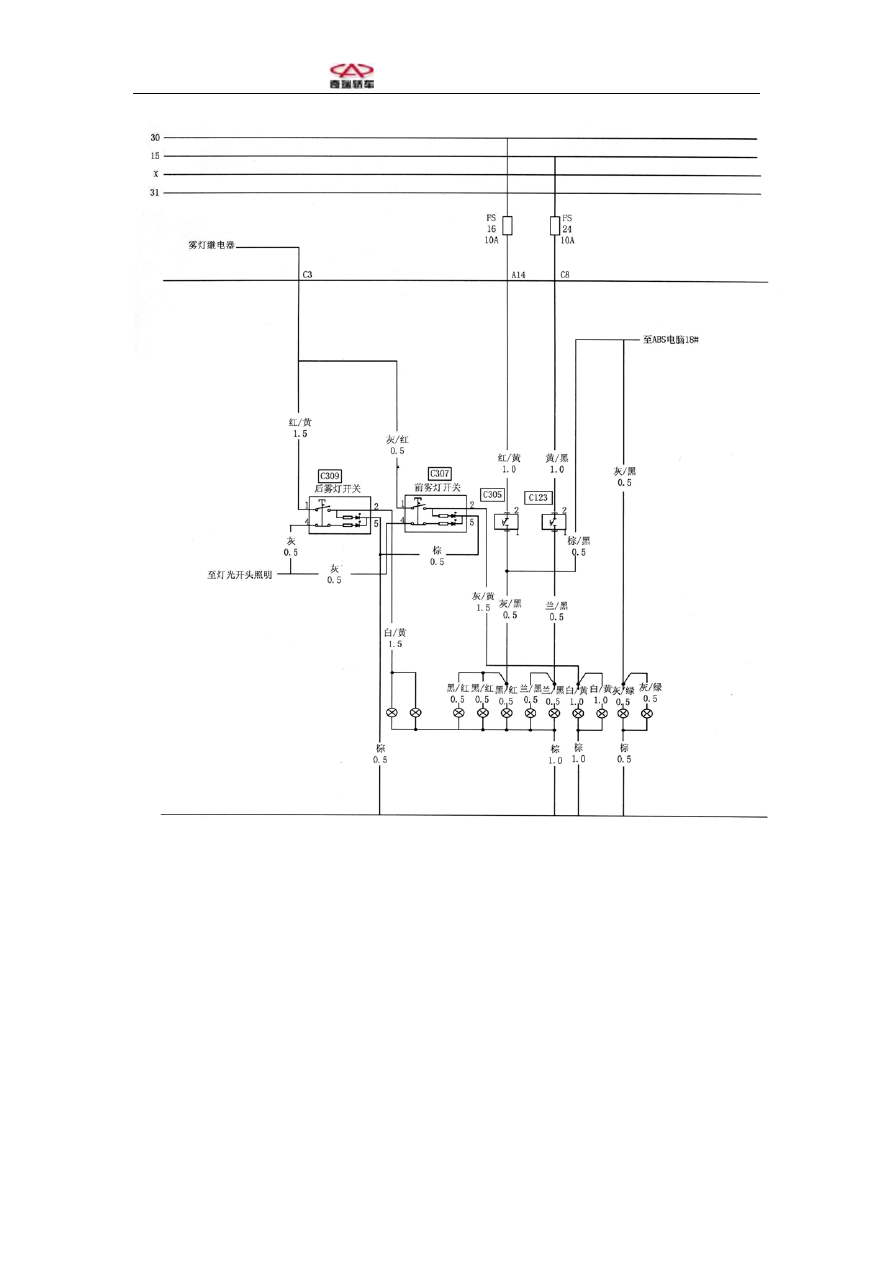

Section Two  Common Failure and Troubleshooting for

Illuminating System

- 38 -    CHERY AUTOMOBILE CO., LTD

  Chery A15 Maintenance Manual

  (I) Common Failure and Troubleshooting for Front Headlight



  (II)Common Failure and Troubleshooting for Fog light

Failure Description

Failure Reason

Troubleshooting Method

Only a fog light fails to

light up

1.Bulb damaged

2.Circuit or ground failure

1.Replace bulb

2.Check circuit

Two fog lights fail to light

up

1.Bulb damaged

2.Fuse blows

3.Fog light relay damaged

4.Fog light switch failure

5.Circuit or ground failure

1.Replace bulb

2.Replace fuse

3.Check relay

4.Check switch

5.Check circuit

Fog light lights up all along

1.Fog light switch failure

2.Circuit failure

1.Check switch

2.Check circuit

(III)Common Failure and Troubleshooting for Reversing Light

Failure Description

Failure Reason

Troubleshooting Method

One side reversing light fails

to light up

1.Bulb damaged

2.Circuit or ground failure

1.Replace bulb

2.Check circuit

Two sides’ reversing lights

fail to light up

1.Bulb damaged

2.Fuse blows

3.Reversing light switch failure

4.Circuit or ground failure

1.Replace bulb

2.Replace fuse

3.Check switch

4.Check circuit

Reversing light lights up all

along

Improper reversing light switch

adjustment or damage

Check reversing light

switch



(IV)Common Failure and Troubleshooting for Brake Light

- 39 -    CHERY AUTOMOBILE CO., LTD

  Chery A15 Maintenance Manual

Failure Description

Failure Reason

Troubleshooting Method

One side brake light fails to

light up

1.Bulb damaged

2.Lead or ground failure

1.Replace bulb

2.Check circuit

All brake lights fail to light

up

1.Bulb damaged

2.Fuse blows

3.Brake light switch failure

4.Lead or ground failure

1.Replace bulb

2.Replace fuse

3.Check brake light switch

4.Check circuit

Brake light lights up all along

Improper brake light switch

adjustment or damage

Check brake light switch



(V)Common Failure and Troubleshooting for Turn Light

Failure Description

Failure Reason

Troubleshooting Method

Inconsistent left and right flash

frequencies or no flash on one

side

1.Bulb on the “quick flash

frequency” side damaged

2.Bulb power is inconformity with

specification

3. Turning signal light relay failure

4.

Lead or ground failure

1.Replace bulb

2.Replace normal bulb

3. Check, replace relay

4.Check circuit

No flash on both sides

1.Bulb damaged

2.Fuse blows

3. Turning signal light relay failure

4.Turn light switch failure

5.Lead or ground failure

1.Replace bulb

2.Replace fuse

3.Check relay

4.Check turn light switch

5.Check circuit

Continued

Too low flash frequency

1.Too low accumulator voltage

2. Bulb power is inconformity

with specification

3.Turning signal light relay

failure

4.Circuit failure

1.Check accumulator and

charge

2.Replace normal bulb

3.Check\replace relay

4.Check circuit





- 40 -    CHERY AUTOMOBILE CO., LTD

  Chery A15 Maintenance Manual

Section Three Assembling and Disassembling of Whole Vehicle

Light Fixture


1.  Front headlight assembling

  Assemble front headlight according to corresponding position, ensure bolt

fixing hole location and headlight crossmember welding nut in concentricity;

  Fix front headlight properly with 4 bolts, washers and a nut, put down

engine hood, calibrate and adjust headlight mounted position (bulging or
sunk, headlight is required to protrude a little more than engine hood with
both forming a curvature that can be felt manually), and then tighten
fastening piece with tightening torque 1.5±0.2N·m;



Mount radiator grid



  Connect lamp holder connecting harness;

2 .    Front fog light assembling:

  Connect fog light harness end-to-end pin;
  Put fog light into mounting hole from face to ensure 3 screw holes and front

guard hole location in concentricity;

  Tighten 3 tapping screws with tightening torque 1.5±0.2N·m;
  Fix lower grid (refer to body description).

3.    Side turn light assembling:

  Connect lamp holder connecting harness;
  According to the right direction, firstly match a wedge-position end with

body and then press forcefully.

4. Assembling of tail lamp fixed parts (including position lamp/brake light,

turn light):

 Align hole locations on body so as to assemble light fixture and body in good

condition;

 Tighten 3 fixed nuts, pay attention to adjust the surface difference between the

said nuts and body, feel height difference manually, adjust with hand touch
while tightening;

 Plug lamp holder harness, pave the rug.

5. Assembling of tail lamp movable parts (including reversing light and rear

fog light)

Align hole locations on body so as to assemble light fixture and body in good

condition;

Tighten 4 fixed nuts, pay attention to adjust the surface difference and clearance

between the said nuts and body, fixed parts (trunk lid may be laid down), feel height
difference manually, adjust based on hand feel while tightening;

Properly plug lamp holder harness and lay down trunk lid;

6.   Assembling of license light

 Properly connect harness pin;
