Chery A series. Manual - part 107

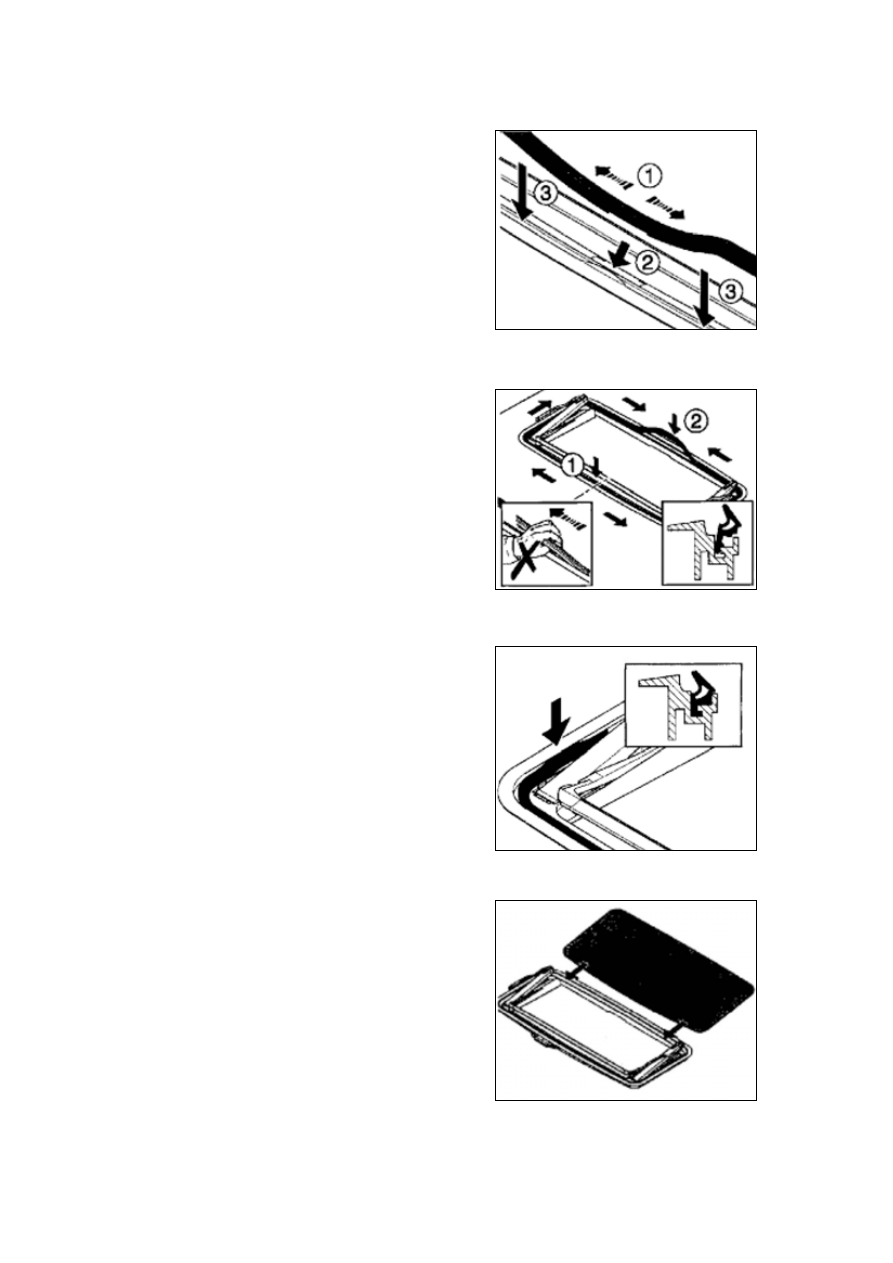

4. Pull out the glass panel from the mechanical

devices in parallel with proper attention.



5. Remove the old seal from the middle-front

part of sunroof frame by flat screwdriver.





6. Remove the remaining sealant and clean the

groove thoroughly.







Assembly:

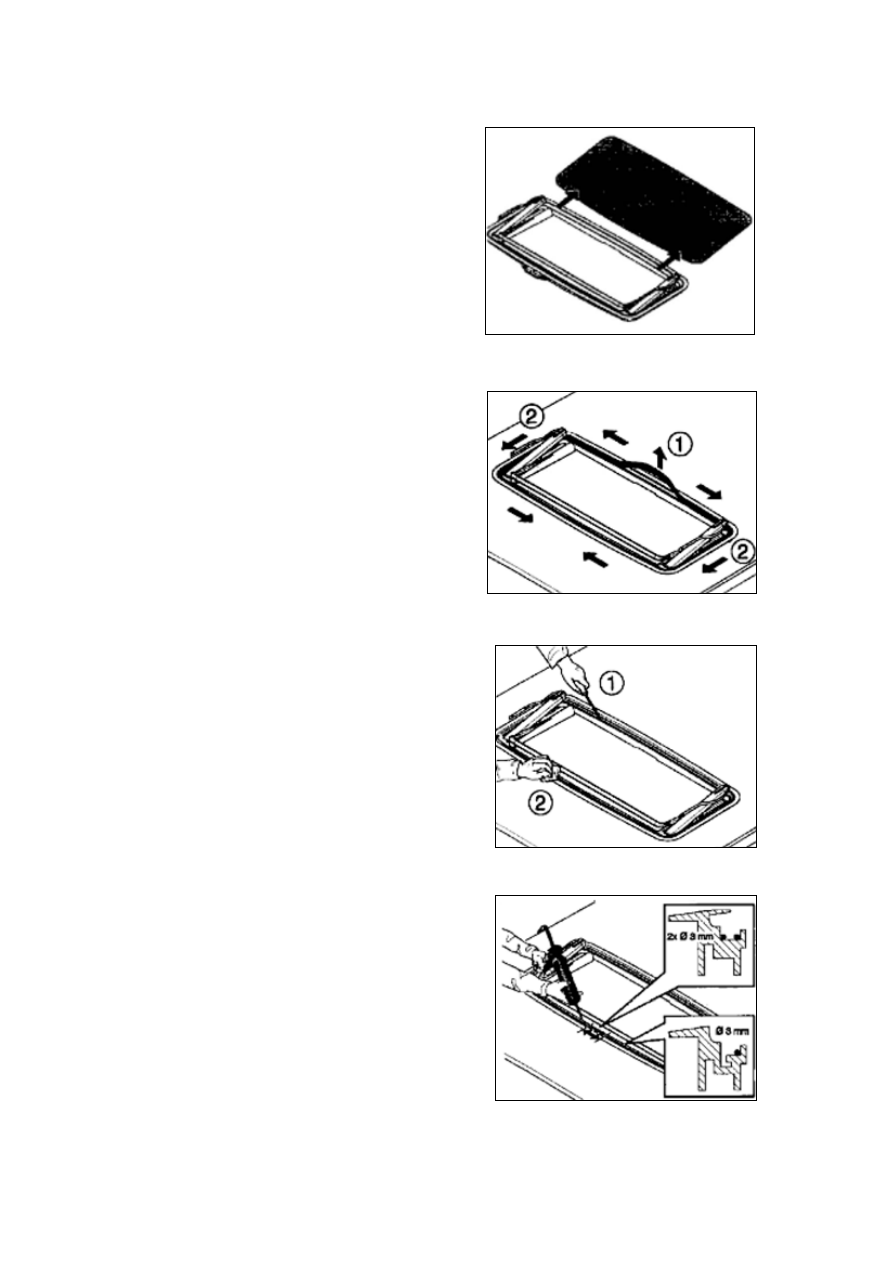

7. As shown in the figure, apply silicon gel

with a diameter of 3mm on the inner side of
upper frame and apply double layers of
silicon gel under the fastening block of glass
panel.







S-79

8. Place the seal on the upper frame naturally,

and the rabbet center of seal must be aligned
with the center of fastening block of glass
panel. Strech this part of seal with proper
attention in assembly.





9. Push the seal into the groove by a depth of

about 1mm starting from the middle-front
part, then both sides, and finally the rear
part.



Note: Never strech the seal.




10. Push the seal into the groove completely

and make sure that it is installed properly.

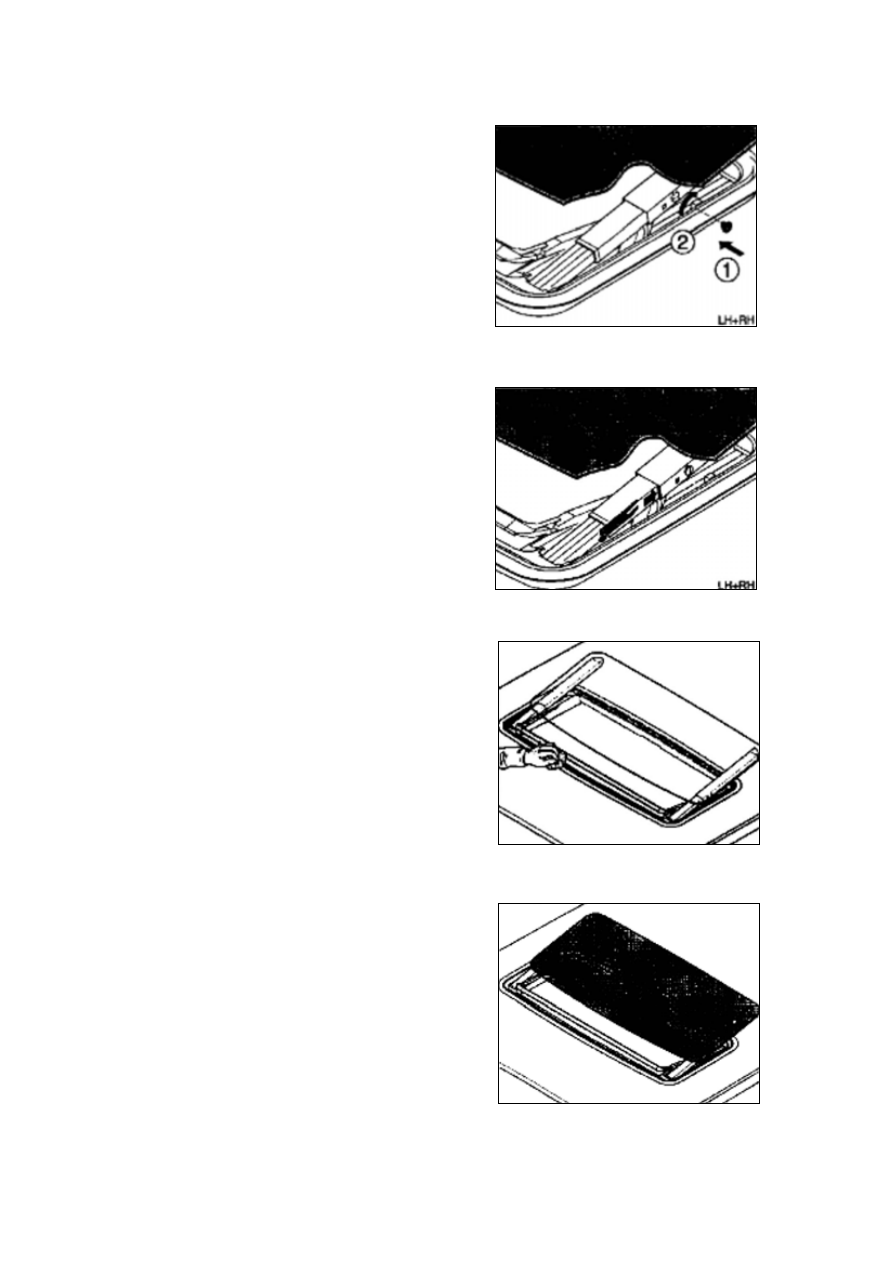

11. Slide the glass panel into the mechanical

devices in parallel.








S-80

12. Install the fastening pin of glass panel by

rotating 90 degrees only.



13. Push the lock of glass panel to the proper

position.



14. Remove the excessive silicon gel.




15. The sunroof can be operated after at least

two hours.





S-81

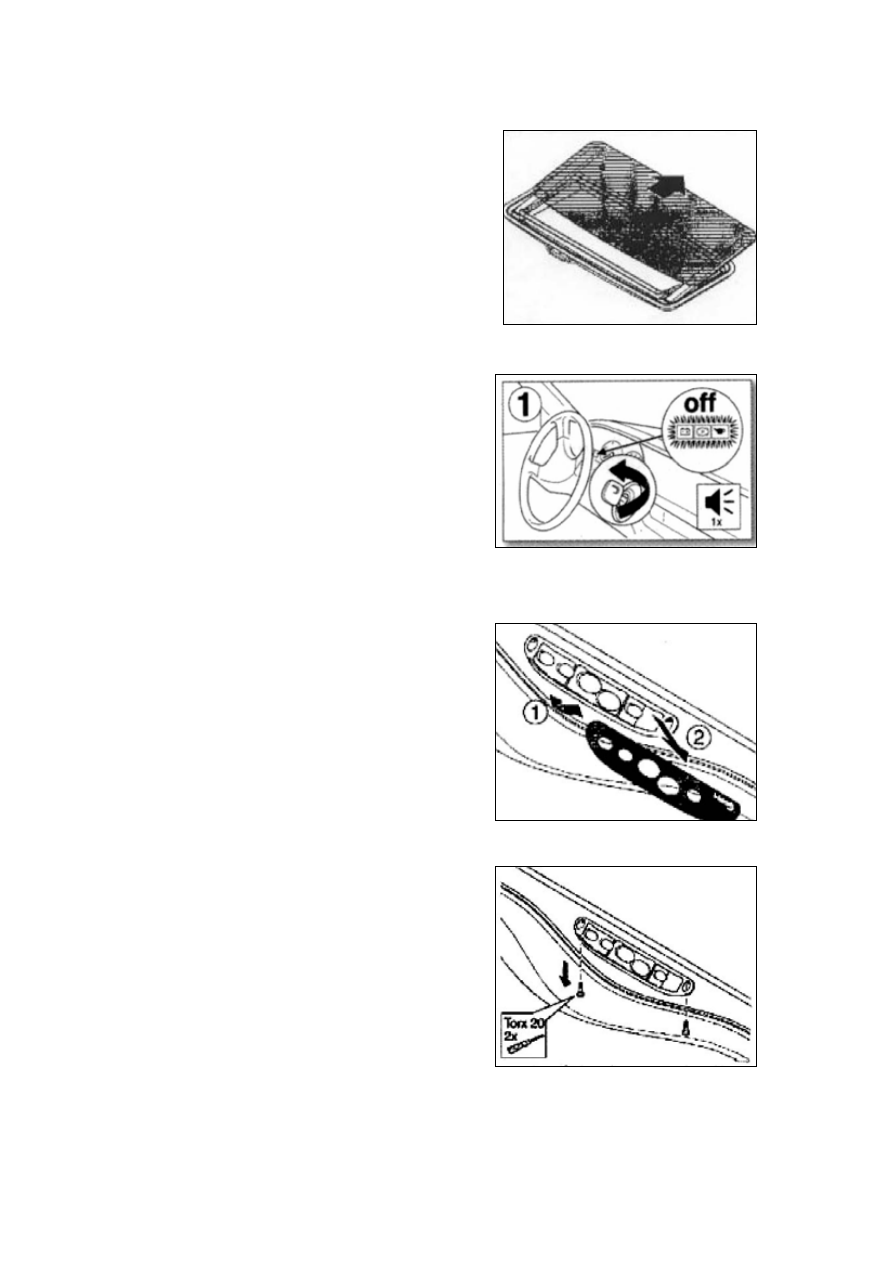

REPALCEMENT OF SUNSHADE
1. Fully open the sunroof.



2. Turn off the ignition switch and press the

control button to prevent the sunroof from
automatic closing.





3. Remove the cover of control buttons.



4. Remove the two fastening bolts in the front

of interior trim rim.









S-82
