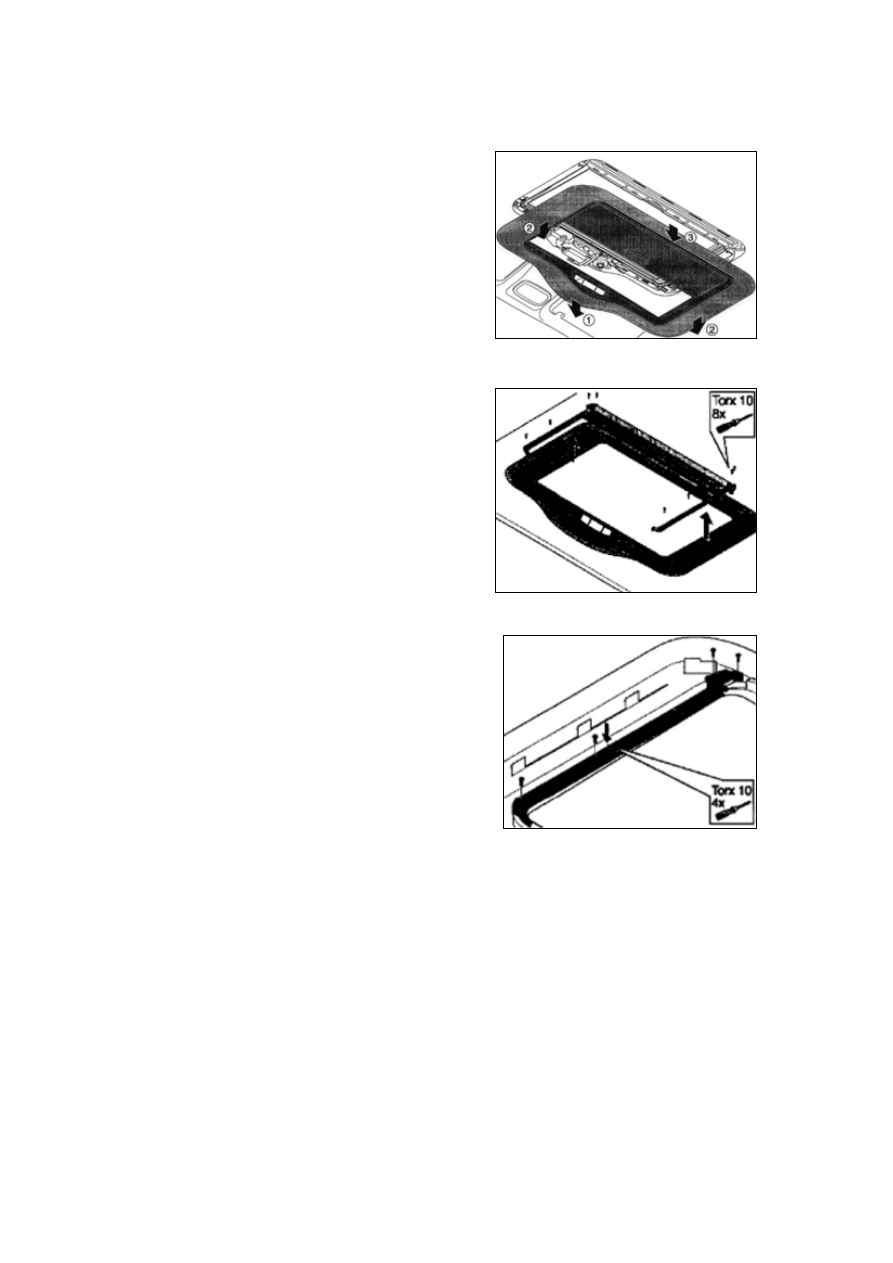

5. Remove the interior trim rim (pull

downward as shown in the figure). Pay
attention not to damage the control buttons.





6. Remove the damaged sunshade.



Assembly

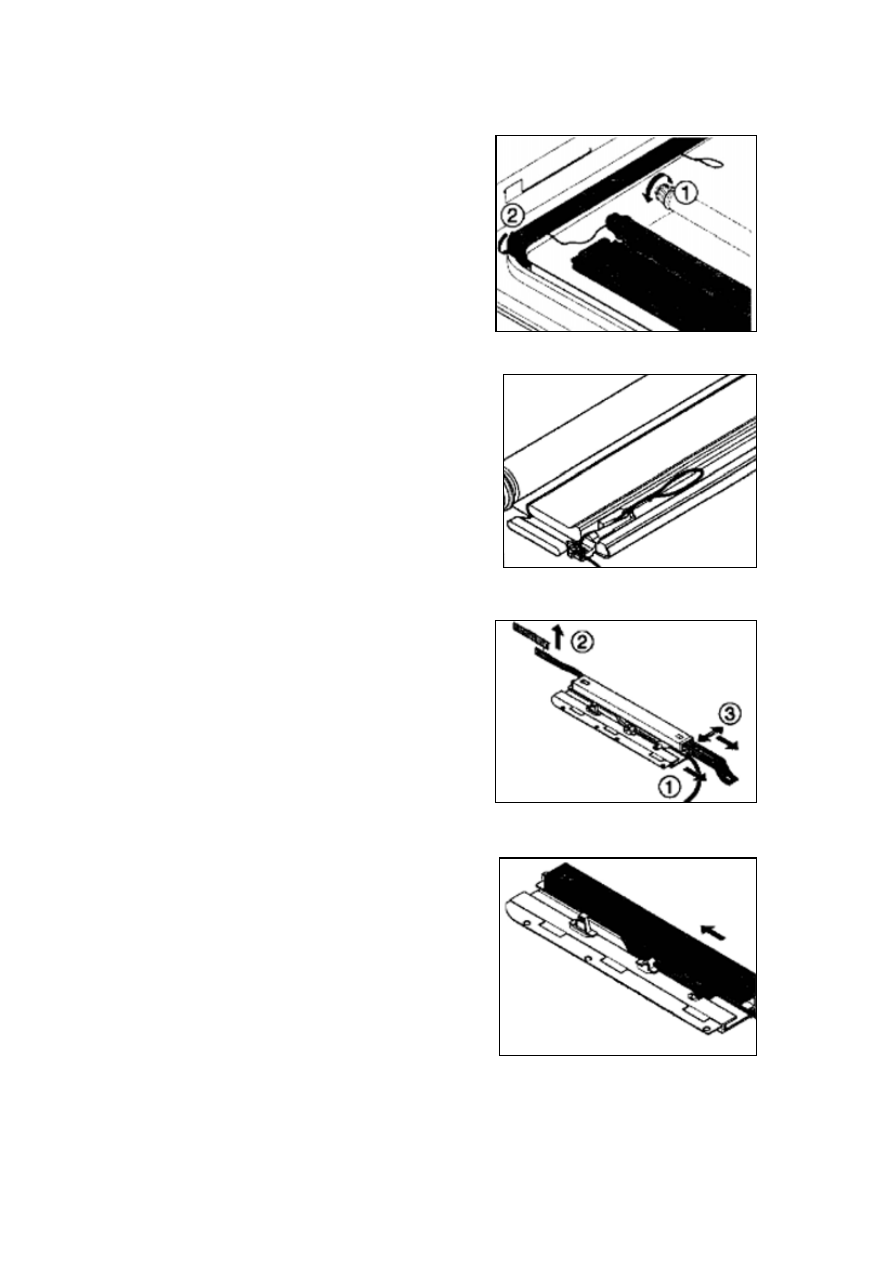

7. Install the right guide device and the rear

supporter of sunshade.



















S-83

8. Wind up the sunshade and wrap the string

on the right guide roller.



9. Place the string in the sliding fastening cap

and the guide device.





10.Place the mechanical devices in a tilt

position. Remove the lock from the pin joint
and then remove the latter. If feel more
resistance, make left-and-right shake while
removing.







11. Remove the mechanical devices from the

rear of guide rail.













S-84

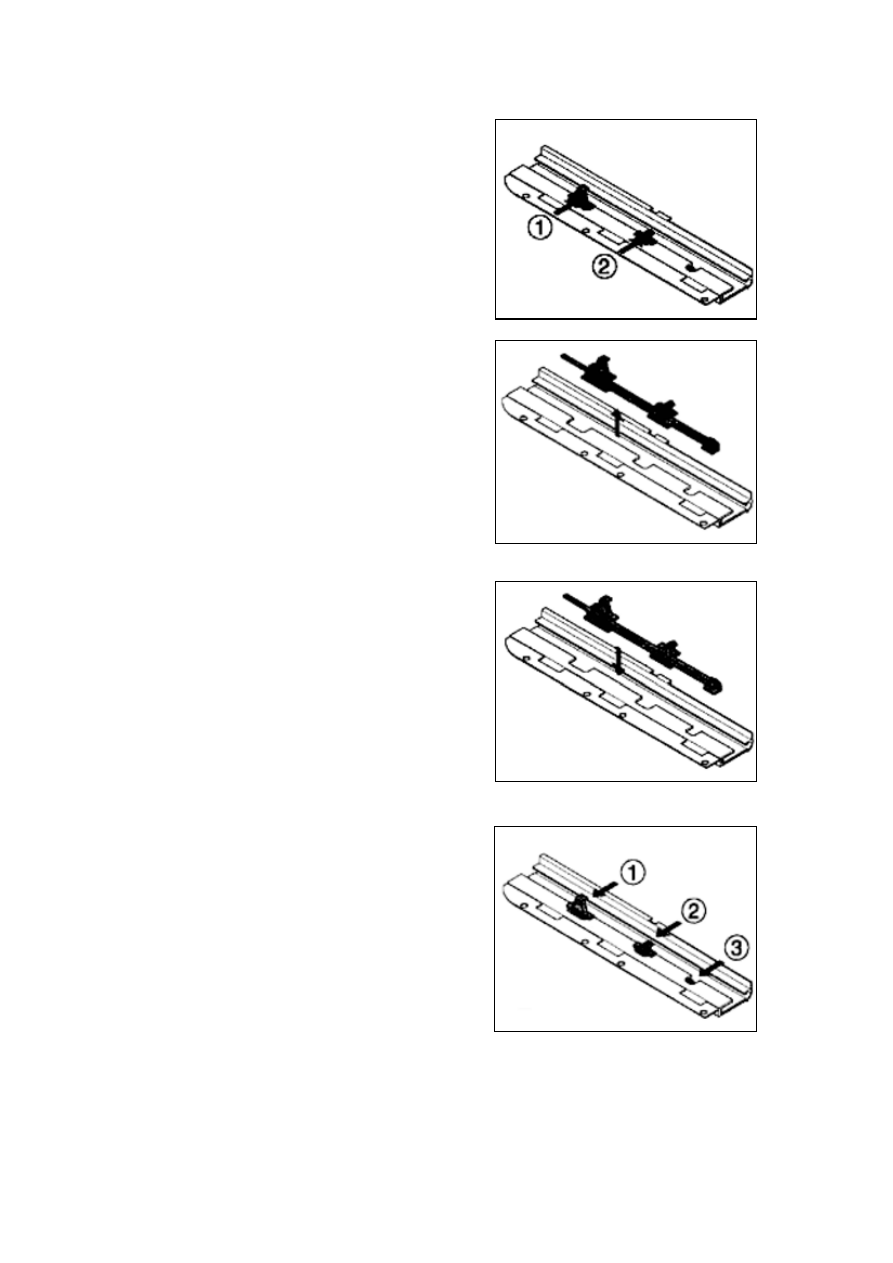

12. Push out the guide lock as shown in the

figure.














13. Remove the lock from the guide rail.















Assembly:
14. Place the new guide lock in the guide rail.













15. Install the guide lock in the proper position.









S-85

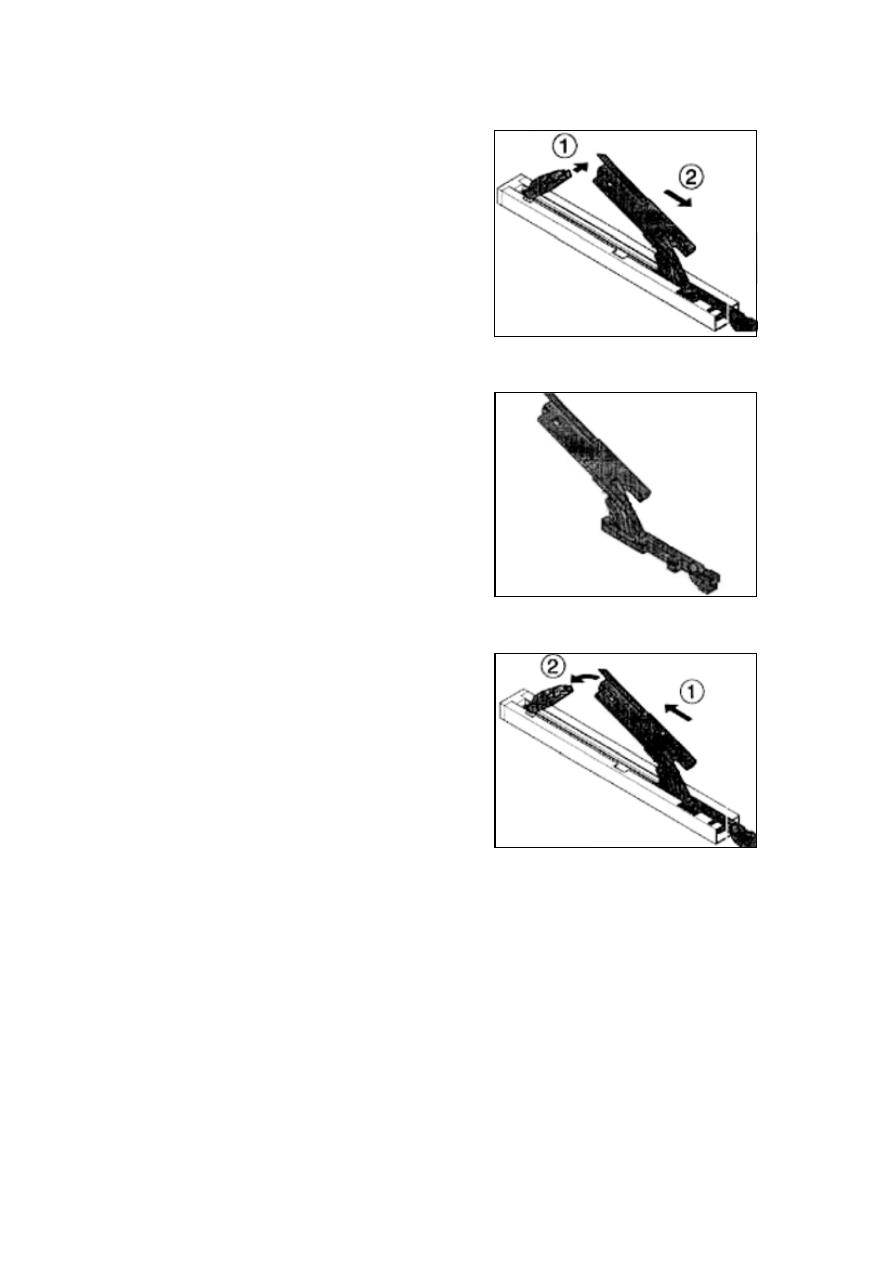

16. Disengage the front riser and the rail slide

device, then remove the latter.















17. Inspect the new rail slide device.















18. Install in the reverse order of step 16.



















S-86
