Chery A series. Manual - part 106



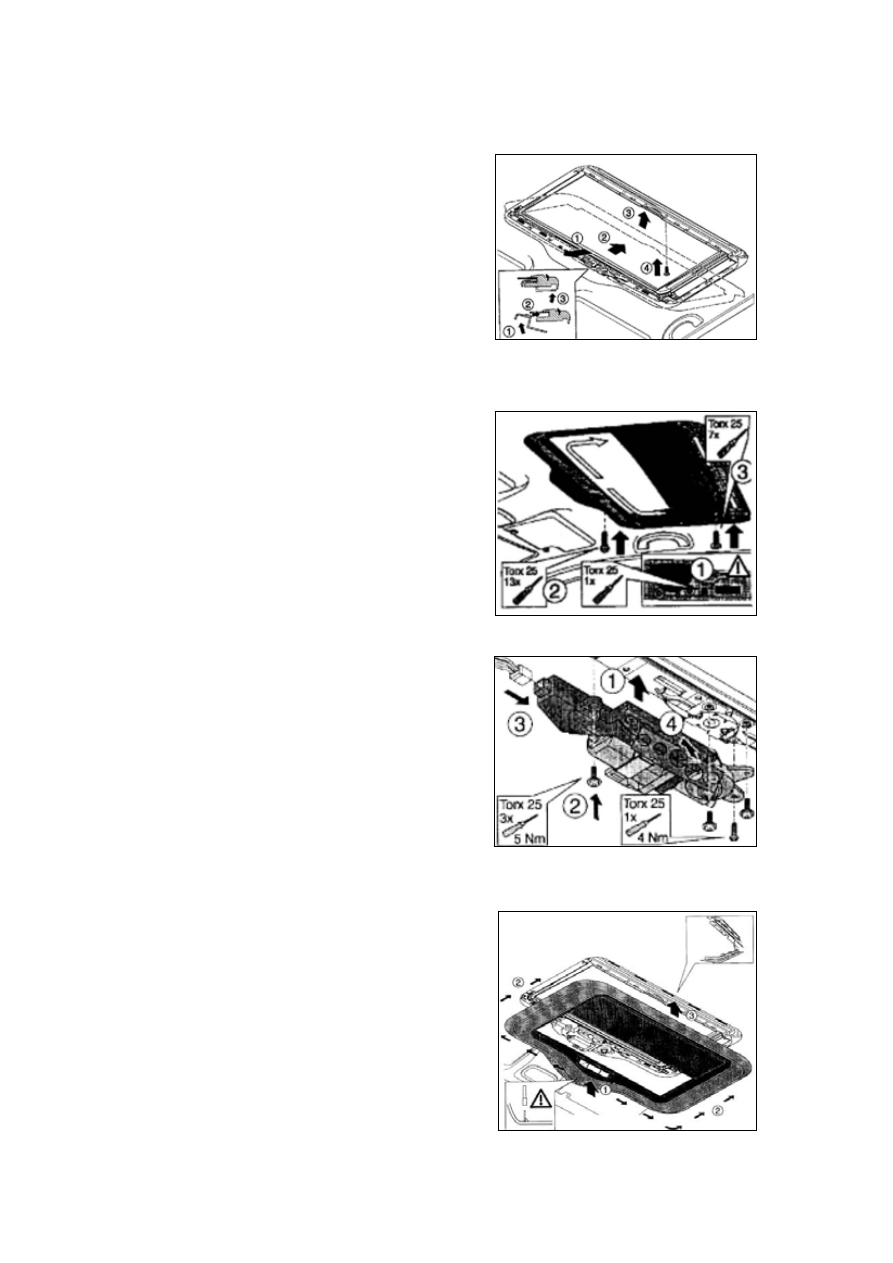

12. Install the interior fastening frame with an

angle of 45 degrees, front high rear low
respectively, firstly fasten the front part,
and then push the rear section rearward. A
fastening bolt shall be tightened in the rear
middle area of interior fastening frame to
prevent dropping.





13.

Tighten the fastening bolts of interior

fastening frame. Install the black fastening
bolts in the reverse order of step 8, and as
the order shown in the figure, from front
middle to both sides. Pay attention to the
engagement between motor drive shaft and
gear. Finally install the silver fastening
bolts from the rear middle to both sides.





14. Install the motor and the SCU in the

reverse order of step 6.









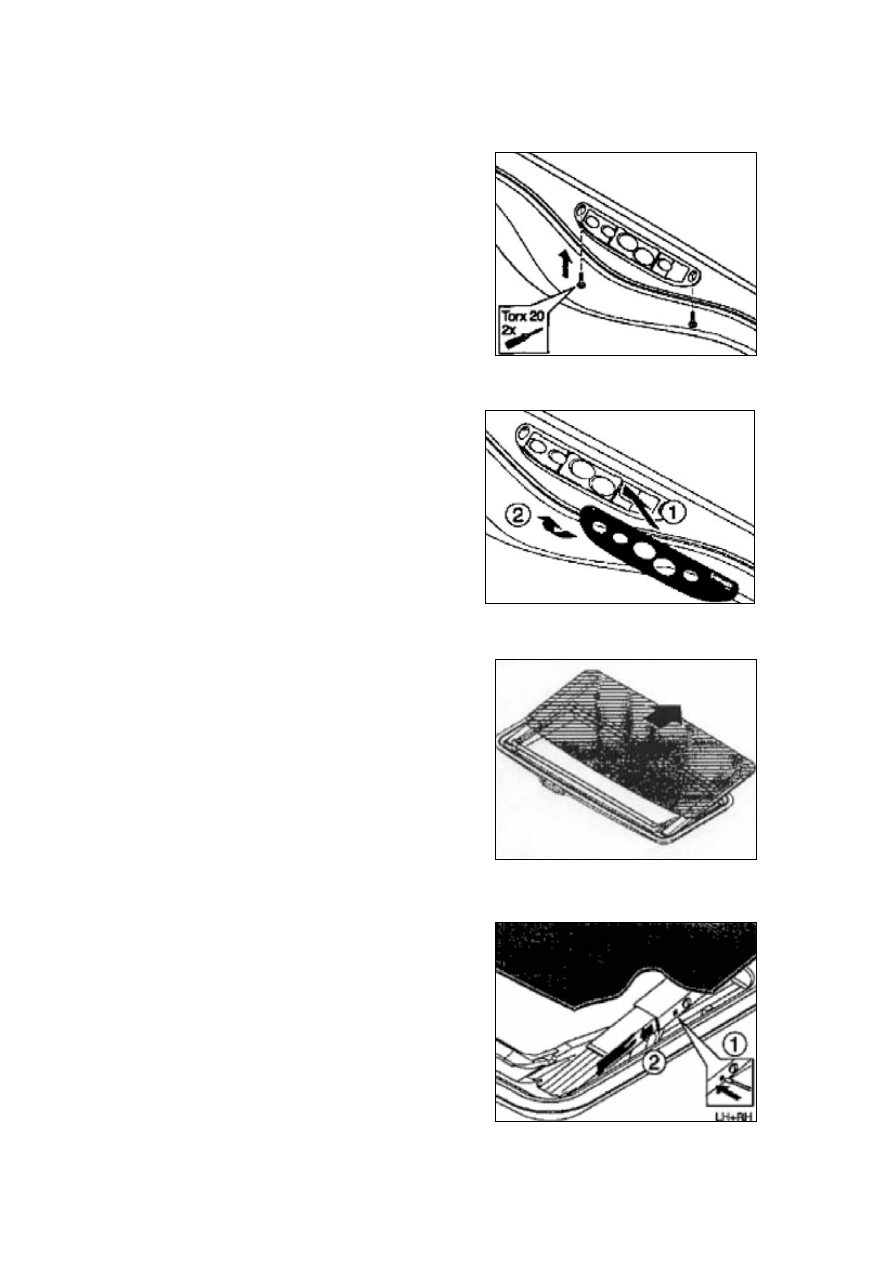

15. Install the interior trim rim (push upwards

as shown in the figure, pay attention that
the clamp should be aligned to the
groove). Install the additional strip if
necessary.







S-75



16. Tighten the fastening bolts of interior trim

rim.







17. Install the cover of control buttons.



REPLACEMENT OF GLASS PANEL

1. Fully open the sunroof.



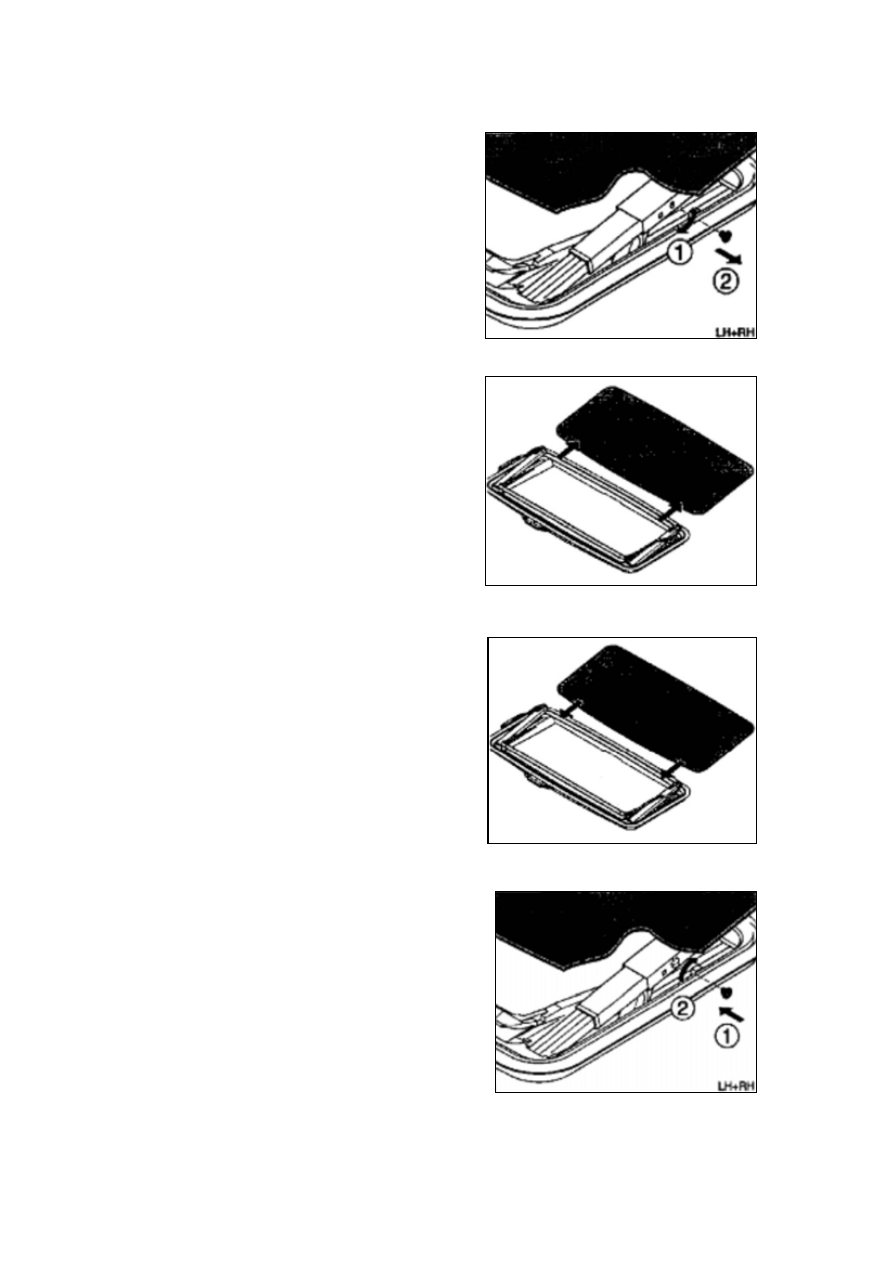

2. As shown in the figure, disengage the latch

of glass panel lock and the fastening base
with screwdriver, then remove the lock of
glass panel. (Perform on another side in the
same way).



S-76

3. Turn the fastening pin of glass panel by 90

degrees in clockwise with flat screwdriver to
remove the fastening pin of glass panel.
(Perform on another side in the same way).







4. Pull out the glass panel from the mechanical

devices in parallel with proper attention.











Assembly

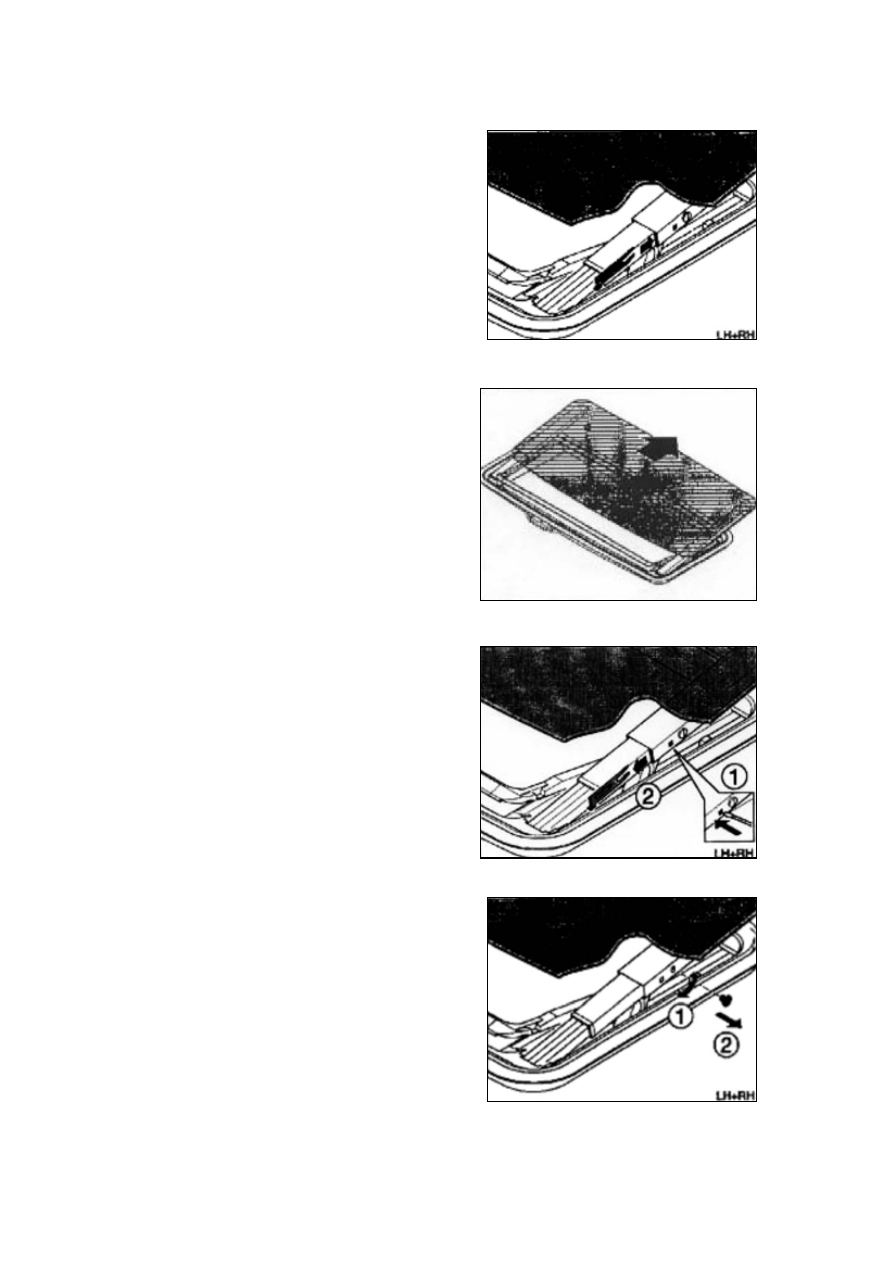

5.Slide the new glass panel into the mechanical

devices in parallel.







6.Install the fastening pin of glass panel by

turning 90 degrees only.









S-77

7.Push the fastening pin of glass panel to the

proper position.



REPLACEMENT OF SEAL

1. Fully open the sunroof.



2.As shown in the figure, disengage the latch

of glass panel lock and the fastening base
with screwdriver, then remove the lock of
glass panel. (Perform on another side in the
same way).





3.Turn the fastening pin of glass panel by 90

degrees in clockwise with flat screwdriver to
remove the fastening pin of glass panel.
(Perform on another side in the same way).





S-78
