3. SELECTION OF TILT HEIGHT



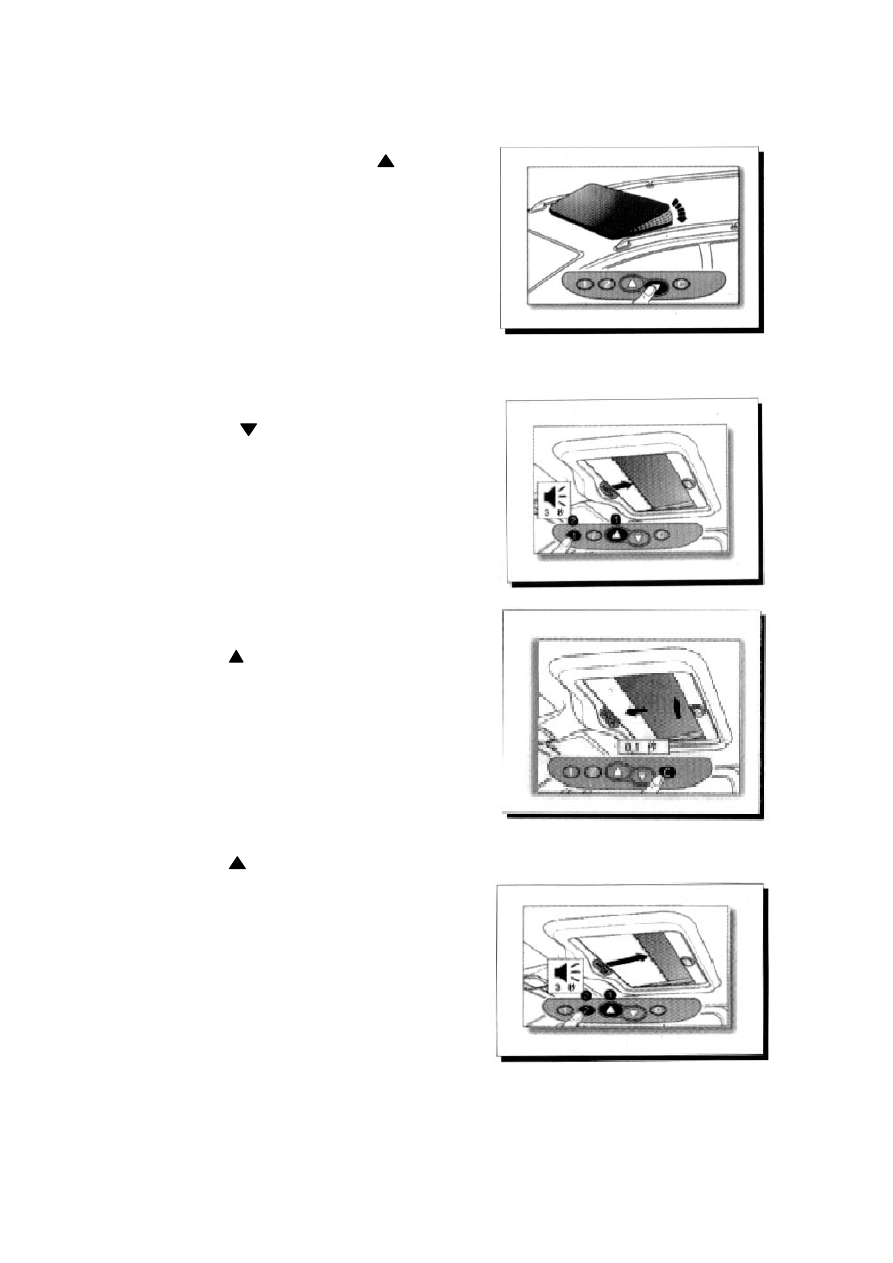

When the sunroof is closed, press the      button
continuously, the glass panel will open to the
maximum tilt position automatically.

















When the sunroof is positioned at maximum tilt

height, press the   button continuously, the
glass panel will close in stagewise, and there
are 4 tilt heights available for selection.













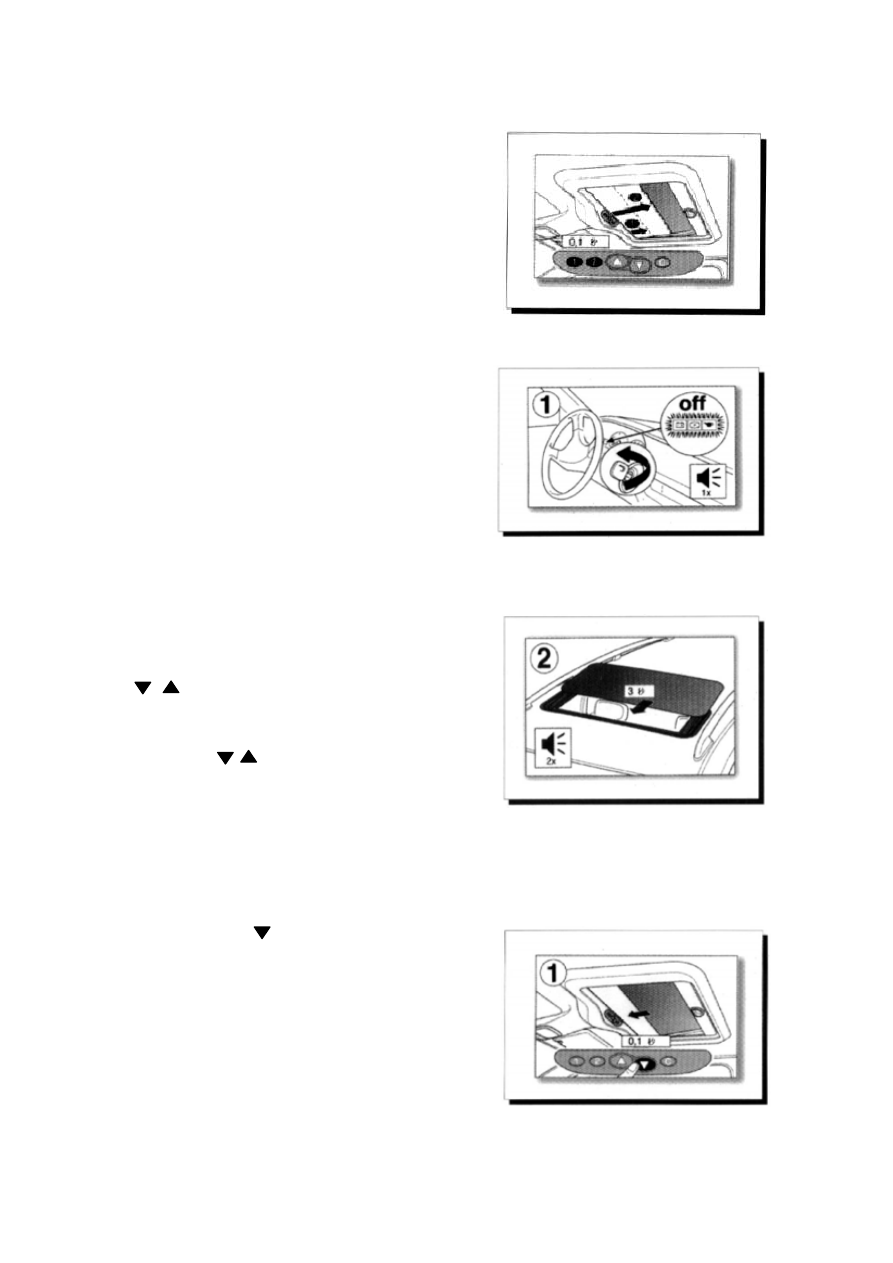

4. PRESET POSITIONS



Firstly press the        button to open the sunroof
to a proper position, press the

 button (more

①

than 3seconds) continuously, after the sound of
“CREAK” is heard from the sunroof, this
position will be automatically memorized as
the preset position 1 of sunroof.





Firstly press the        button to open the sunroof
to a proper position, press the

 button (more

②

than 3 seconds), after the sound of “CREAK”
is heard from the sunroof, this position will be
automatically memorized as the preset position
2 of sunroof.







S-67

Gently press the

 or

 button (less than 0.1

①

②

second), the sunroof will open to the preset
position 1, or the preset position 2
automatically, and these two positions can be
set repeatedly.







5. AUTOMATIC CLOSING

When the sunroof is opened to any position,
cut off the power supply of sedan, the sunroof
will make a sound of “CREAK”.











After 3 seconds from the power supply of
sedan is cut off, the sunroof will make two
sounds of “CREAK”, and start automatic
closing. Before the sunroof is fully shut, press
the      button, the closing function will be
disabled. Before the sunroof is fully shut, if
you want to control the sunroof, it is as simple
as to press the       button without requiring
turn on the power supply. But if you want to
open the sunroof again after the sunroof is
fully closed, it is required to turn on the power
supply of sedan again.

























6. ANTI OBSTRUCTION MECHANISM



Gently press the    button (less than 0.1
seconds), the sunroof will start automatic
closing.









S-68

If the sunroof encounters any obstruction
during its automatic closing, it will open to the
maximum position again, and try to close
repeatedly until the obstruction is eliminated. If
press the   button continuously, the anti
obstruction mechanism will be disabled.













INSTRUCTIONS OF SUNROOF



MAINTENANCE



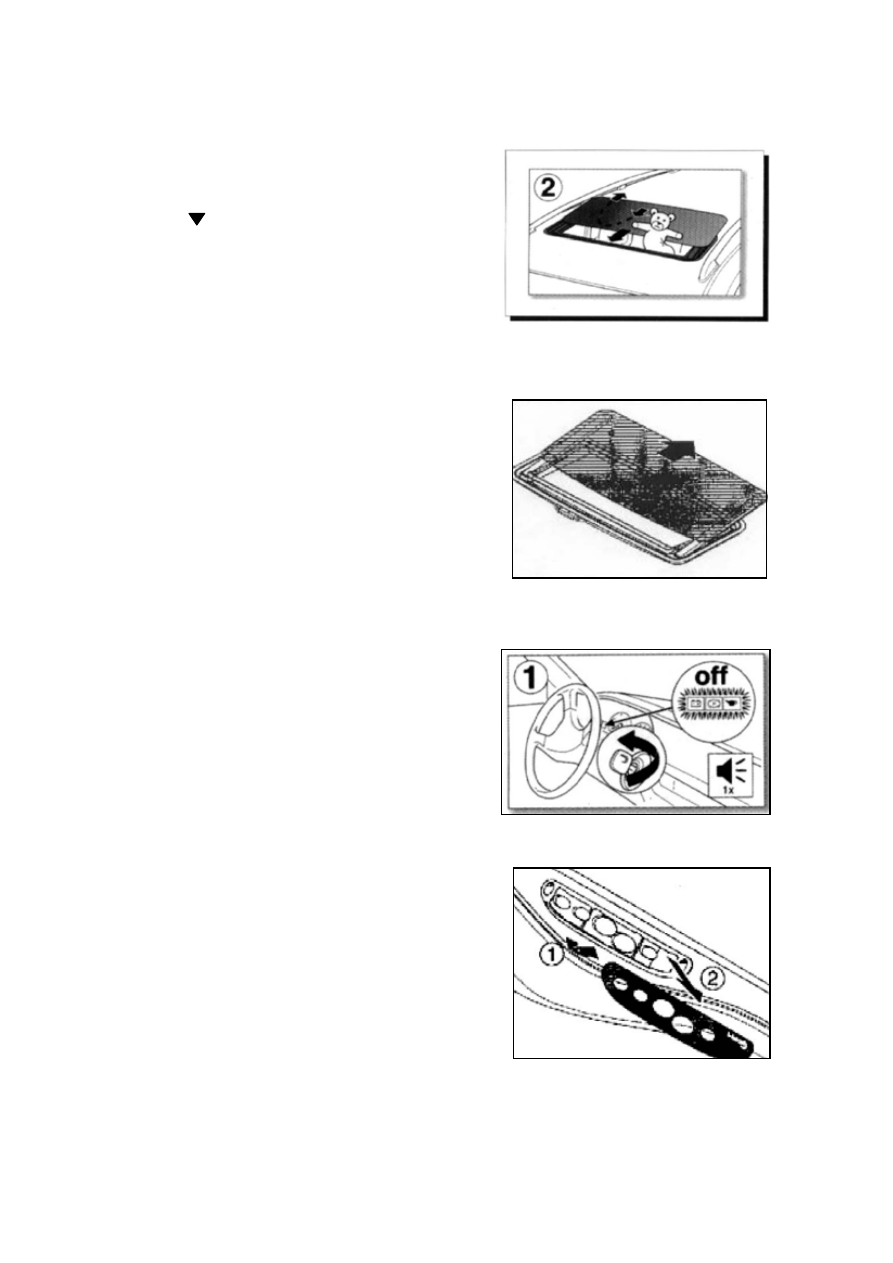

1.REPLACEMENT OF MODULE MOTOR

ASSEMBLY

Fully open the sunroof.








Turn off the ignition switch, press the control
button to prevent the sunroof from
automatically closing.






Remove the cover of control buttons.




S-69



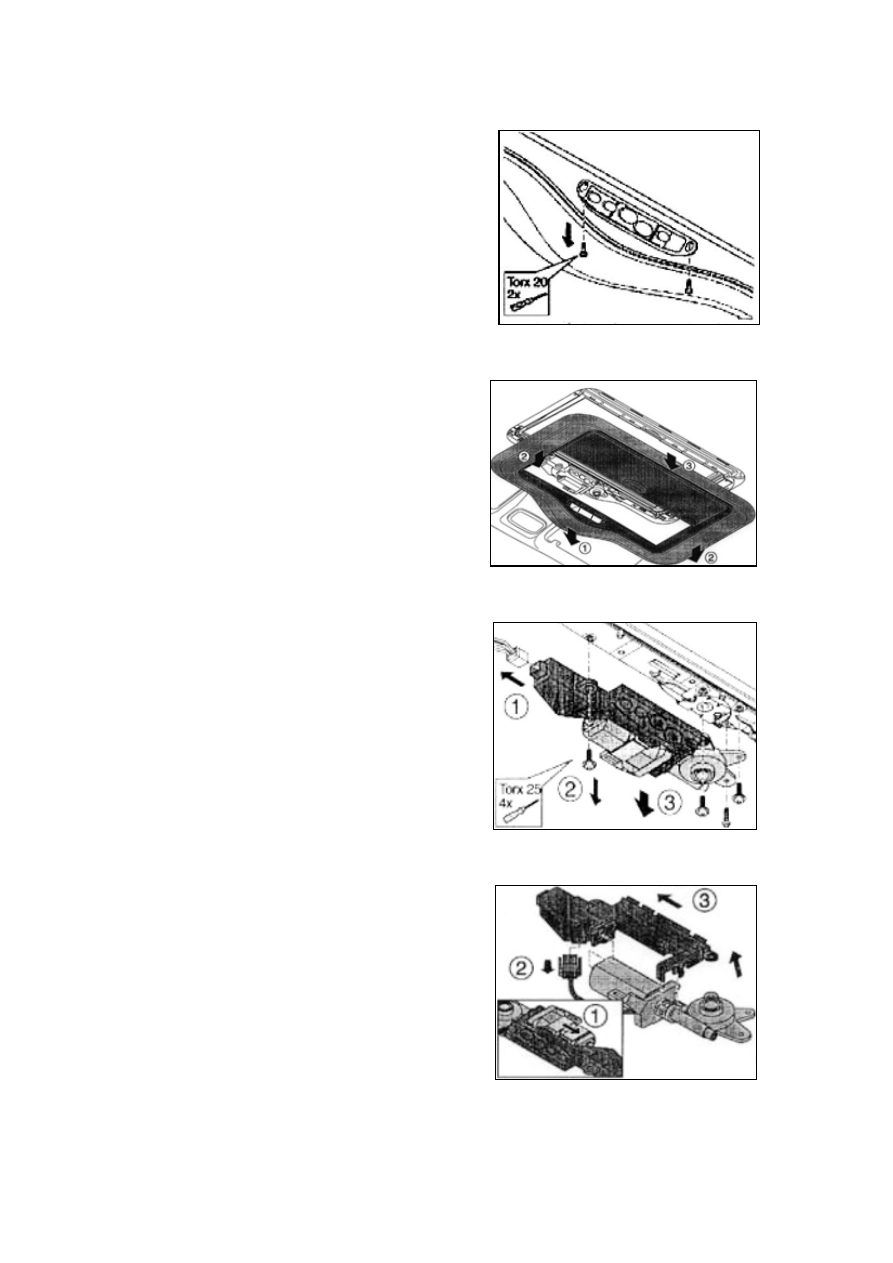

Remove the two fastening bolts in the front of
interior trim rim.













Remove the interior trim rim (pull downward
as the order shown in the figure), pay attention
not to damage the control buttons.










Move the fastening clip to the direction of
computer box, disconnect the connectors of
motor and the SCU, disengage the fastening
hook between the SCU and the motor, and
separate the motor from the SCU to carry out
the replacement.





Pull out the harness connecting to the SCU,
remove the 4 fastening bolts of motor and the
SCU, and remove the motor and the SCU
downwards.
