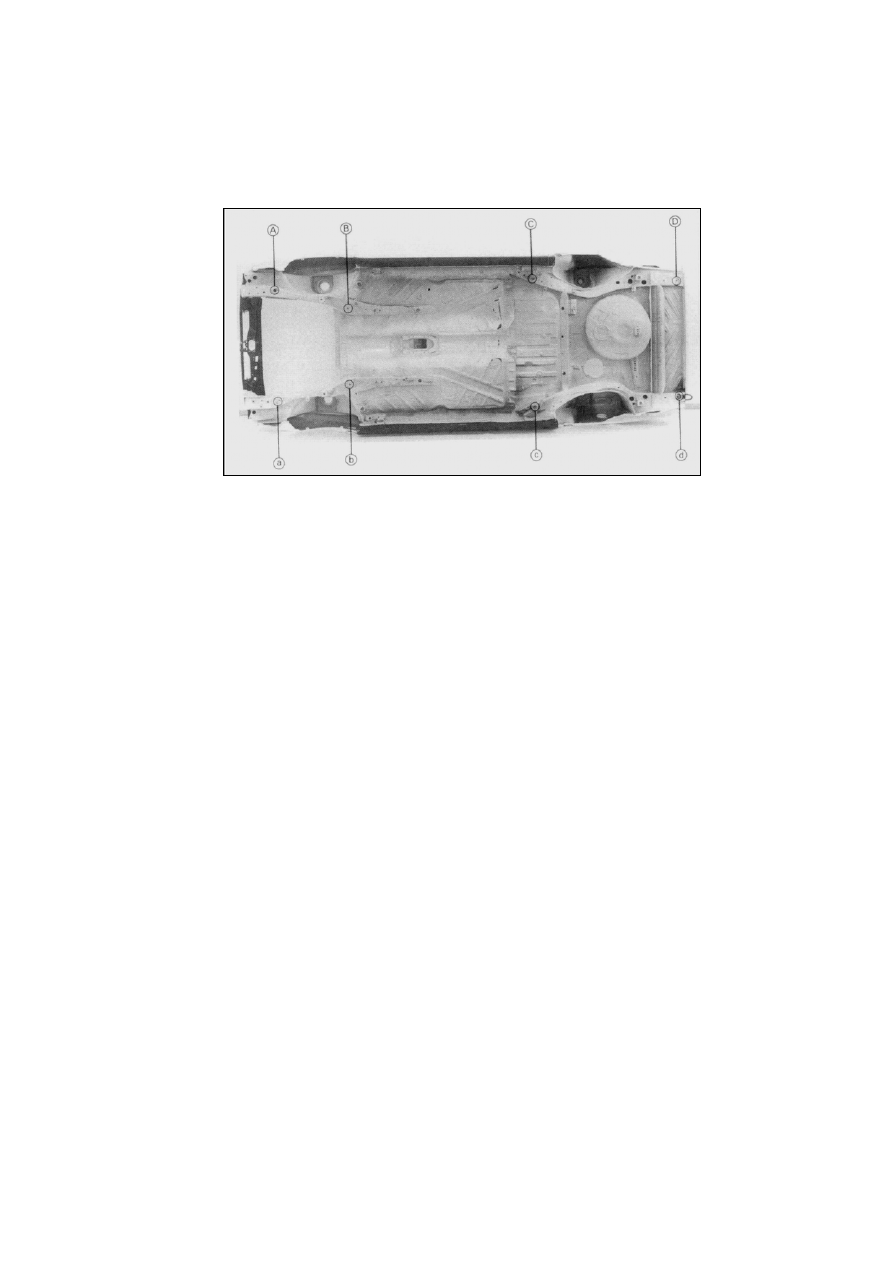

CHECKING THE SIZE OF UNDERBODY PANEL











Point A-a          Fixing Position for Bracing Piece of Engine
Point B-b    Fixing Position for Bracing Piece of Differential Gear Housing
Point C-c    Fixing Position of Rear Axle
Point D-d    Fixing Position for Bracket of Rear Bumper







Size Code                STD Value                Part Measured
1               1020±1mm

Between A and a

2               1090±1.5 mm

Between A and b

3                              679 士 1mm

Between B and b

4               703±lmm

Between A and B

5               2l24±1.5 mm    Between B and C
6               226l±2mm

Between B and c

7               880±1.5 mm

Between C and c

8               875±1.5 mm

Between C and D

9               l306±1.5 mm    Between C and d
10              1074±1.5 mm

Between D and d









S-59

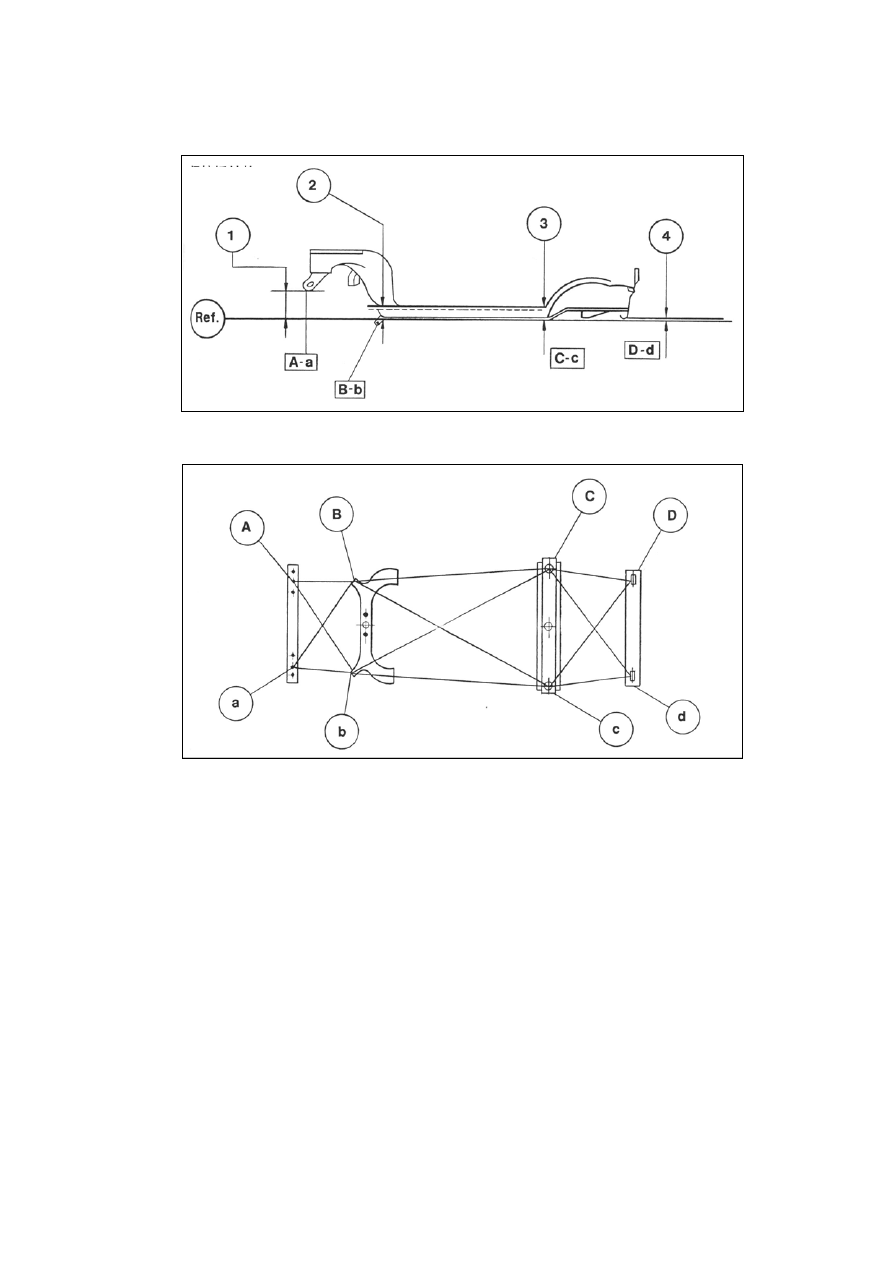

STRUCTURE OF

GUARD PLATE








1.    Distance between Reference Line and Point A-a = 246
2.    Distance between Reference Line and Point B-b = 140
3.    Distance between Reference Line and Point C-c = 94.2
4.    Distance between Reference Line and Point D-d = 246
Reference Line = -100Z













S-60

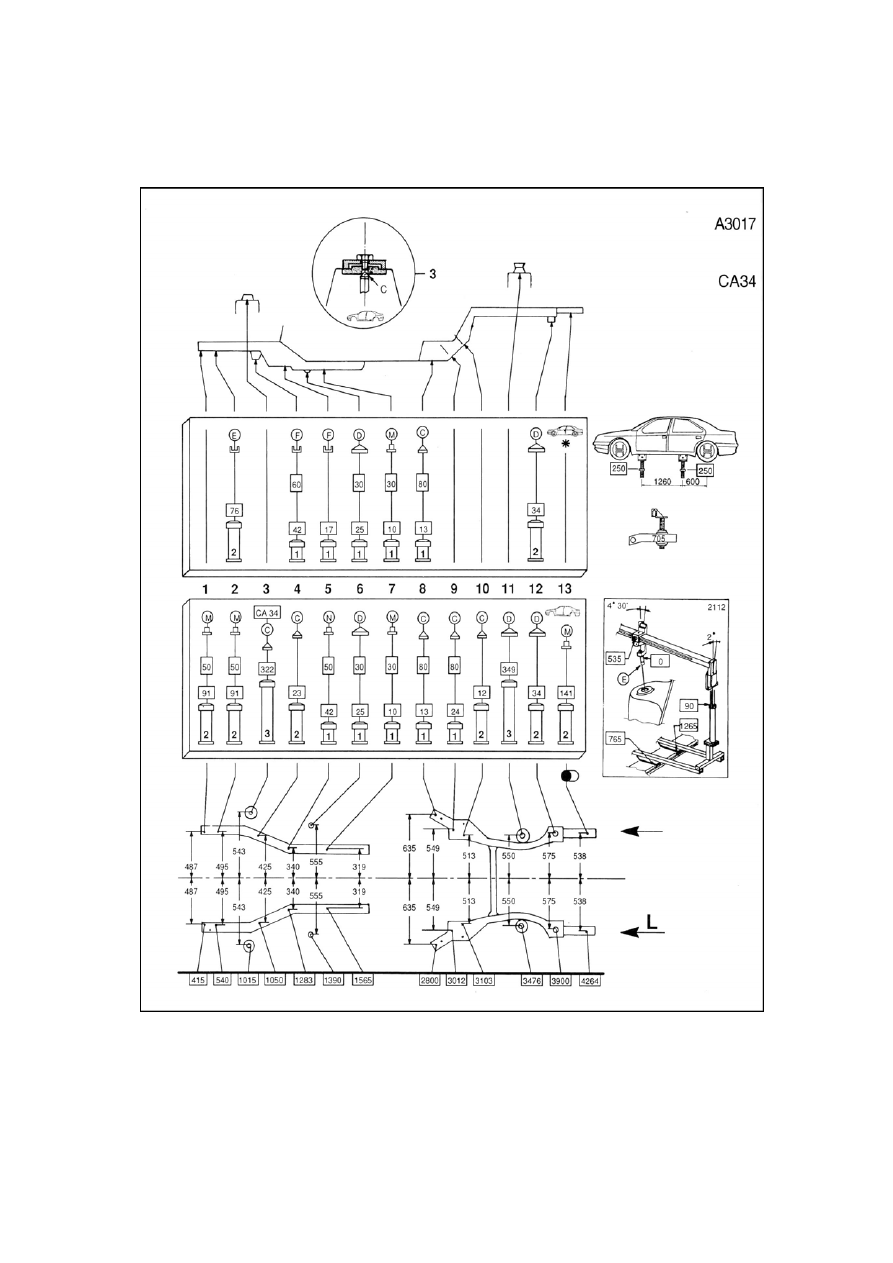

INSPECT THE BODY BY USING THE FRAMEWORK OF SPECIAL
MEASUREMENT SYSTEM












S-61

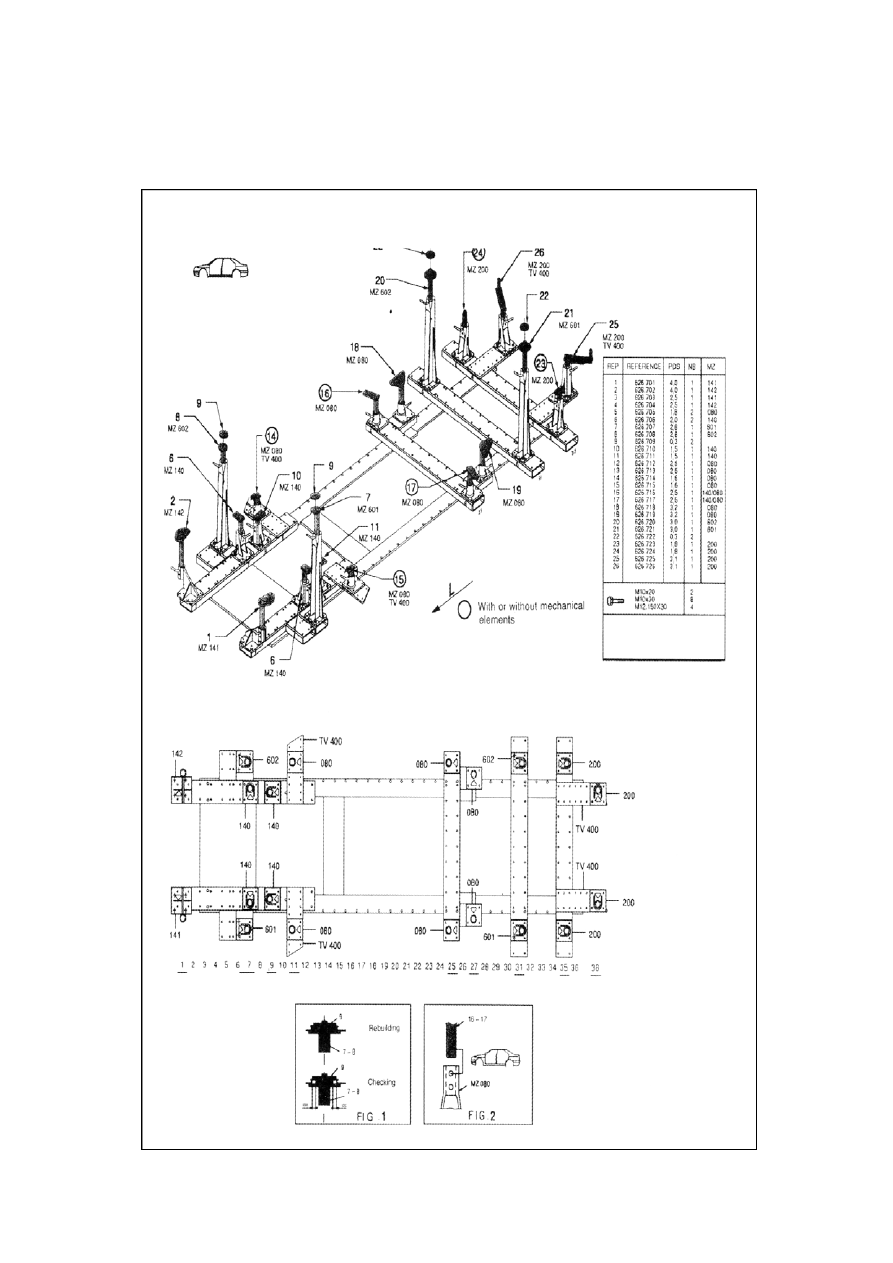

INSPECT THE BODY BY USING THE FRAMEWORK OF SPECIAL
MEASUREMENT SYSTEM (Fixed mechanical tools are to be used during inspection)


























































S-62
