TABLE FOR APPLICATION OF PUTTY ADHESIVE


Code

Applied Position

Material Model

5

- Joint of the Car Top and Side

D

6

- Joint between the Rear Door or the Edge of Tail Door
Plank and the Outer Frame

A

7

- Joint of the Rear Wheel House
- Reinforced Bracket for Rear Shock Absorber
- Assembly Section of Driving System

C

D

E

8

- Connecting Part between Rear Lining Board and the
Lining Board of Fender Shield
- Connecting Position between Rear Bracing Piece and
Outside the Floor Board

D



C



Front Exterior Area

A
B
C
D
E

AMV   162  000     PVC    Structural Glue
AMV   168  000     PVC    Reinforced Glue
AKR   303   P10    PVC     Multifunctional Putty Adhesive
AKD   473   K20            Sealing Putty Adhesive
AKD   466   000             Electronic Welding Adhesive





















S-55


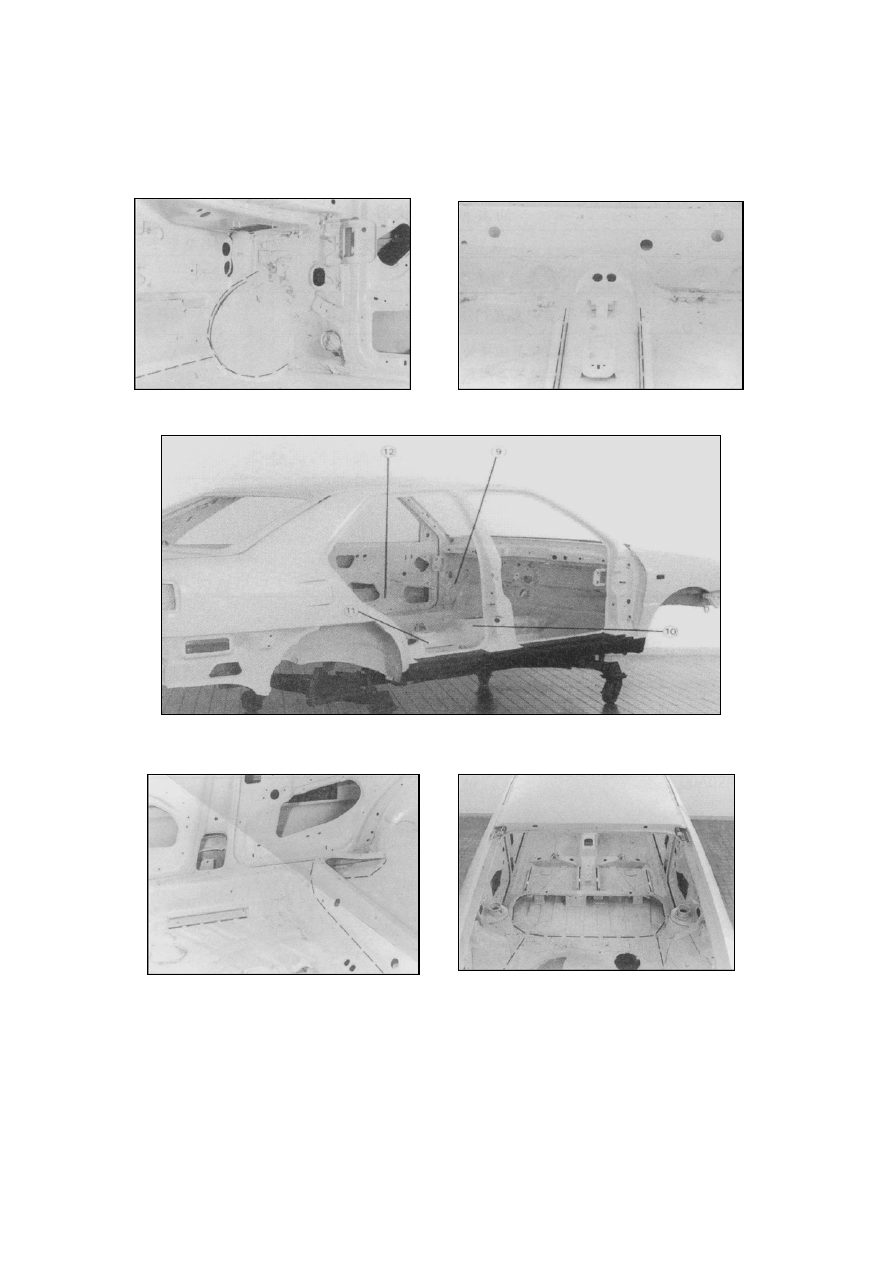

BODY INTERIOR SPRAY COATED WITH PUTTY ADHESIVE













































S-56


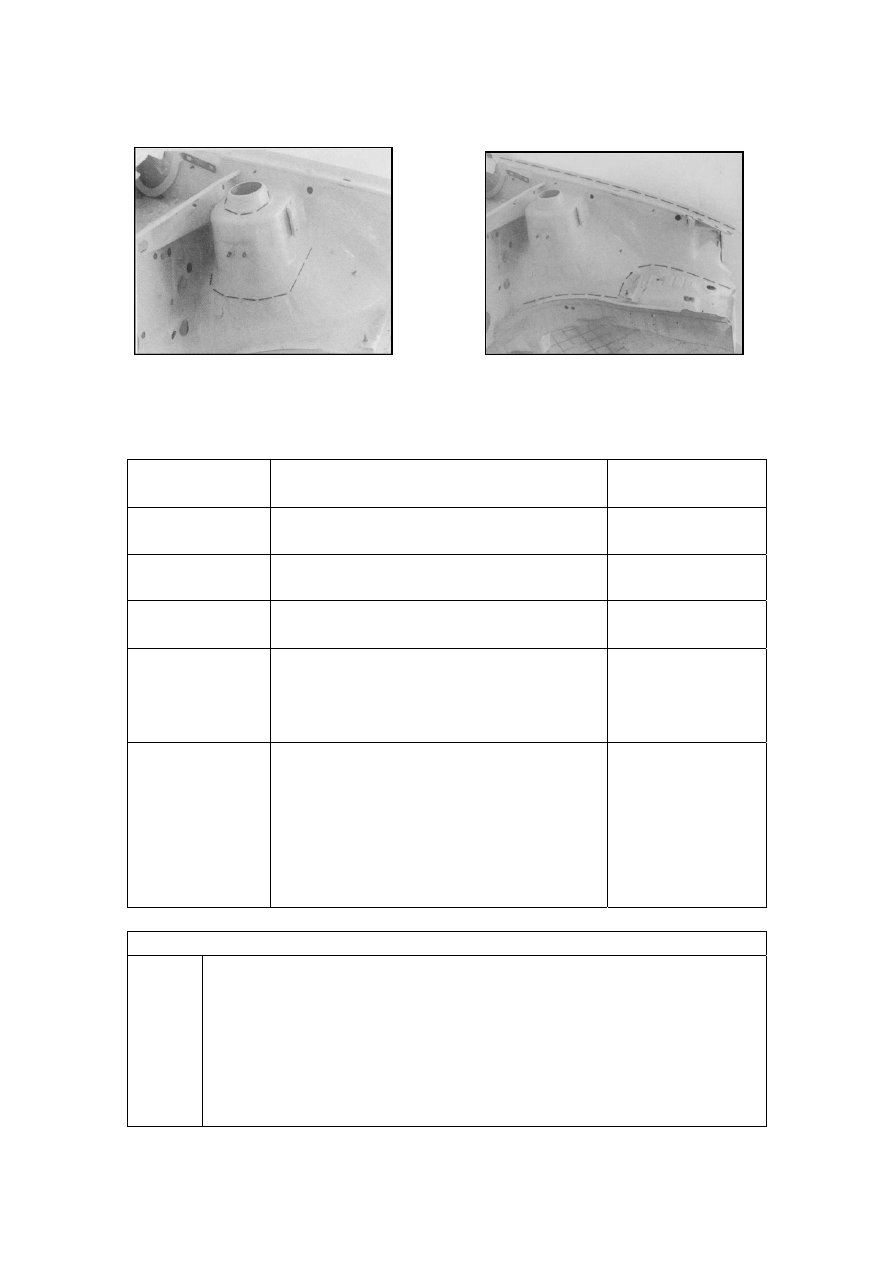

TABLE FOR APPLICATION OF PUTTY ADHESIVE



Code Applied

Positions

Material

Model

9

-Connecting Position between Body Control Lever
and Wheel House
-Connecting Position between Floor Board and Front
Instrument Panel

C



C

10

-Connecting Position between Floor Board, Shift
Lever and Center Reinforced Fitting (to be maintained
when necessary)

C

11

-Connecting Position between Sections of Brackets for
Front and Rear Chairs

C



12

-Inner-side Connecting Position between Rear Bracing
Piece and Floor Board
-Connecting Position between Floor Board and Center
Reinforced Fitting
-Connecting Position between Center and Rear Floor
Boards

C



 D



C



























S-57

















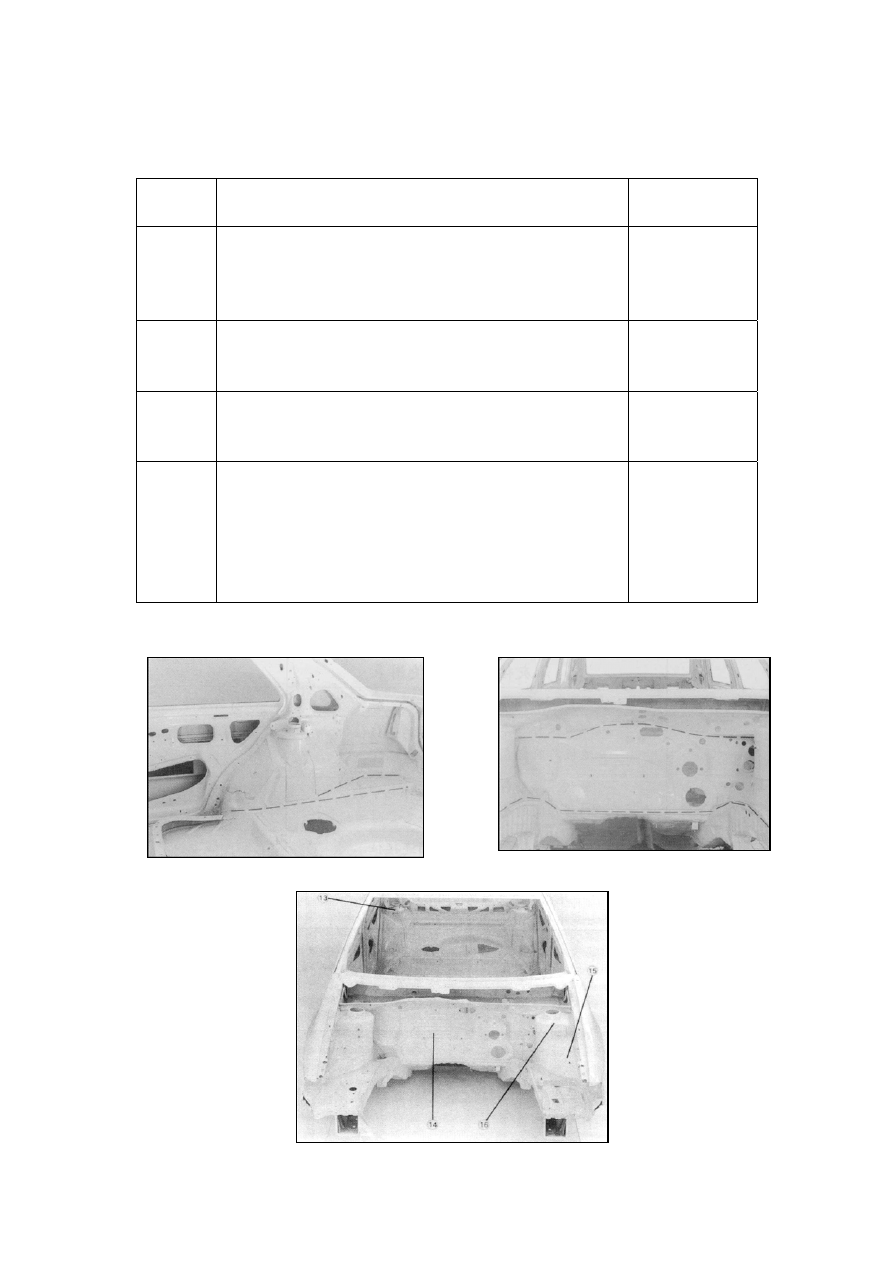

BODY FRONT INTERIOR SPRAY COATED WITH PUTTY ADHESIVE




Table for Application of Putty

Adhesive



Code

Applied Position

Material Model

13

-Joint of Roof Panel and Side Panel

D

14

-Joint of the Rear Door or the Tail Door
  Plank Edge with Outer Case

A

15

-Joint of the Rear Wheel House
-Reinforced Bracket for Rear Shock

Absorber

-Assembly Section of Driving System

C

D

E

16

-Connecting Position between Rear

Lining

  Plate and Lining Plate of Side Fender

Shield

-Connecting Position between Real

Bracing

  Piece and the Exterior of Floor Board

D

C



Front Exterior Area

A
B
C
D
E


AMV        162 000     PVC   Structural Glue
AMV        l68 000     PVC   Reinforced Glue
AKR        303 P10     PVC   Multifunctional Putty Adhesive
AKD        473 K20            Sealing Putty Adhesive
AKD        466 000            Electronic Welding Adhesive
