INPECT THE SPACE BETWEEN HINGES

WITH COLUMN B




Size Code   STD Value    Part Measured
A        360±0.5mm   Z-Directional

Distance of
Hinges with
Column B

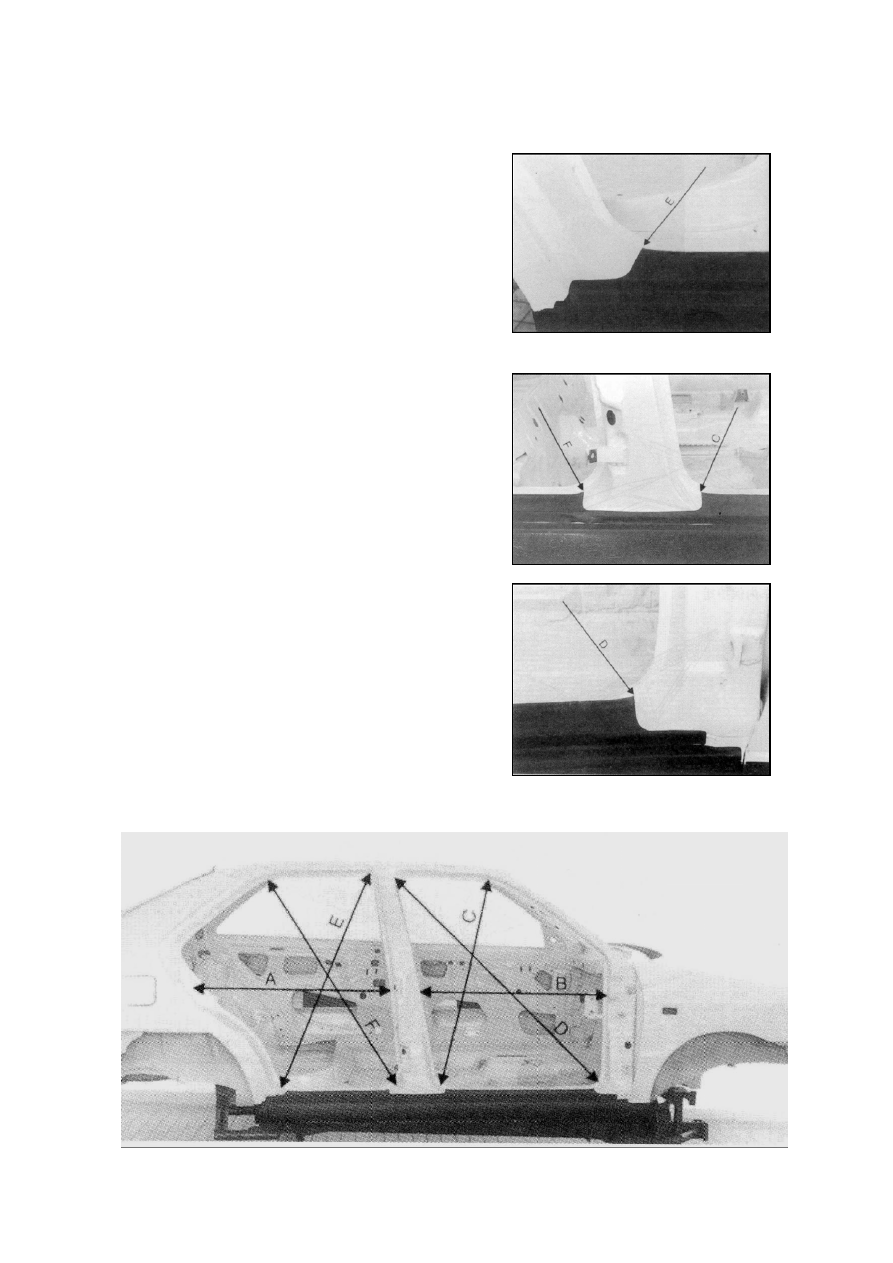

INSPECT THE OPENING SIZES OF
FRONT DOOR & REAR DOOR

Size Code  STD Value  Part Measured

A          938±1mm      Space between

Column B and the
Installation Position
of Locking Column
with Fender

B          950±1mm      Space between

Column A and the
Installation Position
of Locking Column
with Column B

C       1008±2mm      Opening of Front

Door

D       1292±2mm      Opening of Front

Door

E      1074±2mm      Opening of Rear

Door

F       1140±2mm      Opening of Rear

Door



S-47







































S-48

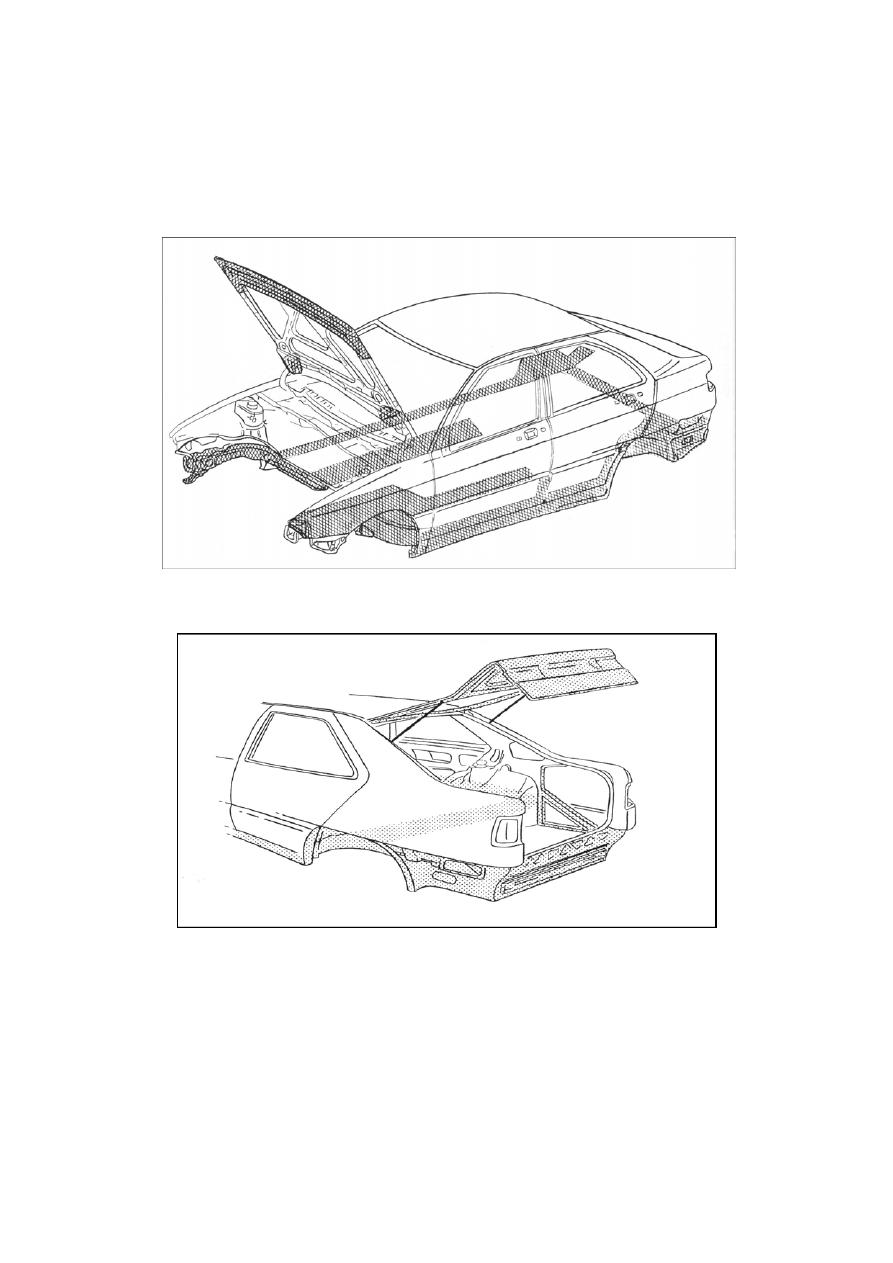

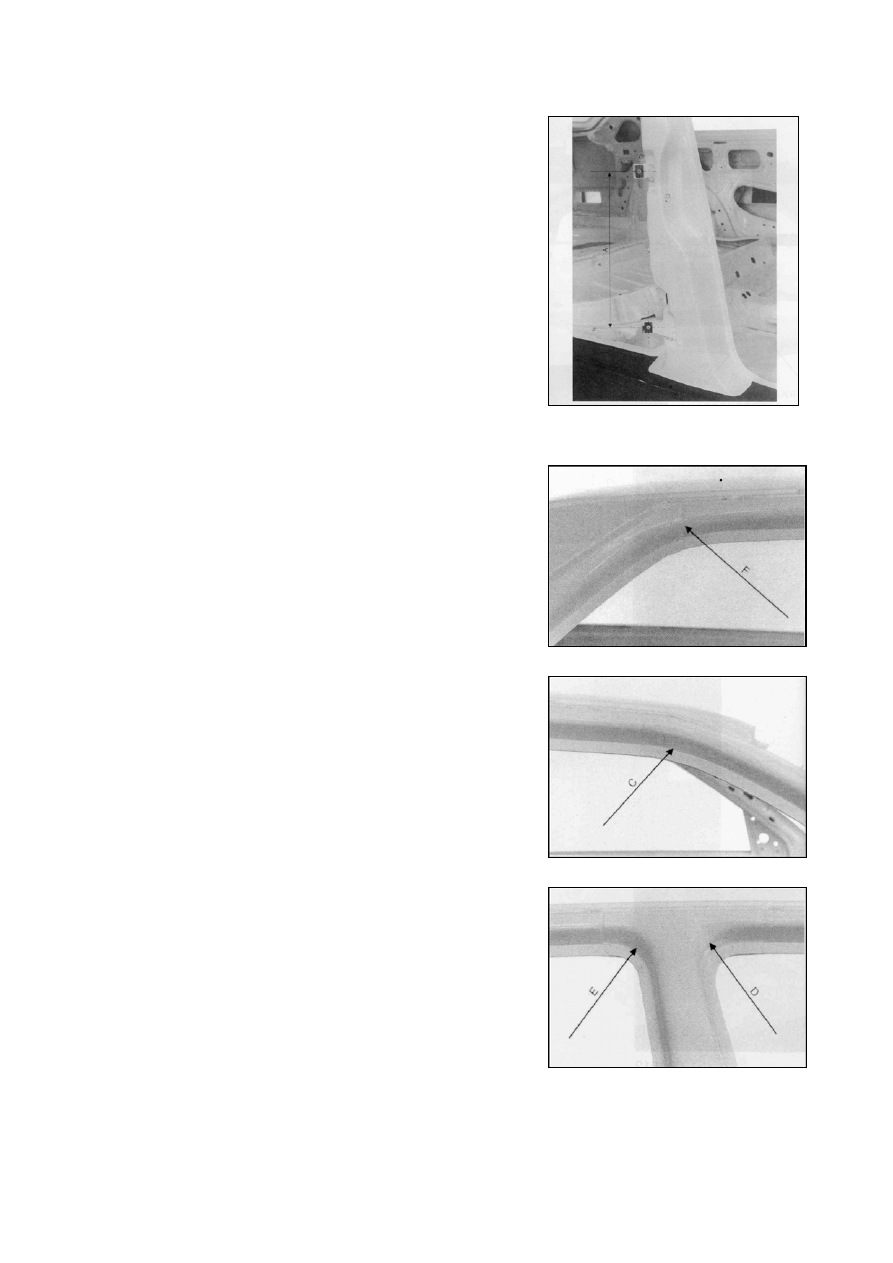

PROTECTION WAX INSIDE CAR

Protection wax at openings contains 60% solid solution, and is coated in an immersion
method at 120

.

℃











































S-49

PROTECTION WAX OUTSIDE CAR

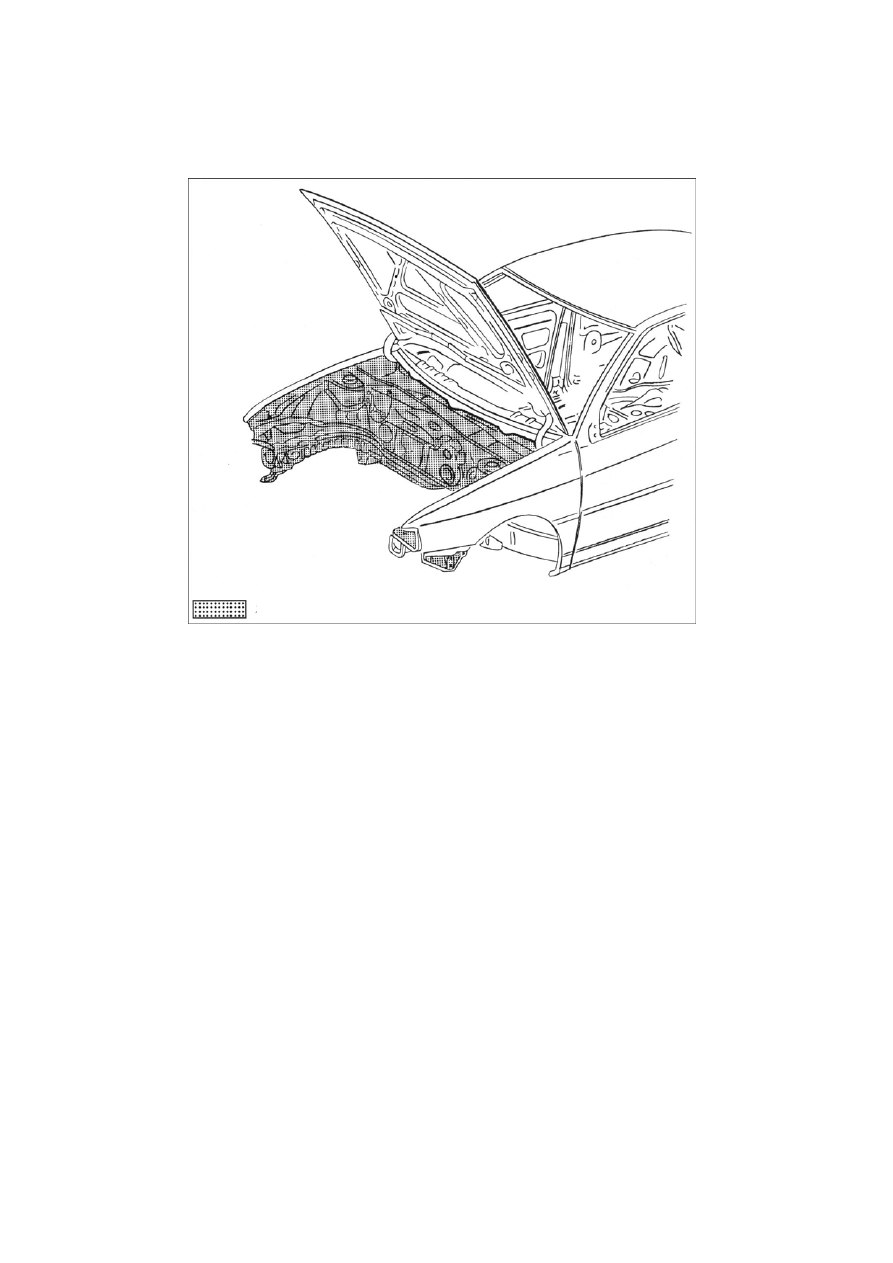

Protection Wax for Engine Compartment




OUTSIDE PROTECTION WAX





















DIAGNOSIS OF DAMAGES WITH CAR



When a damaged vehicle is maintained, if damage is not found with chassis or suspension,
then it could lead to more serious damage or breakage in the future. If a big distortion has
occurred with chassis in the accident, then, besides measurement of axles and different fixing
positions stipulated in this Chapter, the following parts are also to be tested.

1. Steering system and steering clutch manipulating system: Check if the functions between
locks are normal or not, and if there exists any distortion or breakage or not.

2. Chassis: Check if there is any distortion or breakage with steering arm, general assembly
of shock absorber, double-headed studs, stabilizer bar, bracing piece, or fasteners of engine,
or not.

3. Wheelbase and tyre: Check if there is any damage, and if there is any unbalance or
mismatching or not; check if any profile or wall is cut off or not; and check the air pressure
inside the tyres.

Engine mounting, transmission case, and exhausting system: Check if there is any wear and
tear or not.

Finally, sufficient driving test will ensure a good condition of vehicles for them to be
delivered to customers without question.
