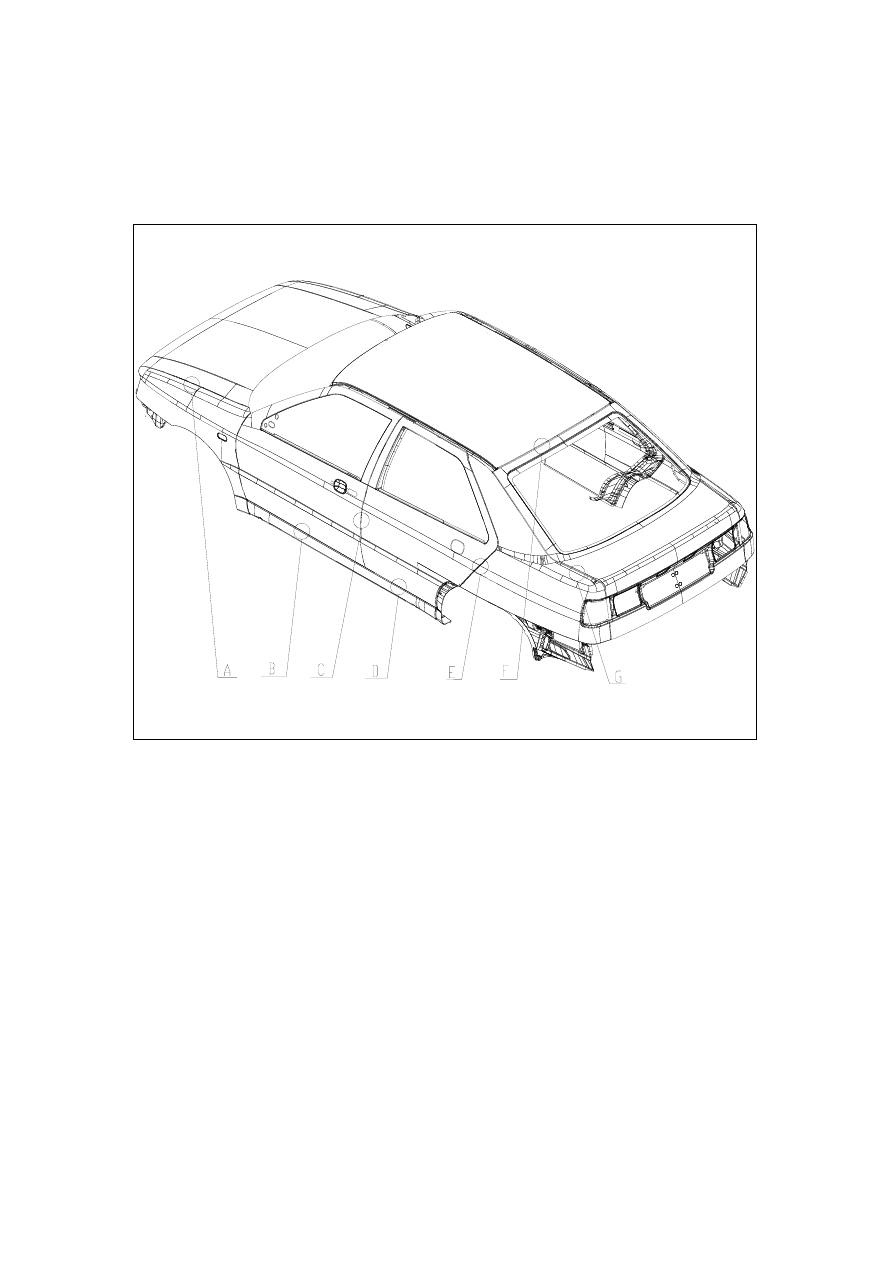

SIZE ADJUSTMENT FOR MOVABLE PARTS
To facilitate test and re-installation of the body moveable parts, the correct clearances of
these parts after adjustment are listed below.




























TEST DATA

A=4±0.5    B=6.5±1    C=4±0.5    D=6.5±1    E=4±0.5      F=7.5±1    G=4±0.5












S-43

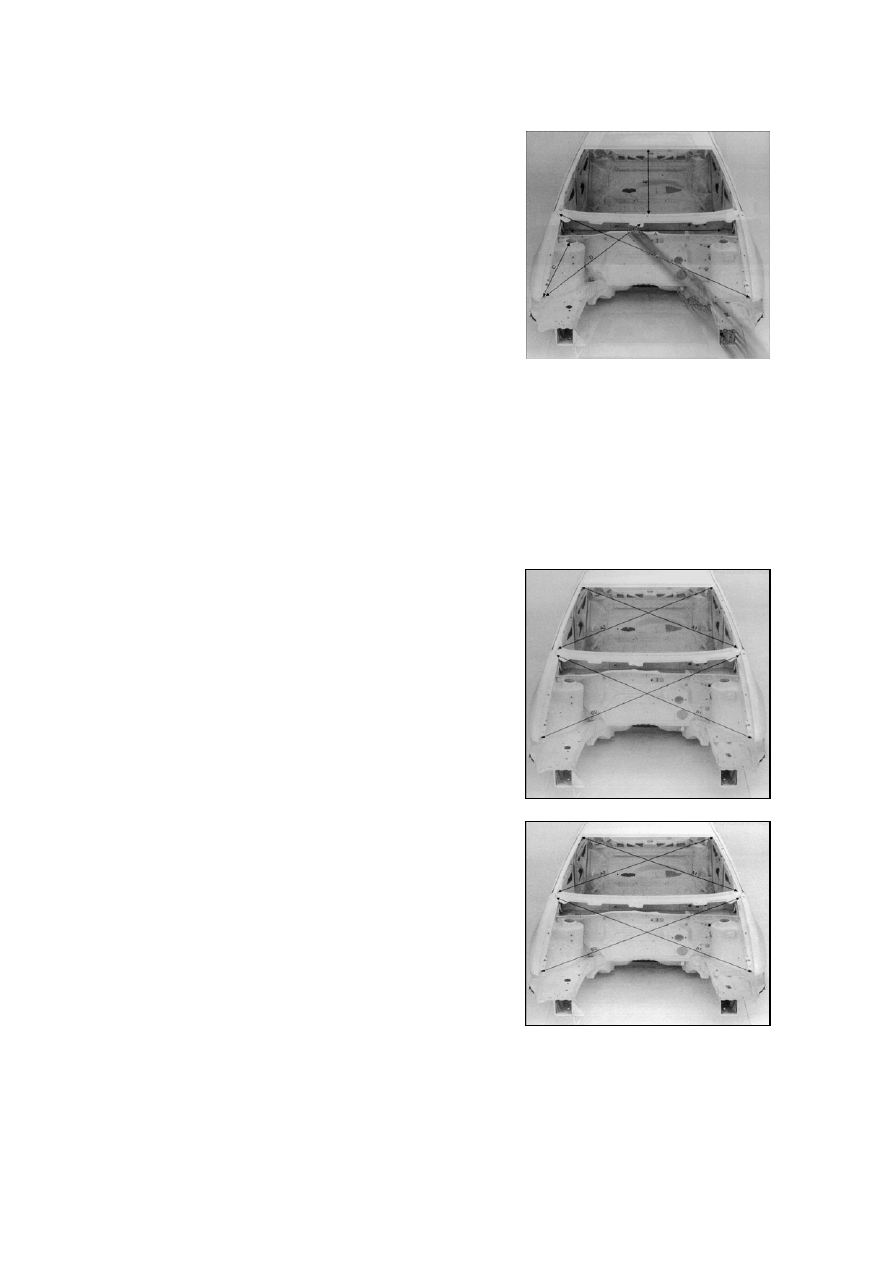

OPENING SIZE OF ENGINE
COMPARTMENT AND WINDSCREEN



Size Code   STD Value   Part Measured
A1090     ±2mm   Front Mount

Installation Center

B1550      ±2mm   Diagonal Line

between Fixing
Bolts of Fenders

C628        ±2mm   Space between

Mount Installation
Center and Fender

D997         ±2mm       Space between

Center of Fire Wall
and Fixing Bolts of
Fender

E731      ±2mm      Opening of

Windscreen




Inspect length of diagonal lines of engine
compartment and diagonal lines of the outer
frame of windscreen.
The values of a group of diagonal lines should
be equal:
A1=A2；                    B1=B2



























S-44

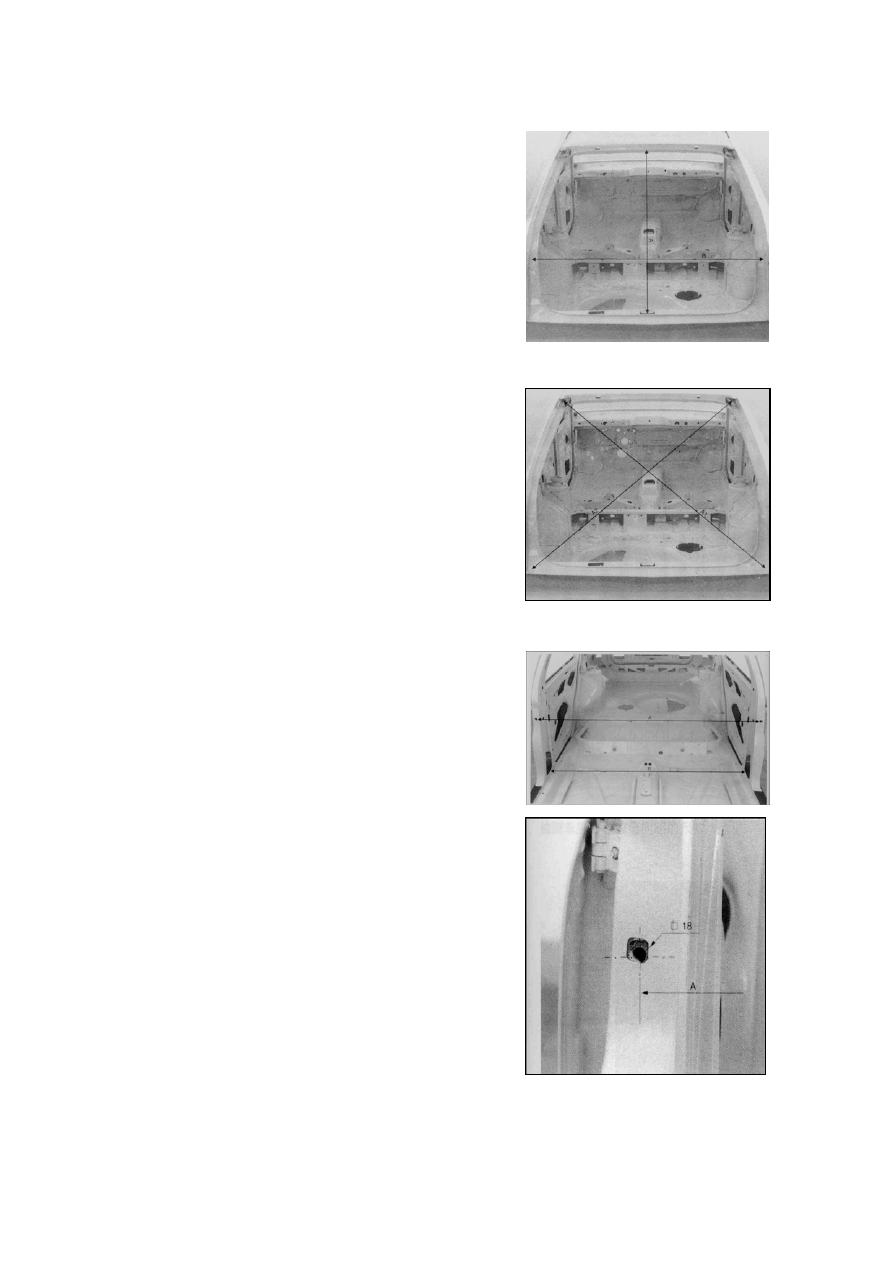

Size Code  STD Value   Part Measured
A        1235±2mm    Opening of Boot
B     1142±2mm     Y-Directional

Distance of Boot






Inspect the length of diagonal lines in the outer
frame of luggage boot.
Values of a pair of diagonal lines should be
equal:
A1=A2；













INSPECT THE SPACE BETWEEN
COLUMN B & COLUMN C




Size   Code STD    Value Part Measured
A     1484±2mm   Y-Directional Space of
Installation

Positions for Locking
Column of Column B

B     1365±2mm   Y-Directional Space of

Fixing Seats for Safety
Belts with Front Seats


C     1098±2mm   Y-Directional Space of
Rear Mount




                    Installation Center

Positions
D    1459±2mm    Y-Directional Space of

Installation Positions
for Locking Columns
of Real Fender







S-45









































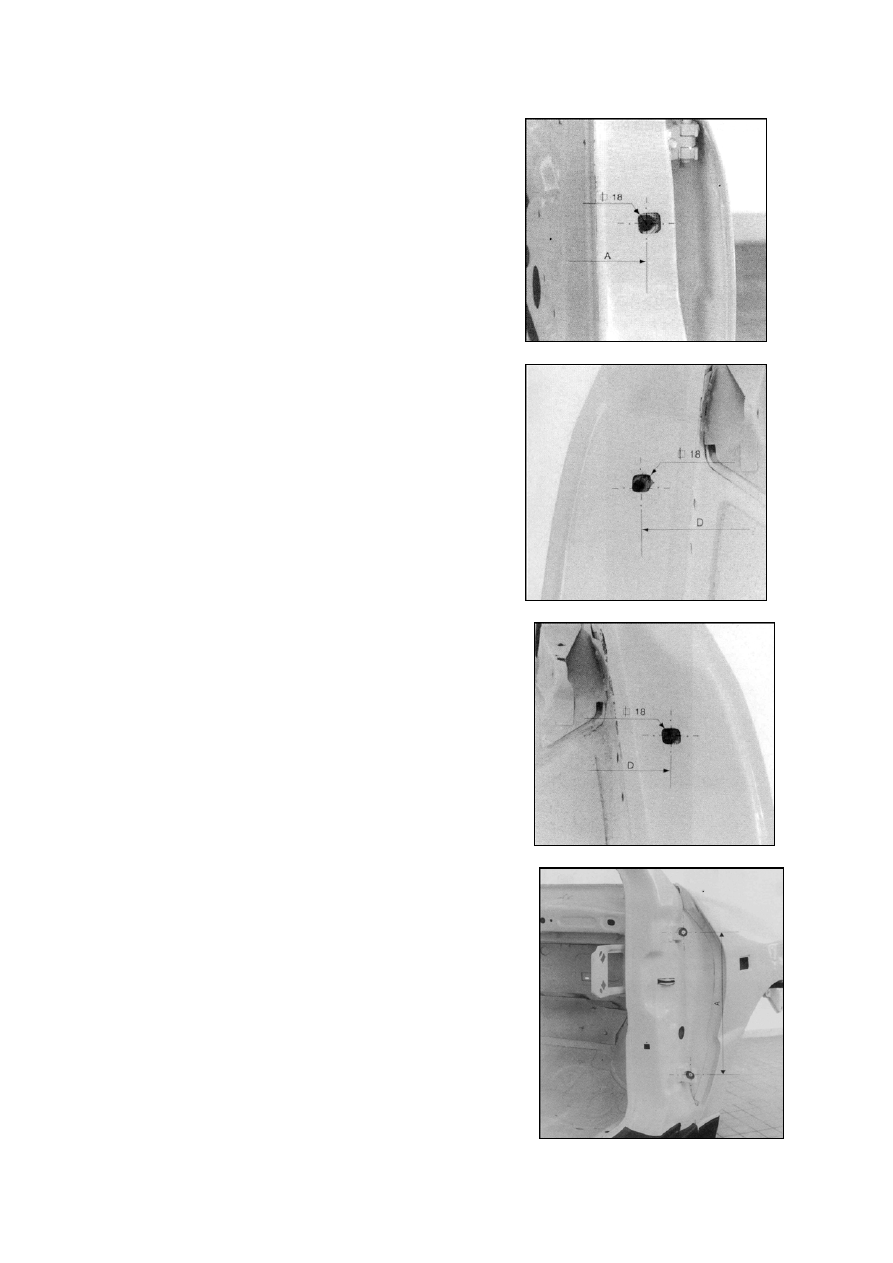

INSPECT THE SPACE BETWEEN
HINGES OF COLUMN A





Size Code   STD Value    Part Measured

A   360±0.5mm   Z-Directional Distance

of Hinges with
Column A






S-46
